Model Whirlpool RS313PXTT0 – Common Parts & Diagrams
04 - OVEN DOOR AND BROILER
02 - EXTERNAL OVEN, LIT/OPTIONAL

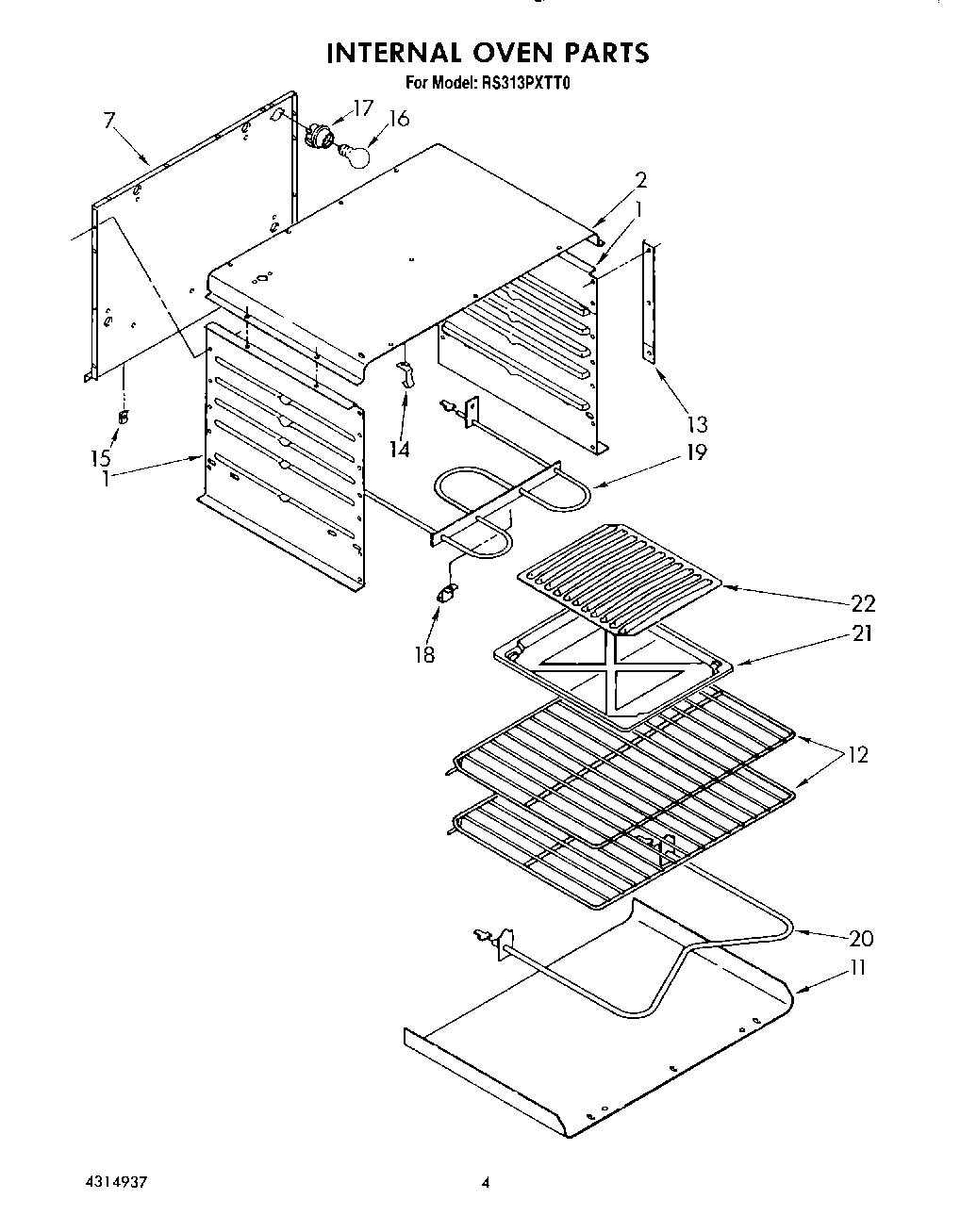

03 - INTERNAL OVEN

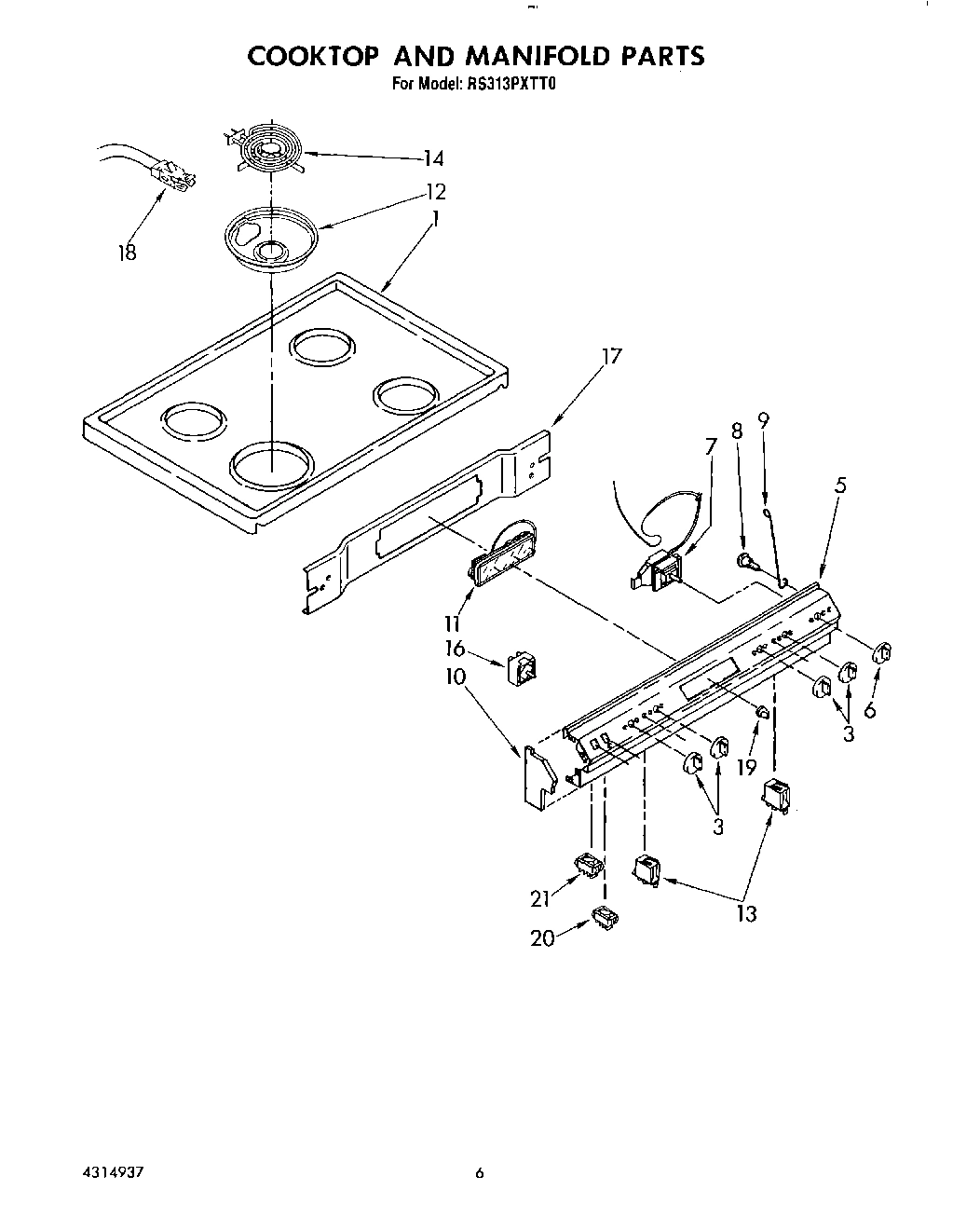

05 - COOKTOP AND MANIFOLD
Common parts from model Whirlpool RS313PXTT0
Guide, Cooking WPL LIT313358 Contact Us For Availability
Guide, Use & Care WPL LIT4314827 Contact Us For Availability
Instuctions, Installation WPL LIT4314829 Contact Us For Availability
List, Repair Parts WPL LIT4314937 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4157130 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4157962 Contact Us For Availability
1
Cooktop (Chrome) WPL 4314944 Contact Us For Availability
2
Frame, Front WPL 4157002 Contact Us For Availability
2
Liner, Oven Top WPL 4314957 Contact Us For Availability
3
Knob, Burner (4) WPL 4179304 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Panel, Manifold WPL 4314947 Contact Us For Availability
6
Track (Right) WPL 4157999 Contact Us For Availability
6
Support, Rear (2) WPL 4157012 Contact Us For Availability
6
Knob, Thermostat WPL 4179305 Contact Us For Availability
7
Liner, Door WPL 4157036 Contact Us For Availability
7
Liner, Oven Back WPL 4314956 Contact Us For Availability
7
Thermostat WPL 4314949 Contact Us For Availability
8
Ring, Hold Down WPL 4157031 Contact Us For Availability
8
Screw WPL 4157018 Contact Us For Availability
9
Insulation WPL 4157033 Contact Us For Availability
9
Panel, Rear WPL 4157015 Contact Us For Availability
9
Rod, Support WPL 4157010 Contact Us For Availability
10
Panel, Drawer (Black) WPL 4314953 Contact Us For Availability
10
Burner Box WPL 4314939 Contact Us For Availability
10
Endcap (R.H.) WPL 4314980 Contact Us For Availability
10
Endcap (L.H.) WPL 4314981 Contact Us For Availability
11
Bottom, Oven WPL 4314941 Contact Us For Availability
11
Clock WPL 4314950 Contact Us For Availability
12
Glass WPL 4157885 Contact Us For Availability
12
Hinge. Door (2) WPL 4157023 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Rack, Oven (2) WPL 4157102 Contact Us For Availability
13
Support WPL 4157037 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4157948 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Light, Indicator (4) WPL 4314951 Contact Us For Availability
14
Window WPL 4157032 Contact Us For Availability
14
Seal, Door (Top) WPL 4314948 Contact Us For Availability
14
Unit, Surface (6``) WPL 4157979 Contact Us For Availability
14
Unit, Surface (8``) WPL 4157980 Contact Us For Availability
15
Handle WPL 4157028 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Frame, Door WPL 4157029 Contact Us For Availability
17
Bumper (4) WPL 4157128 Contact Us For Availability
17
Receptacle WPL 4157020 Contact Us For Availability
17
Mounting Bracket WPL 4314915 Contact Us For Availability
18
Spacer (2) WPL 4314916 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
18
Support, Broil Element WPL 4157967 Contact Us For Availability
19
Handle WPL 4157208 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
19
Knob, Clock (3) WPL 786434 Contact Us For Availability
20
Plate (2) WPL 4157131 Contact Us For Availability
21
Support, Glass (Left Hand) WPL 4157034 Contact Us For Availability
21
Support, Glass (Right Hand) WPL 4157035 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Grid WPL 4157047 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Tube, Vent WPL 4314952 Contact Us For Availability
26
Channel WPL 4157964 Contact Us For Availability
27
Support WPL 4157965 Contact Us For Availability
29
Cover, Rear WPL 4314942 Contact Us For Availability
30
Cover, Wire WPL 4314954 Contact Us For Availability
31
Cover, Rear WPL 4314943 Contact Us For Availability
32
Shield, Insulation WPL 4157325 Contact Us For Availability
33
Bracket, Mounting (R.H.) WPL 4314911 Contact Us For Availability
33
Bracket, Mounting (L.H.) WPL 4314912 Contact Us For Availability
34
Stud, Locator WPL 4314933 Contact Us For Availability
35
Disc, Thermo WPL 4179130 Contact Us For Availability
36
Back, Bar WPL 4314955 Contact Us For Availability
37
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
37
Bracket, Top Support WPL 4314910 Contact Us For Availability
× ![]()
