Model Whirlpool RS25AWXZL00 – Common Parts & Diagrams
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT
03 - REFRIGERATOR LINER

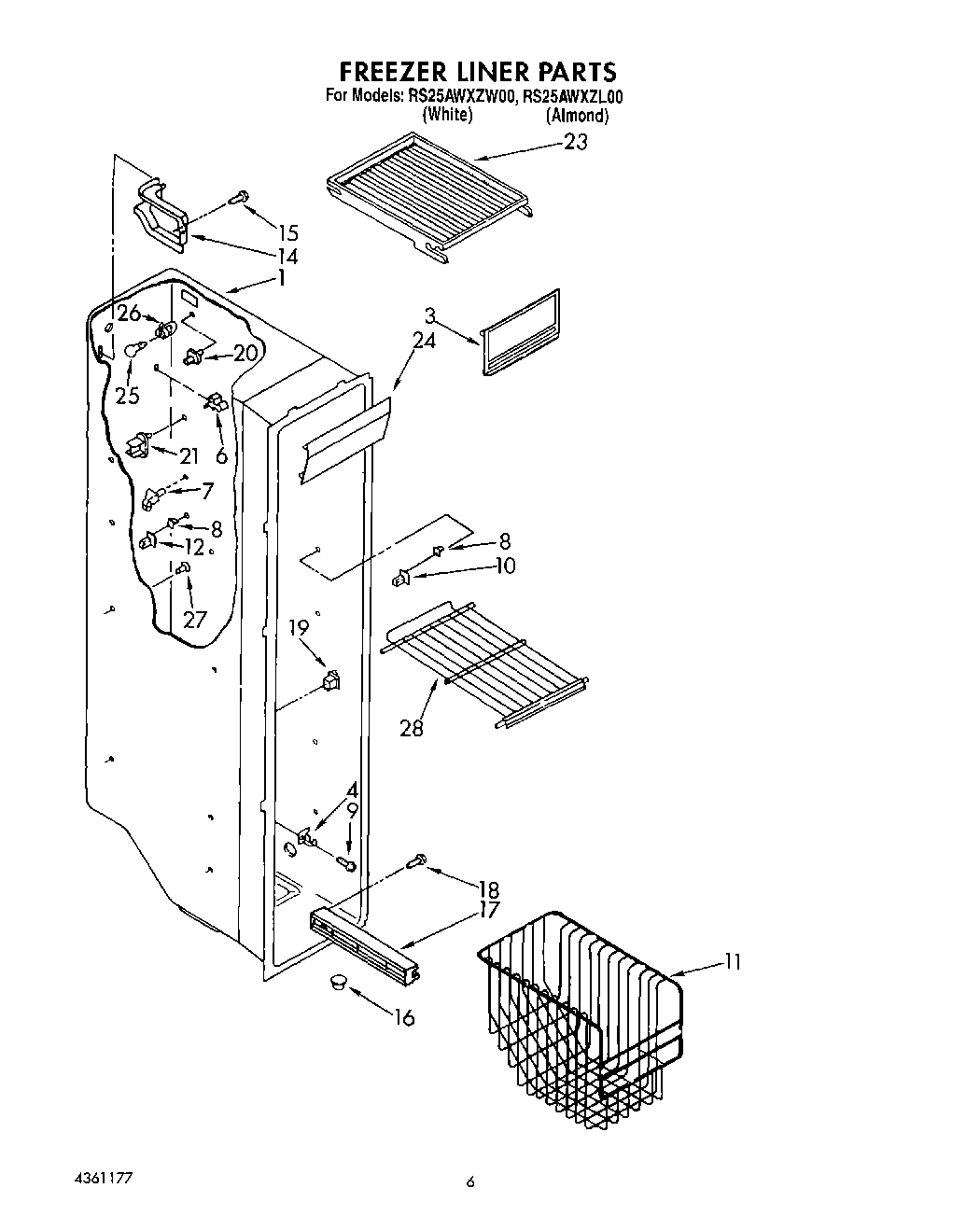

05 - FREEZER LINER

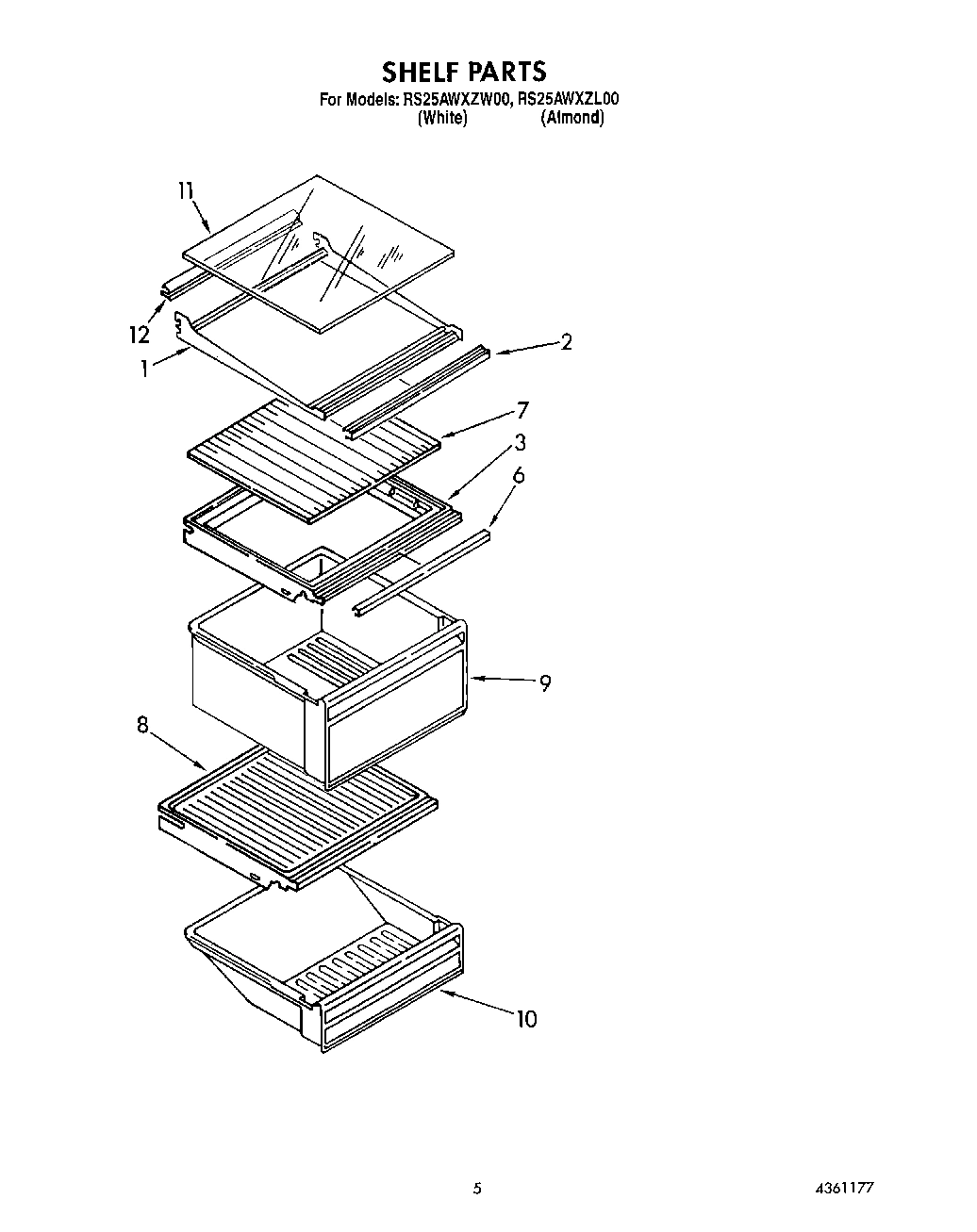

04 - SHELF

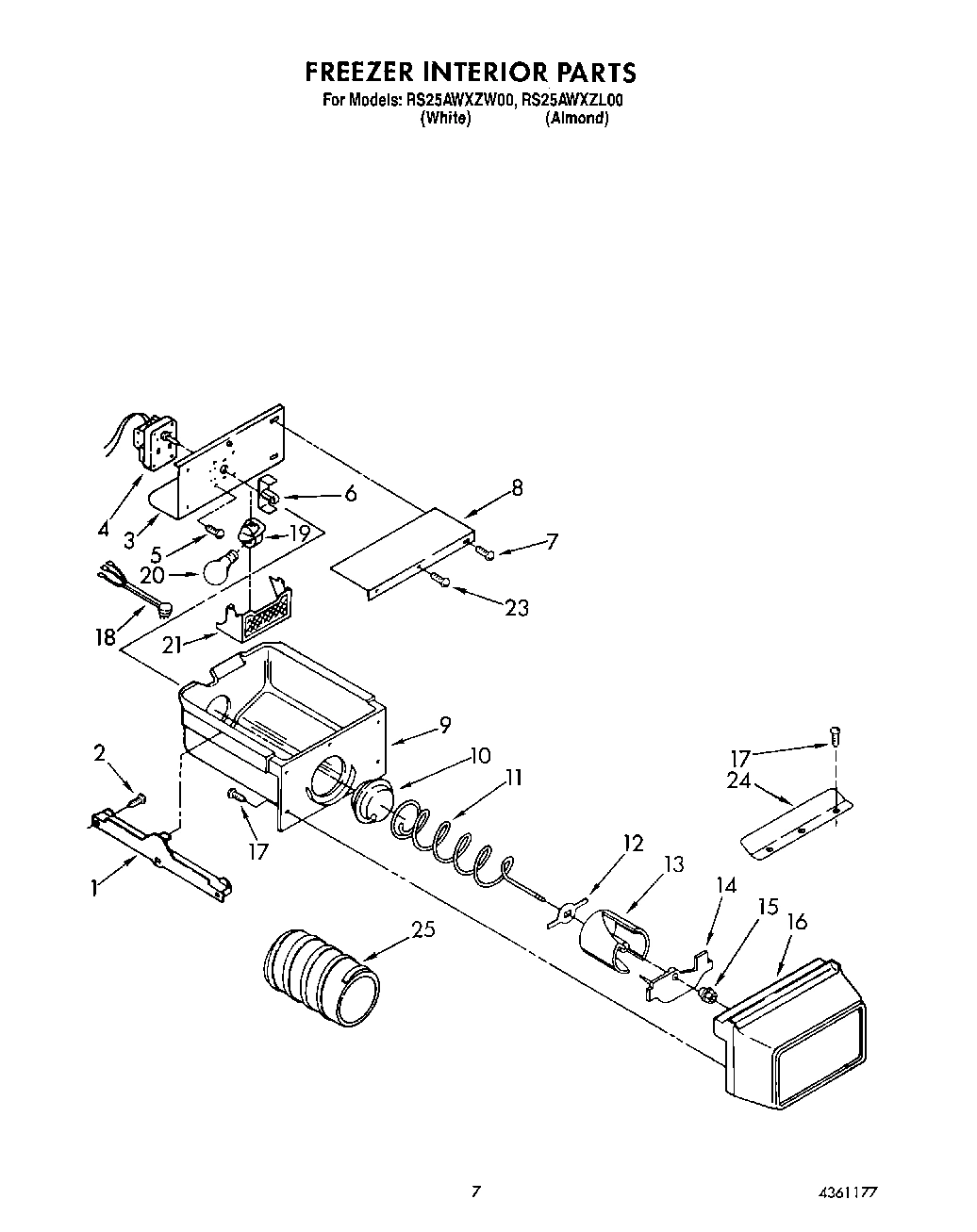

06 - FREEZER INTERIOR

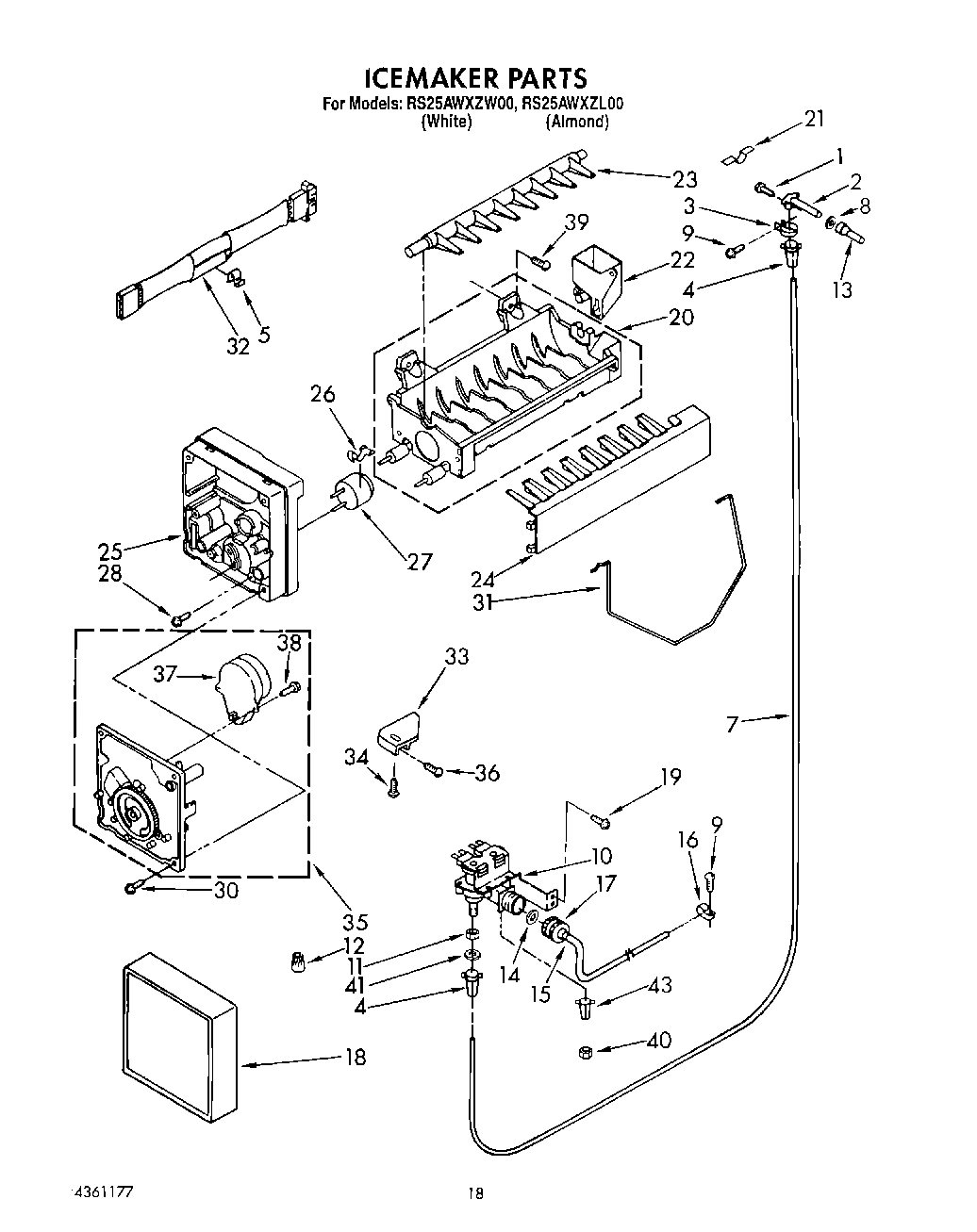

13 - ICEMAKER, LIT/OPTIONAL

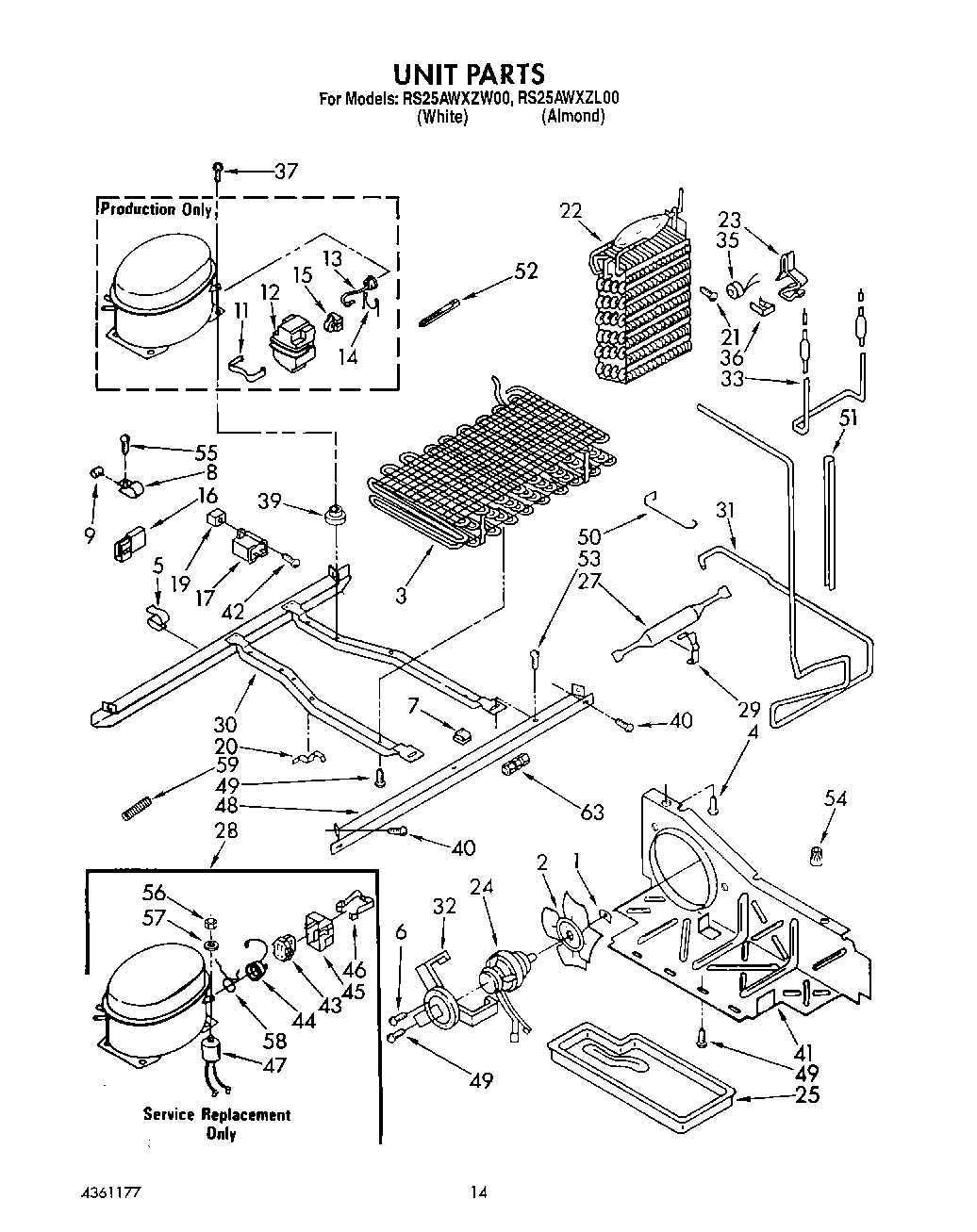

10 - UNIT

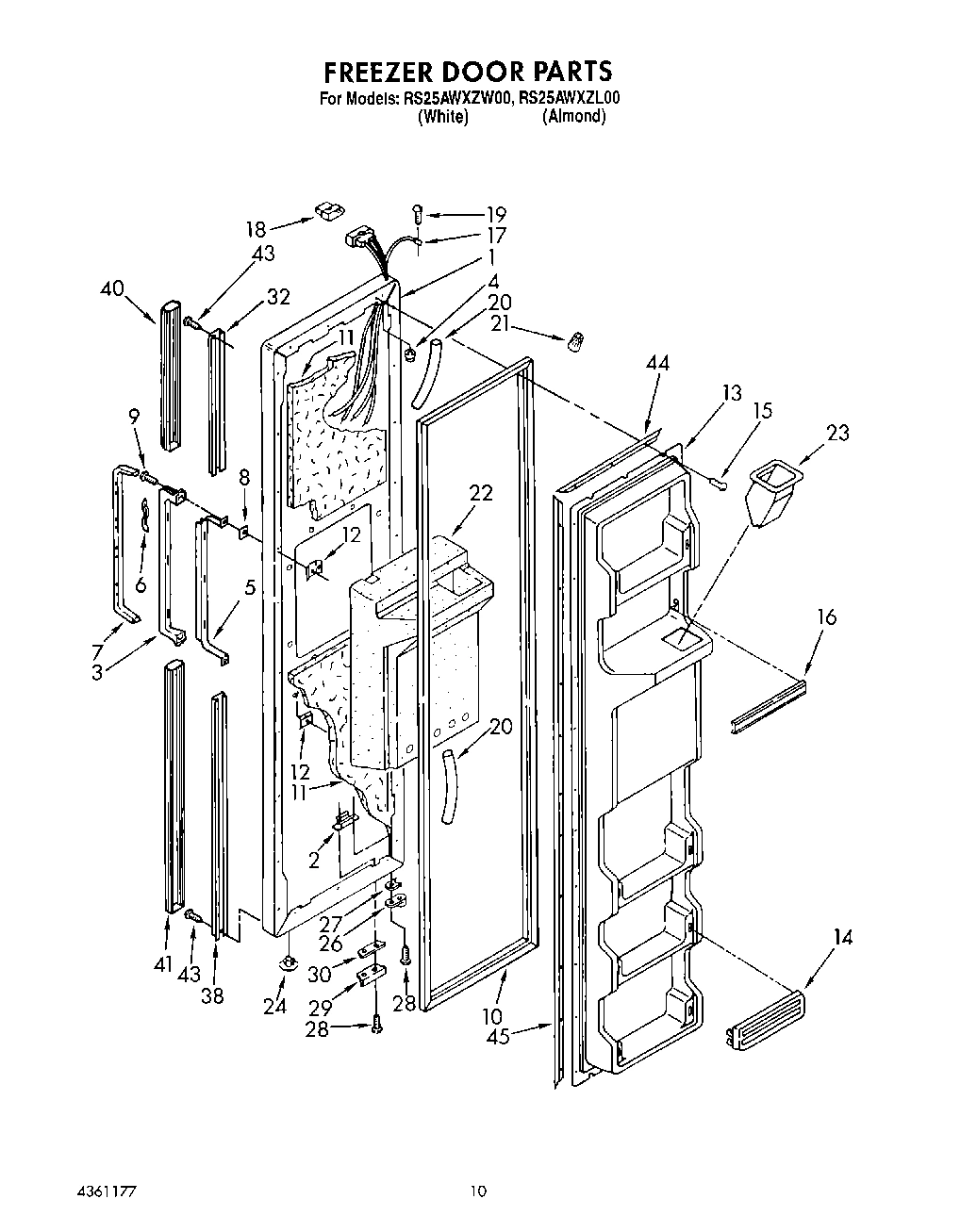

08 - FREEZER DOOR

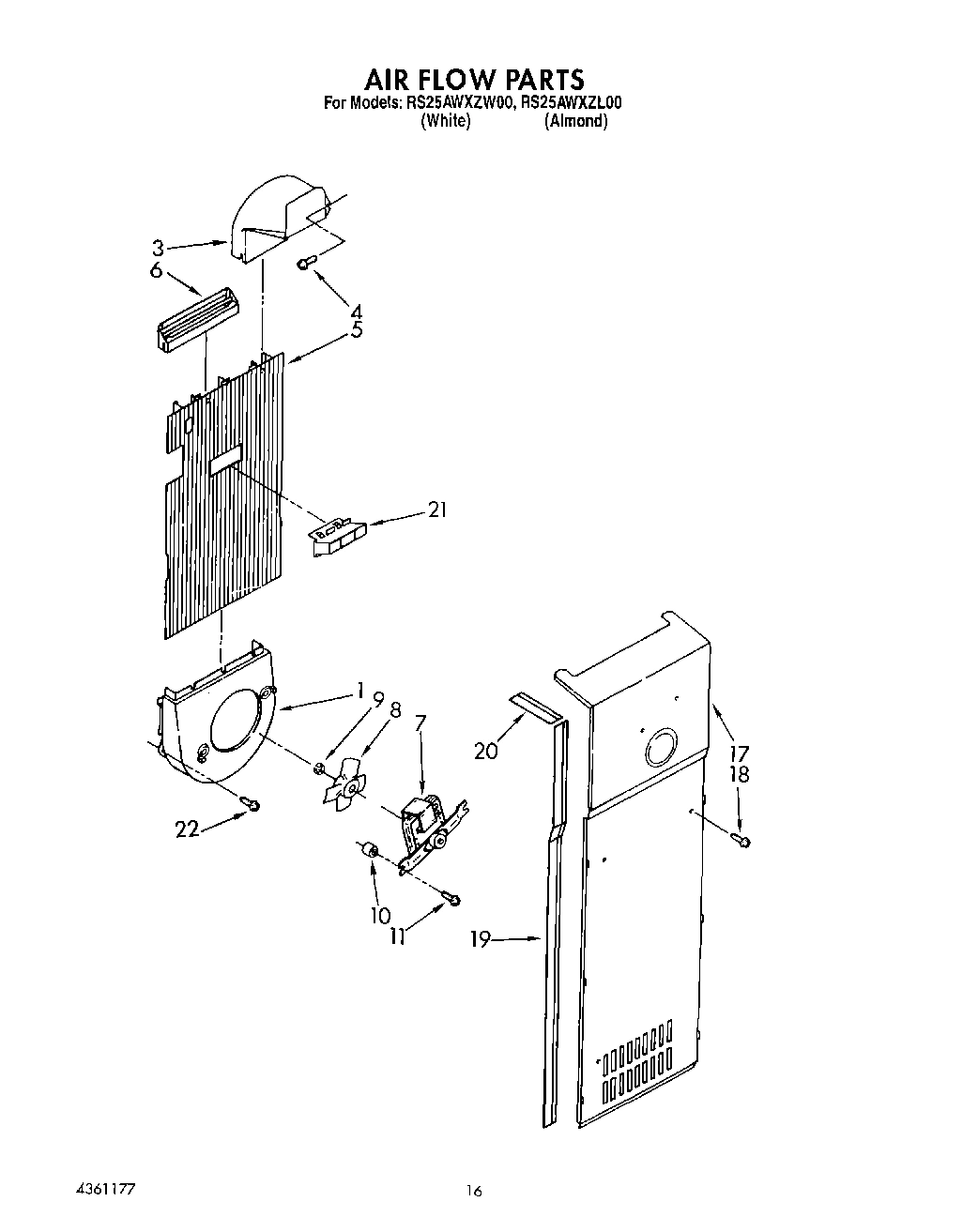

11 - AIR FLOW
12 - CONTROL

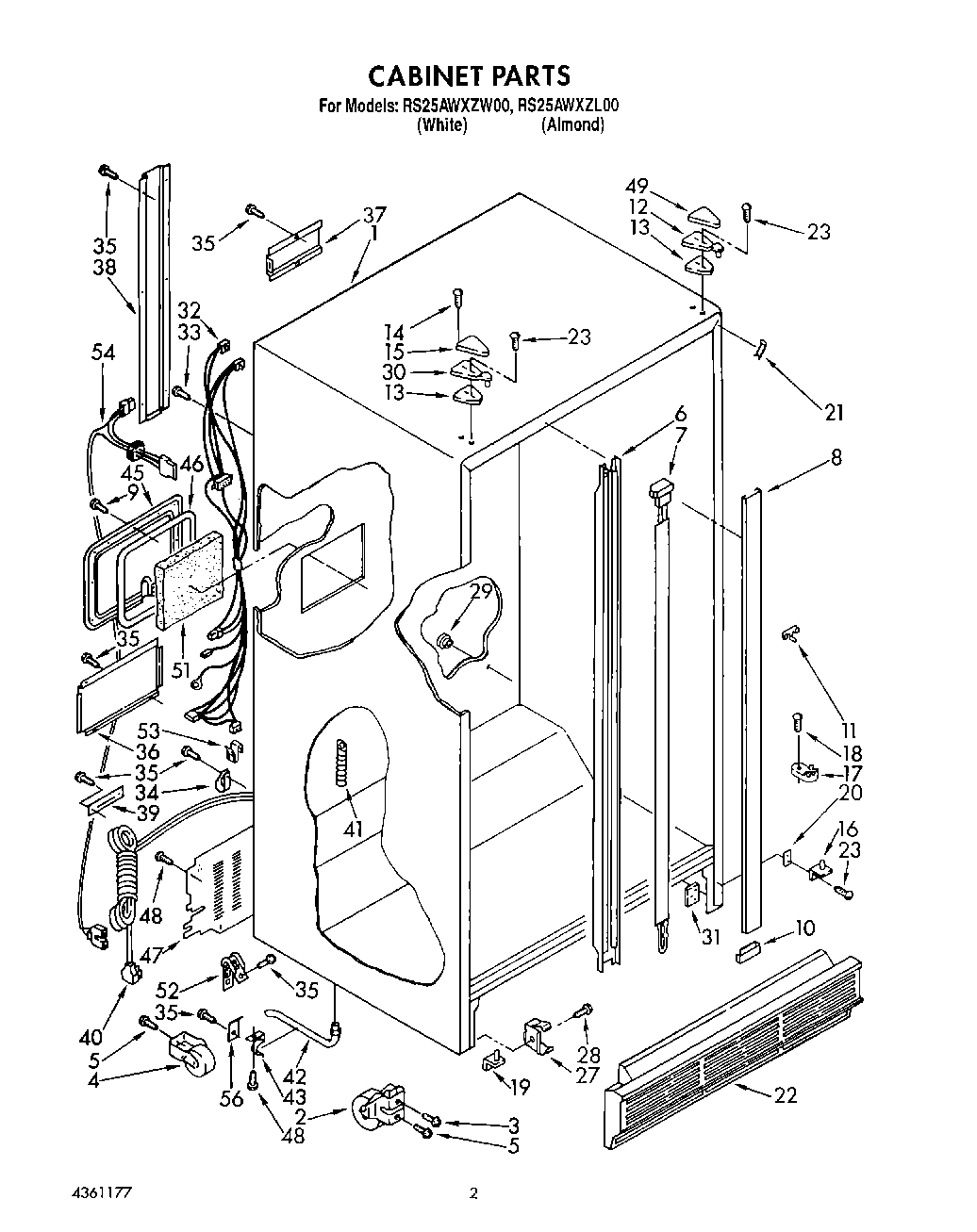

02 - CABINET
Common parts from model Whirlpool RS25AWXZL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2149928 WPL LIT2149928 Contact Us For Availability
WPL LIT2150287 WPL LIT2150287 Contact Us For Availability
WPL LIT2152574 WPL LIT2152574 Contact Us For Availability
WPL LIT4361177 WPL LIT4361177 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124435A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124436A Contact Us For Availability
1
Shelf Assembly, Cantilever WPL 1118413 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147504 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147506 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Control Box WPL 2152113 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI124434A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Trim, Shelf WPL 1124421 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Front Roller WPL 2152011 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1124529 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Handle WPL 1127464 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Screw, 5/16 x 1 WPL 489333 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Motor WPL 851152 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
5
Air Duct Freezer WPL 2157550 Contact Us For Availability
5
Switch, Lighted Power Miser WPL 1106601 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Clip, Handle (3) WPL 849445 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Mullion Rail WPL 2155016 Contact Us For Availability
7
Stud WPL 1116733 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Glass, Crisper Cover WPL 1124419 Contact Us For Availability
7
Clip, Water Line (3) WPL 934011 Contact Us For Availability
7
Insert, Handle WPL 2147581 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Shim, Handle (2) WPL 2147097 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123972 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123975 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Pan, Meat WPL 1124533 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1127308 Contact Us For Availability
10
Fan Grommet WPL 1114354 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Glass, Shelf WPL 1124532 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Screw (2) Harness WPL 489168 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Retainer, Glass WPL 1125594 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge WPL 1123515 Contact Us For Availability
13
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Overload WPL 2154408 Contact Us For Availability
13
Panel, Interior Door WPL 1129231 Contact Us For Availability
14
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Trim, Door Shelf WPL 1124525 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw, Hinge WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Stud, Spacer WPL 1129178 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Relay (Order Overload To Obtain Relay Key No. WPL ARI124437A Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
16
Spring, Lever WPL 983696 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Front Cover WPL 1124531 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Trim, Door Shelf WPL 1124524 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1116960 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149942 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 2157554 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Gasket, Evaporator Cover Top WPL 1110676 Contact Us For Availability
20
Control Box Harness WPL 2154838 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim WPL 836196 Contact Us For Availability
21
Stud, Shelf WPL 1115386 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
Insulation, Dispenser WPL 1115345 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129054 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Deflector, Ice Container WPL 1119043 Contact Us For Availability
24
Hole Plug (White) WPL 534927 Contact Us For Availability
24
Hole Plug (Almond) WPL 989197 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 1123999 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Shelf (3) WPL 1116956 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317962 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
29
Grommet WPL 1115288 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
31
Tap Plate WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Retainer (Top) WPL 2147895 Contact Us For Availability
32
Cabinet Harness WPL 2149745 Contact Us For Availability
33
Heater, Defrost WPL 2154543 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
38
Wiring Shield, Long WPL 1119063 Contact Us For Availability
39
Tube Clamp WPL 1105607 Contact Us For Availability
40
Nut, Compression 5/16`` WPL 1129179 Contact Us For Availability
40
Extension (Top) WPL 1127470 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
``O`` Ring WPL 488794 Contact Us For Availability
41
Extension (Bottom) WPL 1127473 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
43
Insert, Tube WPL 1129177 Contact Us For Availability
44
Retainer, Gasket WPL 1118306 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
45
Retainer, Gasket WPL 1118302 Contact Us For Availability
45
Cover, Plug WPL 1110626 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Sealing Gasket WPL 1115322 Contact Us For Availability
47
Cover, Unit WPL 2147323 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Insulation WPL 1118237 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
