Model Whirlpool RS25AWXWW00 – Common Parts & Diagrams
12 - CONTROL
08 - FREEZER DOOR

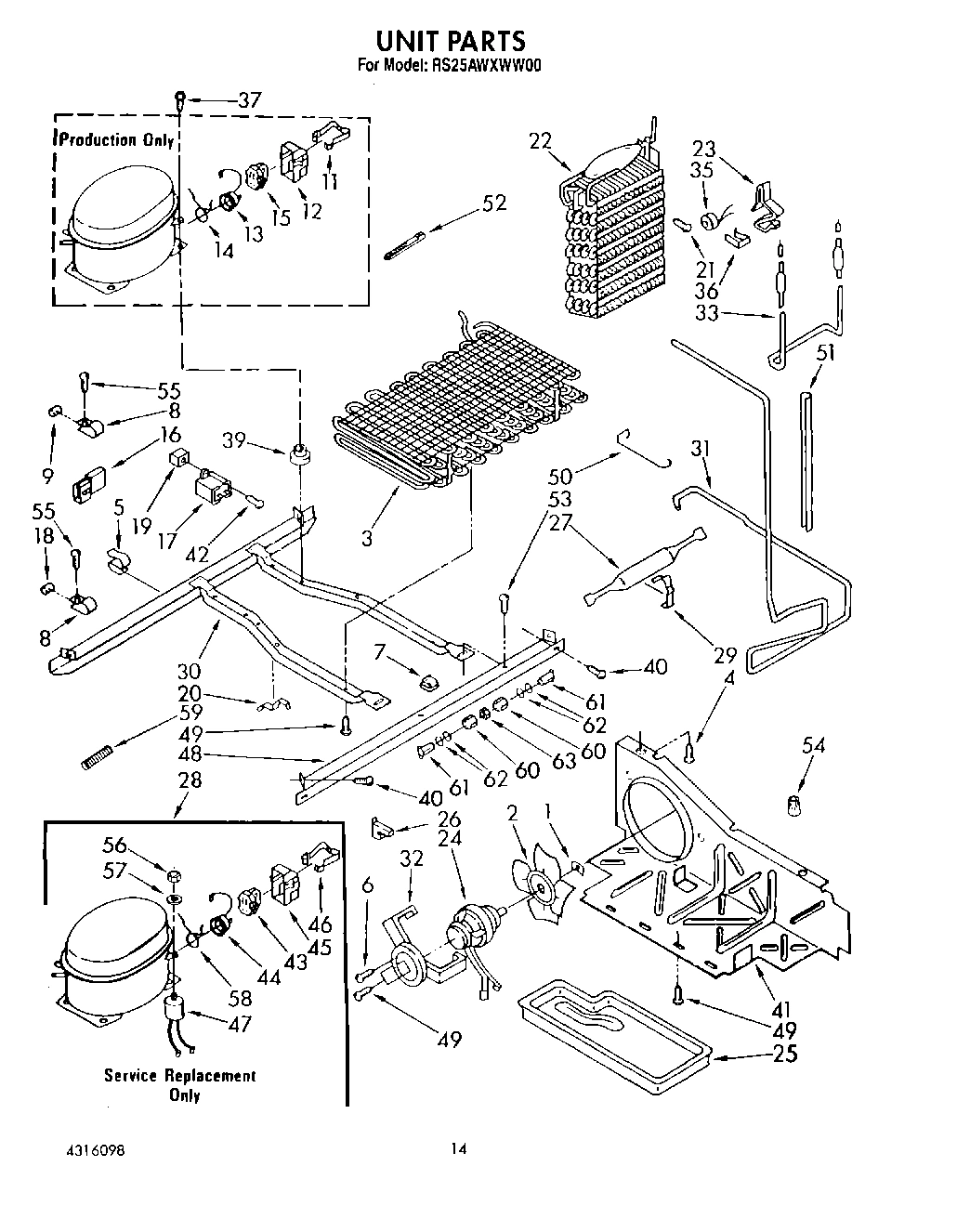

10 - UNIT

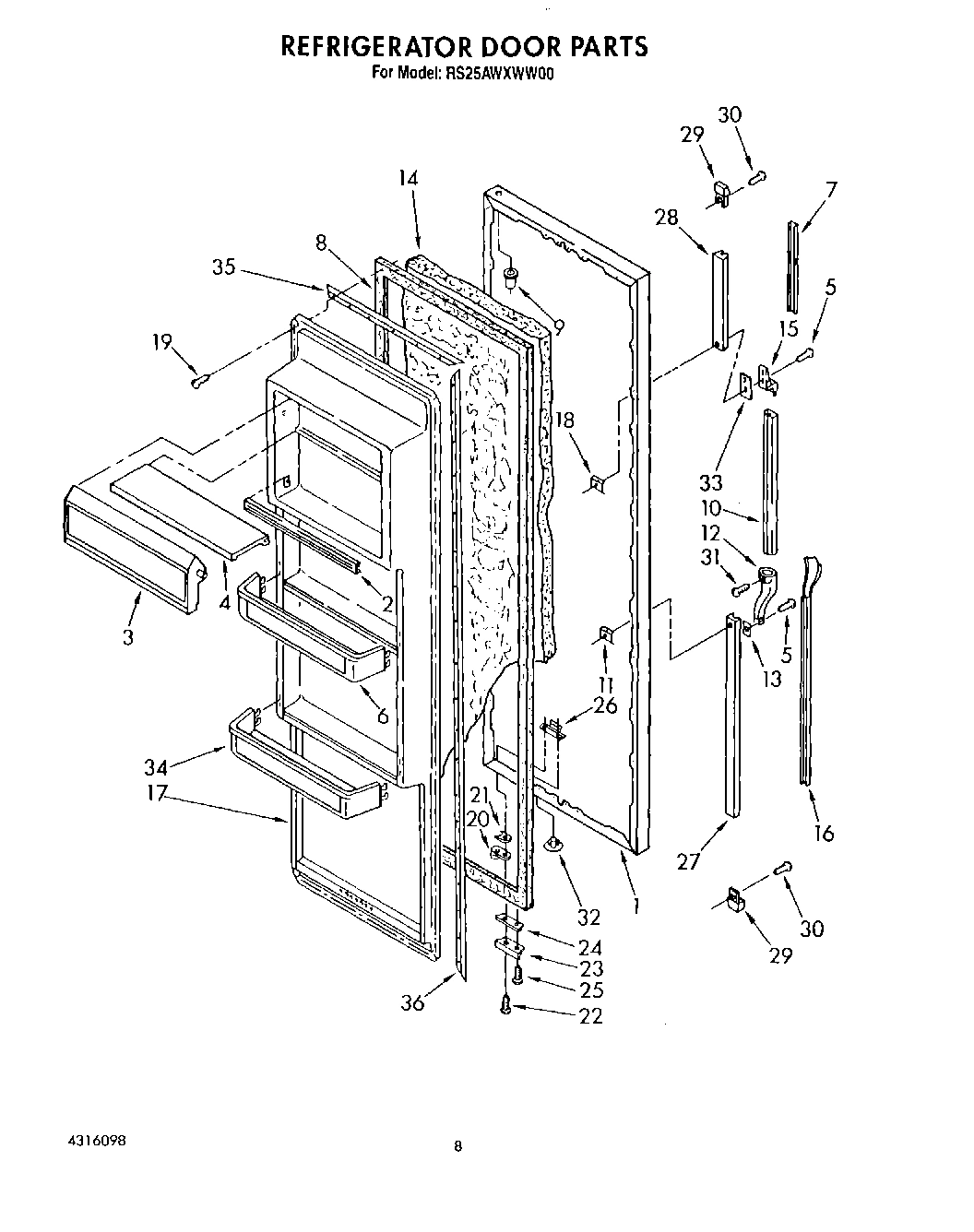

07 - REFRIGERATOR DOOR

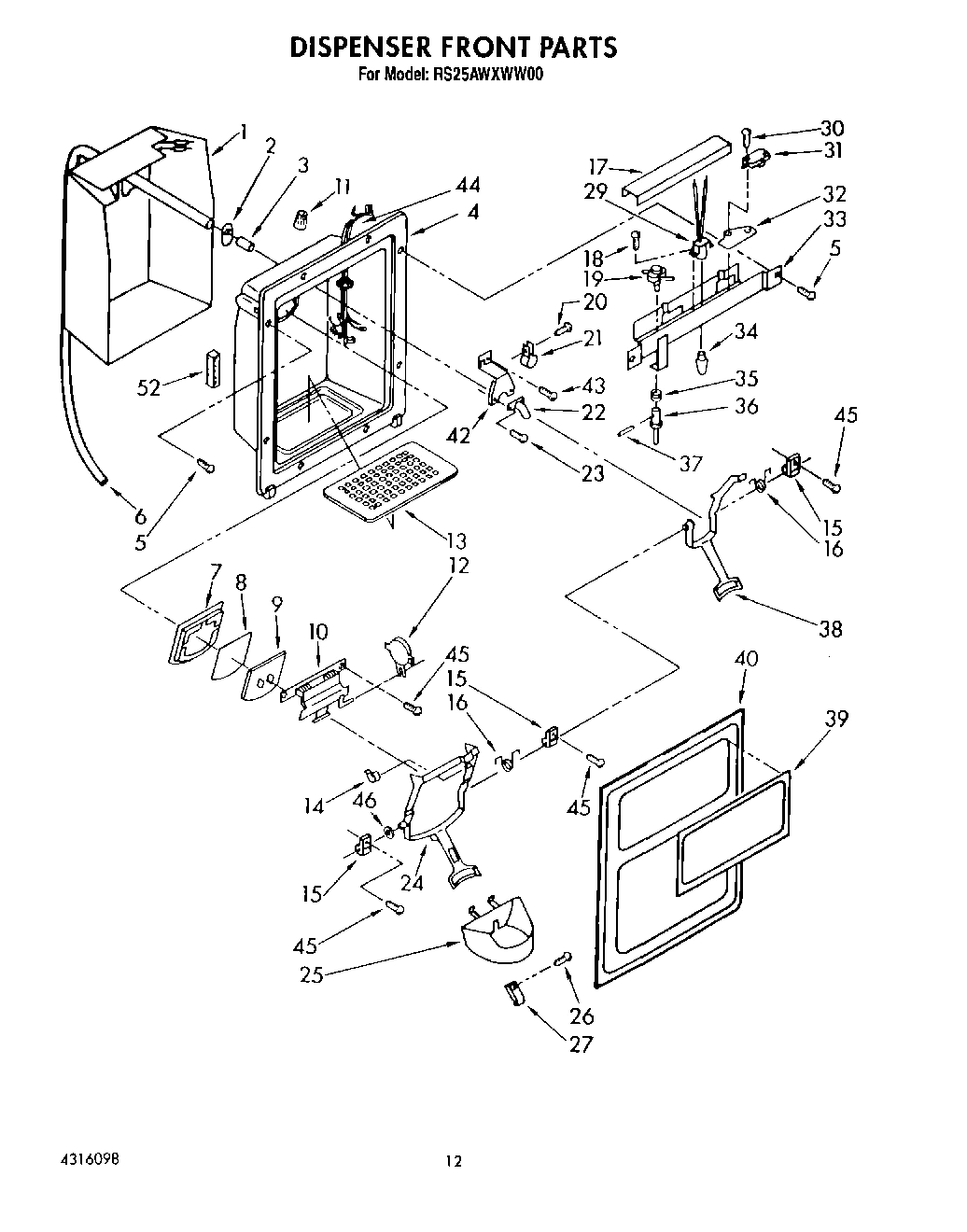

09 - DISPENSER FRONT

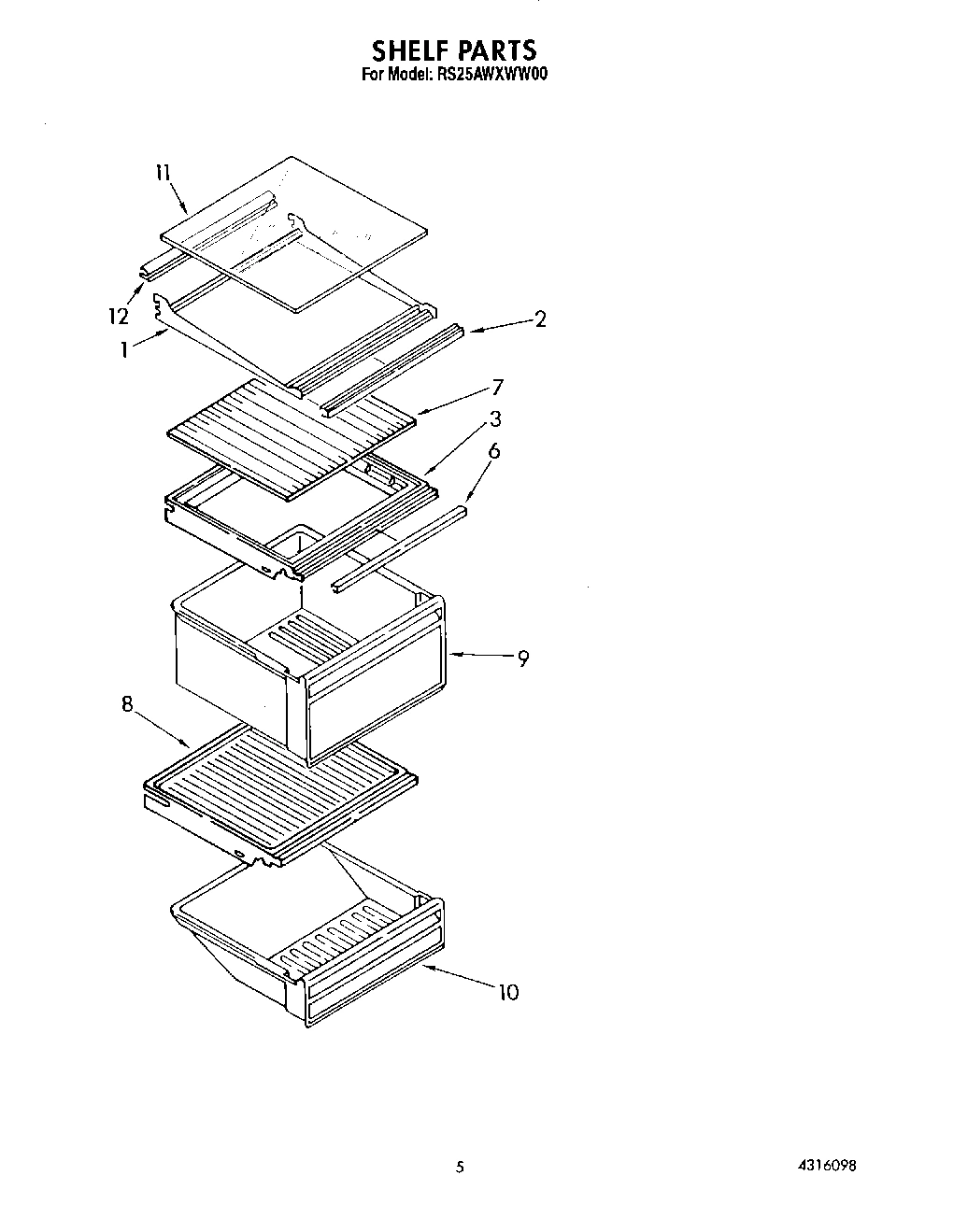

04 - SHELF

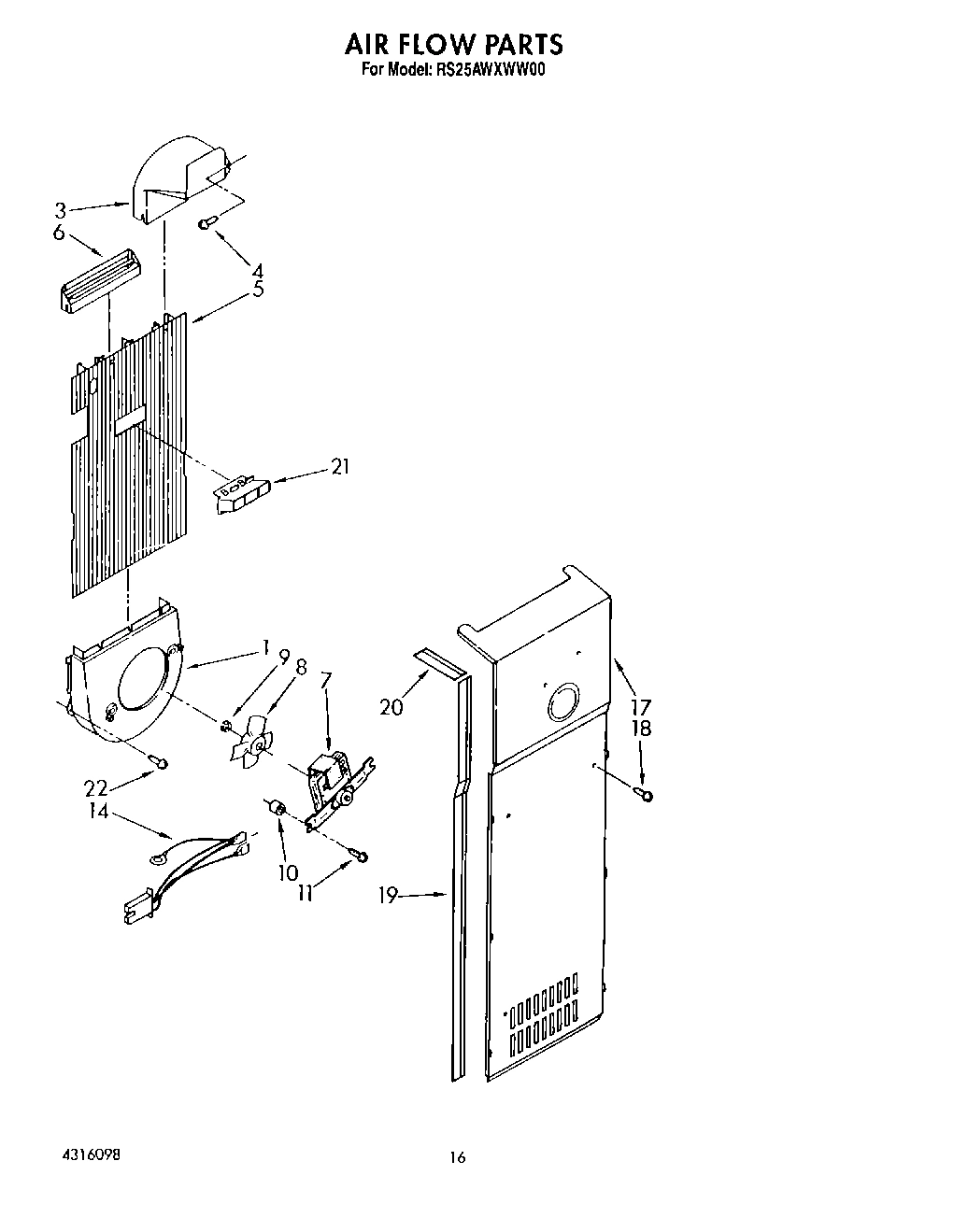

11 - AIR FLOW

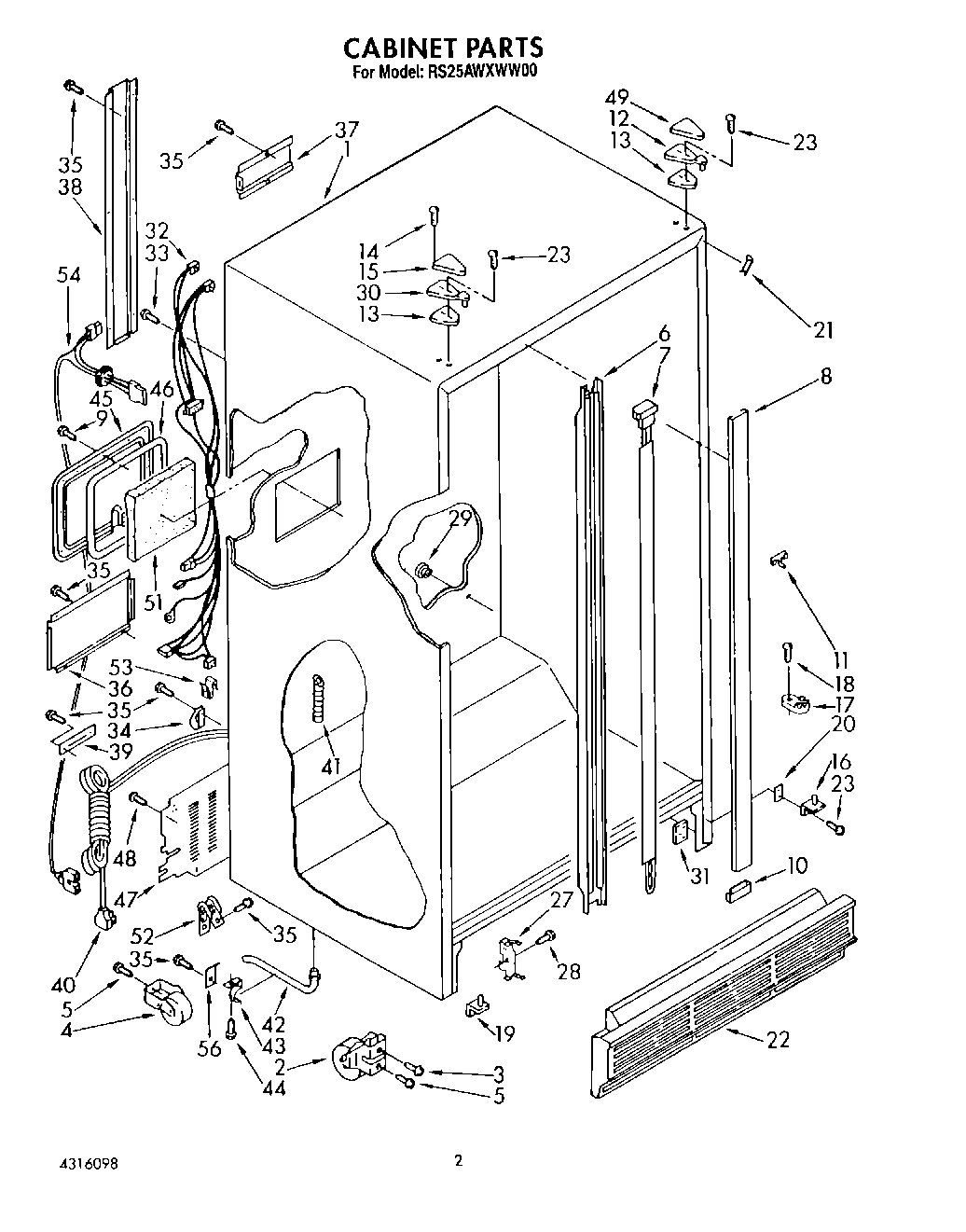

02 - CABINET

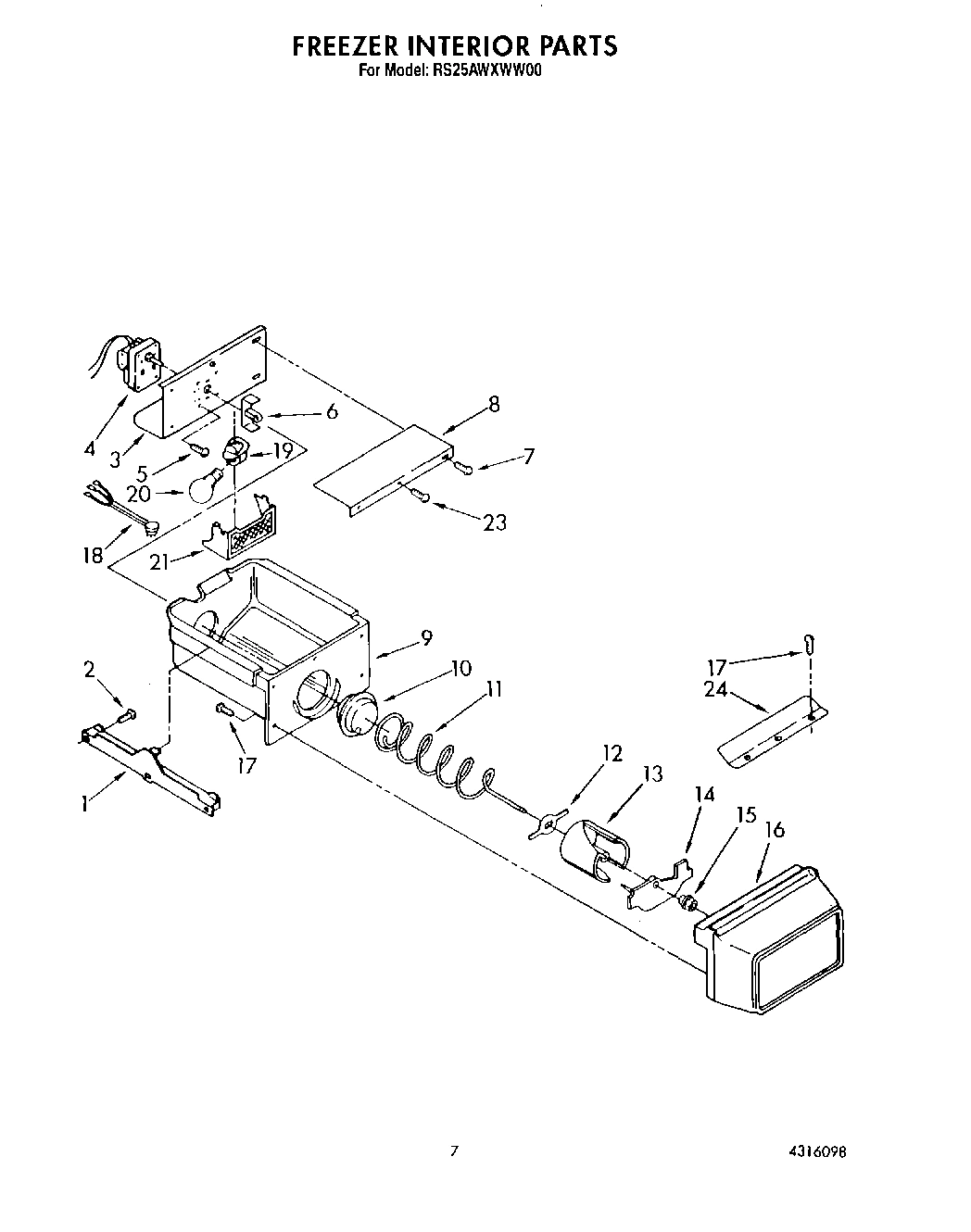

06 - FREEZER INTERIOR

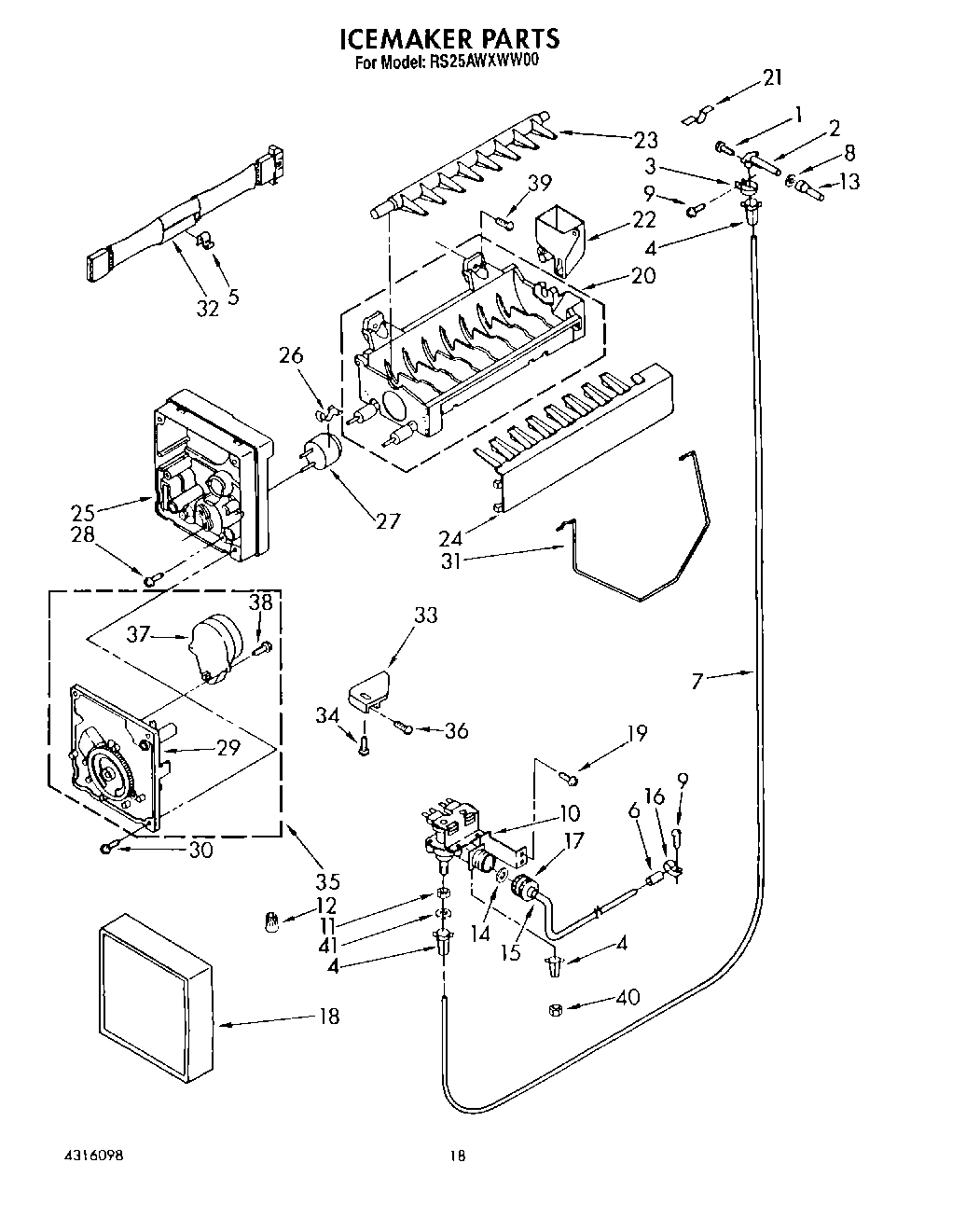

13 - ICEMAKER, LIT/OPTIONAL

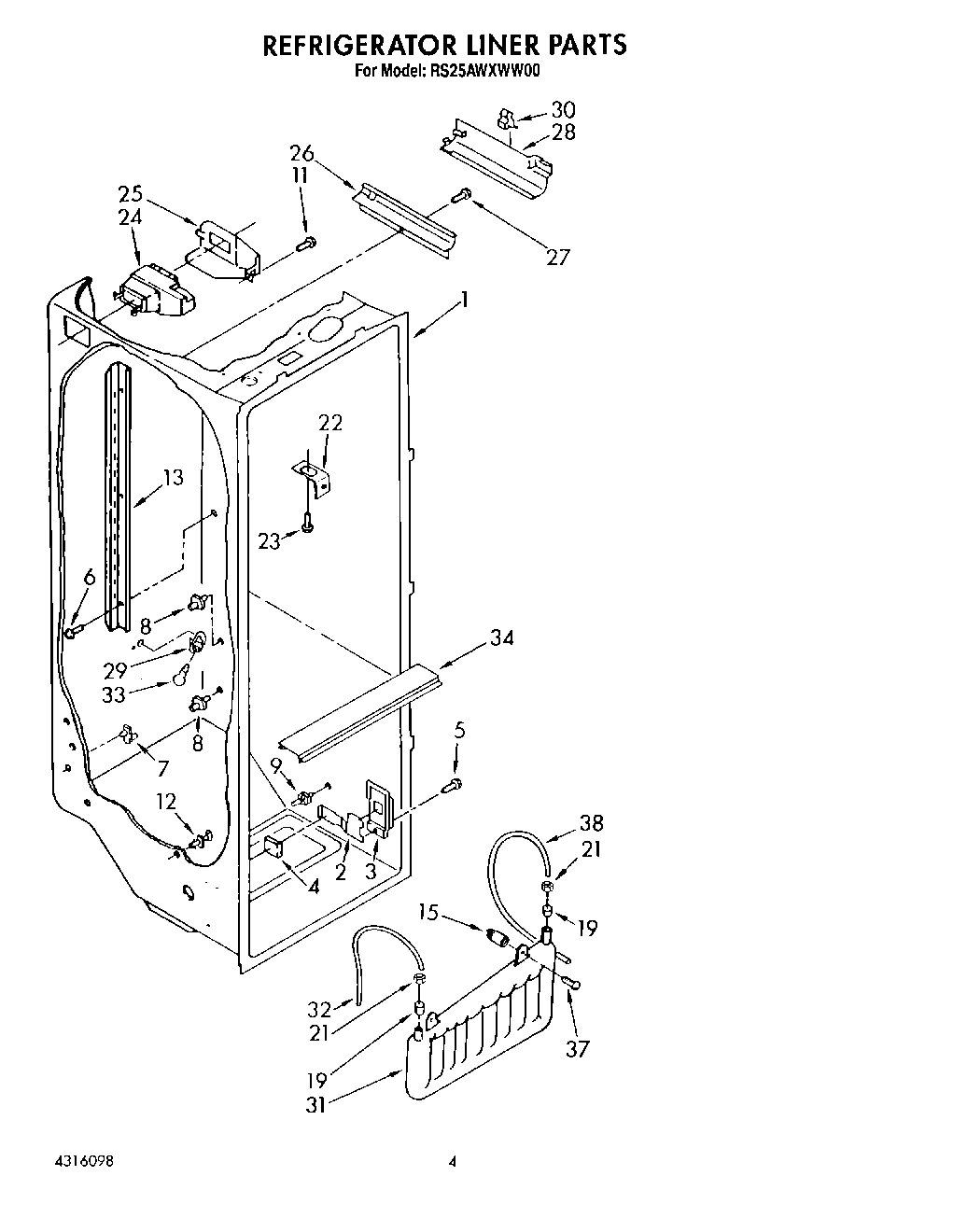

03 - REFRIGERATOR LINER

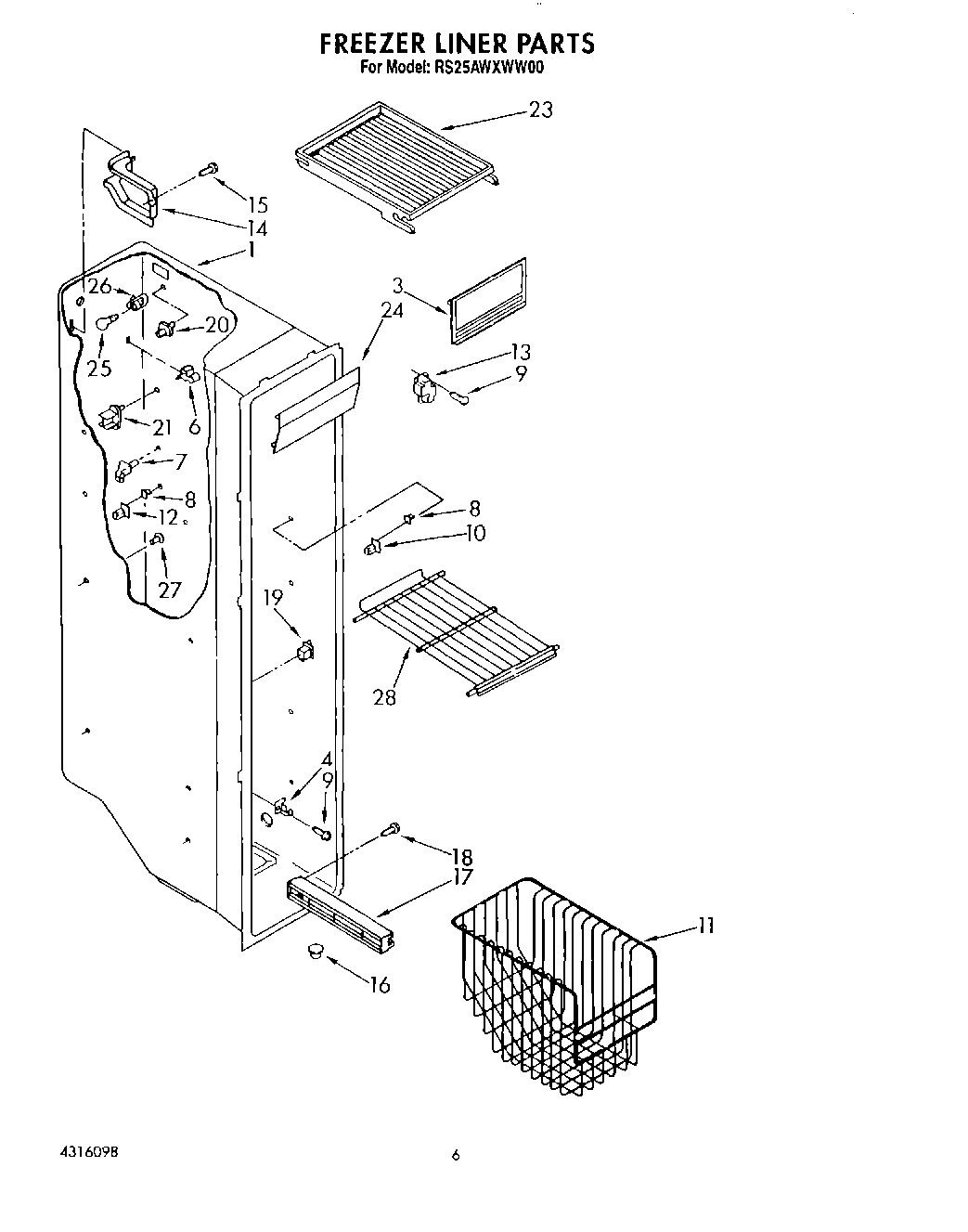

05 - FREEZER LINER
Common parts from model Whirlpool RS25AWXWW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124444 WPL LIT1124444 Contact Us For Availability
WPL LIT2148402 WPL LIT2148402 Contact Us For Availability
WPL LIT2149607 WPL LIT2149607 Contact Us For Availability
WPL LIT4316098 WPL LIT4316098 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Refrigerator Door (White) WPL 1124504 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 14 WPL 1124505 Contact Us For Availability
1
Heater, Dispenser WPL 1118039 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI124421A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124422A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124423A Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Trim, Door Shelf WPL 1124512 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Trim, Shelf WPL 1124421 Contact Us For Availability
2
Front Roller (2) WPL 981128 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Door, Compartment WPL 1124511 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Screw, 5/16-21 x 1 WPL 488681 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1124529 Contact Us For Availability
4
Shelf, Compartment WPL 1116707 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Motor WPL 851152 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 1110621 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
6
Trim, Door Shelf WPL 1124513 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Mullion Rail WPL 1118355 Contact Us For Availability
7
Stud WPL 1116733 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Insert, Handle WPL 1124508 Contact Us For Availability
7
Glass, Crisper Cover WPL 1124419 Contact Us For Availability
7
Fan Motor WPL 1127165 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1127307 Contact Us For Availability
8
Front Mullion (White) WPL 1123972 Contact Us For Availability
8
Front Mullion (Almond) WPL 1123975 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
support stud (8) WPL 946355 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Handle, Center WPL 1119757 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Pan, Meat WPL 1124533 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Stud, Front (3) WPL 946356 Contact Us For Availability
11
Screw Anchor WPL 941242 Contact Us For Availability
11
Glass, Shelf WPL 1124532 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Basket, Slope WPL 1114676 Contact Us For Availability
12
End Cap, Center Handle WPL 1109189 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Retainer, Glass WPL 1123908 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Stud, Rear (3) WPL 1106982 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge WPL 1123515 Contact Us For Availability
13
Overload WPL 1127265 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
13
Terminal Block WPL 942842 Contact Us For Availability
14
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Fan Motor, Harness WPL 1114721 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
End Cap, Hande WPL 936930 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Insert, Handle WPL 1124510 Contact Us For Availability
16
Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability
16
Front Cover WPL 1124531 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
17
Panel, Interior WPL 1129238 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1114679 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1114680 Contact Us For Availability
18
Screw (2) WPL 489296 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 1123504 Contact Us For Availability
18
Cover WPL 627356 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Filler, Wraper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wraper (Almond) WPL 1110709 Contact Us For Availability
21
Lens, Dispener Light WPL 983359 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
Grille WPL 1129054 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
23
Screw (Repair) WPL 489297 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Shim WPL 988421 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Deflector, Ice Container WPL 1119043 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Screw, 8 x 1/2 WPL 488549 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
26
Receptacle, Housing WPL 1103840 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Cover, Conduit WPL 1123926 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 21 WPL 482982 Contact Us For Availability
28
Retainer, Insert (Top) WPL 1124507 Contact Us For Availability
28
Cover, Wiring WPL 1123921 Contact Us For Availability
28
Shelf (3) WPL 1116956 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
End Cap (2) WPL 941259 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
30
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
30
Screw, 4-40 x 3/4 (4) WPL 488362 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Exchanger, Heat WPL 1123675 Contact Us For Availability
31
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
31
Switch (2) WPL 1127898 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Hole Plug (2) WPL 534927 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Cabinet Harness WPL 1129190 Contact Us For Availability
32
Tube WPL 1129176 Contact Us For Availability
33
Heater, Defrost WPL 2149911 Contact Us For Availability
33
Shim, End Cap WPL 935076 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Trim, Shelf (2) WPL 1124514 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever, Water Dispenser WPL 1115349 Contact Us For Availability
38
Wiring Shield, Long WPL 1119063 Contact Us For Availability
39
Plaque, Front Cover WPL 2150320 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Front Cover, Housing WPL 2150312 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1108005 Contact Us For Availability
41
``O`` Ring WPL 488794 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Screw, 8-18 3/4 WPL 488316 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
44
Screw WPL 488978 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Cover, Plug WPL 1110626 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Washer (Repair) WPL 488307 Contact Us For Availability
46
Sealing Gasket WPL 1115322 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
47
Cover, Unit WPL 2147323 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
51
Insulation WPL 1118237 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
52
Seal WPL 482672 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, A WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
