Model Whirlpool RS22BRXDW00 – Common Parts & Diagrams

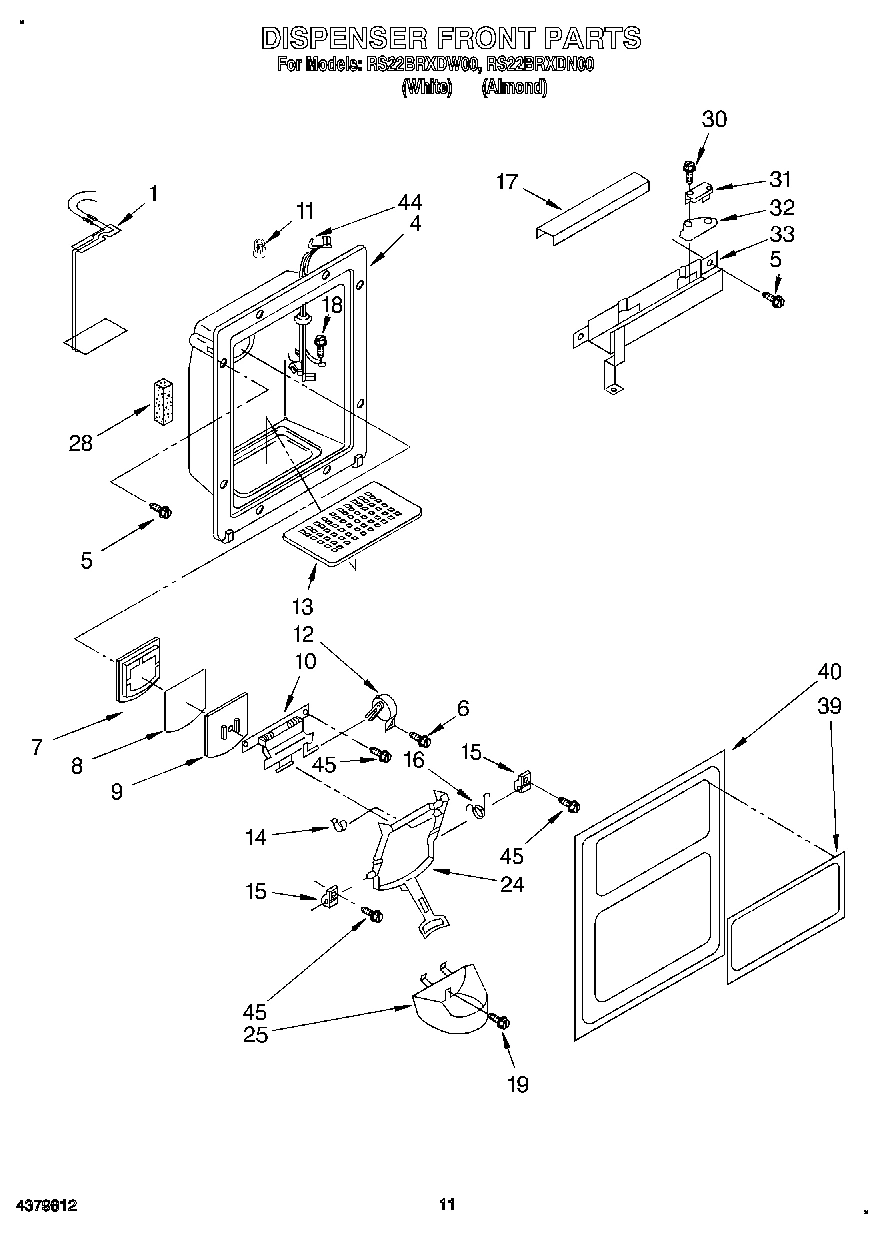

07 - DISPENSER FRONT

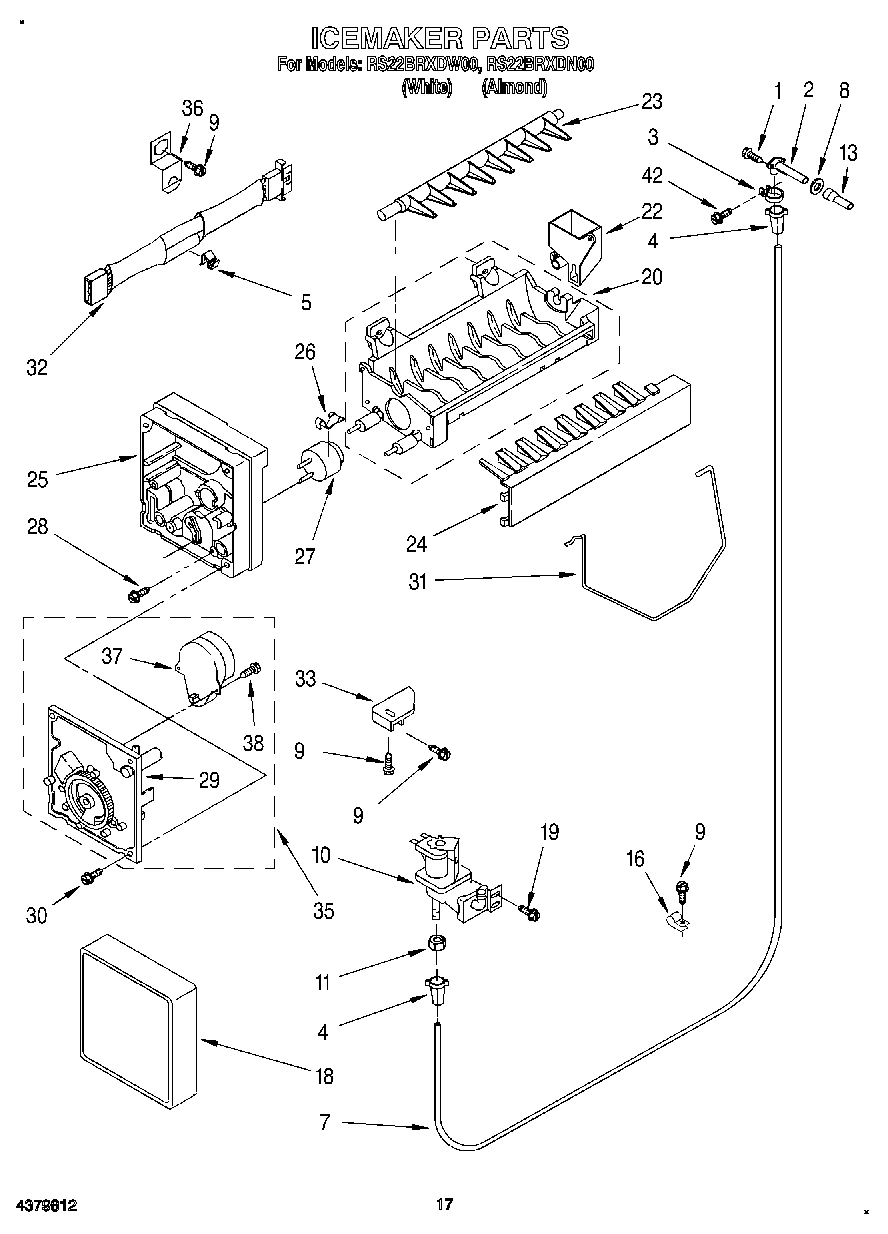

11 - ICEMAKER, LIT/OPTIONAL
01 - CABINET
08 - UNIT
10 - CONTROL
03 - FREEZER LINER
04 - FREEZER INTERIOR
02 - REFRIGERATOR LINER
09 - AIR FLOW
05 - REFRIGERATOR DOOR
06 - FREEZER DOOR
Common parts from model Whirlpool RS22BRXDW00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124138A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124137A Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362029 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362054 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2148289 Contact Us For Availability
3
Handle, Center WPL 1127464 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Trim, Compartment Door WPL 2173061 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Ladder, Shelf WPL 2171995 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Trim, Door Shelf WPL 2163641 Contact Us For Availability
6
Clip, Handle WPL 849445 Contact Us For Availability
7
End Cap WPL 1110713 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Shim WPL 2147097 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
8
Retainer, Gasket WPL 1117766 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
14
Lens WPL 2174436 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI124139A Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2174351 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
17
Harness, Door WPL 2171987 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Gasket, Rear WPL 2174483 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Front WPL 2174442 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Wire Connector WPL 850145 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Shelf, Wire (2) WPL 2163620 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 2155334 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Retainer, Top WPL 2147898 Contact Us For Availability
33
Insert, Handle WPL 2147581 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
40
Extension, Top WPL 2147445 Contact Us For Availability
40
Retainer, Gasket WPL 1118301 Contact Us For Availability
41
Door, Shelf WPL 2163645 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Extension (Bottom) WPL 1127473 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
