Model Whirlpool RS22BRXBW01 – Common Parts & Diagrams

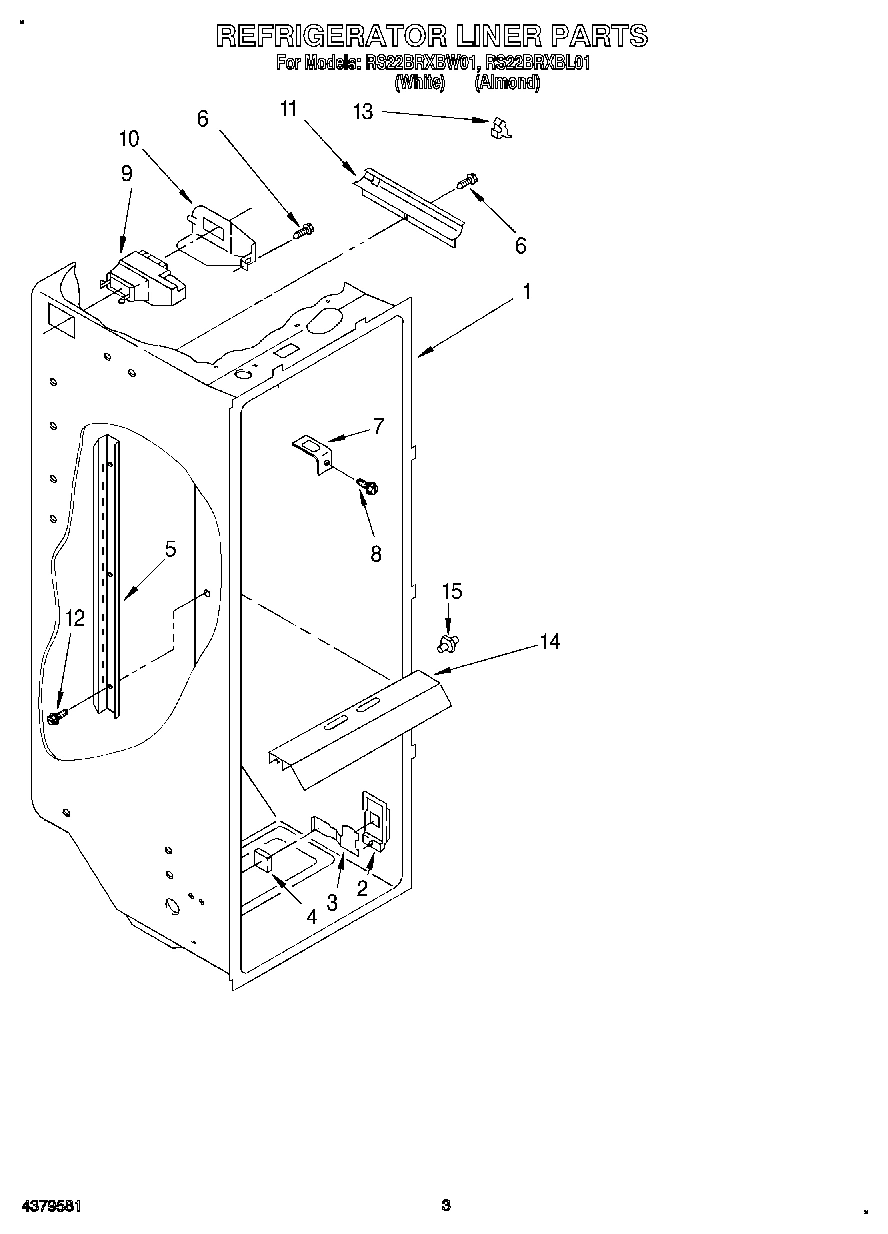

02 - REFRIGERATOR LINER

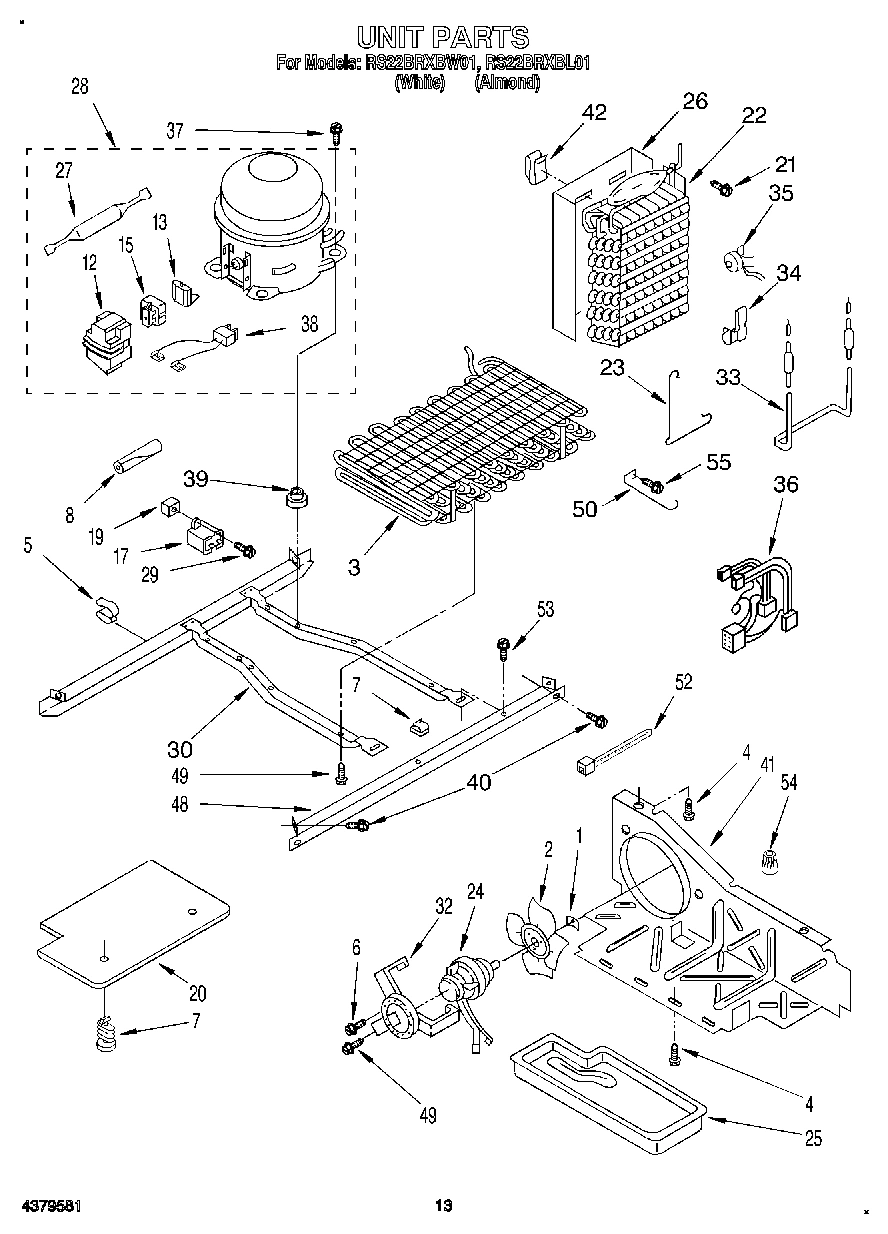

09 - UNIT

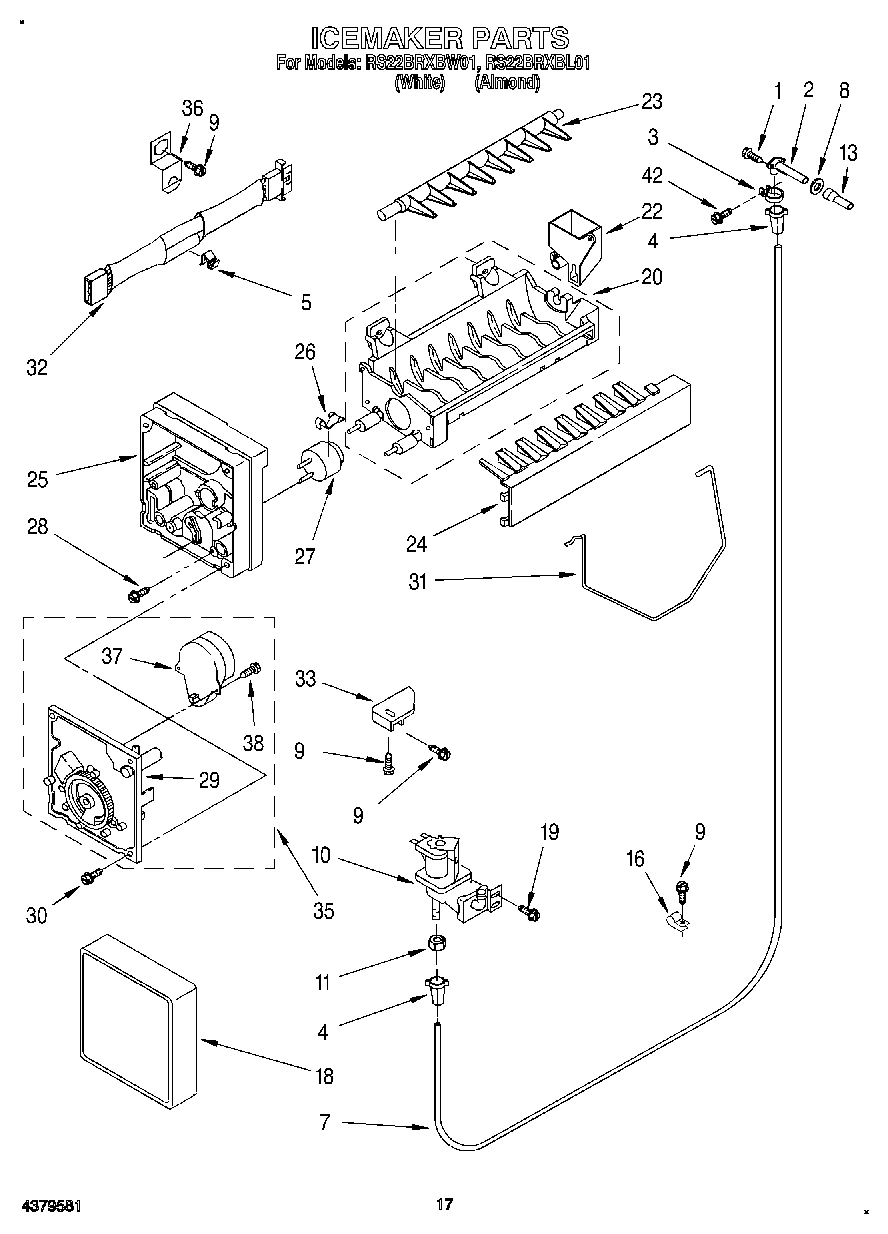

12 - ICEMAKER, LIT/OPTIONAL
11 - CONTROL

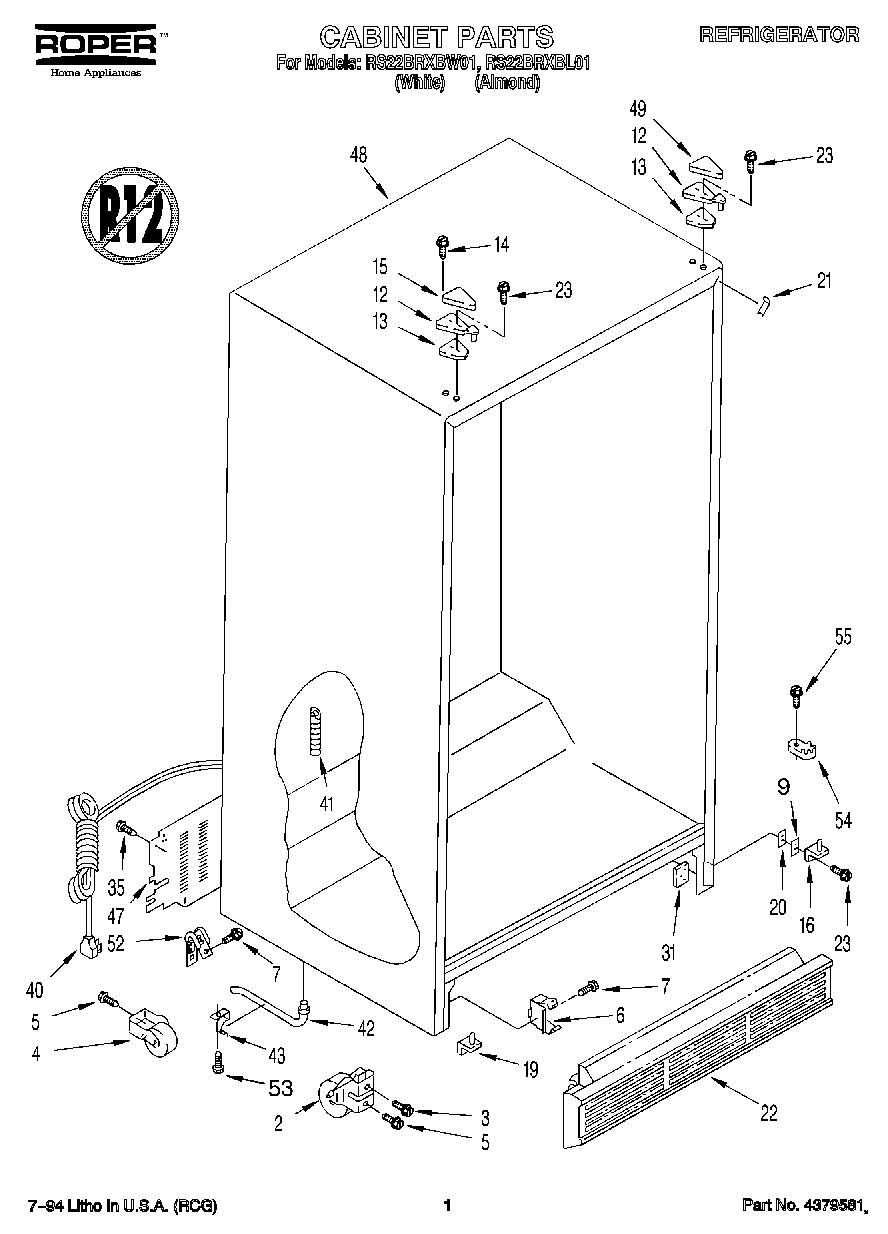

01 - CABINET

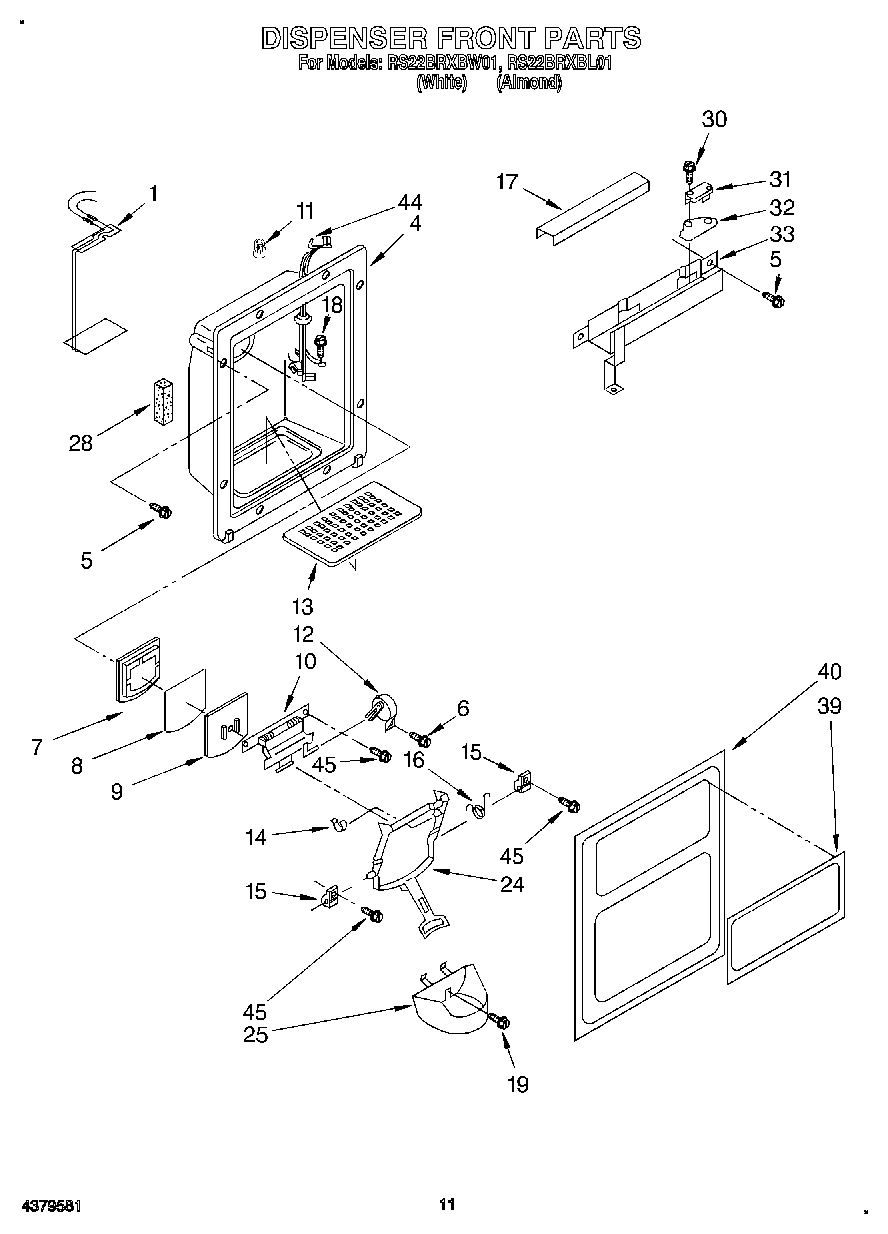

08 - DISPENSER FRONT

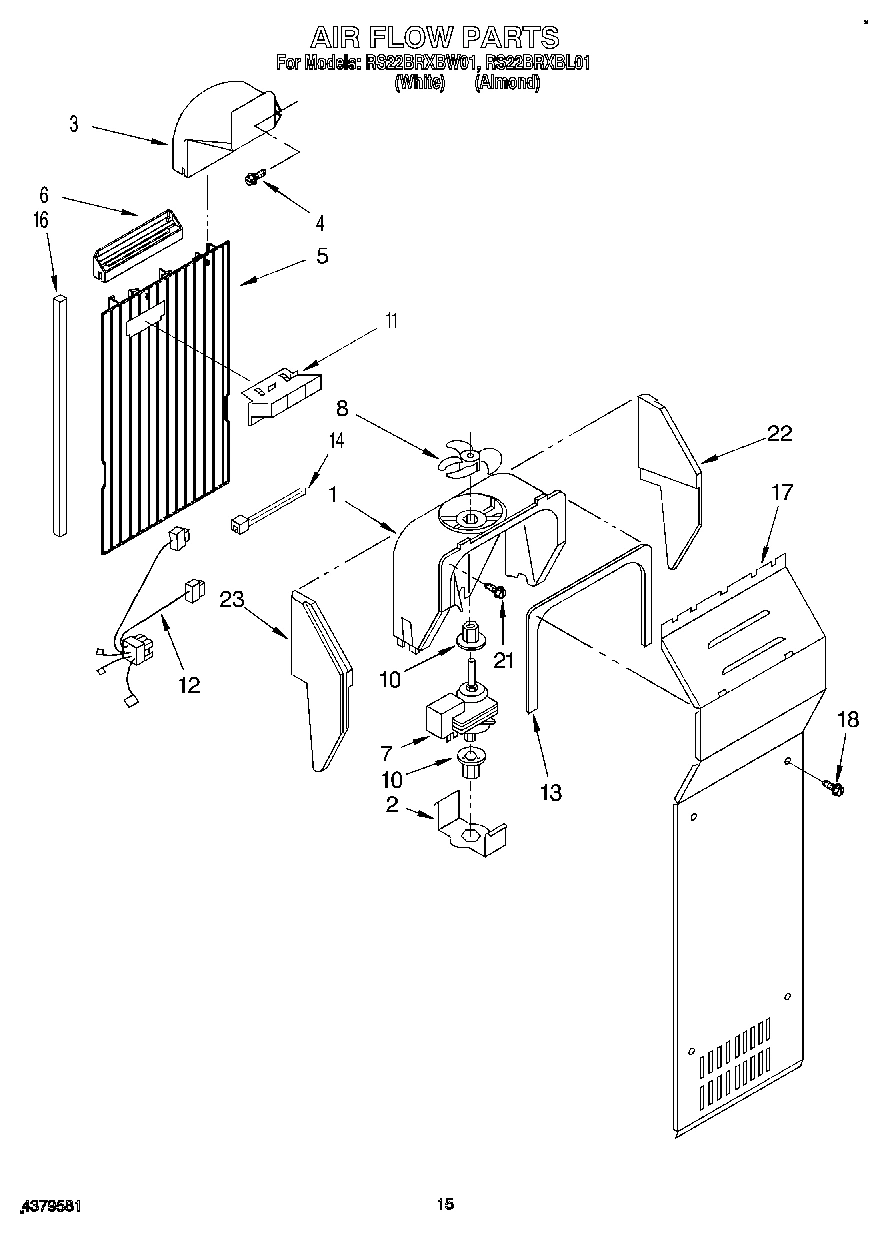

10 - AIR FLOW

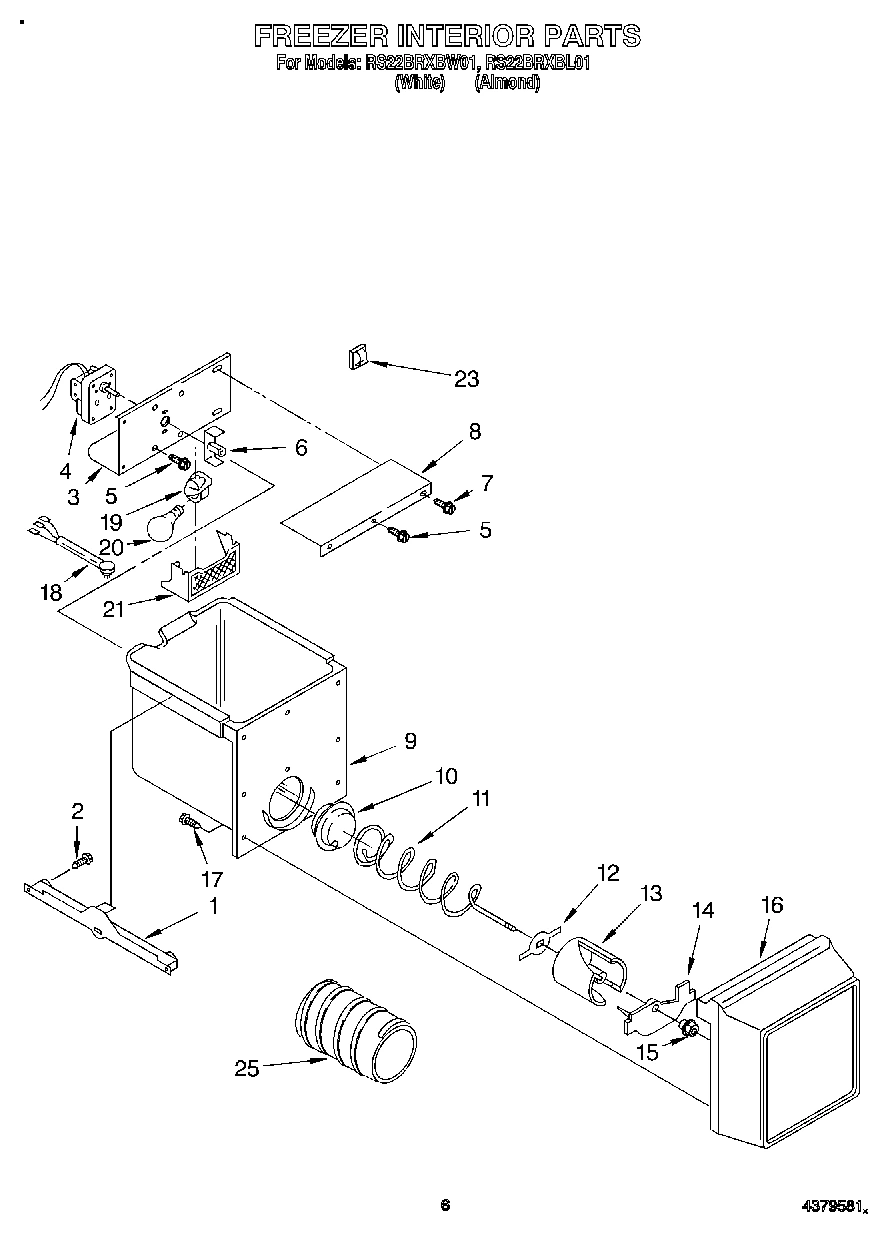

05 - FREEZER INTERIOR

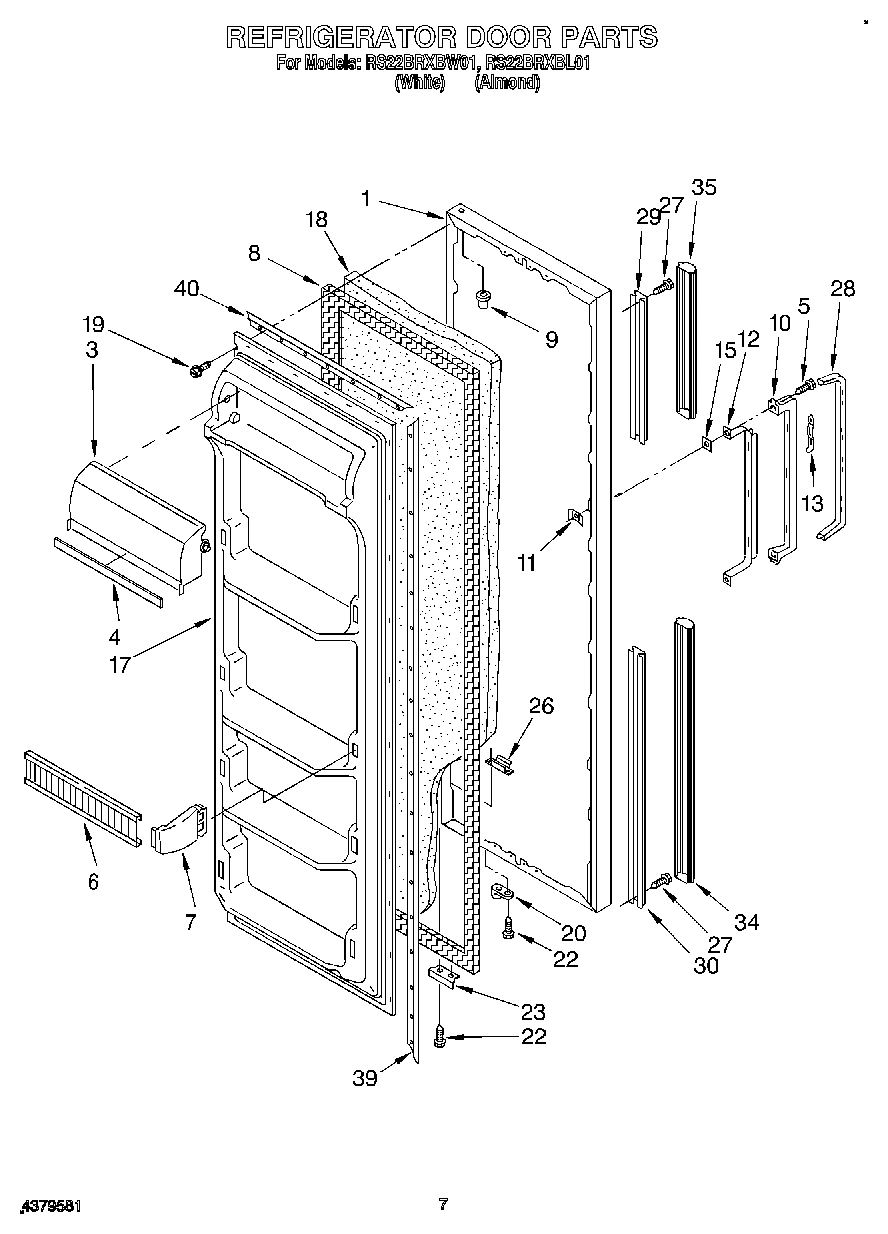

06 - REFRIGERATOR DOOR

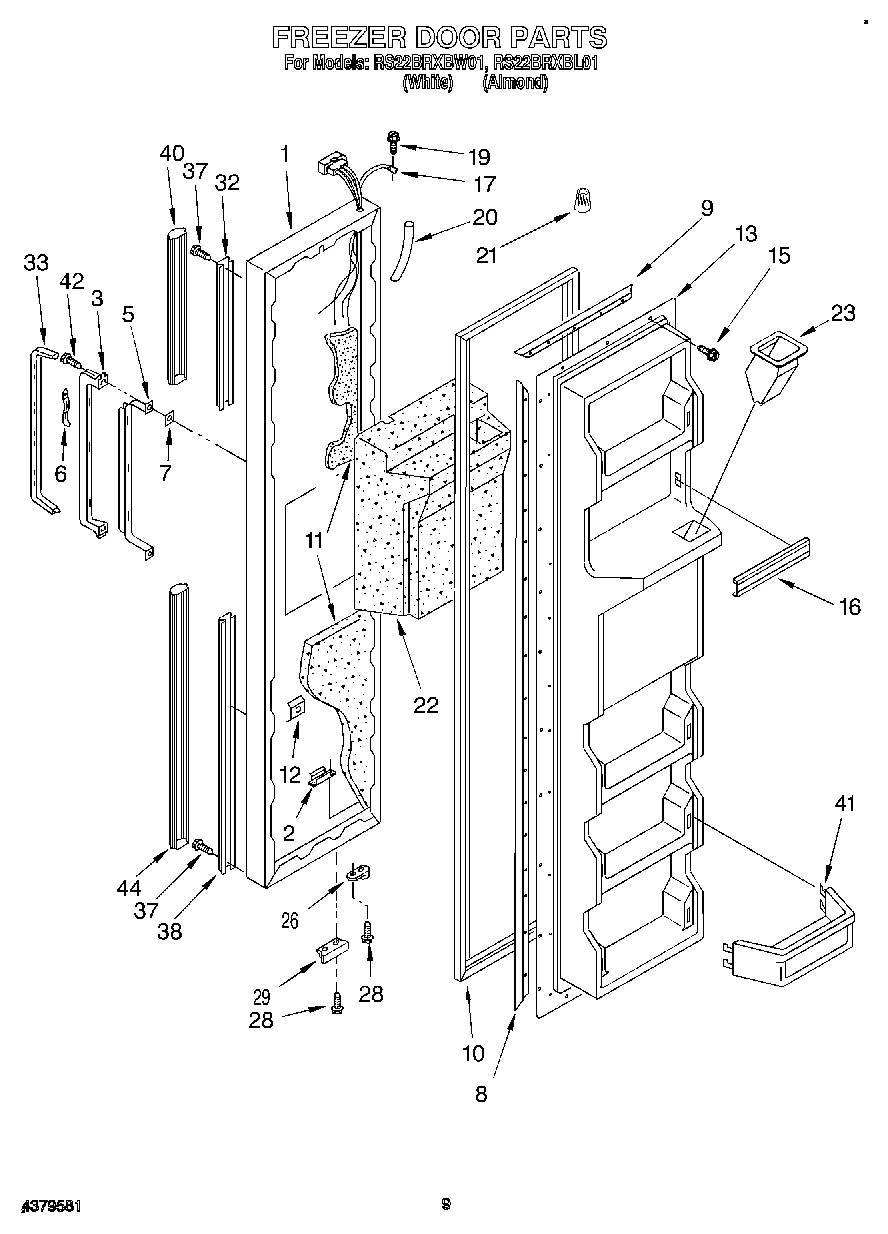

07 - FREEZER DOOR

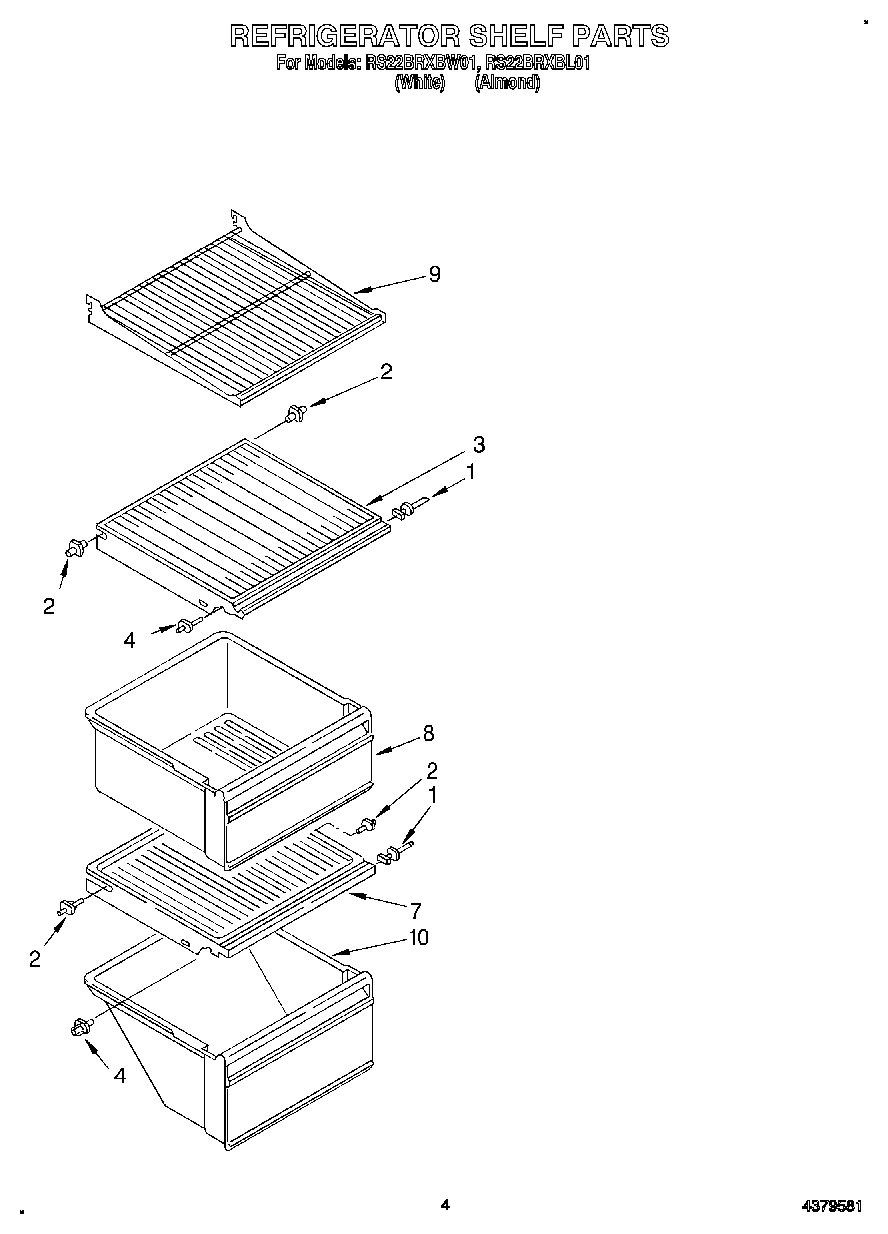

03 - REFRIGERATOR SHELF

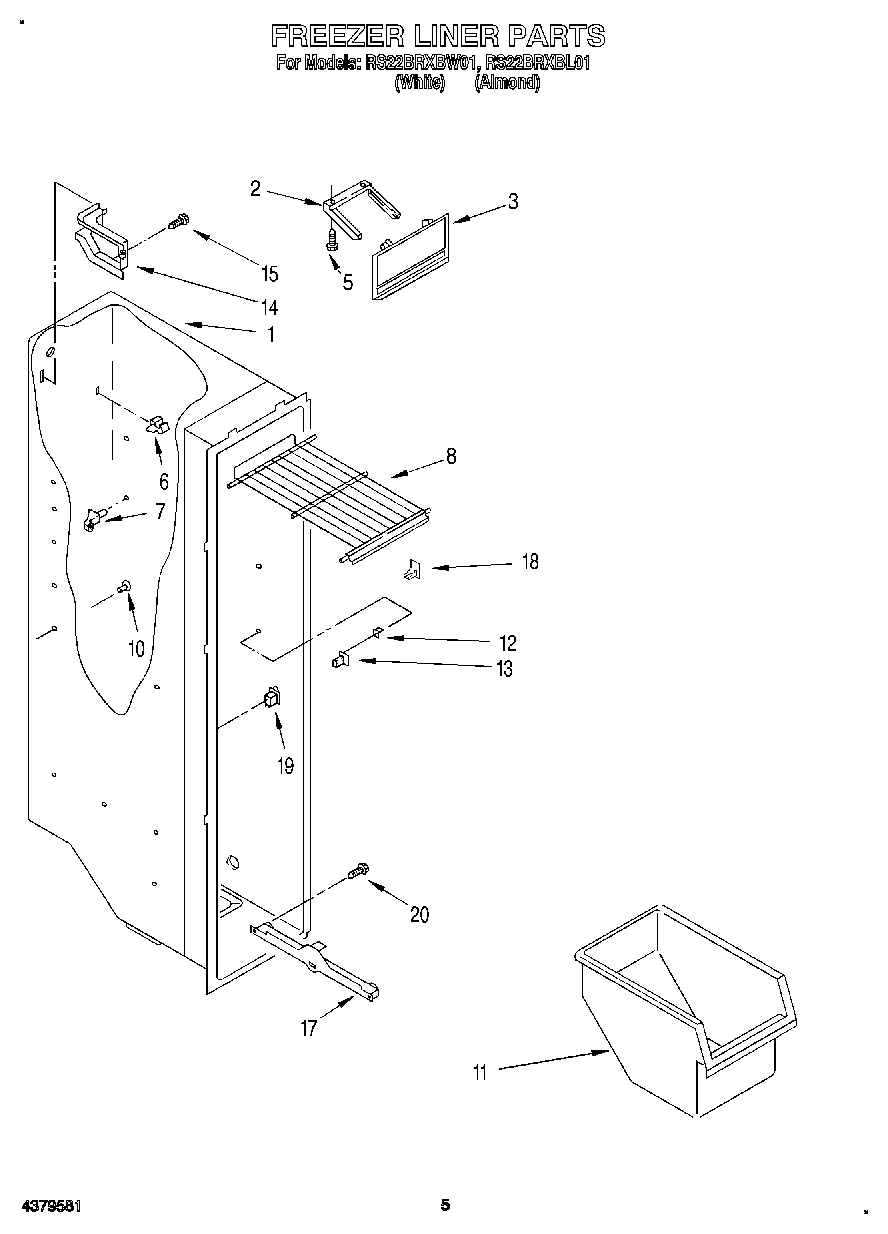

04 - FREEZER LINER
Common parts from model Whirlpool RS22BRXBW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362029 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362054 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124126A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2148289 Contact Us For Availability
3
Handle, Center WPL 1127464 Contact Us For Availability
3
Cover, Crisper WPL 2163671 Contact Us For Availability
3
Door, Ice Compartment WPL 2173116 Contact Us For Availability
4
Housing, Dispenser WPL 1116820 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Trim, Compartment Door WPL 2173061 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2154984 Contact Us For Availability
6
Screw WPL 488316 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Trim, Door Shelf WPL 2163641 Contact Us For Availability
6
Clip, Handle WPL 849445 Contact Us For Availability
7
End Cap WPL 1110713 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Shim WPL 2147097 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Retainer, Gasket WPL 1117766 Contact Us For Availability
8
Shelf, Large (2) WPL 2163618 Contact Us For Availability
8
Shelf, Small (1) WPL 2163619 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Shelf, Wire (2) WPL 2163620 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Pan, Meat WPL 2163666 Contact Us For Availability
10
Grommet WPL 1110779 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Grille, Overflow WPL 2152678 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (2) WPL 983697 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
16
Front Cover WPL 2171257 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
17
Harness, Door WPL 1118032 Contact Us For Availability
17
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
19
Screw WPL 489197 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Light Lens WPL 983359 Contact Us For Availability
21
Wire Connector WPL 850145 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Bracket, Door Stop WPL 2155334 Contact Us For Availability
30
Screw, WPL 489155 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Retainer, Top WPL 2147898 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Bracket, Control WPL 1116811 Contact Us For Availability
33
Insert, Handle WPL 2147581 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
39
Plaque, Front Cover WPL 2152624 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2152626 Contact Us For Availability
40
Extension, Top WPL 2147445 Contact Us For Availability
40
Retainer, Gasket WPL 1118301 Contact Us For Availability
41
Door, Shelf WPL 2163645 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118374 Contact Us For Availability
44
Extension (Bottom) WPL 1127473 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI124124A Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
100
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
100
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-2 WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 72112 WPL 72112 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
