Model Whirlpool RS22BRXAL00 – Common Parts & Diagrams
12 - CONTROL
13 - ICEMAKER, LIT/OPTIONAL

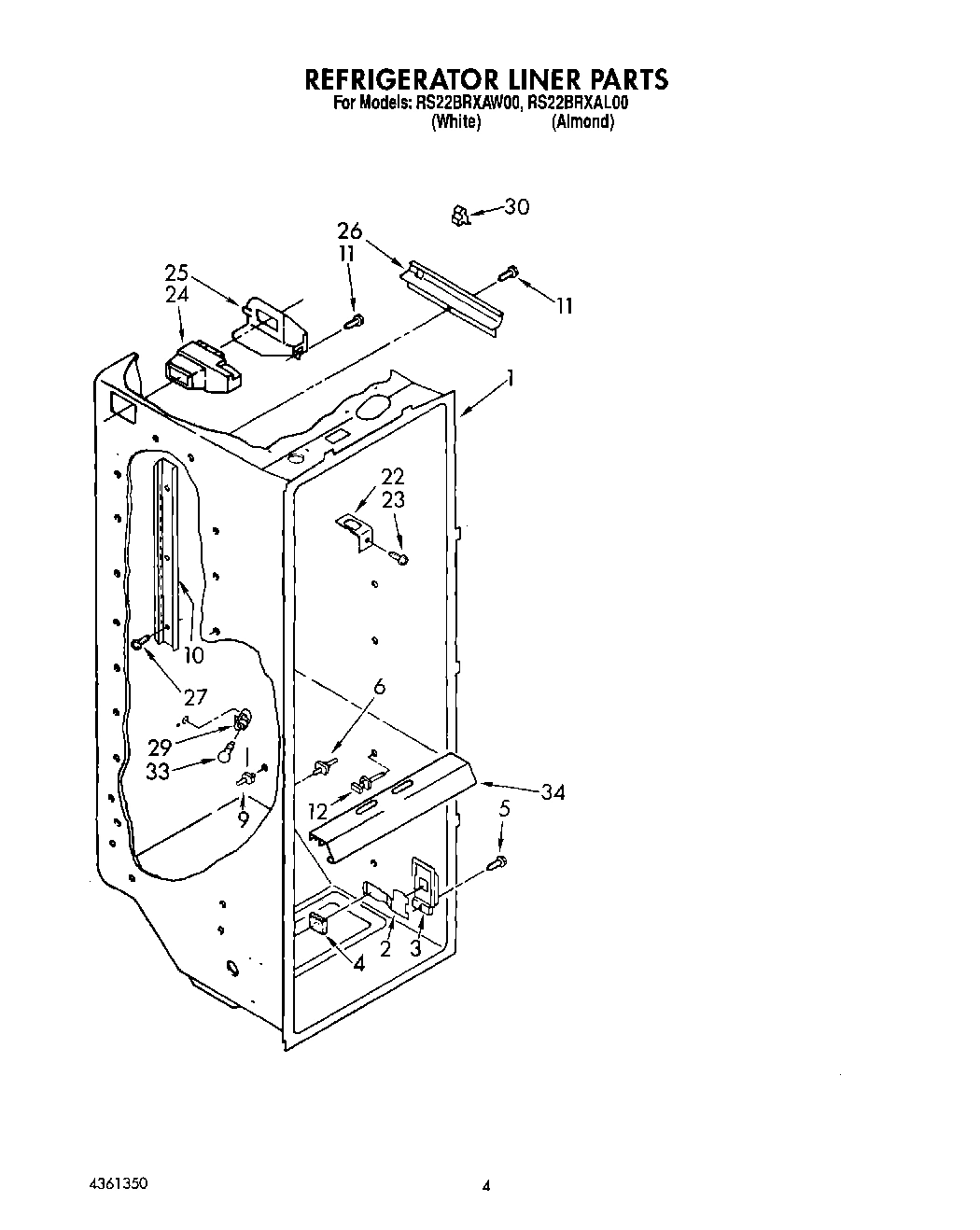

03 - REFRIGERATOR LINER
10 - UNIT

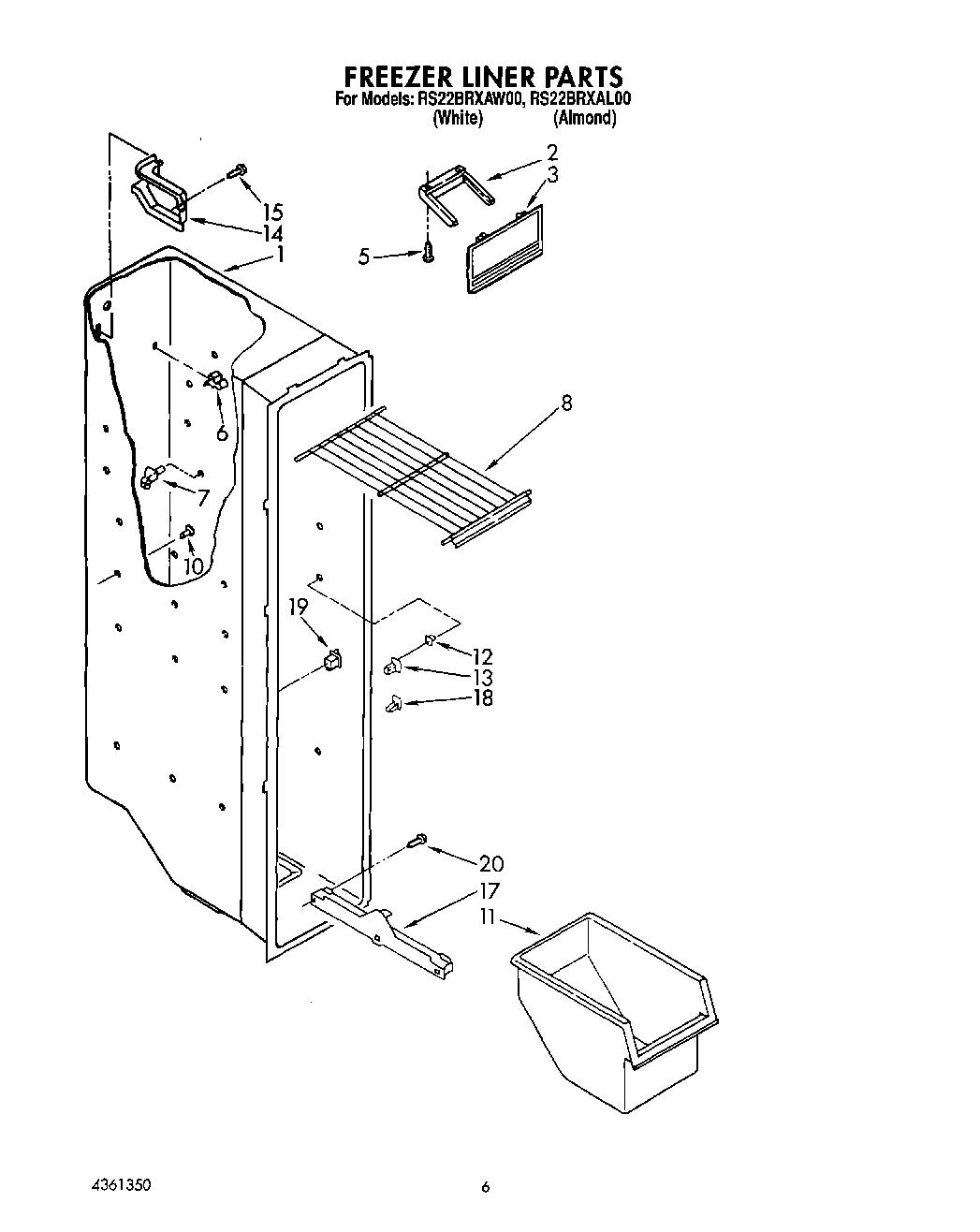

05 - FREEZER LINER

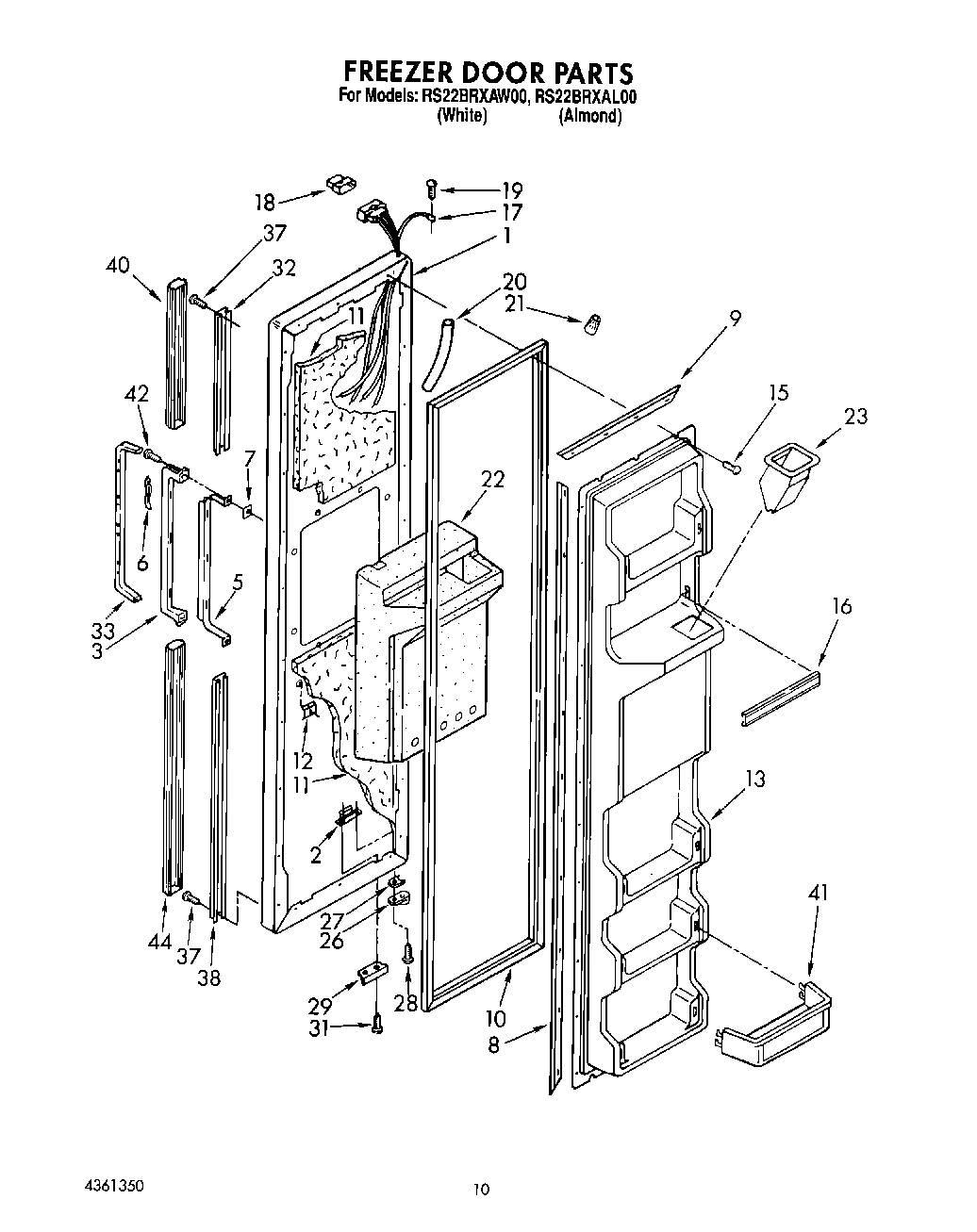

08 - FREEZER DOOR

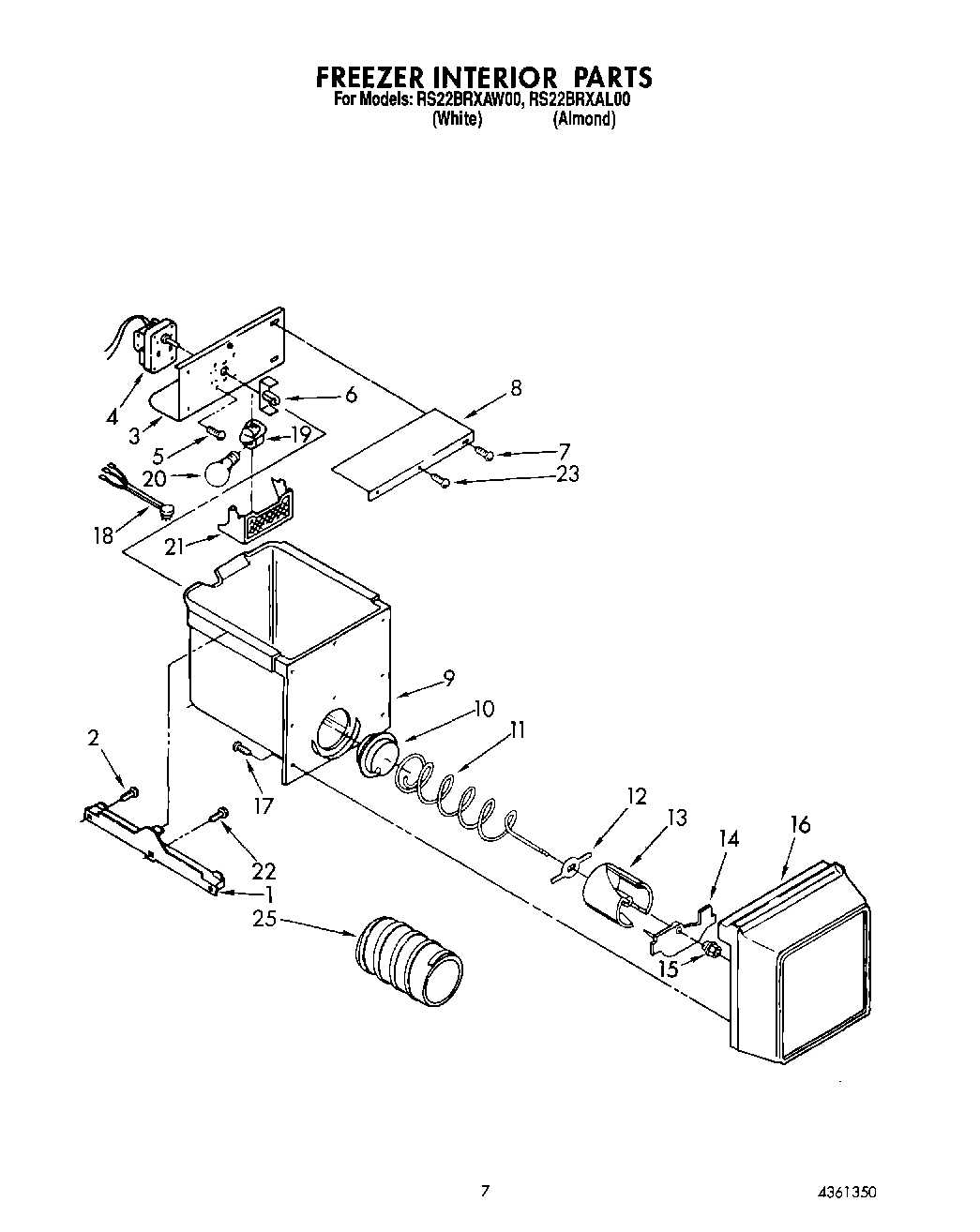

06 - FREEZER INTERIOR

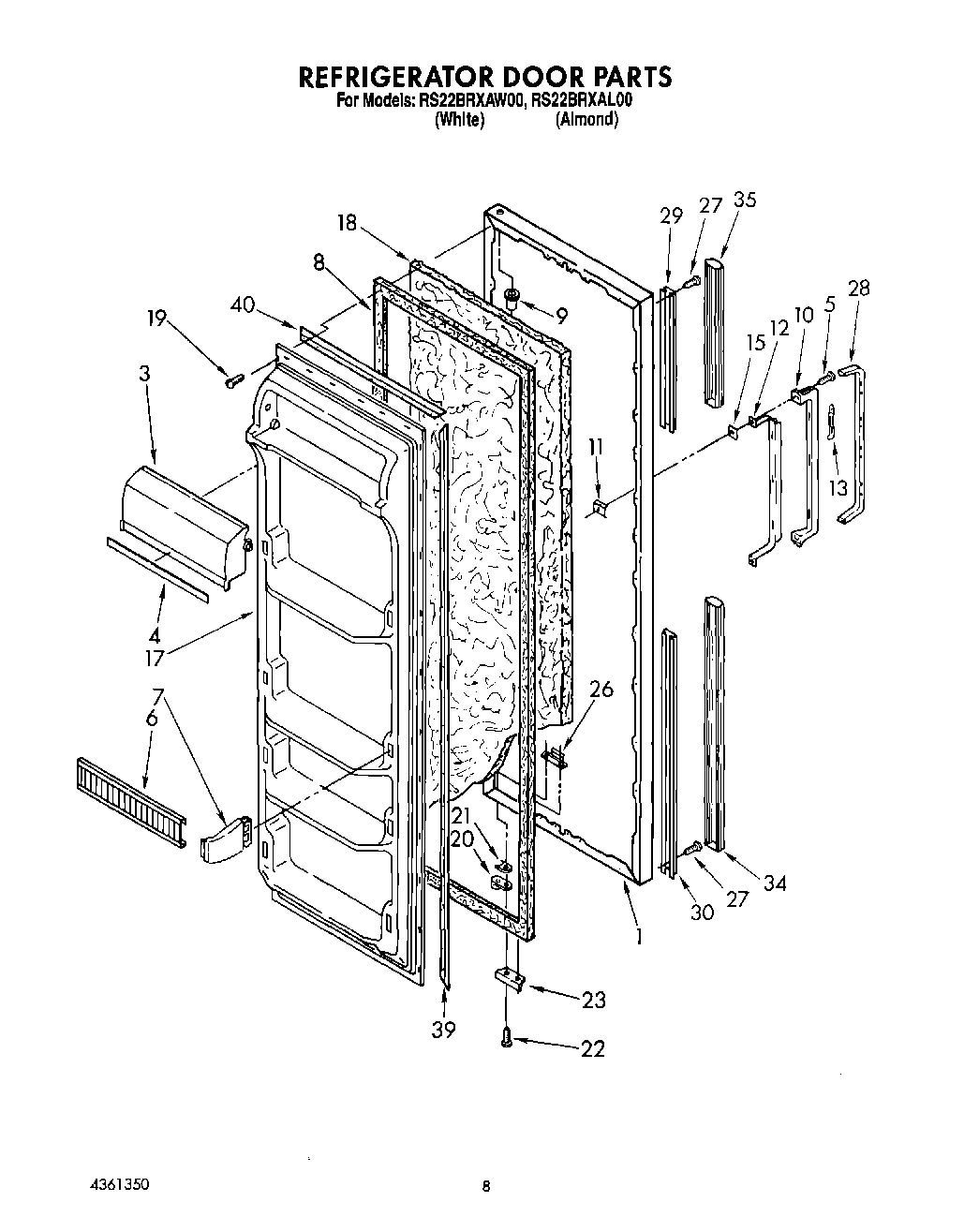

07 - REFRIGERATOR DOOR

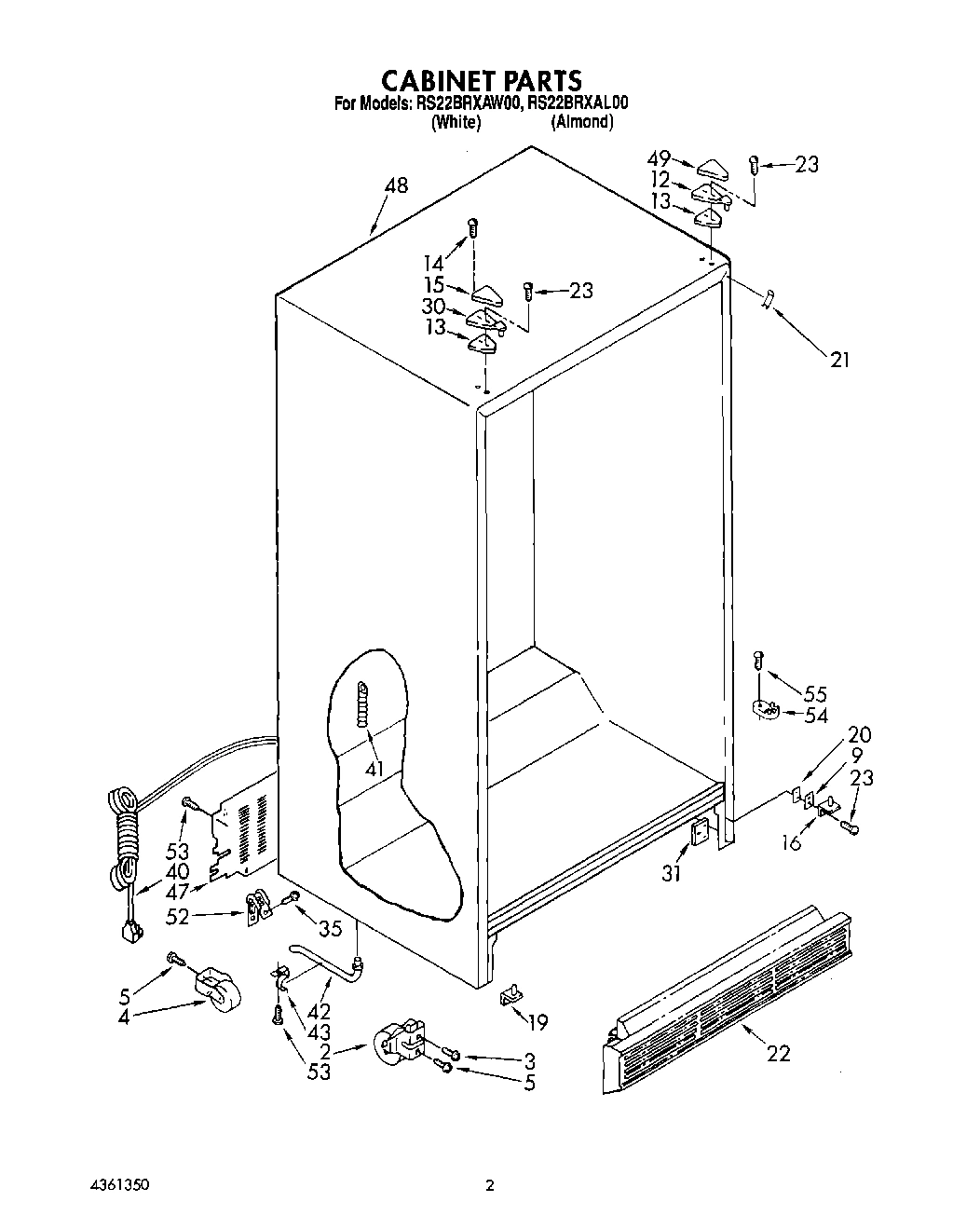

02 - CABINET

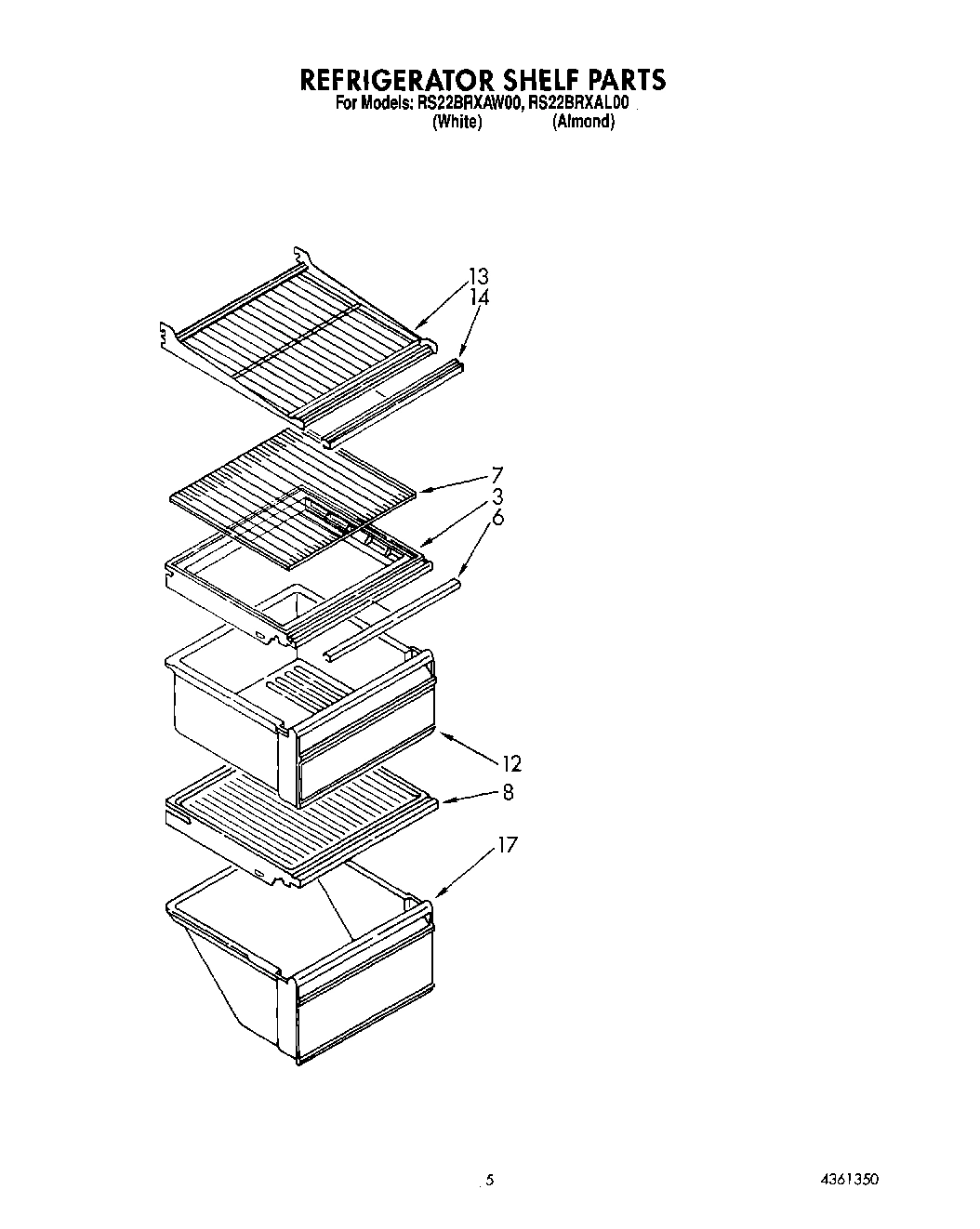

04 - REFRIGERATOR SHELF

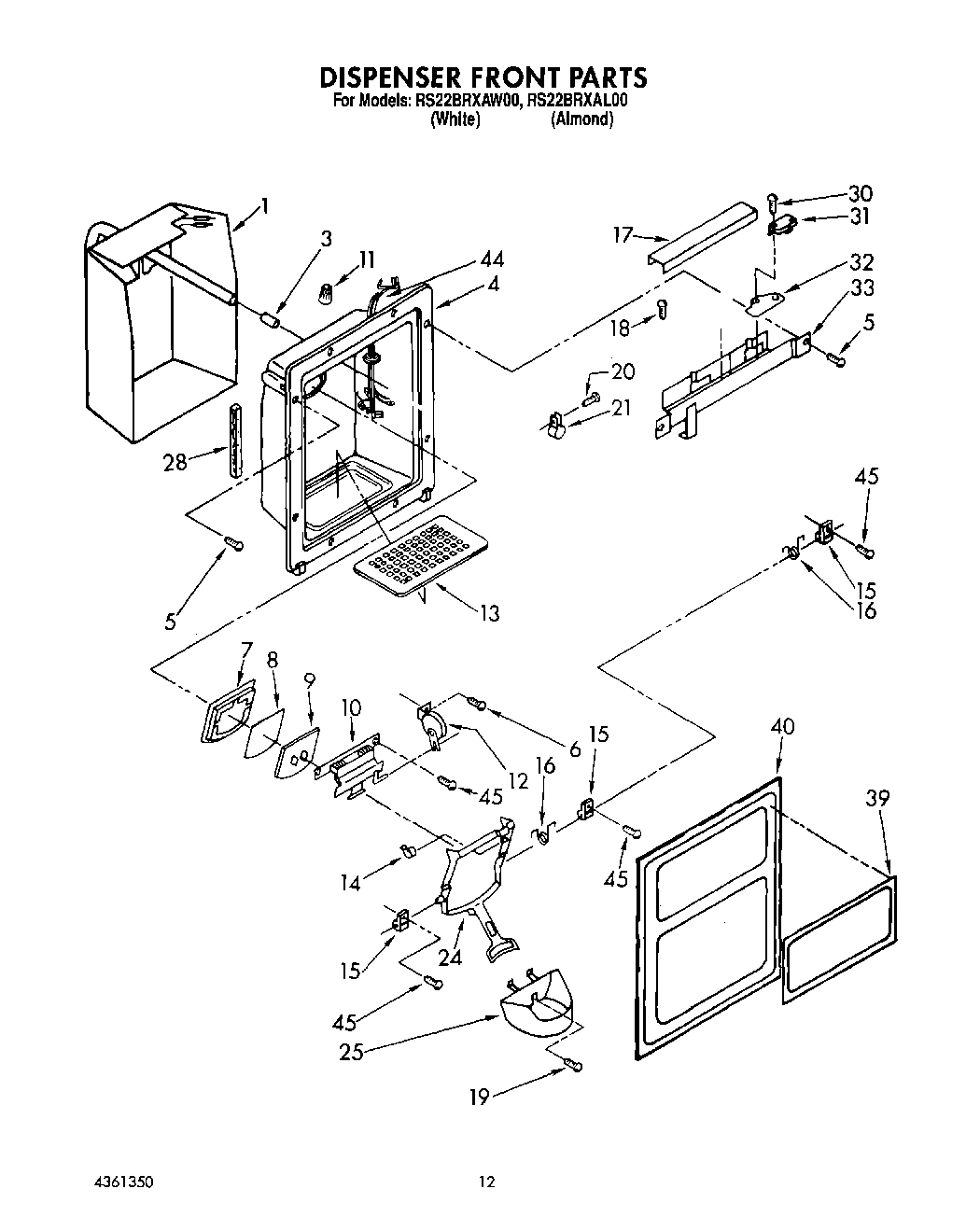

09 - DISPENSER FRONT
11 - AIR FLOW
Common parts from model Whirlpool RS22BRXAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124098A Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
1
Refrigerator Door (White) WPL 2152454 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 2152455 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Door, Ice Compartment WPL 2152361 Contact Us For Availability
3
Door, Compartment WPL 2148289 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Motor WPL 851152 Contact Us For Availability
4
Trim, Compartment Door WPL 1124432 Contact Us For Availability
4
Housing, Dispenser WPL 1116820 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
6
Trim, Door Shelf WPL 1120852 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6
Screw WPL 488316 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
End Cap WPL 1110713 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Glass, Crisper Cover WPL 1124419 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (Large 2) WPL 1114609 Contact Us For Availability
8
Shelf (Small 1) WPL 1118165 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Ladder, Shelf WPL 1108433 Contact Us For Availability
10
Grommet WPL 1110779 Contact Us For Availability
10
Handle, Center WPL 1127464 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
12
Reinforcement, Handle WPL 1127465 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154857 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
13
Clip, Handle WPL 849445 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Shelf, Cantilever WPL 1116890 Contact Us For Availability
13
Grille, Overflow WPL 2152678 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Trim, Shelf WPL 1124421 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI124099A Contact Us For Availability
15
Shim WPL 2147097 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2152357 Contact Us For Availability
16
Front Cover WPL 2152362 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
17
Slide, Freezer Bin WPL 1115383 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1118032 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
17
Pan, Meat WPL 2152636 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Screw WPL 489197 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
screw WPL 487979 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
23
Clamp WPL 2161329 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317959 Contact Us For Availability
28
Insert, Handle WPL 2147581 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Retainer, Top WPL 2147898 Contact Us For Availability
30
Retainer (Bottom) WPL 2147896 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Screw, 4-40 x 3/4 (4) WPL 489155 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
33
Bracket, Control WPL 1116811 Contact Us For Availability
34
Light Lens WPL 1118315 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Extension (Bottom) WPL 1127473 Contact Us For Availability
35
Extension, Top WPL 2147445 Contact Us For Availability
36
Unit, Harness WPL 2153994 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Retainer, Gasket WPL 1117766 Contact Us For Availability
39
Plaque, Front Cover WPL 2152624 Contact Us For Availability
40
Retainer, Gasket WPL 1118301 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2152626 Contact Us For Availability
41
Door, Shelf WPL 2152686 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118374 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Cover, Unit WPL 2161316 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI124096A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
