Model Whirlpool RS22ARXXL00 – Common Parts & Diagrams

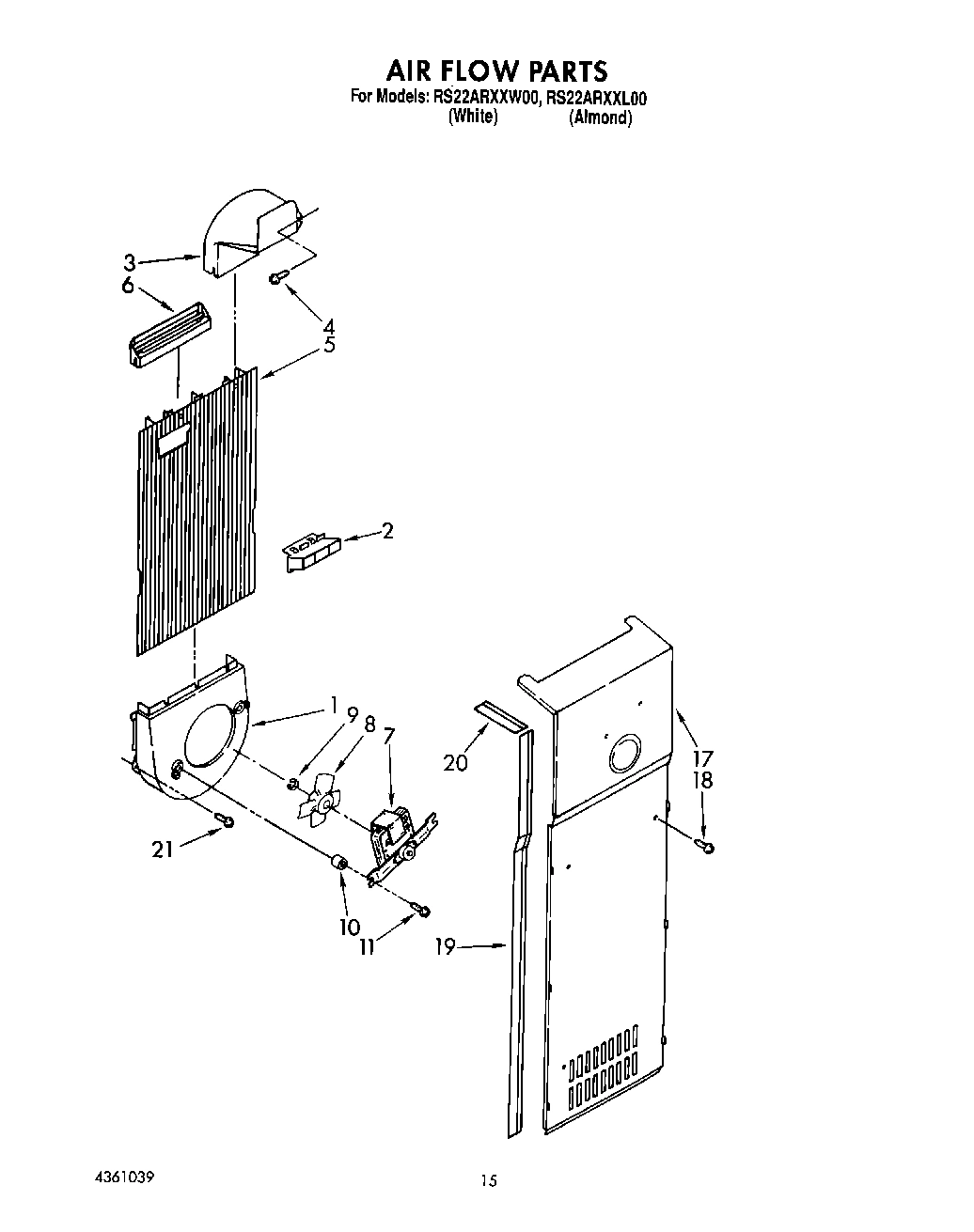

10 - AIR FLOW

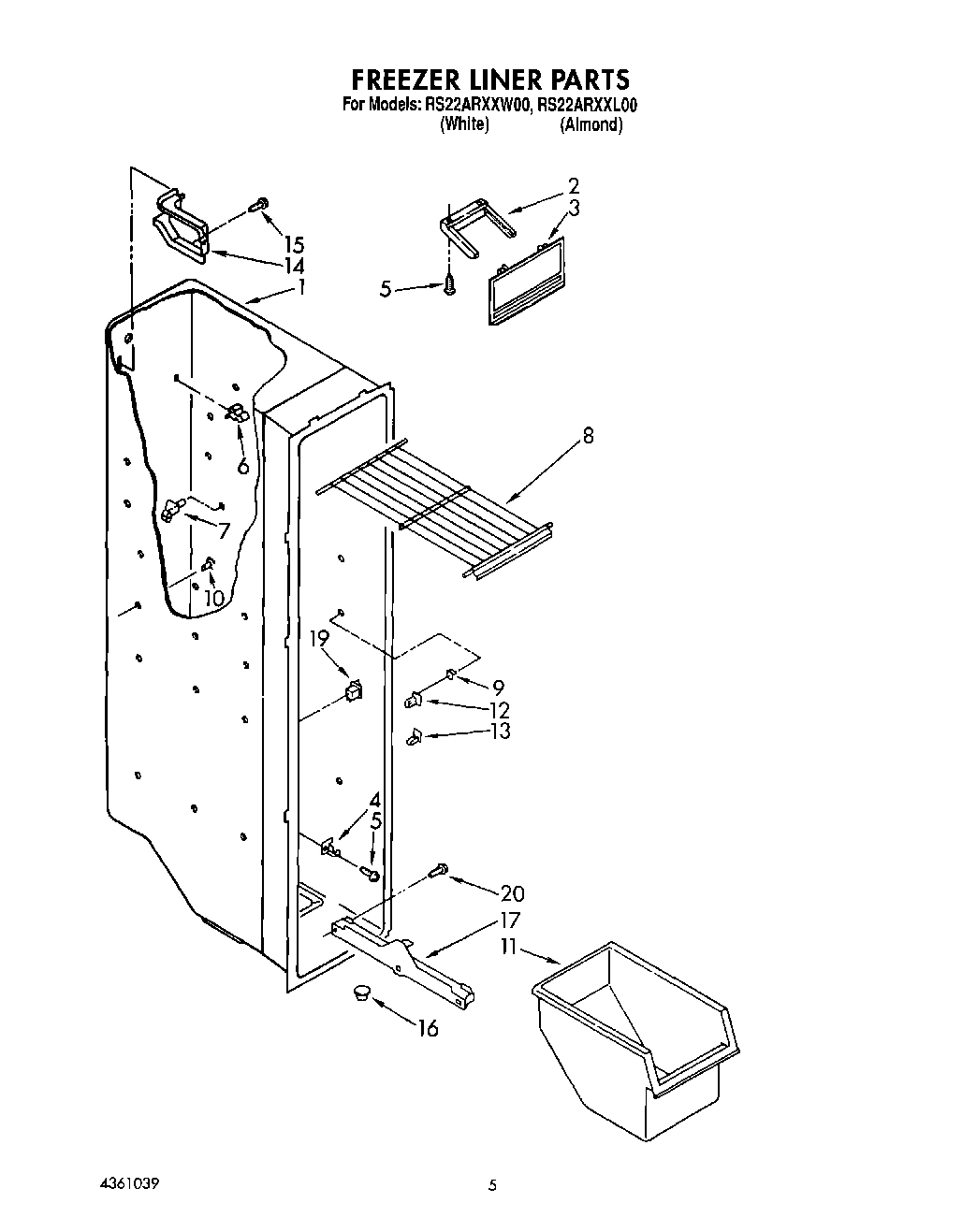

04 - FREEZER LINER

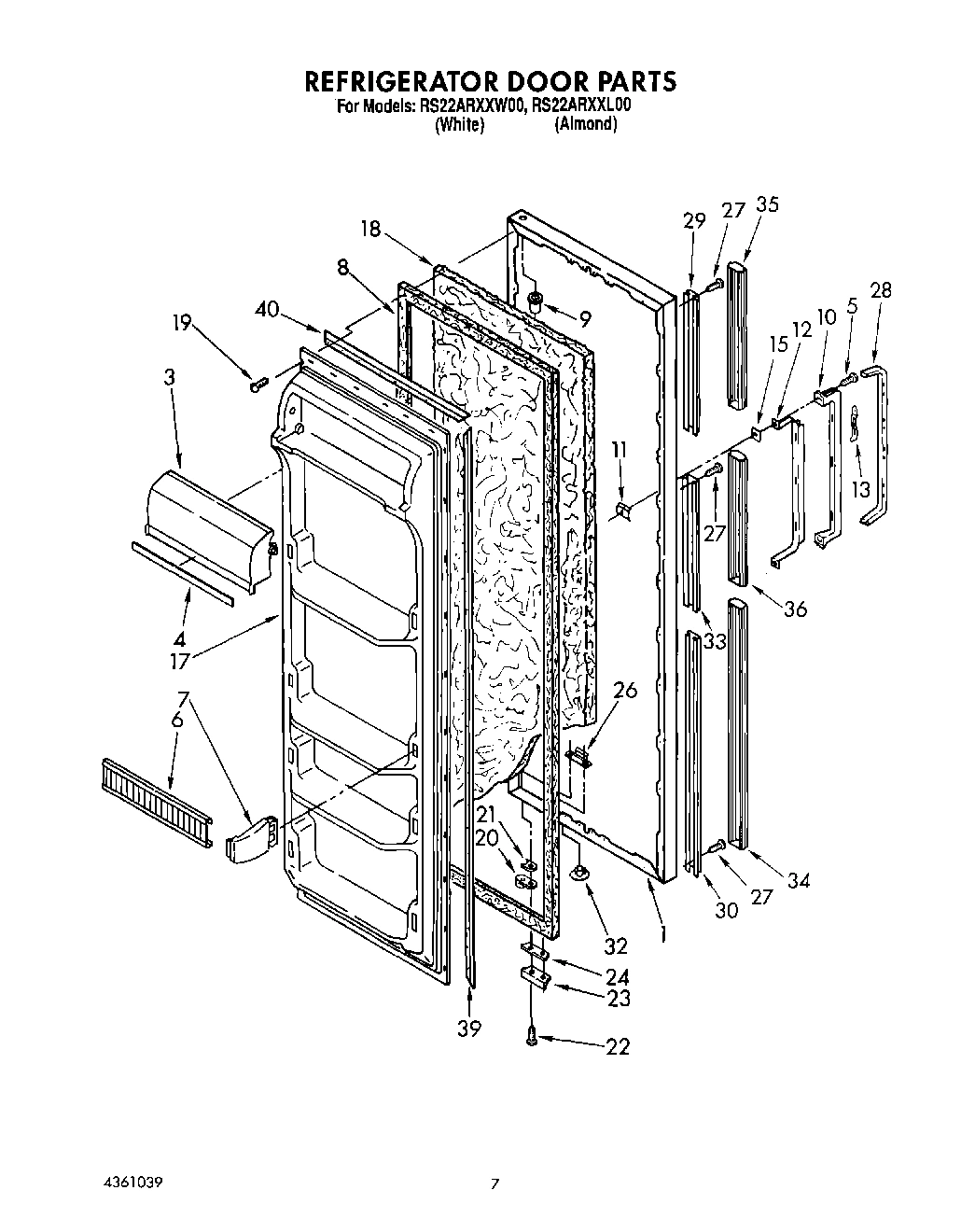

06 - REFRIGERATOR DOOR

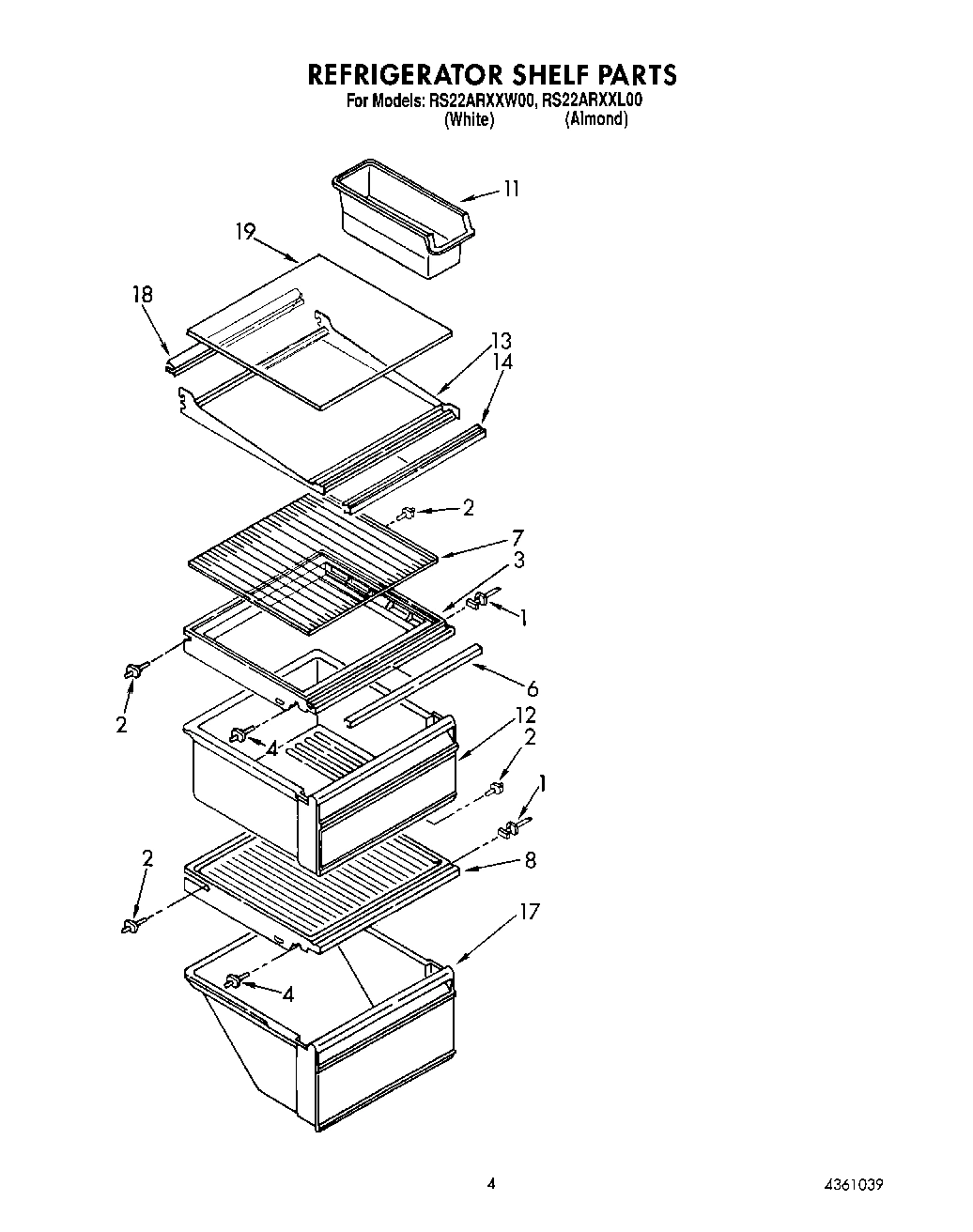

03 - REFRIGERATOR SHELF

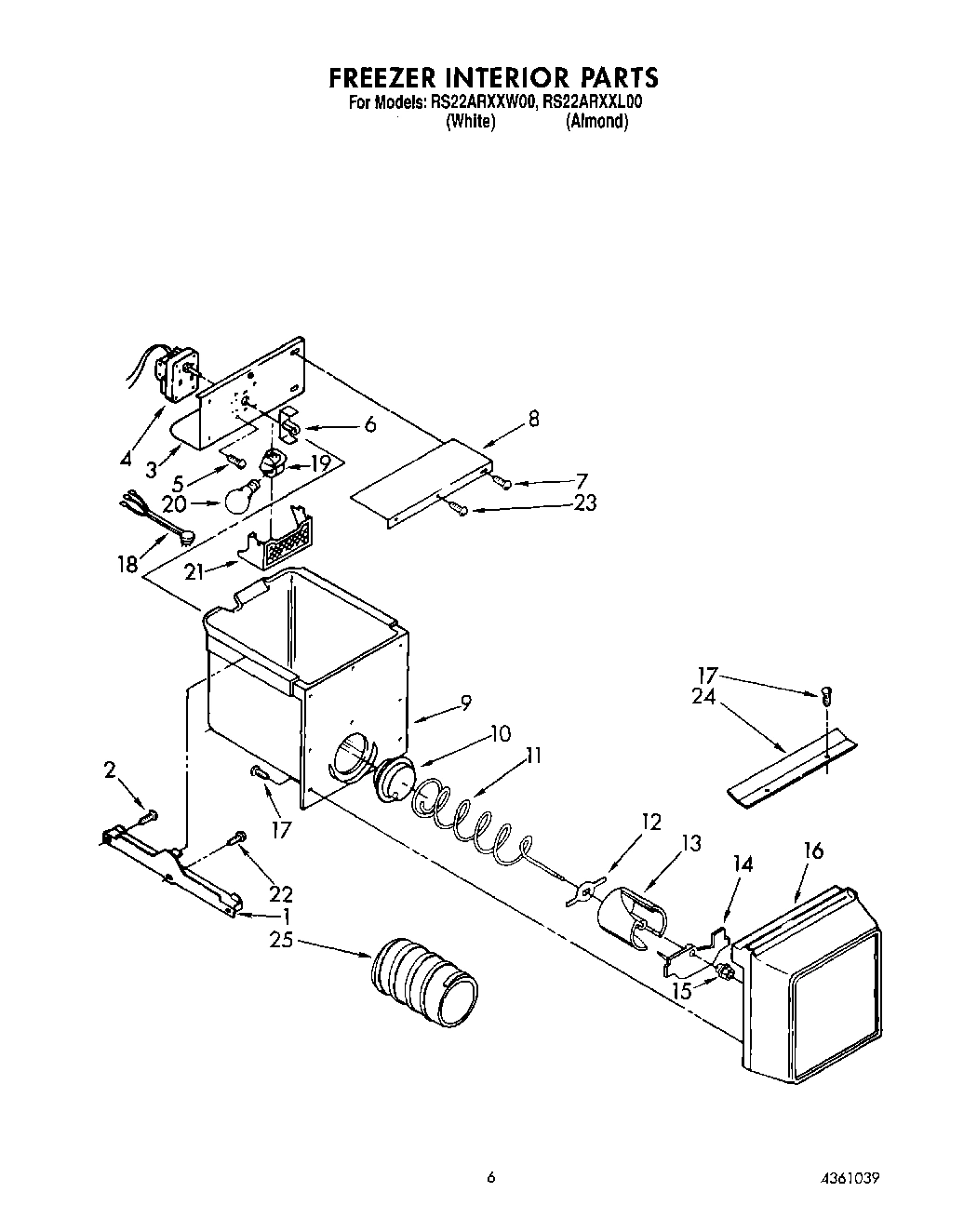

05 - FREEZER INTERIOR

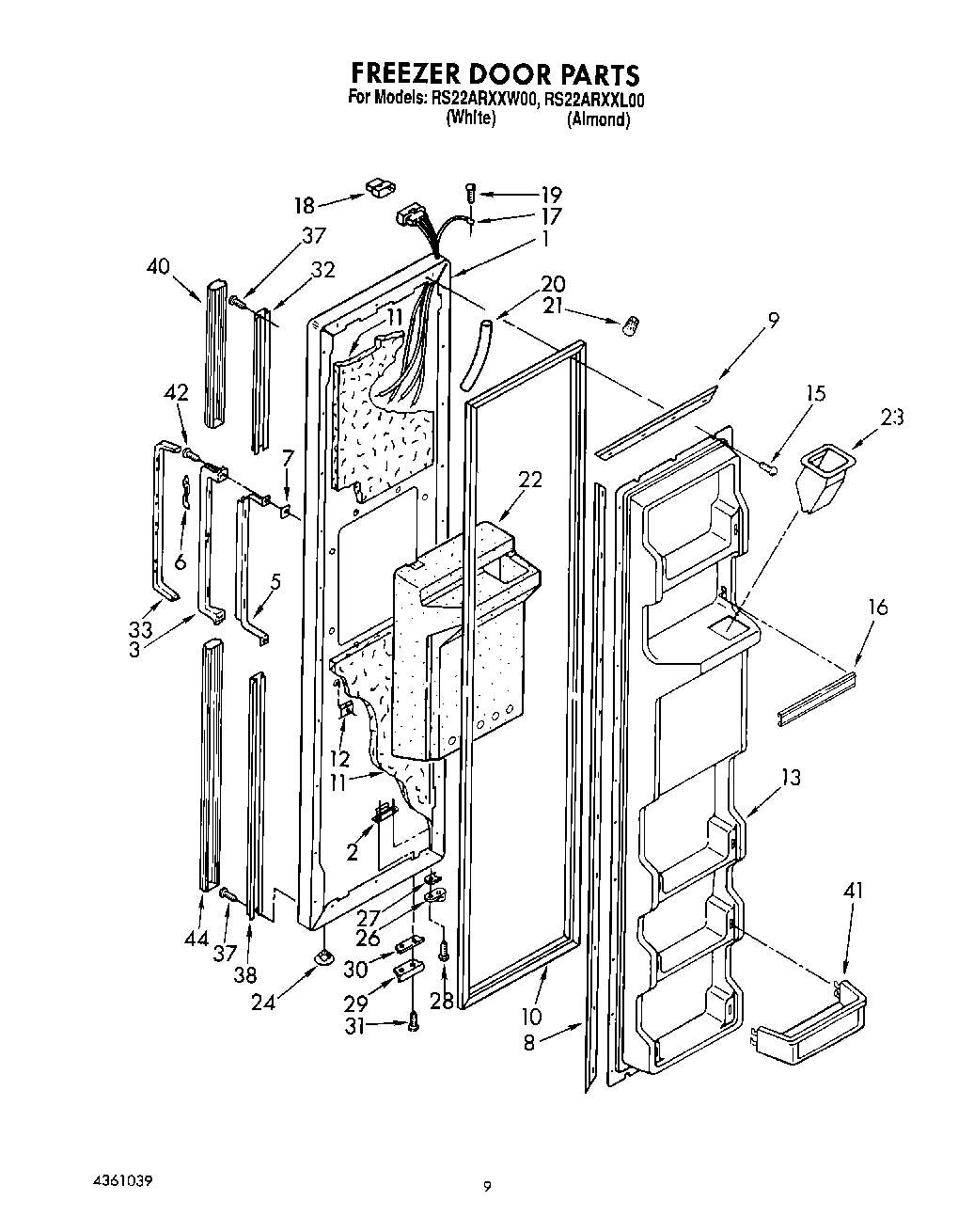

07 - FREEZER DOOR

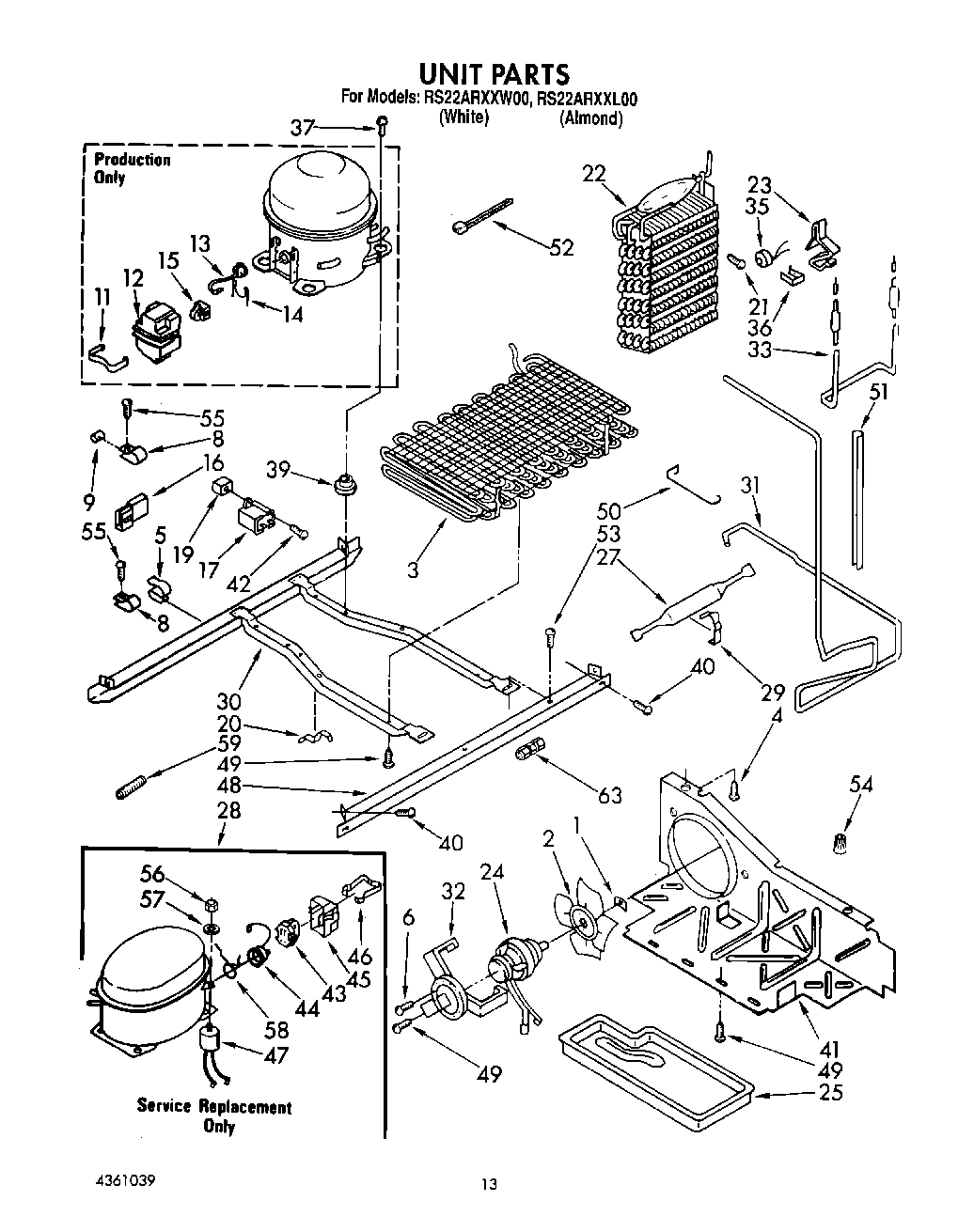

09 - UNIT

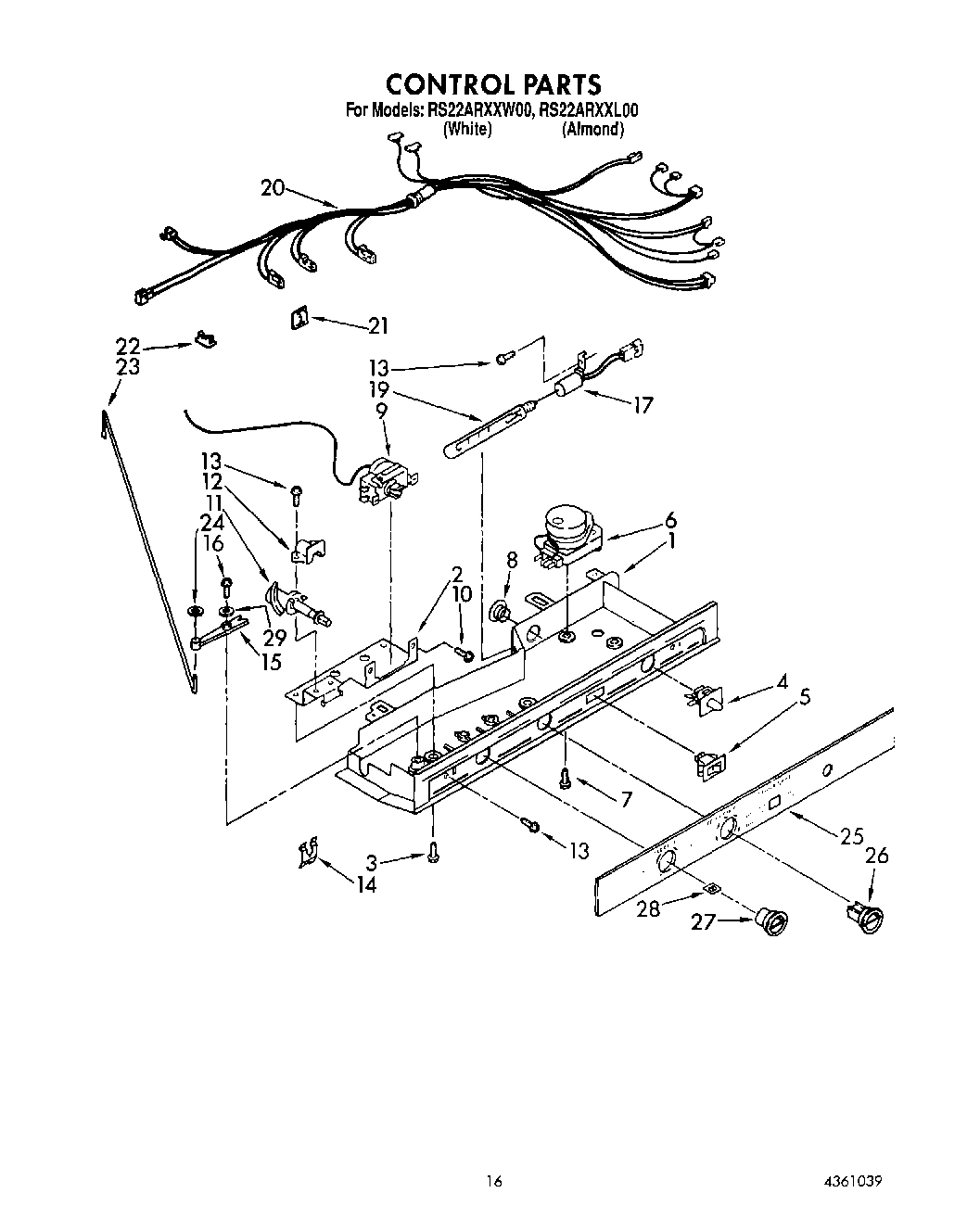

11 - CONTROL

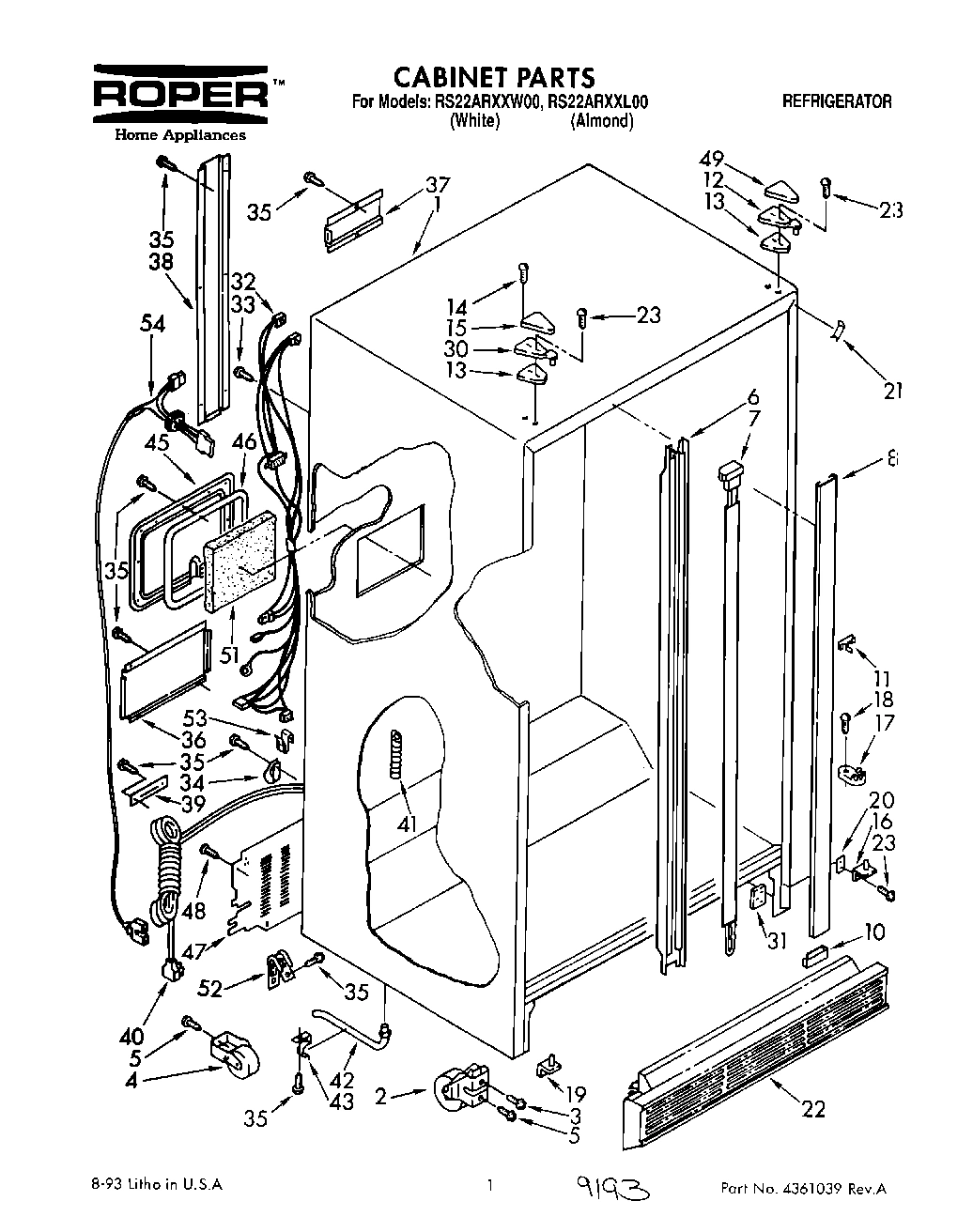

01 - CABINET

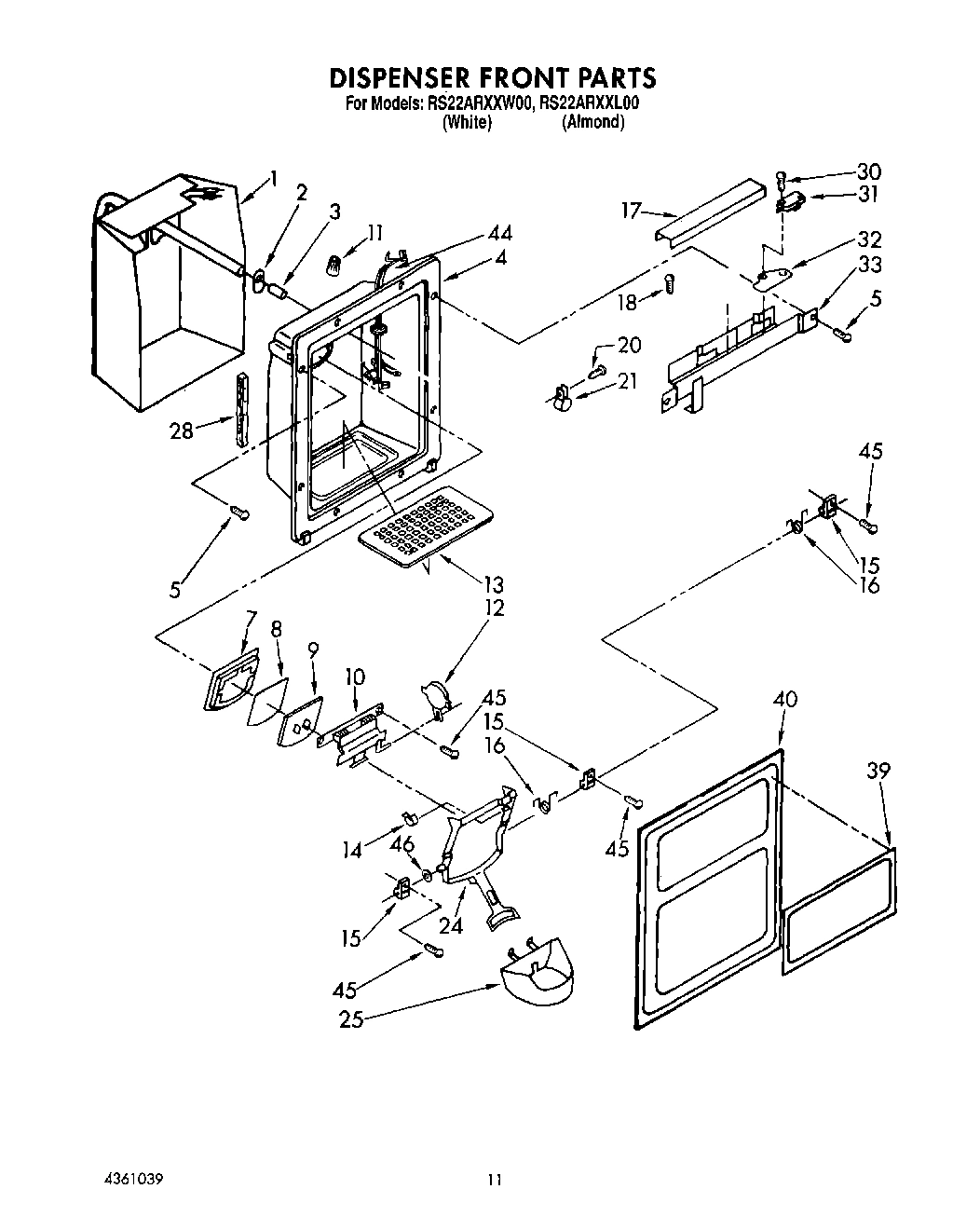

08 - DISPENSER FRONT

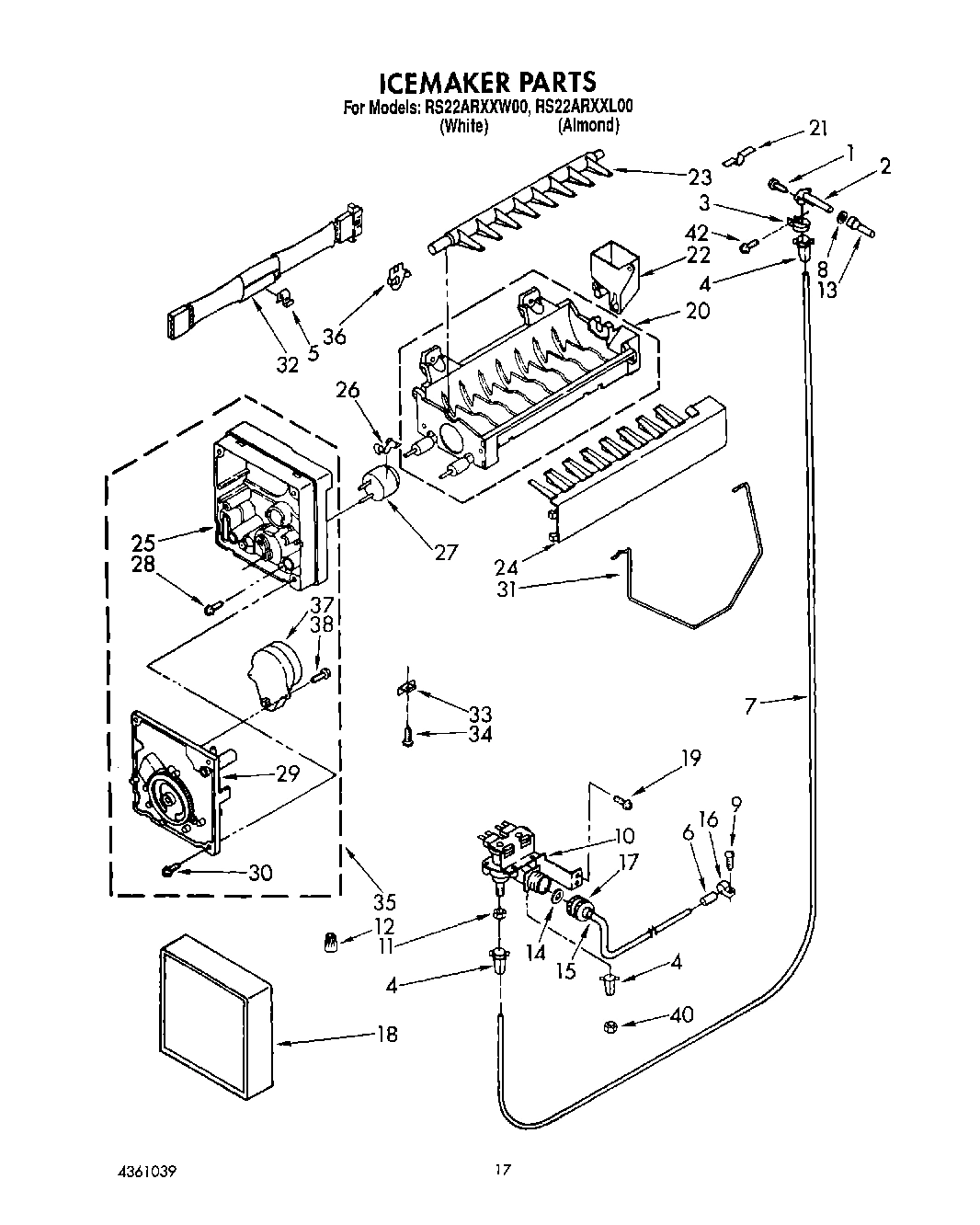

12 - ICEMAKER, LIT/OPTIONAL

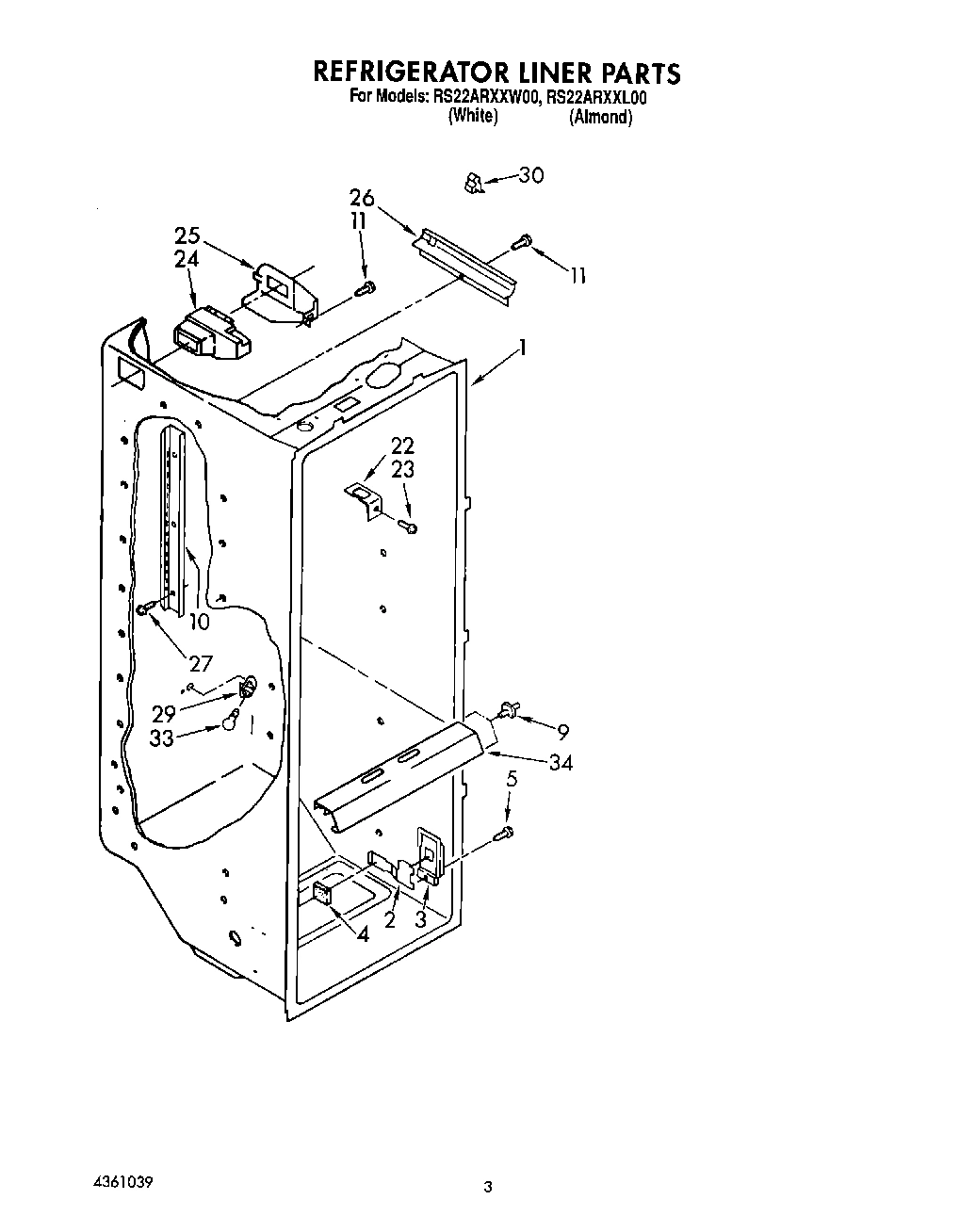

02 - REFRIGERATOR LINER
Common parts from model Whirlpool RS22ARXXL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2149973 WPL LIT2149973 Contact Us For Availability
WPL LIT2150287 WPL LIT2150287 Contact Us For Availability
WPL LIT2152364 WPL LIT2152364 Contact Us For Availability
WPL LIT4361039 WPL LIT4361039 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2147450 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2147452 Contact Us For Availability
1
Control Box WPL 1129413 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI124022A Contact Us For Availability
1
Heater, Dispenser WPL 1118375 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124023A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Handle, Center WPL 1127464 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Screw WPL 489333 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
4
Motor WPL 851152 Contact Us For Availability
4
Housing, Dispenser WPL 1116820 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Reinforcement, Handle WPL 1127465 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
6
Clip, Handle WPL 849445 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Mullion Rail WPL 2155015 Contact Us For Availability
7
End Cap WPL 1110713 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Glass, Crisper Cover WPL 1124419 Contact Us For Availability
7
Shim WPL 2147097 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Retainer, Gasket WPL 1117766 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Ladder, Shelf WPL 1108433 Contact Us For Availability
11
Foam Insullation WPL 876029 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shelf Cantilever WPL 1114304 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Overload WPL 945586 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
14
Trim, Shelf WPL 1124421 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627854 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2152362 Contact Us For Availability
16
Trim, Door Shelf WPL 2152357 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
17
Meat Pan WPL 1124415 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1118032 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Retainer, Glass WPL 1123908 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149942 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Glass, Shelf WPL 1124422 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2149750 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Deflector, Ice Container WPL 1127233 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
25
Escutcheon, Control Box WPL 1123999 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Screw, 4-40 x 3/4 (4) WPL 489155 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Retainer, Top WPL 2147898 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Cabinet Harness WPL 2149746 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Insert, Handle WPL 2147581 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
33
Bracket, Control WPL 1116811 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Retainer (Bottom) WPL 2147896 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
Plaque, Front Cover WPL 2152352 Contact Us For Availability
40
Extension, Top WPL 2147445 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2152353 Contact Us For Availability
41
Door, Shelf WPL 2152358 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
42
WPL 479502 WPL 479502 Contact Us For Availability
42
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
42
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
42
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
42
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
42
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
42
WPL 515393 WPL 515393 Contact Us For Availability
42
WPL 542639 WPL 542639 Contact Us For Availability
42
WPL 72112 WPL 72112 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
44
Extension (Bottom) WPL 1127473 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118374 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
46
Washer (Repair) WPL 488307 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
47
Cover, Unit WPL 1105617 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
