Model Whirlpool RS20DKXFW01 – Common Parts &amp; Diagrams

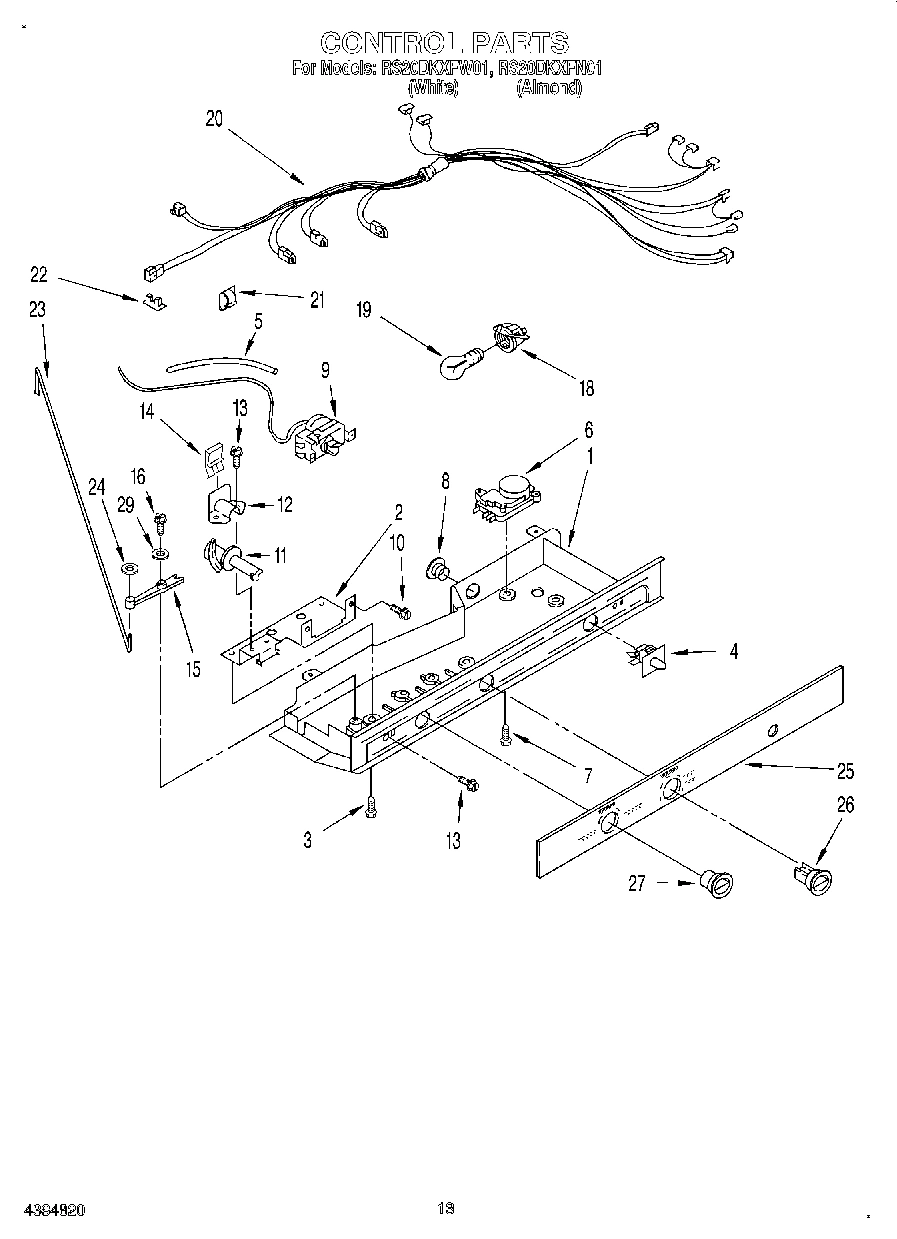

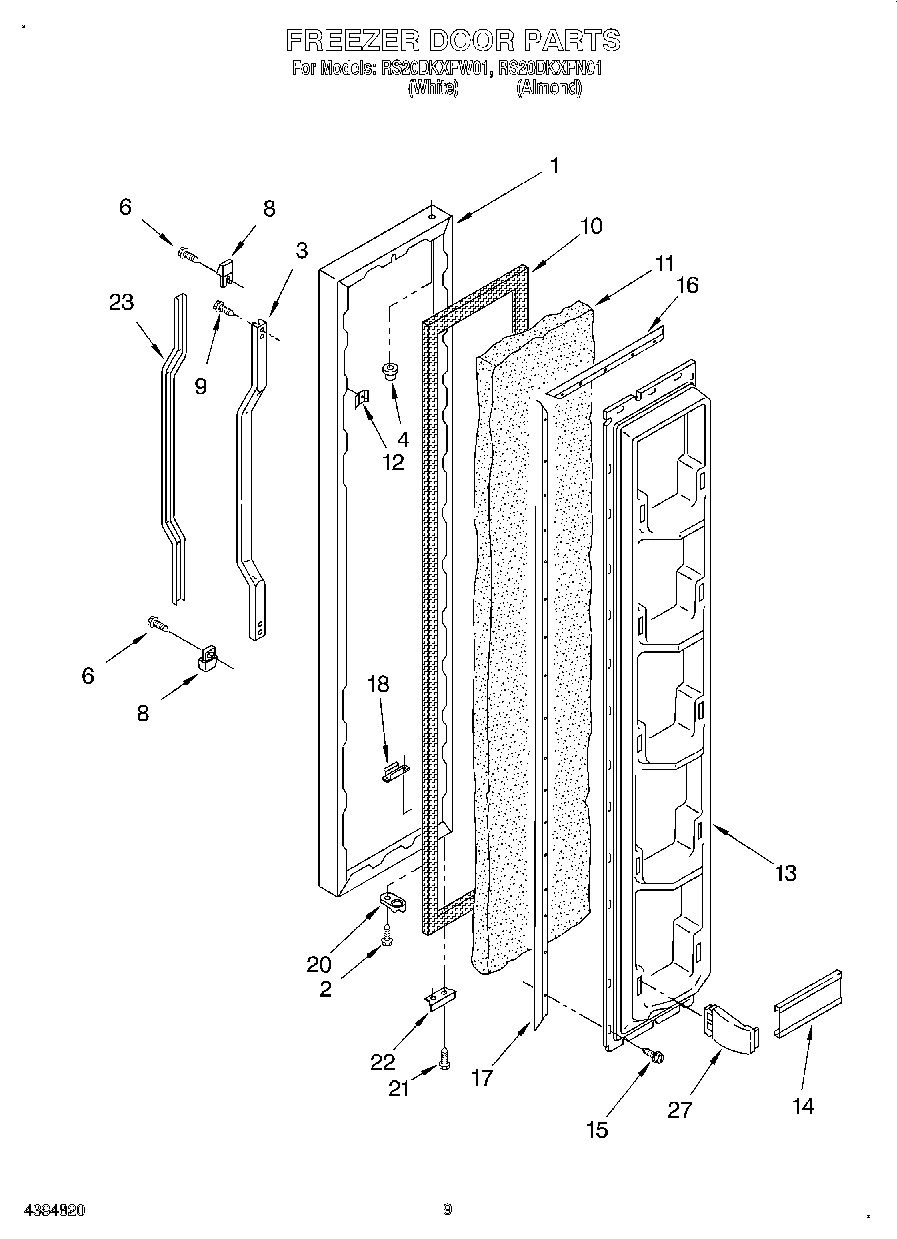

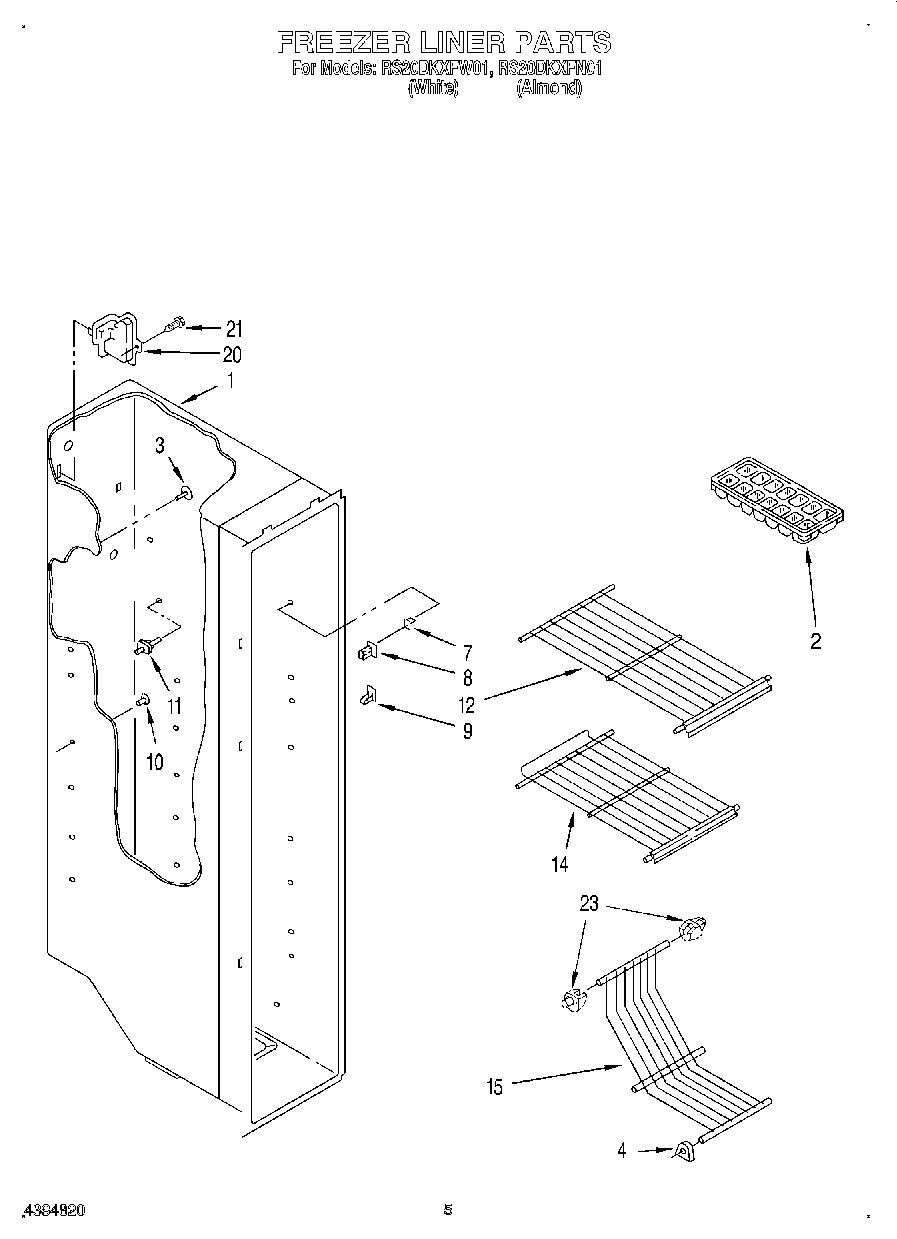

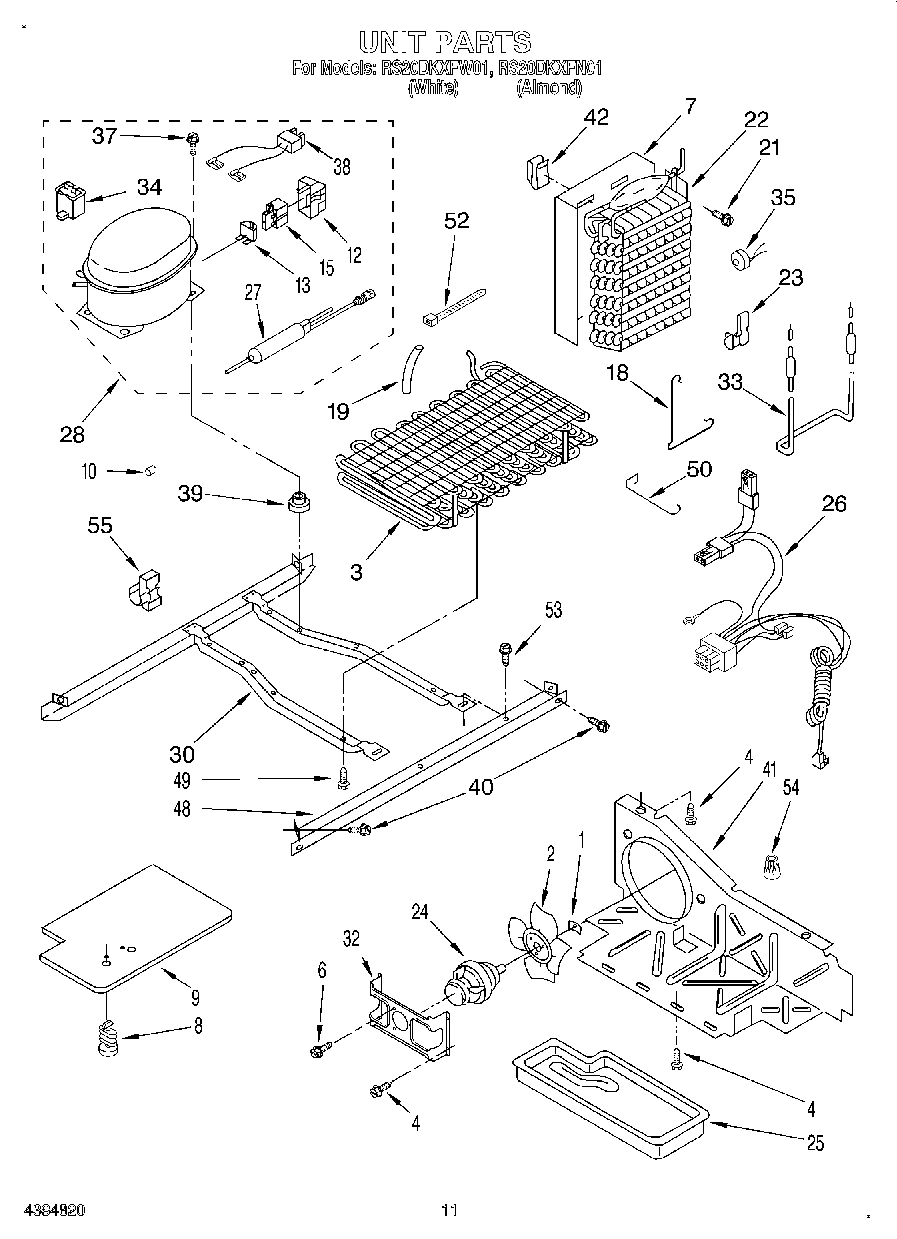

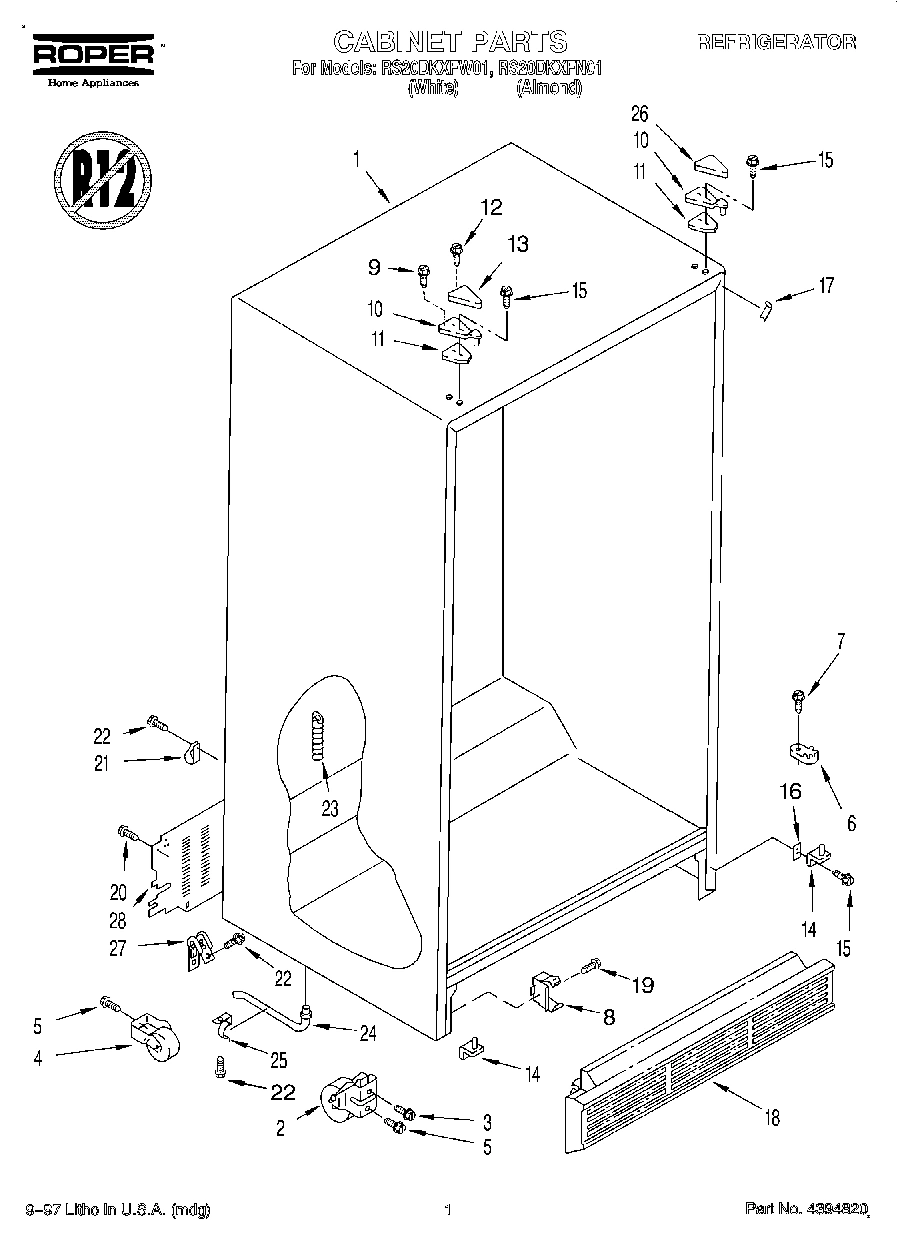

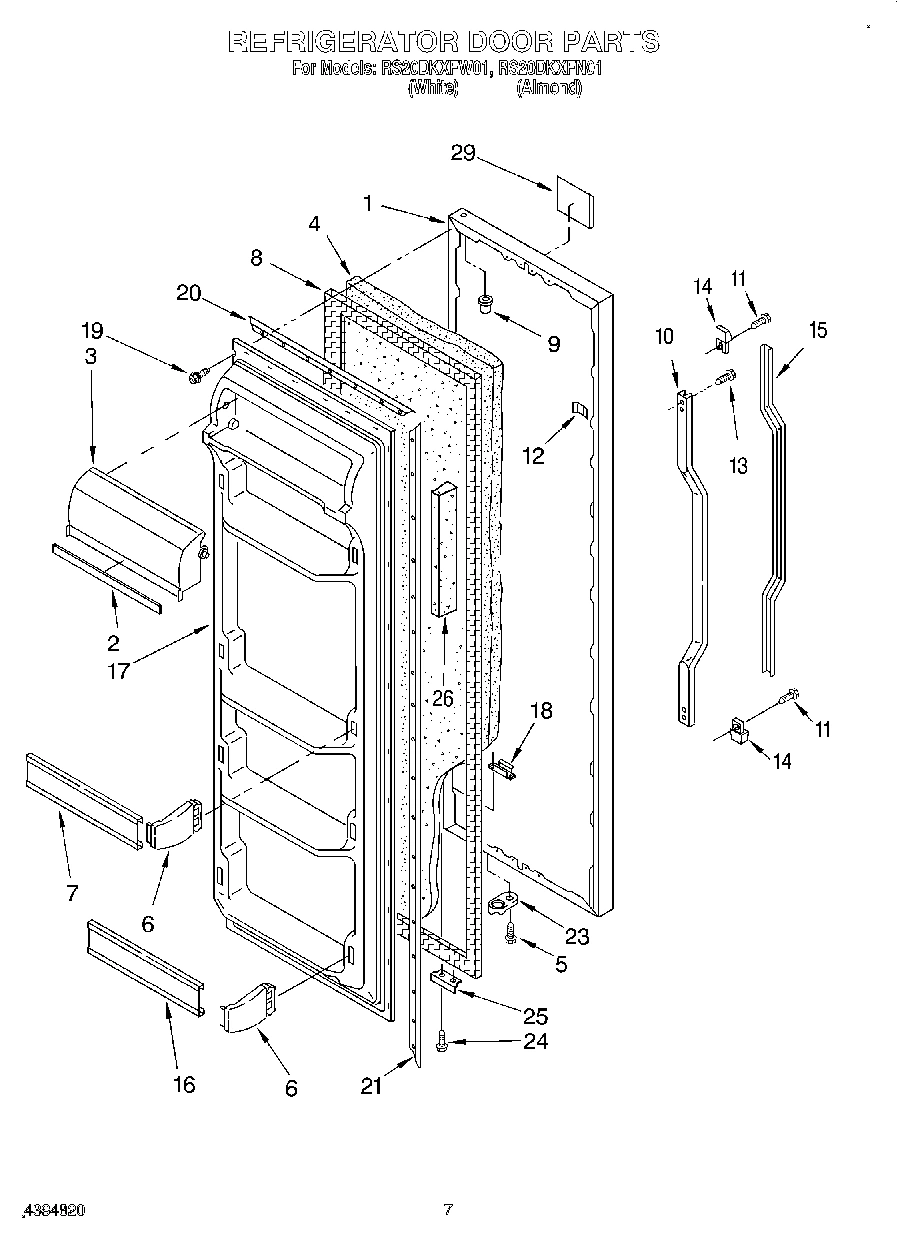

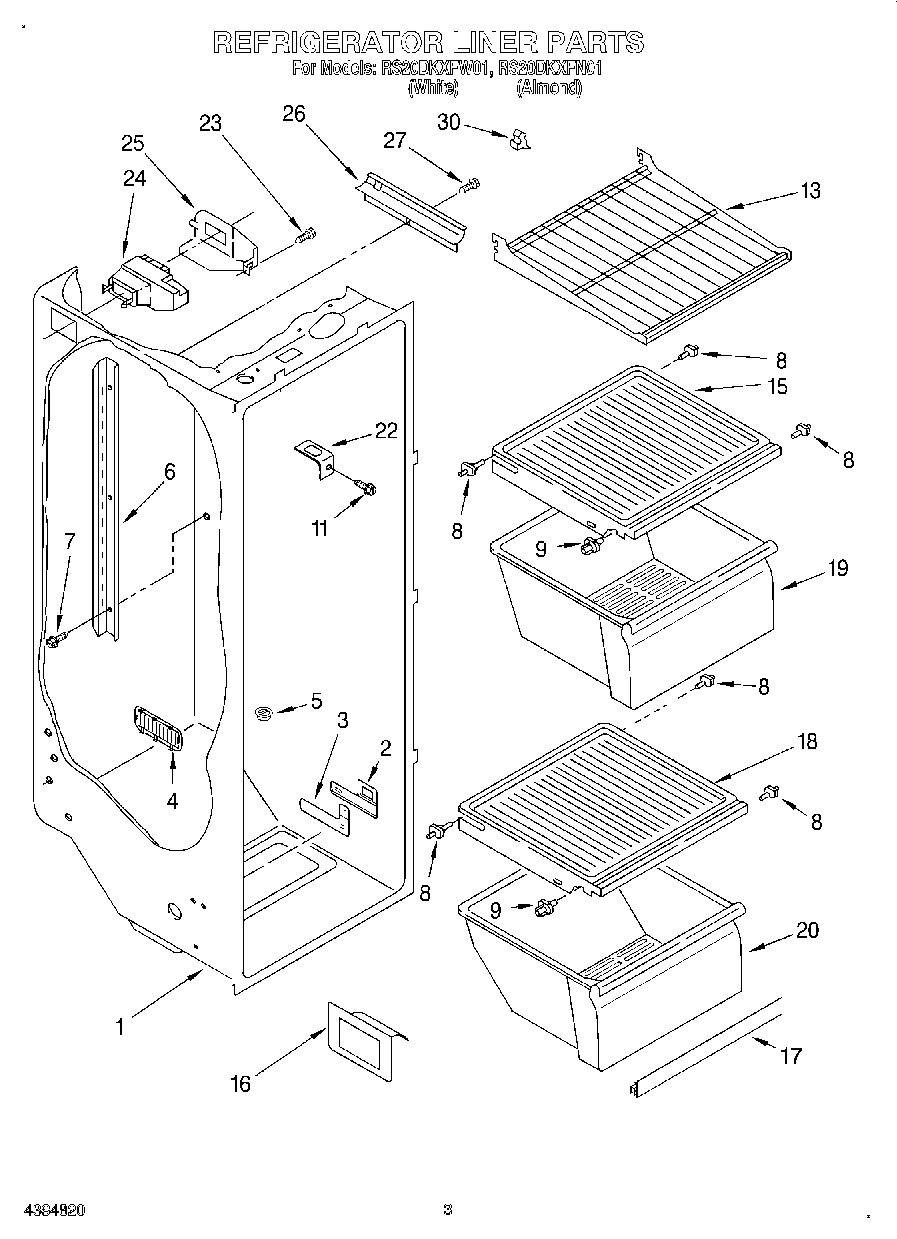

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT2194925 WPL LIT2194925 Contact Us For Availability

WPL LIT2198055 WPL LIT2198055 Contact Us For Availability

WPL LIT2198382 WPL LIT2198382 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Cabinet (Not A Serviceable Part) WPL ARI123851A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI123853A Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Screw (2) WPL 489397 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

4

Grommet WPL 216446 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

6

Defrost Timer WPL 2176648 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2182189 Whirlpool Door Shelf Bar In Stock WPL WP2182189 $53.69

7

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

7

Support, Stud (10) WPL 946355 Contact Us For Availability

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Stud, Front (4) WPL 946356 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

9

Cover, Unit Compartment WPL 2182057 Contact Us For Availability

9

Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (10) WPL 2176134 Contact Us For Availability

11

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

Shim, Hinge (2) WPL 2196048 Contact Us For Availability

12

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

12

Screw WPL 489284 Contact Us For Availability

12

Shelf WPL 2163612 Contact Us For Availability

13

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

13

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

Trim, Shelf (5) WPL 2195921 Contact Us For Availability

Shelf (1) WPL 2174269 Contact Us For Availability

Shelf (2) WPL 2174270 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Trivet WPL 1116756 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

17

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

17

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

18

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

18

Grille WPL 2155476 Contact Us For Availability

18

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

20

Cover, Wiring WPL 2155401 Contact Us For Availability

20

Control Box Harness WPL 2198307 Contact Us For Availability

21

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

22

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Clip, Heater (2) WPL 2161330 Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

24

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

24

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

Harness, Intermediate WPL 2194747 Contact Us For Availability

27

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

28

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

30

Unit Mounting Frame WPL 2160498 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $47.25

34

Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

Air Baffle WPL 2155301 Contact Us For Availability

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
