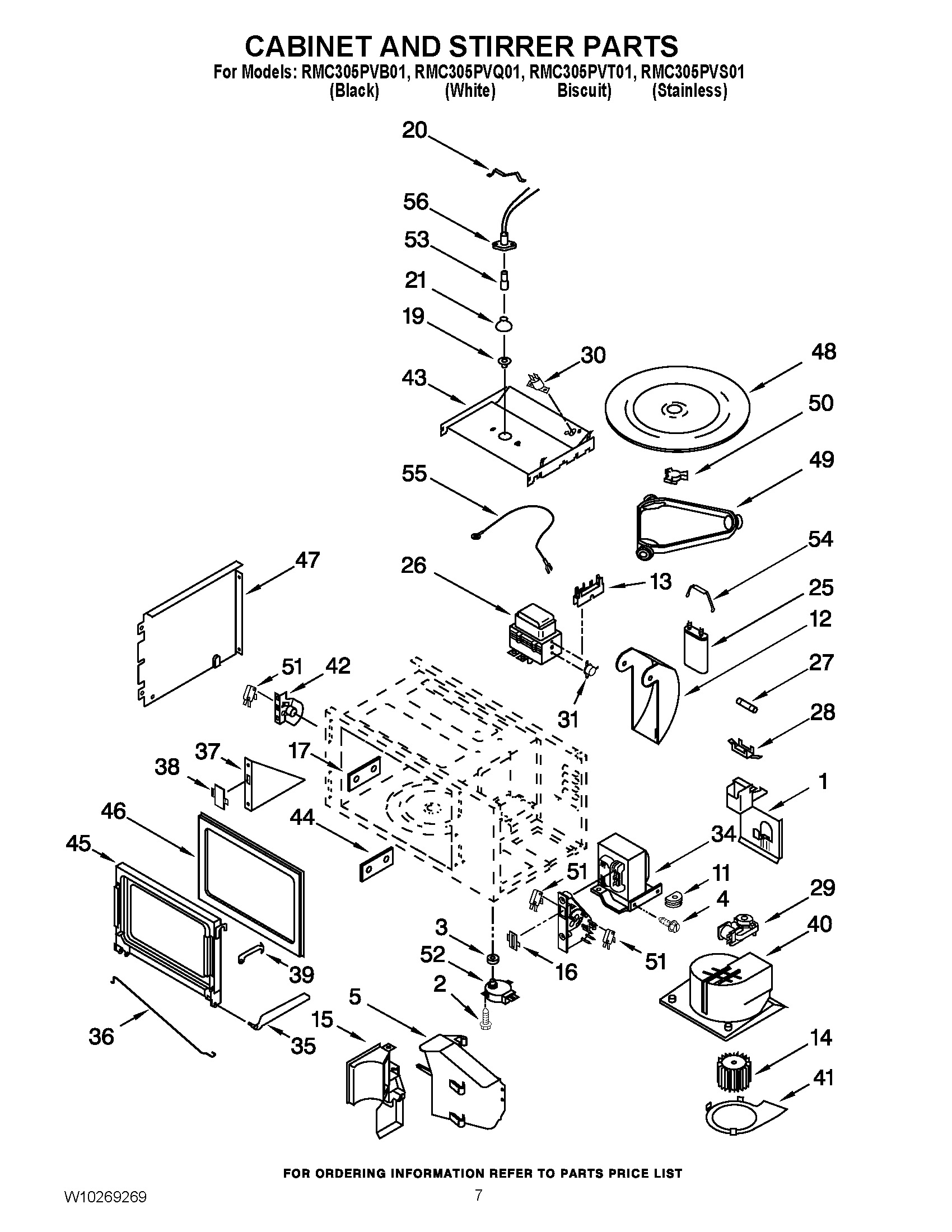

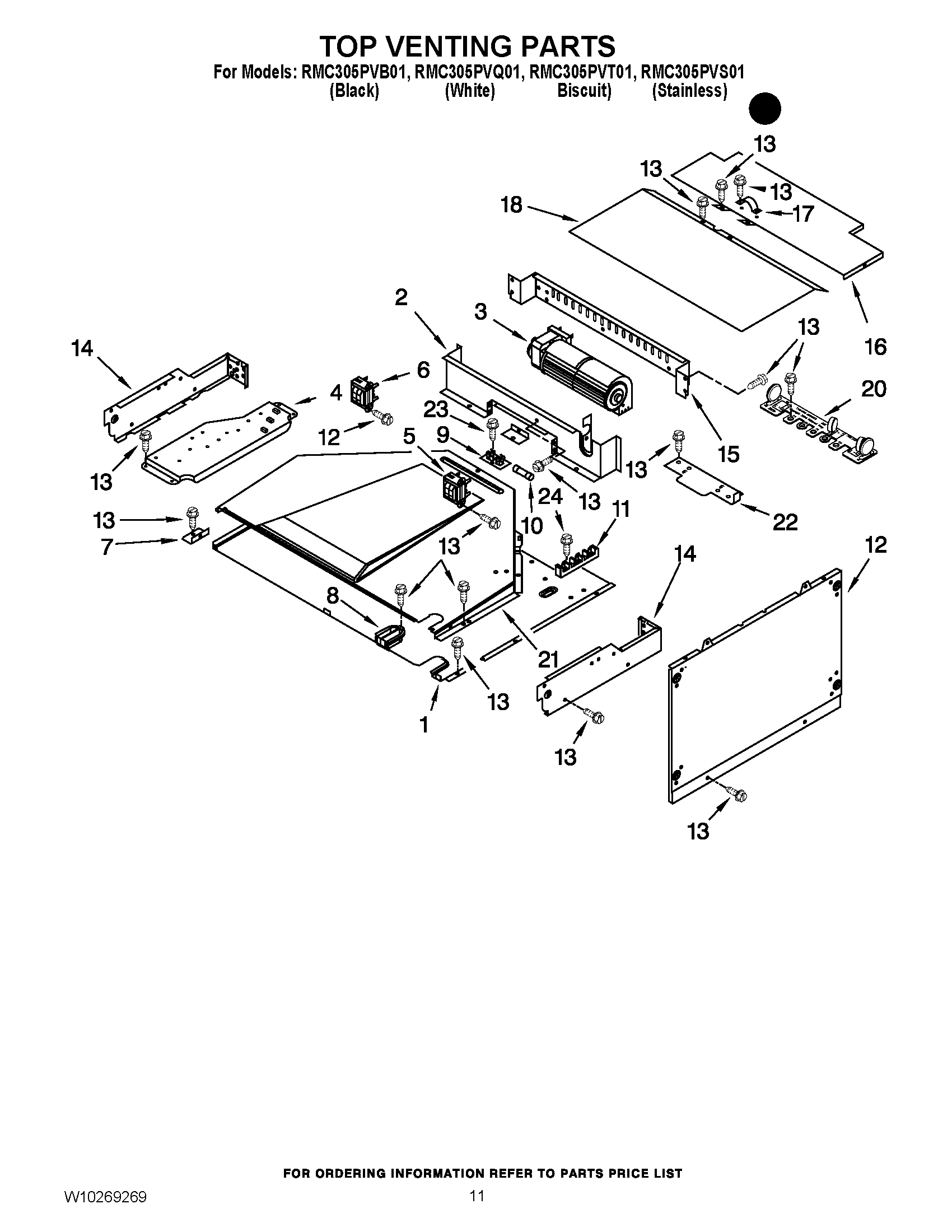

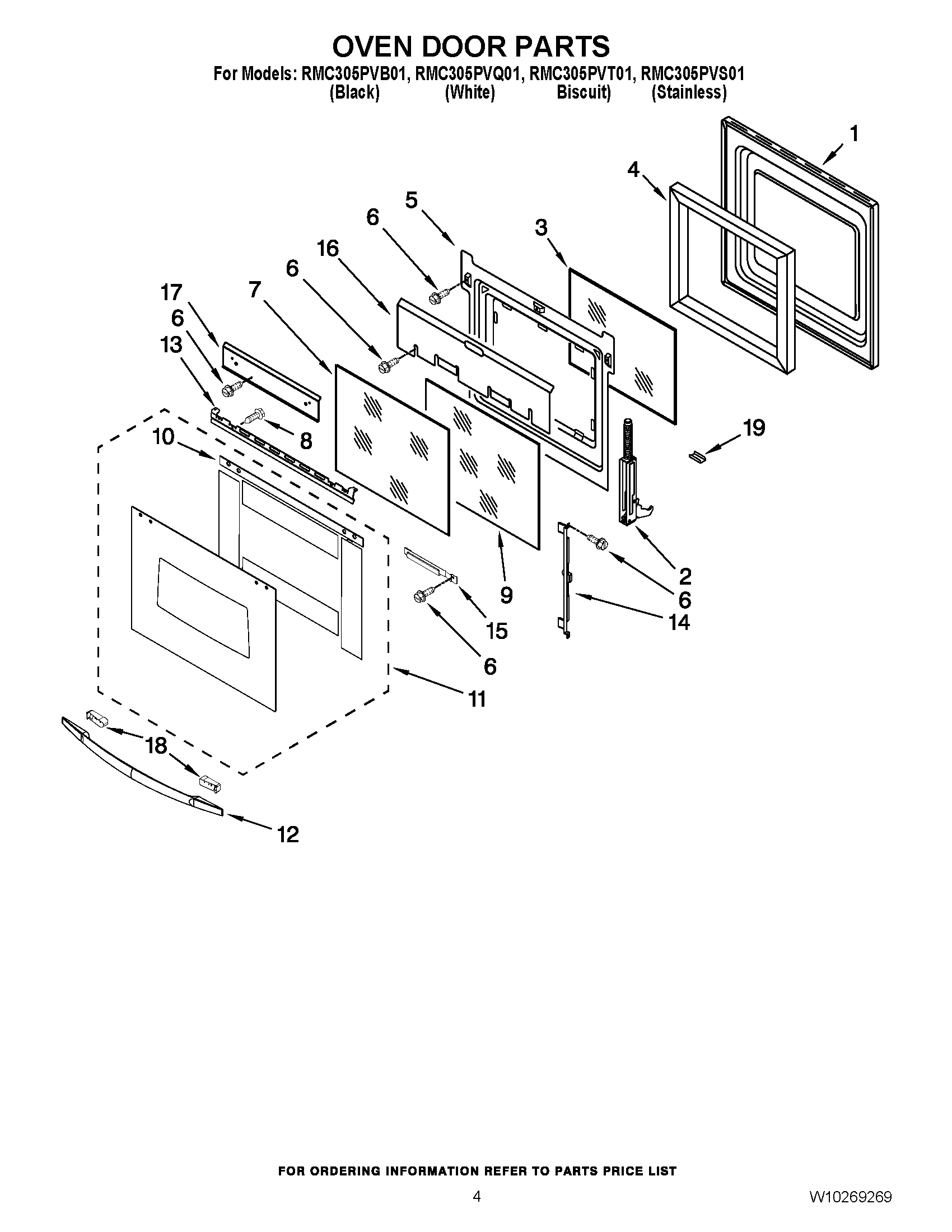

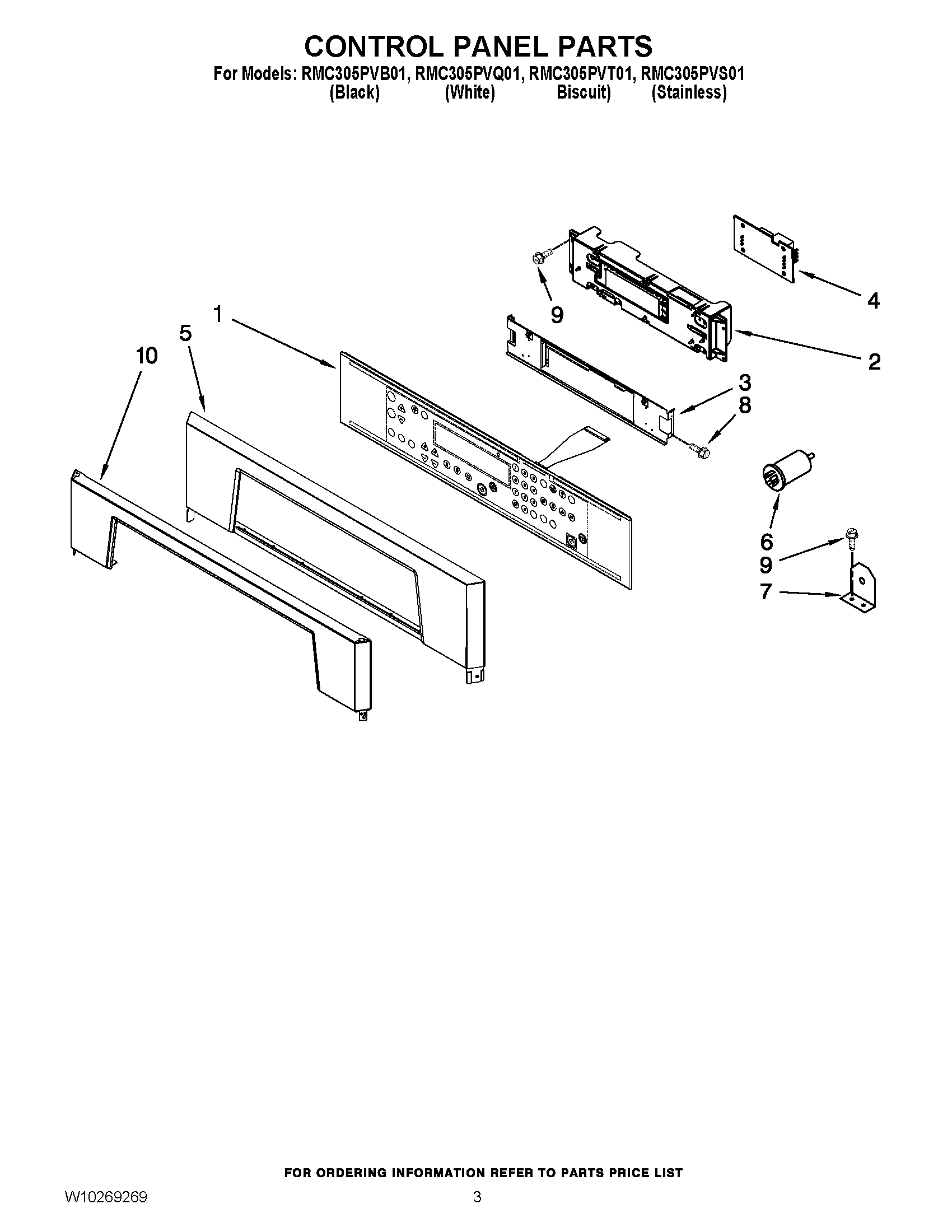

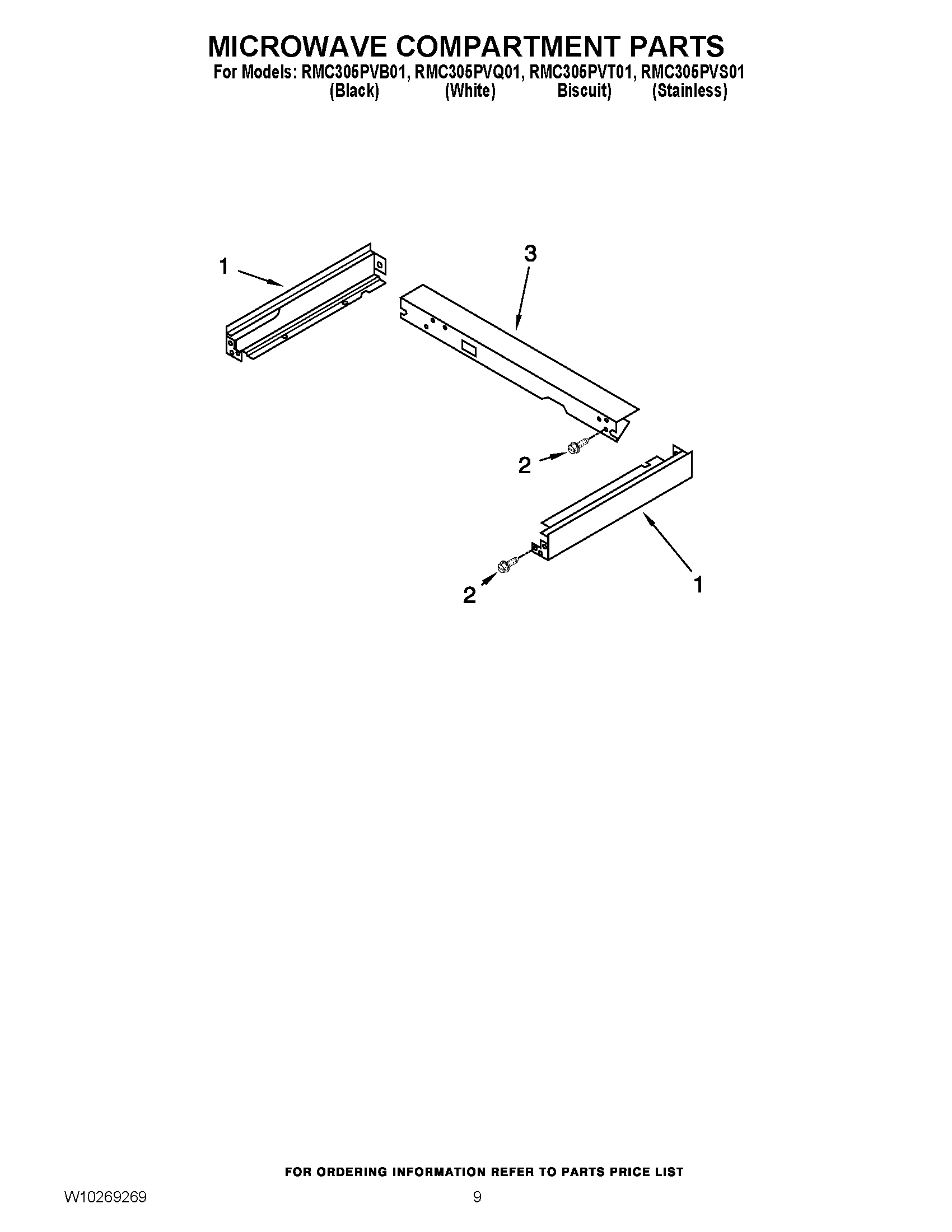

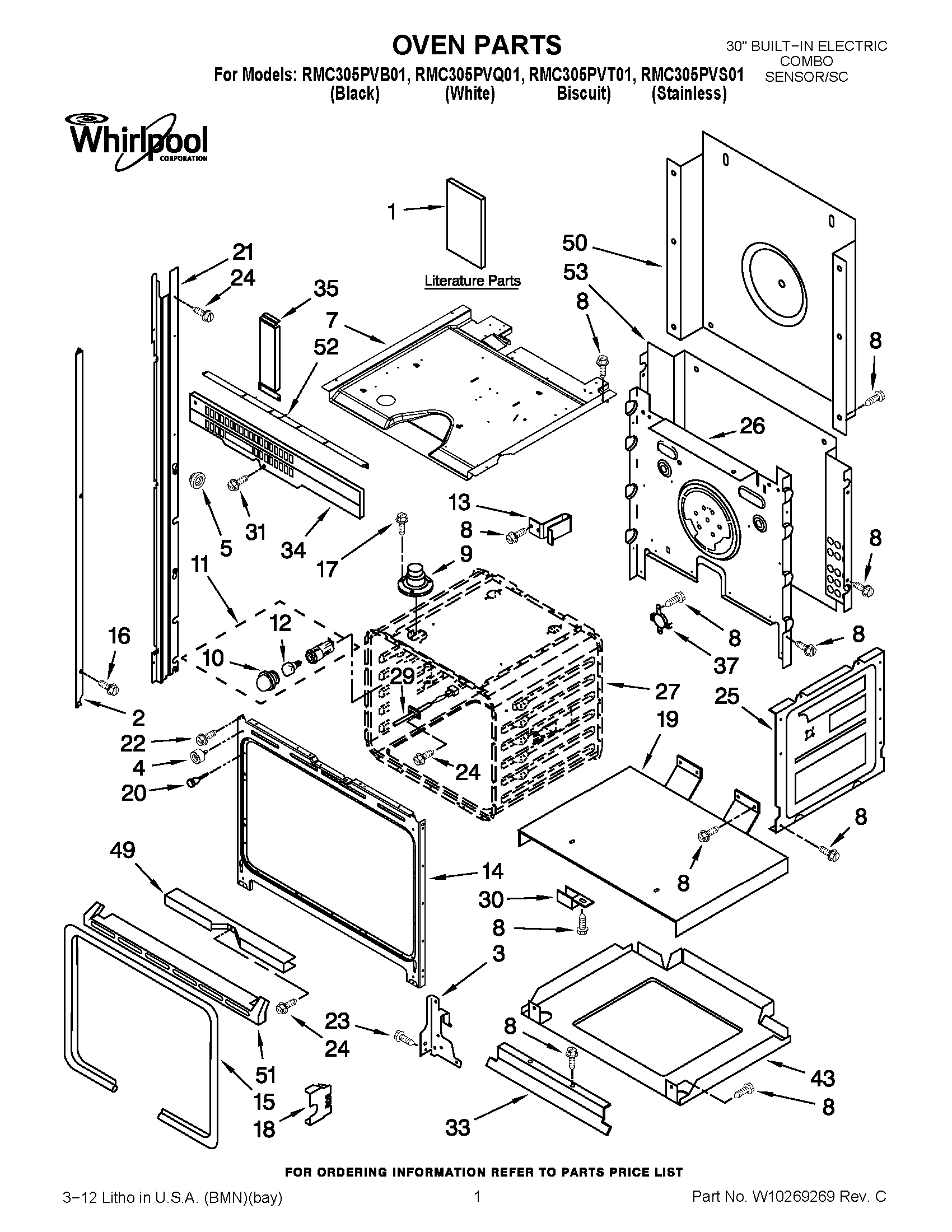

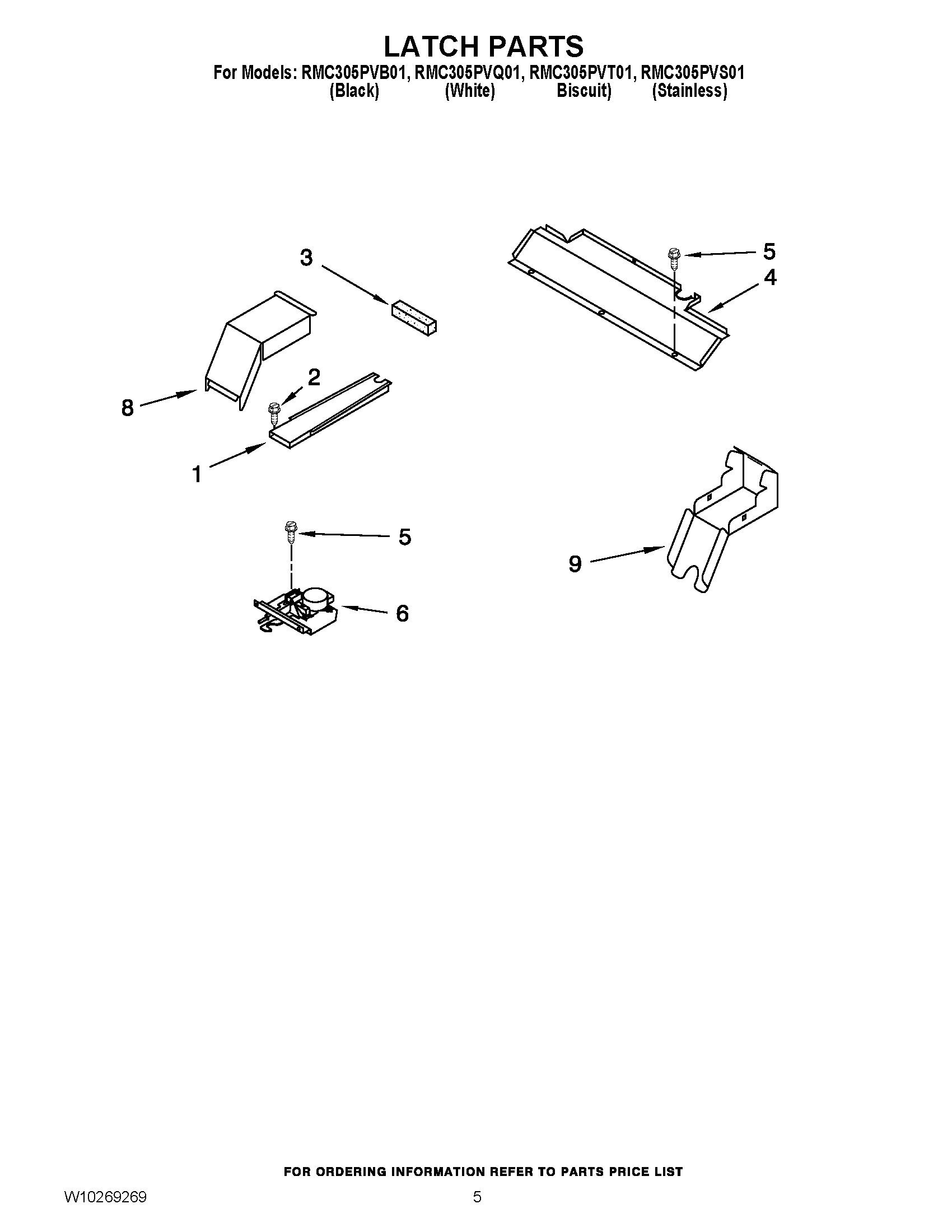

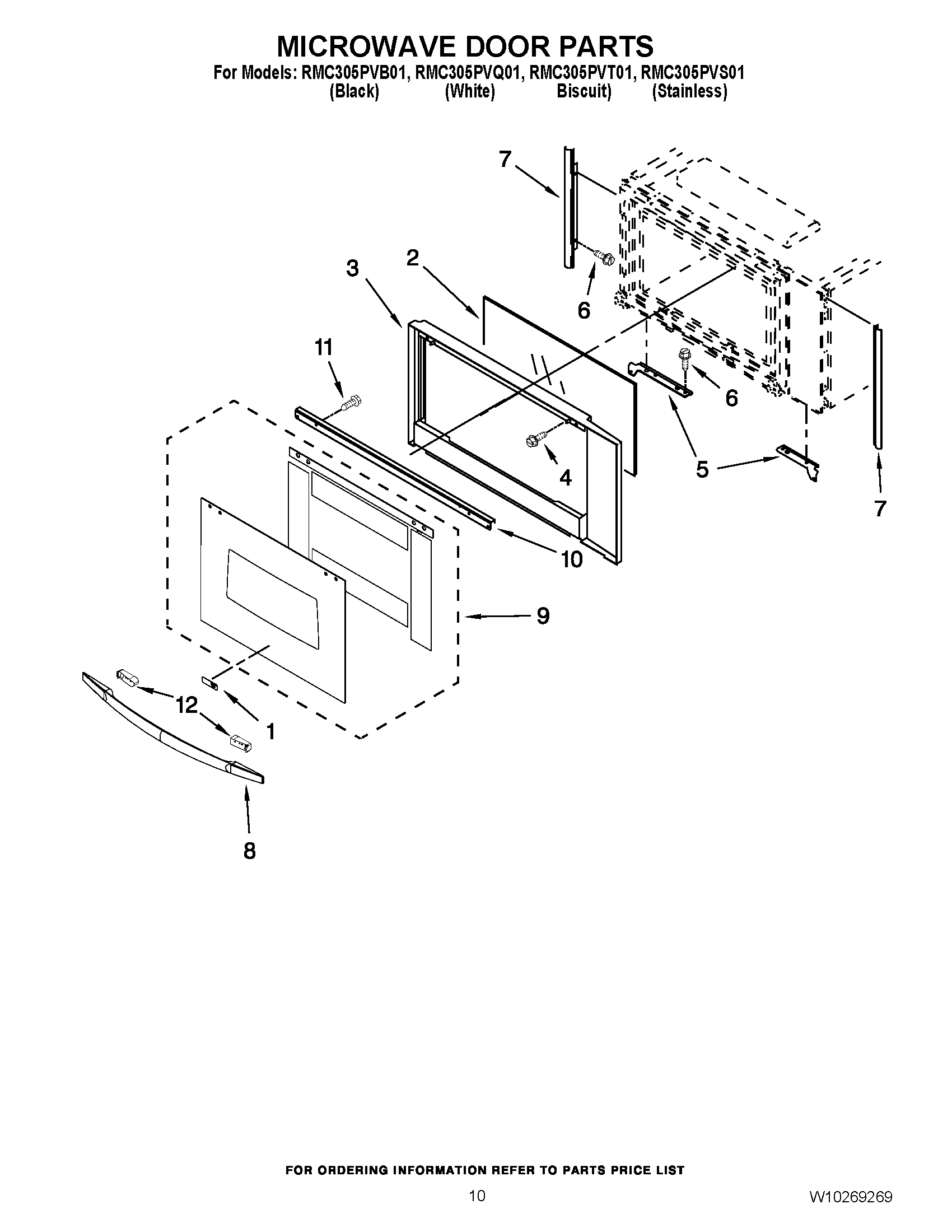

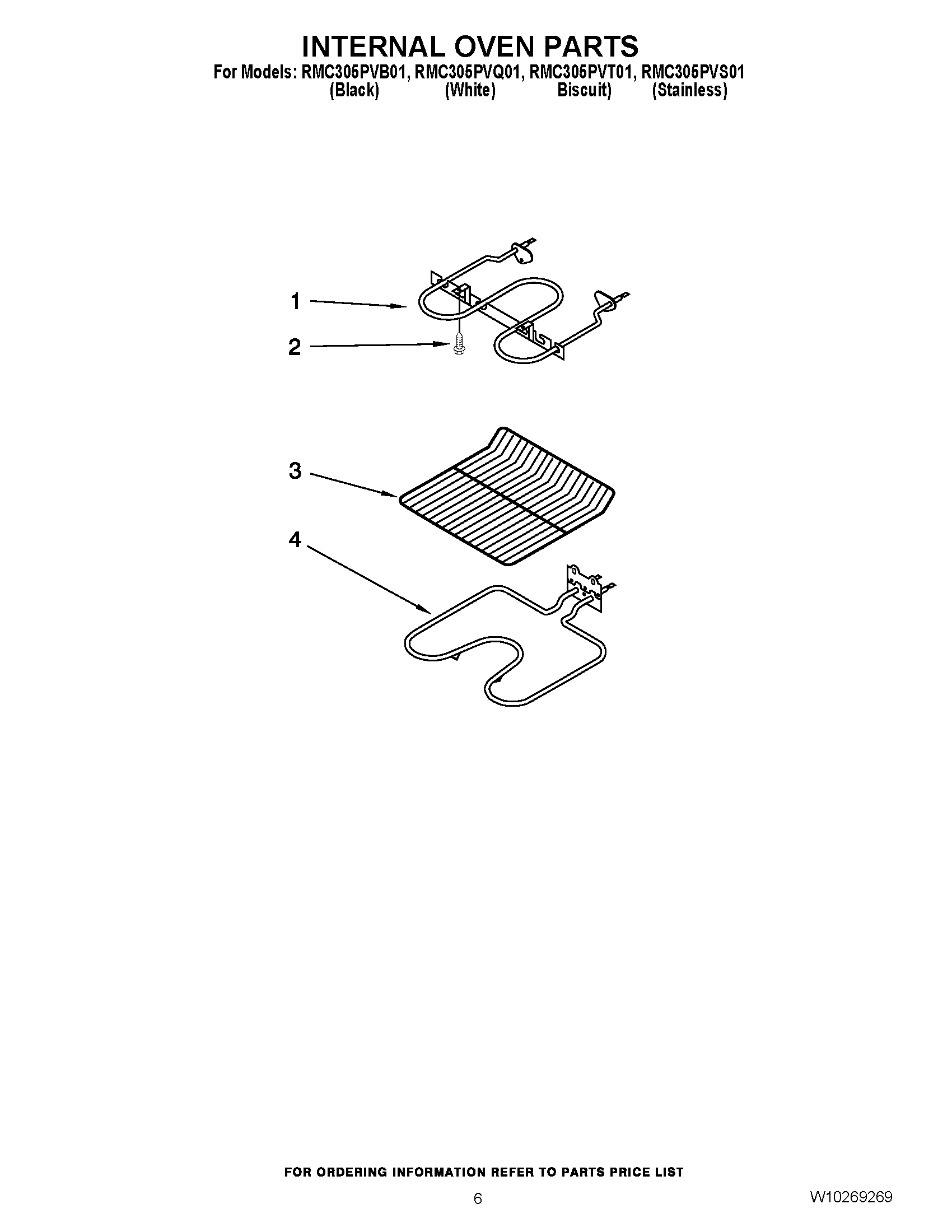

Model Whirlpool RMC305PVT01 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts &amp; Diagrams

1

W10172474 Whirlpool Membrane Switch Backorder WPL W10172474 $185.64

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $71.24

1

ASSEMBLY, MEMBRANE (BLACK) WPL W10172473 Contact Us For Availability

1

Nameplate WPL W10215072 Contact Us For Availability

1

ASSEMBLY, MEMBRANE (BISCUIT) WPL W10172475 Contact Us For Availability

2

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $9.59

2

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $38.08

2

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $40.68

2

WP9760576 Whirlpool Door Hinge (Left) In Stock WPL WP9760576 $38.30

2

HINGE, DOOR (SS MODEL RIGHT) WPL 9760573 Contact Us For Availability

2

Trim, Side Right (Stainless) WPL W10145006 Contact Us For Availability

2

Trim, Side Left (Stainless) WPL W10145007 Contact Us For Availability

2

ENCLOSURE, CONTROL WPL W10105800 Contact Us For Availability

3

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

3

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

3

Rear Channel WPL 4452548 Contact Us For Availability

3

Backer, Control WPL W10222956 Contact Us For Availability

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

4

Board, Motorized Latch WPL 8301848 Contact Us For Availability

4

Baffle, Rear WPL 4450408 Contact Us For Availability

5

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

5

WP8302848 Whirlpool Control Panel Backorder WPL WP8302848 $115.86

5

WP8302849 Whirlpool Control Panel Backorder WPL WP8302849 $122.78

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability

5

Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability

5

Control Panel (Biscuit) WPL 8302850 Contact Us For Availability

6

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $143.63

6

Transformer, Control WPL 9760587 Contact Us For Availability

6

Filter WPL 4451592 Contact Us For Availability

7

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

7

Filler, Side (Right) WPL 4449083 Contact Us For Availability

7

Filler, Side (Left) WPL 4449086 Contact Us For Availability

7

Bracket, Filter WPL 4451632 Contact Us For Availability

8

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

Glass, Inner Door WPL 9759228 Contact Us For Availability

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

WPW10172165 Whirlpool Trim Panel Backorder WPL WPW10172165 $46.34

WPW10172167 Whirlpool Trim Panel Backorder WPL WPW10172167 $45.48

Lens, Light WPL W10067870 Contact Us For Availability

Bracket, Handle WPL 4452331 Contact Us For Availability

Trim, Control Panel (White) WPL W10172168 Contact Us For Availability

Trim, Control Panel (Biscuit) WPL W10172169 Contact Us For Availability

Seal, Pano WPL 4452326 Contact Us For Availability

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $145.96

Assembly, Door Glass (Black) WPL W10200754 Contact Us For Availability

Assembly, Door Glass (White) WPL W10200755 Contact Us For Availability

Assembly, Door Glass (Biscuit) WPL W10200756 Contact Us For Availability

Duct, Inlet WPL 4375260 Contact Us For Availability

Handle, Door (Stainless) WPL W10169798 Contact Us For Availability

Handle, Door (Black) WPL W10169801 Contact Us For Availability

Handle, Door (White) WPL W10169803 Contact Us For Availability

HANDLE, DOOR (BISCUIT) WPL W10169805 Contact Us For Availability

13

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

13

Bracket, Handle (Left) WPL 4455804 Contact Us For Availability

14

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

15

BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability

16

Shield, Heat WPL 4457104 Contact Us For Availability

17

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $82.55

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

END CAP, BLACK WPL W10158702 Contact Us For Availability

END CAP, WHITE WPL W10168846 Contact Us For Availability

END CAP, BISCUIT WPL W10168847 Contact Us For Availability

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

Retainer, Clip (Stainless) WPL W10158497 Contact Us For Availability

RETAINER, CLIP (BISCUIT) WPL W10318996 Contact Us For Availability

RETAINER, CLIP (WHITE) WPL W10318997 Contact Us For Availability

RETAINER, CLIP (BLACK) WPL W10318998 Contact Us For Availability

20

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

20

SUPPRESSOR WPL 8302143 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

22

Screw WPL 4449040 Contact Us For Availability

23

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

24

Screw WPL 3400080 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

8186527 Whirlpool Microwave Fan Motor Backorder WPL 8186527 $173.02

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

31

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

31

Thermostat WPL 8205652 Contact Us For Availability

33

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

Vent, Center WPL 8302592 Contact Us For Availability

35

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

35

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

38

Inlet WPL 4375329 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

43

Base, Chassis WPL 9759713 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

51

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

51

WPW10207689 Whirlpool Trim Kit Backorder WPL WPW10207689 $63.06

55

Cable WPL 4375350 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89
