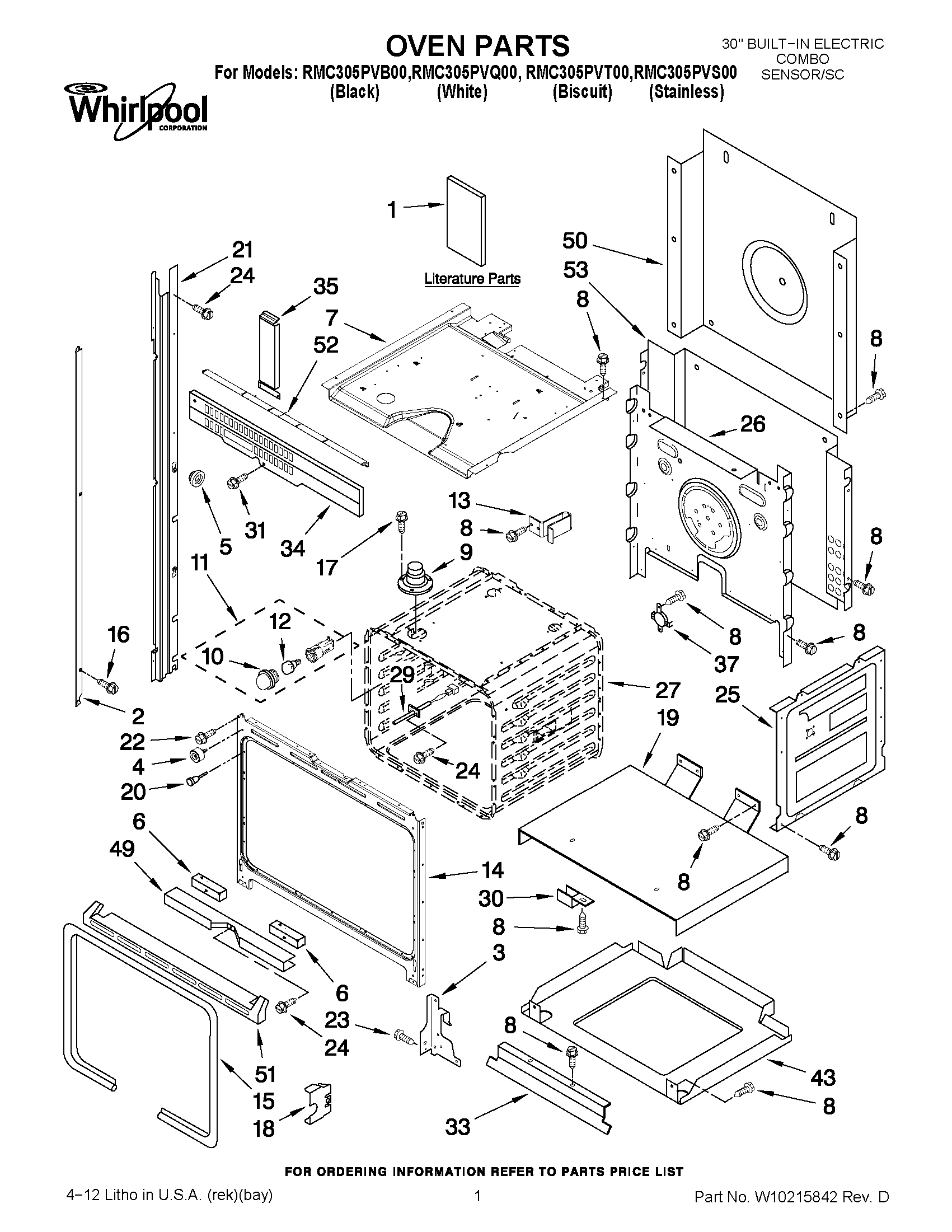

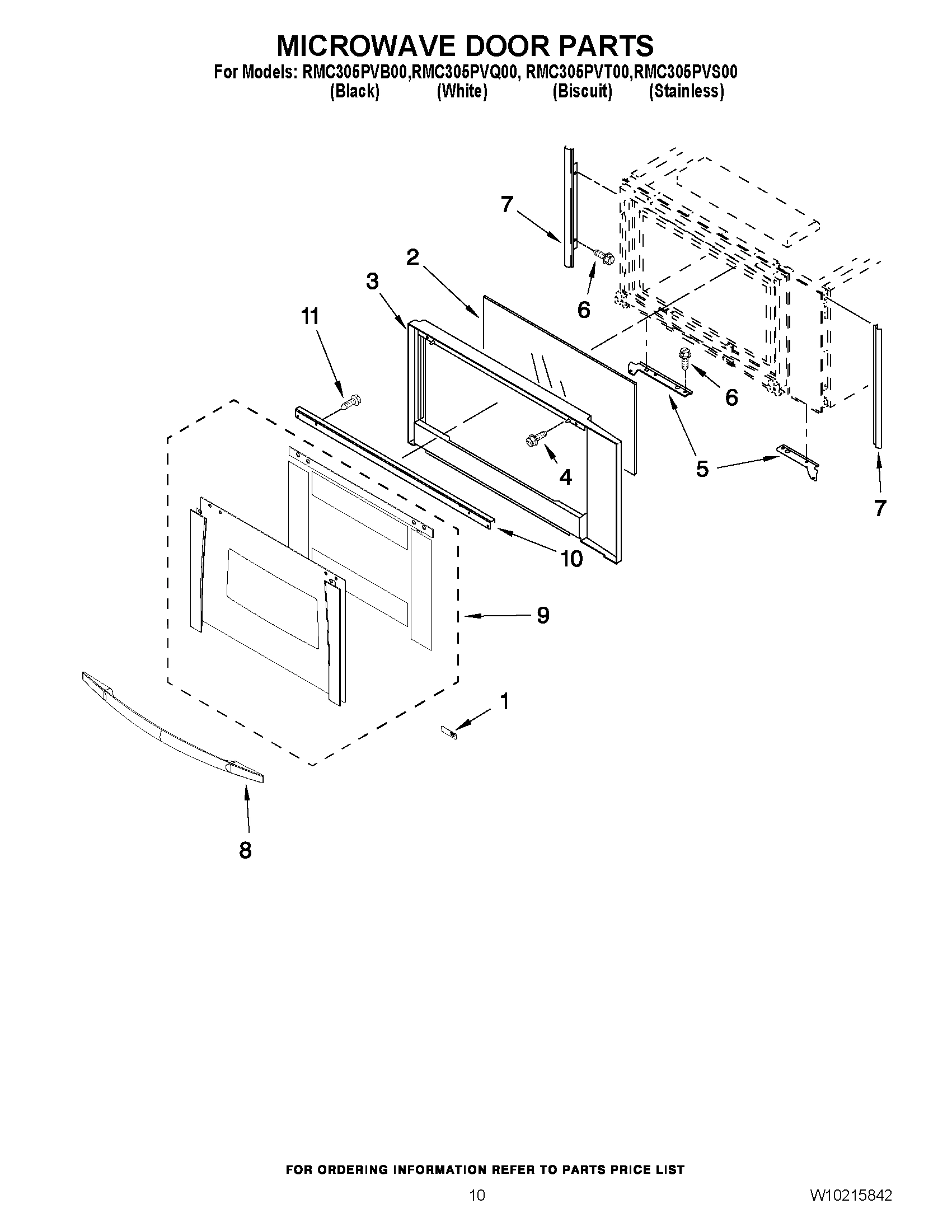

Model Whirlpool RMC305PVT00 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts & Diagrams
Common parts from model Whirlpool RMC305PVT00 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC
1
NAMEPLATE WPL W10175320 Contact Us For Availability
1
ASSEMBLY, MEMBRANE (BLACK) WPL W10172473 Contact Us For Availability
1
ASSEMBLY, MEMBRANE (BISCUIT) WPL W10172475 Contact Us For Availability
2
Screw WPL 4449040 Contact Us For Availability
2
ENCLOSURE, CONTROL WPL W10105800 Contact Us For Availability
3
Backer, Control WPL W10222956 Contact Us For Availability
4
Board, Motorized Latch WPL 8301848 Contact Us For Availability
5
Bracket, Mounting (Right) WPL 4449141 Contact Us For Availability
5
Bracket, Mounting (Left) WPL 4449142 Contact Us For Availability
5
Control Panel (Biscuit) WPL 8302850 Contact Us For Availability
6
Transformer, Control WPL 9760587 Contact Us For Availability
6
Filter WPL 4451592 Contact Us For Availability
7
Filler, Side (Right) WPL 4449083 Contact Us For Availability
7
Filler, Side (Left) WPL 4449086 Contact Us For Availability
7
Bracket, Filter WPL 4451632 Contact Us For Availability
9
Glass, Inner Door WPL 9759228 Contact Us For Availability
9
GLASS, OUTER (STAINLESS) WPL W10176988 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
10
Bracket, Handle WPL 4452331 Contact Us For Availability
10
Trim, Control Panel (White) WPL W10172168 Contact Us For Availability
10
Trim, Control Panel (Biscuit) WPL W10172169 Contact Us For Availability
12
Assembly, Door Glass (Black) WPL W10200754 Contact Us For Availability
12
Assembly, Door Glass (White) WPL W10200755 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
14
Bracket, Handle (Left) WPL 4455804 Contact Us For Availability
20
SUPPRESSOR WPL 8302143 Contact Us For Availability
21
Duct, Exhaust WPL 4451634 Contact Us For Availability
24
Screw WPL 3400080 Contact Us For Availability
30
Thermostat WPL 8205652 Contact Us For Availability
34
Vent, Center WPL 8302592 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
43
Base, Chassis WPL 9759713 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
NI
Ground (M/W) WPL 4450831 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
NI
Nut, Terminal Block WPL 7103P02760 Contact Us For Availability
NI
Harness, Main WPL 8304156 Contact Us For Availability
NI
Harness, Filter WPL 8304200 Contact Us For Availability
× ![]()
