Model Whirlpool RMC305PDB1 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts & Diagrams
01 - OVEN
08 - MICROWAVE DOOR

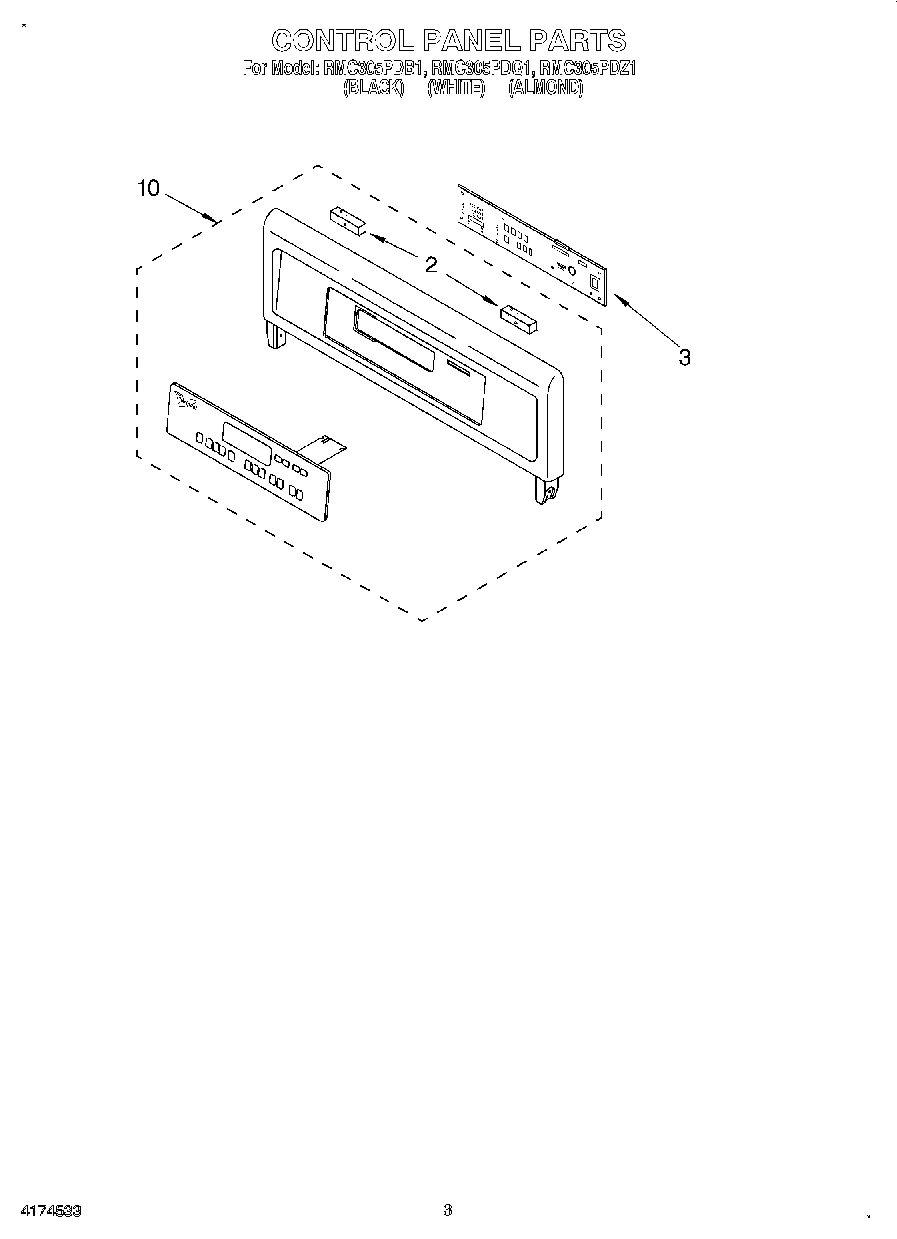

02 - CONTROL PANEL, LITERATURE

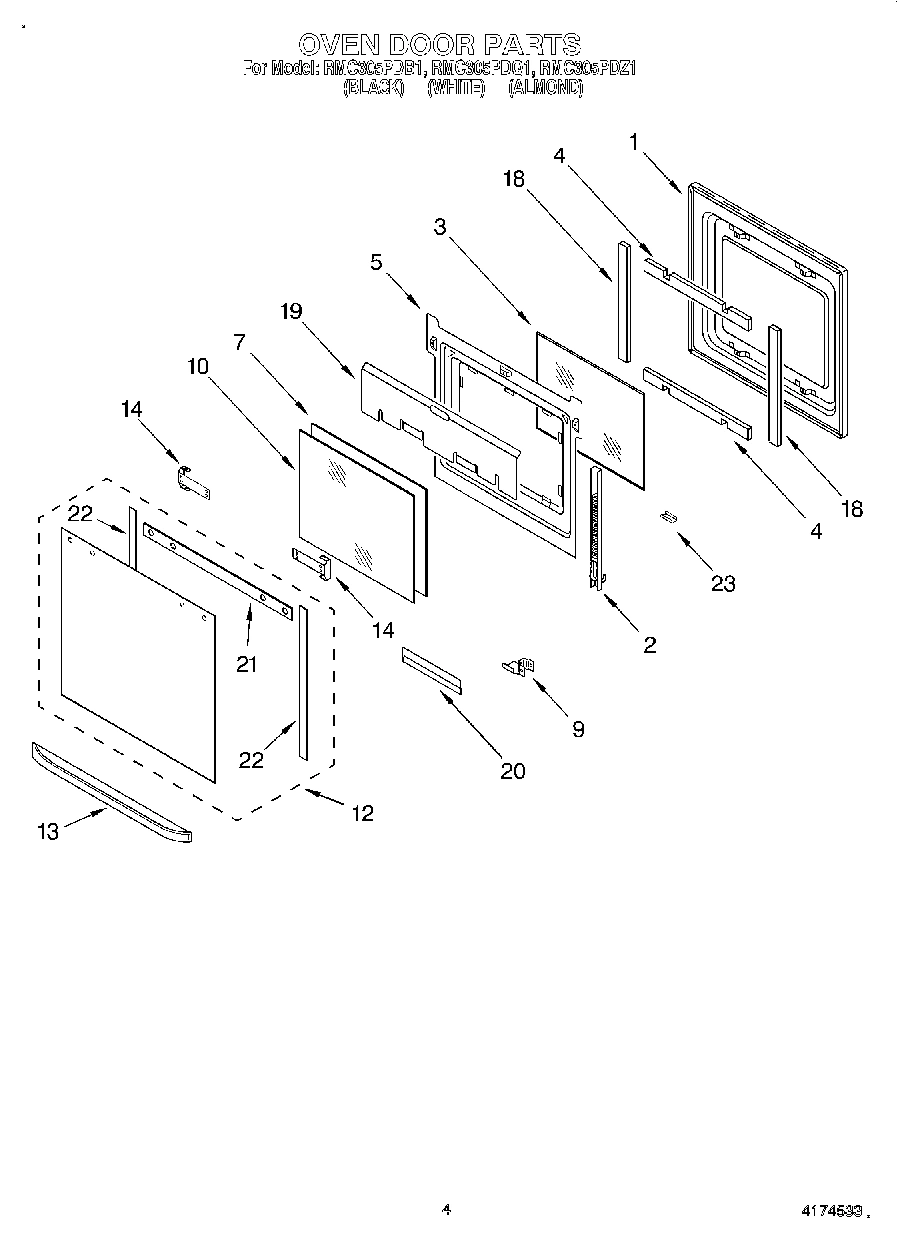

03 - OVEN DOOR

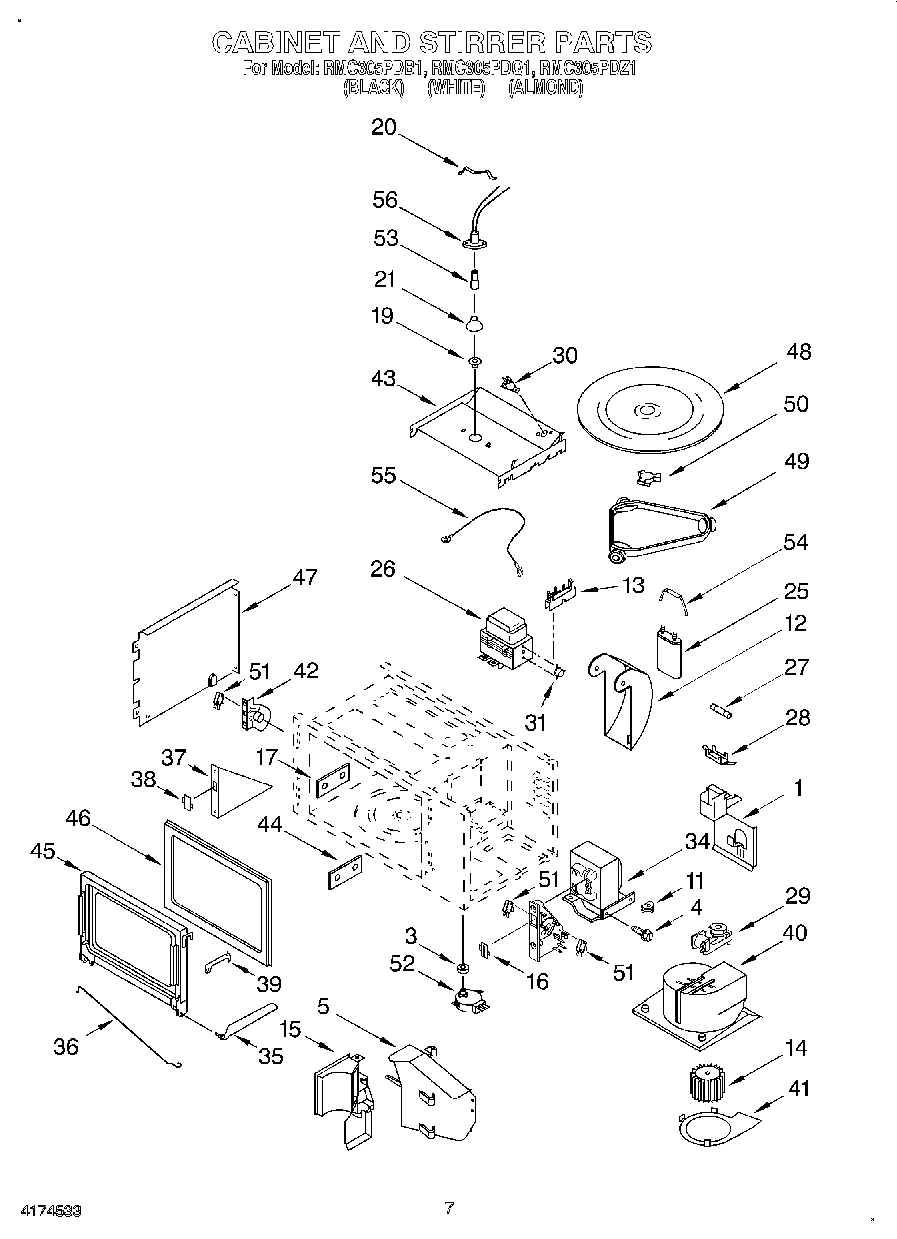

06 - CABINET AND STIRRER

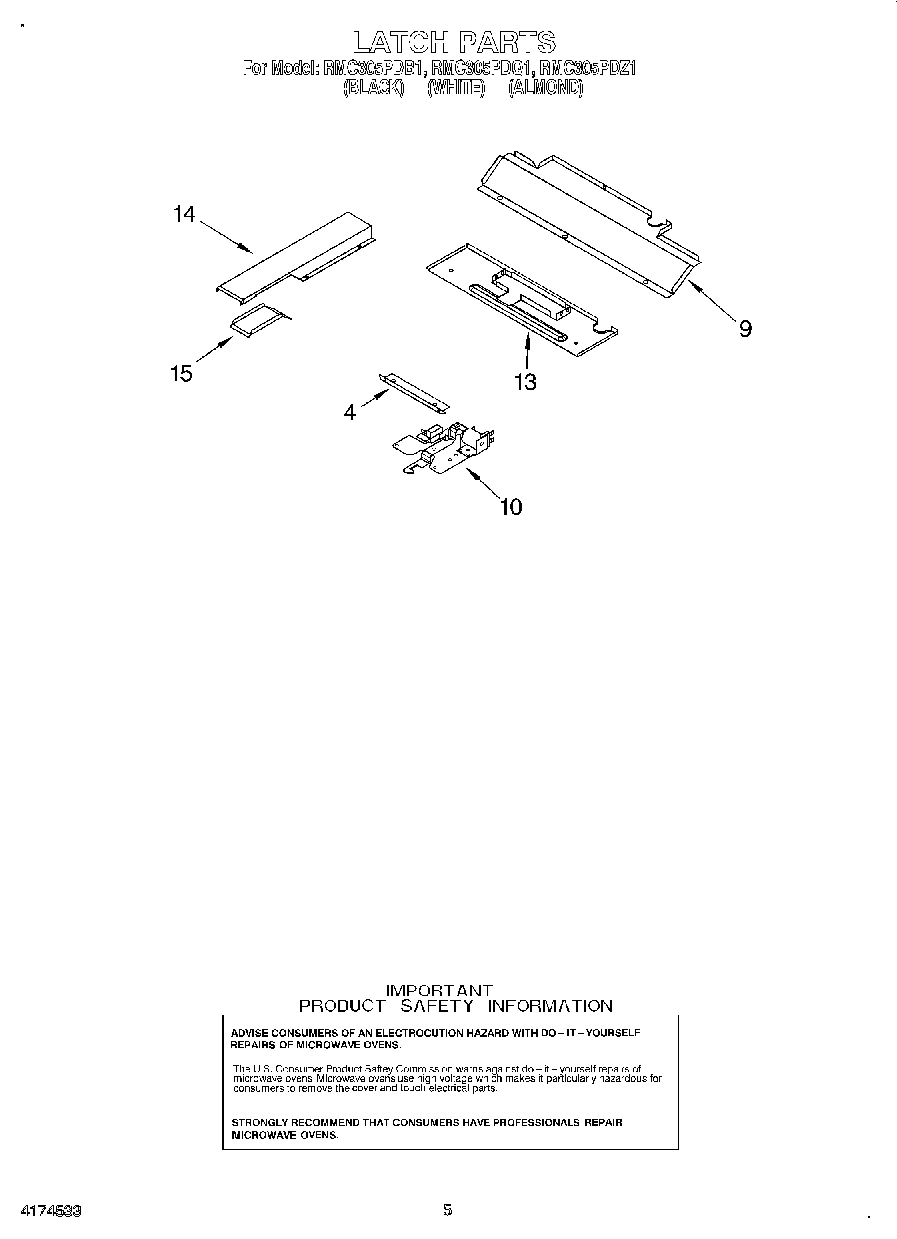

04 - LATCH

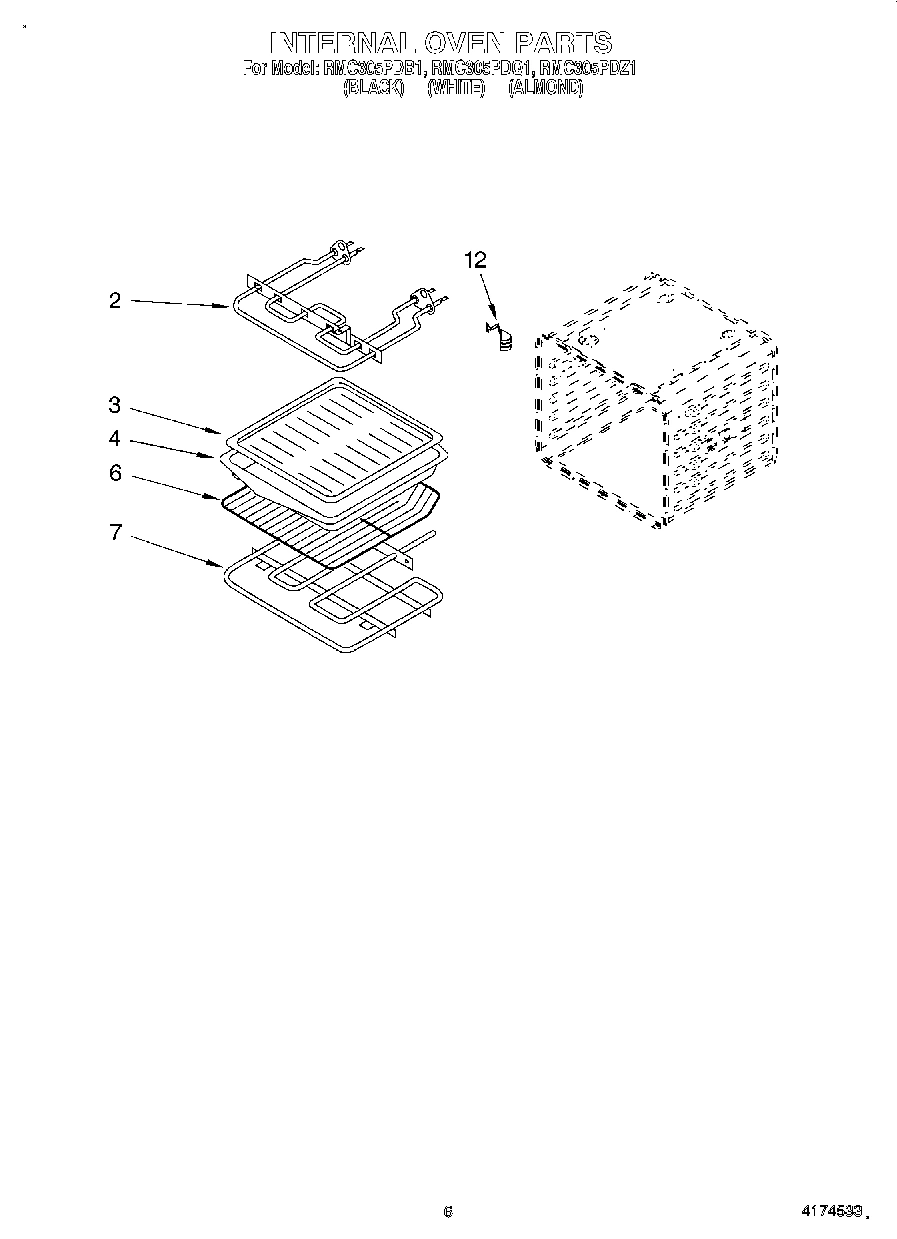

05 - INTERNAL OVEN

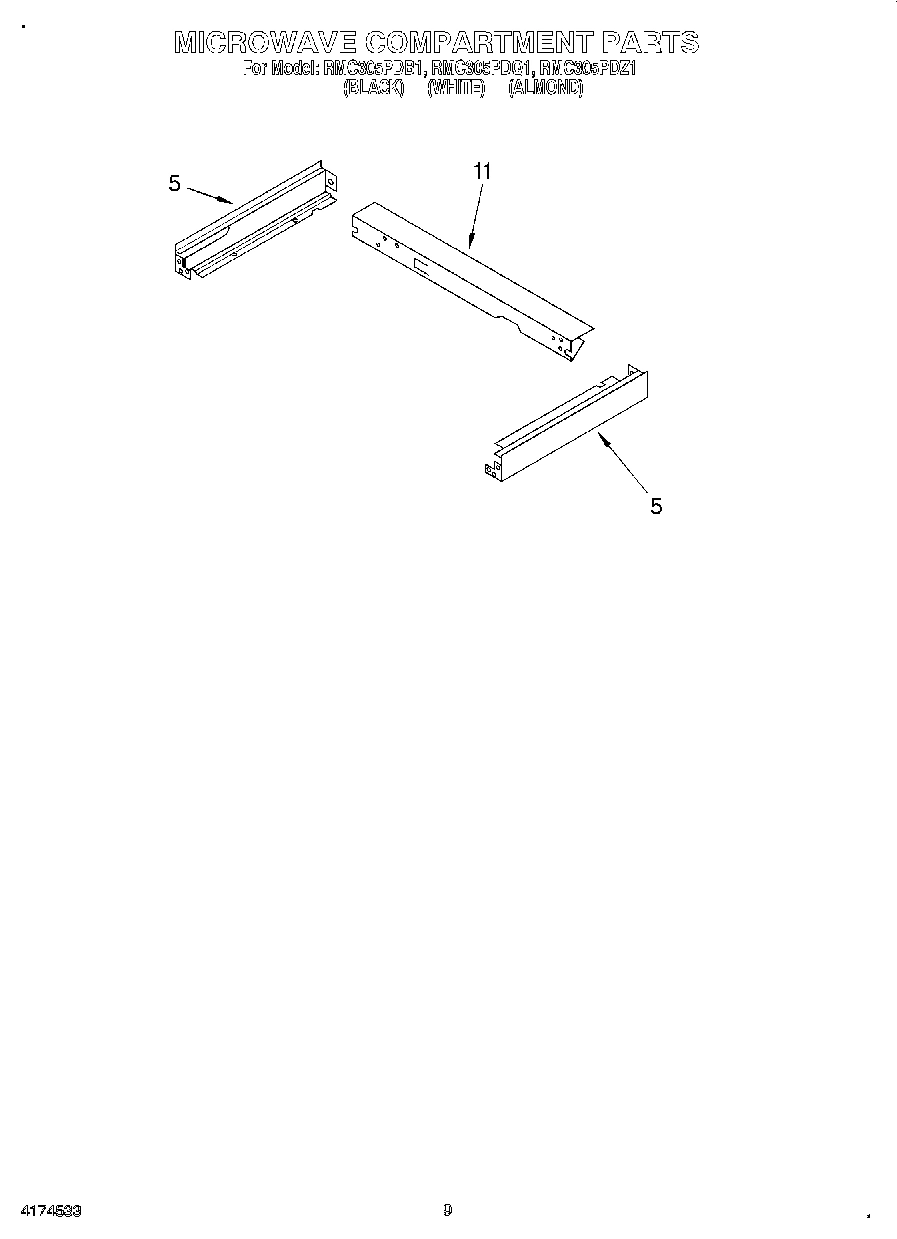

07 - MICROWAVE COMPARTMENT

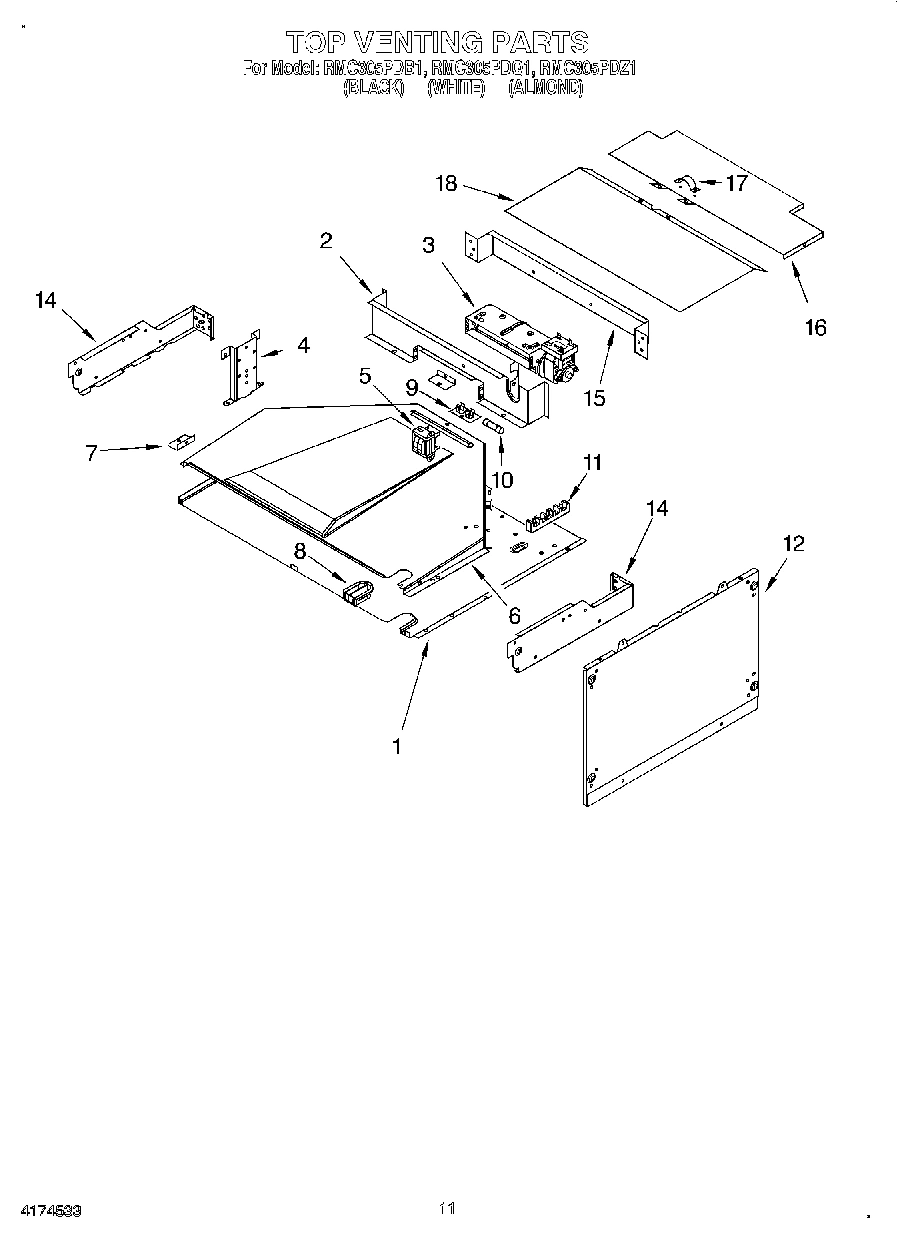

09 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool RMC305PDB1 30`` BUILT-IN ELECTRIC COMBO SENSOR/SC
Cooking Guide (Label) WPL LIT4450785 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4451056 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
2
Gasket WPL 4450356 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Microcomputer WPL 4448877 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
4
Deflector, Latch WPL 4450051 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
5
Retainer, Glass WPL 4450423 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Baffle, Rear WPL 4450408 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black M WPL 4451068 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White M WPL 4451069 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Almond WPL 4451070 Contact Us For Availability
10
Latch, Assy WPL 4450332 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
11
Rear Channel WPL 4449703 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass (White Model) WPL 4450692 Contact Us For Availability
12
Door Glass (Almond Model) WPL 4450704 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
13
Door Handle (White Model) WPL 4448855 Contact Us For Availability
13
Door Handle (Almond Model) WPL 4448856 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Plate, Adapter WPL 4450522 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Vent, Top WPL 4449124 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Vent, Bottom WPL 4449959 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Handle, Door (Black Model) WPL 4448854 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Filler Kit (Bl) WPL 4378944 Contact Us For Availability
18
Filler Kit (Wh) WPL 4378945 Contact Us For Availability
18
Filler Kit (Al) WPL 4378946 Contact Us For Availability
18
Harness, Latch WPL 4450753 Contact Us For Availability
18
Ground (M/W) WPL 4450831 Contact Us For Availability
18
Harness, Switch WPL 4450951 Contact Us For Availability
18
Harness, Main WPL 4450989 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
37
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
37
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
39
Strap, Door WPL 4375330 Contact Us For Availability
40
Fan Cap WPL 4375333 Contact Us For Availability
41
Fan Cap Bottom WPL 4375334 Contact Us For Availability
43
Isolation Plate WPL 4375337 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
45
Plate, Door WPL 4375339 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
46
Left WPL 4375341 Contact Us For Availability
46
Right WPL 4375342 Contact Us For Availability
46
Cabinet Parts WPL ARI123650A Contact Us For Availability
49
Ring Assembly WPL 4375344 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
56
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
