Model Whirlpool RM988PXPW0 – Common Parts & Diagrams

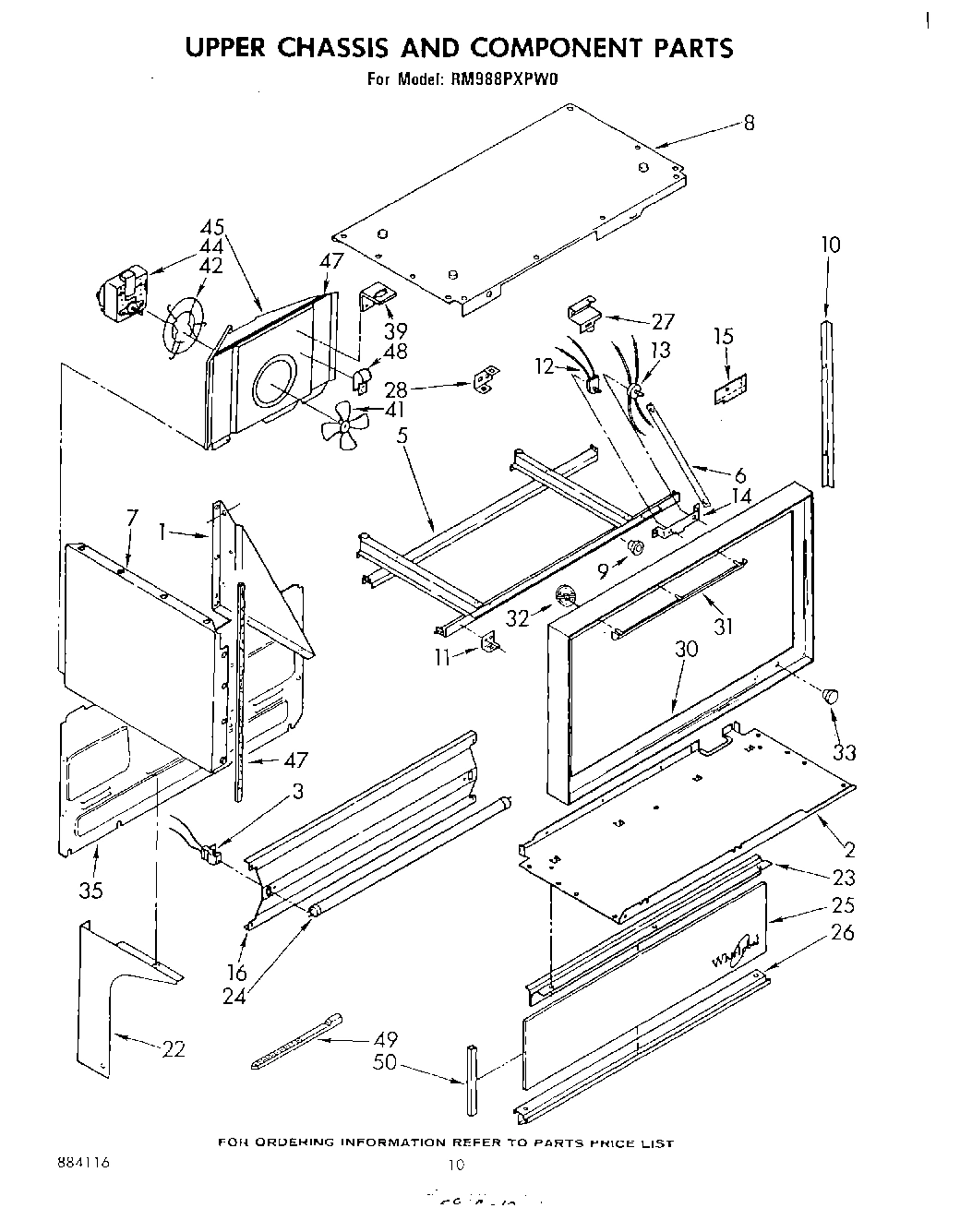

06 - UPPER CHASSIS AND COMPONENT
13 - SECTION

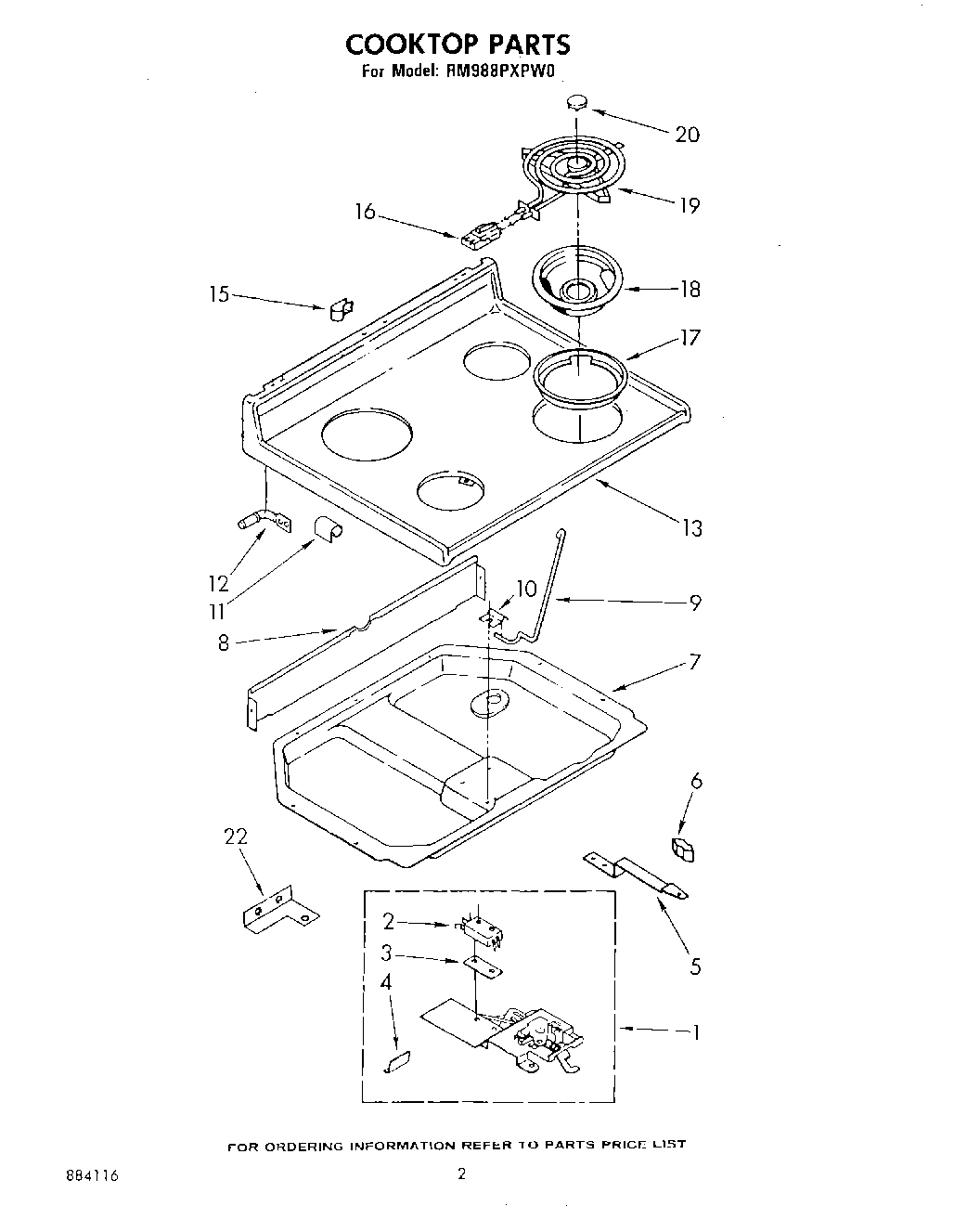

02 - COOK TOP

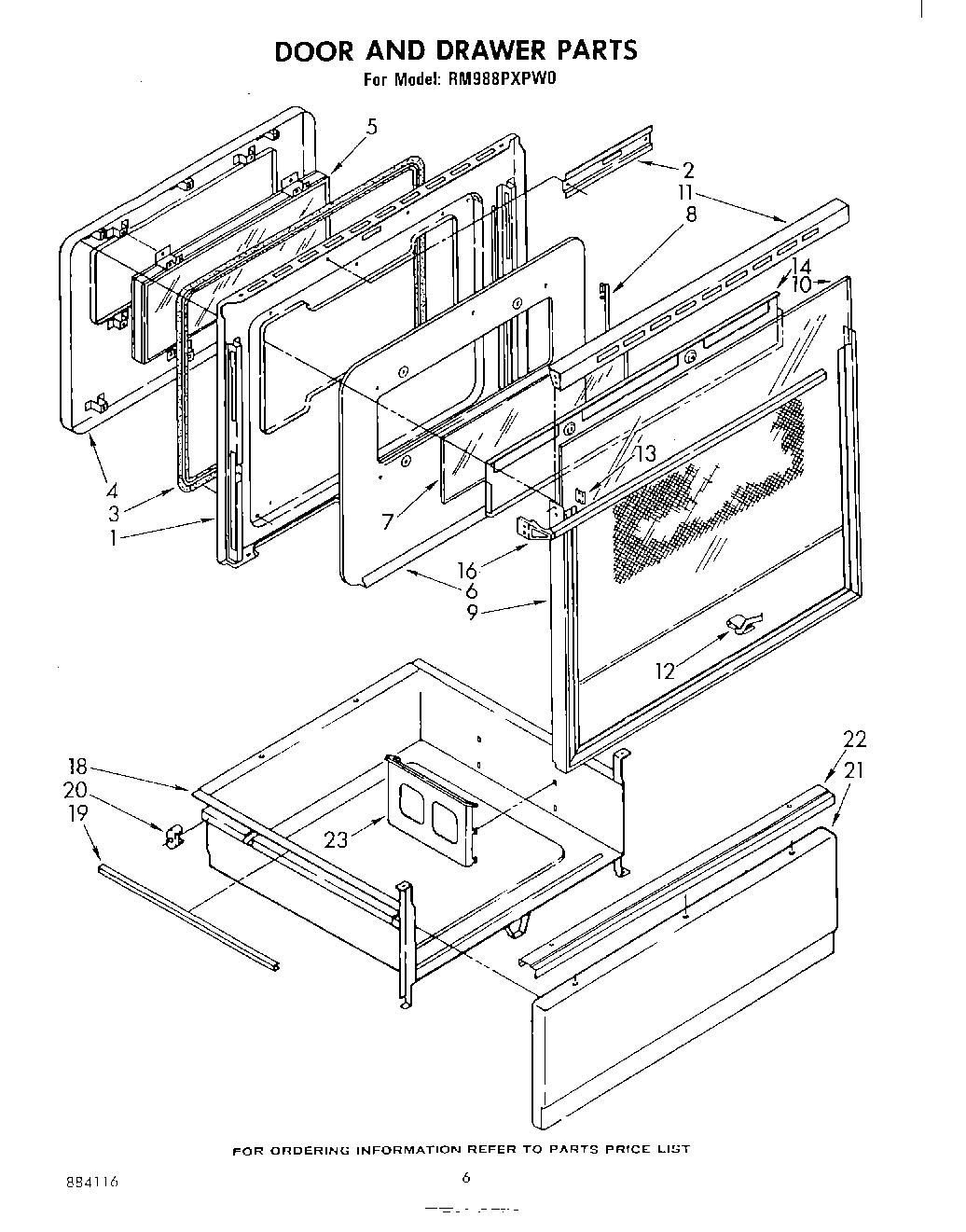

04 - DOOR AND DRAWER

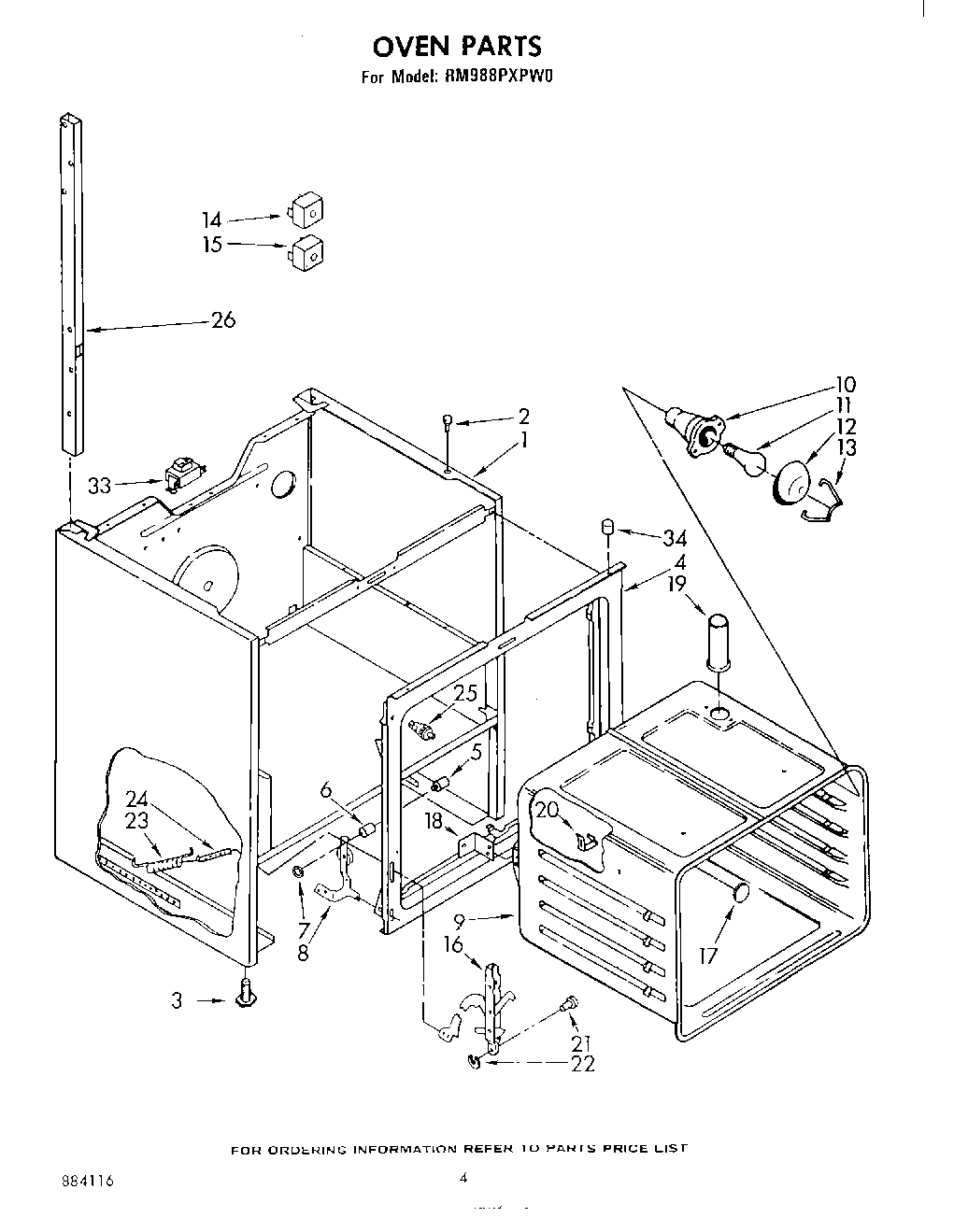

03 - OVEN

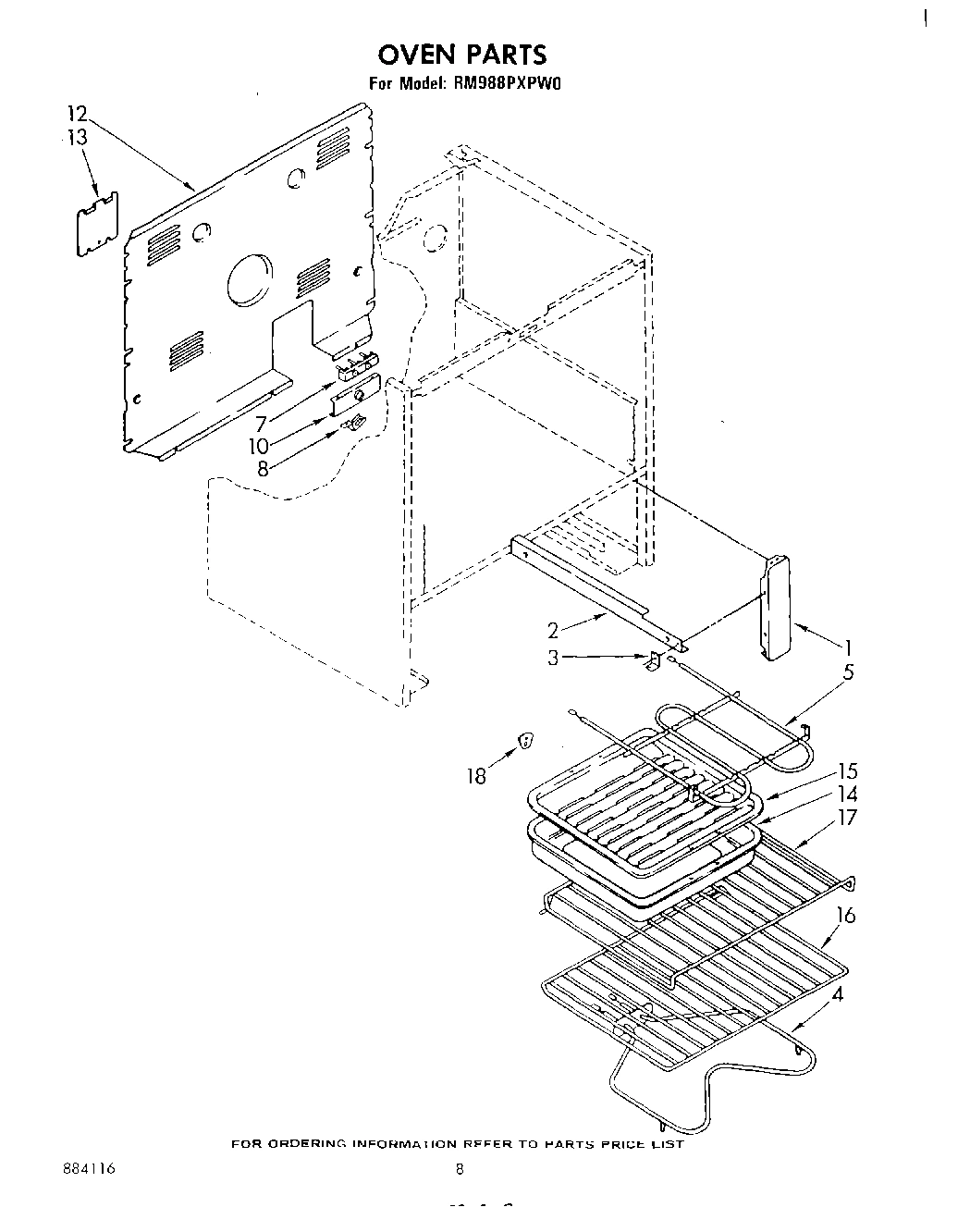

05 - OVEN

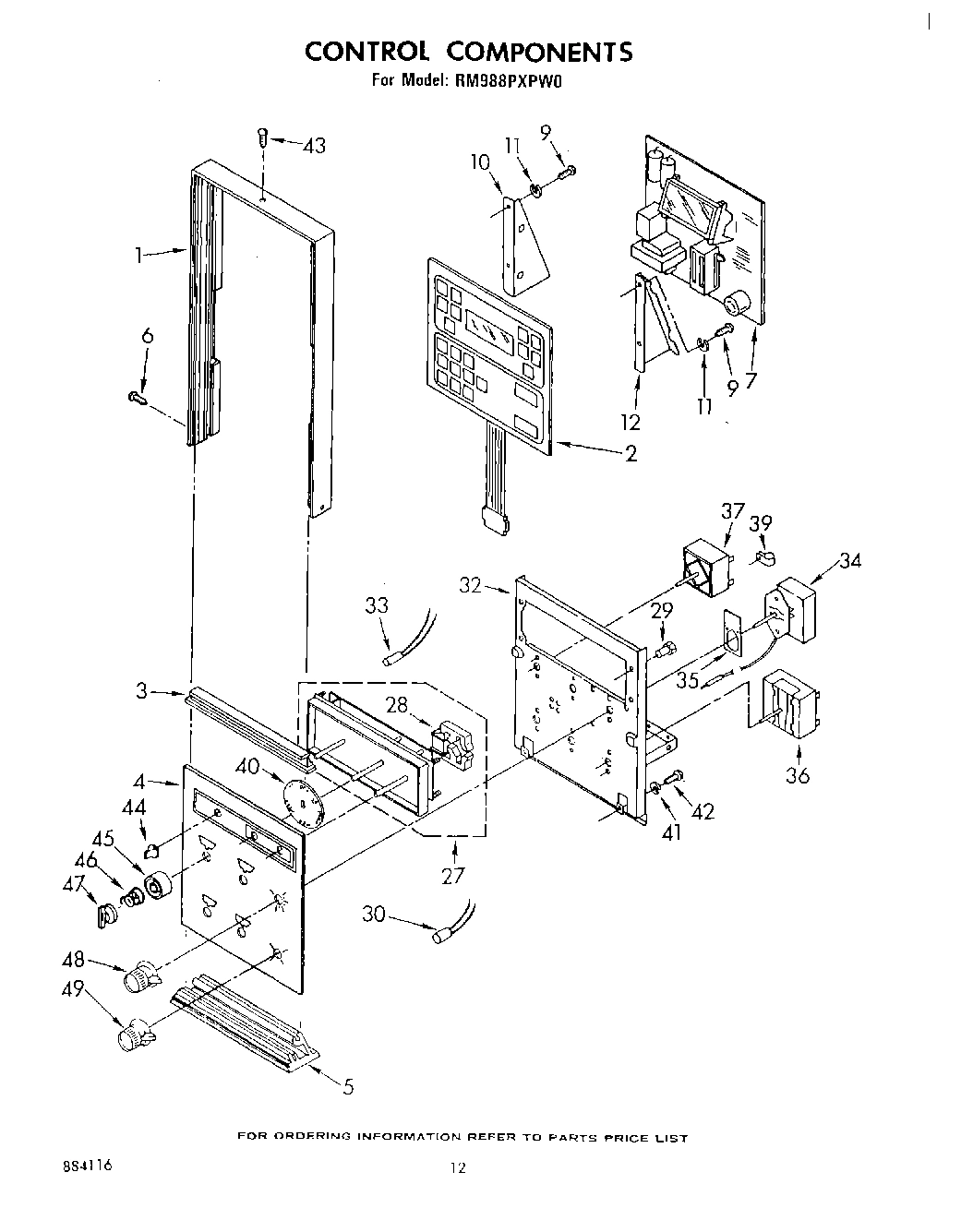

07 - CONTROL

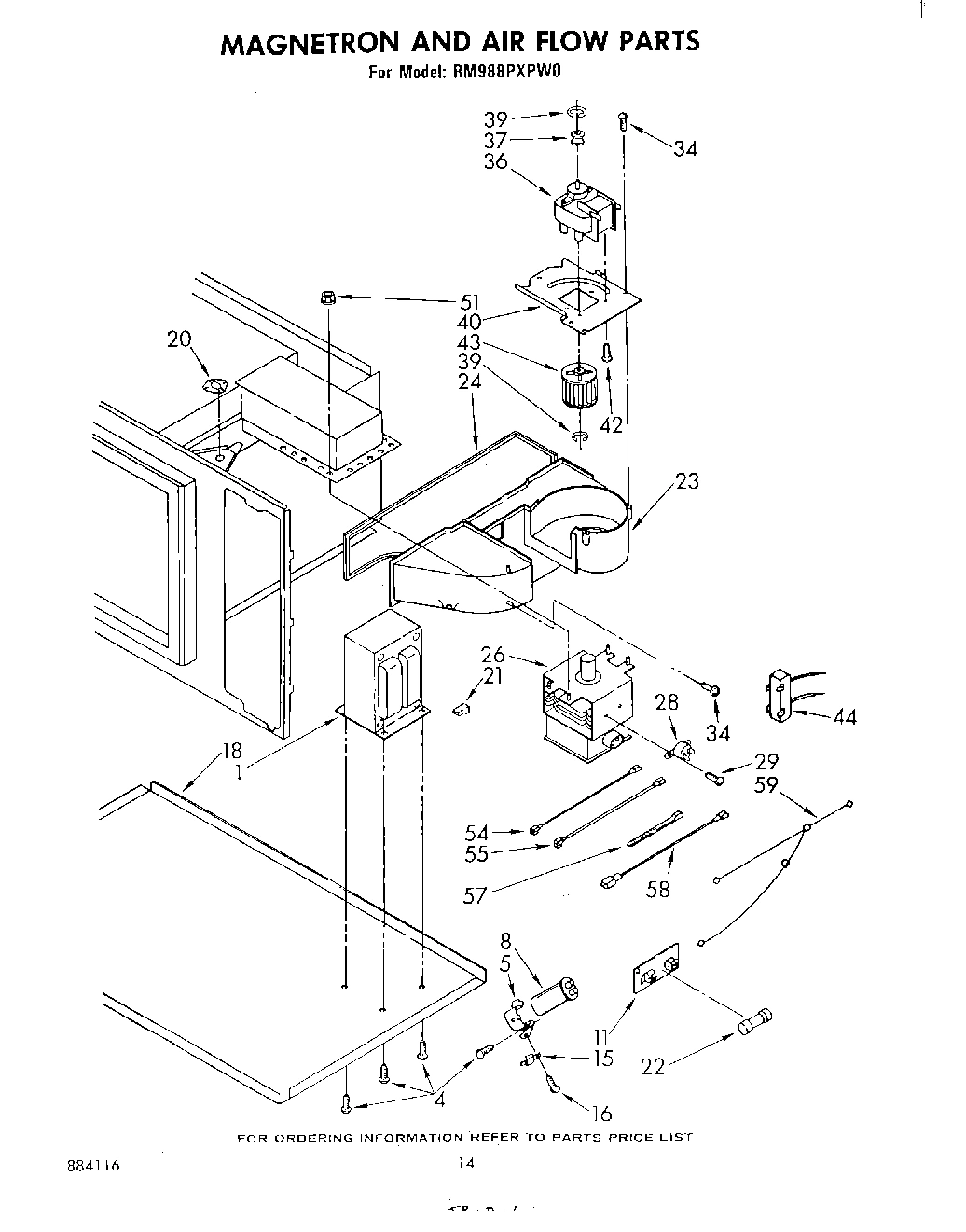

08 - MAGNETRON AND AIR FLOW

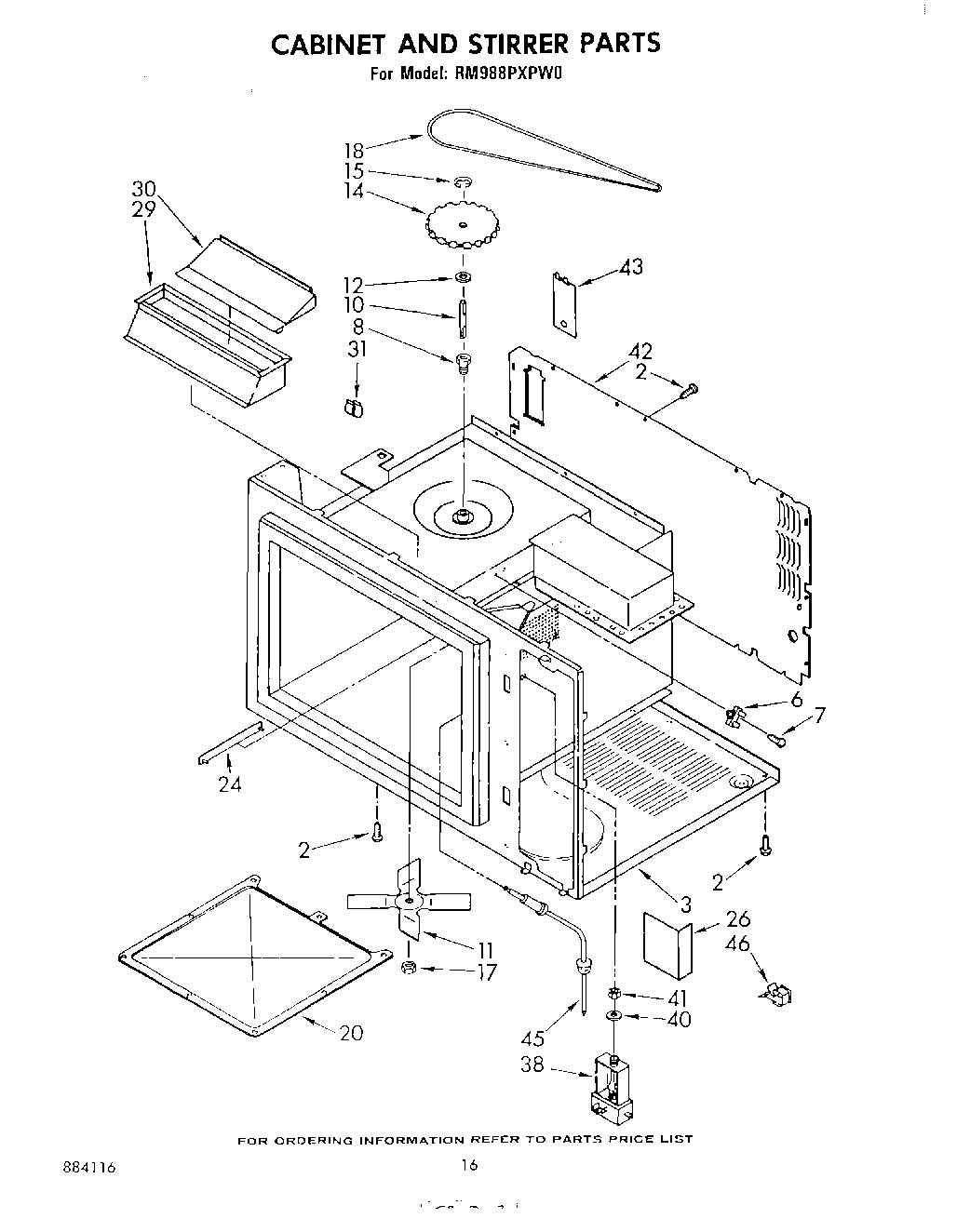

09 - CABINET AND STIRRER

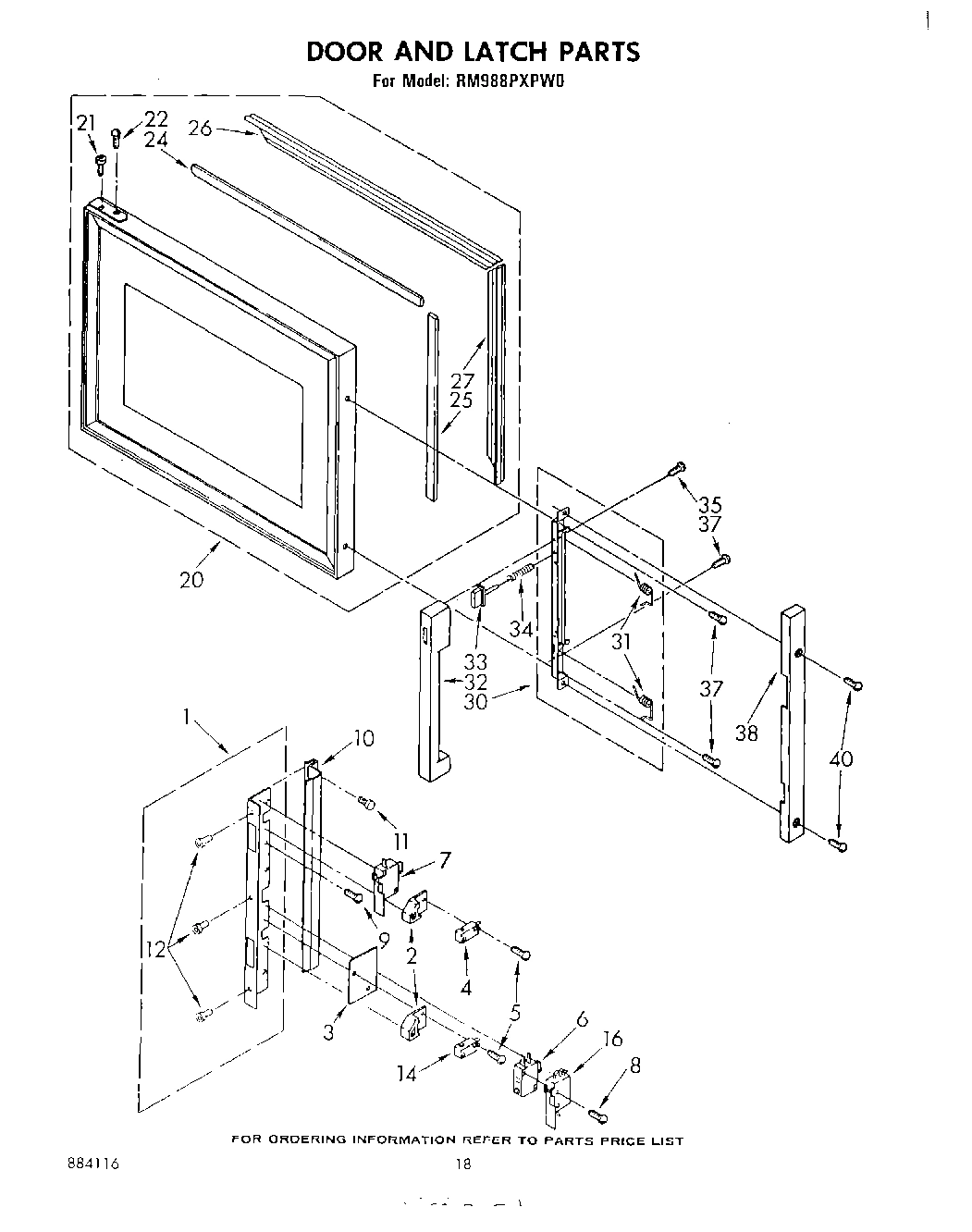

10 - DOOR AND LATCH

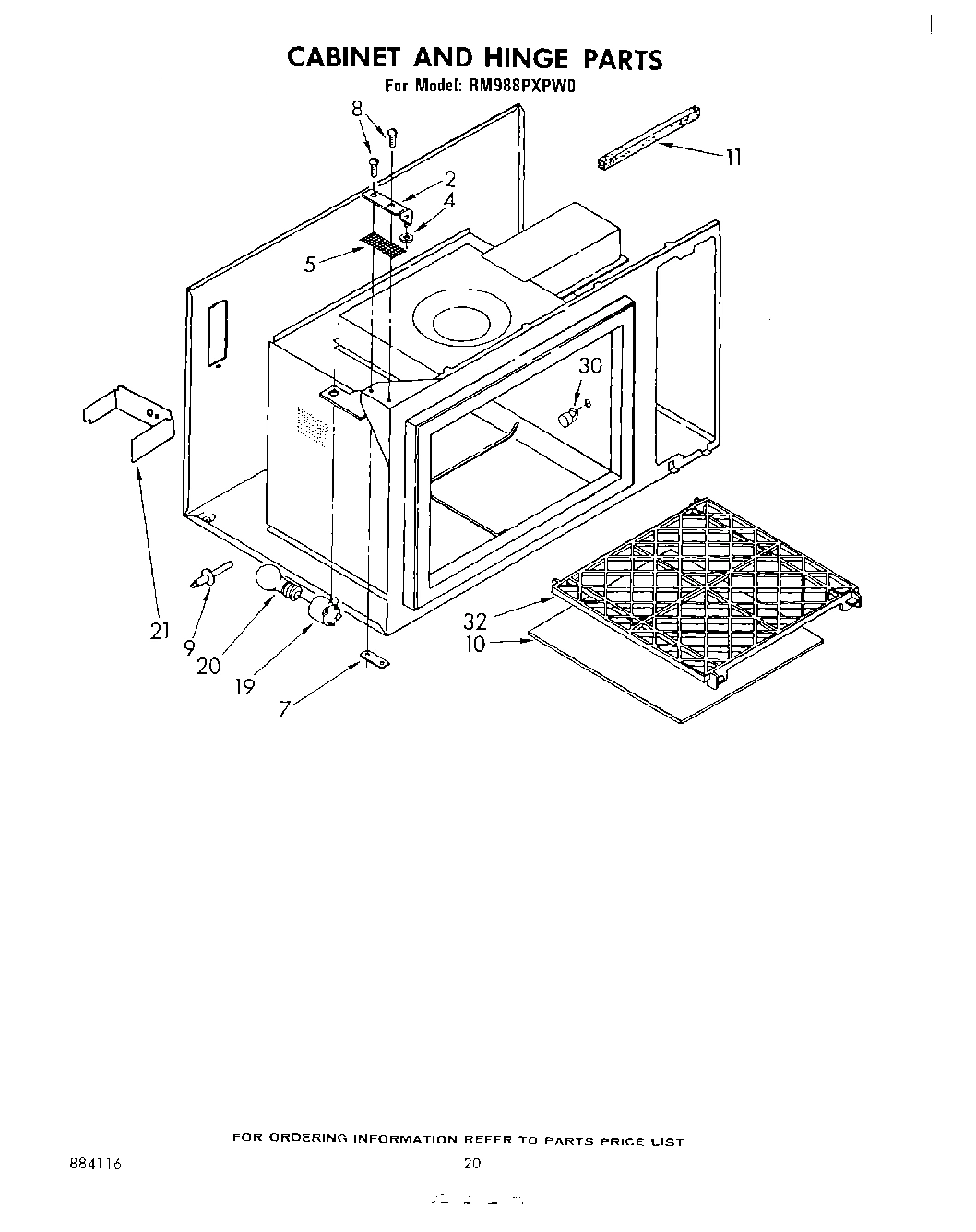

11 - CABINET AND HINGE , LITERATURE

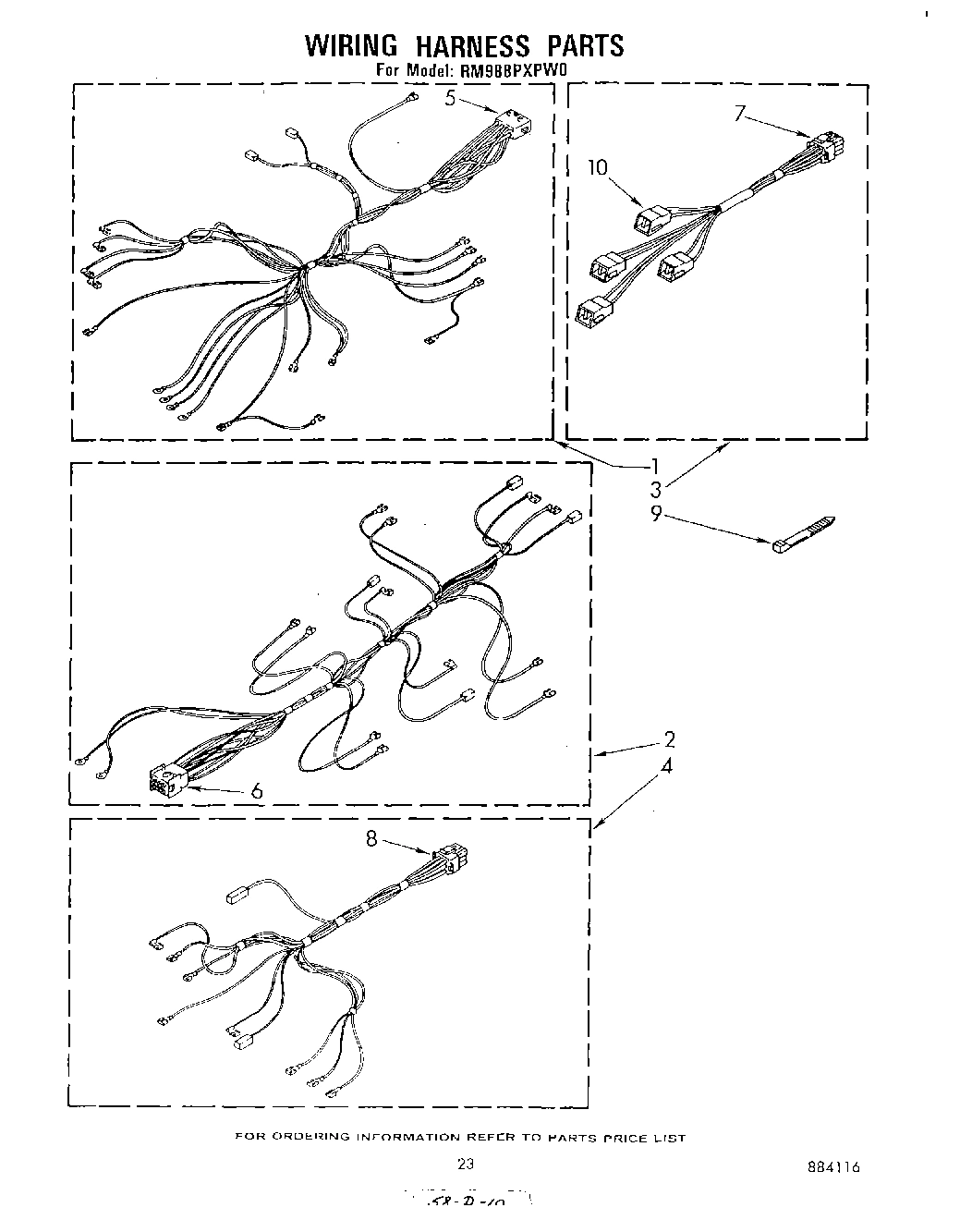

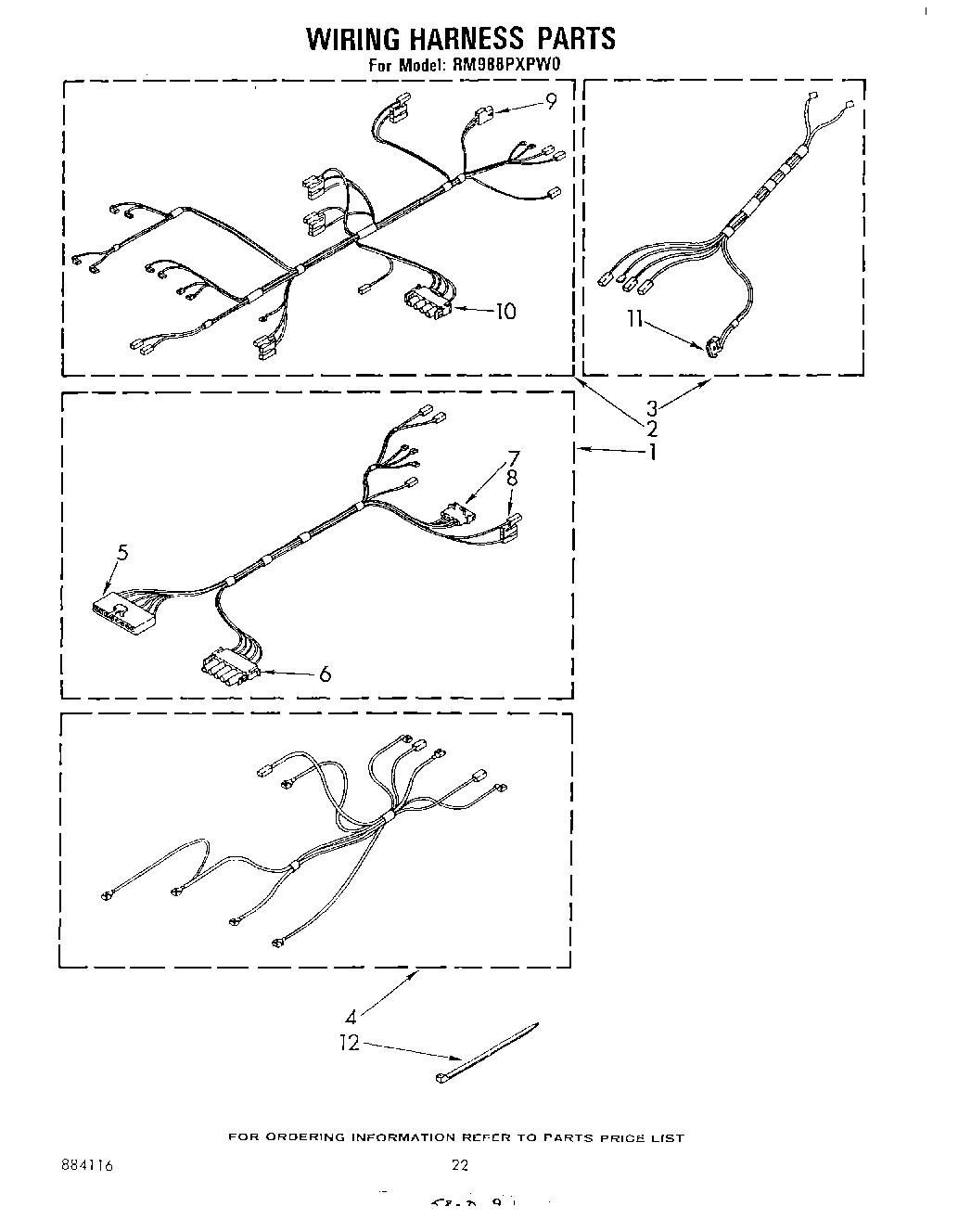

12 - WIRING HARNESS
Common parts from model Whirlpool RM988PXPW0
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
Unit, Broil (208V) WPL 312308 Contact Us For Availability
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312878 WPL LIT312878 Contact Us For Availability
WPL LIT312880 WPL LIT312880 Contact Us For Availability
WPL LIT313355 WPL LIT313355 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT313480 WPL LIT313480 Contact Us For Availability
WPL LIT884116 WPL LIT884116 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 310806 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 330089 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Main Chassis (Toast) WPL 330091 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330092 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Frame, Control Panel WPL 312602 Contact Us For Availability
1
Transformer (Alt.) WPL 312848 Contact Us For Availability
1
Transformer (Alt.) WPL 312849 Contact Us For Availability
1
Transformer WPL 661056 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Harness, Wiring (Control) Microwave WPL 313417 Contact Us For Availability
2
Screw, 8D x 5/16 WPL 246135 Contact Us For Availability
2
Harness Wiring (Infinite Switch) WPL 313419 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Membrane, Switch WPL 313100 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 330015 Contact Us For Availability
2
Hinge Assembly (Top) WPL 330016 Contact Us For Availability
2
Harness, Wiring (Main) Microwave WPL 313415 Contact Us For Availability
3
Harness Wiring (Surface Unit) WPL 311176 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Splice Panel WPL 312743 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123641A Contact Us For Availability
3
Insulator, Switch WPL 313126 Contact Us For Availability
3
Harness Wiring (AC Supply) WPL 313466 Contact Us For Availability
4
Harness, Wiring (Selector/Thermostat) WPL 313420 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Frame, Front WPL 330166 Contact Us For Availability
4
Seal, Foam WPL 308297 Contact Us For Availability
4
Control Panel, Glass WPL 313136 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
Harness, Wiring (Timer) WPL 313435 Contact Us For Availability
5
Disconnect Block WPL 309408 Contact Us For Availability
5
Handle, Latch WPL 307976 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Window Package WPL 330038 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 5/8 (4) WPL 246127 Contact Us For Availability
5
Bottom Cap, Control Panel WPL 312603 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Screw, 4-40 x 5/8 Pan Head Thread Form (6) WPL 312717 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
Connector Housing WPL 308665 Contact Us For Availability
6
Disconnect Block WPL 309409 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
6
Screw, No. 8 (2) WPL 348689 Contact Us For Availability
6
Thermal Fuse (Includes Illus.7) WPL 313440 Contact Us For Availability
6
Switch, Miniature (Alt.) WPL 313075 Contact Us For Availability
6
Switch, Miniature (Alt.) WPL 313123 Contact Us For Availability
6
Switch, Miniature WPL 661144 Contact Us For Availability
6
Block, Disconnect WPL 311574 Contact Us For Availability
7
Disconnect Block WPL 309406 Contact Us For Availability
7
Burner Box WPL 307929 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Board, Power Control WPL 61533 Contact Us For Availability
7
Switch, Door WPL 313120 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Disconnect Block, Female WPL 310960 Contact Us For Availability
8
Disconnect Block WPL 309405 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Ground Strap WPL 308498 Contact Us For Availability
8
Clip WPL 313660 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Screw, 12-24 x 3/4 (4) WPL 312742 Contact Us For Availability
8
Housing, Plug WPL 310241 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Rivet (3) WPL 313456 Contact Us For Availability
9
Disconnect Block (2 Terminal) WPL 717252 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
10
Bracket, Service WPL 307970 Contact Us For Availability
10
Bracket, P.C. Board WPL 313098 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Shelf, Microwave (Alt.) WPL 311058 Contact Us For Availability
10
Shelf, Microwave (Alt.) (Install W/Silastic N WPL 312579 Contact Us For Availability
10
Shelf, Microwave WPL 660561 Contact Us For Availability
10
Disconnect Block (4 Terminal) WPL 310958 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Block, Fuse WPL 309795 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Fastener WPL 310423 Contact Us For Availability
11
Seal, Foam WPL 313501 Contact Us For Availability
11
Disconnect Block WPL 309105 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Clip, Glass (8) WPL 310706 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
12
Cover, Rear WPL 307971 Contact Us For Availability
12
Bracket, P.C. Board WPL 313099 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
13
Cooktop (Harvest Gold) WPL 307863 Contact Us For Availability
13
Cooktop (White) WPL 307866 Contact Us For Availability
13
Cooktop (Almond) WPL 307871 Contact Us For Availability
13
Cooktop (Toast) WPL 313165 Contact Us For Availability
13
Cooktop (Platinum) WPL 313166 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
13
Cover, Service WPL 307972 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
14
Switch, Broil WPL 310643 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
15
Switch, Bake WPL 310644 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
16
Handle, Oven Door WPL 312722 Contact Us For Availability
16
Panel, Backguard WPL 313577 Contact Us For Availability
16
Channel, Arm (2) WPL 329710 Contact Us For Availability
16
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
16
Switch Miniature (Alt.) WPL 313076 Contact Us For Availability
16
Switch Miniature (Alt.) WPL 313124 Contact Us For Availability
16
Switch Miniature WPL 661145 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
17
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
18
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Plate, Cover (2) WPL 311982 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123640A Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Vent, Oven WPL 307961 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Stirrer Cover WPL 313074 Contact Us For Availability
20
Door WPL 329630 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
21
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
21
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
21
Shield, Lamp WPL 309554 Contact Us For Availability
22
WPL 330194 WPL 330194 Contact Us For Availability
22
WPL 330195 WPL 330195 Contact Us For Availability
22
WPL 330196 WPL 330196 Contact Us For Availability
22
WPL 330197 WPL 330197 Contact Us For Availability
22
WPL 330198 WPL 330198 Contact Us For Availability
22
WPL 330200 WPL 330200 Contact Us For Availability
22
WPL 330201 WPL 330201 Contact Us For Availability
22
WPL 330202 WPL 330202 Contact Us For Availability
22
WPL 330203 WPL 330203 Contact Us For Availability
22
WPL 330204 WPL 330204 Contact Us For Availability
22
Shield, Insulation WPL 312320 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
23
WPL 313320 WPL 313320 Contact Us For Availability
23
Rack, Literature WPL 357645 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Seal, Top & Bottom (2) WPL 660574 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
WPL 313322 WPL 313322 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Seal, Sides WPL 660575 Contact Us For Availability
26
WPL 313321 WPL 313321 Contact Us For Availability
26
Support, Tubing R.H. WPL 313327 Contact Us For Availability
26
Support, Tubing L.H. WPL 313329 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Shield, Exhaust Probe WPL 312577 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
27
WPL 311953 WPL 311953 Contact Us For Availability
27
Timer, Auto (Includes Illus. 28) WPL 309434 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
28
WPL 312237 WPL 312237 Contact Us For Availability
28
Motor, Timer WPL 308443 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
29
Nut, Aluminum (4) WPL 309645 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
30
WPL 312599 WPL 312599 Contact Us For Availability
30
Light, Indicator WPL 313518 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
Support, Shelf WPL 311286 Contact Us For Availability
31
WPL 309499 WPL 309499 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Bracket, Control Mounting WPL 329791 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
32
Rack, Meat (Micro) WPL 14010 Contact Us For Availability
32
Browning Tray (Micro) WPL 1408 Contact Us For Availability
32
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
32
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
32
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
32
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
32
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
32
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
32
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
32
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
32
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
32
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
32
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
32
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
32
Touch-Up, Oven (Self-Clean) WPL 242860 Contact Us For Availability
32
Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability
32
Grease WPL 261582 Contact Us For Availability
32
Harvest Gold WPL 261890 Contact Us For Availability
32
Harvest Gold WPL 261891 Contact Us For Availability
32
Toast WPL 285365 Contact Us For Availability
32
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
32
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
32
Platinum WPL 285368 Contact Us For Availability
32
Shelf, Convenience WPL 311318 Contact Us For Availability
32
WPL 350941 WPL 350941 Contact Us For Availability
32
WPL 591014 WPL 591014 Contact Us For Availability
32
WPL 72112 WPL 72112 Contact Us For Availability
32
WPL 799340 WPL 799340 Contact Us For Availability
32
WPL 799832 WPL 799832 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
33
WPL 313030 WPL 313030 Contact Us For Availability
33
Ballast (Alt.) WPL 346772 Contact Us For Availability
33
Ballast WPL 660001 Contact Us For Availability
33
Ballast (Alt.) WPL 685591 Contact Us For Availability
33
Indicator Light 250V (6) WPL 313517 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
34
locator, cooktop WPL 311909 Contact Us For Availability
34
Thermostat, Oven (Lower) WPL 313531 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
35
WPL 308112 WPL 308112 Contact Us For Availability
35
Insulator WPL 310054 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Switch, Selector WPL 310007 Contact Us For Availability
36
Motor (Alt.) WPL 311998 Contact Us For Availability
36
Motor (Alt.) WPL 312478 Contact Us For Availability
36
Motor WPL 661000 Contact Us For Availability
37
Screw, 8-32 x 3/16 (8) WPL 308119 Contact Us For Availability
37
switch, infinite (4) WPL 308475 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
Jack, Probe WPL 313458 Contact Us For Availability
38
WPL 312350 WPL 312350 Contact Us For Availability
39
WPL 308839 WPL 308839 Contact Us For Availability
40
WPL 310210 WPL 310210 Contact Us For Availability
40
Skirt, Knob (4) WPL 309489 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
41
WPL 307535 WPL 307535 Contact Us For Availability
41
WPL 307602 WPL 307602 Contact Us For Availability
41
Lockwasher WPL 138473 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
42
WPL 247326 WPL 247326 Contact Us For Availability
42
WPL 310420 WPL 310420 Contact Us For Availability
42
Cover, Rear WPL 312257 Contact Us For Availability
43
Screw WPL 312248 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
43
Cover, Light WPL 312379 Contact Us For Availability
44
WPL 312389 WPL 312389 Contact Us For Availability
44
Spring, Knob (3) WPL 313311 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312640 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312784 Contact Us For Availability
44
Reed Relay WPL 661005 Contact Us For Availability
45
WPL 312340 WPL 312340 Contact Us For Availability
45
Bezel, Control Knob (4) WPL 309556 Contact Us For Availability
45
Probe, Temperature WPL 313044 Contact Us For Availability
46
spring, bezel (4) WPL 308348 Contact Us For Availability
46
Clip, Harness WPL 312763 Contact Us For Availability
47
Knob, Control (4) WPL 313307 Contact Us For Availability
48
Knob, Thermostat WPL 328709 Contact Us For Availability
48
WPL 254217 WPL 254217 Contact Us For Availability
49
Screw WPL 310410 Contact Us For Availability
49
Knob, Selector WPL 328707 Contact Us For Availability
50
WPL 313319 WPL 313319 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
54
Jumper, High Voltage (Black 6-5/16``) WPL 313129 Contact Us For Availability
55
Jumper, High Voltage Black 6-5/16`` WPL 313130 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 313113 Contact Us For Availability
59
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
59
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
59
Cable, Support WPL 312764 Contact Us For Availability
× ![]()
