Model Whirlpool RM980PXYW1 – Common Parts & Diagrams

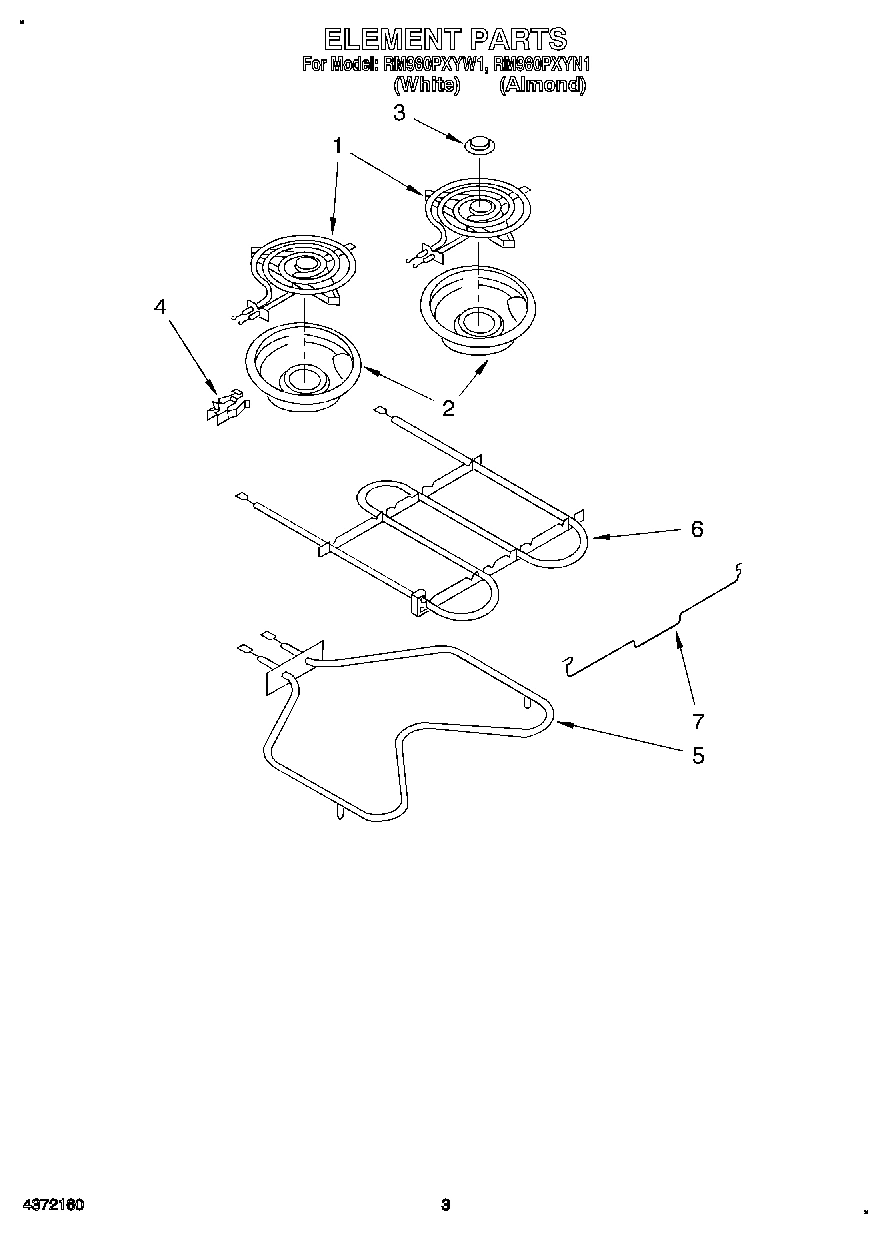

03 - ELEMENT

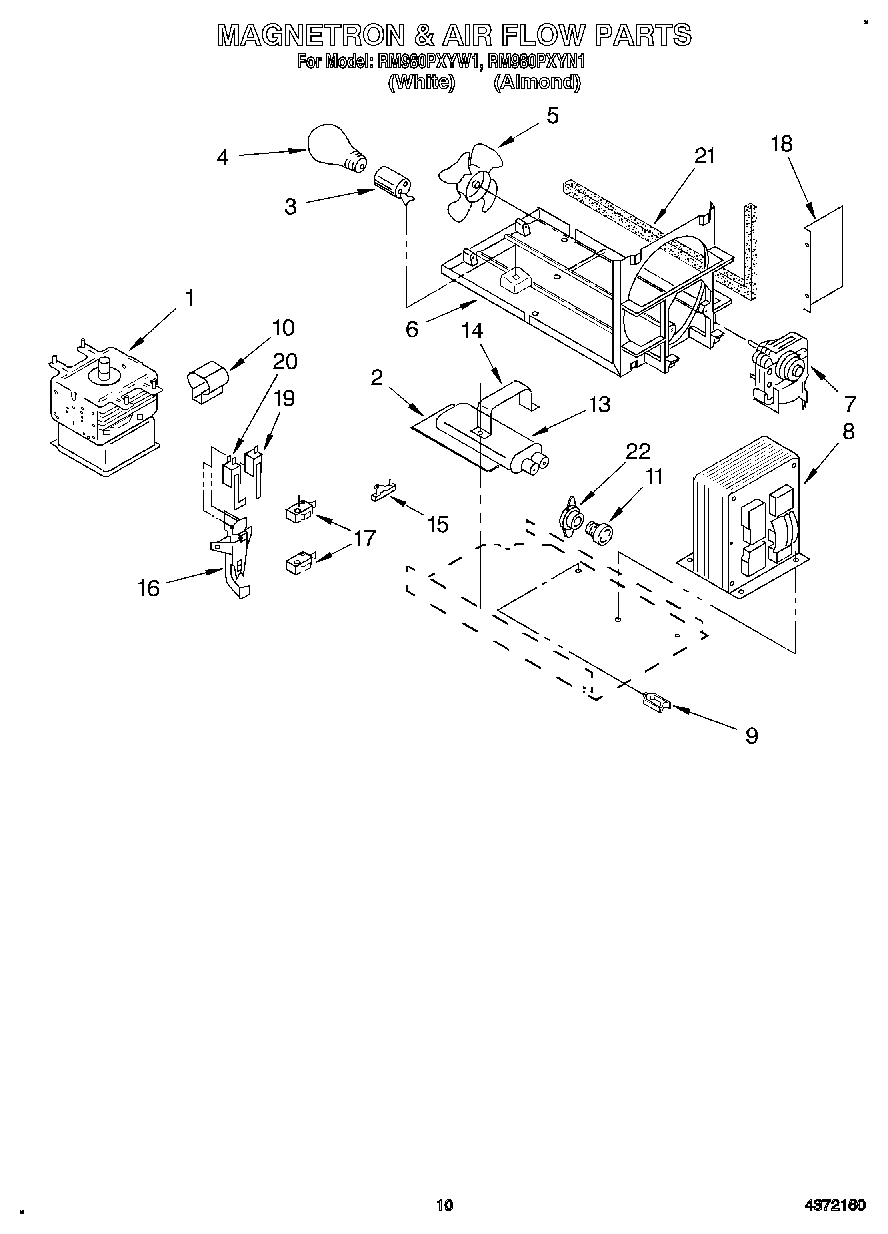

10 - MAGNETRON & AIR FLOW
05 - OVEN
07 - MICROWAVE OVEN DOOR
06 - OVEN RACK, LITERATURE
08 - MICROWAVE BODY
01 - COOKTOP
12 - WIRING HARNESS
02 - UPPER OVEN SUPPORT
04 - DOOR AND DRAWER
09 - CONTROL PANEL
11 - STIRRER
Common parts from model Whirlpool RM980PXYW1
1
Magnetron WPL 4371775 Contact Us For Availability
1
Spacer, Body (8) WPL 816669 Contact Us For Availability
1
Handle, Door WPL 4371798 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
1
Endcap, LH WPL 4371735 Contact Us For Availability
1
Panel, Manifold WPL 4371918 Contact Us For Availability
1
Harness, Main WPL 4371895 Contact Us For Availability
1
Back, Middle Wall WPL 4371730 Contact Us For Availability
1
Handle, Oven Door WPL 4371944 Contact Us For Availability
1
Panel, Glass Cntrl WPL 4371931 Contact Us For Availability
1
Wrapper WPL 4371791 Contact Us For Availability
2
Pan, Element (Large (2)) WPL 4371445 Contact Us For Availability
2
Pan, Element (Small (2)) WPL 4371941 Contact Us For Availability
2
Insulator WPL 4371799 Contact Us For Availability
2
Shield, Rear Wall WPL 4371940 Contact Us For Availability
2
Screw, Latch (2) WPL 4371806 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
2
Trim, Bottom WPL 4371747 Contact Us For Availability
2
Knob, Control (4) WPL 4371929 Contact Us For Availability
2
Harness, Power Supply WPL 4371896 Contact Us For Availability
2
Reflector WPL 4371241 Contact Us For Availability
2
Trim, Door WPL 816688 Contact Us For Availability
2
Knob, Thermostat WPL 4371932 Contact Us For Availability
2
Liner (Not A Serviceable Part) WPL ARI123630A Contact Us For Availability
3
Medallion (4) WPL 4371951 Contact Us For Availability
3
Socket, Light WPL 4371821 Contact Us For Availability
3
Plug, Button WPL 4371905 Contact Us For Availability
3
Assy, Latch Hook WPL 4371805 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Use & Care Guide (Microwave) WPL LIT4371015 Contact Us For Availability
3
Use & Care Guide (Tech Sheet) WPL LIT4371161 Contact Us For Availability
3
Use & Care Guide (Lower Oven) WPL LIT4371276 Contact Us For Availability
3
Use & Care Guide (Cookbook) WPL LIT4371813 Contact Us For Availability
3
Use & Care Guide (List, Repair Parts) WPL LIT4372160 Contact Us For Availability
3
Endcap, RH WPL 4371736 Contact Us For Availability
3
Top, Main (White) WPL 4371935 Contact Us For Availability
3
Top, Main (Almond) WPL 4371936 Contact Us For Availability
3
Harness, Fan WPL 4371897 Contact Us For Availability
3
Glass, Door WPL 4371690 Contact Us For Availability
3
Knob, Selector WPL 4371933 Contact Us For Availability
3
Clip, Hinge (4) WPL 4371033 Contact Us For Availability
4
Knob, Clock (3) WPL 816480 Contact Us For Availability
4
Bulb, Light WPL 4371801 Contact Us For Availability
4
Cover, Door WPL 4371786 Contact Us For Availability
4
Trim, Top Vent WPL 4371748 Contact Us For Availability
4
Rod, Support (2) WPL 4371039 Contact Us For Availability
4
Insulator WPL 4371200 Contact Us For Availability
4
Foil, Alum. (2) WPL 816674 Contact Us For Availability
4
Tray, Glass WPL 4371781 Contact Us For Availability
5
Element, Bake WPL 4371913 Contact Us For Availability
5
Fan WPL 4371789 Contact Us For Availability
5
Door, Sub-Assy WPL 4371804 Contact Us For Availability
5
Endcaps, Vent Trim WPL 4371737 Contact Us For Availability
5
Bracket, Hinge (Left) WPL 816586 Contact Us For Availability
5
Bracket, Hinge (Right) WPL 816721 Contact Us For Availability
5
Receptacle WPL 4371870 Contact Us For Availability
5
Foil, Alum. WPL 816675 Contact Us For Availability
5
Trim, Cntrl Panel WPL 4371767 Contact Us For Availability
5
Rivet (10) WPL 4371817 Contact Us For Availability
6
Element, Broiler WPL 4371899 Contact Us For Availability
6
Duct, Fan WPL 4371787 Contact Us For Availability
6
Retainer, Lens WPL 4371621 Contact Us For Availability
6
Screw, Door Strike WPL 4371807 Contact Us For Availability
6
Panel, Top WPL 4371757 Contact Us For Availability
6
Vent, Trim WPL 4371926 Contact Us For Availability
6
Bracket, Glass WPL 816676 Contact Us For Availability
6
Clock, Digital WPL 4371742 Contact Us For Availability
6
Cover, Stirrer WPL 4371785 Contact Us For Availability
7
Support, Element WPL 4371900 Contact Us For Availability
7
Motor, Fan WPL 4372242 Contact Us For Availability
7
Lens, Oven Light WPL 816609 Contact Us For Availability
7
Cover, Outlet WPL 4371192 Contact Us For Availability
7
Trim, Top (Left) WPL 4371250 Contact Us For Availability
7
Trim, Top (Right) WPL 4371251 Contact Us For Availability
7
Support, Oven (Left Hand) WPL 4371751 Contact Us For Availability
7
Support, Oven (Right Hand) WPL 4371752 Contact Us For Availability
7
Glass, Oven Door WPL 816679 Contact Us For Availability
7
Fastener, Clock WPL 4371208 Contact Us For Availability
7
Fan, Stirrer WPL 4372244 Contact Us For Availability
8
Transformer WPL 4371824 Contact Us For Availability
8
Hinge, Oven Door WPL 4371143 Contact Us For Availability
8
Screw, Door (4) WPL 4371818 Contact Us For Availability
8
Panel, Base WPL 4371756 Contact Us For Availability
8
Shield, Heat WPL 4371253 Contact Us For Availability
8
Panel, Touch WPL 4371898 Contact Us For Availability
8
Support, Stirrer WPL 4371829 Contact Us For Availability
9
Clip, Wire (3) WPL 4371793 Contact Us For Availability
9
Cover, Hinge (2) WPL 816617 Contact Us For Availability
9
Panel, Upper Side (White, RH) WPL 4371262 Contact Us For Availability
9
Panel, Upper Side (White, LH) WPL 4371263 Contact Us For Availability
9
Panel, Upper Side (Almond, RH) WPL 4371272 Contact Us For Availability
9
Panel, Upper Side (Almond, LH) WPL 4371273 Contact Us For Availability
9
Light, Ind WPL 4372241 Contact Us For Availability
9
Glass, Splasher WPL 4371193 Contact Us For Availability
9
Collar, Glass WPL 816677 Contact Us For Availability
9
Light, Indicator (Light, Lock) WPL 4371054 Contact Us For Availability
9
Light, Indicator (Light, Clean) WPL 4371920 Contact Us For Availability
9
Light, Indicator (Light, Oven) WPL 4371921 Contact Us For Availability
9
Collar, Stirrer WPL 4371784 Contact Us For Availability
10
Insulator WPL 4371800 Contact Us For Availability
10
Shield, Heat (Lower) WPL 4371908 Contact Us For Availability
10
Shield, Heat (Left) WPL 4371942 Contact Us For Availability
10
Shield, Heat (Right) WPL 4371943 Contact Us For Availability
10
Splasher, Panel (upper) WPL 4371934 Contact Us For Availability
10
Glass, Heat Barrier (2) WPL 816681 Contact Us For Availability
10
Switch, Selector WPL 4371922 Contact Us For Availability
10
Channel, Base RH WPL 4371782 Contact Us For Availability
11
Fuse, 20 amp WPL 4371795 Contact Us For Availability
11
Shield, Insulation WPL 4371907 Contact Us For Availability
11
Ballast WPL 4371178 Contact Us For Availability
11
Spacer, Glass WPL 816687 Contact Us For Availability
11
Thermostat, Oven WPL 4371923 Contact Us For Availability
11
Bracket, Support WPL 4371774 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
12
Plate, Cover WPL 4371808 Contact Us For Availability
12
Grommet, Door WPL 4371797 Contact Us For Availability
13
Capacitor WPL 4372243 Contact Us For Availability
13
Switch, Latch WPL 816640 Contact Us For Availability
13
Trim, Side WPL 4371749 Contact Us For Availability
13
Liner, Oven Door WPL 816683 Contact Us For Availability
13
Plate, Control Mtg WPL 4371758 Contact Us For Availability
13
Bezel, Latch WPL 4371772 Contact Us For Availability
14
Brkt, Capacitor WPL 4371816 Contact Us For Availability
14
Channel, Slide (2) WPL 4371739 Contact Us For Availability
14
Trim, Upper Oven (Left Hand) WPL 4371248 Contact Us For Availability
14
Trim, Upper Oven (Right Hand) WPL 4371249 Contact Us For Availability
14
Screw, Handle WPL 4371542 Contact Us For Availability
14
Bracket, Support WPL 4371733 Contact Us For Availability
14
Motor, Stirrer (With Belt) WPL 4371802 Contact Us For Availability
15
Fuse, Thermal WPL 4371796 Contact Us For Availability
15
Clip, Thermo Bulb WPL 4371190 Contact Us For Availability
15
Channel, Slide (2) WPL 4371740 Contact Us For Availability
15
Trim, Upper Oven Spl. Filler WPL 4371255 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
15
Trim, Top WPL 4371765 Contact Us For Availability
15
Belt, Stirrer WPL 4371830 Contact Us For Availability
16
Bracket, Switch WPL 4372236 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Cover, Access WPL 4371930 Contact Us For Availability
16
Fastener, Cable WPL 4371728 Contact Us For Availability
16
Seal, Rope WPL 816684 Contact Us For Availability
16
Trim, Bottom WPL 4371766 Contact Us For Availability
16
Pulley, Stirrer WPL 4371814 Contact Us For Availability
17
Switch, Interlock (2) WPL 4371823 Contact Us For Availability
17
Rod, Light WPL 4371038 Contact Us For Availability
17
Clip, Purse Lock WPL 4371553 Contact Us For Availability
17
Foam, Air Duct (2) WPL 4371745 Contact Us For Availability
17
Screw, Liner (3) WPL 4371946 Contact Us For Availability
17
Spacer, Glass (2) WPL 4371759 Contact Us For Availability
17
Screw, Wrapper (13) WPL 4371819 Contact Us For Availability
18
Barrier, Air WPL 4371771 Contact Us For Availability
18
Bumper, Front (4) WPL 816608 Contact Us For Availability
18
Cover, Vent WPL 4371833 Contact Us For Availability
18
Panel, Drawer WPL 816715 Contact Us For Availability
18
Bushing, Control WPL 4371734 Contact Us For Availability
18
Plug, Button (2) WPL 4371811 Contact Us For Availability
19
Switch, Door Sense WPL 4372238 Contact Us For Availability
19
Cover, Rod End WPL 4371682 Contact Us For Availability
19
Starter, Receptacle WPL 4371239 Contact Us For Availability
19
Handle, Utility Drawer WPL 4371060 Contact Us For Availability
19
Channel, Base LH WPL 4371783 Contact Us For Availability
20
Switch, Monitor WPL 4372237 Contact Us For Availability
20
Switch, Door WPL 816671 Contact Us For Availability
20
Starter WPL 4371243 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
20
Foam, Air Duct WPL 4371788 Contact Us For Availability
21
Seal, Foam WPL 4371831 Contact Us For Availability
21
Bracket, Door Switch WPL 816587 Contact Us For Availability
21
Support, Corner WPL 4371764 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
22
Socket, Fuse WPL 4371822 Contact Us For Availability
22
Shield, Rear Heat WPL 4371939 Contact Us For Availability
22
Foam, Air Duct WPL 4371828 Contact Us For Availability
22
Screw, Panel (4) WPL 4371925 Contact Us For Availability
22
Plug, Button (8) WPL 4371810 Contact Us For Availability
23
Strap, Ground WPL 4371937 Contact Us For Availability
23
Screw, Handle (2) WPL 4371063 Contact Us For Availability
23
Shield, Oven Light WPL 4371820 Contact Us For Availability
24
Fastener, Cord WPL 816618 Contact Us For Availability
24
Drawer, Utility WPL 4371671 Contact Us For Availability
24
Washer, Pulley WPL 4371825 Contact Us For Availability
25
Guide, Drawer (2) WPL 816712 Contact Us For Availability
25
Cover, Flue WPL 4371911 Contact Us For Availability
25
Plug, Button WPL 4371809 Contact Us For Availability
26
Knob, Latch WPL 4371144 Contact Us For Availability
26
Fastener, Hinge Mtg WPL 4371792 Contact Us For Availability
27
Latch, Door WPL 816635 Contact Us For Availability
27
Probe WPL 4371780 Contact Us For Availability
28
Handle, Latch WPL 4371265 Contact Us For Availability
28
Receptacle, Probe WPL 4371815 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
29
Baffle, Panel WPL 4371770 Contact Us For Availability
30
Burner Box WPL 4371924 Contact Us For Availability
31
Nut, Hex (6) WPL 4371938 Contact Us For Availability
31
Stud, Ground WPL 4371894 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Insulation, Bottom WPL 4371906 Contact Us For Availability
34
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
34
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
34
Panel, Side (White RH) WPL 816708 Contact Us For Availability
34
Panel, Side (White LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
37
Shield, Wire WPL 4371927 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Bottom, Oven WPL 4371904 Contact Us For Availability
40
Trim, Side (2) WPL 4371252 Contact Us For Availability
42
Spacer, Stud (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Brkt, Cable Mtg WPL 4371912 Contact Us For Availability
45
Shield, Side (2) WPL 816648 Contact Us For Availability
46
Cover, Lower Access WPL 4371949 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Screw, Latch WPL 4371664 Contact Us For Availability
49
Glide, Drawer (2) WPL 816621 Contact Us For Availability
50
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
51
Insulation, Ov Top WPL 816628 Contact Us For Availability
52
Shield, Wire WPL 4371928 Contact Us For Availability
53
Tube, Ext. LH WPL 4371738 Contact Us For Availability
54
Tube, Post LH WPL 4371768 Contact Us For Availability
55
Tube, Post RH WPL 4371769 Contact Us For Availability
57
Filter WPL 4371901 Contact Us For Availability
58
Tube, Oven Vent WPL 4371902 Contact Us For Availability
59
Retainer, Filter WPL 4371903 Contact Us For Availability
× ![]()
