Model Whirlpool RM978BXVN0 – Common Parts & Diagrams
03 - OVEN , LITERATURE AND OPTIONAL
10 - CABINET AND HINGE

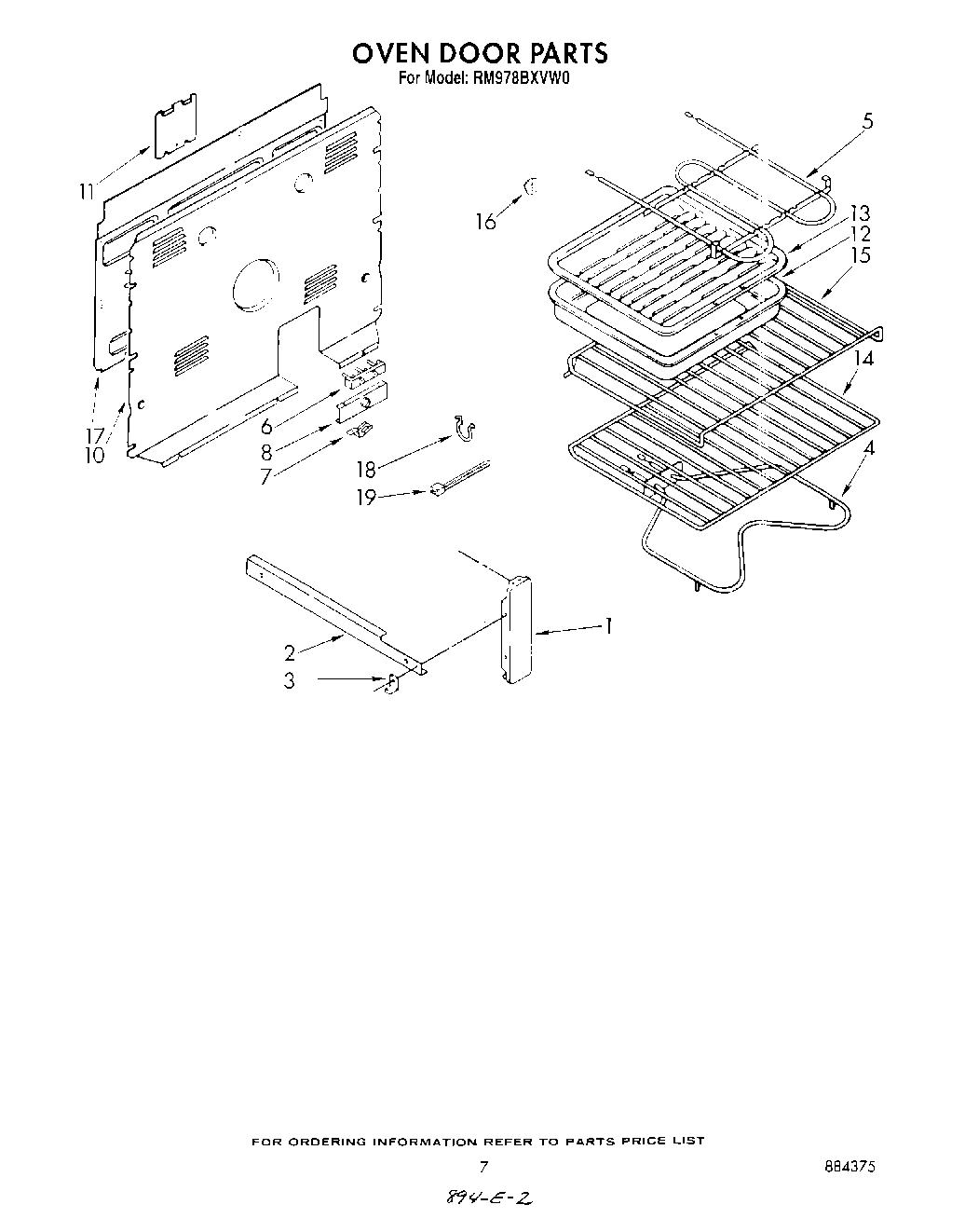

05 - OVEN DOOR

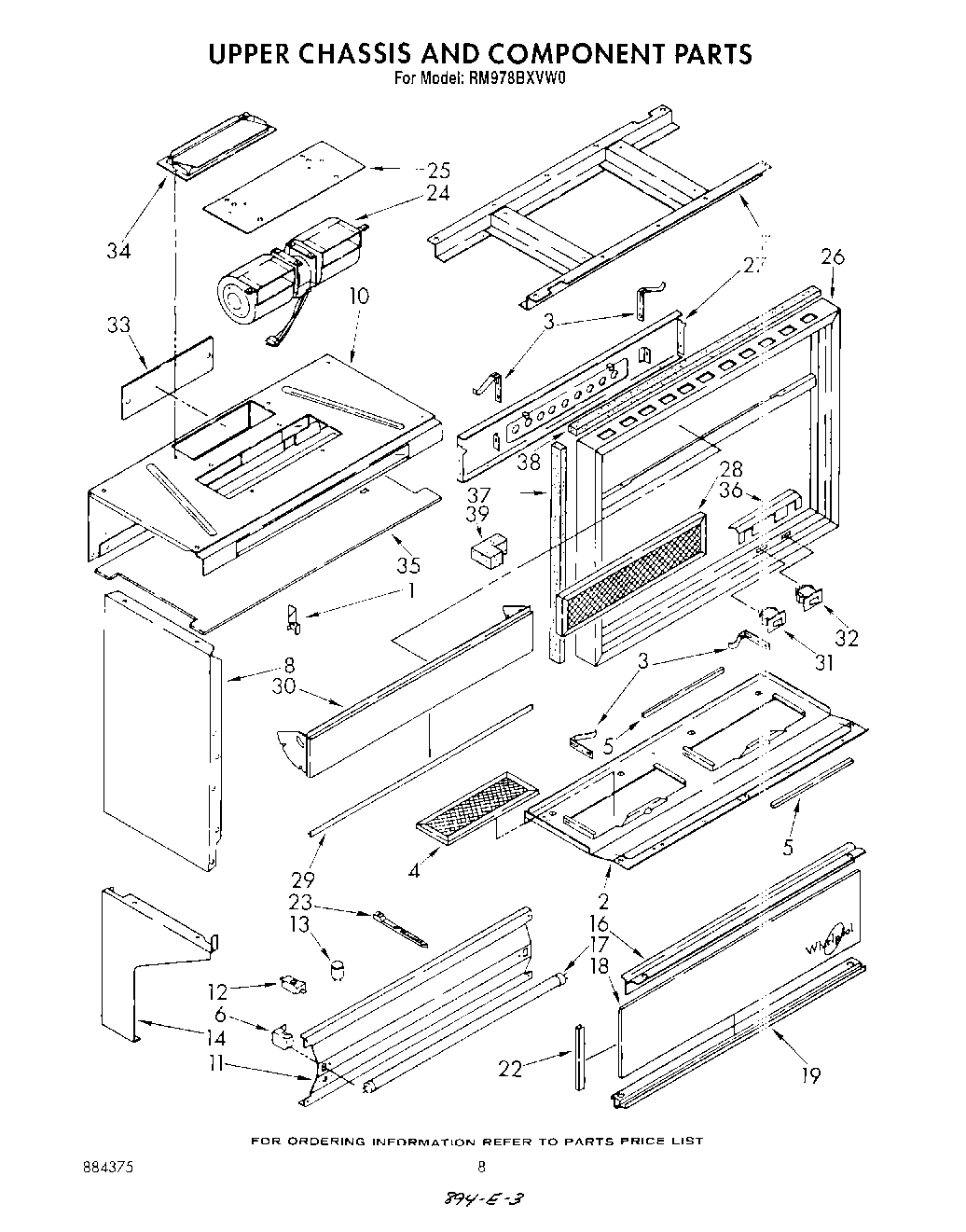

06 - UPPER CHASSIS AND COMPONENT

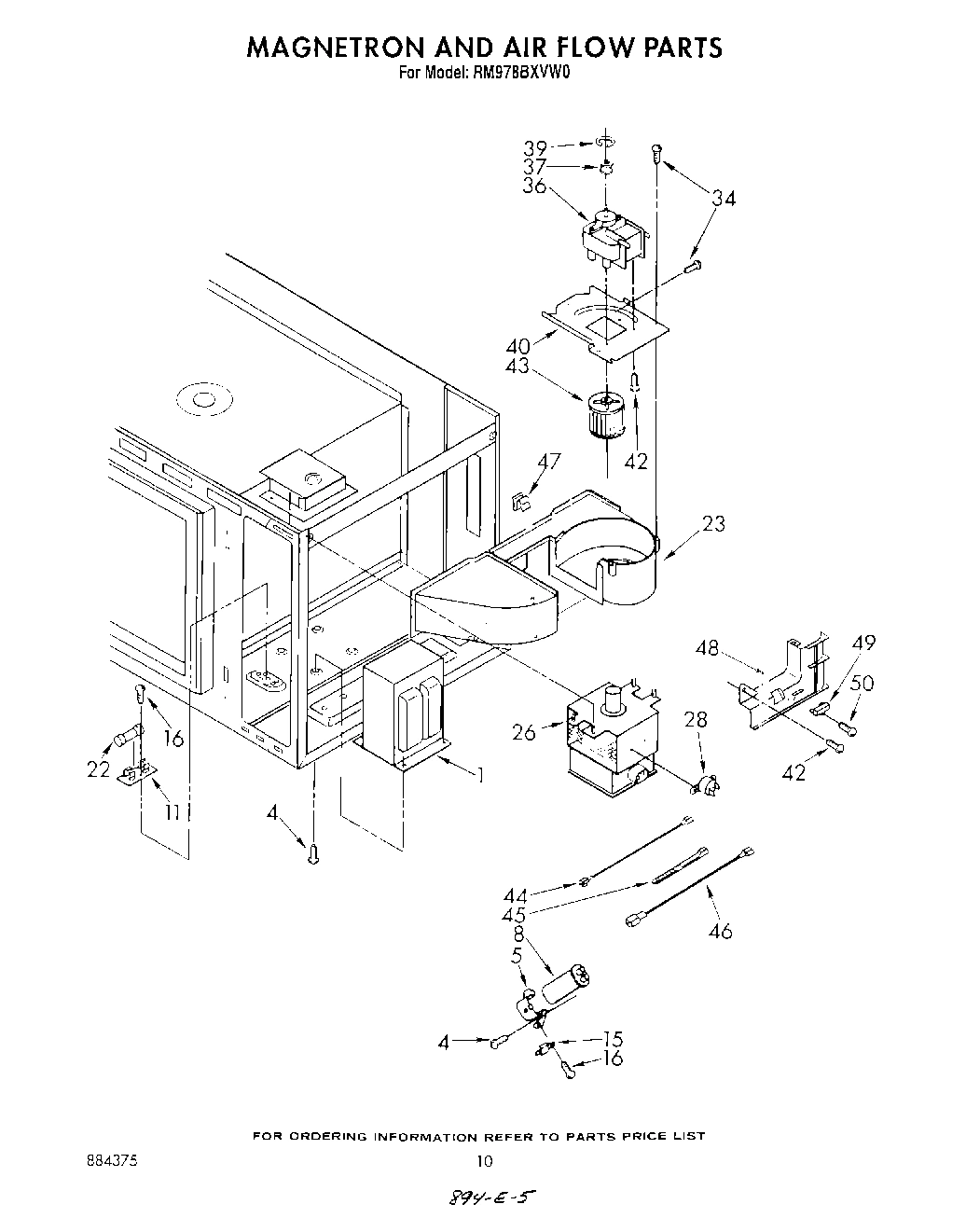

07 - MAGNETRON AND AIR FLOW

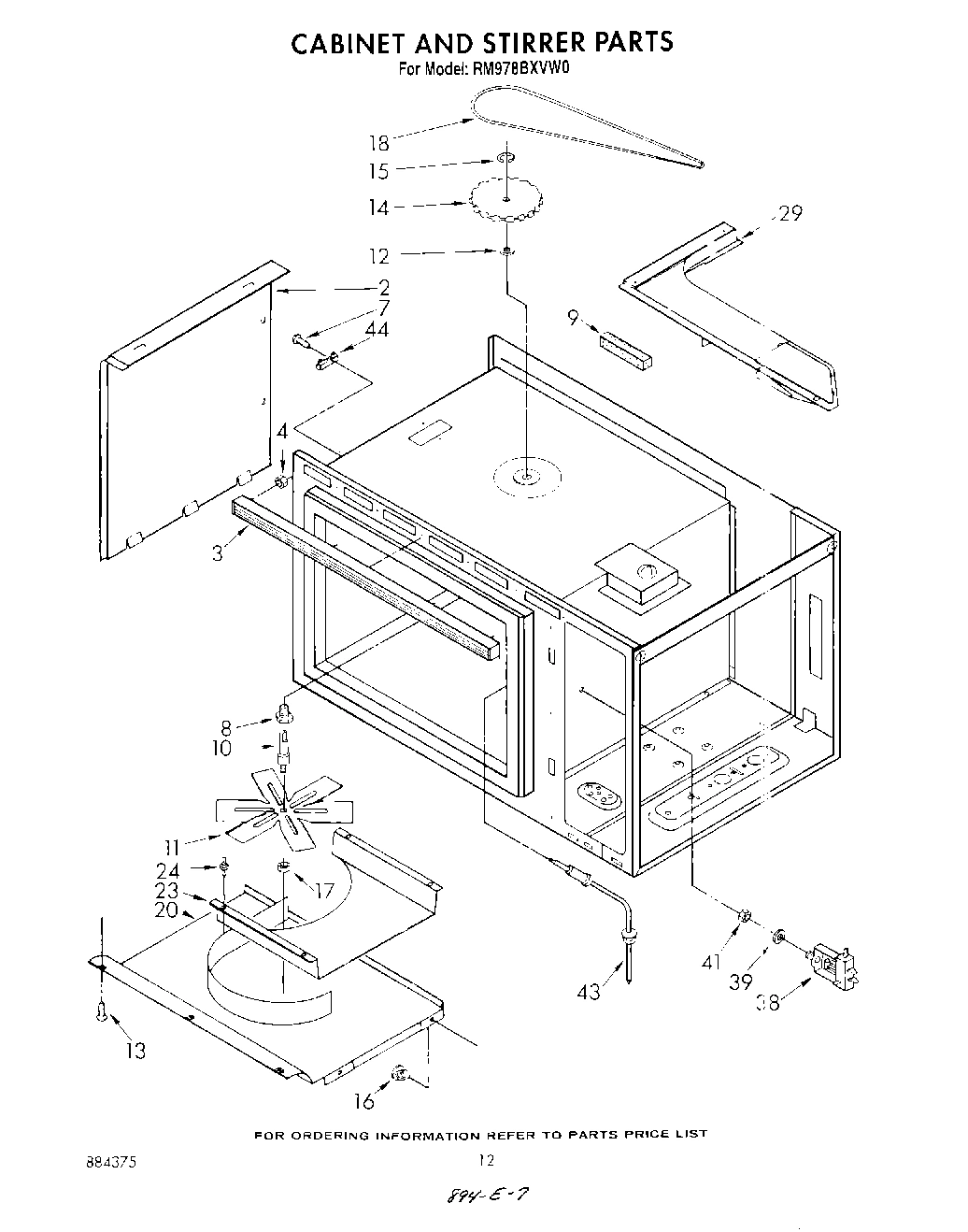

08 - CABINET AND STIRRER

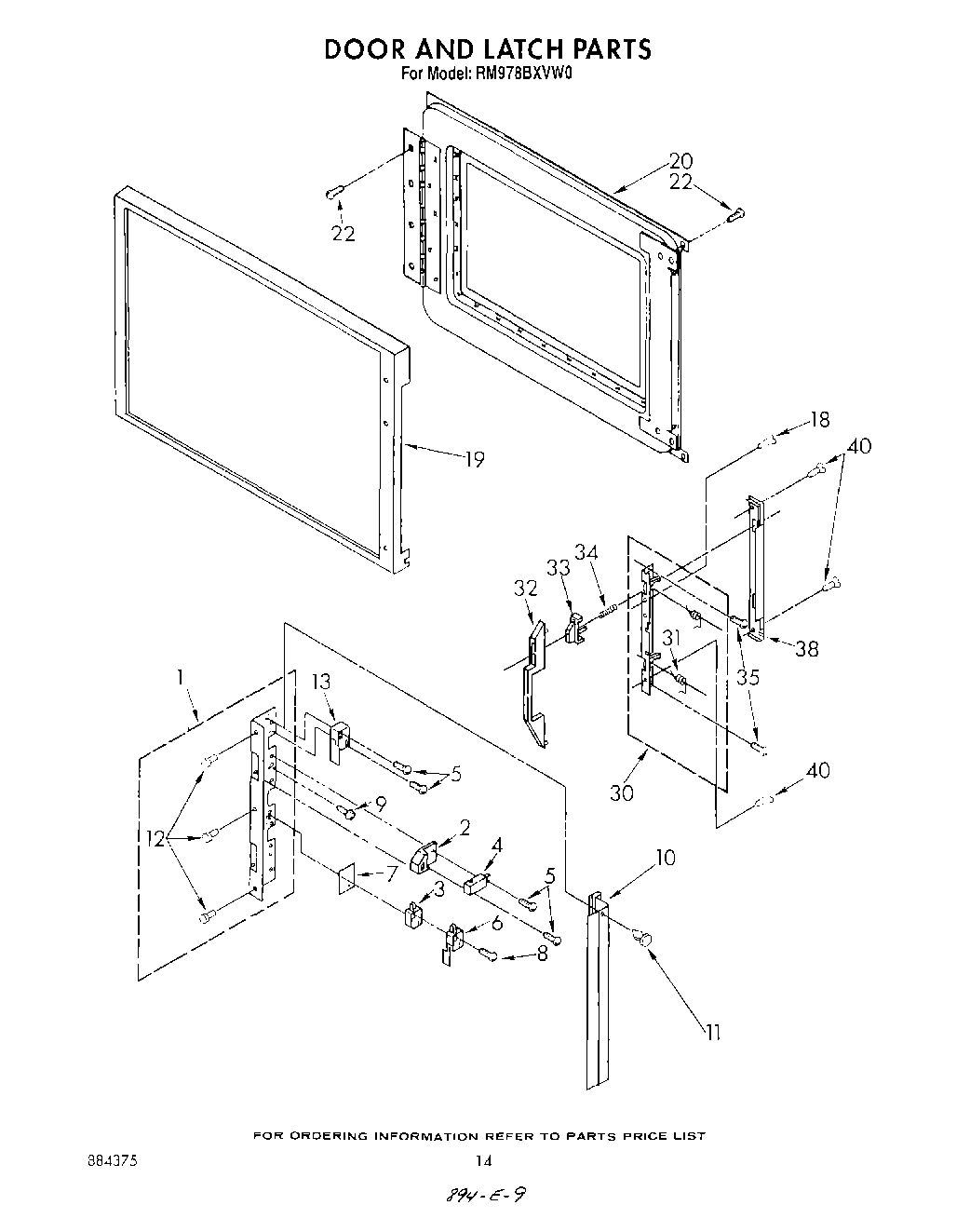

09 - DOOR AND LATCH

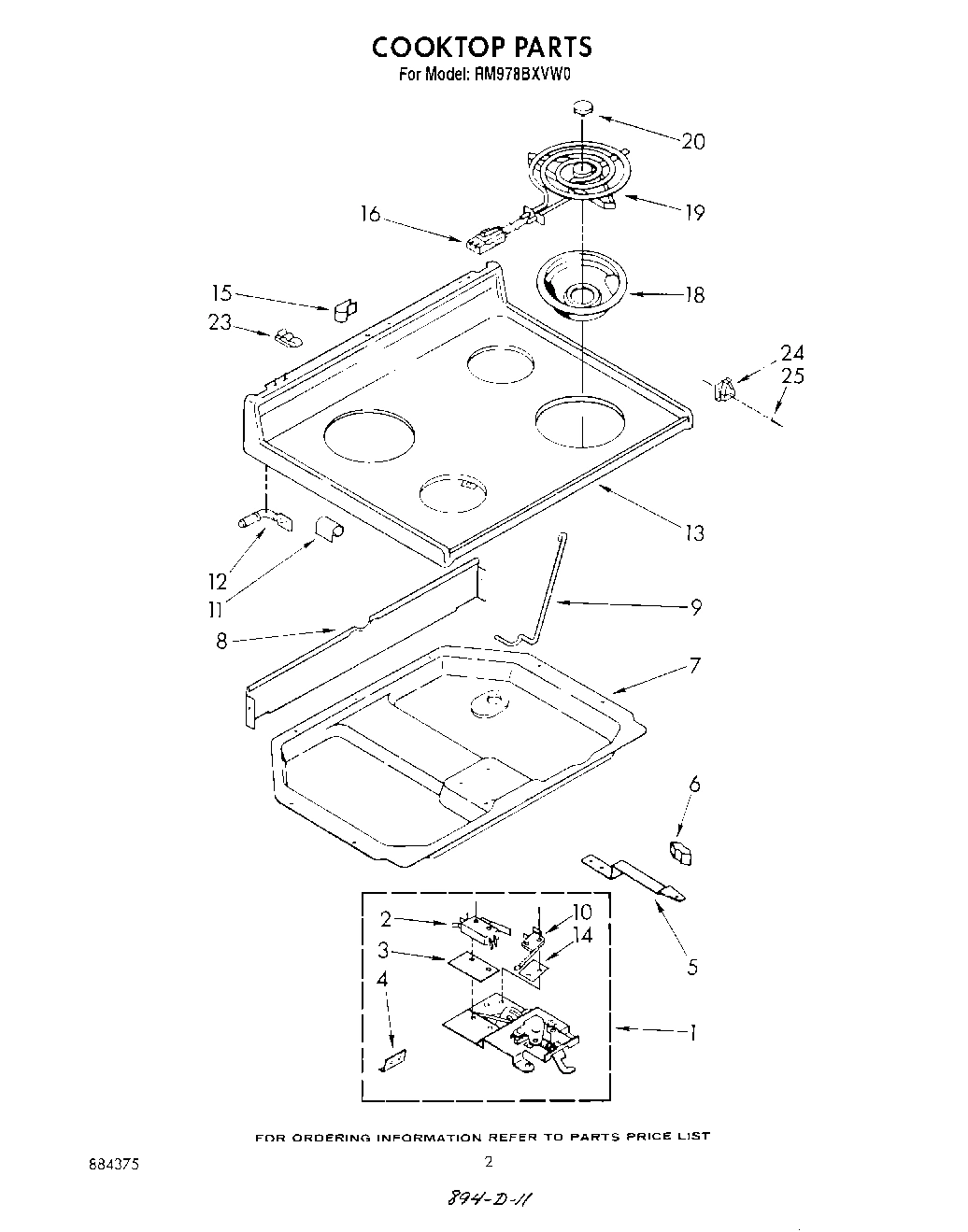

02 - COOK TOP

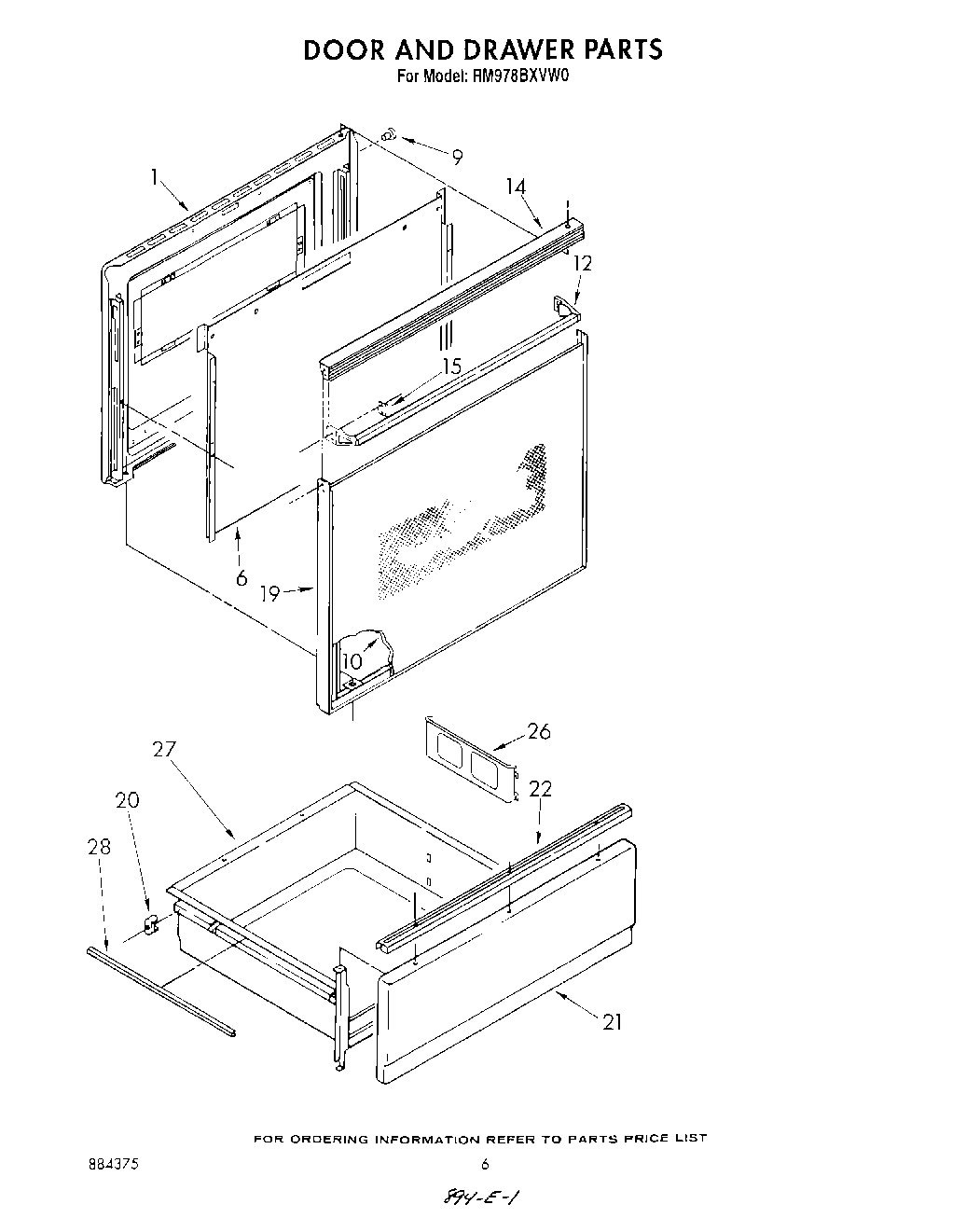

04 - DOOR AND DRAWER

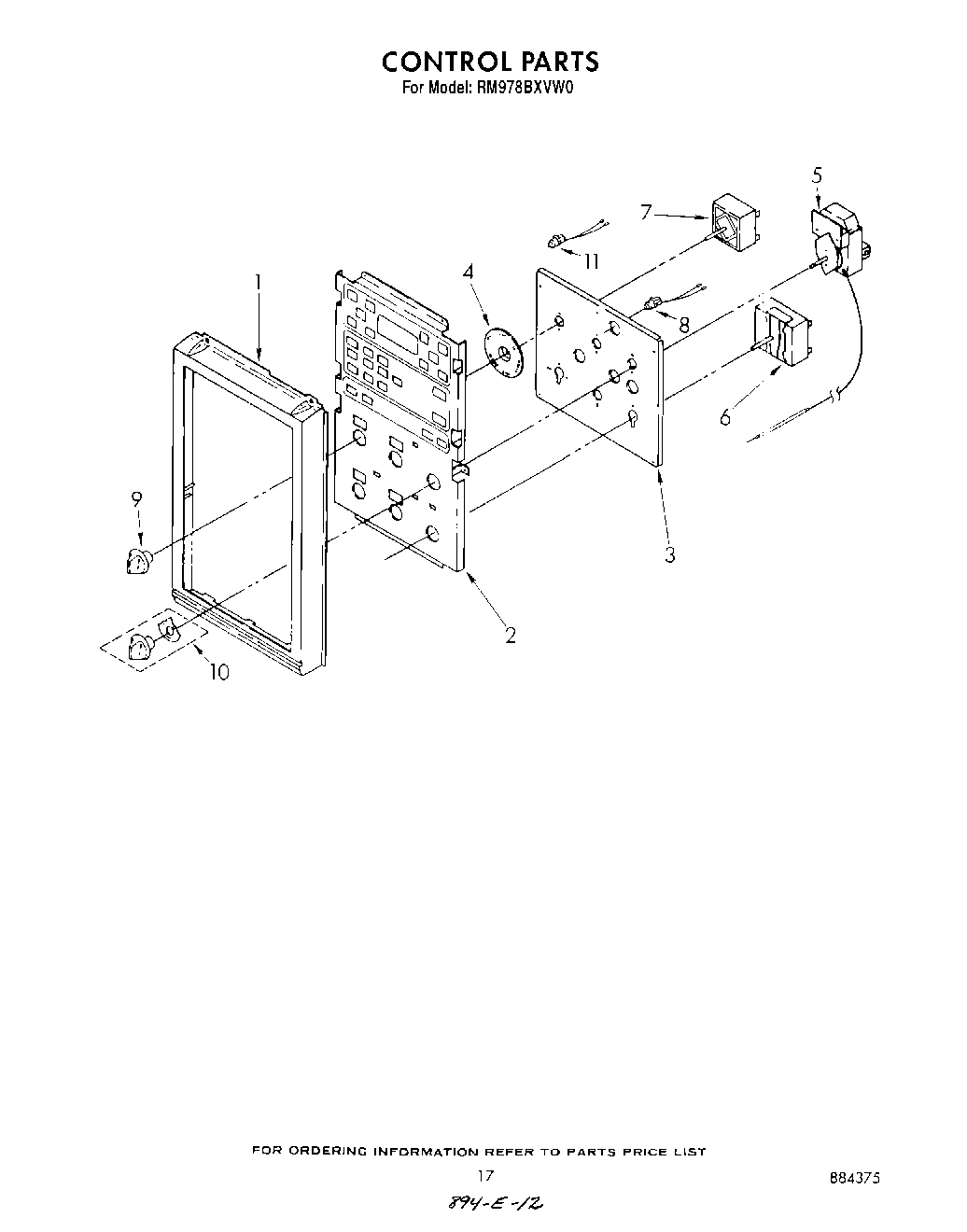

11 - CONTROL
Common parts from model Whirlpool RM978BXVN0
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
1
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Bracket, Stop R.H. WPL 3147486 Contact Us For Availability
1
Bracket, Stop L.H. WPL 3147487 Contact Us For Availability
1
Transformer WPL 3148101 Contact Us For Availability
1
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Latch Assembly WPL 3171148 Contact Us For Availability
1
Liner, Door WPL 3170707 Contact Us For Availability
1
Frame, Control Panel WPL 3148090 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability
2
Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Panel, Bottom WPL 314216 Contact Us For Availability
2
Seal, Foam WPL 3147593 Contact Us For Availability
2
Cover, Side WPL 3147004 Contact Us For Availability
2
catch (2) WPL 311792 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
module, control WPL 3147942 Contact Us For Availability
3
Shelf, Microwave (Install with Silastic 30757 WPL 313639 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Deflector, Air WPL 3148435 Contact Us For Availability
3
Switch (Alt.) WPL 313075 Contact Us For Availability
3
Switch (Alt.) WPL 313123 Contact Us For Availability
3
Switch WPL 661144 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Screw, 8-32 x 3/16 (4) WPL 313818 Contact Us For Availability
3
bracket, control (mounting) WPL 3147280 Contact Us For Availability
4
Snap-In Socket WPL 330514 Contact Us For Availability
4
Filter, Mesh (2) WPL 3147606 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
4
Nut (3) WPL 3147378 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Terminal WPL 313035 Contact Us For Availability
4
Skirt, Dail (4) WPL 3147032 Contact Us For Availability
5
Edge, Protector (2) WPL 3147756 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (6) WPL 312717 Contact Us For Availability
5
Handle, Latch WPL 3147065 Contact Us For Availability
5
thermostat WPL 3148930 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 3/4 (2) WPL 98884 Contact Us For Availability
6
Socket, Assembly L.H. WPL 3147244 Contact Us For Availability
6
Socket, Assembly R.H. WPL 3147245 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Retainer, Insulation WPL 3148160 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
6
Switch, Selector WPL 3147234 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Support, Frame WPL 330677 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Box, Burner WPL 3149194 Contact Us For Availability
7
Screw, 8-32 x 3/16 (8) WPL 308119 Contact Us For Availability
7
switch, infinite (4) WPL 308477 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Side Panel L.H. (White) WPL 3147143 Contact Us For Availability
8
(Side Panel, R.H.) (Almond) WPL 3147144 Contact Us For Availability
8
Side Panel L.H. (Almond) WPL 3147145 Contact Us For Availability
8
Side Panel L.H. (Seal, Foam (2)) WPL 3147591 Contact Us For Availability
8
Side Panel, L.H. (Seal, Foam (2)) WPL 3147592 Contact Us For Availability
8
(side panel, R.H.) (white) WPL 347142 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
light, indicator (3) WPL 3147862 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Knob, Control (4) WPL 3147030 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Top Panel WPL 3170318 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Screw (2) WPL 313489 Contact Us For Availability
10
Switch, Lock WPL 3148669 Contact Us For Availability
10
Glass, Panel WPL 3148186 Contact Us For Availability
10
knob, selector (2) WPL 3147888 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Panel, Backguard WPL 3147589 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Fastener (3) WPL 313740 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Wiring Harness (Infinite Switch) WPL 3147549 Contact Us For Availability
11
harness, wiring (microwave control) WPL 3147560 Contact Us For Availability
11
Wiring Harness (Select/Therm) WPL 3147917 Contact Us For Availability
11
light, indicator WPL 3149036 Contact Us For Availability
12
socket, fluorescent WPL 3147224 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Starter, Lamp WPL 387695 Contact Us For Availability
13
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
13
Switch, Miniature WPL 313120 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
End Trim R.H. (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314198 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314199 Contact Us For Availability
14
End Trim R.H. (White) WPL 314203 Contact Us For Availability
14
end trim R.H. (almond) WPL 314204 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Insulator, Switch WPL 3147864 Contact Us For Availability
14
trim, top WPL 3148223 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw, No.6 WPL 314215 Contact Us For Availability
15
Switch, Bake WPL 314210 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
16
Channel, Arm (2) WPL 329710 Contact Us For Availability
16
Trim, Glass (Top) WPL 313320 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
17
Cover WPL 3147490 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Panel, Glass WPL 313322 Contact Us For Availability
19
Vent, Oven WPL 307961 Contact Us For Availability
19
Trim, Glass (Bottom) WPL 313321 Contact Us For Availability
19
Frame, Door WPL 3170441 Contact Us For Availability
19
Frame, Panel WPL 3148235 Contact Us For Availability
20
Screw (2) WPL 307748 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Door, Inner WPL 3171012 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Trim, End (Glass) (2) WPL 313319 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
23
Spring, Door (2) WPL 308127 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Plate, Tuning WPL 313735 Contact Us For Availability
23
Clamp, Tube WPL 313570 Contact Us For Availability
24
Blower, Exhaust WPL 3147817 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Cover, Access WPL 3147798 Contact Us For Availability
25
Nut (6) WPL 3147866 Contact Us For Availability
25
harness, wiring (surface element) WPL 3149254 Contact Us For Availability
26
Support, Tubing R.H. WPL 314195 Contact Us For Availability
26
support, tubing L.H. WPL 314197 Contact Us For Availability
26
rivet, plastic (2) WPL 311982 Contact Us For Availability
26
Spring, Vent Door (2) WPL 3147764 Contact Us For Availability
26
Rivet (2) WPL 3147858 Contact Us For Availability
26
frame, fro WPL 3148682 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Rack, Literature WPL 357645 Contact Us For Availability
27
Seal, Door WPL 3148284 Contact Us For Availability
27
WPL 3147712 WPL 3147712 Contact Us For Availability
27
WPL 3147724 WPL 3147724 Contact Us For Availability
27
Drawer, Utility WPL 327887 Contact Us For Availability
28
WPL 3147525 WPL 3147525 Contact Us For Availability
28
WPL 3147607 WPL 3147607 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
29
WPL 3149007 WPL 3149007 Contact Us For Availability
29
Fastener WPL 310423 Contact Us For Availability
29
Baffle, Air WPL 3147002 Contact Us For Availability
30
WPL 3170269 WPL 3170269 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
33
Leveler, Enamel WPL 206925 Contact Us For Availability
33
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
33
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
33
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
33
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
33
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
33
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
33
Wire, White 14 Ga. 150 oC WPL 242826 Contact Us For Availability
33
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
33
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
33
Wire WPL 242829 Contact Us For Availability
33
WPL 242830 WPL 242830 Contact Us For Availability
33
WPL 242832 WPL 242832 Contact Us For Availability
33
WPL 242985 WPL 242985 Contact Us For Availability
33
WPL 254323 WPL 254323 Contact Us For Availability
33
WPL 261582 WPL 261582 Contact Us For Availability
33
WPL 261890 WPL 261890 Contact Us For Availability
33
WPL 261891 WPL 261891 Contact Us For Availability
33
WPL 285365 WPL 285365 Contact Us For Availability
33
WPL 285366 WPL 285366 Contact Us For Availability
33
WPL 285367 WPL 285367 Contact Us For Availability
33
WPL 285368 WPL 285368 Contact Us For Availability
33
WPL 3147918 WPL 3147918 Contact Us For Availability
33
WPL 346772 WPL 346772 Contact Us For Availability
33
WPL 591014 WPL 591014 Contact Us For Availability
33
WPL 660001 WPL 660001 Contact Us For Availability
33
WPL 685591 WPL 685591 Contact Us For Availability
33
WPL 72112 WPL 72112 Contact Us For Availability
33
WPL 799340 WPL 799340 Contact Us For Availability
33
WPL 799832 WPL 799832 Contact Us For Availability
33
WPL 814023 WPL 814023 Contact Us For Availability
33
WPL 978883 WPL 978883 Contact Us For Availability
33
WPL 3147726 WPL 3147726 Contact Us For Availability
34
WPL 3147843 WPL 3147843 Contact Us For Availability
34
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
35
WPL 3147250 WPL 3147250 Contact Us For Availability
35
WPL 3147590 WPL 3147590 Contact Us For Availability
35
Screw (2) WPL 313820 Contact Us For Availability
36
WPL 3148158 WPL 3148158 Contact Us For Availability
36
Transmotor WPL 313641 Contact Us For Availability
37
WPL 3147595 WPL 3147595 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
WPL 3147596 WPL 3147596 Contact Us For Availability
38
Jack, Probe WPL 3147071 Contact Us For Availability
38
End Cap WPL 3148297 Contact Us For Availability
39
WPL 3147557 WPL 3147557 Contact Us For Availability
39
WPL 3147568 WPL 3147568 Contact Us For Availability
39
WPL 3149016 WPL 3149016 Contact Us For Availability
39
Washer, Internal Lock WPL 313105 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
40
Screw, 8-22 (5) WPL 313823 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
43
probe, temperature WPL 661209 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
44
Fuse, Thermal WPL 313855 Contact Us For Availability
44
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
46
voltage lead, gray 6-3/4`` (2) WPL 3147863HIGH Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
× ![]()
