Model Whirlpool RM978BXVM1 – Common Parts & Diagrams
03 - OVEN
02 - COOKTOP

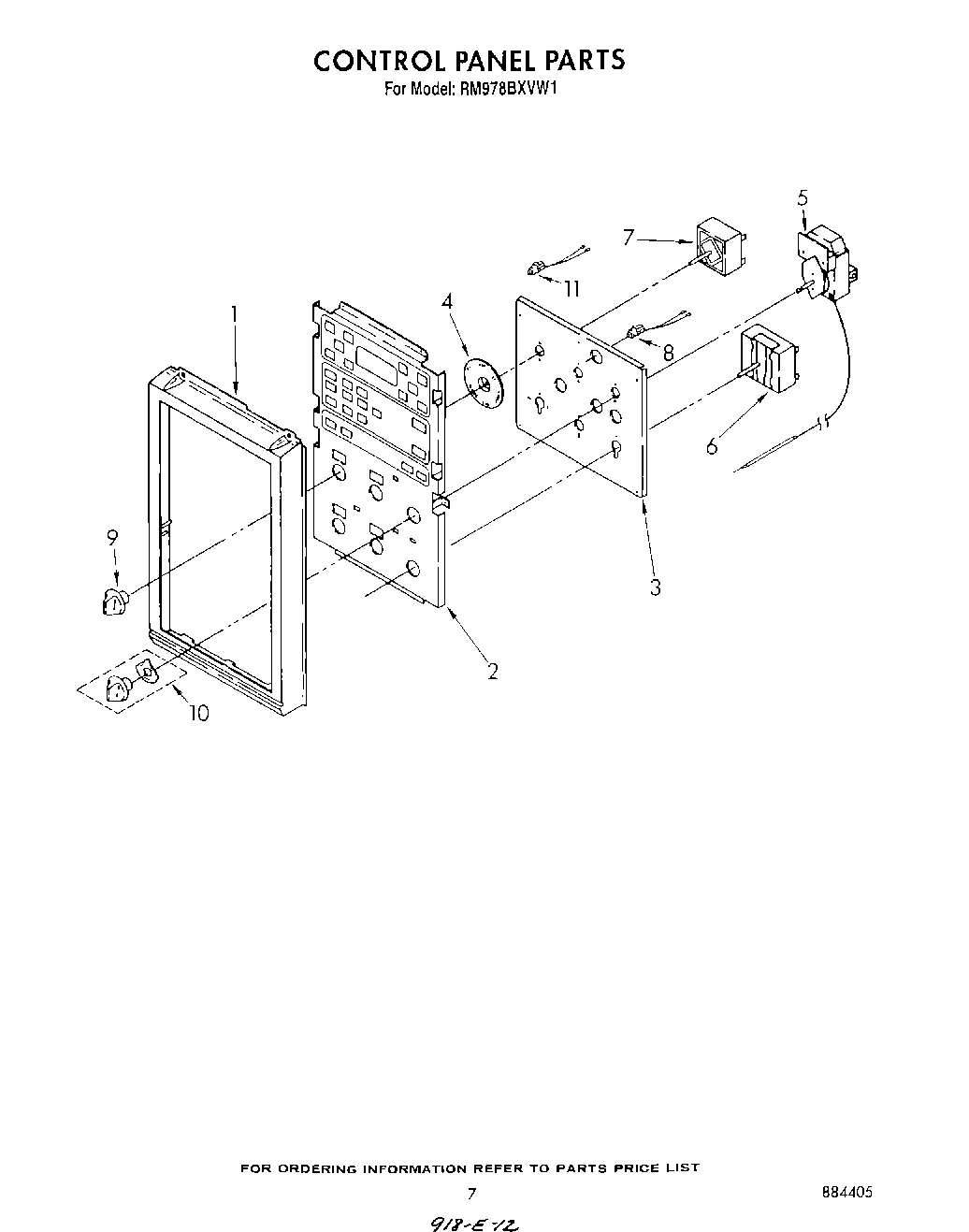

05 - CONTROL PANEL

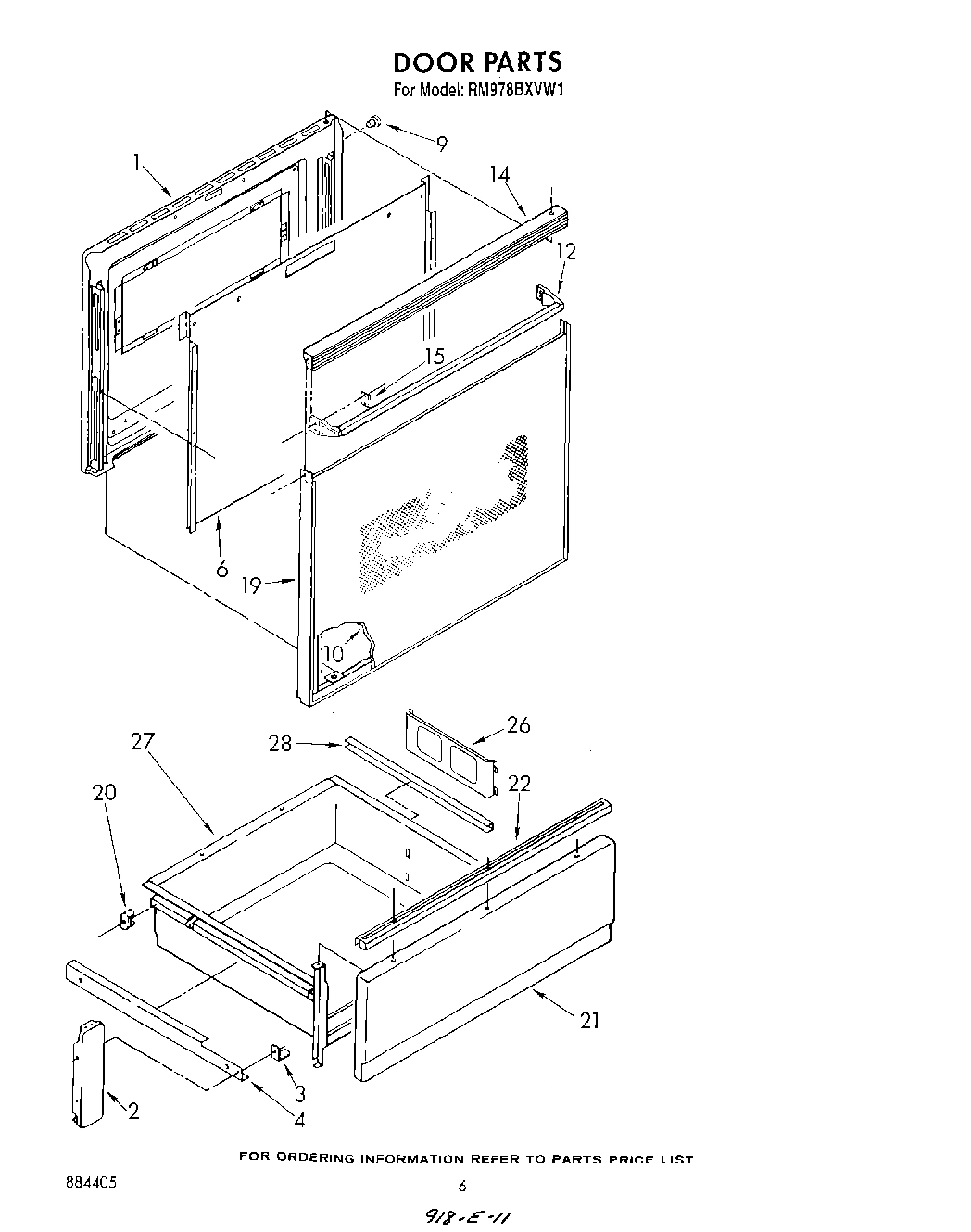

04 - DOOR

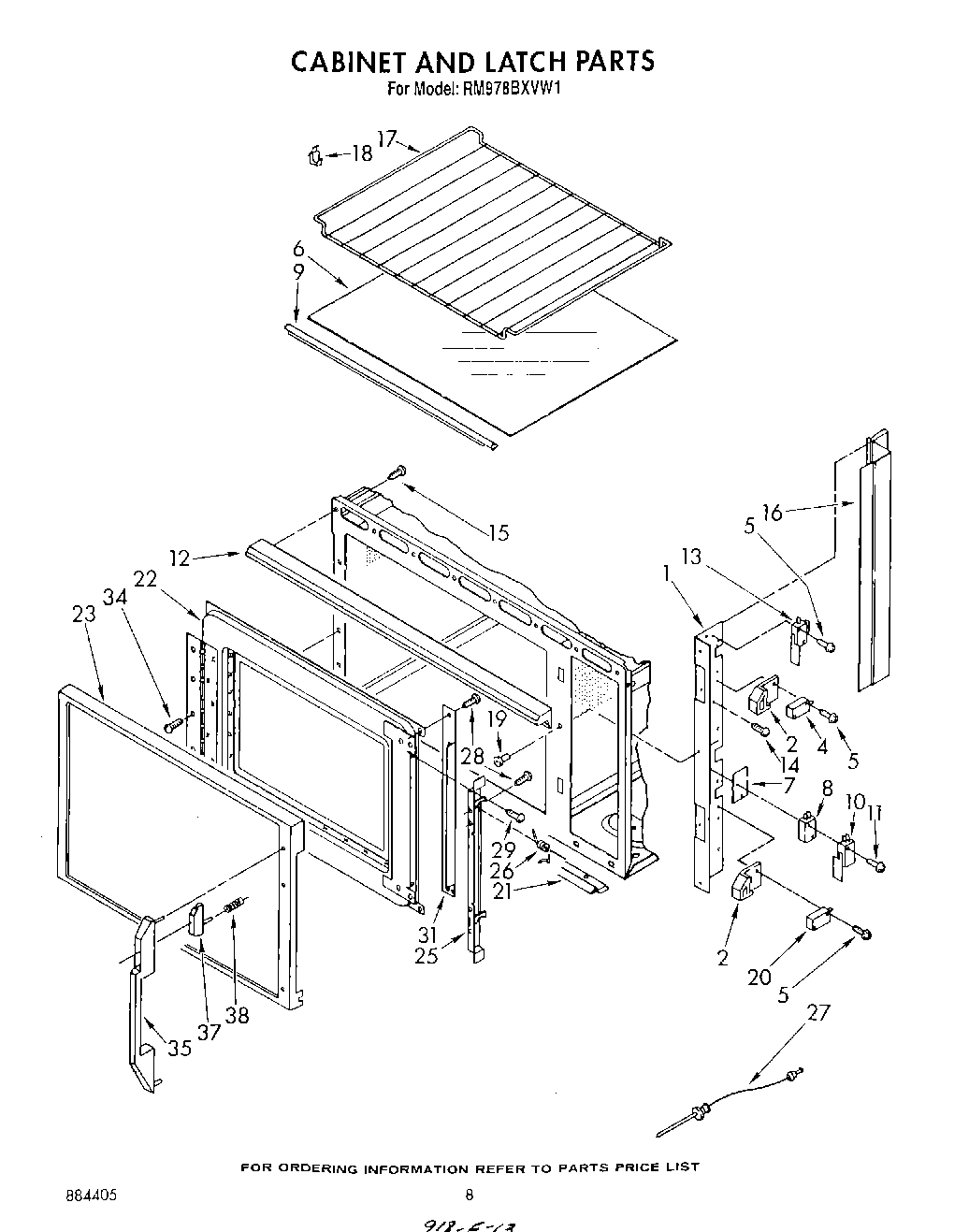

06 - CABINET AND LATCH , LITERATURE AND OPTIONAL

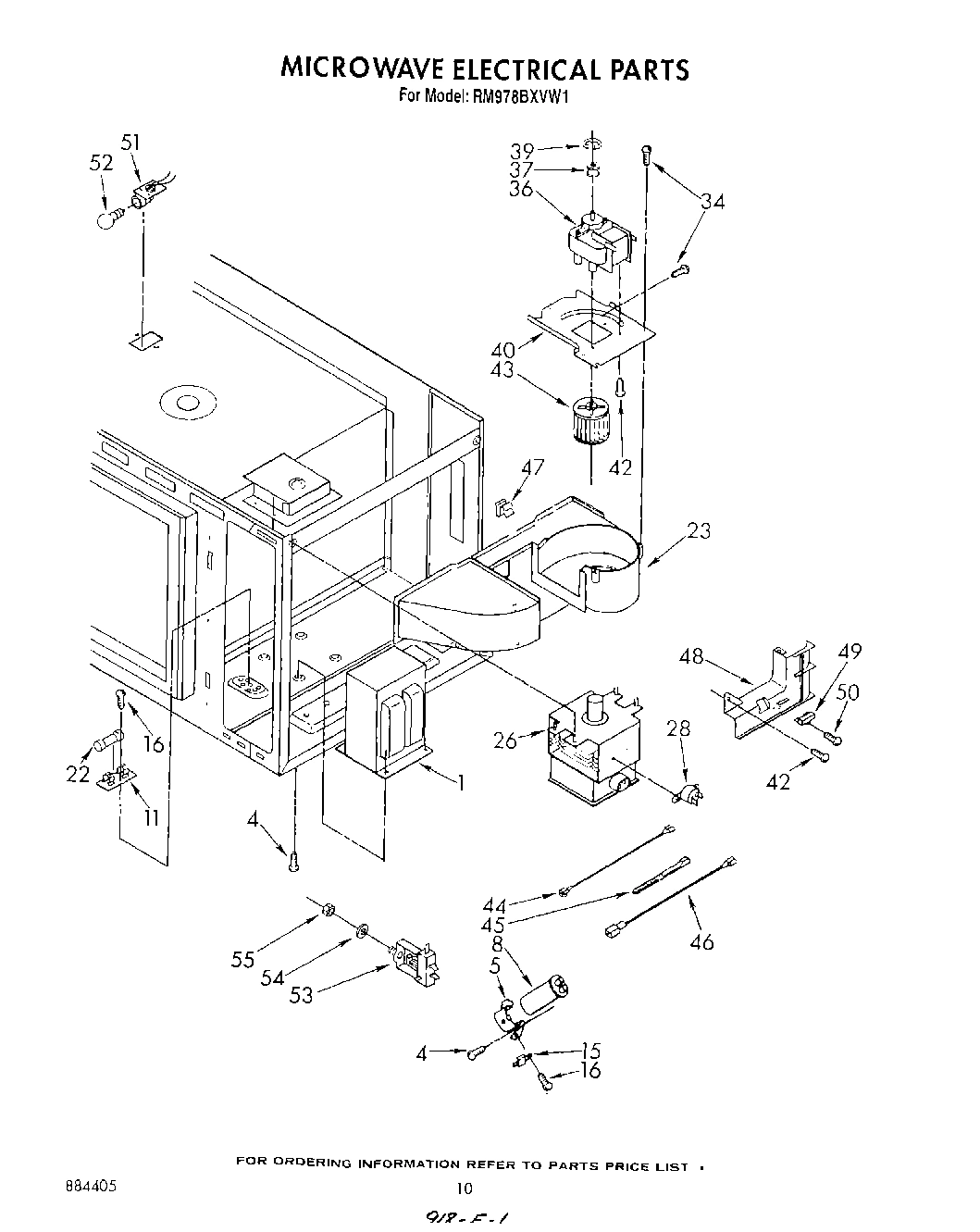

07 - MICROWAVE ELECTRICAL

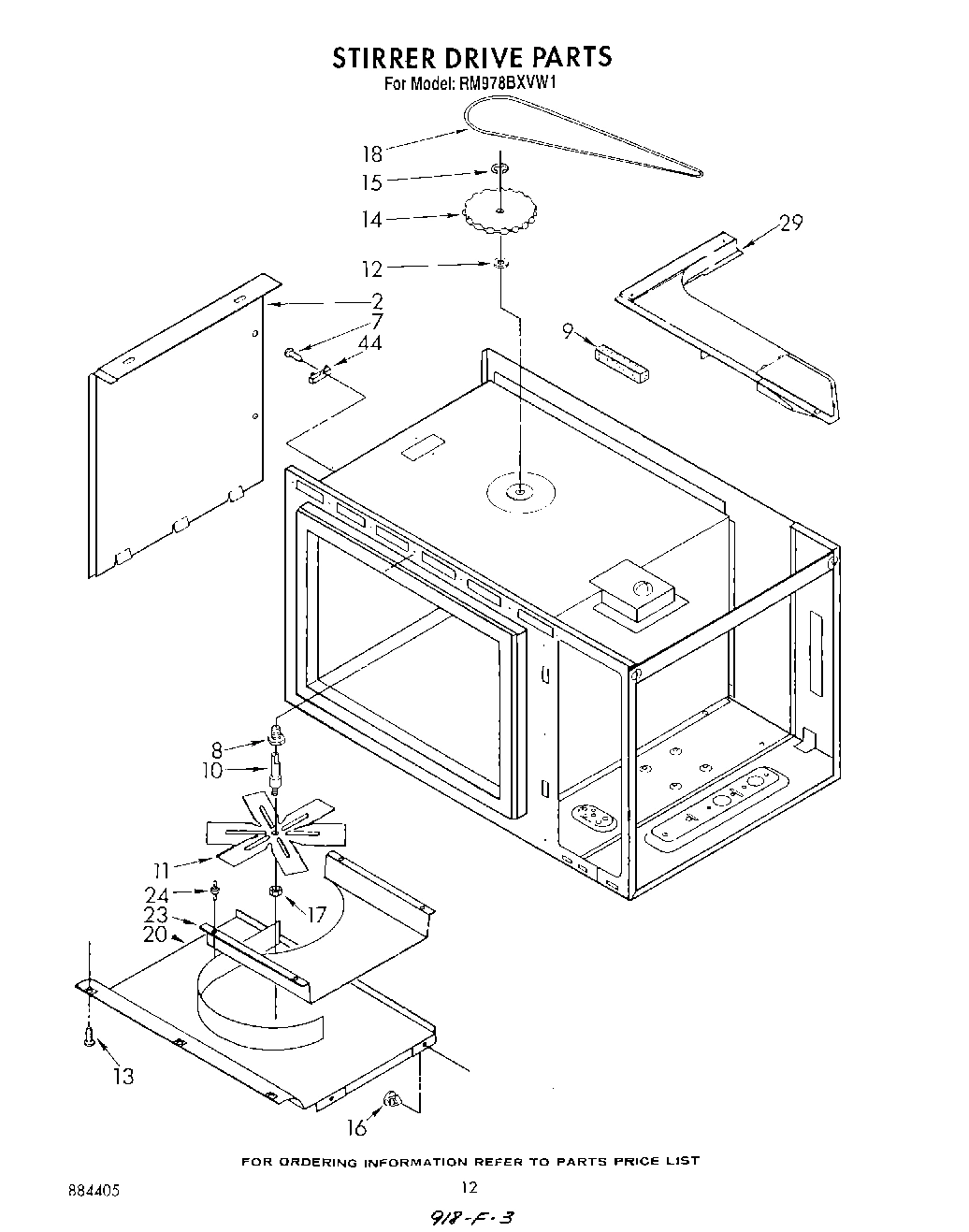

08 - STIRRER DRIVE

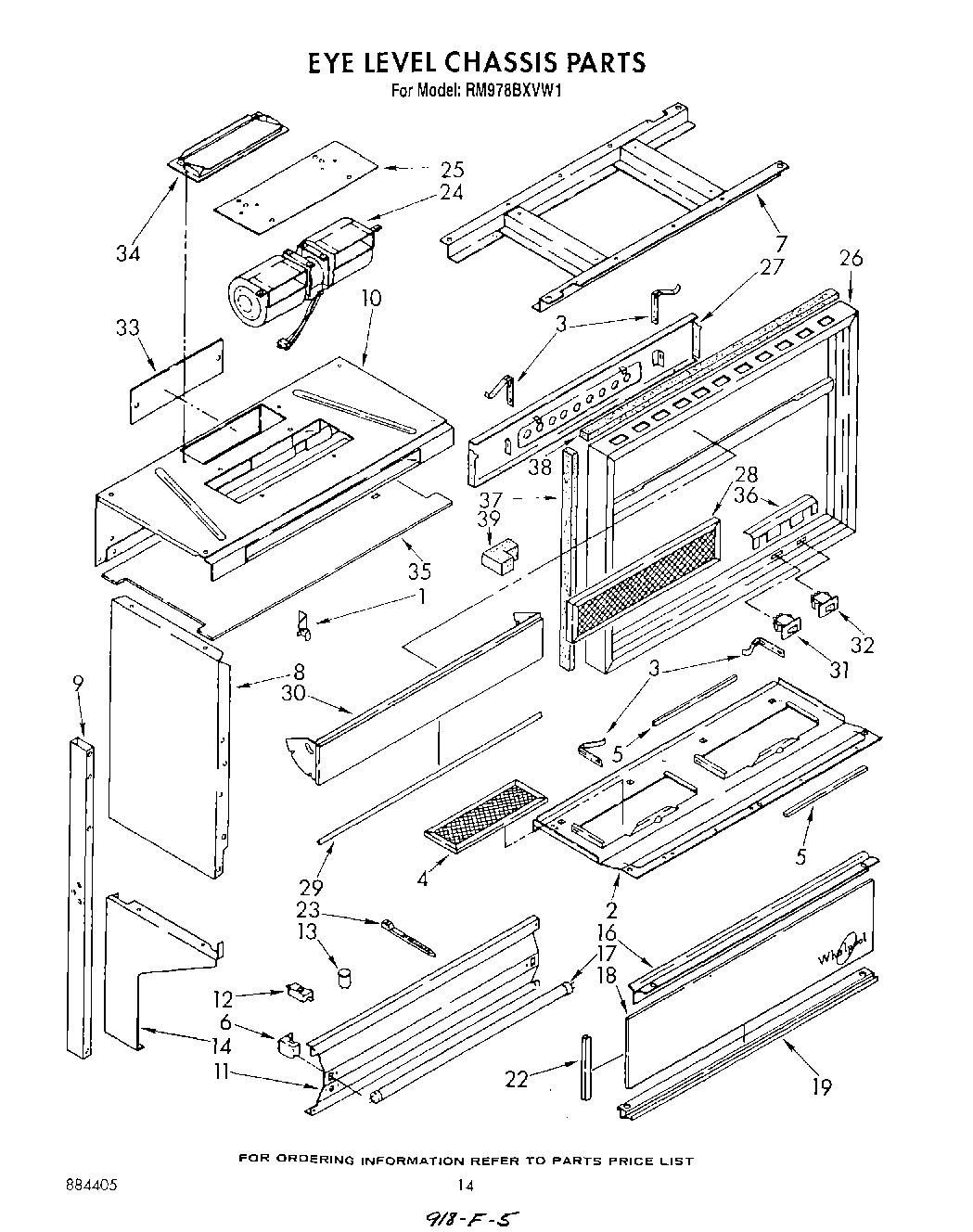

09 - EYE LEVEL CHASSIS
Common parts from model Whirlpool RM978BXVM1
1
latch, lock WPL 3171148 Contact Us For Availability
1
Frame, Control Panel WPL 3148090 Contact Us For Availability
1
Liner, Door WPL 3170707 Contact Us For Availability
1
Bracket, Catch Includes 3, No.19 WPL 311354 Contact Us For Availability
1
Transformer WPL 3147272 Contact Us For Availability
1
Bracket, Stop R.H. WPL 3147486 Contact Us For Availability
1
Bracket, Stop L.H. WPL 3147487 Contact Us For Availability
2
switch, safety WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
module, control WPL 3147942 Contact Us For Availability
2
Bracket, Rail (2) WPL 307981 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Cover, Side WPL 3147004 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Panel, Bottom WPL 314216 Contact Us For Availability
2
Seal, Foam WPL 3147593 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Screw, 8-32 x 3/16 (4) WPL 313818 Contact Us For Availability
3
bracket, control (mounting) WPL 3147280 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Terminal WPL 313035 Contact Us For Availability
4
Skirt, Dail (4) WPL 3147032 Contact Us For Availability
4
Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability
4
Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
4
Filter, Mesh (2) WPL 3147606 Contact Us For Availability
5
Handle, Latch WPL 3147065 Contact Us For Availability
5
thermostat WPL 3148930 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Edge, Protector (2) WPL 3147756 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
switch selctor WPL 3147234 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
6
Retainer, Insulation WPL 3148160 Contact Us For Availability
6
Shelf, Glass Install With: WPL 313639 Contact Us For Availability
6
Socket, Assembly L.H. WPL 3147244 Contact Us For Availability
6
Socket, Assembly R.H. WPL 3147245 Contact Us For Availability
7
Box, Burner WPL 3149194 Contact Us For Availability
7
Screw, 8-32 x 3/16 (8) WPL 308119 Contact Us For Availability
7
switch, infinite (4) WPL 308477 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Screw, 8-32 x 3/8 Pan Head Phillips WPL 312713 Contact Us For Availability
7
Support, Frame WPL 330677 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
light, indicator (3) WPL 3147862 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313075 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313123 Contact Us For Availability
8
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
8
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
(Side Panel, R.H.) (White) WPL 3147142 Contact Us For Availability
8
Side Panel L.H. (White) WPL 3147143 Contact Us For Availability
8
(Side Panel, R.H.) (Almond) WPL 3147144 Contact Us For Availability
8
Side Panel L.H. (Almond) WPL 3147145 Contact Us For Availability
8
(side panel, r.h.) (toast) WPL 3147146 Contact Us For Availability
8
Side Panel L.H. (Toast) WPL 3147147 Contact Us For Availability
8
(Side Panel, R.H.) (Platinum) WPL 3147148 Contact Us For Availability
8
Side Panel L.H. (Platinum) WPL 3147149 Contact Us For Availability
8
Side Panel L.H. (Seal, Foam (2)) WPL 3147591 Contact Us For Availability
8
Side Panel, L.H. (Seal, Foam (2)) WPL 3147592 Contact Us For Availability
9
rod, support (2) WPL 3148659 Contact Us For Availability
9
Knob, Control (4) WPL 3147030 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
9
Support, Upper Chassis (R.H.) WPL 314195 Contact Us For Availability
9
Support, Upper Chassis (L.H.) WPL 314197 Contact Us For Availability
10
Screw (2) WPL 313489 Contact Us For Availability
10
Switch, Lock WPL 3148669 Contact Us For Availability
10
knob, selector (2) WPL 3147888 Contact Us For Availability
10
Glass, Panel WPL 3148186 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313076 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313124 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Top Panel WPL 3170318 Contact Us For Availability
11
connector, pin (8) WPL 309407 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
connector, pin (12) WPL 310222 Contact Us For Availability
11
key, polarizing (used to install pin into hou WPL 308563 Contact Us For Availability
11
connector, pin (12) WPL 308564 Contact Us For Availability
11
Housing, Connector WPL 308565 Contact Us For Availability
11
housing, connector WPL 309405 Contact Us For Availability
11
housing, connector WPL 309409 Contact Us For Availability
11
socket WPL 3147218 Contact Us For Availability
11
Wiring Harness (Infinite Switch) WPL 3147549 Contact Us For Availability
11
harness, control WPL 3147560 Contact Us For Availability
11
Wiring Harness (Select/Therm) WPL 3147917 Contact Us For Availability
11
light, indicator WPL 3149036 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Panel, Backguard WPL 3147589 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
grille, air WPL 3149297 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Socket, Flourscent WPL 3147224 Contact Us For Availability
13
Starter, Lamp WPL 387695 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Cooktop (Toast) WPL 3170983 Contact Us For Availability
13
Cooktop (Platinum) WPL 3170984 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
13
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
14
Insulator, Switch WPL 3147864 Contact Us For Availability
14
trim, top WPL 3148223 Contact Us For Availability
14
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
(end trim l.h.) (screw, 10-12 X 7/8 (2)) WPL 308043 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314198 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314199 Contact Us For Availability
14
End Trim R.H. (Toast) WPL 314200 Contact Us For Availability
14
End Trim R.H. (Platinum) WPL 314201 Contact Us For Availability
14
(end trim l.h.) (white) WPL 314203 Contact Us For Availability
14
(end trim l.h.) (almond) WPL 314204 Contact Us For Availability
14
End Trim L.H. (Toast) WPL 314205 Contact Us For Availability
14
End Trim L.H. (Platinum) WPL 314206 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw, 6-20 x 1/2 (3) WPL 3149443 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
16
shield WPL 311360 Contact Us For Availability
16
Fastner (4) WPL 313740 Contact Us For Availability
16
WPL 313320 WPL 313320 Contact Us For Availability
17
panel, rear cooktop WPL 3148975 Contact Us For Availability
17
rack, wire WPL 313663 Contact Us For Availability
18
WPL 313322 WPL 313322 Contact Us For Availability
19
Frame, Panel WPL 3148235 Contact Us For Availability
19
WPL 313321 WPL 313321 Contact Us For Availability
20
Screw (2) WPL 307748 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
21
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
21
Trim, Lower WPL 313598 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
Door, Inner WPL 330451 Contact Us For Availability
22
WPL 313319 WPL 313319 Contact Us For Availability
23
Clamp, Tube WPL 313570 Contact Us For Availability
23
Frame, Door WPL 3170439 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Plate, Tuning WPL 313735 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
24
WPL 3147817 WPL 3147817 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
housing, connector WPL 309406 Contact Us For Availability
25
harness, surface elements WPL 3149254 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
25
WPL 3147798 WPL 3147798 Contact Us For Availability
25
WPL 3147866 WPL 3147866 Contact Us For Availability
26
Rack, Literature WPL 357645 Contact Us For Availability
26
WPL 311928 WPL 311928 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
WPL 3147764 WPL 3147764 Contact Us For Availability
26
WPL 3147858 WPL 3147858 Contact Us For Availability
26
WPL 3148682 WPL 3148682 Contact Us For Availability
27
Seal, Door WPL 3148284 Contact Us For Availability
27
Drawer, Utility WPL 327887 Contact Us For Availability
27
Probe, Temperature WPL 313527 Contact Us For Availability
27
WPL 3147712 WPL 3147712 Contact Us For Availability
27
WPL 3147724 WPL 3147724 Contact Us For Availability
28
Cover, Service WPL 307972 Contact Us For Availability
28
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
WPL 3147525 WPL 3147525 Contact Us For Availability
28
WPL 3147607 WPL 3147607 Contact Us For Availability
29
Screw (2) WPL 313820 Contact Us For Availability
29
Fastener WPL 310423 Contact Us For Availability
29
Baffle, Air WPL 3147002 Contact Us For Availability
29
WPL 3149007 WPL 3149007 Contact Us For Availability
30
Cover, Rear WPL 3147490 Contact Us For Availability
30
WPL 3170269 WPL 3170269 Contact Us For Availability
31
End Cap WPL 3148296 Contact Us For Availability
33
Ballast (Alt.) WPL 346772 Contact Us For Availability
33
Ballast WPL 660001 Contact Us For Availability
33
Ballast (Alt.) WPL 685591 Contact Us For Availability
33
WPL 3147726 WPL 3147726 Contact Us For Availability
34
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
34
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
34
WPL 3147843 WPL 3147843 Contact Us For Availability
35
Handle, Door WPL 313610 Contact Us For Availability
35
WPL 3147250 WPL 3147250 Contact Us For Availability
35
WPL 3147590 WPL 3147590 Contact Us For Availability
36
Transmotor WPL 313641 Contact Us For Availability
36
WPL 3148158 WPL 3148158 Contact Us For Availability
37
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
WPL 3147595 WPL 3147595 Contact Us For Availability
38
WPL 799344 WPL 799344 Contact Us For Availability
38
WPL 310223 WPL 310223 Contact Us For Availability
38
WPL 311575 WPL 311575 Contact Us For Availability
38
WPL 3147554 WPL 3147554 Contact Us For Availability
38
paint, 13 oz. spray (leveler, enamel) WPL 206925 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
WPL 242821 WPL 242821 Contact Us For Availability
38
WPL 242822 WPL 242822 Contact Us For Availability
38
WPL 242823 WPL 242823 Contact Us For Availability
38
WPL 242824 WPL 242824 Contact Us For Availability
38
WPL 242825 WPL 242825 Contact Us For Availability
38
WPL 242826 WPL 242826 Contact Us For Availability
38
WPL 242827 WPL 242827 Contact Us For Availability
38
WPL 242828 WPL 242828 Contact Us For Availability
38
WPL 242829 WPL 242829 Contact Us For Availability
38
WPL 242830 WPL 242830 Contact Us For Availability
38
WPL 242832 WPL 242832 Contact Us For Availability
38
WPL 242985 WPL 242985 Contact Us For Availability
38
WPL 254323 WPL 254323 Contact Us For Availability
38
WPL 261582 WPL 261582 Contact Us For Availability
38
WPL 261890 WPL 261890 Contact Us For Availability
38
WPL 261891 WPL 261891 Contact Us For Availability
38
WPL 285365 WPL 285365 Contact Us For Availability
38
WPL 285366 WPL 285366 Contact Us For Availability
38
WPL 285367 WPL 285367 Contact Us For Availability
38
WPL 285368 WPL 285368 Contact Us For Availability
38
WPL 310197 WPL 310197 Contact Us For Availability
38
WPL 591014 WPL 591014 Contact Us For Availability
38
WPL 72112 WPL 72112 Contact Us For Availability
38
WPL 799340 WPL 799340 Contact Us For Availability
38
WPL 799832 WPL 799832 Contact Us For Availability
38
WPL 814023 WPL 814023 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
38
WPL 3147596 WPL 3147596 Contact Us For Availability
39
WPL 310960 WPL 310960 Contact Us For Availability
39
WPL 311223 WPL 311223 Contact Us For Availability
39
WPL 3147361 WPL 3147361 Contact Us For Availability
39
WPL 3147362 WPL 3147362 Contact Us For Availability
39
WPL 3147556 WPL 3147556 Contact Us For Availability
39
WPL 3147568 WPL 3147568 Contact Us For Availability
39
WPL 3149016 WPL 3149016 Contact Us For Availability
39
WPL 96413 WPL 96413 Contact Us For Availability
39
WPL 97452 WPL 97452 Contact Us For Availability
40
WPL 98884 WPL 98884 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
41
WPL 307970 WPL 307970 Contact Us For Availability
42
WPL 308498 WPL 308498 Contact Us For Availability
42
WPL 313660 WPL 313660 Contact Us For Availability
43
WPL 311982 WPL 311982 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
WPL 308127 WPL 308127 Contact Us For Availability
44
WPL 309408 WPL 309408 Contact Us For Availability
44
WPL 3149579 WPL 3149579 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
44
Fuse, Thermal WPL 313855 Contact Us For Availability
46
High Voltage Lead, Gray 6-3/4`` (2) WPL 3147863 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
51
Socket WPL 330514 Contact Us For Availability
52
bulb WPL 661969 Contact Us For Availability
53
Jack, Probe WPL 661209 Contact Us For Availability
54
Washer WPL 313105 Contact Us For Availability
55
Nut WPL 313104 Contact Us For Availability
× ![]()
