Model Whirlpool RM978BXSW0 – Common Parts & Diagrams

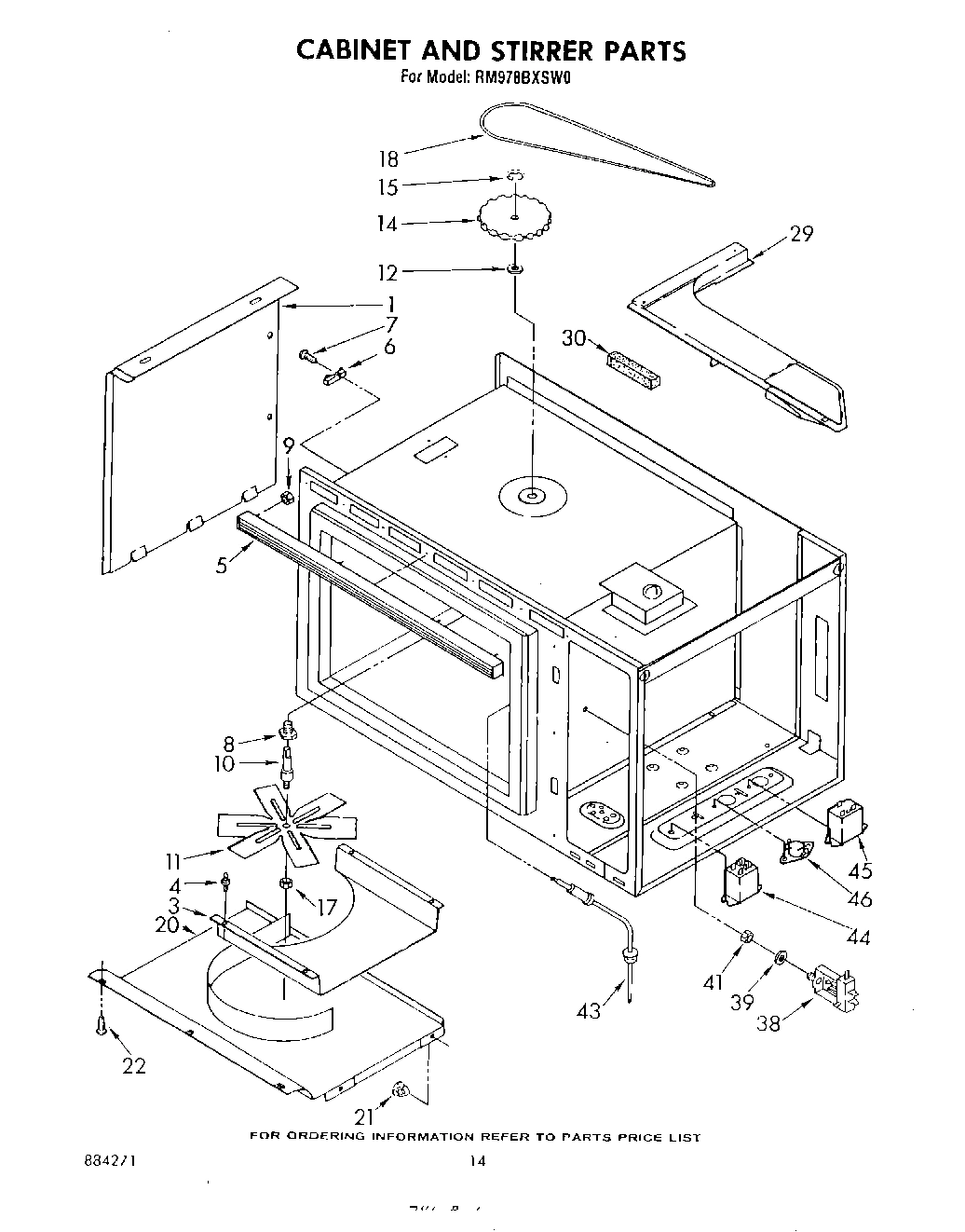

08 - CABINET AND STIRRER

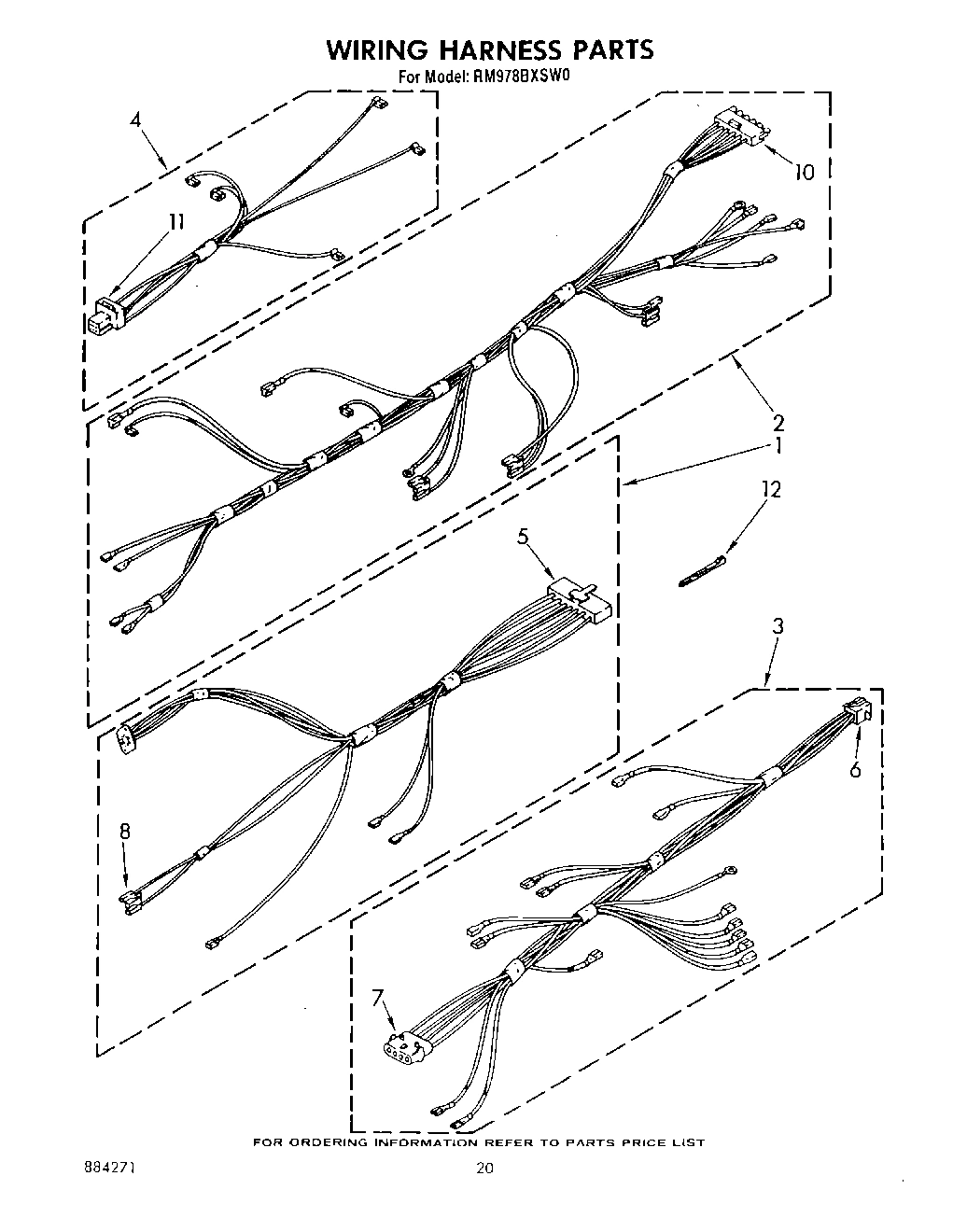

12 - WIRING HARNESS , LITERATURE AND OPTIONAL

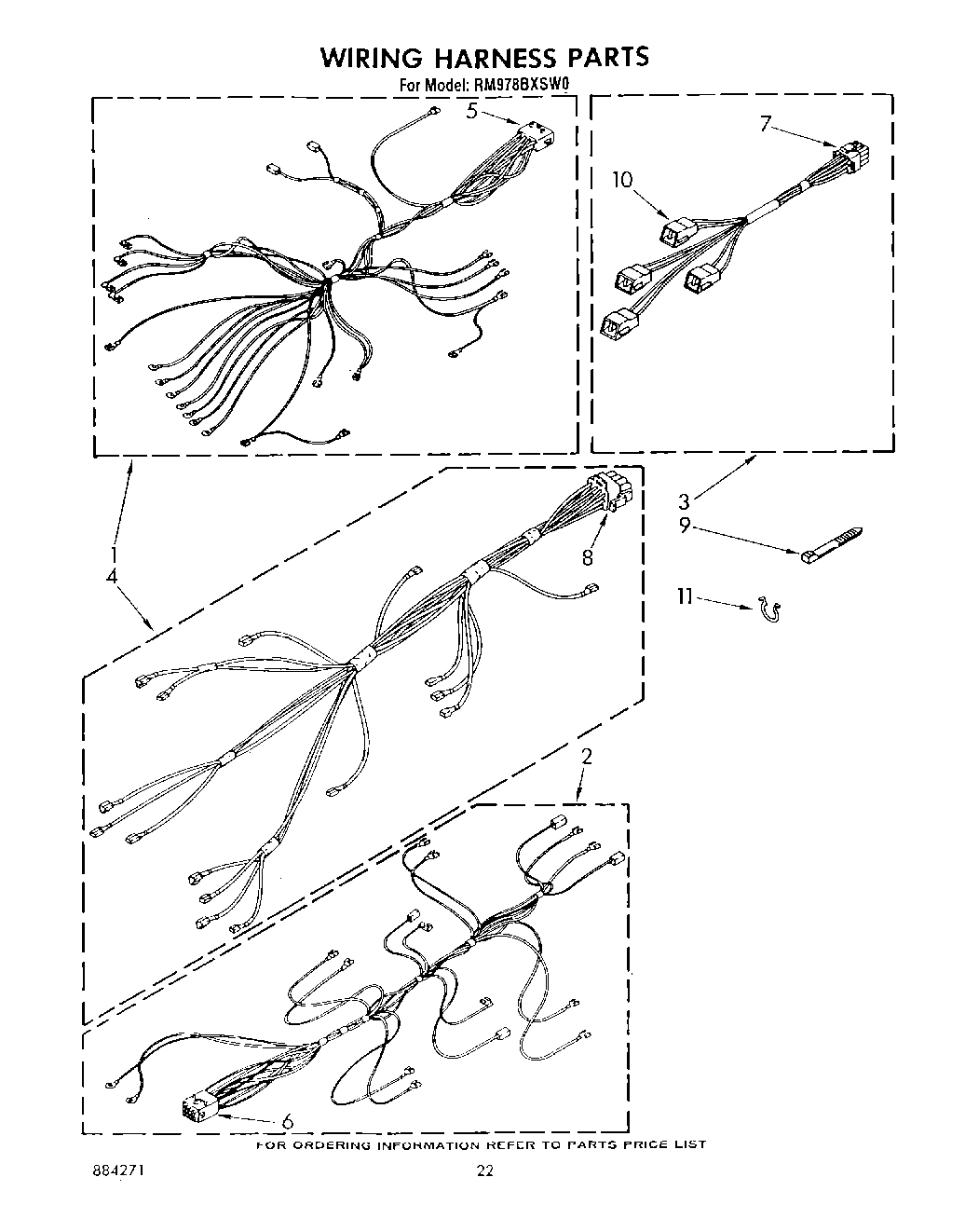

13 - SECTION

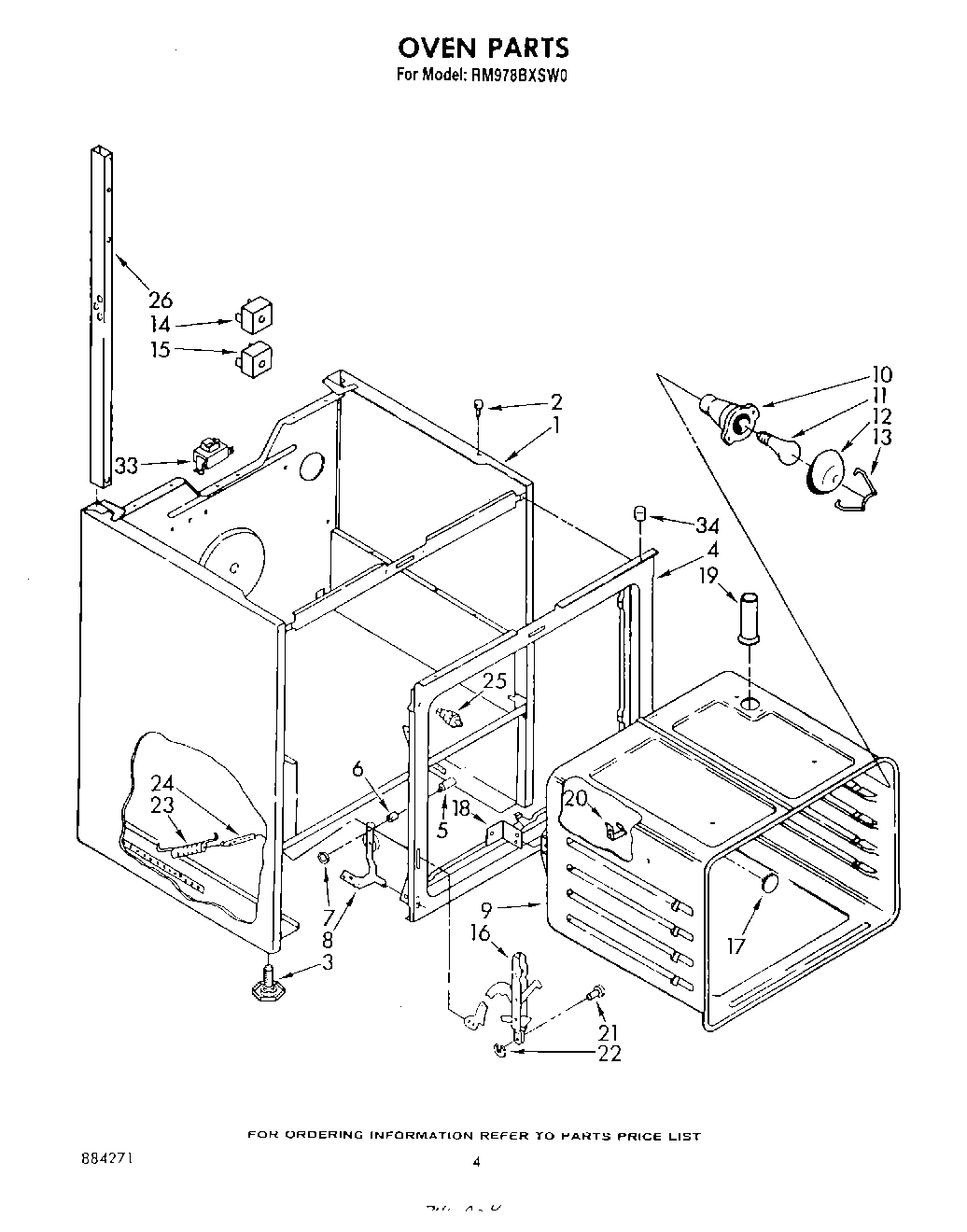

03 - OVEN

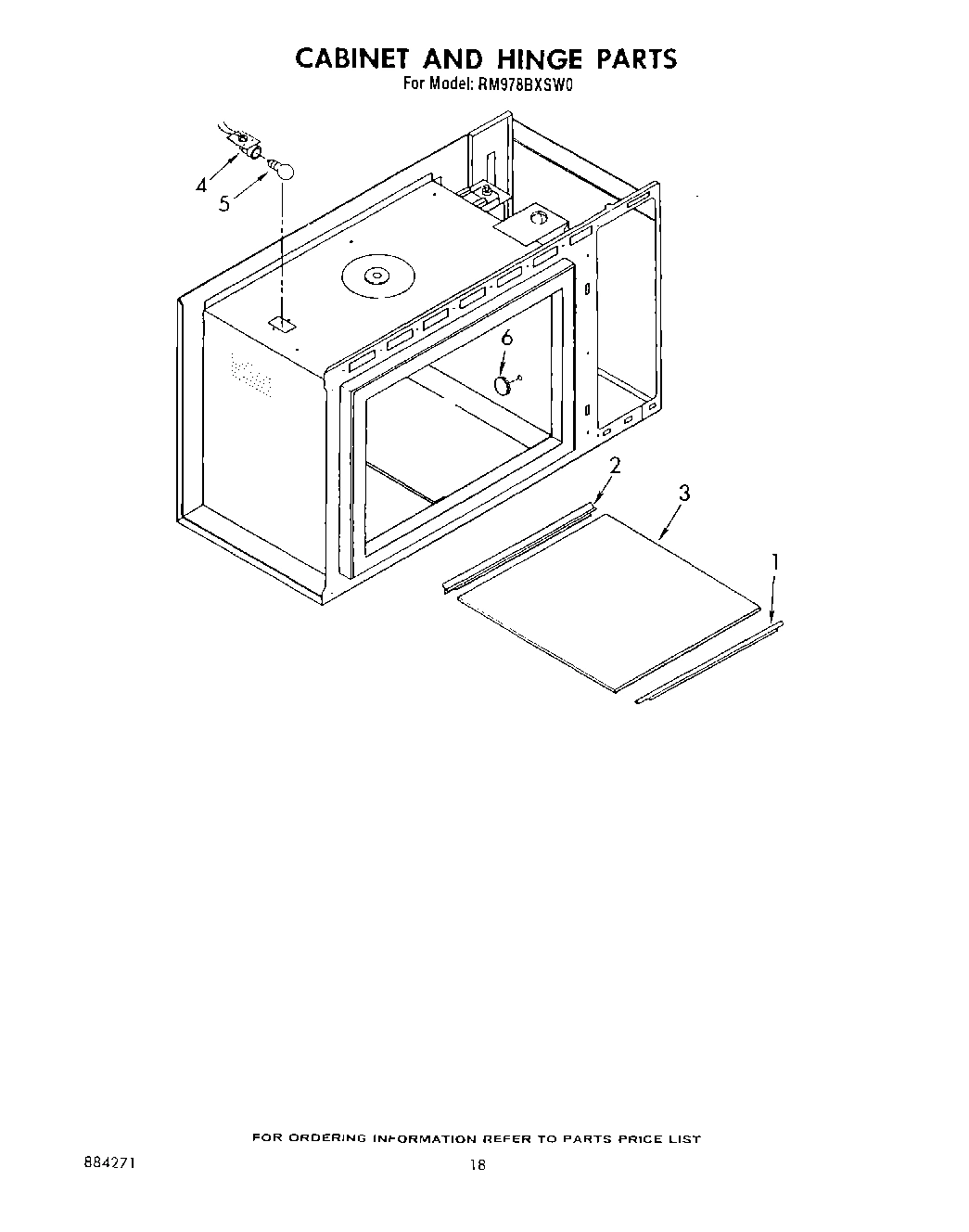

10 - CABINET AND HINGE

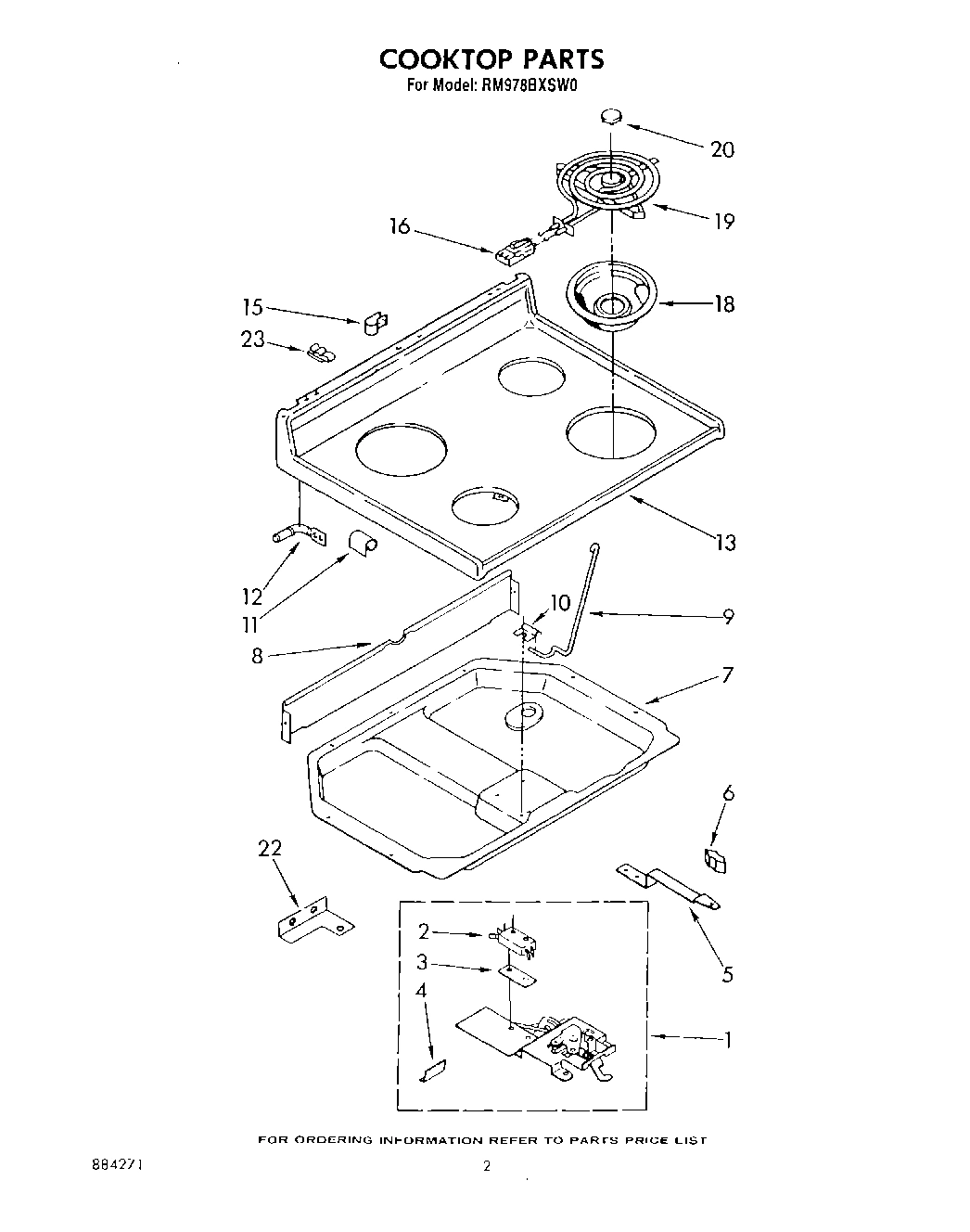

02 - COOKTOP

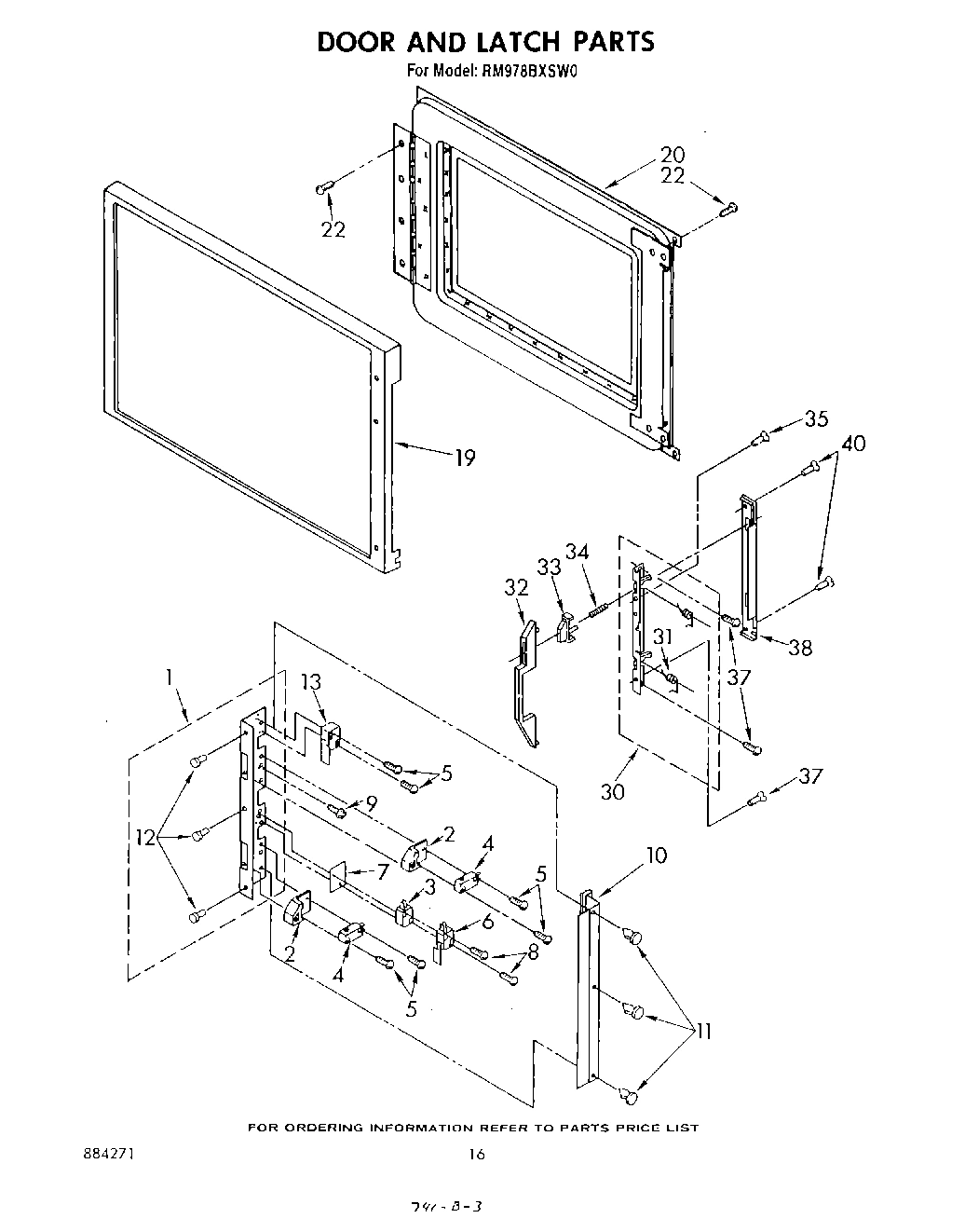

09 - DOOR AND LATCH

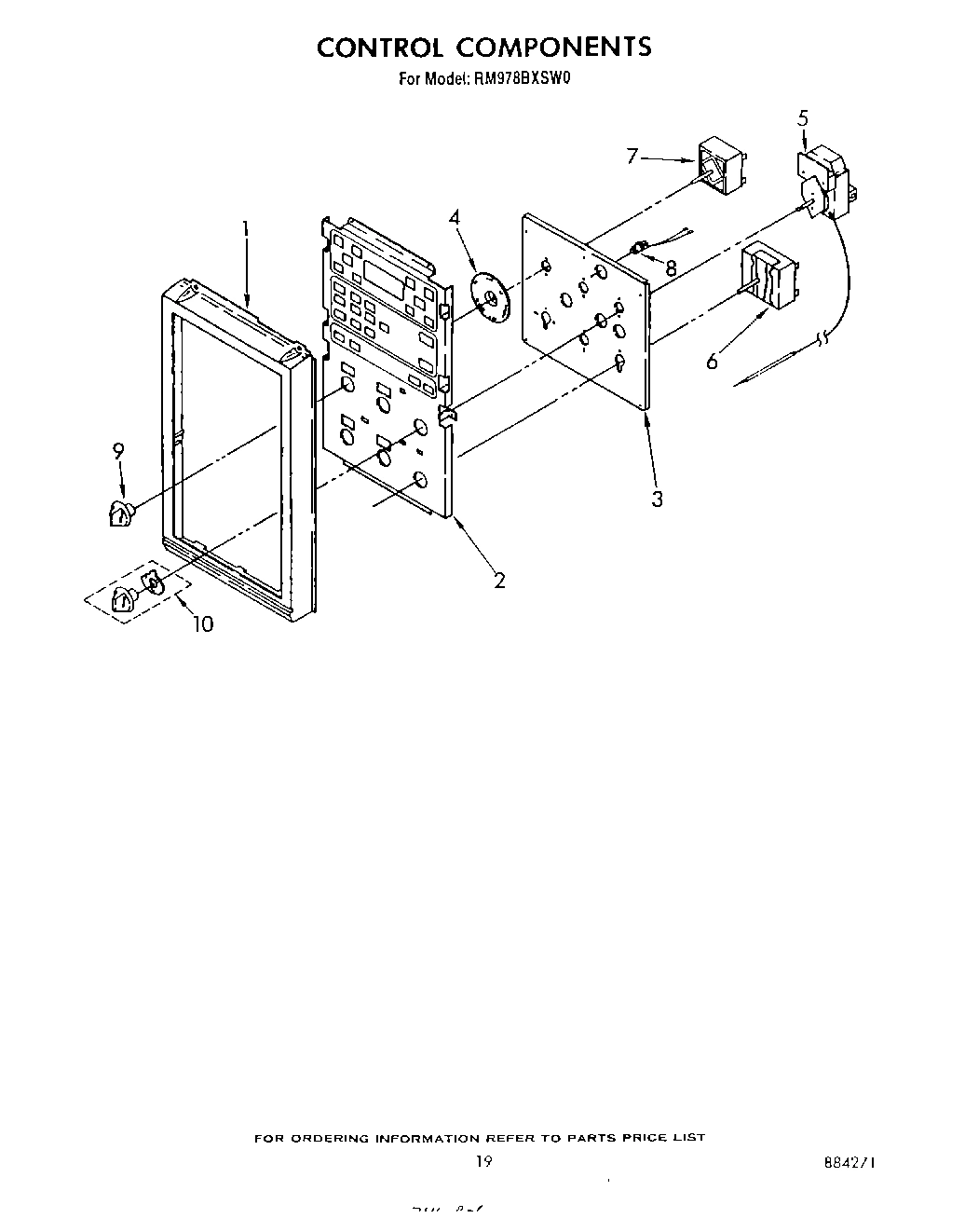

11 - CONTROL

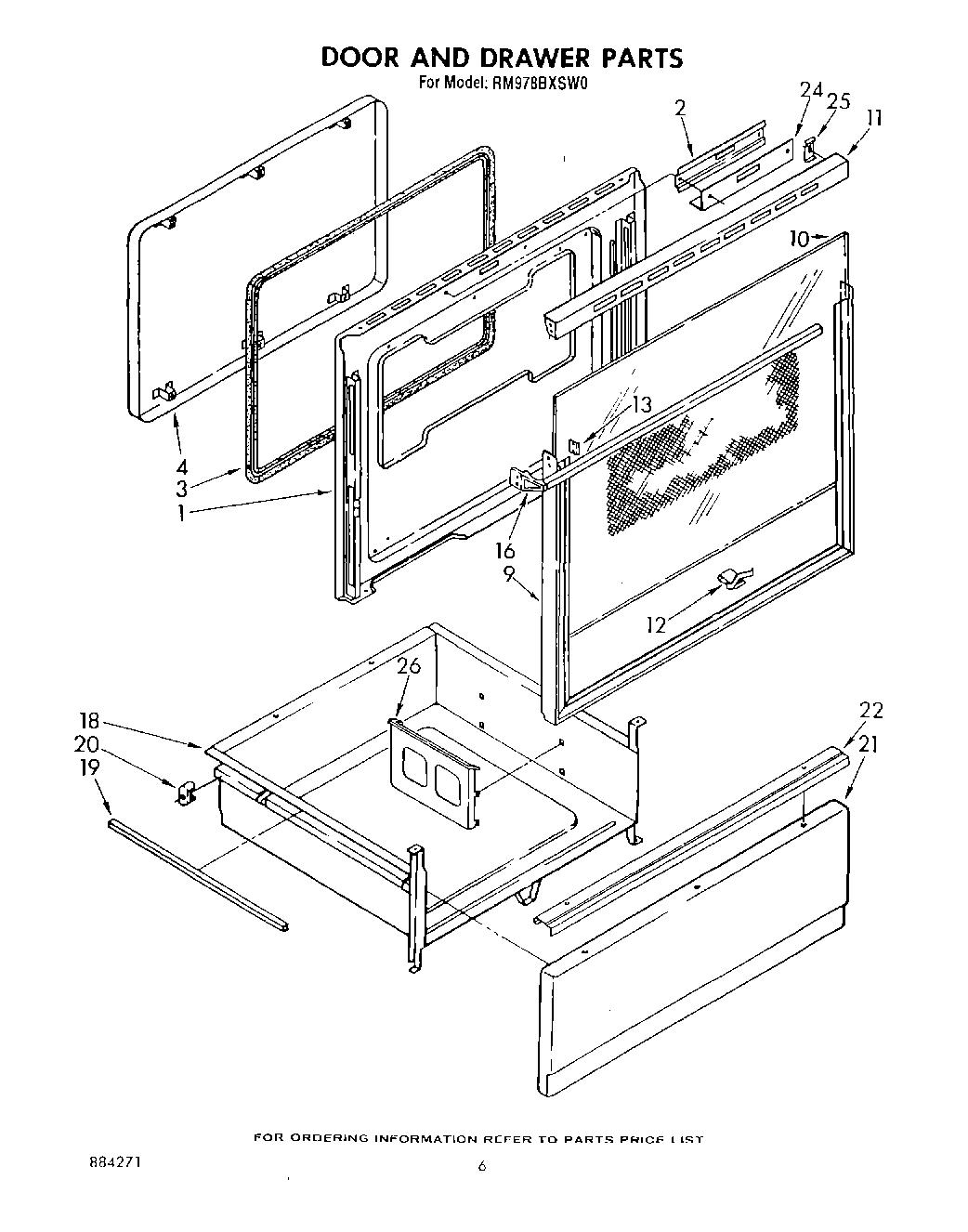

04 - DOOR AND DRAWER

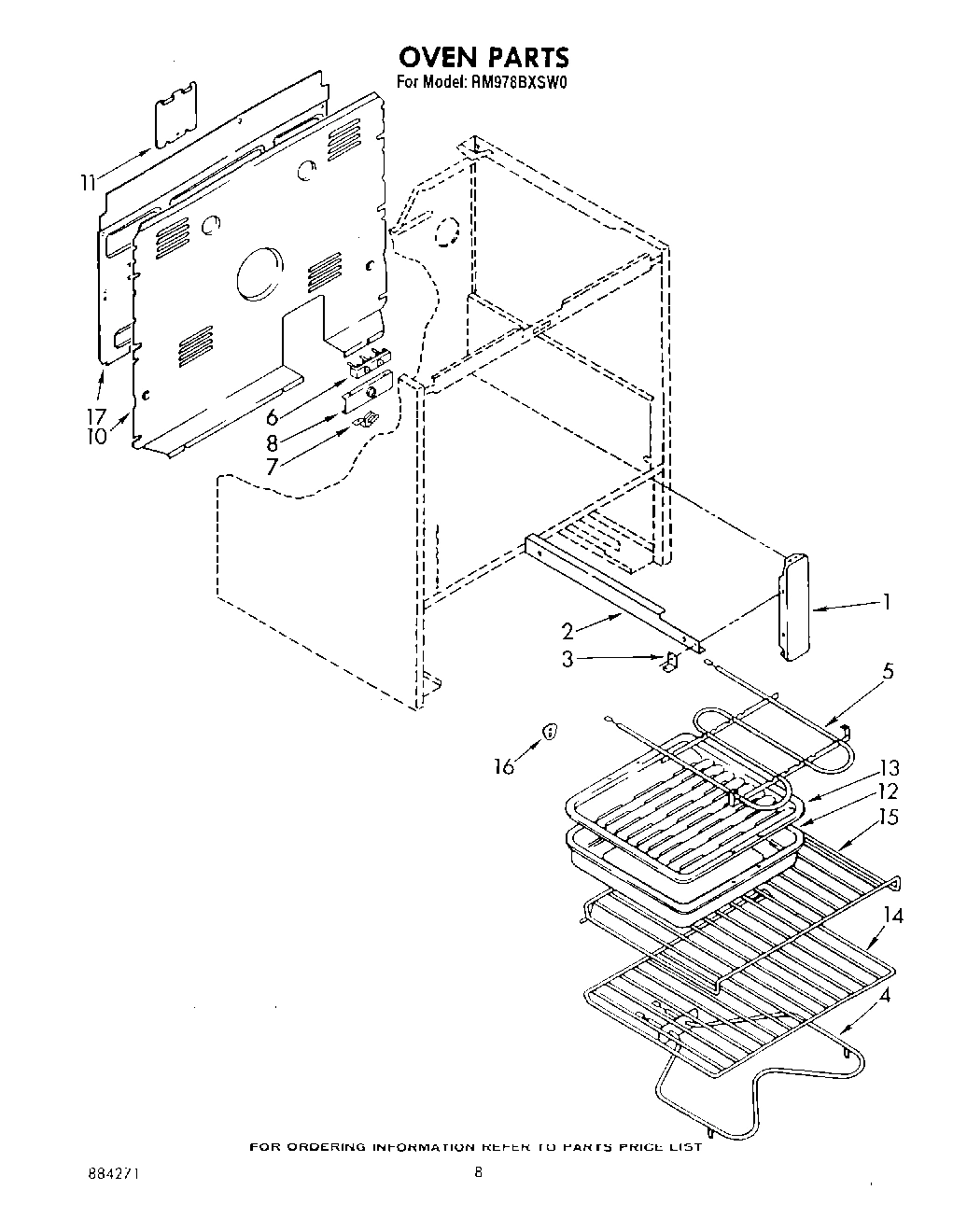

05 - OVEN (CONTINUED)

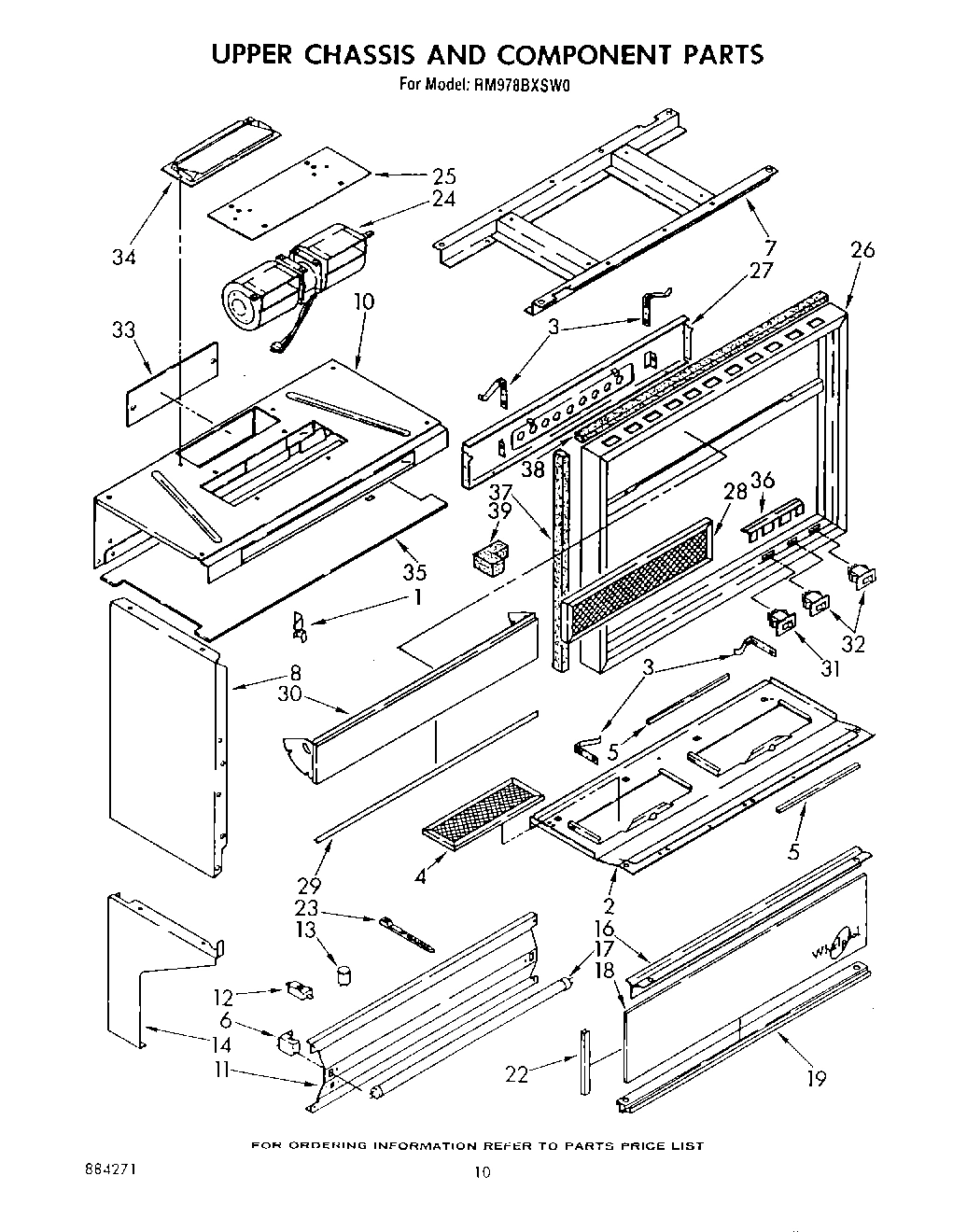

06 - UPPER CHASSIS AND COMPONENT

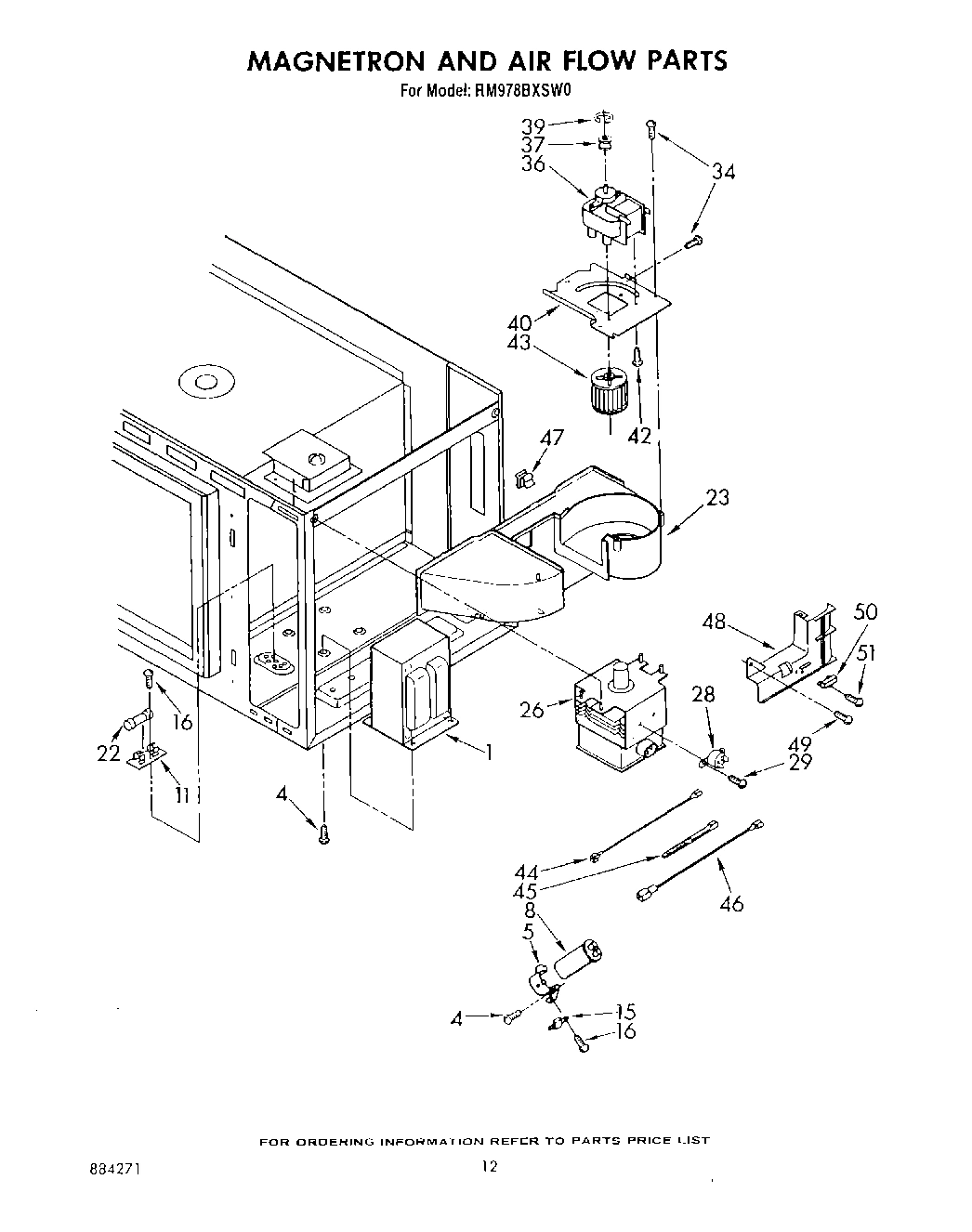

07 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool RM978BXSW0
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312890 WPL LIT312890 Contact Us For Availability
WPL LIT312892 WPL LIT312892 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147286 WPL LIT3147286 Contact Us For Availability
WPL LIT3147963 WPL LIT3147963 Contact Us For Availability
WPL LIT884271 WPL LIT884271 Contact Us For Availability
NOTE: The screws and nuts required to attach WPL ARI123624A Contact Us For Availability
NOTE: The screws and nuts required to attach WPL ARI123625A Contact Us For Availability
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
NOTE: The screws and nuts required to attach WPL ARI123626A Contact Us For Availability
1
Harness, Wiring (Control) Microwave WPL 3147560 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 3147970 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Main Chassis (Toast) WPL 330091 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330092 Contact Us For Availability
1
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Frame, Control Panel WPL 3148090 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Bracket, Stop R.H. WPL 3147486 Contact Us For Availability
1
Bracket, Stop L.H. WPL 3147487 Contact Us For Availability
1
Transformer WPL 3147273 Contact Us For Availability
2
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
2
Wiring Harness (Infinite Switch) WPL 3147549 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
module, control WPL 3147942 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Panel, Bottom WPL 314216 Contact Us For Availability
2
Seal, Foam WPL 3147593 Contact Us For Availability
3
Wiring Harness (Vent Motor) WPL 3147557 Contact Us For Availability
3
Harness Wiring (Surface Unit) WPL 311176 Contact Us For Availability
3
Shelf, Microwave (Install with Silastic 30757 WPL 313639 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Switch (Alt.) WPL 313075 Contact Us For Availability
3
Switch (Alt.) WPL 313123 Contact Us For Availability
3
Switch WPL 661144 Contact Us For Availability
3
bracket, control (mounting) WPL 3147280 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
4
Wiring Harness (Rocker Switch) WPL 3147568 Contact Us For Availability
4
Harness, Wiring (Selector/ Thermostat) WPL 3147561 Contact Us For Availability
4
Frame, Front WPL 330166 Contact Us For Availability
4
Socket WPL 330514 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Skirt, Dail (4) WPL 3147032 Contact Us For Availability
4
Panel, Inner WPL 328546 Contact Us For Availability
4
Filter, Mesh (2) WPL 3147606 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
5
Connector, Housing WPL 308565 Contact Us For Availability
5
Disconnect Block WPL 309408 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw (2) WPL 311056 Contact Us For Availability
5
Handle, Latch WPL 307976 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Thermostat WPL 313532 Contact Us For Availability
5
Edge, Protector (2) WPL 3147756 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
6
Disconnect Block WPL 3147362 Contact Us For Availability
6
Disconnect Block WPL 309409 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
6
Hole Plug (4) WPL 312215 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Switch, Selector WPL 3147234 Contact Us For Availability
6
Screw, 10-16 x 3/4 (2) WPL 98884 Contact Us For Availability
6
Socket, Assembly L.H. WPL 3147244 Contact Us For Availability
6
Socket, Assembly R.H. WPL 3147245 Contact Us For Availability
7
Disconnect Block, Female WPL 310960 Contact Us For Availability
7
Disconnect Block WPL 309406 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Burner Box WPL 307929 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Screw, 8-32 x 3/16 WPL 308119 Contact Us For Availability
7
switch, infinite (4) WPL 308477 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Support, Frame WPL 330677 Contact Us For Availability
8
Housing, Plug WPL 310241 Contact Us For Availability
8
Disconnect Block WPL 309405 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Light, Indicator (4) WPL 3147862 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Side Panel, L.H. (White) WPL 3147142 Contact Us For Availability
8
Side Panel L.H. (White) WPL 3147143 Contact Us For Availability
8
Side Panel, L.H. (Almond) WPL 3147144 Contact Us For Availability
8
Side Panel L.H. (Almond) WPL 3147145 Contact Us For Availability
8
Side Panel, L.H. (Toast) WPL 3147146 Contact Us For Availability
8
Side Panel L.H. (Toast) WPL 3147147 Contact Us For Availability
8
Side Panel, L.H. (Platinum) WPL 3147148 Contact Us For Availability
8
Side Panel L.H. (Platinum) WPL 3147149 Contact Us For Availability
8
Side Panel L.H. (Seal, Foam (2)) WPL 3147591 Contact Us For Availability
8
Side Panel, L.H. (Seal, Foam (2) Side Panel, WPL 3147592 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Knob, Control (4) WPL 3147030 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
10
Connector, Housing WPL 311574 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
knob, selector (2) WPL 3147888 Contact Us For Availability
10
Glass, Outer WPL 310655 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Top Panel WPL 3170318 Contact Us For Availability
11
Pin, Housing WPL 3147361 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Fastener (2) WPL 313740 Contact Us For Availability
11
Top, Door Frame WPL 310784 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Panel, Backguard WPL 3147589 Contact Us For Availability
12
WPL 799344 WPL 799344 Contact Us For Availability
12
Leveler, Enamel WPL 206925 Contact Us For Availability
12
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
12
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
12
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
12
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
12
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
12
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
12
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
12
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
12
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
12
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
12
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
12
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
12
Rotisserie Kit WPL 242985 Contact Us For Availability
12
Touch-Up, Oven WPL 254323 Contact Us For Availability
12
Grease WPL 261582 Contact Us For Availability
12
Harvest Gold WPL 261890 Contact Us For Availability
12
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
12
Toast WPL 285365 Contact Us For Availability
12
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
12
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
12
Platinum (Uncut) WPL 285368 Contact Us For Availability
12
AD WPL 591014 Contact Us For Availability
12
WPL 72112 WPL 72112 Contact Us For Availability
12
WPL 799340 WPL 799340 Contact Us For Availability
12
WPL 799832 WPL 799832 Contact Us For Availability
12
WPL 814023 WPL 814023 Contact Us For Availability
12
WPL 832985 WPL 832985 Contact Us For Availability
12
WPL 978883 WPL 978883 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
clip, glass (10) WPL 310706 Contact Us For Availability
12
Socket, Flourscent WPL 3147224 Contact Us For Availability
13
Starter, Lamp WPL 387695 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
13
Cooktop (White) WPL 307866 Contact Us For Availability
13
Cooktop (Almond) WPL 307871 Contact Us For Availability
13
Cooktop (Toast) WPL 313165 Contact Us For Availability
13
Cooktop (Platinum) WPL 313166 Contact Us For Availability
13
Switch, Miniature WPL 313120 Contact Us For Availability
13
Clip (2) WPL 314235 Contact Us For Availability
14
End Trim R.H. (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
14
Switch, Broil WPL 314209 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
End Trim R.H. (Toast) WPL 312200 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314198 Contact Us For Availability
14
End Trim R.H. (Almond) WPL 314199 Contact Us For Availability
14
End Trim R.H. (Platinum) WPL 314201 Contact Us For Availability
14
End Trim R.H. (White) WPL 314203 Contact Us For Availability
14
end trim R.H. (almond) WPL 314204 Contact Us For Availability
14
End Trim L.H. (Toast) WPL 314205 Contact Us For Availability
14
End Trim R.H. (Platinum) WPL 314206 Contact Us For Availability
15
Screw, No.6 WPL 314215 Contact Us For Availability
15
Switch, Bake WPL 314210 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
16
Handle, Oven Door WPL 312722 Contact Us For Availability
16
Channel, Arm (2) WPL 329710 Contact Us For Availability
16
Screw, 10AB x 1/2 (2) WPL 307748 Contact Us For Availability
16
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
16
Coverplate (2) WPL 311982 Contact Us For Availability
16
Trim, Glass (Top) WPL 313320 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
17
Cover WPL 3147490 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Pan WPL 313322 Contact Us For Availability
19
Vent, Oven WPL 307961 Contact Us For Availability
19
Frame, Door WPL 3170441 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
WPL 313321 WPL 313321 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Door, Inner WPL 3171012 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
21
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Shield, Insulation WPL 312320 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
WPL 313319 WPL 313319 Contact Us For Availability
23
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Clamp, Tube WPL 313570 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
24
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
24
Shield, Insulation WPL 310056 Contact Us For Availability
24
WPL 3147817 WPL 3147817 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Hold-down (2) WPL 310705 Contact Us For Availability
25
WPL 3147798 WPL 3147798 Contact Us For Availability
26
Support, Tubing R.H. WPL 314195 Contact Us For Availability
26
support, tubing L.H. WPL 314197 Contact Us For Availability
26
Rack, Literature WPL 357645 Contact Us For Availability
26
WPL 311945 WPL 311945 Contact Us For Availability
26
WPL 3170130 WPL 3170130 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
27
WPL 3147712 WPL 3147712 Contact Us For Availability
27
WPL 3147724 WPL 3147724 Contact Us For Availability
27
WPL 3147764 WPL 3147764 Contact Us For Availability
27
WPL 3147858 WPL 3147858 Contact Us For Availability
27
WPL 3148294 WPL 3148294 Contact Us For Availability
28
WPL 3147525 WPL 3147525 Contact Us For Availability
28
WPL 3147607 WPL 3147607 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
29
WPL 3147710 WPL 3147710 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
WPL 3170269 WPL 3170269 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
32
Handle, Door WPL 314169 Contact Us For Availability
33
Ballast (Alt.) WPL 346772 Contact Us For Availability
33
Ballast WPL 660001 Contact Us For Availability
33
Ballast (Alt.) WPL 685591 Contact Us For Availability
33
WPL 3147726 WPL 3147726 Contact Us For Availability
34
Screw, 8-32 x 5/16 (2) WPL 307537 Contact Us For Availability
34
locator, cooktop WPL 311909 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
WPL 3147843 WPL 3147843 Contact Us For Availability
35
Screw (2) WPL 313820 Contact Us For Availability
35
WPL 3147250 WPL 3147250 Contact Us For Availability
36
WPL 3148158 WPL 3148158 Contact Us For Availability
36
Transmotor WPL 313641 Contact Us For Availability
37
WPL 3147595 WPL 3147595 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
End Cap WPL 3148297 Contact Us For Availability
38
WPL 3147596 WPL 3147596 Contact Us For Availability
39
WPL 3147751 WPL 3147751 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
40
Screw, 8-22 (4) WPL 313823 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
46
Thermostat WPL 3147274 Contact Us For Availability
46
High Voltage Lead, Gray 6-3/4`` (2) WPL 3147863 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
48
Air Duct WPL 3147262 Contact Us For Availability
49
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
50
Fuse, Thermal WPL 3147275 Contact Us For Availability
51
screw (2) WPL 313818 Contact Us For Availability
× ![]()
