Model Whirlpool RM973PXLT0 – Common Parts & Diagrams

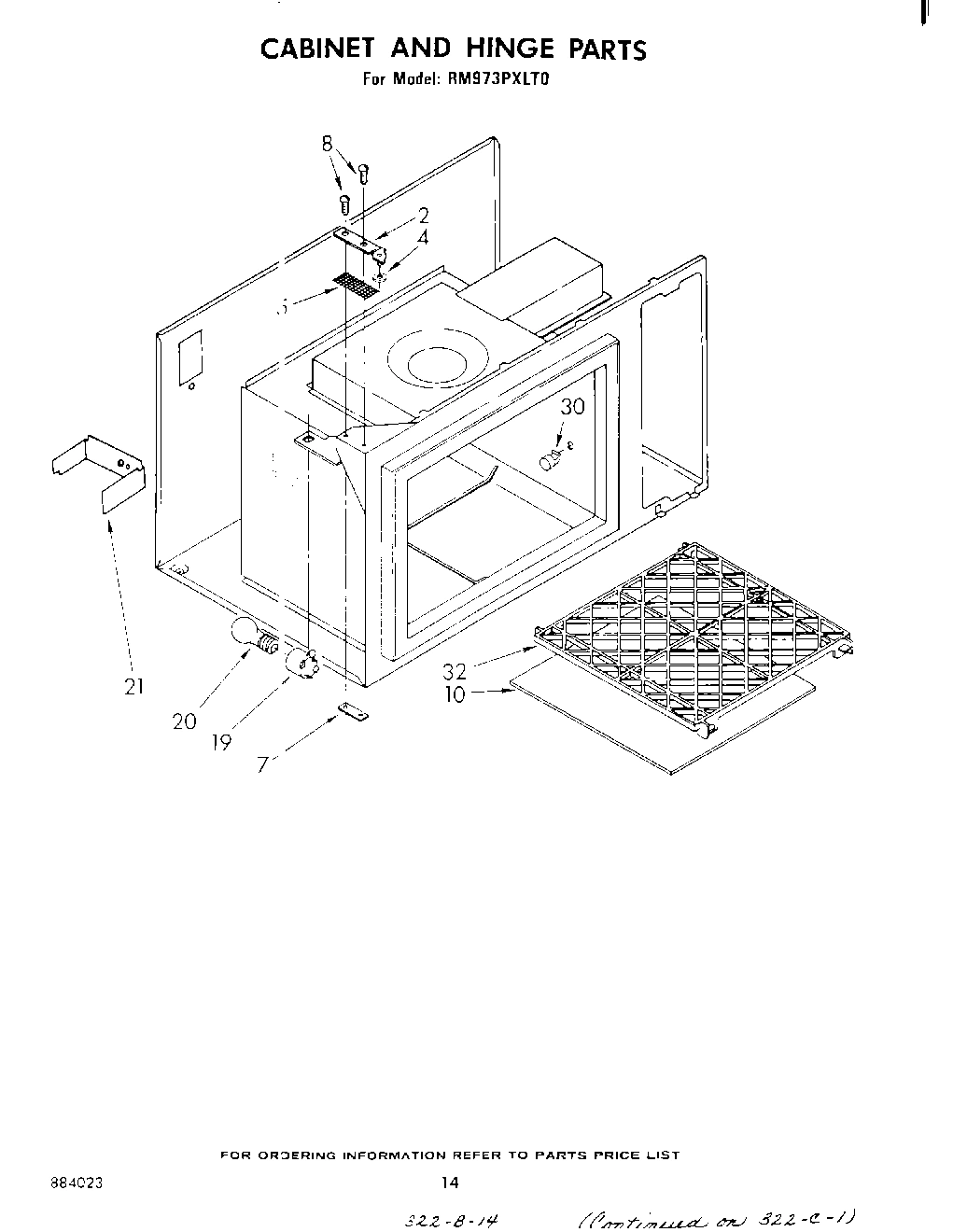

08 - CABINET AND HINGE

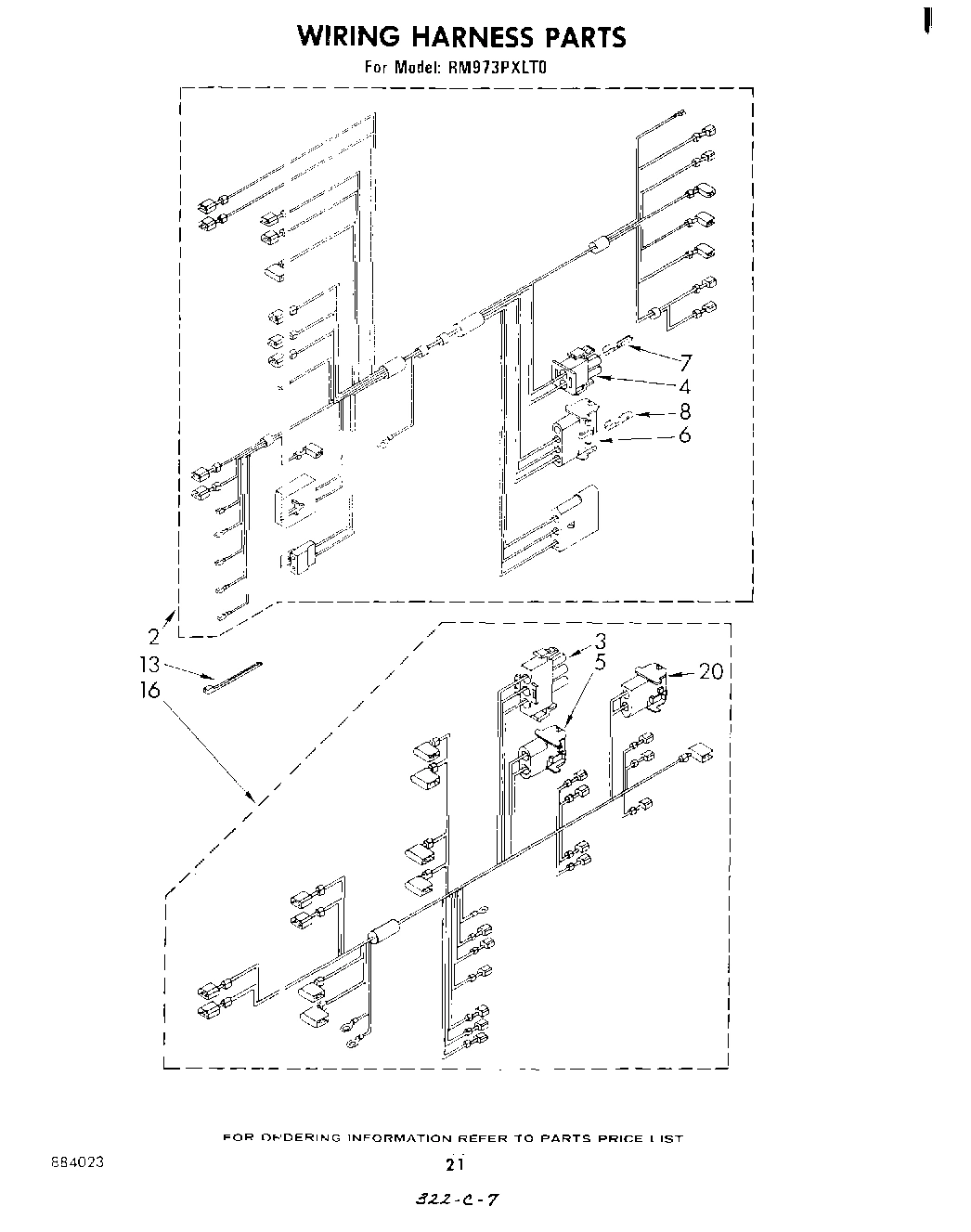

12 - WIRING HARNESS , LITERATURE AND OPTIONAL
02 - COOKTOP
10 - CABINET AND STIRRER
09 - MAGNETRON AND AIR FLOW
11 - DOOR AND LATCH
04 - DOOR AND DRAWER
05 - OVEN (CONTINUED)
03 - OVEN
06 - UPPER CHASSIS AND COMPONENTS
07 - CONTROL PANEL
Common parts from model Whirlpool RM973PXLT0
WPL 799344 WPL 799344 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
``j`` clip (2) WPL 338177 Contact Us For Availability
1
Transformer WPL 311937 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Liner, Door WPL 327869 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
main chassis (almond) WPL 327875 Contact Us For Availability
1
gusset, r.h. WPL 308875 Contact Us For Availability
1
Gusset, L.H. WPL 308877 Contact Us For Availability
1
Clip ``J`` (4) WPL 309062 Contact Us For Availability
1
Bracket, Control Mounting WPL 329790 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Bracket, Transformer WPL 311913 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
2
Panel, Bottom WPL 309506 Contact Us For Availability
2
Timer, Digital WPL 310127 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123605A Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Socket Assembly, L. H. WPL 310803 Contact Us For Availability
3
Socket Assembly, R.H. WPL 328277 Contact Us For Availability
4
Terminal WPL 310100 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Panel, Inner WPL 327898 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
4
Spring, Glass Retainer (4) WPL 308894 Contact Us For Availability
4
Plate, Timer Mounting (2) WPL 311224 Contact Us For Availability
4
Screw (2) WPL 98520 Contact Us For Availability
5
Handle, Latch WPL 308413 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Bracket, Capacitor WPL 311917 Contact Us For Availability
5
Screw, 4-40 x 5/8 Pan Head Thread Form (4) WPL 311358 Contact Us For Availability
5
Window Package WPL 309844 Contact Us For Availability
5
Unit, Broil (Screw, 10-32 x 5/8 (4)) WPL 246127 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Support, Frame WPL 328397 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
Thermal Fuse (Includes Illus. 7) WPL 309279 Contact Us For Availability
6
Switch, Light/ Monitor WPL 311355 Contact Us For Availability
6
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Strap, Support (2) WPL 311933 Contact Us For Availability
6
Light, Indicator (125V) WPL 311547 Contact Us For Availability
7
burner box WPL 308827 Contact Us For Availability
7
Strap, Capacitor WPL 311918 Contact Us For Availability
7
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Side Panel L.H. (Screw, 10A x 1/2 (2)) WPL 246134 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312265 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312272 Contact Us For Availability
8
Shield, Wiring WPL 308968 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Capacitor (Alternate) WPL 311939 Contact Us For Availability
8
Capacitor (Alternate) WPL 311940 Contact Us For Availability
8
Retainer, Glass WPL 309843 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Top Panel (Almond) WPL 312279 Contact Us For Availability
8
switch, infinite (4) WPL 308475 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
9
Stand-Off (Bracket) WPL 309102 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
9
Bushing WPL 309552 Contact Us For Availability
9
Light, Indicator (250V) (7) WPL 311545 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
10
Glass, Outer WPL 309069 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 310208 Contact Us For Availability
10
Angle, Side Panel R.H. WPL 309629 Contact Us For Availability
10
Dial, Surface Unit (4) WPL 309489 Contact Us For Availability
11
cooktop, chrome WPL 311678 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Fastener WPL 310423 Contact Us For Availability
11
Fuseblock WPL 311941 Contact Us For Availability
11
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Frame Mounting (3) WPL 309454 Contact Us For Availability
11
Thermostat (Lower Oven) WPL 310023 Contact Us For Availability
12
trim, cooktop front WPL 311911 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Clip, Glass (8) WPL 310706 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
12
Push Switch WPL 311441 Contact Us For Availability
12
Insulator, Fiberboard WPL 310054 Contact Us For Availability
13
end cap trim l.h. WPL 308444 Contact Us For Availability
13
end cap trim r.h. WPL 308445 Contact Us For Availability
13
Screw, 8A x 3/8 (2) WPL 309051 Contact Us For Availability
13
Clip (4) WPL 98084 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
13
Nut, 3/8-27 WPL 255912 Contact Us For Availability
13
Switch, Fluorescent Light WPL 309550 Contact Us For Availability
14
trim, cooktop side & rear WPL 308619 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Baffle, Heat WPL 309056 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Switch, Broil WPL 310643 Contact Us For Availability
14
Bracket, Switch Mounting WPL 309455 Contact Us For Availability
14
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
15
trim, rear WPL 308981 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Switch, Bake WPL 310644 Contact Us For Availability
15
Switch, Selector WPL 310007 Contact Us For Availability
16
Harness, Interlock WPL 312391 Contact Us For Availability
16
bracket, cooktop (6) WPL 308621 Contact Us For Availability
16
Handle, Oven Door WPL 311573 Contact Us For Availability
16
Coverplate (2) WPL 311982 Contact Us For Availability
16
Channel, Arm (2) WPL 329710 Contact Us For Availability
16
Label Panel WPL 312553 Contact Us For Availability
16
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
17
Hinge, Leaf Cooktop L.H. WPL 328238 Contact Us For Availability
17
Hinge, Leaf Cooktop R.H. WPL 328239 Contact Us For Availability
17
Spacer, Door Handle (2) WPL 310707 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
17
Brace WPL 308776 Contact Us For Availability
17
Timer, Digital (Includes Illus. 18) WPL 310325 Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123604A Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Strip, Barrier WPL 309144 Contact Us For Availability
18
Motor, Timer WPL 308594 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Vent, Oven WPL 309025 Contact Us For Availability
19
Tube Clip WPL 309211 Contact Us For Availability
19
Nut, Extension WPL 309645 Contact Us For Availability
20
Leveler, Enamel WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Touch-Up, Oven WPL 254323 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
Rotisserie Kit WPL 261881 Contact Us For Availability
20
Harvest Gold WPL 261890 Contact Us For Availability
20
Browning Tray (Micro) WPL 307677 Contact Us For Availability
20
Book, Cooking Guide WPL 308500 Contact Us For Availability
20
Booklet, Probe WPL 309600 Contact Us For Availability
20
Installation Instructions WPL 310053 Contact Us For Availability
20
Rack, Meat (Micro) WPL 310878 Contact Us For Availability
20
Use & Care Guide WPL 311431 Contact Us For Availability
20
Cookbook (Microwave) WPL 311892 Contact Us For Availability
20
Tech Sheet WPL 312387 Contact Us For Availability
20
ADHESIVE LOCTITE (1 WPL 591014 Contact Us For Availability
20
WPL 717252 WPL 717252 Contact Us For Availability
20
WPL 799351 WPL 799351 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 884023 WPL 884023 Contact Us For Availability
20
hinge (2) WPL 308993 Contact Us For Availability
20
Cover, Stirrer WPL 309441 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Door WPL 329624 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Indicator, Information Control WPL 309541 Contact Us For Availability
21
Housing Receptacle WPL 307772 Contact Us For Availability
21
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Clip, Push-On (3) WPL 309983 Contact Us For Availability
22
Handle, Drawer WPL 307956 Contact Us For Availability
22
End Trim R.H. (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
End Trim R.H. (Spacer (4)) WPL 308980 Contact Us For Availability
22
End T WPL 310304 Contact Us For Availability
22
WPL 328150 WPL 328150 Contact Us For Availability
22
WPL 328154 WPL 328154 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Indicator, Temperature WPL 309548 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Shield Assembly WPL 328431 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
medallion WPL 256904 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
WPL 328306 WPL 328306 Contact Us For Availability
26
Shield, Exhaust WPL 312577 Contact Us For Availability
26
Magnetron (Alternate) WPL 311992 Contact Us For Availability
26
Magnetron (Alternate) WPL 311993 Contact Us For Availability
26
Magnetron (Alternate) WPL 311994 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
26
Support, Tubing R.H. WPL 312378 Contact Us For Availability
26
Support, Tubing L.H. WPL 312533 Contact Us For Availability
26
WPL 308897 WPL 308897 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
27
WPL 311953 WPL 311953 Contact Us For Availability
28
Thermostat, Fixed WPL 307564 Contact Us For Availability
28
WPL 312237 WPL 312237 Contact Us For Availability
28
Shaft, Potentiometer WPL 310279 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 310410 Contact Us For Availability
29
Bracket, P.C. Board WPL 309484 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
WPL 309500 WPL 309500 Contact Us For Availability
30
P/C Board & Potentiometer WPL 329907 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
Mounting Brace, Duct WPL 311915 Contact Us For Availability
31
Screw (2) WPL 309080 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
WPL 309499 WPL 309499 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
33
Seal, Foam WPL 309813 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
33
Ballast (Alternate) WPL 346772 Contact Us For Availability
33
Ballast (Alternate) WPL 685591 Contact Us For Availability
33
WPL 308784 WPL 308784 Contact Us For Availability
33
Palnut WPL 307640 Contact Us For Availability
34
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
34
locator, cooktop WPL 311909 Contact Us For Availability
34
Switch, Push Start (Include Illus. 64) WPL 307649 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
35
WPL 308112 WPL 308112 Contact Us For Availability
36
Screw WPL 98106 Contact Us For Availability
36
Transmotor (Alternate) WPL 312140 Contact Us For Availability
36
Transmotor (Alternate) WPL 312613 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
Jack, Probe WPL 309637 Contact Us For Availability
38
End Cap WPL 312350 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
39
Washer, Internal Lock WPL 311245 Contact Us For Availability
39
WPL 308839 WPL 308839 Contact Us For Availability
40
Washer Probe WPL 309769 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
41
Nut WPL 309768 Contact Us For Availability
41
WPL 307535 WPL 307535 Contact Us For Availability
41
WPL 307602 WPL 307602 Contact Us For Availability
42
WPL 247326 WPL 247326 Contact Us For Availability
42
WPL 310420 WPL 310420 Contact Us For Availability
42
Relay, Power WPL 311507 Contact Us For Availability
43
Probe, Temperature WPL 311438 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
43
Lockwasher WPL 138473 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312136 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312137 Contact Us For Availability
44
WPL 312389 WPL 312389 Contact Us For Availability
45
WPL 312340 WPL 312340 Contact Us For Availability
45
Buzzer, End-of-Cycle WPL 310351 Contact Us For Availability
46
Screw, 6 x 3/8B WPL 309258 Contact Us For Availability
48
WPL 254217 WPL 254217 Contact Us For Availability
48
Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability
50
Cover, Rear WPL 312257 Contact Us For Availability
50
Screw, 10-16 x 1/2 (14) WPL 363641 Contact Us For Availability
50
Cable, Support WPL 312385 Contact Us For Availability
51
Cover, Light WPL 312379 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
51
Resistor & Terminal WPL 328923 Contact Us For Availability
53
Cover, Capacitor WPL 312294 Contact Us For Availability
54
Jumper, High Voltage Red 6-3/4`` (2) WPL 312009 Contact Us For Availability
54
Frame, Control Panel WPL 309608 Contact Us For Availability
55
Panel, Control (Upper) WPL 312555 Contact Us For Availability
56
Splice, Panel WPL 309490 Contact Us For Availability
57
Control Panel, Glass WPL 312424 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 312301 Contact Us For Availability
58
Bottom Cap, Control Panel WPL 309609 Contact Us For Availability
59
Screw (2) WPL 348689 Contact Us For Availability
61
Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability
62
Knob, Digital WPL 307615 Contact Us For Availability
63
Knob, Assembly (2) WPL 329423 Contact Us For Availability
64
Button, Push WPL 309563 Contact Us For Availability
65
WPL 309553 WPL 309553 Contact Us For Availability
66
WPL 309556 WPL 309556 Contact Us For Availability
68
WPL 308348 WPL 308348 Contact Us For Availability
70
WPL 308346 WPL 308346 Contact Us For Availability
71
WPL 328709 WPL 328709 Contact Us For Availability
72
WPL 328707 WPL 328707 Contact Us For Availability
74
WPL 308297 WPL 308297 Contact Us For Availability
× ![]()
