Model Whirlpool RM973PXKT0 – Common Parts & Diagrams

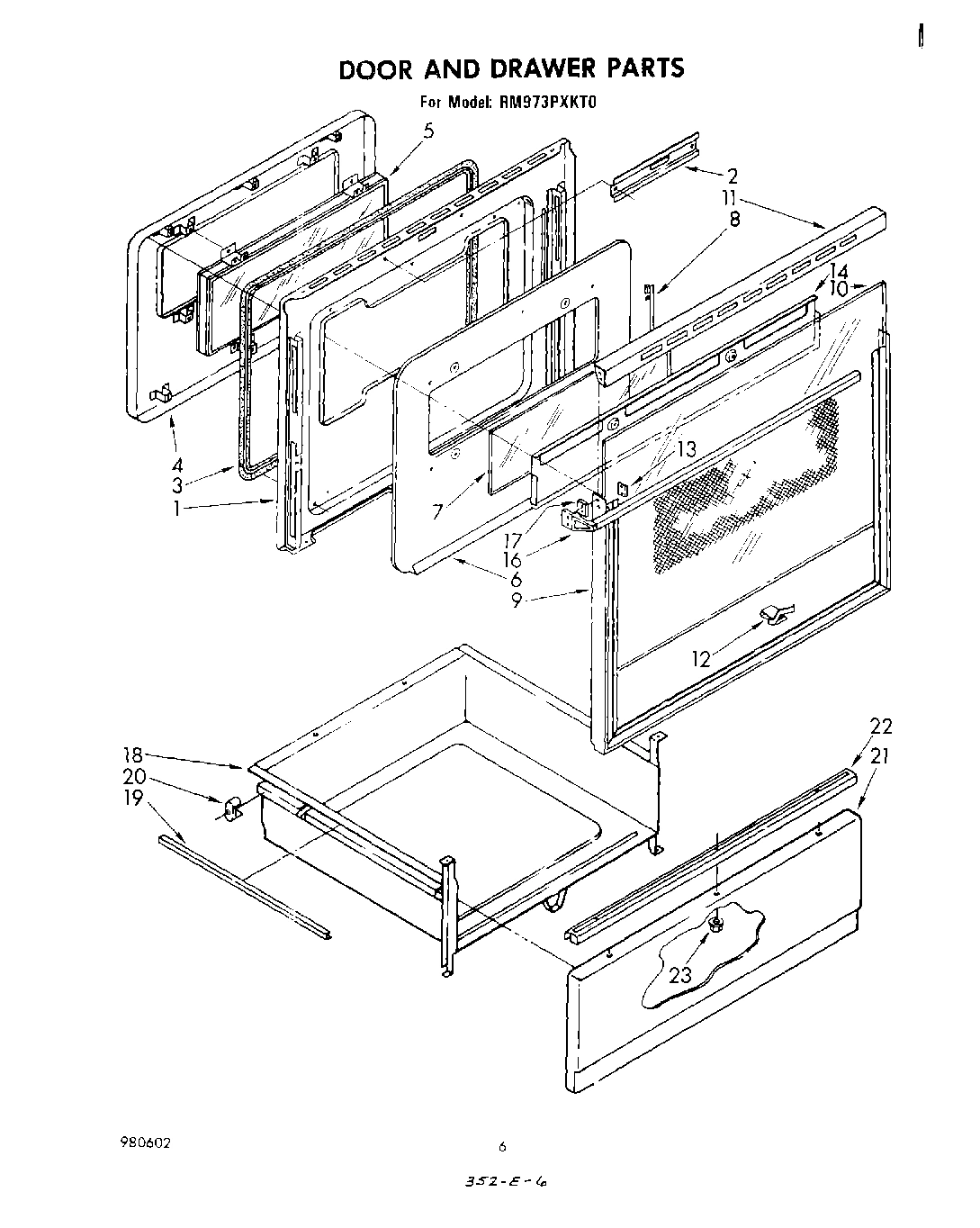

04 - DOOR AND DRAWER

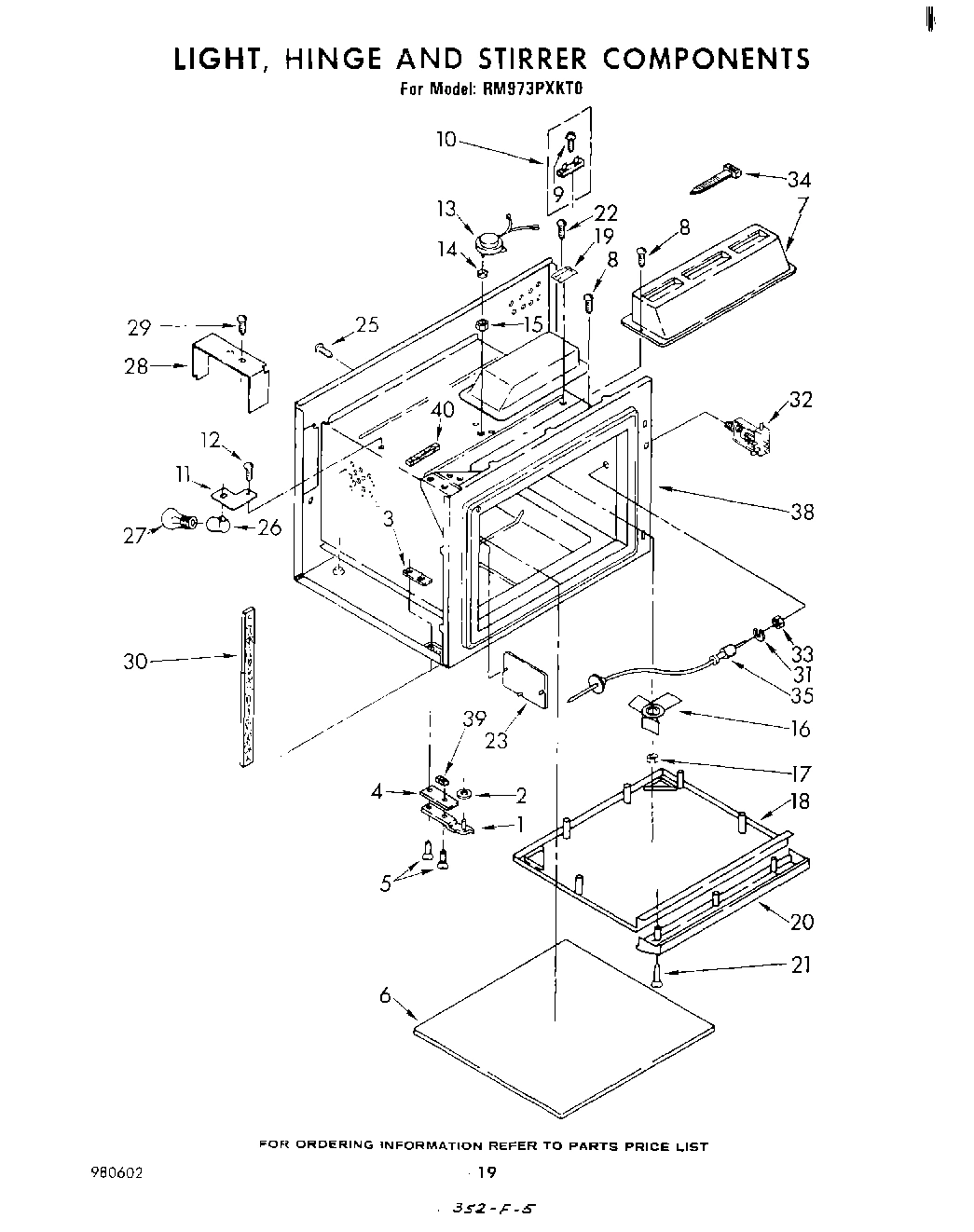

11 - LIGHT, HINGE AND STIRRER, LITERATURE
05 - OVEN
07 - CONTROL PANEL
06 - UPPER CHASSIS AND COMPONENTS
08 - WIRING HARNESS
10 - MAGNETRON AND AIR FLOW
02 - COOKTOP
09 - MICROWAVE DOOR AND LATCH
03 - OVEN
Common parts from model Whirlpool RM973PXKT0
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 799340 WPL 799340 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
hinge door (top) WPL 329070 Contact Us For Availability
1
hinge door (bottom) WPL 329071 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Bracket, Control Mounting WPL 328136 Contact Us For Availability
1
gusset, r.h. WPL 308875 Contact Us For Availability
1
Gusset, L.H. WPL 308877 Contact Us For Availability
1
Clip ``J`` (4) WPL 309062 Contact Us For Availability
1
Harness, Main WPL 310982 Contact Us For Availability
1
Transformer WPL 307676 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
Interlock Assembly WPL 328919 Contact Us For Availability
1
main chassis (almond) WPL 327875 Contact Us For Availability
2
Washer WPL 312147 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Timer, Digital WPL 310127 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 309100 Contact Us For Availability
2
Panel, Bottom WPL 309506 Contact Us For Availability
2
Harness, Control Panel WPL 311775 Contact Us For Availability
2
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Guide, Channel (Not a Serviceable Part) WPL ARI123601A Contact Us For Availability
2
Bumper, Cooktop (2) WPL 328614 Contact Us For Availability
3
Plate, Nut (2) WPL 312092 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Socket Assembly, L. H. WPL 310803 Contact Us For Availability
3
Socket Assembly, R.H. WPL 328277 Contact Us For Availability
3
Harness, Interlock WPL 310980 Contact Us For Availability
3
Block, Fuse WPL 309795 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Slide, Channel (Not a Serviceable Part) WPL ARI123602A Contact Us For Availability
4
Hinge Shim WPL 311991 Contact Us For Availability
4
Plate, Timer Mounting (2) WPL 311224 Contact Us For Availability
4
Screw (2) WPL 98520 Contact Us For Availability
4
Spring, Glass Retainer (4) WPL 308894 Contact Us For Availability
4
cap, terminal (uses 310222 or 310223 pin term WPL 310959 Contact Us For Availability
4
Shield, Fuse WPL 310391 Contact Us For Availability
4
Terminal WPL 310100 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
5
Screw, 10-32 (4) WPL 311912 Contact Us For Availability
5
Unit, Broil (Screw, 10-32 x 5/8 (2)) WPL 246127 Contact Us For Availability
5
Support, Frame WPL 328397 Contact Us For Availability
5
plug, circuit (uses 310959 cap) (uses 310222 WPL 310957 Contact Us For Availability
5
Handle, Latch WPL 308413 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Spacer (4) WPL 258666 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Base, Ceramic (Alternate) WPL 309145 Contact Us For Availability
6
Base, Ceramic (Alternate (Install W/ Silastic WPL 311058 Contact Us For Availability
6
Light, Indicator (125V) WPL 311547 Contact Us For Availability
6
Strap, Support (2) WPL 311933 Contact Us For Availability
6
cap, terminal (uses 310222 or 310223 pin term WPL 310960 Contact Us For Availability
6
Bracket, Capacitor WPL 308572 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
Bumper WPL 307578 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
7
Baffle, Air Exhaust WPL 307520 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Side Panel L.H. (Screw, 10A x 1/2 (2) Side Pa WPL 246134 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 308883 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 309523 Contact Us For Availability
7
Plug, Circuit (Uses 310222 or 310223 Pin Term WPL 310958 Contact Us For Availability
7
Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability
7
burner box WPL 308827 Contact Us For Availability
7
Pin, Roller (2) WPL 307603 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
switch, infinite (4) WPL 308475 Contact Us For Availability
8
Top Panel (Seal, Foam) WPL 308297 Contact Us For Availability
8
Panel, Top (Almond) WPL 309513 Contact Us For Availability
8
terminal, pin (male) WPL 310222 Contact Us For Availability
8
Capacitor (Includes 329163 Resistor, 2 Watt 1 WPL 311723 Contact Us For Availability
8
Capacitor (Includes 329163 Resistor, 2 Watt 1 WPL 311724 Contact Us For Availability
8
Shield, Wiring WPL 308968 Contact Us For Availability
8
Ring, Retainer (2) WPL 307605 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Stand-Off (Bracket) WPL 309102 Contact Us For Availability
9
Light, Indicator (250V) (7) WPL 311545 Contact Us For Availability
9
Bushing WPL 309552 Contact Us For Availability
9
terminal, pin (female) WPL 310223 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
10
Thermal Fuse WPL 309279 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Dial, Surface Unit (4) WPL 309489 Contact Us For Availability
10
Angle, Side Panel R.H. WPL 309629 Contact Us For Availability
10
Socket, Lamp (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
10
receptacle, terminal (2-way) (uses 94614 term WPL 717252 Contact Us For Availability
10
Rectifier, High Voltage WPL 832836 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 310208 Contact Us For Availability
11
Bracket, Lamp WPL 308417 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Thermostat (Lower Oven) WPL 310023 Contact Us For Availability
11
Bracket, Frame Mounting (3) WPL 309454 Contact Us For Availability
11
relay, reed (alternate) WPL 309623 Contact Us For Availability
11
Reed Relay (Alternate) WPL 309941 Contact Us For Availability
11
cooktop, chrome WPL 311678 Contact Us For Availability
11
Clip (2) WPL 338177 Contact Us For Availability
11
Pin, Straight WPL 307612 Contact Us For Availability
12
Screw WPL 342043 Contact Us For Availability
12
Pan, Broiler WPL 310973 Contact Us For Availability
12
Insulator, Fiberboard WPL 310054 Contact Us For Availability
12
Push Switch WPL 311441 Contact Us For Availability
12
trim, cooktop front WPL 311911 Contact Us For Availability
12
Switch Kit, Door (Kit Contains 2 Switches, Bo WPL 261877 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
13
Motor, Stirrer WPL 311223 Contact Us For Availability
13
Rack, Broiler WPL 308674 Contact Us For Availability
13
Nut, 3/8-27 WPL 255912 Contact Us For Availability
13
Switch, Fluorescent Light WPL 309550 Contact Us For Availability
13
Screw, 8A x 3/8 (2) WPL 309051 Contact Us For Availability
13
Jumper, High Voltage WPL 311466 Contact Us For Availability
13
end cap trim l.h. WPL 308444 Contact Us For Availability
13
end cap trim r.h. WPL 308445 Contact Us For Availability
13
Clip (4) WPL 98084 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
14
Bracket, Switch Mounting WPL 309455 Contact Us For Availability
14
housing, relay connector (uses 308569 termina WPL 60688 Contact Us For Availability
14
Duct, Bottom WPL 309477 Contact Us For Availability
14
trim, cooktop side & rear WPL 308619 Contact Us For Availability
14
Bracket, Switch WPL 310148 Contact Us For Availability
14
Switch, Broil WPL 310643 Contact Us For Availability
15
Nut WPL 309768 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Switch, Selector WPL 310007 Contact Us For Availability
15
Panel, Backguard WPL 308692 Contact Us For Availability
15
terminal WPL 308569 Contact Us For Availability
15
trim, rear WPL 308981 Contact Us For Availability
15
Switch, Bake WPL 310644 Contact Us For Availability
16
Stirrer, 3-Blade WPL 309368 Contact Us For Availability
16
Coverplate (2) WPL 311982 Contact Us For Availability
16
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
16
insulator WPL 310241 Contact Us For Availability
16
Jumper, High Voltage WPL 311467 Contact Us For Availability
16
bracket, cooktop (6) WPL 308621 Contact Us For Availability
16
Insulator, Switch (Top) WPL 307611 Contact Us For Availability
16
Channel, Arm (2) WPL 327892 Contact Us For Availability
17
Nut, 1/4-20 WPL 307555 Contact Us For Availability
17
Timer, Digital (Includes Illus. 18) WPL 310325 Contact Us For Availability
17
Brace WPL 308776 Contact Us For Availability
17
housing, edge connector (uses 60279 terminal) WPL 309606 Contact Us For Availability
17
Wire, High Voltage (2) (Magnetron To Capacito WPL 309084 Contact Us For Availability
17
Hinge, Leaf Cooktop L.H. WPL 328238 Contact Us For Availability
17
Hinge, Leaf Cooktop R.H. WPL 328239 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
18
Cover, Stirrer WPL 307511 Contact Us For Availability
18
Motor, Timer WPL 308594 Contact Us For Availability
18
Strip, Barrier WPL 309144 Contact Us For Availability
18
Tube Clip WPL 309211 Contact Us For Availability
18
Terminal WPL 60279 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
19
Fastener Slide (2) WPL 308853 Contact Us For Availability
19
Nut, Extension WPL 309645 Contact Us For Availability
19
Magnetron WPL 310299 Contact Us For Availability
19
Vent, Oven WPL 309025 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Cover, Stirrer Front WPL 311727 Contact Us For Availability
20
Indicator, Information Control WPL 309541 Contact Us For Availability
20
Thermostat WPL 307564 Contact Us For Availability
20
hinge (2) WPL 308993 Contact Us For Availability
21
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Screw, 10 x 2 (3) WPL 308554 Contact Us For Availability
21
Clip, Push-On (3) WPL 309983 Contact Us For Availability
21
Switch, Secondary WPL 308416 Contact Us For Availability
22
Handle, Drawer WPL 310399 Contact Us For Availability
22
end trim r.h WPL 308980 Contact Us For Availability
22
WPL 310304 WPL 310304 Contact Us For Availability
22
WPL 328150 WPL 328150 Contact Us For Availability
22
WPL 328154 WPL 328154 Contact Us For Availability
22
Fastener, Speed Nut (3) WPL 308845 Contact Us For Availability
22
Plate, Top Switch Mounting WPL 307586 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Indicator, Temperature WPL 309548 Contact Us For Availability
23
Mount, Motor (Fan) WPL 311905 Contact Us For Availability
24
Shield Assembly WPL 328431 Contact Us For Availability
24
Transmotor (Alternate) WPL 310031 Contact Us For Availability
24
Transmotor (Alternate) WPL 311179 Contact Us For Availability
24
Plate, Switch Mounting WPL 307836 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
WPL 328306 WPL 328306 Contact Us For Availability
25
Nut (2) WPL 311136 Contact Us For Availability
25
medallion WPL 256904 Contact Us For Availability
26
Socket, Snap-In WPL 307519 Contact Us For Availability
26
WPL 308897 WPL 308897 Contact Us For Availability
26
Blade, Fan WPL 307535 Contact Us For Availability
26
Insulator, Switch WPL 307835 Contact Us For Availability
26
Support, Tubing L.H. WPL 308109 Contact Us For Availability
26
Support, Tubing R.H. WPL 308111 Contact Us For Availability
27
Screw (4) WPL 98106 Contact Us For Availability
27
WPL 311953 WPL 311953 Contact Us For Availability
28
Shield, Lamp WPL 309554 Contact Us For Availability
28
Shaft, Potentiometer WPL 310279 Contact Us For Availability
28
WPL 309453 WPL 309453 Contact Us For Availability
29
Bracket, P.C. Board WPL 309484 Contact Us For Availability
29
WPL 309813 WPL 309813 Contact Us For Availability
29
Screw, 8-32 x 3/8 (4) WPL 310629 Contact Us For Availability
29
Shield, Magnetron WPL 312186 Contact Us For Availability
30
Seal, Foam WPL 311929 Contact Us For Availability
30
Control, Variable Power WPL 60757 Contact Us For Availability
30
WPL 309500 WPL 309500 Contact Us For Availability
30
Nut, 5mm Flange (2) WPL 310300 Contact Us For Availability
31
Washer, Internal Lock WPL 311245 Contact Us For Availability
31
Screw, 8-32 x 3/8 (2) WPL 309080 Contact Us For Availability
31
WPL 309499 WPL 309499 Contact Us For Availability
31
Gasket, Magnetron WPL 310302 Contact Us For Availability
32
Jack, Probe WPL 309637 Contact Us For Availability
32
WPL 310953 WPL 310953 Contact Us For Availability
32
Duct, Cooling Air WPL 328913 Contact Us For Availability
32
Rivet (3) WPL 311928 Contact Us For Availability
33
Nut WPL 311137 Contact Us For Availability
33
Palnut WPL 307640 Contact Us For Availability
33
WPL 308784 WPL 308784 Contact Us For Availability
33
Shield, Light WPL 309963 Contact Us For Availability
33
Ballast (Alternate) WPL 346772 Contact Us For Availability
33
Ballast (Alternate) WPL 685591 Contact Us For Availability
34
WPL 309501 WPL 309501 Contact Us For Availability
34
Duct, Discharge WPL 328399 Contact Us For Availability
34
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
34
locator, cooktop WPL 311909 Contact Us For Availability
35
Temperature Probe WPL 311438 Contact Us For Availability
35
WPL 308112 WPL 308112 Contact Us For Availability
36
WPL 309507 WPL 309507 Contact Us For Availability
36
Baffle, Air WPL 309899 Contact Us For Availability
36
Door Assembly WPL 329660 Contact Us For Availability
38
Base & Cavity Assembly (Not Serviceable) WPL ARI123603A Contact Us For Availability
38
Board, Terminal WPL 309642 Contact Us For Availability
38
WPL 311930 WPL 311930 Contact Us For Availability
38
Bracket, Receptacle WPL 308839 Contact Us For Availability
39
Screw, 10A x 3/8 (2) WPL 254217 Contact Us For Availability
39
Seal Foam WPL 309816 Contact Us For Availability
40
Leveler, Enamel WPL 206925 Contact Us For Availability
40
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
40
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
40
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
40
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
40
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
40
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
40
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
40
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
40
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
40
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
40
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
40
WPL 242832 WPL 242832 Contact Us For Availability
40
WPL 254323 WPL 254323 Contact Us For Availability
40
WPL 261582 WPL 261582 Contact Us For Availability
40
WPL 261881 WPL 261881 Contact Us For Availability
40
WPL 261890 WPL 261890 Contact Us For Availability
40
WPL 307677 WPL 307677 Contact Us For Availability
40
WPL 308500 WPL 308500 Contact Us For Availability
40
WPL 309600 WPL 309600 Contact Us For Availability
40
WPL 309815 WPL 309815 Contact Us For Availability
40
WPL 310053 WPL 310053 Contact Us For Availability
40
WPL 310847 WPL 310847 Contact Us For Availability
40
WPL 310878 WPL 310878 Contact Us For Availability
40
WPL 311426 WPL 311426 Contact Us For Availability
40
WPL 311768 WPL 311768 Contact Us For Availability
40
WPL 591014 WPL 591014 Contact Us For Availability
40
WPL 799351 WPL 799351 Contact Us For Availability
40
WPL 799832 WPL 799832 Contact Us For Availability
40
WPL 980602 WPL 980602 Contact Us For Availability
40
Resistor, Power WPL 329223 Contact Us For Availability
40
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
40
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
41
Seal Sides (2) (Alternate) WPL 311343 Contact Us For Availability
41
Seal Sides (2) (Alternate) WPL 311635 Contact Us For Availability
42
Relay Shunt WPL 308243 Contact Us For Availability
42
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
43
Lockwasher WPL 138473 Contact Us For Availability
43
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
45
Buzzer, End-of-Cycle WPL 310351 Contact Us For Availability
45
Latch, Door WPL 328944 Contact Us For Availability
46
Screw, 6 x 3/8B WPL 309258 Contact Us For Availability
47
Handle, Cam WPL 310729 Contact Us For Availability
48
Screw, 8BT x 1/4 (3) WPL 254225 Contact Us For Availability
48
Latch, Concealed WPL 307596 Contact Us For Availability
50
Ring, ``E`` (2) WPL 308187 Contact Us For Availability
51
Resistor & Terminal WPL 328923 Contact Us For Availability
51
Toggle, Latch WPL 832797 Contact Us For Availability
52
Cable, Support WPL 309841 Contact Us For Availability
53
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
53
Handle, Door WPL 328943 Contact Us For Availability
54
Frame, Control Panel WPL 309608 Contact Us For Availability
54
Insert, Handle WPL 309564 Contact Us For Availability
55
Panel, Control (Upper) WPL 311682 Contact Us For Availability
55
Setscrew, 8-32 WPL 307577 Contact Us For Availability
56
Splice, Panel WPL 309490 Contact Us For Availability
57
Control Panel, Glass WPL 311684 Contact Us For Availability
58
Bottom Cap, Control Panel WPL 309609 Contact Us For Availability
59
Screw (2) WPL 348689 Contact Us For Availability
60
End Cap, Door WPL 307584 Contact Us For Availability
61
WPL 311945 WPL 311945 Contact Us For Availability
62
WPL 307615 WPL 307615 Contact Us For Availability
63
WPL 329423 WPL 329423 Contact Us For Availability
64
WPL 832949 WPL 832949 Contact Us For Availability
65
WPL 309553 WPL 309553 Contact Us For Availability
66
WPL 309556 WPL 309556 Contact Us For Availability
68
WPL 308348 WPL 308348 Contact Us For Availability
70
WPL 308346 WPL 308346 Contact Us For Availability
71
WPL 328709 WPL 328709 Contact Us For Availability
72
WPL 328707 WPL 328707 Contact Us For Availability
× ![]()
