Model Whirlpool RM973BXPT1 – Common Parts & Diagrams

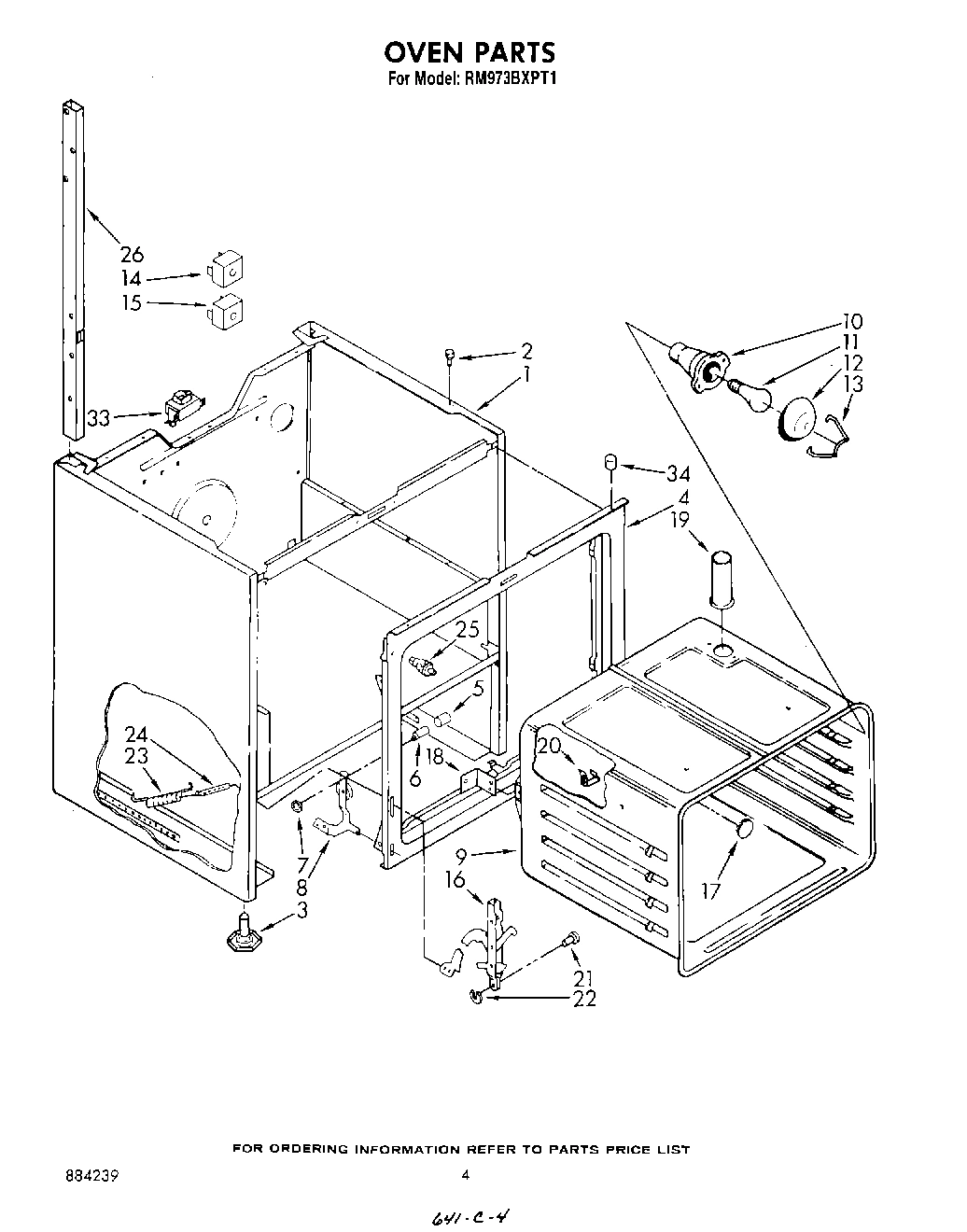

03 - OVEN

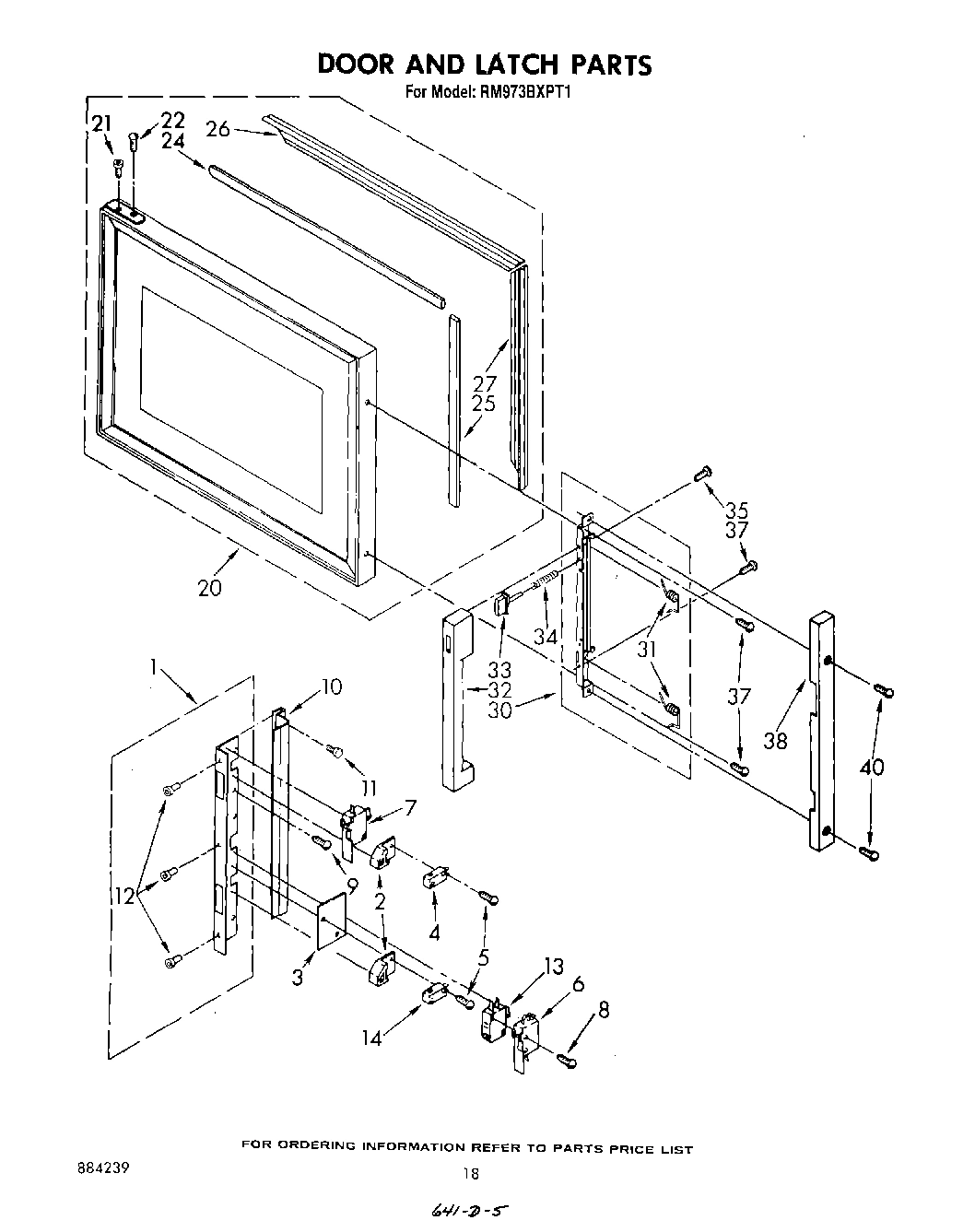

10 - DOOR AND LATCH
12 - SECTION
13 - CABINET
02 - COOKTOP
09 - CABINET AND STIRRER, LITERATURE
11 - WIRING HARNESS
08 - MAGNETRON AND AIR FLOW
06 - UPPER CHASSIS AND COMPONENT
07 - CONTROL
04 - DOOR AND DRAWER
05 - OVEN(CONTINUED)
Common parts from model Whirlpool RM973BXPT1
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312877 WPL LIT312877 Contact Us For Availability
WPL LIT312880 WPL LIT312880 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT313480 WPL LIT313480 Contact Us For Availability
WPL LIT3147633 WPL LIT3147633 Contact Us For Availability
WPL LIT884239 WPL LIT884239 Contact Us For Availability
Screw, 11-16 x 1/2 (2) WPL 346893 Contact Us For Availability
Unit, Broil (208V) WPL 312308 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Screw, No.8 x 1/4 WPL 3147001 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 310806 Contact Us For Availability
1
Latch Assembly (Pyro) WPL 328585 Contact Us For Availability
1
Harness, Wiring (Control) Microwave WPL 313417 Contact Us For Availability
1
Transformer (Alt.) WPL 312848 Contact Us For Availability
1
Transformer (Alt.) WPL 312849 Contact Us For Availability
1
Transformer WPL 661056 Contact Us For Availability
1
Gusset, R.H. WPL 312810 Contact Us For Availability
1
Gusset, L.H. WPL 312812 Contact Us For Availability
1
Frame, Control Panel WPL 312602 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Harness Wiring (Infinite Switch) WPL 313419 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 330015 Contact Us For Availability
2
Hinge Assembly (Top) WPL 330016 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Harness, Wiring (Main) Microwave WPL 313415 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Panel, Bottom WPL 313331 Contact Us For Availability
2
Membrane, Switch WPL 313100 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw (2) WPL 311054 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
3
Insulator WPL 313126 Contact Us For Availability
3
Harness Wiring (Surface Unit) WPL 311176 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123600A Contact Us For Availability
3
Harness, Wiring (AC Supply) WPL 313567 Contact Us For Availability
3
Socket Assembly L.H. WPL 313468 Contact Us For Availability
3
Socket Assembly R.H. WPL 313469 Contact Us For Availability
3
Splice Panel WPL 312743 Contact Us For Availability
3
Seal, Fiberglass WPL 311904 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
4
Harness, Wiring (Selector/ Thermostat) WPL 313566 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Harness, Wiring (Timer) WPL 313435 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Seal, Foam WPL 308297 Contact Us For Availability
4
Control Panel, Glass WPL 313136 Contact Us For Availability
4
Panel, Inner WPL 328546 Contact Us For Availability
4
Unit, Bake (240V) (Alt.) WPL 301180 Contact Us For Availability
5
Screw, 4-40 x 5/8 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
Handle, Latch WPL 307976 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Screw (2) WPL 311056 Contact Us For Availability
5
Connector Housing WPL 308665 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Support, Frame WPL 328397 Contact Us For Availability
5
Bottom Cap, Control Panel WPL 312603 Contact Us For Availability
5
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Disconnect Block WPL 309408 Contact Us For Availability
6
Knob, Latch WPL 307977 Contact Us For Availability
6
Thermal Fuse (Includes Illus.7) WPL 313440 Contact Us For Availability
6
Block, Disconnect WPL 311574 Contact Us For Availability
6
Strap, Support (2) WPL 311933 Contact Us For Availability
6
Screw, No. 8 (2) WPL 348689 Contact Us For Availability
6
Screw, 10-16 x 1.0 (2) WPL 98884 Contact Us For Availability
7
Switch, Door WPL 313120 Contact Us For Availability
7
Disconnect Block WPL 309406 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Burner Box WPL 307929 Contact Us For Availability
7
Disconnect Block, Female WPL 310960 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312265 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312272 Contact Us For Availability
7
Board, Power Control WPL 61533 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Disconnect Block WPL 309405 Contact Us For Availability
8
Screw, 12-24 x 3/4 (2) WPL 312742 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Housing, Plug WPL 310241 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Top Panel (Almond) WPL 312279 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Rivet (3) WPL 313456 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Disconnect Block (2 Terminal) WPL 717252 Contact Us For Availability
9
Bushing WPL 309552 Contact Us For Availability
9
Frame, Door WPL 310427 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Shelf, Microwave (Alt.) WPL 311058 Contact Us For Availability
10
Shelf, Microwave (Alt.) (Install W/Silastic N WPL 312579 Contact Us For Availability
10
Shelf, Microwave WPL 660561 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Disconnect Block (4 Terminal) WPL 310958 Contact Us For Availability
10
Angle, Side Panel R.H. WPL 309629 Contact Us For Availability
10
Bracket, P.C. Board WPL 313098 Contact Us For Availability
10
Glass, Outer WPL 310655 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
11
Seal, Foam WPL 313501 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Disconnect Block WPL 309105 Contact Us For Availability
11
Block, Fuse WPL 309795 Contact Us For Availability
11
Bracket, Frame Mounting (3) WPL 309454 Contact Us For Availability
11
Top, Door Frame WPL 310784 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Bracket, P.C. Board WPL 313099 Contact Us For Availability
12
clip, glass (10) WPL 310706 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313075 Contact Us For Availability
13
Switch, Miniature (Alt.) WPL 313123 Contact Us For Availability
13
Switch, Miniature WPL 661144 Contact Us For Availability
13
Cooktop (Chrome) WPL 309922 Contact Us For Availability
13
Switch, Fluorescent Light WPL 313483 Contact Us For Availability
13
Clip (2) WPL 311506 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Bracket, Switch Mounting WPL 309455 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
rectifier, high voltage (alt.) WPL 313831 Contact Us For Availability
15
rectifier, high voltage WPL 661171 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
16
Handle, Oven Door WPL 312722 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Panel, Backguard WPL 313577 Contact Us For Availability
16
Coverplate (2) WPL 311982 Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123599A Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
20
Screw, 8-32 x 3/8 (2) WPL 312713 Contact Us For Availability
20
Fastner (4) WPL 313740 Contact Us For Availability
20
Door WPL 329630 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Stirrer Cover WPL 313689 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Shield, Lamp WPL 309554 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
22
Shield, Insulation WPL 312320 Contact Us For Availability
22
End Trim R.H. (Screw, 10-12 x 7/8 (4)) WPL 308043 Contact Us For Availability
22
End Trim R.H. (Almond End Trim L.H.) WPL 330197 Contact Us For Availability
22
End Trim R.H. (Almond) WPL 330203 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
23
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Trim, Glass (Top) WPL 313320 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Seal, Top & Bottom (2) WPL 660574 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
24
Shield, Insulation WPL 310056 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Seal, Sides WPL 660575 Contact Us For Availability
25
Panel, Glass WPL 313322 Contact Us For Availability
25
Clip, Glass (2) WPL 310705 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
26
Shield, Exhaust Probe WPL 312577 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Trim, Glass (Bottom) WPL 313321 Contact Us For Availability
26
Rack, Literature WPL 357645 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
27
Bracket, Control Panel Mounting WPL 311953 Contact Us For Availability
27
Timer, Auto (Includes Illus. 28) WPL 309434 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
Bracket, Chassis Mounting WPL 312237 Contact Us For Availability
28
Motor, Timer WPL 308443 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 312782 Contact Us For Availability
29
Nut, Aluminum (4) WPL 309645 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
Hole Plug (4) WPL 312214 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
F WPL 313548 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
WPL 309499 WPL 309499 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
32
Bracket, Control Mounting WPL 329791 Contact Us For Availability
33
Ballast (Alt.) WPL 346772 Contact Us For Availability
33
Ballast WPL 660001 Contact Us For Availability
33
Ballast (Alt.) WPL 685591 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
33
WPL 313030 WPL 313030 Contact Us For Availability
33
Indicator Light 250V (6) WPL 313517 Contact Us For Availability
34
locator, cooktop WPL 311909 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Thermostat, Oven (Lower) WPL 313531 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
35
WPL 308112 WPL 308112 Contact Us For Availability
35
Insulator WPL 310054 Contact Us For Availability
36
Motor (Alt.) WPL 311998 Contact Us For Availability
36
Motor (Alt.) WPL 312478 Contact Us For Availability
36
Motor WPL 661000 Contact Us For Availability
36
Switch, Selector WPL 310007 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
Screw, 8-32 x 3/16 (8) Assembly WPL 308119 Contact Us For Availability
37
switch, infinite (4) WPL 308475 Contact Us For Availability
38
WPL 312350 WPL 312350 Contact Us For Availability
38
Jack, Probe WPL 313458 Contact Us For Availability
39
``E`` Ring (2) WPL 311999 Contact Us For Availability
39
WPL 308839 WPL 308839 Contact Us For Availability
40
WPL 310210 WPL 310210 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Skirt, Knob (4) WPL 309489 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
41
WPL 307535 WPL 307535 Contact Us For Availability
41
WPL 307602 WPL 307602 Contact Us For Availability
42
Cover, Rear WPL 312257 Contact Us For Availability
42
WPL 310420 WPL 310420 Contact Us For Availability
42
Screw, 6-32 x 1/4 (4) WPL 313806 Contact Us For Availability
43
Cover, Light WPL 312379 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
43
Screw WPL 312248 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312640 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312784 Contact Us For Availability
44
Reed Relay WPL 661005 Contact Us For Availability
44
WPL 312389 WPL 312389 Contact Us For Availability
44
Spring (3) WPL 313311 Contact Us For Availability
45
WPL 799344 WPL 799344 Contact Us For Availability
45
Leveler, Enamel WPL 206925 Contact Us For Availability
45
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
45
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
45
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
45
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
45
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
45
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
45
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
45
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
45
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
45
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
45
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
45
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
45
Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability
45
Touch-Up, Oven (Self-Clean) WPL 254323 Contact Us For Availability
45
Grease WPL 261582 Contact Us For Availability
45
Harves WPL 261890 Contact Us For Availability
45
WPL 261891 WPL 261891 Contact Us For Availability
45
WPL 285365 WPL 285365 Contact Us For Availability
45
WPL 285366 WPL 285366 Contact Us For Availability
45
WPL 285367 WPL 285367 Contact Us For Availability
45
WPL 285368 WPL 285368 Contact Us For Availability
45
WPL 307677 WPL 307677 Contact Us For Availability
45
WPL 310878 WPL 310878 Contact Us For Availability
45
WPL 313044 WPL 313044 Contact Us For Availability
45
WPL 313527 WPL 313527 Contact Us For Availability
45
WPL 591014 WPL 591014 Contact Us For Availability
45
WPL 661164 WPL 661164 Contact Us For Availability
45
WPL 72112 WPL 72112 Contact Us For Availability
45
WPL 799340 WPL 799340 Contact Us For Availability
45
WPL 799832 WPL 799832 Contact Us For Availability
45
WPL 978883 WPL 978883 Contact Us For Availability
45
WPL 312340 WPL 312340 Contact Us For Availability
45
Bezel, Control Knob (4) WPL 309556 Contact Us For Availability
46
spring, bezel (4) WPL 308348 Contact Us For Availability
47
Knob, Control (4) WPL 313307 Contact Us For Availability
48
Knob, Thermostat WPL 328709 Contact Us For Availability
48
WPL 254217 WPL 254217 Contact Us For Availability
49
Screw WPL 310410 Contact Us For Availability
49
Knob, Selector WPL 328707 Contact Us For Availability
50
WPL 313319 WPL 313319 Contact Us For Availability
50
Light, Indicator WPL 313518 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
54
Jumper, High Voltage (Black 6-5/16``) WPL 313129 Contact Us For Availability
55
Jumper, High Voltage Black 6-5/16`` WPL 313130 Contact Us For Availability
58
High Voltage Lead, Gray (7-11/16``) (2) WPL 313113 Contact Us For Availability
59
Clip, Harness WPL 312763 Contact Us For Availability
60
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
60
Cable, Support WPL 312764 Contact Us For Availability
× ![]()
