Model Whirlpool RM955PXPW0 – Common Parts & Diagrams

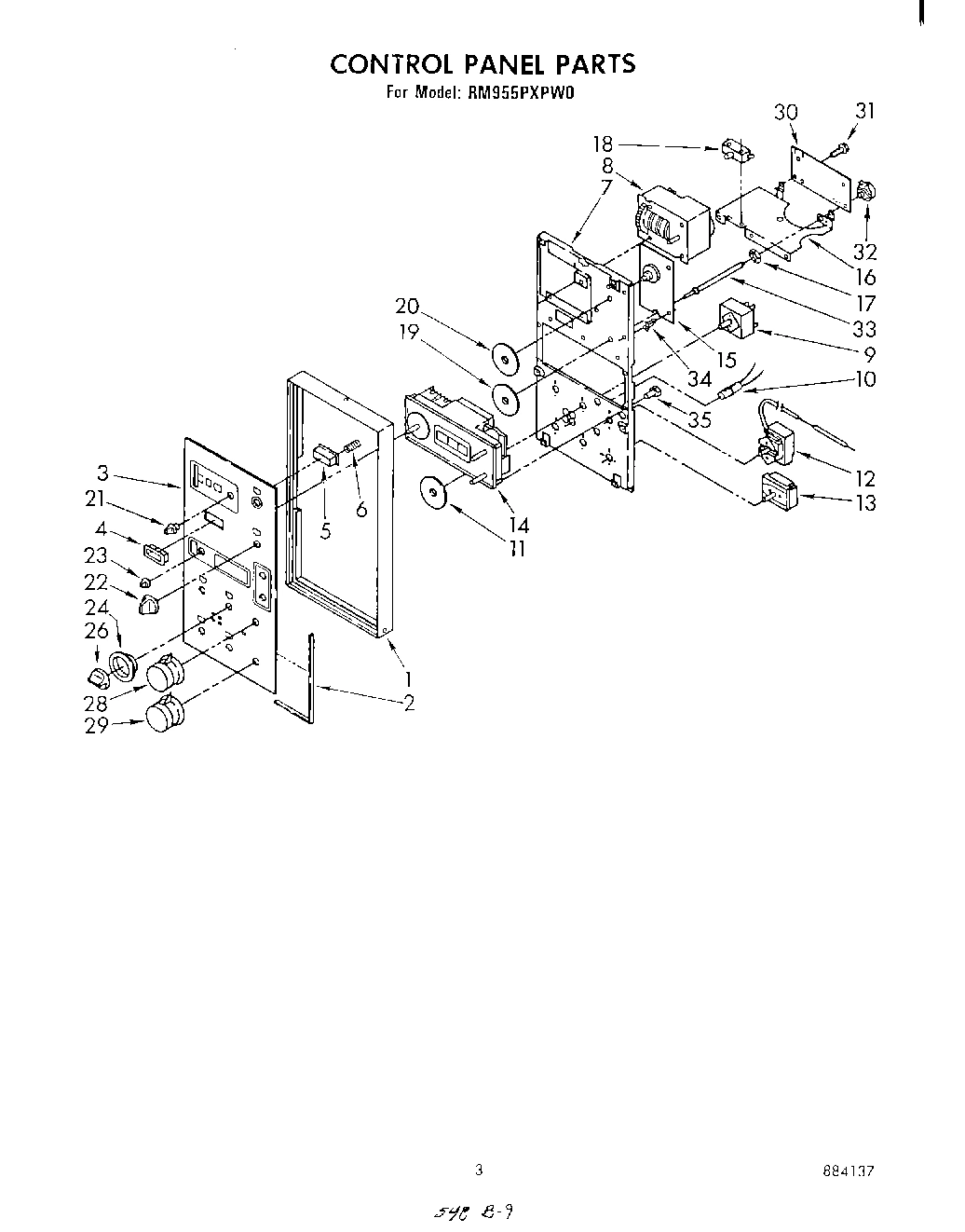

03 - CONTROL PANEL

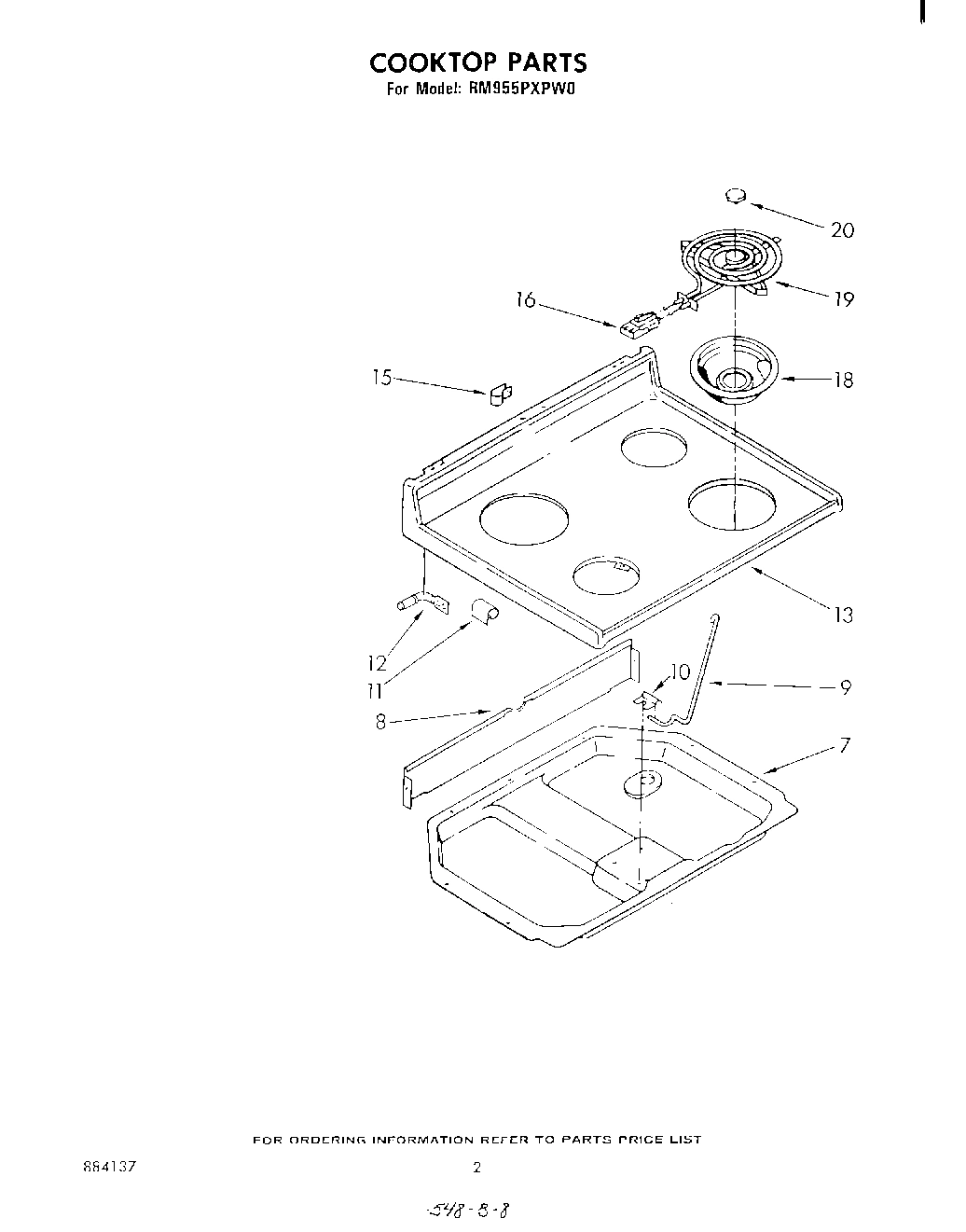

02 - COOKTOP

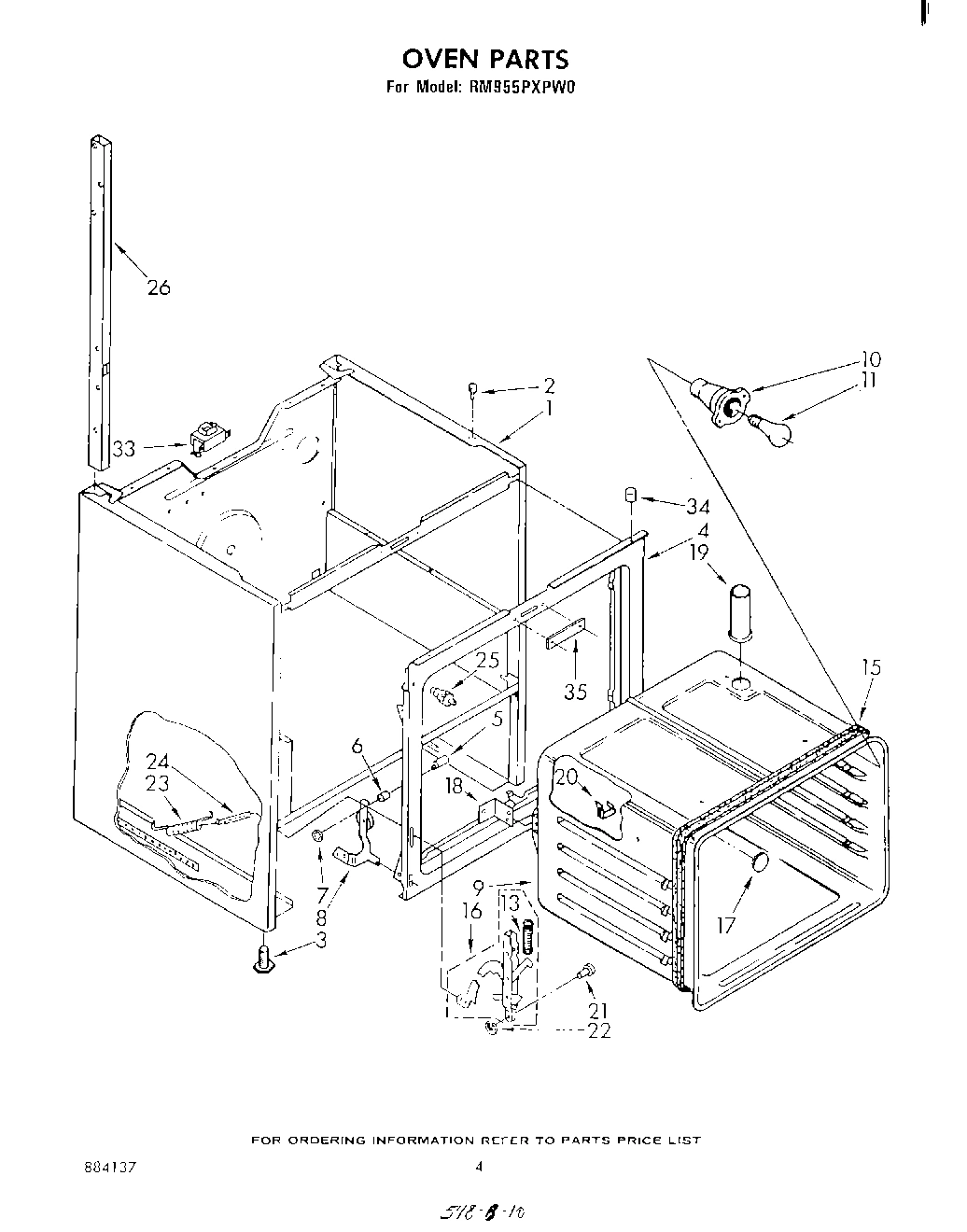

04 - OVEN

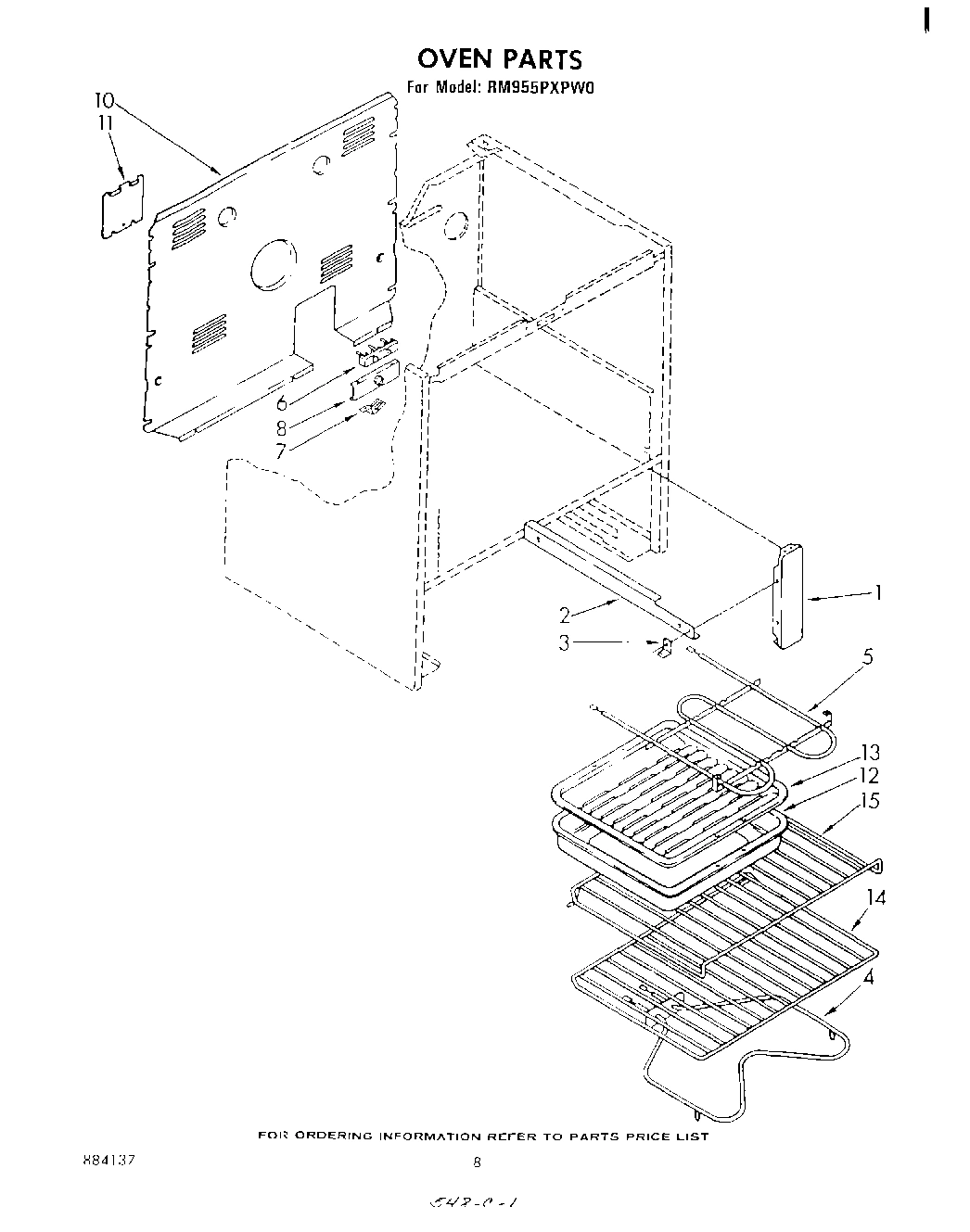

06 - SECTION

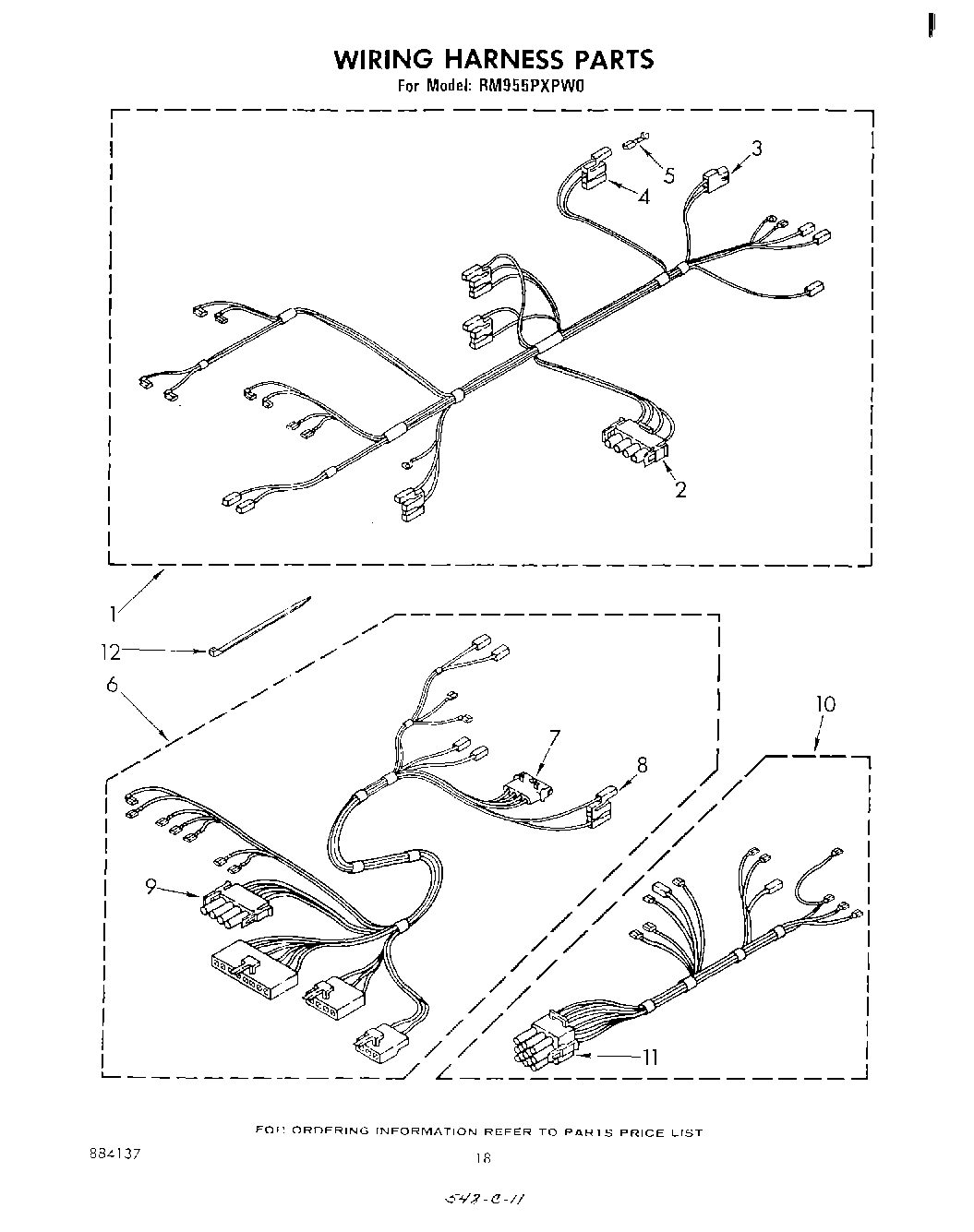

11 - WIRING HARNESS , LITERATURE AND OPTIONAL

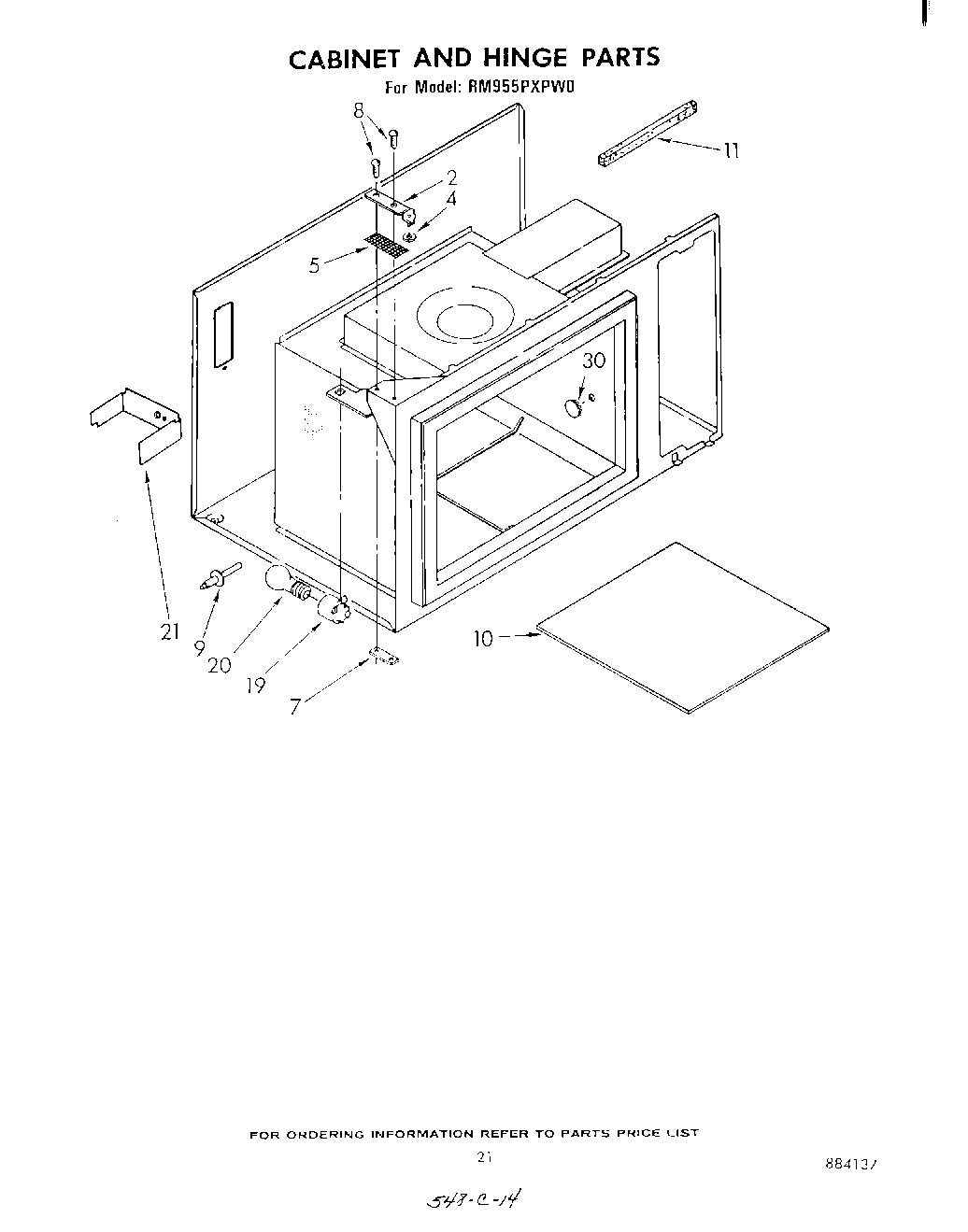

13 - CABINET AND HINGE

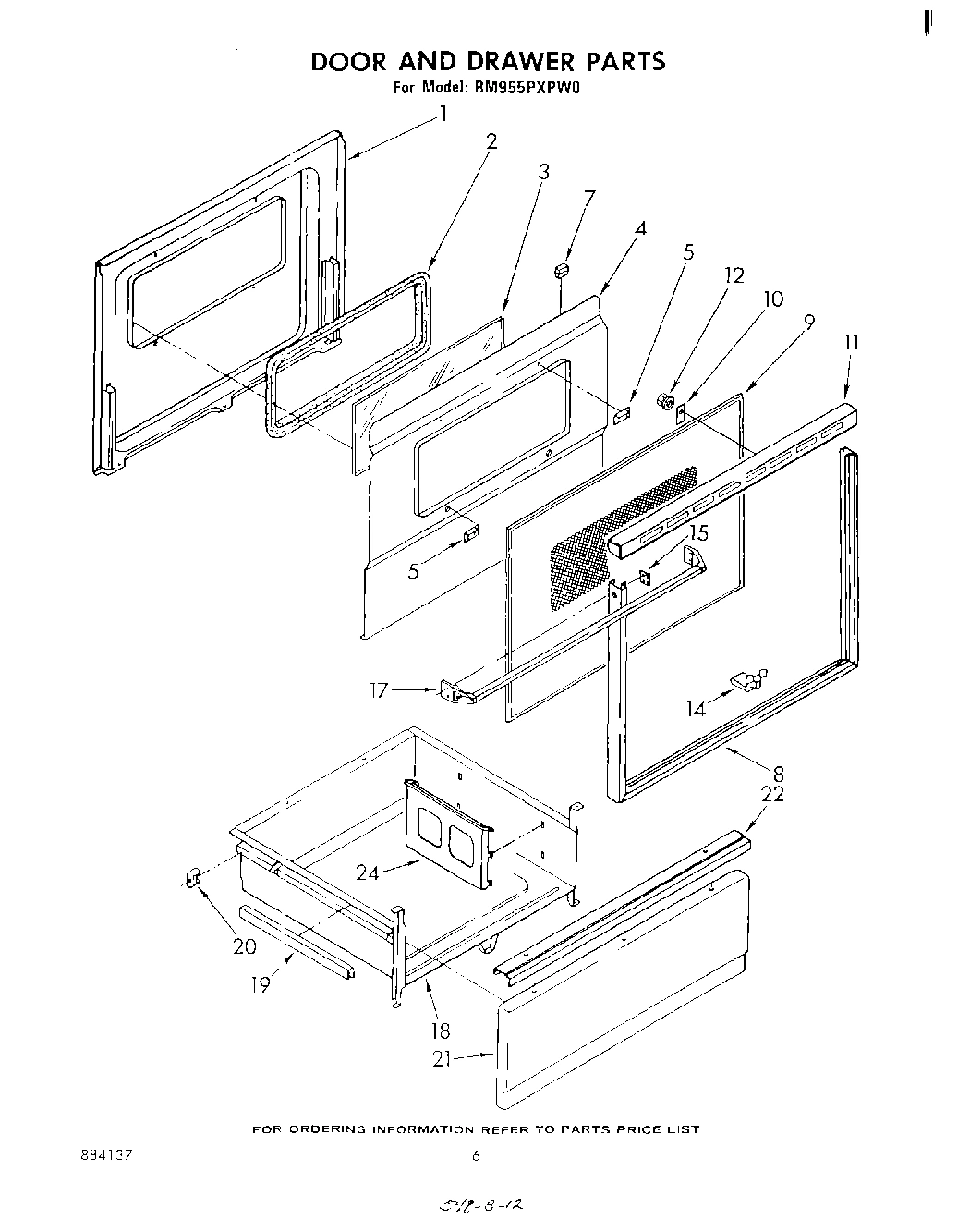

05 - DOOR AND DRAWER

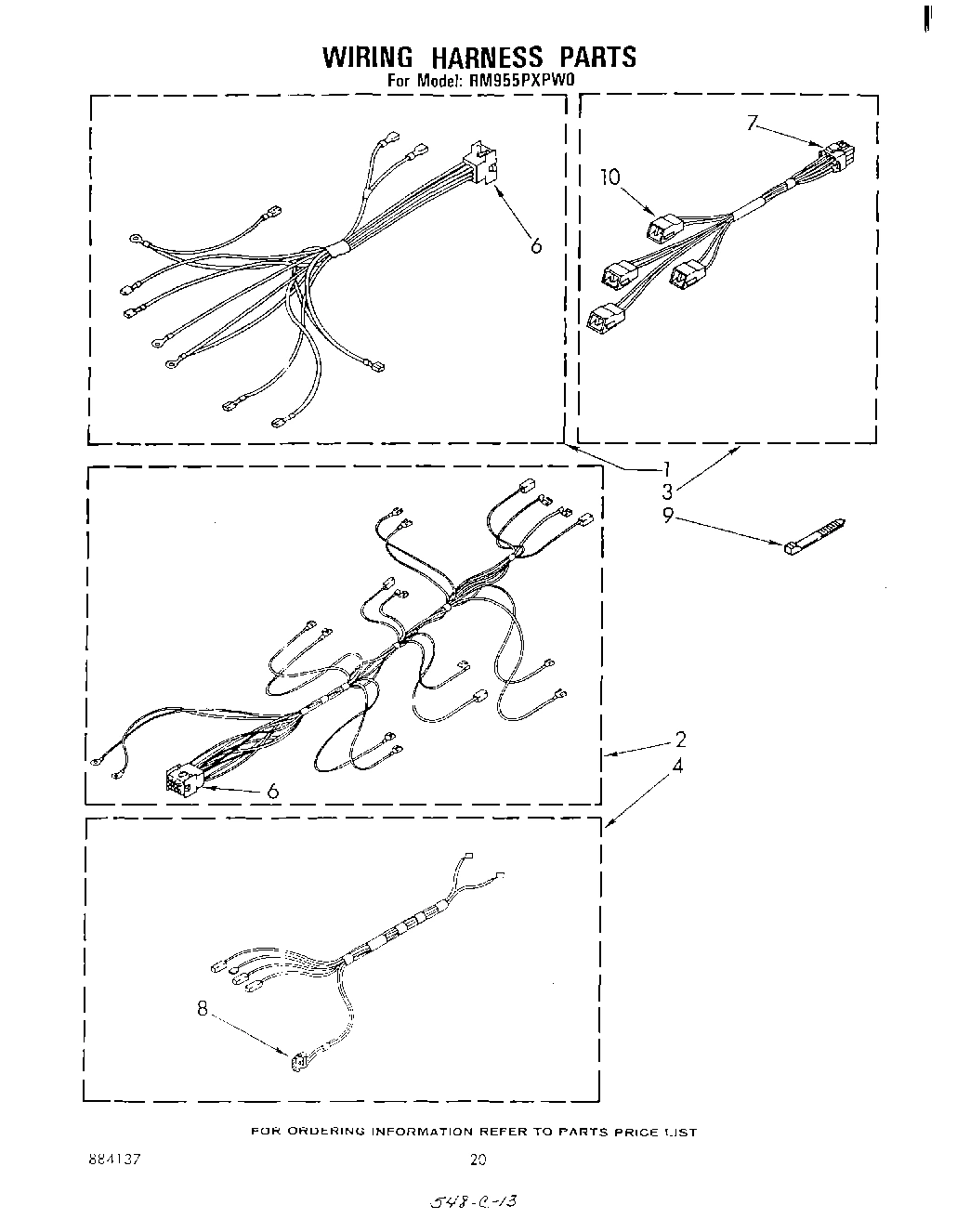

12 - SECTION

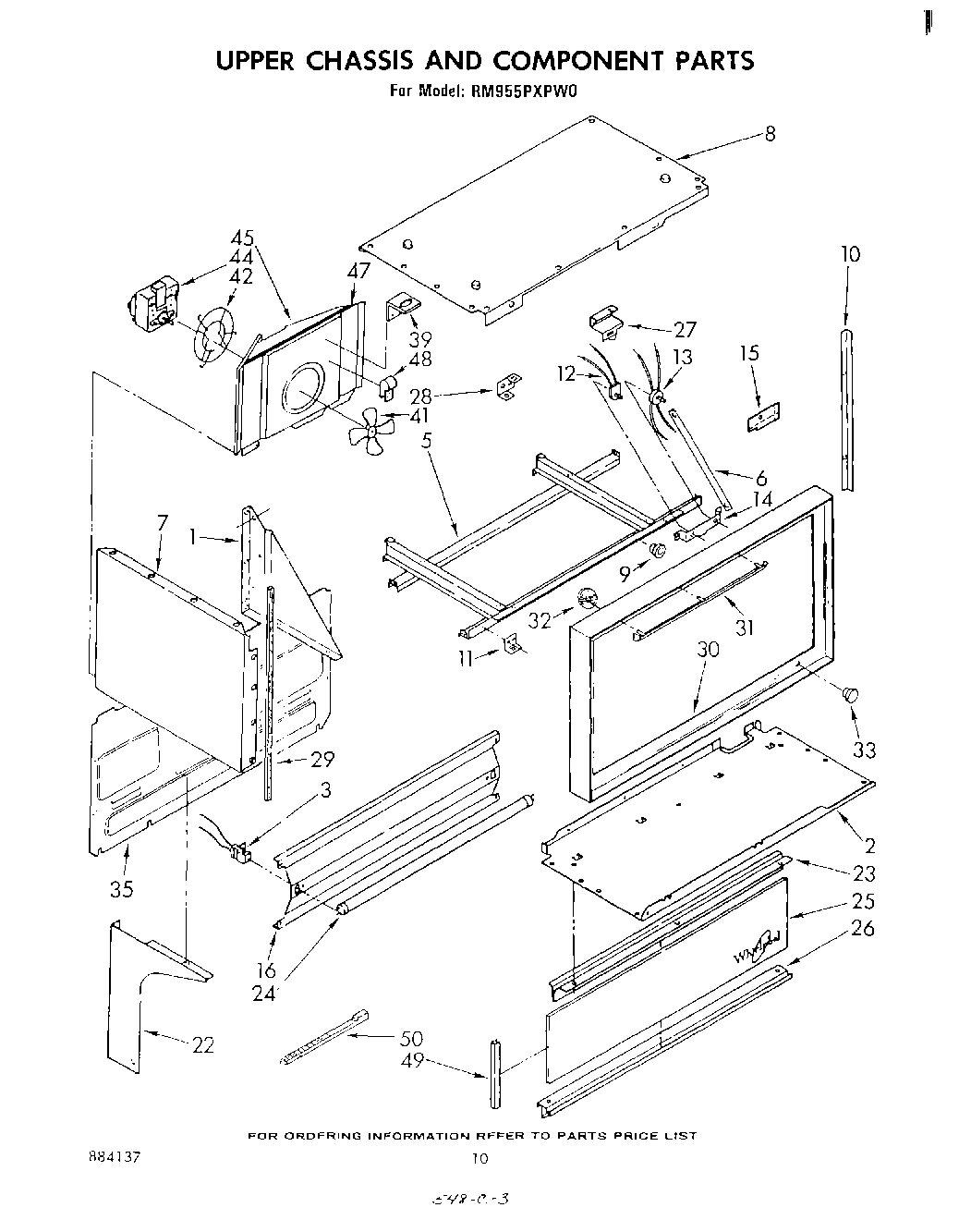

07 - UPPER CHASSIS AND COMPONENT

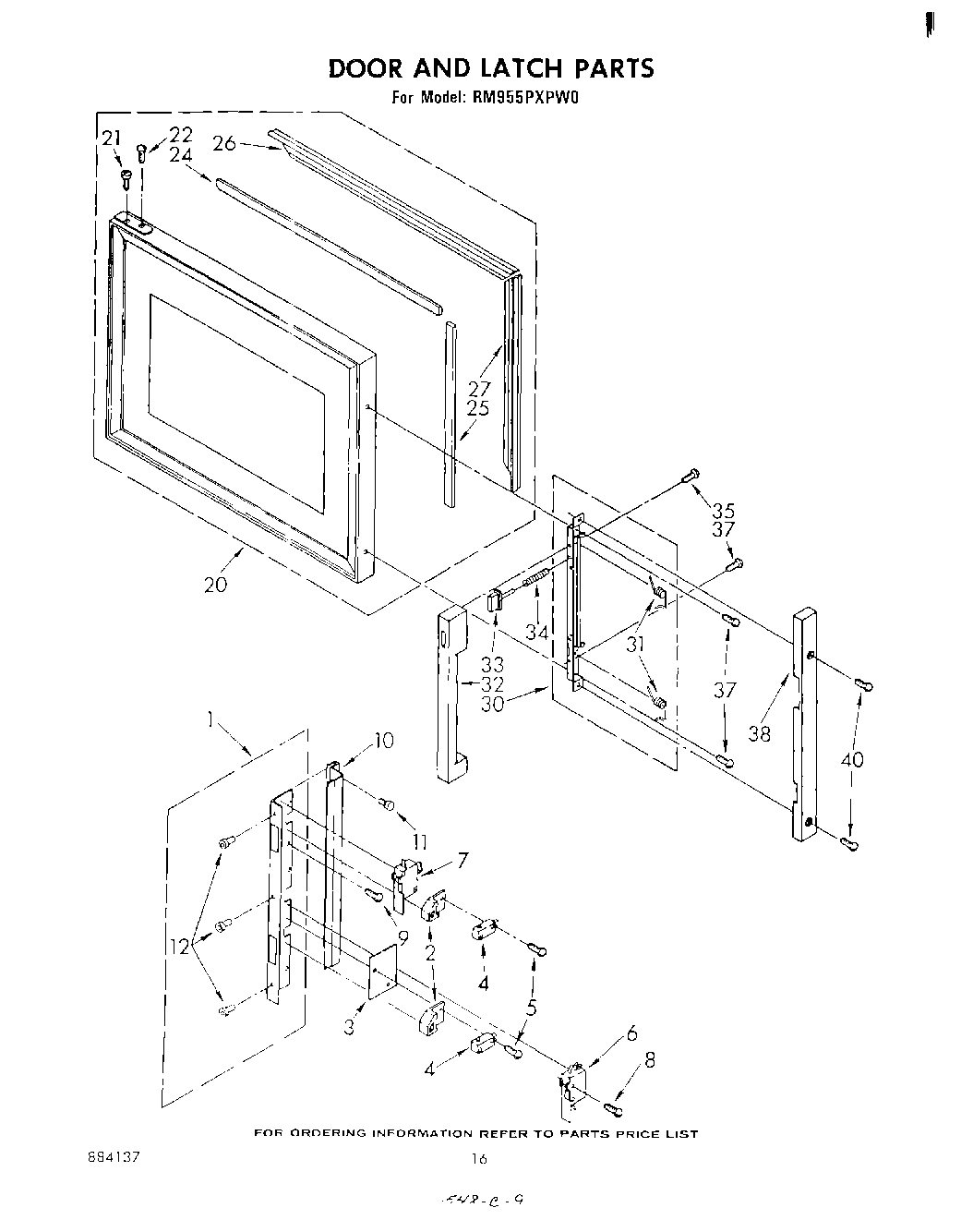

10 - DOOR AND LATCH

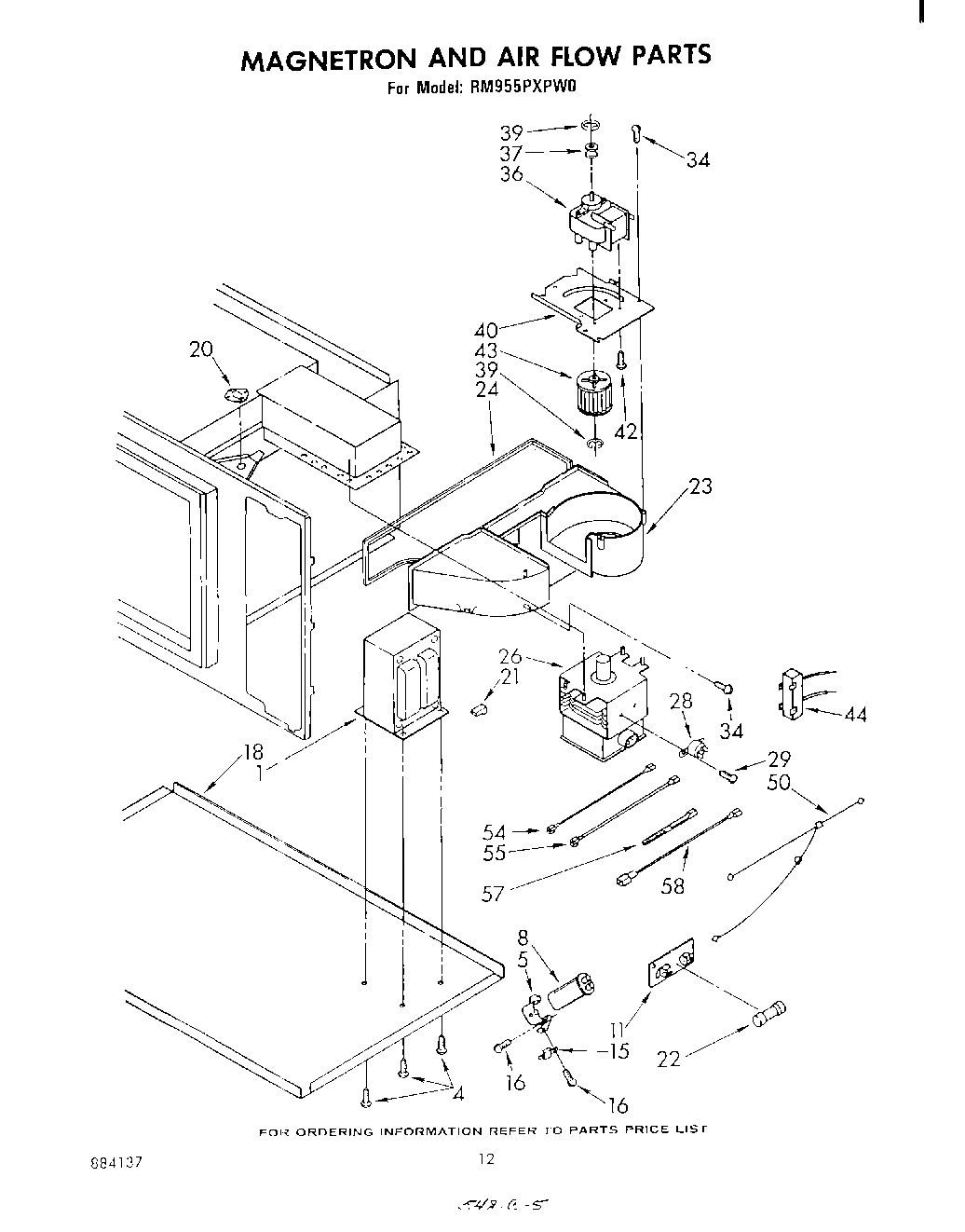

08 - MAGNETRON AND AIRFLOW

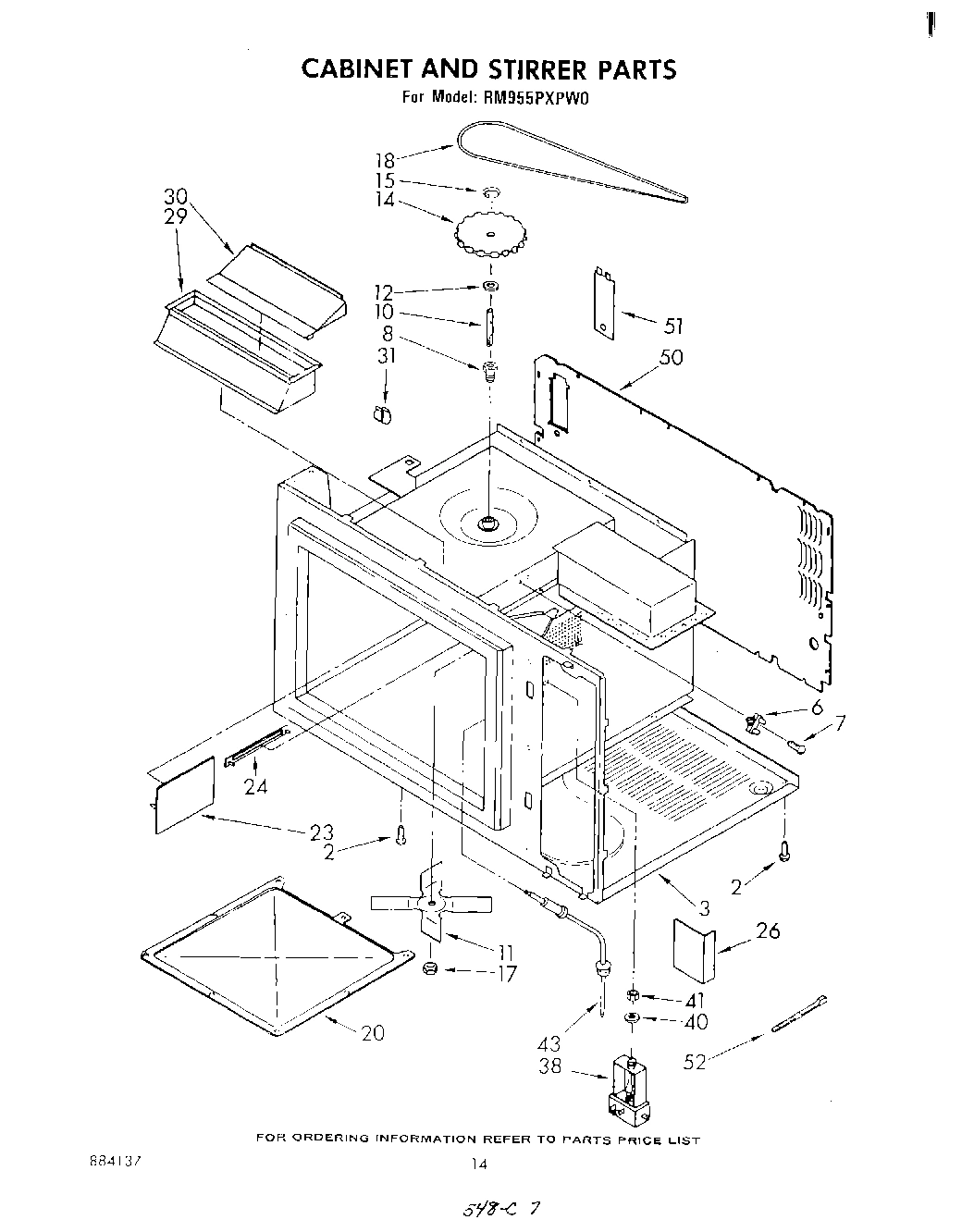

09 - CABINET AND STIRRER
Common parts from model Whirlpool RM955PXPW0
Unit, Broil (208V) WPL 312308 Contact Us For Availability
WPL LIT311892 WPL LIT311892 Contact Us For Availability
WPL LIT312876 WPL LIT312876 Contact Us For Availability
WPL LIT312879 WPL LIT312879 Contact Us For Availability
WPL LIT313353 WPL LIT313353 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT313480 WPL LIT313480 Contact Us For Availability
WPL LIT884137 WPL LIT884137 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 330089 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Main Chassis (Toast) WPL 330091 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330092 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Harness, Wiring (Main) WPL 313414 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 310804 Contact Us For Availability
1
Gusset, R.H. WPL 312810 Contact Us For Availability
1
Gusset, L.H. WPL 312812 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Transformer (Alt.) WPL 312848 Contact Us For Availability
1
Transformer (Alt.) WPL 312849 Contact Us For Availability
1
Transformer WPL 661056 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Block, Disconnect WPL 310958 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 330015 Contact Us For Availability
2
Hinge Assembly (Top) WPL 330016 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
2
Bumper (4) WPL 312783 Contact Us For Availability
2
Harness Wiring (Infinite Switch) WPL 313419 Contact Us For Availability
2
Panel, Bottom WPL 313331 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Block, Disconnect WPL 717252 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
3
Harness Wiring (Surface Unit) WPL 311176 Contact Us For Availability
3
Socket Assembly L.H. WPL 313468 Contact Us For Availability
3
Socket Assembly R.H. WPL 313469 Contact Us For Availability
3
Insulator WPL 313126 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123594A Contact Us For Availability
4
Frame, Front WPL 330166 Contact Us For Availability
4
Housing WPL 310241 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
4
Harness Wiring (AC Supply) WPL 313466 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
5
spacer, insulation baffle (4) WPL 258990 Contact Us For Availability
5
Screw, 10-32 x 1/2 (2) WPL 258857 Contact Us For Availability
5
Support, Frame WPL 328397 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Harness, Wiring (Control) WPL 313432 Contact Us For Availability
6
Disconnect Block WPL 309409 Contact Us For Availability
6
Strap, Support (2) WPL 311933 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313076 Contact Us For Availability
6
Switch, Light Monitor (Alt.) WPL 313124 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Thermal Fuse (Includes Illus.7) WPL 313440 Contact Us For Availability
7
Burner Box WPL 307929 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Block, Disconnect (Female) WPL 310960 Contact Us For Availability
7
Disconnect Block WPL 309406 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
7
Screw, 8-32 x 3/8 Pan Head Phillips WPL 312713 Contact Us For Availability
7
Side Panel L.H. (White) WPL 312261 Contact Us For Availability
7
Side Panel L.H. (Harvest Gold) WPL 312264 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312265 Contact Us For Availability
7
Side Panel L.H. (White) WPL 312268 Contact Us For Availability
7
Side Panel L.H. (Harvest Gold) WPL 312271 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312272 Contact Us For Availability
7
Side Panel L.H. (Toast) WPL 313161 Contact Us For Availability
7
Side Panel L.H. (Platinum) WPL 313162 Contact Us For Availability
7
Side Panel L.H. (Toast) WPL 313163 Contact Us For Availability
7
Side Panel L.H. (Platinum) WPL 313164 Contact Us For Availability
7
Switch (Alt.) WPL 313075 Contact Us For Availability
7
Switch WPL 661144 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Block, Disconnect WPL 353425 Contact Us For Availability
8
Screw, 12-24 x 3/4 (2) WPL 312742 Contact Us For Availability
8
frame, door 30`` WPL 310427 Contact Us For Availability
8
Disconnect Block WPL 309105 Contact Us For Availability
8
Top Panel (Seal, Foam) WPL 308297 Contact Us For Availability
8
Top Panel (White) WPL 312275 Contact Us For Availability
8
Top Panel (Harvest Gold) WPL 312278 Contact Us For Availability
8
Top Panel (Almond) WPL 312279 Contact Us For Availability
8
Top Panel (Toast) WPL 312280 Contact Us For Availability
8
Top Panel (Platinum) WPL 312281 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
capacitor (alt.) WPL 312631 Contact Us For Availability
8
Capacitor (Alt.) WPL 312632 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Oven (30`` Continuous Clean) WPL 329001 Contact Us For Availability
9
Block, Disconnect WPL 310957 Contact Us For Availability
9
Rivet (3) WPL 313456 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Bushing WPL 309552 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Harness, Selector Thermostat WPL 313436 Contact Us For Availability
10
Shelf, Microwave (Alt.) WPL 311058 Contact Us For Availability
10
Shelf, Microwave (Alt.) (Install W/Silastic N WPL 312579 Contact Us For Availability
10
Shelf, Microwave WPL 660561 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
10
Angle, Side Panel R.H. WPL 309629 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Seal, Foam WPL 313501 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Bracket, Frame Mounting (3) WPL 309454 Contact Us For Availability
11
Fastener (2) WPL 310423 Contact Us For Availability
11
Block, Fuse WPL 309795 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
12
WPL 799344 WPL 799344 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Leveler, Enamel WPL 206925 Contact Us For Availability
12
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
12
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
12
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
12
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
12
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
12
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
12
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
12
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
12
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
12
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
12
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
12
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
12
Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability
12
Touch-Up, Oven WPL 254323 Contact Us For Availability
12
Grease WPL 261582 Contact Us For Availability
12
Harvest Gold WPL 261890 Contact Us For Availability
12
Harvest Gold WPL 261891 Contact Us For Availability
12
Toast WPL 285365 Contact Us For Availability
12
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
12
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
12
Platinum (Uncut) WPL 285368 Contact Us For Availability
12
Browning Tray (Micro) WPL 307677 Contact Us For Availability
12
Rack, Meat (Micro) WPL 310878 Contact Us For Availability
12
WPL 591014 WPL 591014 Contact Us For Availability
12
WPL 72112 WPL 72112 Contact Us For Availability
12
WPL 799340 WPL 799340 Contact Us For Availability
12
WPL 799832 WPL 799832 Contact Us For Availability
12
WPL 978883 WPL 978883 Contact Us For Availability
12
Push, Switch WPL 313484 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
13
Cooktop (Harvest Gold) WPL 307863 Contact Us For Availability
13
Cooktop (White) WPL 307866 Contact Us For Availability
13
Cooktop (Almond) WPL 307871 Contact Us For Availability
13
Cooktop (Toast) WPL 313165 Contact Us For Availability
13
Cooktop (Platinum) WPL 313166 Contact Us For Availability
13
Spring, Door Stop WPL 308207 Contact Us For Availability
13
Switch, Fluorescent Light WPL 313483 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
clip, glass (10) WPL 310706 Contact Us For Availability
14
Bracket, Switch Mounting WPL 309455 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
15
Seal, Oven WPL 309107 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Clip (2) WPL 311506 Contact Us For Availability
15
Barrier WPL 313741 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
16
Channel, Arm (2) WPL 329712 Contact Us For Availability
16
Screw, 10A x 1/2 (4) WPL 246134 Contact Us For Availability
16
Panel, Backguard WPL 313577 Contact Us For Availability
17
Handle, Oven Door WPL 312722 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123593A Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
19
Vent, Oven WPL 307960 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Door WPL 329629 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Stirrer Cover WPL 313074 Contact Us For Availability
21
Knob, Timer WPL 313047 Contact Us For Availability
21
Shield, Lamp WPL 309554 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
21
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
22
Knob, Timer (2) WPL 313439 Contact Us For Availability
22
End Trim R.H. WPL 308043 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
22
WPL 330194 WPL 330194 Contact Us For Availability
22
WPL 330195 WPL 330195 Contact Us For Availability
22
WPL 330196 WPL 330196 Contact Us For Availability
22
WPL 330197 WPL 330197 Contact Us For Availability
22
WPL 330198 WPL 330198 Contact Us For Availability
22
WPL 330200 WPL 330200 Contact Us For Availability
22
WPL 330201 WPL 330201 Contact Us For Availability
22
WPL 330202 WPL 330202 Contact Us For Availability
22
WPL 330203 WPL 330203 Contact Us For Availability
22
WPL 330204 WPL 330204 Contact Us For Availability
23
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Spring WPL 313311 Contact Us For Availability
23
WPL 313320 WPL 313320 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
24
Spring (4) WPL 308348 Contact Us For Availability
24
Bezel, Control Knob (4) WPL 309556 Contact Us For Availability
24
Rack, Literature WPL 357645 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alt.) WPL 313717 Contact Us For Availability
24
Seal, Top & Bottom (2) WPL 660574 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
WPL 313322 WPL 313322 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
Seal, Sides (Alt.) WPL 313718 Contact Us For Availability
25
Seal, Sides WPL 660575 Contact Us For Availability
26
Knob, Control (4) WPL 313307 Contact Us For Availability
26
Support, Tubing R.H. WPL 313327 Contact Us For Availability
26
Support, Tubing L.H. WPL 313329 Contact Us For Availability
26
WPL 313321 WPL 313321 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
26
Magnetron (Alt.) WPL 311992 Contact Us For Availability
26
Magnetron (Alt.) WPL 311993 Contact Us For Availability
26
Magnetron (Alt.) WPL 311994 Contact Us For Availability
26
Magnetron (Alt.) WPL 311995 Contact Us For Availability
26
Magnetron (Alt.) WPL 313034 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
26
Shield, Exhaust WPL 312577 Contact Us For Availability
27
WPL 311953 WPL 311953 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
28
Knob, Thermostat WPL 328709 Contact Us For Availability
28
WPL 312237 WPL 312237 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
28
Thermal Protector (Alt.) WPL 313521 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
29
Screw WPL 310410 Contact Us For Availability
29
Knob, Selector WPL 328707 Contact Us For Availability
29
Screw, WPL 312782 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
30
Board, Power Control WPL ARI123592A Contact Us For Availability
30
WPL 246135 WPL 246135 Contact Us For Availability
30
Hole Plug (4) WPL 312214 Contact Us For Availability
30
WPL 312599 WPL 312599 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
31
WPL 309499 WPL 309499 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
32
Potentiometer WPL 60728 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
33
Shaft, Potentiometer WPL 313345 Contact Us For Availability
33
Ballast (Alt.) WPL 346772 Contact Us For Availability
33
Ballast WPL 660001 Contact Us For Availability
33
Ballast (Alt.) WPL 685591 Contact Us For Availability
33
WPL 313030 WPL 313030 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
34
Support (4) WPL 313087 Contact Us For Availability
34
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
35
Nut, Extension (4) WPL 309645 Contact Us For Availability
35
Plate Cover WPL 310952 Contact Us For Availability
35
WPL 308112 WPL 308112 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
36
Transmotor (Alt.) WPL 312140 Contact Us For Availability
36
Transmotor (Alt.) WPL 312613 Contact Us For Availability
36
Transmotor WPL 661003 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
End Cap WPL 312350 Contact Us For Availability
38
Jack, Probe WPL 313459 Contact Us For Availability
39
WPL 308839 WPL 308839 Contact Us For Availability
40
Screw, 8-32 x 5/1 WPL 310210 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
41
WPL 307535 WPL 307535 Contact Us For Availability
41
WPL 307602 WPL 307602 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
42
WPL 247326 WPL 247326 Contact Us For Availability
42
WPL 310420 WPL 310420 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
43
Probe, Temperature WPL 313044 Contact Us For Availability
44
WPL 312389 WPL 312389 Contact Us For Availability
44
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
44
Screw, 10-32 x 5/16 (2) WPL 166681 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312640 Contact Us For Availability
44
Clip WPL 312763 Contact Us For Availability
44
Reed Relay (Alt.) WPL 312784 Contact Us For Availability
44
Reed Relay WPL 661005 Contact Us For Availability
45
WPL 312340 WPL 312340 Contact Us For Availability
48
WPL 254217 WPL 254217 Contact Us For Availability
49
WPL 313319 WPL 313319 Contact Us For Availability
50
Cable, Support WPL 312764 Contact Us For Availability
50
Cover, Rear WPL 312257 Contact Us For Availability
51
Cover, Light WPL 312379 Contact Us For Availability
54
Jumper, High Voltage (Black 6-5/16``) WPL 313129 Contact Us For Availability
55
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
58
High Voltage Lead, Gray (7-11/16``) (2) WPL 313113 Contact Us For Availability
× ![]()
