Model Whirlpool RM955PXLW2 – Common Parts & Diagrams
07 - CONTROL PANEL
09 - MAGNETRON AND AIR FLOW

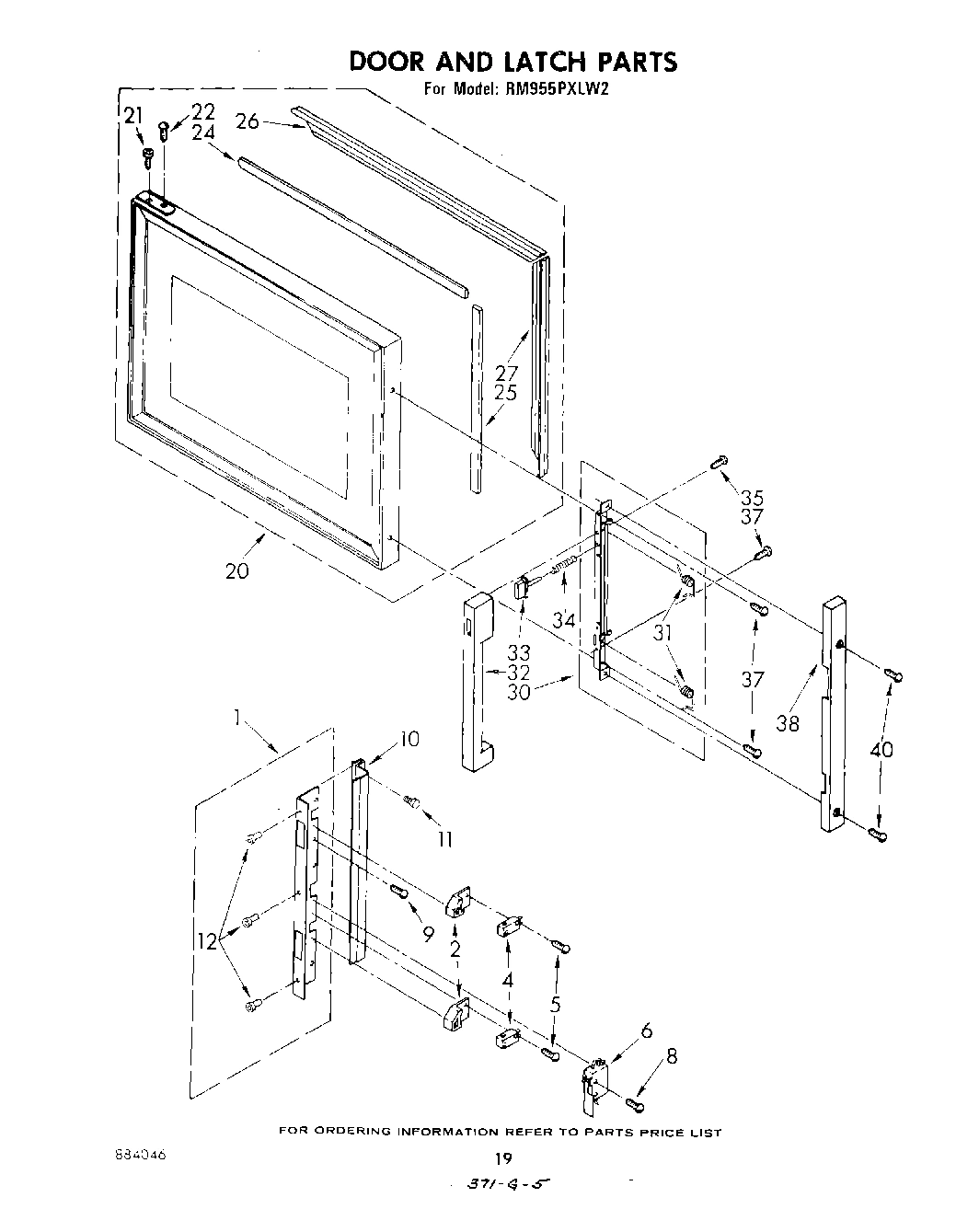

11 - DOOR AND LATCH

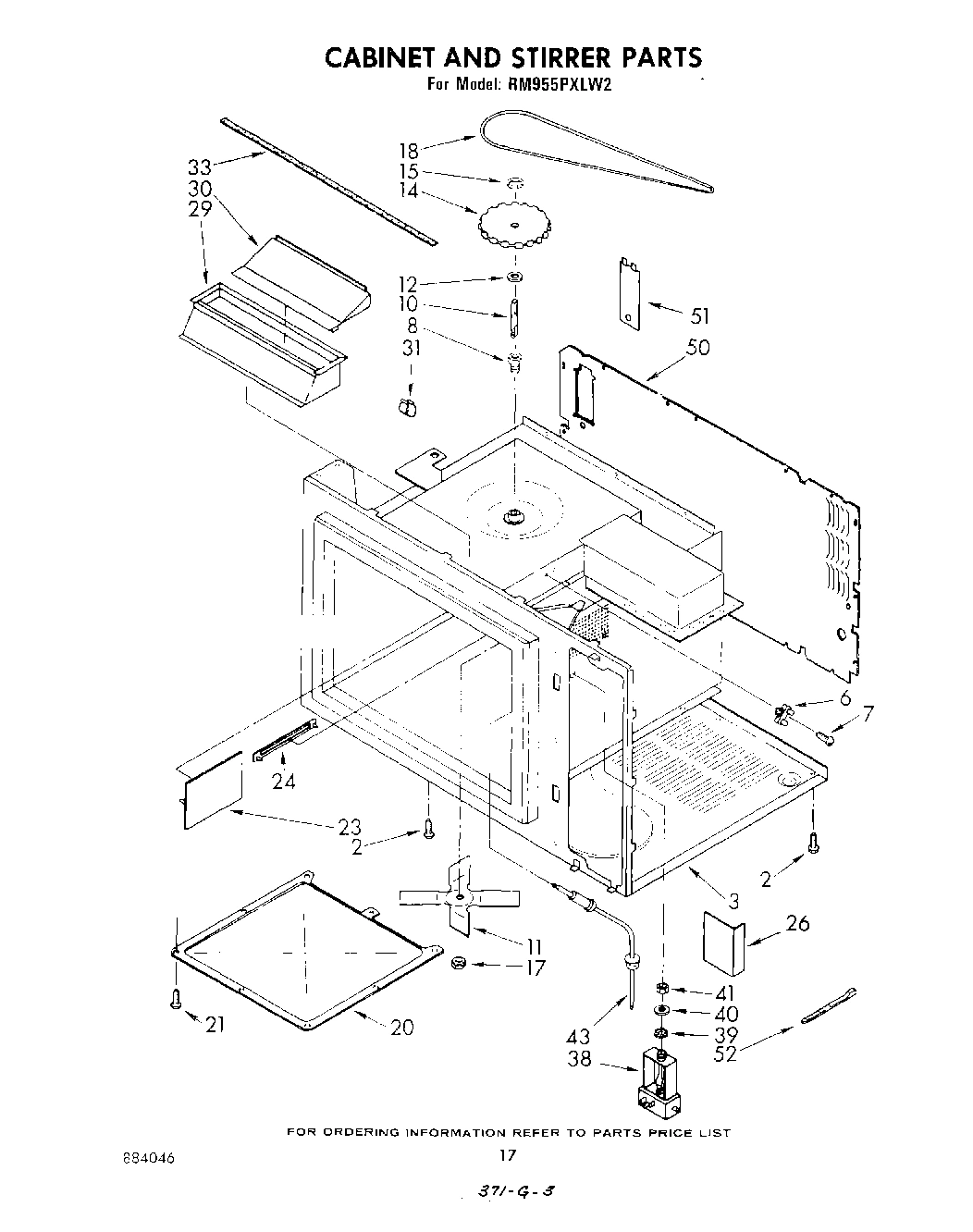

10 - CABINET AND STIRRER

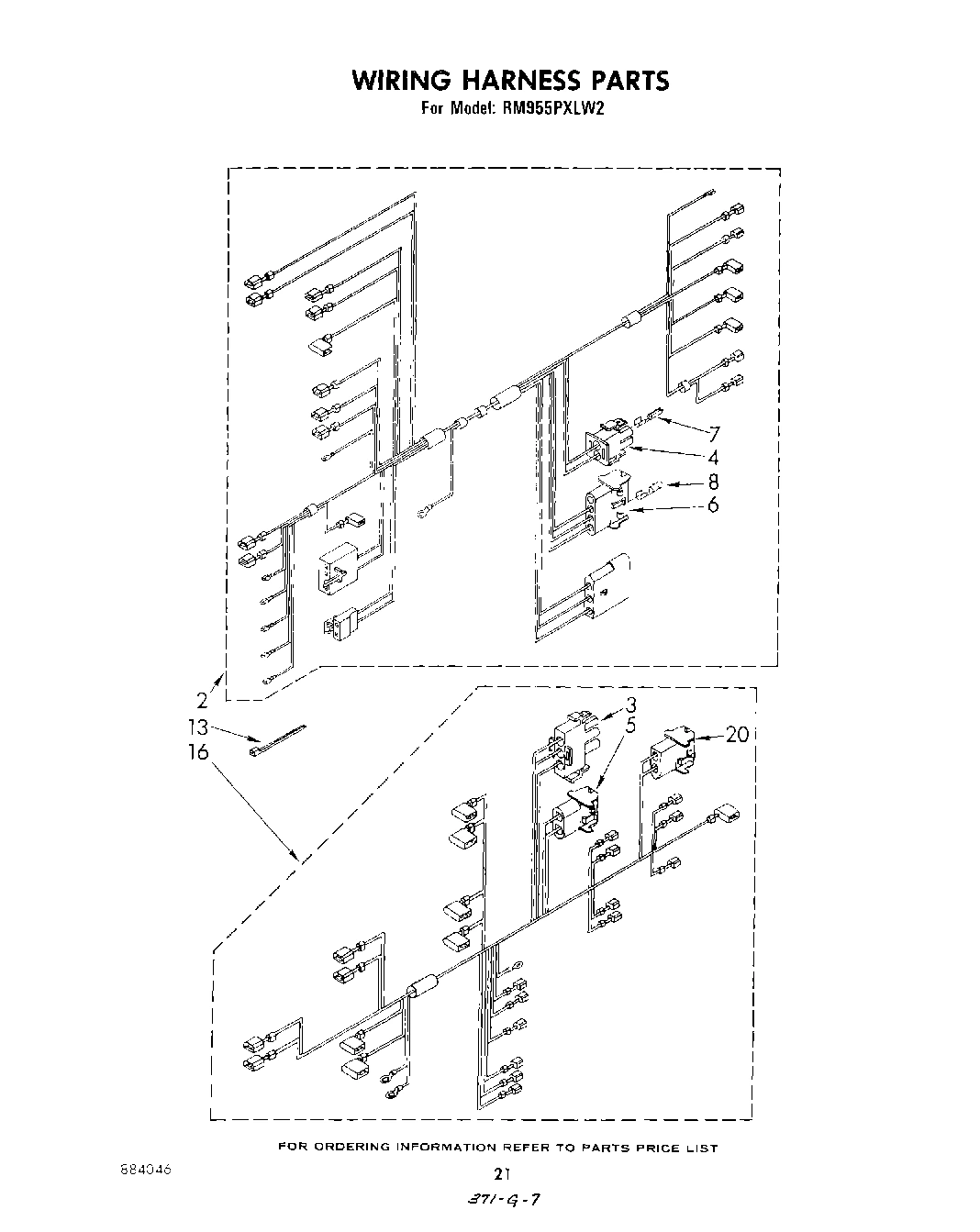

12 - WIRING HARNESS , LITERATURE AND OPTIONAL

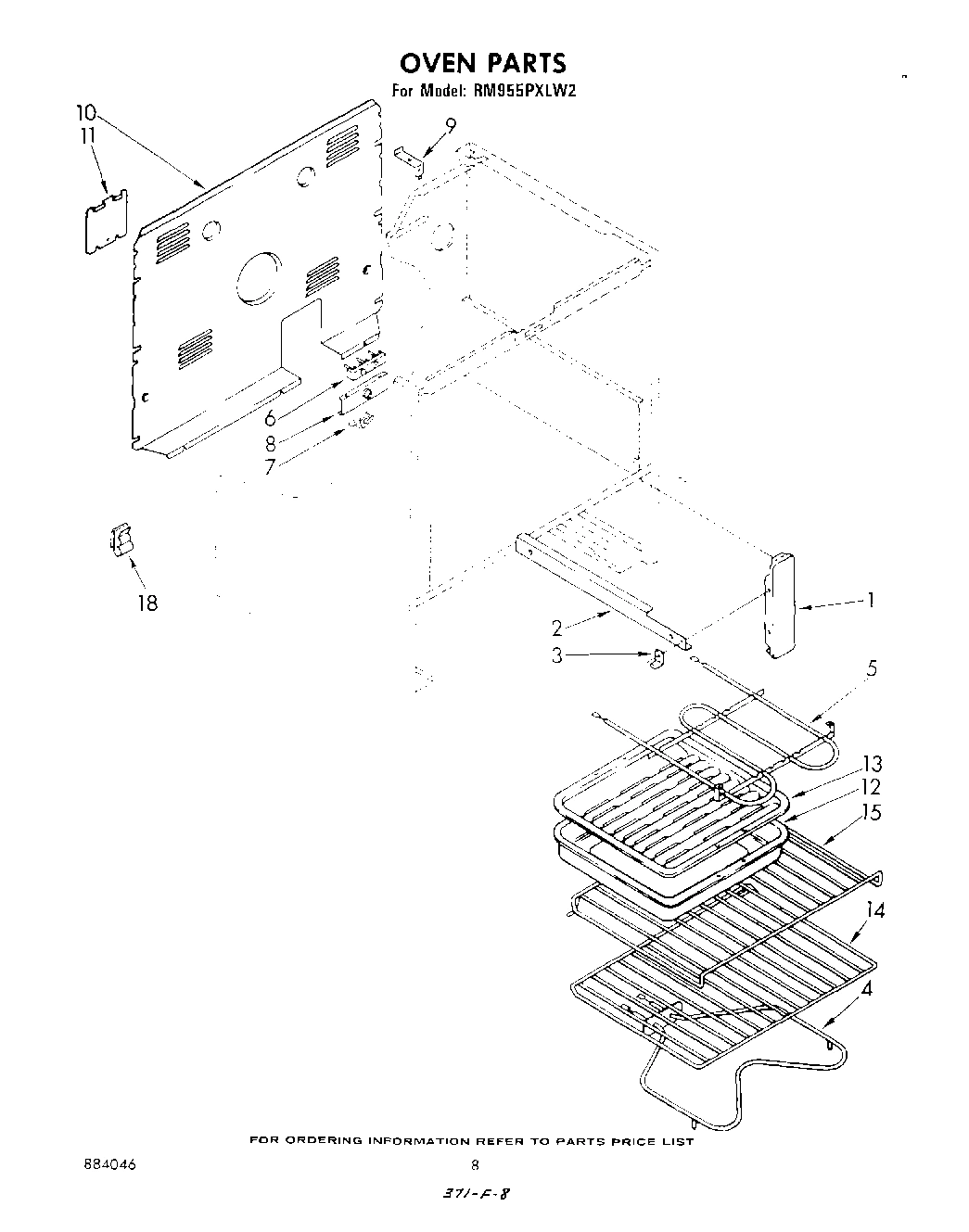

05 - OVEN (CONTINUED)

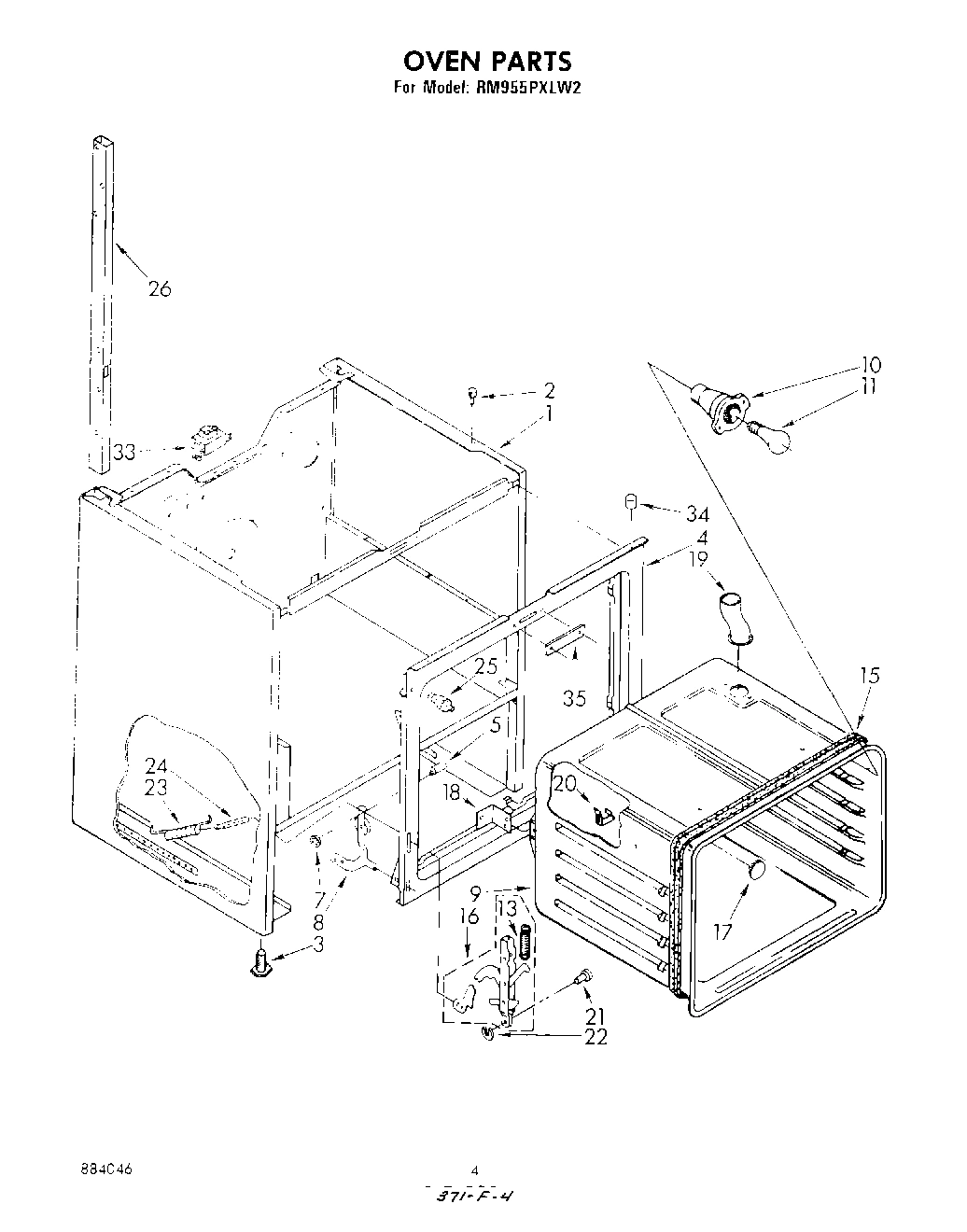

03 - OVEN

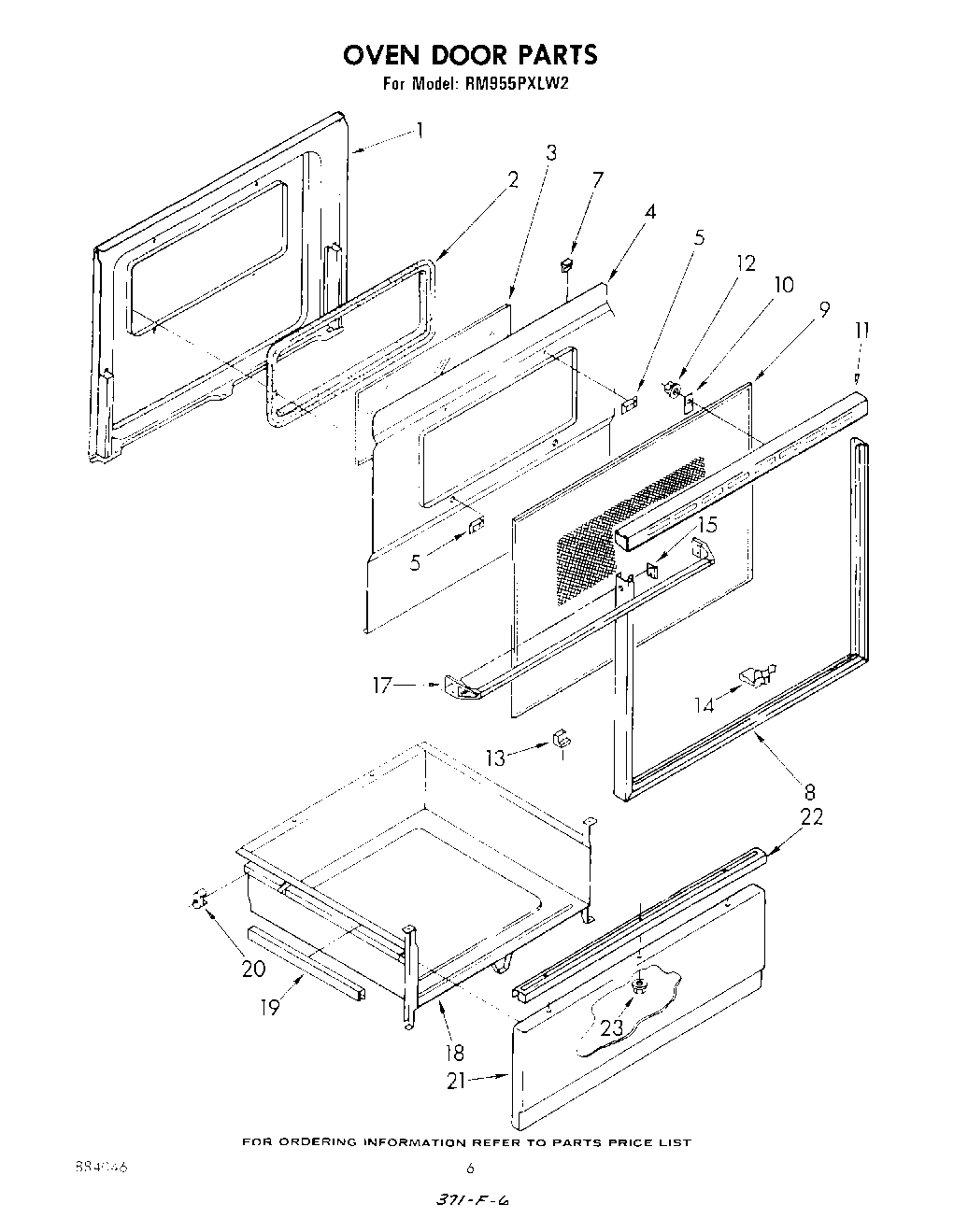

04 - OVEN DOOR

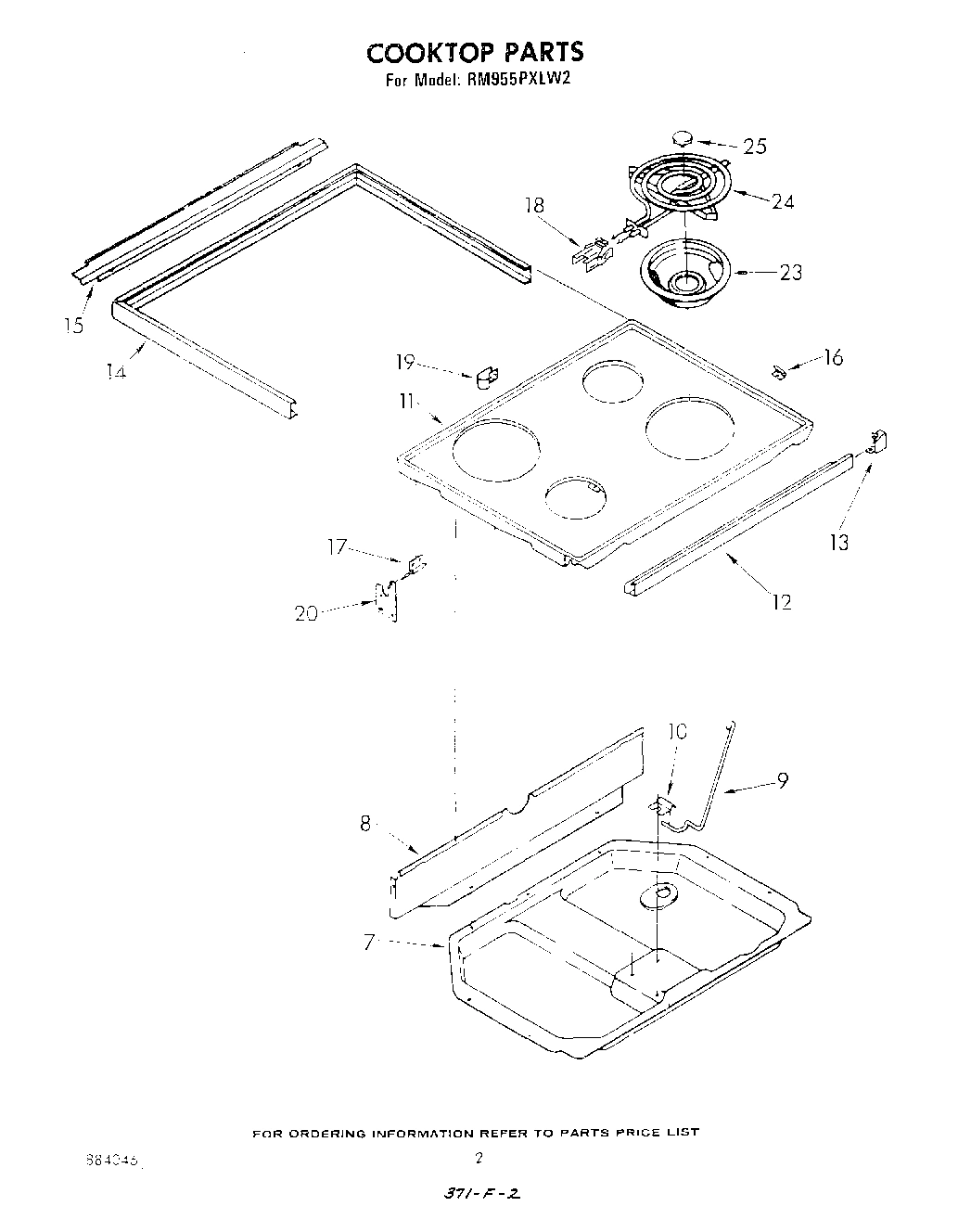

02 - COOK TOP

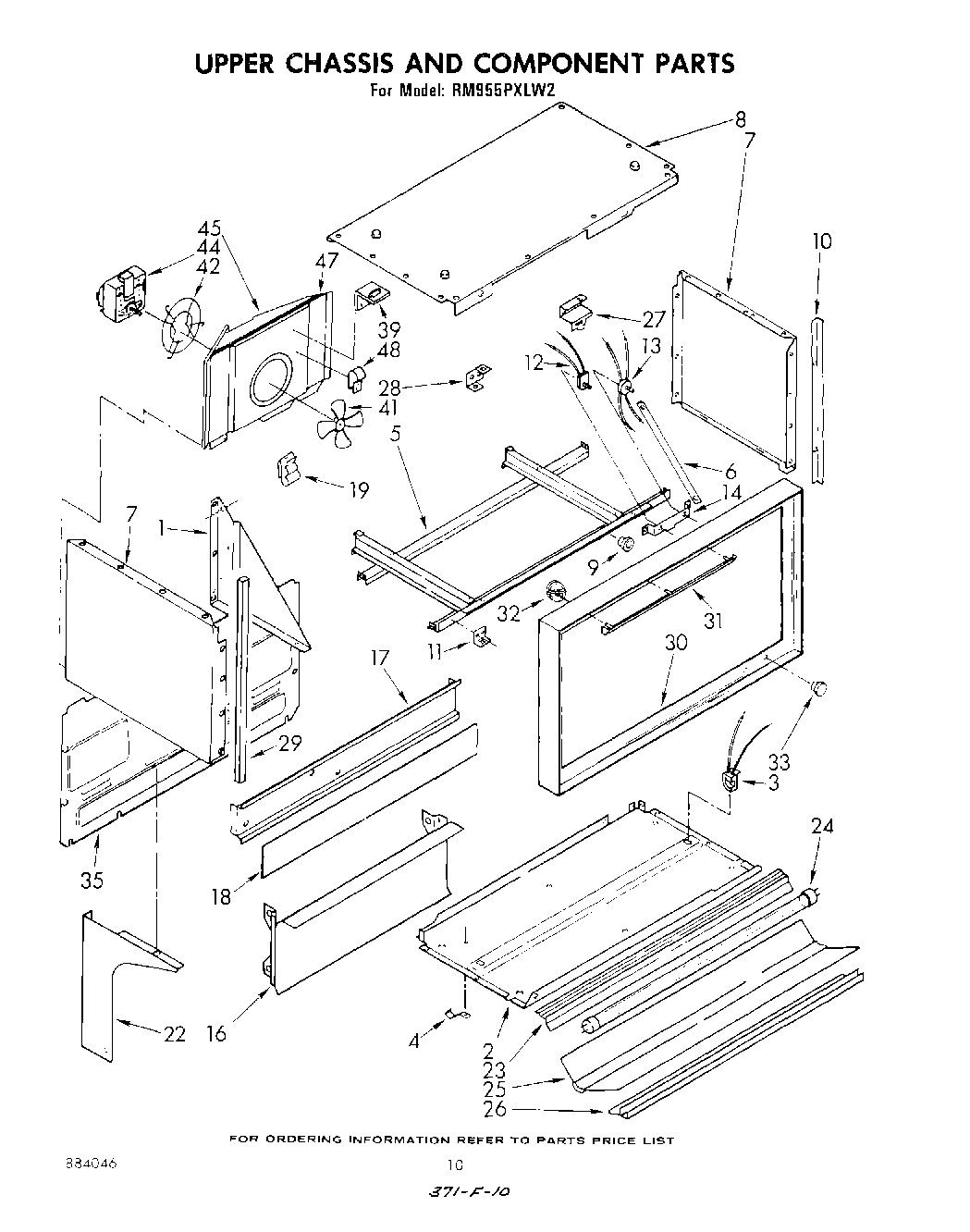

06 - UPPER CHASSIS AND COMPONENTS

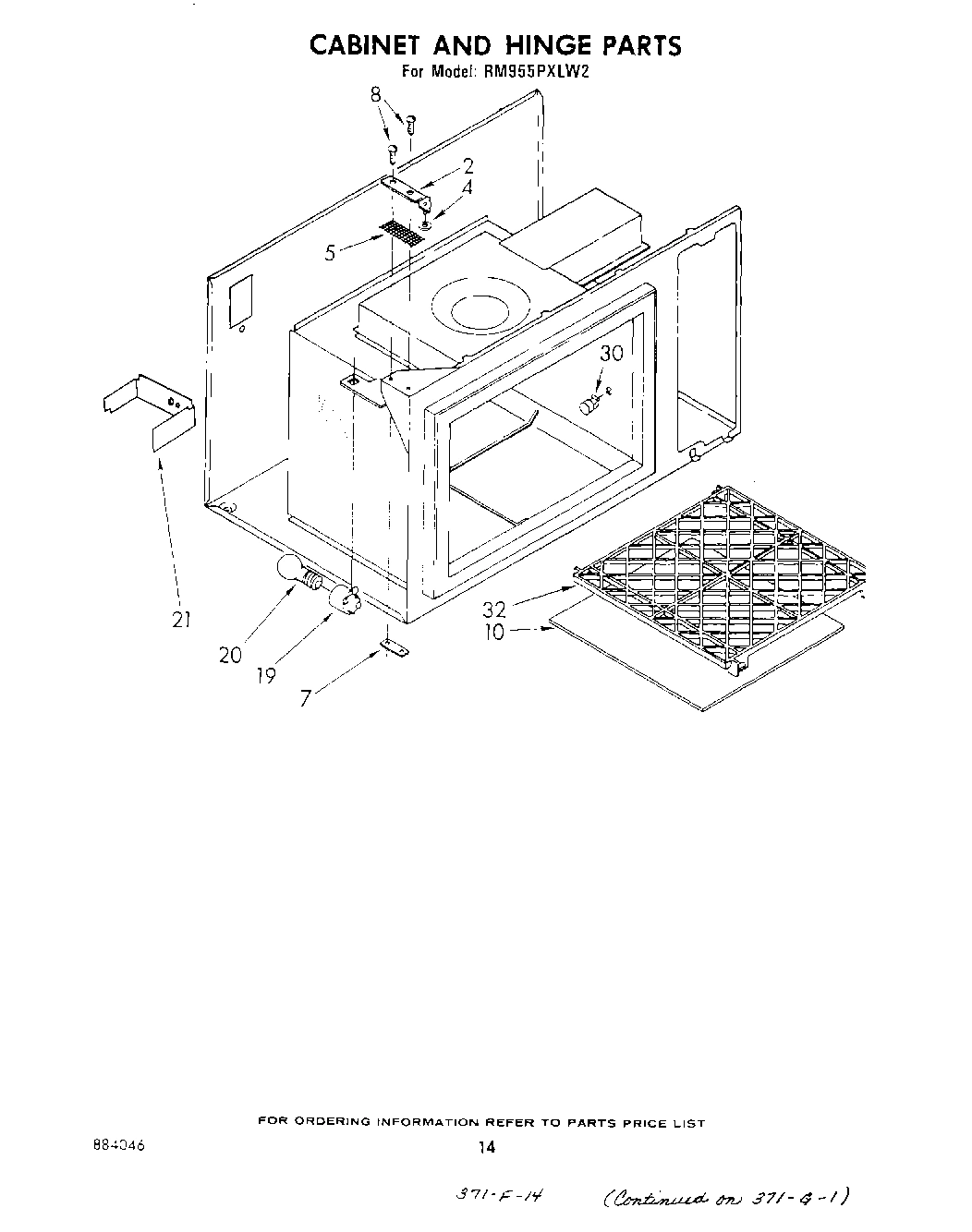

08 - CABINET AND HINGE
Common parts from model Whirlpool RM955PXLW2
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 285367 WPL 285367 Contact Us For Availability
WPL 285368 WPL 285368 Contact Us For Availability
WPL 799340 WPL 799340 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Transformer (Alternate) WPL 312848 Contact Us For Availability
1
Transformer (Alternate) WPL 312849 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 329962 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 329965 Contact Us For Availability
1
Main Chassis (Almond) WPL 329966 Contact Us For Availability
1
Main Chassis (Toast) WPL 330093 Contact Us For Availability
1
Main Chassis (Platinum) WPL 330094 Contact Us For Availability
1
screw, (4) WPL 311056 Contact Us For Availability
1
liner, door WPL 329685 Contact Us For Availability
1
Gusset, R.H. WPL 312810 Contact Us For Availability
1
Gusset, L.H. WPL 312812 Contact Us For Availability
2
Bracket, Transformer WPL 312645 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Harness, Wiring Control WPL 312434 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
seal, pano glass WPL 258711 Contact Us For Availability
2
Panel, Bottom WPL 309506 Contact Us For Availability
2
Hinge Assembly (Bottom) WPL 330015 Contact Us For Availability
2
Hinge Assembly (Top) WPL 330016 Contact Us For Availability
3
Base, Cabinet (Not Serviceable) WPL ARI123591A Contact Us For Availability
3
Plug, Circuit (4 Terminal) WPL 310958 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
glass, inner 30`` WPL 258988 Contact Us For Availability
3
Socket Assembly, L. H. WPL 310803 Contact Us For Availability
3
Socket Assembly, R.H. WPL 328277 Contact Us For Availability
4
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring ( WPL 312185 Contact Us For Availability
4
Plug, Circuit (2 Terminal) WPL 310957 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
4
baffle, insulation WPL 307924 Contact Us For Availability
4
Spring, Glass Retainer (4) WPL 308894 Contact Us For Availability
4
Washer, Flat WPL 312147 Contact Us For Availability
5
Bracket, Capacitor WPL 311917 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (4) WPL 312717 Contact Us For Availability
5
Cap, Circuit (2 Terminal) WPL 310959 Contact Us For Availability
5
Unit, Broil (Screw, 10-32 x 5/8 (2)) WPL 246127 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
spacer, insulation baffle (4) WPL 258990 Contact Us For Availability
5
Support, Frame WPL 328397 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 312744 Contact Us For Availability
6
Switch, Light/ Monitor WPL 311355 Contact Us For Availability
6
Thermal Fuse (Includes Illus. 7) WPL 309279 Contact Us For Availability
6
Cap, Circuit (4 Terminal) WPL 310960 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Strap, Support (2) WPL 311933 Contact Us For Availability
7
Strap, Capacitor WPL 311918 Contact Us For Availability
7
Pin, Male WPL 310222 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Bumper (4) WPL 312783 Contact Us For Availability
7
burner box WPL 308827 Contact Us For Availability
7
Side Panel L.H. (White) WPL 312261 Contact Us For Availability
7
Side Panel L.H. (Harvest Gold) WPL 312264 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312265 Contact Us For Availability
7
Side Panel L.H. (White) WPL 312268 Contact Us For Availability
7
Side Panel L.H. (Harvest Gold) WPL 312271 Contact Us For Availability
7
Side Panel L.H. (Almond) WPL 312272 Contact Us For Availability
7
Side Panel L.H. (Toast) WPL 313161 Contact Us For Availability
7
Side Panel L.H. (Platinum) WPL 313162 Contact Us For Availability
7
Side Panel L.H. (Toast) WPL 313163 Contact Us For Availability
7
Side Panel L.H. (Platinum) WPL 313164 Contact Us For Availability
7
Plate, Nut (2) WPL 312741 Contact Us For Availability
8
Top Panel (Seal, Foam) WPL 308297 Contact Us For Availability
8
Capacitor (Alternate) WPL 312631 Contact Us For Availability
8
Capacitor (Alternate) WPL 312632 Contact Us For Availability
8
Screw, 6-32 x 7/8 Hex Washer Head Unslotted T WPL 98106 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Pin, Female WPL 310223 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
frame, door 30`` WPL 310427 Contact Us For Availability
8
Shield, Wiring WPL 308968 Contact Us For Availability
8
Top Panel (White) WPL 312275 Contact Us For Availability
8
Top Panel (Harvest Gold) WPL 312278 Contact Us For Availability
8
Top Panel (Almond) WPL 312279 Contact Us For Availability
8
Top Panel (Toast) WPL 312280 Contact Us For Availability
8
Top Panel (Platinum) WPL 312281 Contact Us For Availability
8
Screw, 12-24 x 3/4 (2) WPL 312742 Contact Us For Availability
9
Screw, 8-32 x 3/8 Slot Hex Washer Head Self-T WPL 309080 Contact Us For Availability
9
Stand-Off (Bracket) WPL 309102 Contact Us For Availability
9
Oven (30`` Continuous Clean) WPL 329001 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
9
Rod, Cooktop WPL 307968 Contact Us For Availability
9
Bushing WPL 309552 Contact Us For Availability
10
Shield WPL 311359 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alternate) WPL 310208 Contact Us For Availability
10
hold down, glass (2) WPL 310705 Contact Us For Availability
10
Retainer, Cooktop WPL 307967 Contact Us For Availability
10
Angle, Side Panel R.H. WPL 309629 Contact Us For Availability
10
Shelf, Microwave (Alternate) WPL 311058 Contact Us For Availability
10
Shelf, Microwave (Alternate (Install W/Silast WPL 312579 Contact Us For Availability
11
Fuseblock WPL 311941 Contact Us For Availability
11
Stirrer Blade WPL 309976 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Top, Door Frame WPL 310428 Contact Us For Availability
11
Cooktop (Harvest Gold) WPL 308424 Contact Us For Availability
11
Cooktop (White) WPL 308427 Contact Us For Availability
11
Cooktop (Almond) WPL 309013 Contact Us For Availability
11
Cooktop (Toast) WPL 313169 Contact Us For Availability
11
Cooktop (Platinum) WPL 313170 Contact Us For Availability
11
Cooktop (Clip (2)) WPL 338177 Contact Us For Availability
11
Bracket, Frame Mounting (3) WPL 309454 Contact Us For Availability
12
Rivet, Pop (3) WPL 311928 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
trim, cooktop front WPL 311911 Contact Us For Availability
12
Push Switch WPL 311441 Contact Us For Availability
13
Spring, Door Stop WPL 308207 Contact Us For Availability
13
Seal, Foam (2) WPL 308293 Contact Us For Availability
13
end cap trim l.h. WPL 308444 Contact Us For Availability
13
end cap trim r.h. WPL 308445 Contact Us For Availability
13
Screw, 8A x 3/8 (2) WPL 309051 Contact Us For Availability
13
Clip (4) WPL 98084 Contact Us For Availability
13
Switch, Fluorescent Light WPL 309550 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
clip, glass (10) WPL 310706 Contact Us For Availability
14
trim, cooktop side & rear WPL 308619 Contact Us For Availability
14
Bracket, Switch Mounting WPL 309455 Contact Us For Availability
15
Seal, Oven WPL 309107 Contact Us For Availability
15
Rectifier, High Voltage WPL 312482 Contact Us For Availability
15
``E`` Ring WPL 311999 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Clip (2) WPL 311506 Contact Us For Availability
15
trim, rear WPL 308981 Contact Us For Availability
16
Harness, Interlock WPL 312391 Contact Us For Availability
16
Screw, 10A x 1/2 (6) WPL 307748 Contact Us For Availability
16
Channel, Arm (2) WPL 329712 Contact Us For Availability
16
bracket, cooktop (6) WPL 308621 Contact Us For Availability
16
WPL 312553 WPL 312553 Contact Us For Availability
17
Plug Button WPL 257314 Contact Us For Availability
17
Handle, Oven Door WPL 312721 Contact Us For Availability
17
Hinge, Leaf Cooktop L.H. WPL 328238 Contact Us For Availability
17
Hinge, Leaf Cooktop R.H. WPL 328239 Contact Us For Availability
17
WPL 308776 WPL 308776 Contact Us For Availability
18
Base, Chassis (Not Serviceable) WPL ARI123590A Contact Us For Availability
18
Belt, Drive WPL 311958 Contact Us For Availability
18
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
WPL 309144 WPL 309144 Contact Us For Availability
19
WPL 309211 WPL 309211 Contact Us For Availability
19
Vent, Oven WPL 312850 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Socket, Snap-In WPL 307519 Contact Us For Availability
20
Thermostat WPL 311719 Contact Us For Availability
20
Door WPL 329629 Contact Us For Availability
20
Cover, Stirrer WPL 309441 Contact Us For Availability
20
Leveler, Enamel WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Rotisserie Kit WPL 242985 Contact Us For Availability
20
Touch-Up, Oven WPL 254323 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
Harvest Gold WPL 261890 Contact Us For Availability
20
Toast WPL 285365 Contact Us For Availability
20
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
20
Browning Tray (Micro) WPL 307677 Contact Us For Availability
20
Book, Cooking Guide WPL 308500 Contact Us For Availability
20
Booklet, Probe WPL 309600 Contact Us For Availability
20
Rack, Meat (Micro) WPL 310878 Contact Us For Availability
20
Bi-Level Cooking Guide WPL 310929 Contact Us For Availability
20
Use & Care Guide WPL 311430 Contact Us For Availability
20
Installation Instructions WPL 312719 Contact Us For Availability
20
Tech Sheet WPL 312759 Contact Us For Availability
20
WPL 591014 WPL 591014 Contact Us For Availability
20
WPL 717252 WPL 717252 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799351 WPL 799351 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 884046 WPL 884046 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
hinge (2) WPL 308993 Contact Us For Availability
21
Screw, 8-32 x 3/8 WPL 312713 Contact Us For Availability
21
Housing Receptacle WPL 312813 Contact Us For Availability
21
Fastener (8) WPL 310423 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Panel, Drawer (Toast) WPL 313171 Contact Us For Availability
21
Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability
21
Shield, Lamp WPL 309554 Contact Us For Availability
22
WPL 308043 WPL 308043 Contact Us For Availability
22
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Handle, Drawer WPL 307956 Contact Us For Availability
22
WPL 308980 WPL 308980 Contact Us For Availability
22
WPL 310304 WPL 310304 Contact Us For Availability
22
WPL 328141 WPL 328141 Contact Us For Availability
22
WPL 328144 WPL 328144 Contact Us For Availability
22
WPL 328146 WPL 328146 Contact Us For Availability
22
WPL 328149 WPL 328149 Contact Us For Availability
22
WPL 328150 WPL 328150 Contact Us For Availability
22
WPL 328151 WPL 328151 Contact Us For Availability
22
WPL 328152 WPL 328152 Contact Us For Availability
22
WPL 328154 WPL 328154 Contact Us For Availability
22
WPL 328155 WPL 328155 Contact Us For Availability
22
WPL 328156 WPL 328156 Contact Us For Availability
23
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Air Duct (Horizontal) WPL 312614 Contact Us For Availability
23
Cover WPL 307516 Contact Us For Availability
23
WPL 308896 WPL 308896 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
24
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
24
Cover, Rivet WPL 309437 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311343 Contact Us For Availability
25
Seal, Sides (Alternate) WPL 311635 Contact Us For Availability
25
medallion WPL 256904 Contact Us For Availability
25
WPL 328306 WPL 328306 Contact Us For Availability
26
Magnetron (Alternate) WPL 311992 Contact Us For Availability
26
Magnetron (Alternate) WPL 311993 Contact Us For Availability
26
Magnetron (Alternate) WPL 311994 Contact Us For Availability
26
Magnetron (Alternate) WPL 311995 Contact Us For Availability
26
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
26
Shield, Exhaust WPL 312577 Contact Us For Availability
26
Support, Tubing R.H. WPL 312378 Contact Us For Availability
26
Support, Tubing L.H. WPL 312533 Contact Us For Availability
26
WPL 308897 WPL 308897 Contact Us For Availability
27
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
27
WPL 311953 WPL 311953 Contact Us For Availability
28
Thermostat, Fixed WPL 307564 Contact Us For Availability
28
WPL 312237 WPL 312237 Contact Us For Availability
29
Screw, 6A x 3/8 (2) WPL 310410 Contact Us For Availability
29
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
30
Latch Assembly WPL 329065 Contact Us For Availability
30
Air Deflector WPL 311702 Contact Us For Availability
30
WPL 312599 WPL 312599 Contact Us For Availability
30
Support, Shelf WPL 311286 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Clip, Air Cover (3) WPL 311149 Contact Us For Availability
31
WPL 309499 WPL 309499 Contact Us For Availability
32
Handle, Door WPL 312351 Contact Us For Availability
32
Shelf, Convenience WPL 311318 Contact Us For Availability
33
Button, Door Handle WPL 312349 Contact Us For Availability
33
Seal, Foam WPL 309813 Contact Us For Availability
33
Ballast (Alternate) WPL 346772 Contact Us For Availability
33
Ballast (Alternate) WPL 685591 Contact Us For Availability
33
WPL 313030 WPL 313030 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
34
Locator, Cooktop (2) WPL 311909 Contact Us For Availability
35
Screw, 8-32 Fillister Head Thread Form WPL 311959 Contact Us For Availability
35
Plate Cover WPL 310952 Contact Us For Availability
35
WPL 308112 WPL 308112 Contact Us For Availability
36
Transmotor (Alternate) WPL 312140 Contact Us For Availability
36
Transmotor (Alternate) WPL 312613 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
38
End Cap WPL 312350 Contact Us For Availability
38
Jack, Probe WPL 309637 Contact Us For Availability
39
Washer, Internal Lock WPL 312796 Contact Us For Availability
39
WPL 308839 WPL 308839 Contact Us For Availability
40
Bracket, Motor WPL 311916 Contact Us For Availability
40
Washer Probe WPL 309769 Contact Us For Availability
41
Nut WPL 309768 Contact Us For Availability
41
WPL 307535 WPL 307535 Contact Us For Availability
41
WPL 307602 WPL 307602 Contact Us For Availability
42
WPL 247326 WPL 247326 Contact Us For Availability
42
WPL 310420 WPL 310420 Contact Us For Availability
43
Wheel, Blower WPL 311920 Contact Us For Availability
43
Probe, Temperature WPL 311438 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312640 Contact Us For Availability
44
Reed Relay (Alternate) WPL 312784 Contact Us For Availability
44
WPL 312389 WPL 312389 Contact Us For Availability
45
WPL 312340 WPL 312340 Contact Us For Availability
48
WPL 254217 WPL 254217 Contact Us For Availability
50
Screw 11-16 x 1/2 WPL 346893 Contact Us For Availability
50
Clip WPL 312763 Contact Us For Availability
50
Cable, Support WPL 312764 Contact Us For Availability
50
Cover, Rear WPL 312257 Contact Us For Availability
51
Flange Nut (4) WPL 310300 Contact Us For Availability
51
Cover, Light WPL 312379 Contact Us For Availability
53
Cover, Capacitor WPL 312294 Contact Us For Availability
54
Frame, Control Panel WPL 312602 Contact Us For Availability
54
Jumper, High Voltage (Black 5-1/2``) WPL 312792 Contact Us For Availability
55
Panel, Control (Upper) WPL 312788 Contact Us For Availability
55
Jumper, High Voltage, Red (7-7/8``) WPL 312794 Contact Us For Availability
56
Splice Panel WPL 312743 Contact Us For Availability
57
Control Panel, Glass WPL 312425 Contact Us For Availability
58
Bottom Cap, Control Panel WPL 312603 Contact Us For Availability
58
High Voltage Lead, Gray 6-3/4`` (2) WPL 312301 Contact Us For Availability
59
Screw (2) WPL 348689 Contact Us For Availability
61
Screw, 8-32 x 1/2 WPL 312248 Contact Us For Availability
62
Knob, Digital WPL 307615 Contact Us For Availability
63
Knob, Assembly (2) WPL 329423 Contact Us For Availability
64
WPL 309563 WPL 309563 Contact Us For Availability
65
WPL 312808 WPL 312808 Contact Us For Availability
66
WPL 309556 WPL 309556 Contact Us For Availability
68
WPL 308348 WPL 308348 Contact Us For Availability
70
WPL 313307 WPL 313307 Contact Us For Availability
71
WPL 328709 WPL 328709 Contact Us For Availability
72
WPL 328707 WPL 328707 Contact Us For Availability
× ![]()
