Model Maytag RJDW2481B DISHWASHER – Common Parts & Diagrams

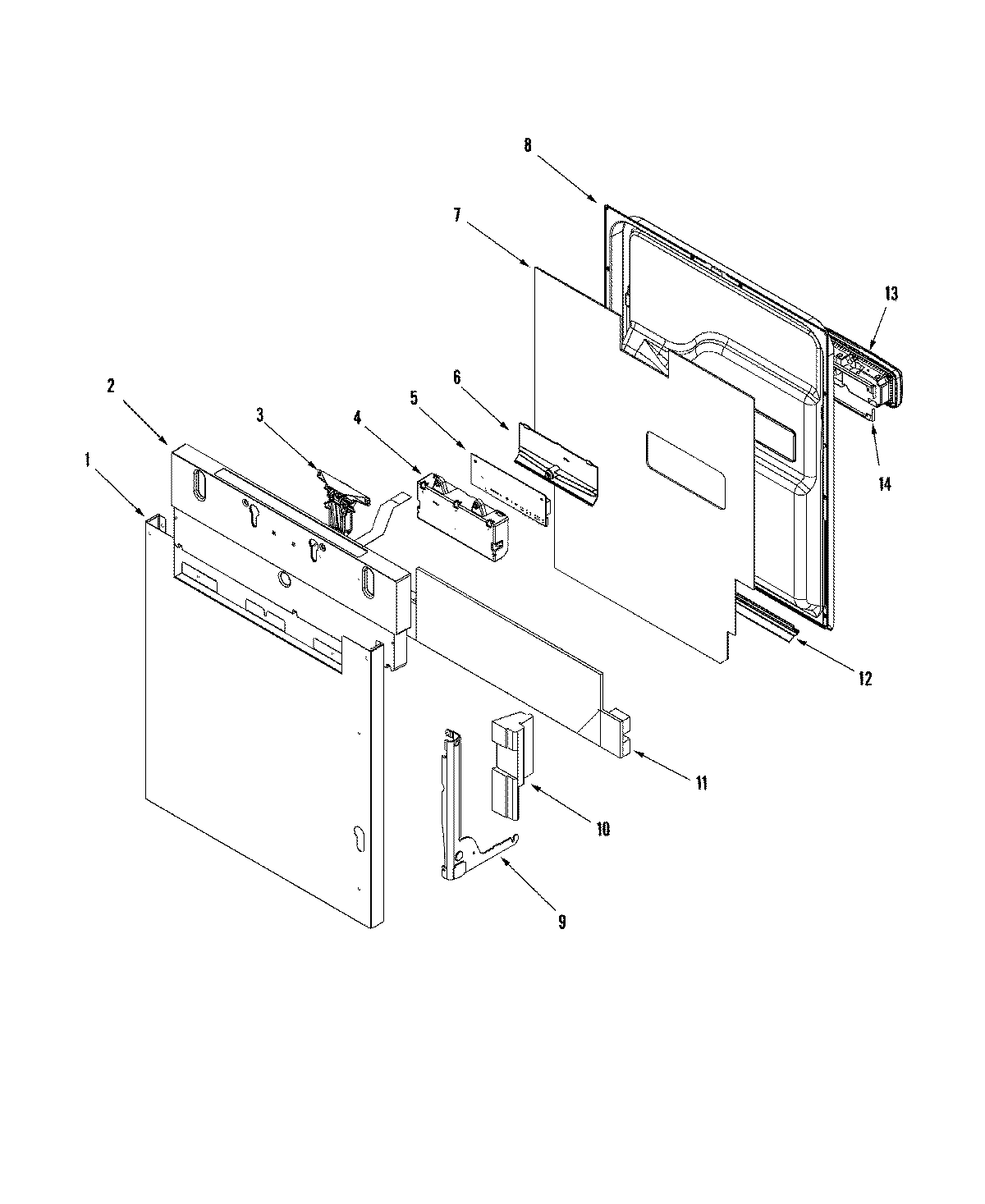

01 - CONTROL PANEL & DOOR

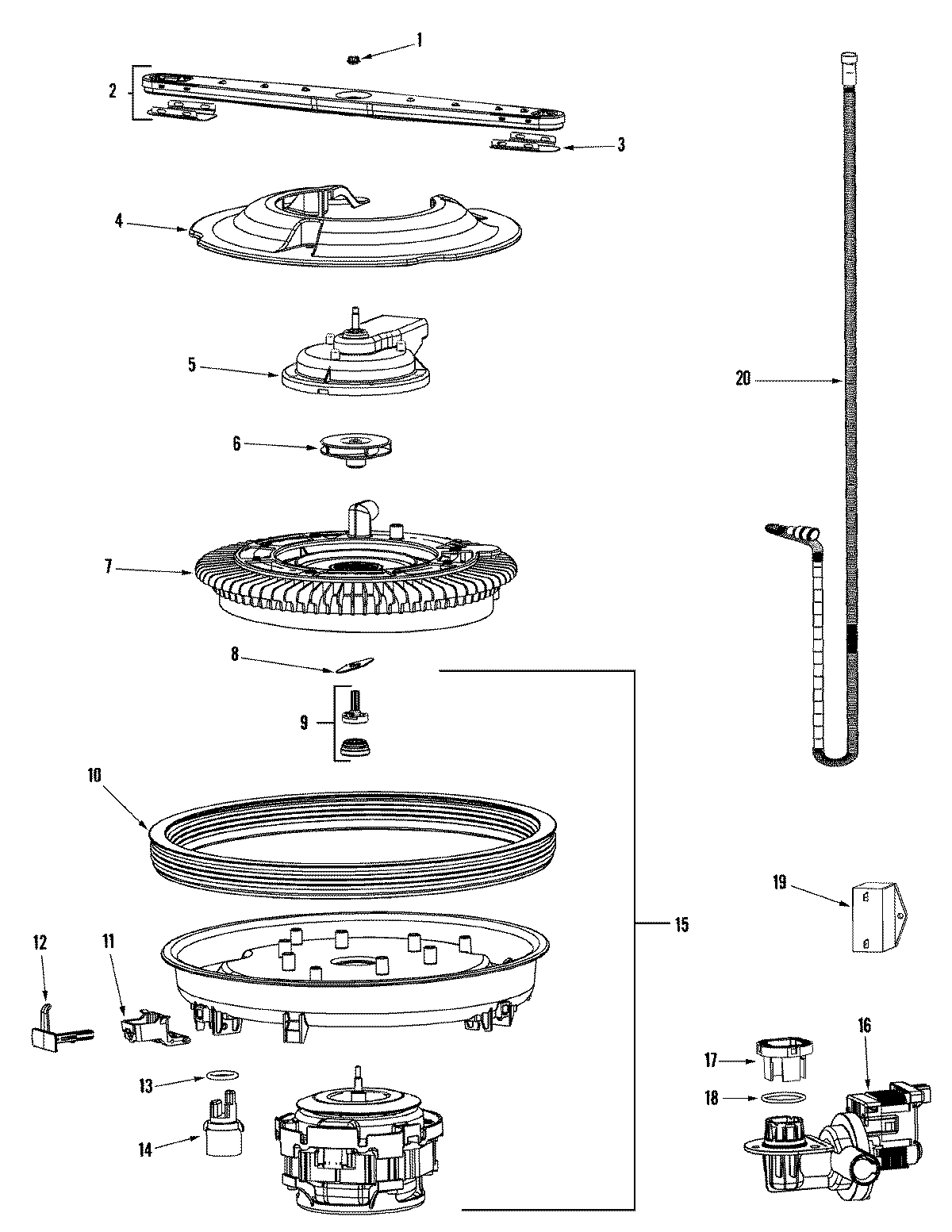

02 - PUMP & MOTOR

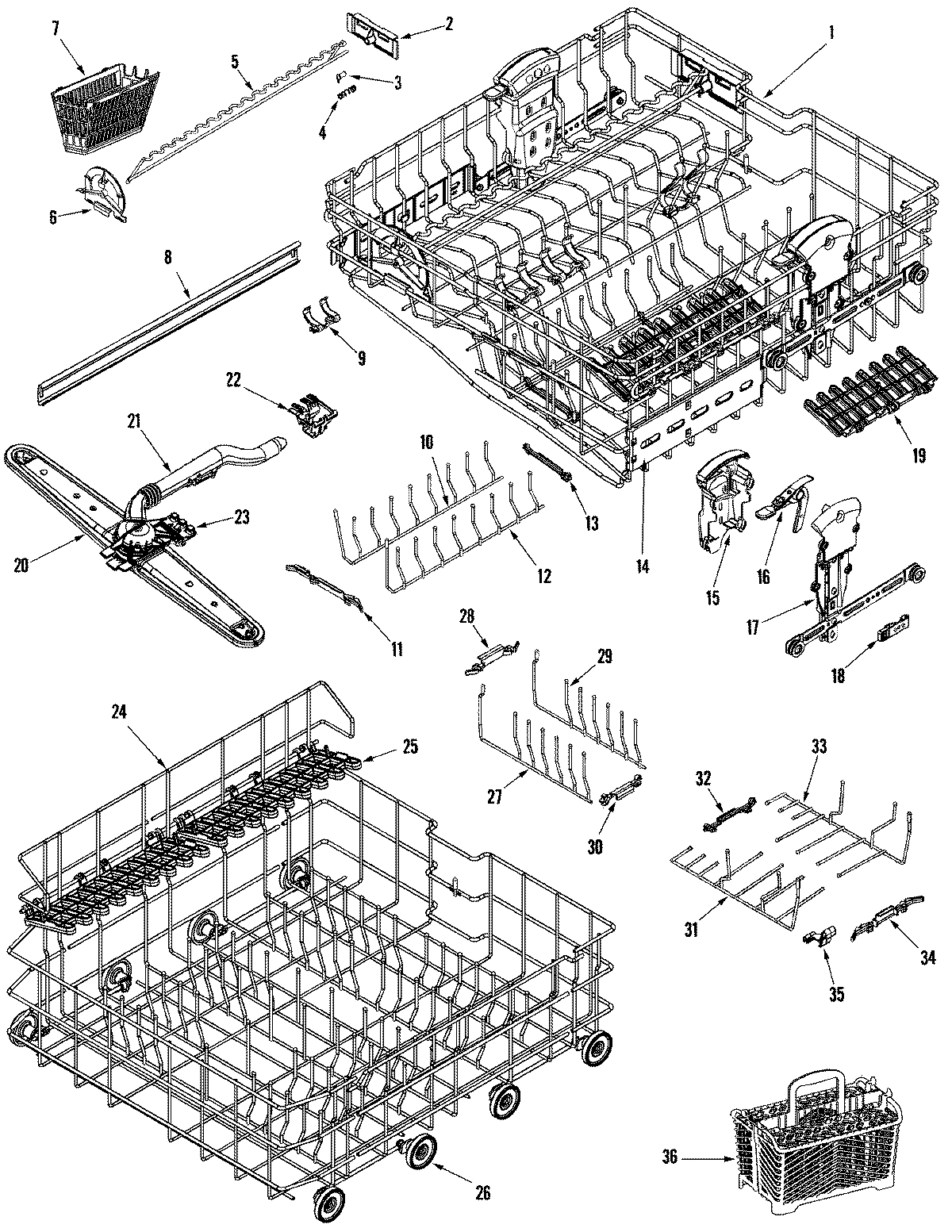

03 - RAIL & RACK ASSEMBLY
04 - SUPPLEMENTAL INFORMATION

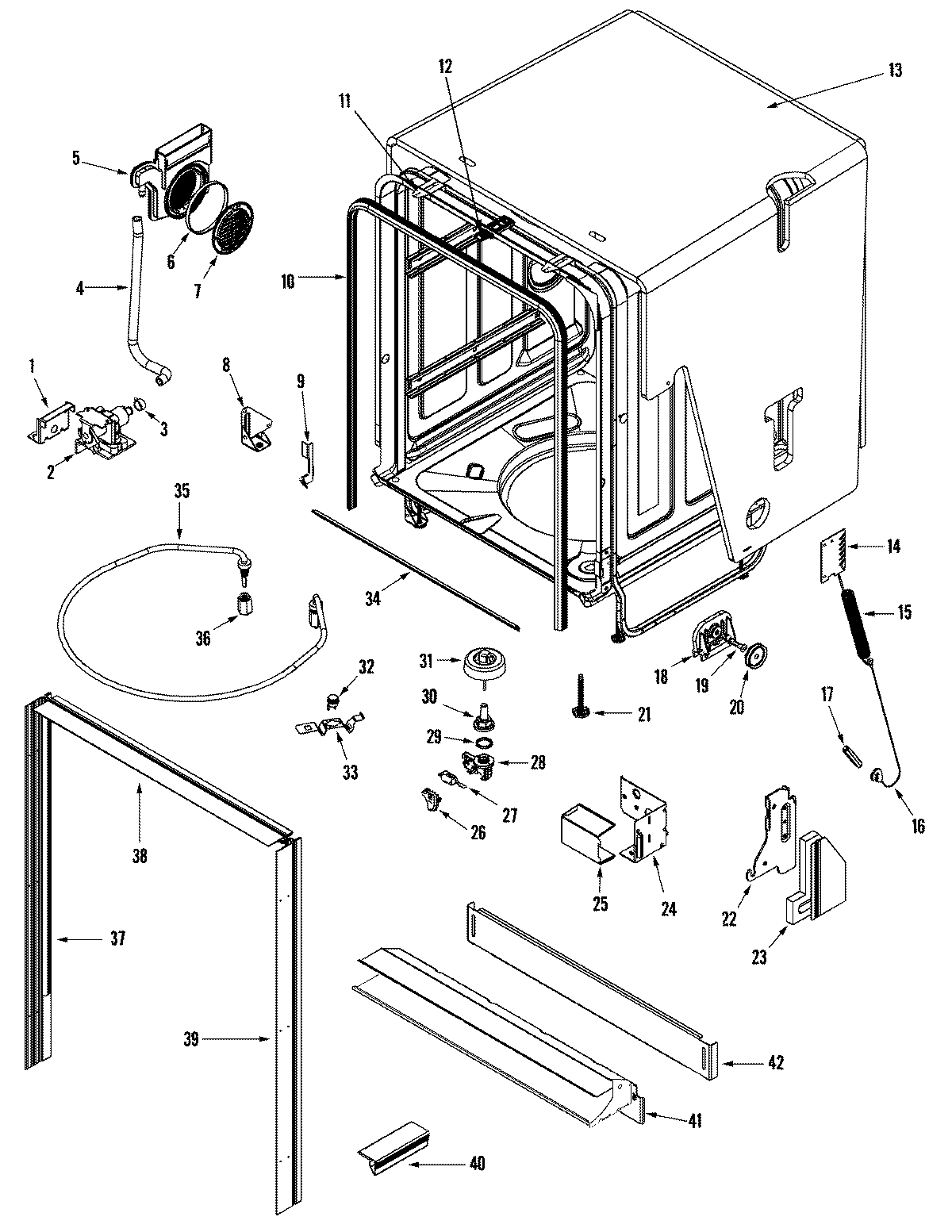

05 - TUB

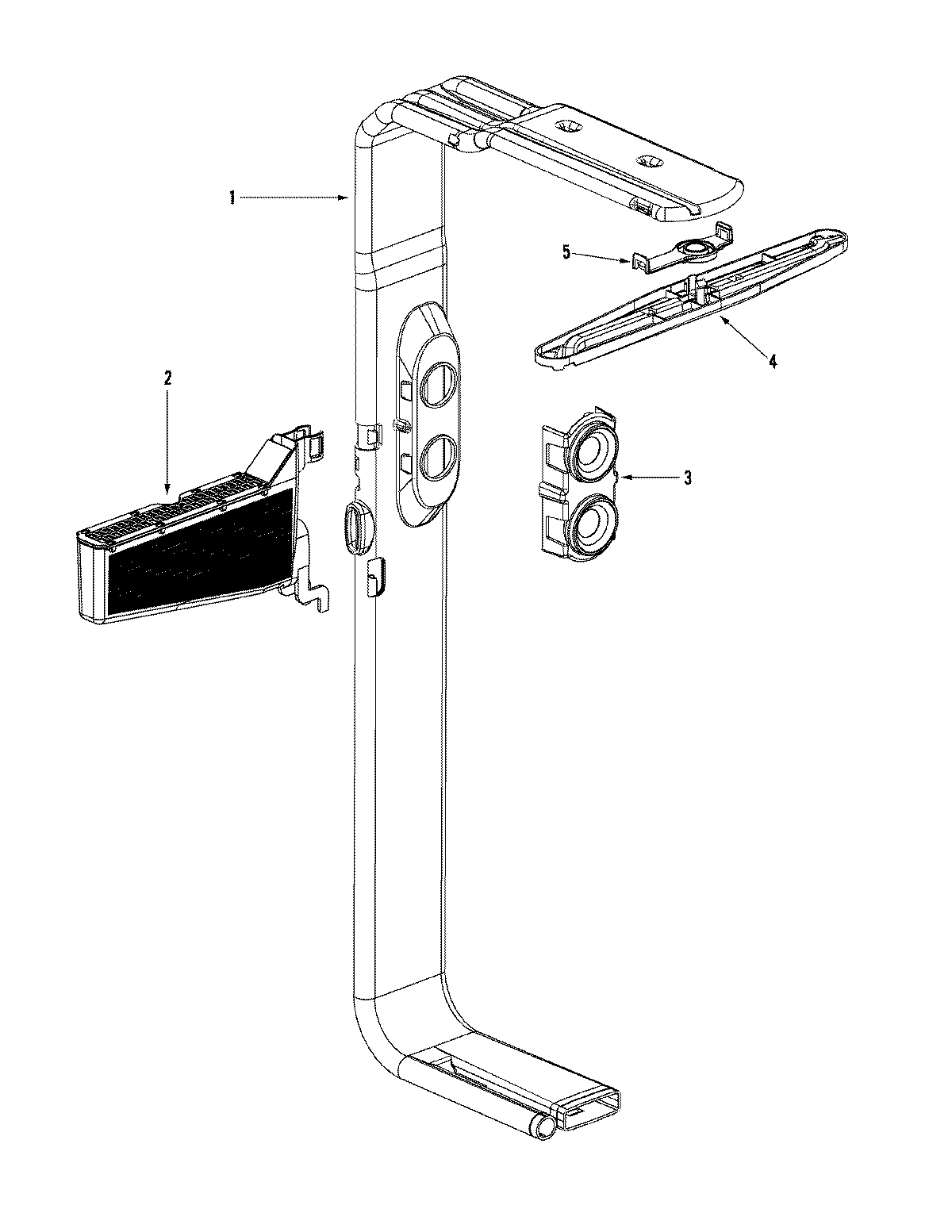

06 - WATER DISTRIBUTION ASSEMBLY

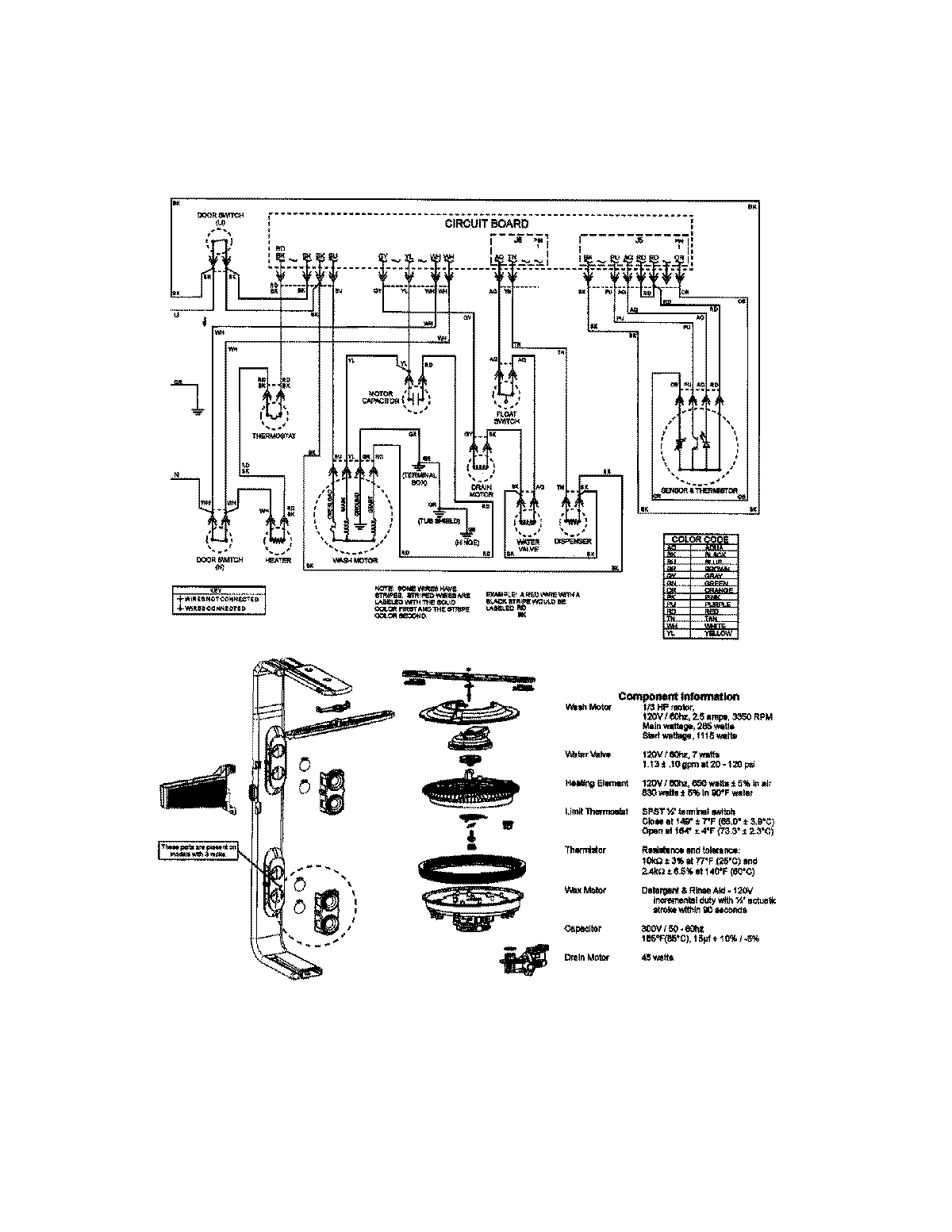

07 - WIRING INFORMATION
Common parts from model Maytag RJDW2481B DISHWASHER
1
MAY 99003295 MAY 99003295 Contact Us For Availability
1
MAY 99002629 MAY 99002629 Contact Us For Availability
1
MAY 99003081 MAY 99003081 Contact Us For Availability
2
VARILOCK (REAR) MAY 99003244 Contact Us For Availability
2
MAY 99002553 MAY 99002553 Contact Us For Availability
2
MAY 99003082 MAY 99003082 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE (PART NO LONGER MAY W10124350 Contact Us For Availability
3
MAY 99002751 MAY 99002751 Contact Us For Availability
3
MAY 99003245 MAY 99003245 Contact Us For Availability
3
MAY 99003143 MAY 99003143 Contact Us For Availability
4
HOSE, INJECTOR MAY 99002852 Contact Us For Availability
4
HOUSING, BOARD (BASE) MAY 99002576 Contact Us For Availability
4
MAY 99002715 MAY 99002715 Contact Us For Availability
4
MAY 99002676 MAY 99002676 Contact Us For Availability
5
MAY 99002753 MAY 99002753 Contact Us For Availability
5
MAY 99003028 MAY 99003028 Contact Us For Availability
5
MAY 99003246 MAY 99003246 Contact Us For Availability
6
MAY 99002987 MAY 99002987 Contact Us For Availability
6
VARILOCK (FRT) MAY 99003247 Contact Us For Availability
7
MAY 99003044 MAY 99003044 Contact Us For Availability
7
MAY 99003248 MAY 99003248 Contact Us For Availability
7
MAY 99003078 MAY 99003078 Contact Us For Availability
8
MAY 99003068 MAY 99003068 Contact Us For Availability
8
MAY 99003069 MAY 99003069 Contact Us For Availability
8
MAY 99002658 MAY 99002658 Contact Us For Availability
8
MAY 99003066 MAY 99003066 Contact Us For Availability
8
BRACKET, SUPPORT (LT) MAY 99002636 Contact Us For Availability
9
MAY 99003038 MAY 99003038 Contact Us For Availability
9
MAY 99003039 MAY 99003039 Contact Us For Availability
9
MAY 99003249 MAY 99003249 Contact Us For Availability
11
MAY 99003250 MAY 99003250 Contact Us For Availability
11
MAY 99003251 MAY 99003251 Contact Us For Availability
11
MAY 99002648 MAY 99002648 Contact Us For Availability
12
MAY 99003045 MAY 99003045 Contact Us For Availability
12
MAY 99003057 MAY 99003057 Contact Us For Availability
12
SHELF, CUP (UPR) MAY 99003252 Contact Us For Availability
12
MAY 99003357 MAY 99003357 Contact Us For Availability
13
MAY 99002270 MAY 99002270 Contact Us For Availability
13
TINE, FOLD AWAY (RT) MAY 99003253 Contact Us For Availability
13
FASTENER, INSULATION MAY 99002640 Contact Us For Availability
14
MAY 99003254 MAY 99003254 Contact Us For Availability
15
TINE, FOLD AWAY (LT) MAY 99003255 Contact Us For Availability
16
MAY 99002815 MAY 99002815 Contact Us For Availability
16
SCREW, TRUSS HEAD (10-18X.75) MAY 99002740 Contact Us For Availability
16
MAY 99003256 MAY 99003256 Contact Us For Availability
18
MAY 99002857 MAY 99002857 Contact Us For Availability
18
MAY 99003142 MAY 99003142 Contact Us For Availability
18
MAY 99002607 MAY 99002607 Contact Us For Availability
19
CAPACITOR, MOTOR MAY 99002665 Contact Us For Availability
19
MAY 99002609 MAY 99002609 Contact Us For Availability
20
MAY 99002608 MAY 99002608 Contact Us For Availability
20
MAY 99003072 MAY 99003072 Contact Us For Availability
21
MAY 99003273 MAY 99003273 Contact Us For Availability
21
MAY 99003257 MAY 99003257 Contact Us For Availability
22
SHELF, CUP (LWR) MAY 99003258 Contact Us For Availability
22
MAY 99002927 MAY 99002927 Contact Us For Availability
22
MAY 99002928 MAY 99002928 Contact Us For Availability
23
MAY 99003259 MAY 99003259 Contact Us For Availability
23
BACKER, HINGE SEAL (RT) MAY 99003150 Contact Us For Availability
23
MAY 99003151 MAY 99003151 Contact Us For Availability
24
PIVOT, CONVERTIBLE TINE MAY 99003260 Contact Us For Availability
24
SCREW 10-32X.400 (T-20 HEAD) MAY 99002601 Contact Us For Availability
24
BRACKET, JUNCTION BOX SUPPORT MAY 99002637 Contact Us For Availability
25
MAY 99003261 MAY 99003261 Contact Us For Availability
25
MAY 912365 MAY 912365 Contact Us For Availability
25
MAY 99002638 MAY 99002638 Contact Us For Availability
26
MAY 99003262 MAY 99003262 Contact Us For Availability
26
MAY 99003079 MAY 99003079 Contact Us For Availability
27
MAY 99003263 MAY 99003263 Contact Us For Availability
27
MAY 99002631 MAY 99002631 Contact Us For Availability
28
MAY 99003031 MAY 99003031 Contact Us For Availability
28
WHEEL ASSEMBLY (LWR) MAY 99003294 Contact Us For Availability
29
BASKET, SILVERWARE (SPLIT/FIT) MAY 99003268 Contact Us For Availability
29
BASKET, SILVERWARE (HALF) MAY 99003269 Contact Us For Availability
29
MAY 99003270 MAY 99003270 Contact Us For Availability
29
MAY 99003040 MAY 99003040 Contact Us For Availability
30
MAY 99003264 MAY 99003264 Contact Us For Availability
31
MAY 99003265 MAY 99003265 Contact Us For Availability
31
MAY 99003080 MAY 99003080 Contact Us For Availability
32
MAY 99002633 MAY 99002633 Contact Us For Availability
32
MAY 99003266 MAY 99003266 Contact Us For Availability
33
MAY 99003267 MAY 99003267 Contact Us For Availability
33
MAY 99001008 MAY 99001008 Contact Us For Availability
34
MAY 99003277 MAY 99003277 Contact Us For Availability
35
MAY 99003276 MAY 99003276 Contact Us For Availability
35
MAY 99002973 MAY 99002973 Contact Us For Availability
36
MAY 99003033 MAY 99003033 Contact Us For Availability
36
MAY 99003010 MAY 99003010 Contact Us For Availability
36
MAY 99003274 MAY 99003274 Contact Us For Availability
36
MAY 99003275 MAY 99003275 Contact Us For Availability
37
MAY 99003128 MAY 99003128 Contact Us For Availability
38
MAY 99003036 MAY 99003036 Contact Us For Availability
39
MAY 99003129 MAY 99003129 Contact Us For Availability
39
MAY 99002692 MAY 99002692 Contact Us For Availability
40
GAP SEAL, TOE KICK (BLK) MAY 99002701 Contact Us For Availability
41
MAY 99003152 MAY 99003152 Contact Us For Availability
42
MAY 99002694 MAY 99002694 Contact Us For Availability
42
PANEL, TOE (W/DAMPER-BLK) MAY 99002765 Contact Us For Availability
NI
MAY 99003278 MAY 99003278 Contact Us For Availability
NI
MAY 16022783 MAY 16022783 Contact Us For Availability
NI
MAY 99003272 MAY 99003272 Contact Us For Availability
NI
MAY 99003308 MAY 99003308 Contact Us For Availability
NI
MAY 99003350 MAY 99003350 Contact Us For Availability
NI
MAY W10182534 MAY W10182534 Contact Us For Availability
NI
MAY 99003087 MAY 99003087 Contact Us For Availability
NI
MAY 15003440 MAY 15003440 Contact Us For Availability
NI
MAY 15003628 MAY 15003628 Contact Us For Availability
× ![]()
