Model Whirlpool RHM973PP0 – Common Parts & Diagrams
03 - OVEN , LIT/OPTIONAL

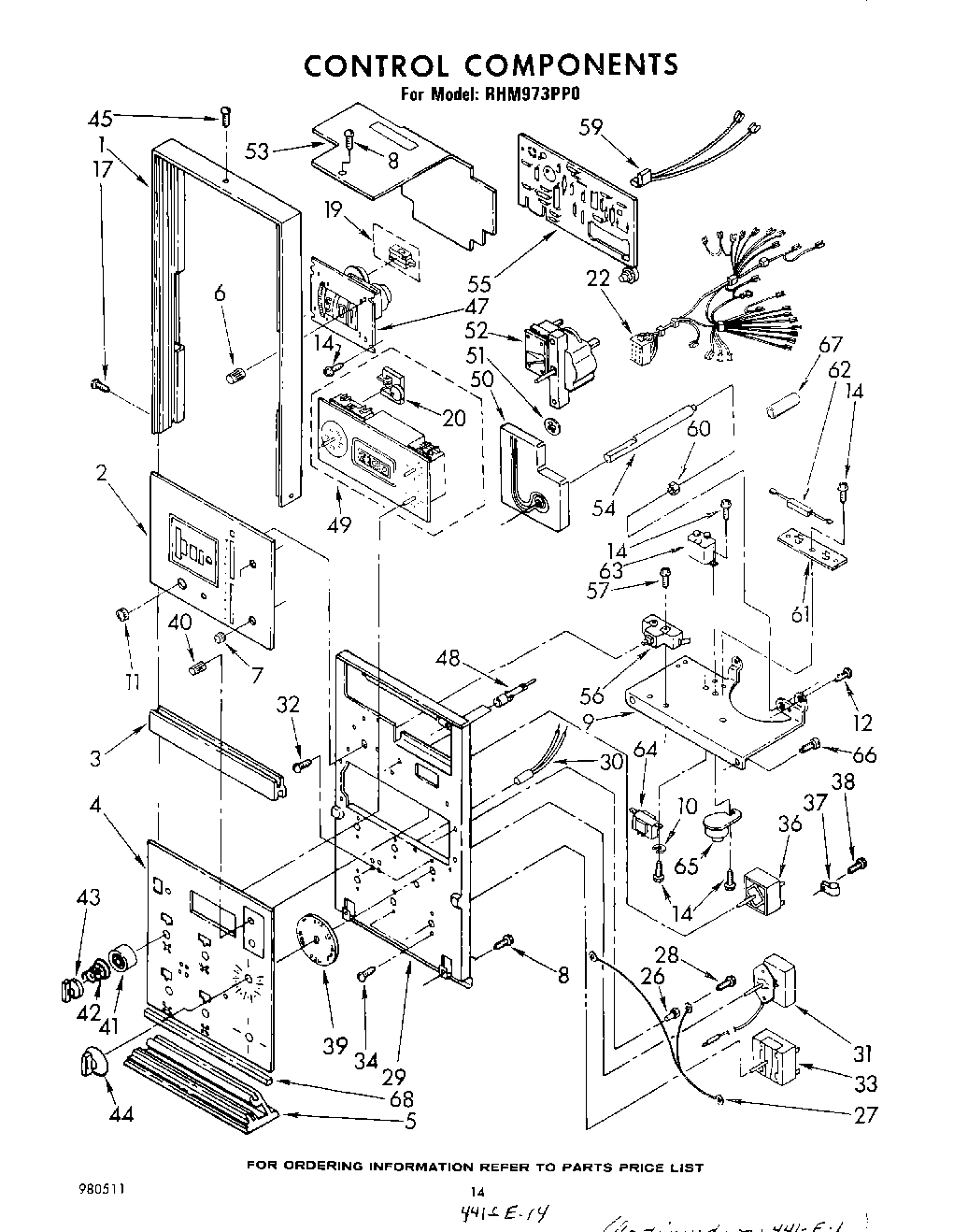

08 - CONTROL
10 - MICROWAVE DOOR AND LATCH
07 - LIGHT, HINGE AND STIRRER
09 - MAGNETRON AND AIR FLOW
04 - SECTION
06 - UPPER CHASSIS AND COMPONENTS
05 - COOKTOP
02 - DOOR AND DRAWER
Common parts from model Whirlpool RHM973PP0
1
Frame, Control Panel WPL 309608 Contact Us For Availability
1
Door, Assembly WPL 832770 Contact Us For Availability
1
Washer WPL 307539 Contact Us For Availability
1
Duct, Cooling Air WPL 328398 Contact Us For Availability
1
Clip (2) WPL 338177 Contact Us For Availability
1
Cover, Rear WPL 307971 Contact Us For Availability
1
Cover, Top Wire WPL 309507 Contact Us For Availability
1
Liner, Door WPL 327869 Contact Us For Availability
2
Panel, Control (Upper) WPL 309886 Contact Us For Availability
2
Handle, Door WPL 328432 Contact Us For Availability
2
Hinge, Door (Top) WPL 328126 Contact Us For Availability
2
Hinge, Door (Bottom) WPL 328127 Contact Us For Availability
2
Baffle, Air WPL 309899 Contact Us For Availability
2
Cover, Access WPL 307972 Contact Us For Availability
2
Tubing, Support L.H. WPL 308109 Contact Us For Availability
2
Support, Tubing R.H. WPL 308111 Contact Us For Availability
2
Cooktop, Chrome WPL 309014 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
2
Screw, 10-32T x 3/8 (2) WPL 308513 Contact Us For Availability
3
Splice, Panel WPL 309490 Contact Us For Availability
3
Switch, Secondary WPL 308416 Contact Us For Availability
3
Plate, Hinge WPL 307527 Contact Us For Availability
3
Bracket, Receptacle WPL 308839 Contact Us For Availability
3
Terminal, 1/4 WPL 258077 Contact Us For Availability
3
Pane, Side R.S. (Almond) WPL 308883 Contact Us For Availability
3
Screw, 10A x 1/2 WPL 309100 Contact Us For Availability
3
Panel, Side L.S. (Almond) WPL 309523 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
4
Panel, Glass (Lower) WPL 309946 Contact Us For Availability
4
Plate, Switch Mounting WPL 307836 Contact Us For Availability
4
Duct, Discharge WPL 328399 Contact Us For Availability
4
Bracket, Service WPL 307970 Contact Us For Availability
4
gusset, r.h. WPL 308875 Contact Us For Availability
4
Gusset, L.H. WPL 308877 Contact Us For Availability
4
Clip, ``J`` WPL 309062 Contact Us For Availability
4
Hinge, Leaf Cooktop L.H. WPL 328238 Contact Us For Availability
4
Hinge, Leaf Cooktop R.H. WPL 328239 Contact Us For Availability
4
Window Package WPL 309844 Contact Us For Availability
5
Cap, Control Panel WPL 309609 Contact Us For Availability
5
Insulator, Switch WPL 307835 Contact Us For Availability
5
Shield, Lamp WPL 309554 Contact Us For Availability
5
Bushing, Wire WPL 308410 Contact Us For Availability
5
Rail, R.H. (Includes Illus. 6) WPL 307982 Contact Us For Availability
5
Rail, L.H. (Includes Illus. 6) WPL 307983 Contact Us For Availability
5
Frame, Oven Support WPL 328397 Contact Us For Availability
5
Shield, Wiring WPL 308968 Contact Us For Availability
5
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Knob, Digital WPL 307615 Contact Us For Availability
6
Interlock Assembly WPL 328507 Contact Us For Availability
6
xNut, Hex (1/4-20) (4) WPL 307555 Contact Us For Availability
6
Glide, Front (2) WPL 307979 Contact Us For Availability
6
Socket Assembly, R.H. WPL 328277 Contact Us For Availability
6
Socket Assembly, L. H. WPL 328278 Contact Us For Availability
6
Screw, 10 x .5HH WPL 308581 Contact Us For Availability
6
burner box WPL 308827 Contact Us For Availability
6
Cushion, Oven Door (9) WPL 309152 Contact Us For Availability
7
Knob Assembly (2) WPL 307673 Contact Us For Availability
7
Guide, Channel (Not A Serviceable Part) WPL 307560 Contact Us For Availability
7
Base, Ceramic (Install With Silastic No. 4823 WPL 309145 Contact Us For Availability
7
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
7
Screw, 10A x 1/2 (2) WPL 246134 Contact Us For Availability
7
Spacer (2) WPL 308980 Contact Us For Availability
7
Screw, 10-32 (2) WPL 310304 Contact Us For Availability
7
Trim, End R.H. (Almond) WPL 328150 Contact Us For Availability
7
Trim, End L.H. (Almond) WPL 328154 Contact Us For Availability
7
trim, rear WPL 308981 Contact Us For Availability
7
Cushion (7) WPL 310032 Contact Us For Availability
8
Slide, Channel (Not A Serviceable Part) WPL 307559 Contact Us For Availability
8
Panel, Backguard WPL 308692 Contact Us For Availability
8
Protector, Drawer (2) WPL 309329 Contact Us For Availability
9
Bracket, P.C. Board WPL 309484 Contact Us For Availability
9
Spacer (4) WPL 258666 Contact Us For Availability
9
Motor, Stirrer WPL 309639 Contact Us For Availability
9
Guide, Wave (Riveted At Assembly, Not Service WPL ARI123380A Contact Us For Availability
9
Rack, Broiler WPL 308674 Contact Us For Availability
9
Spring, Retainer Glass WPL 308894 Contact Us For Availability
9
Hinge, Cooktop (2) WPL 308993 Contact Us For Availability
10
Lockwasher WPL 138473 Contact Us For Availability
10
Gasket, Stirrer Motor WPL 307651 Contact Us For Availability
10
Pan, Broiler WPL 306195 Contact Us For Availability
11
Button, Push-to-Start WPL 309563 Contact Us For Availability
11
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
11
Trim, Top WPL 309501 Contact Us For Availability
11
Glass, Door WPL 309069 Contact Us For Availability
12
Stirrer, 3-Blade WPL 309368 Contact Us For Availability
12
Rack, Oven WPL 308173 Contact Us For Availability
12
Panel, Top (Almond) WPL 309513 Contact Us For Availability
12
Rod, Cooktop WPL 307968 Contact Us For Availability
12
Handle, Oven Door (Includes Illus. 13) WPL 327915 Contact Us For Availability
13
Cabinet (Not A Serviceable Part) WPL ARI123381A Contact Us For Availability
13
Fuse, Thermal WPL 309279 Contact Us For Availability
13
Varistor Assembly WPL 328185 Contact Us For Availability
13
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
13
Clip (2) WPL 309211 Contact Us For Availability
13
Strip, Barrier WPL 309144 Contact Us For Availability
13
Retainer, Cooktop WPL 307967 Contact Us For Availability
13
End Cap, Handle (2) WPL 308080 Contact Us For Availability
14
Screw, 6 x 3/8B WPL 309258 Contact Us For Availability
14
Cover, Stirrer WPL 307511 Contact Us For Availability
14
Rectifier, High Voltage (Includes Illus. 13) WPL 328057 Contact Us For Availability
14
Ground Strap WPL 308498 Contact Us For Availability
14
Trim, Front WPL 308620 Contact Us For Availability
14
Screw, (Black) 8-15 x 1/2 (2) WPL 309029 Contact Us For Availability
14
Nut, Speed (4) WPL 309055 Contact Us For Availability
14
Frame, Door WPL 309070 Contact Us For Availability
15
Bracket WPL 309102 Contact Us For Availability
15
Screw, 10A x 2 (3) WPL 308554 Contact Us For Availability
15
Capacitor WPL 309587 Contact Us For Availability
15
Screw, 8A x 3/8 WPL 309051 Contact Us For Availability
15
Bracket, Support WPL 309483 Contact Us For Availability
15
End Cap L.H. WPL 308444 Contact Us For Availability
15
End Cap R.H. WPL 308445 Contact Us For Availability
15
Clip (4) WPL 98084 Contact Us For Availability
15
Seal, Fiberglass WPL 308027 Contact Us For Availability
16
Seal, Light WPL 309813 Contact Us For Availability
16
Shield WPL 309064 Contact Us For Availability
16
Trim, Side & Rear WPL 308619 Contact Us For Availability
16
Clip, Glass (7) WPL 308078 Contact Us For Availability
17
Screw WPL 348689 Contact Us For Availability
17
Screw, 8D x .312 WPL 307536 Contact Us For Availability
17
Cover, Stirrer (Front) WPL 307619 Contact Us For Availability
17
Wire, High Voltage (Capacitor) WPL 309084 Contact Us For Availability
17
Bracket, Side Panel WPL 309629 Contact Us For Availability
17
bracket, cooktop (6) WPL 308621 Contact Us For Availability
17
Glide, Rear (2) WPL 307980 Contact Us For Availability
18
xScrew, 8-32 x .312 (6) WPL 307537 Contact Us For Availability
18
Cover, Light WPL 307516 Contact Us For Availability
18
Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability
18
medallion WPL 256904 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Switch Kit For Timer WPL 261882 Contact Us For Availability
19
Seal, Top & Bottom (2) WPL 307544 Contact Us For Availability
19
Base & Cavity Assembly (Not Serviceable) WPL ARI123379A Contact Us For Availability
19
Bracket, Capacitor WPL 308572 Contact Us For Availability
19
Screw, 8D x 5/16 (3) WPL 246135 Contact Us For Availability
19
Panel Drawer (Black) WPL 309923 Contact Us For Availability
20
Motor, Timer WPL 308594 Contact Us For Availability
20
Retainer, Top & Bottom Seal (2) WPL 307545 Contact Us For Availability
20
Transformer WPL 307676 Contact Us For Availability
21
Gasket, Light WPL 308037 Contact Us For Availability
21
Seal, Side (2) WPL 307543 Contact Us For Availability
21
Brace WPL 308776 Contact Us For Availability
21
Handle, Drawer WPL 307956 Contact Us For Availability
22
Cover, Light WPL 308039 Contact Us For Availability
22
Harness, Control Panel WPL 309803 Contact Us For Availability
22
Retainer, Side Seal (2) WPL 307546 Contact Us For Availability
22
Socket, Snap-In WPL 307519 Contact Us For Availability
22
Shield, Fuse WPL 310391 Contact Us For Availability
22
Bracket, Frame (3) WPL 309454 Contact Us For Availability
22
Retainer, Seal (4) WPL 308028 Contact Us For Availability
23
Retainer, Light WPL 308038 Contact Us For Availability
23
Latch, Door WPL 328012 Contact Us For Availability
23
Panel, Bottom WPL 309506 Contact Us For Availability
23
Panel, Inner WPL 327898 Contact Us For Availability
24
Clip, Oven WPL 307964 Contact Us For Availability
24
Block, Fuse WPL 309795 Contact Us For Availability
24
trim, glass (rear) WPL 308896 Contact Us For Availability
25
Thermostat, Lock/Clean WPL 308315 Contact Us For Availability
25
Setscrew, 8-32 WPL 307577 Contact Us For Availability
25
Relay, Reed WPL 309623 Contact Us For Availability
25
Panel, Glass Assembly WPL 328306 Contact Us For Availability
26
Resistor & Terminal Assembly WPL 328139 Contact Us For Availability
26
Nut, Extension WPL 309645 Contact Us For Availability
26
Plunger, Latch WPL 261853 Contact Us For Availability
26
Baffle, Air Exhaust WPL 307520 Contact Us For Availability
26
Trim, Glass (Front) WPL 308897 Contact Us For Availability
27
Switch, Plunger WPL 308533 Contact Us For Availability
27
Cable, Support WPL 309841 Contact Us For Availability
28
Switch, Broil WPL 308522 Contact Us For Availability
28
Screw, 10-32 x 5/16 WPL 166681 Contact Us For Availability
28
Insert WPL 309564 Contact Us For Availability
29
Screw, 10A x 1/2 WPL 254230 Contact Us For Availability
29
Switch, Bake WPL 308523 Contact Us For Availability
29
Screw, 6A x 1 1/4 (2) WPL 308536 Contact Us For Availability
29
Bracket, Control Mounting WPL 328136 Contact Us For Availability
29
Screw, 8-32 x .281 WPL 310210 Contact Us For Availability
29
Fastener, Slide WPL 308853 Contact Us For Availability
29
Cover, Rear WPL 308112 Contact Us For Availability
29
Latch Assembly WPL 328585 Contact Us For Availability
30
Light, Indicator 250V (7) WPL 309562 Contact Us For Availability
30
Bumper WPL 307578 Contact Us For Availability
30
screw, 10a x 3/8 WPL 254217 Contact Us For Availability
30
Shield, Magnetron (Use W/Panasonic Magnetron) WPL 311084 Contact Us For Availability
30
Handle, Latch WPL 308413 Contact Us For Availability
30
Screw, 10-24 x 1/2 WPL 308422 Contact Us For Availability
30
Baffle, Heat WPL 309056 Contact Us For Availability
31
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Thermostat, Lower Oven WPL 309286 Contact Us For Availability
31
Seal, Foam WPL 308297 Contact Us For Availability
31
Pin, Hinge WPL 308785 Contact Us For Availability
31
Roller, Latch WPL 307604 Contact Us For Availability
31
Knob, Latch WPL 307977 Contact Us For Availability
31
Frame, Top WPL 309053 Contact Us For Availability
32
Screw, 6-32 x 1/4 WPL 487384 Contact Us For Availability
32
Screw (2) WPL 98106 Contact Us For Availability
32
Pin (2) WPL 307603 Contact Us For Availability
32
Bushing WPL 309628 Contact Us For Availability
32
Gasket, Magnetron (Use W/Litton Magnetron) WPL 307849 Contact Us For Availability
32
Gasket, Magnetron (Use W/Panasonic Magnetron) WPL 310302 Contact Us For Availability
32
Bushing, Wire WPL 309552 Contact Us For Availability
32
Switch, Limit WPL 308185 Contact Us For Availability
32
Glass, Tempered (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
33
Switch, Selector WPL 308262 Contact Us For Availability
33
Pin, Roller WPL 307612 Contact Us For Availability
33
Duct, Bottom Air WPL 309477 Contact Us For Availability
33
B WPL 309455 Contact Us For Availability
33
Shield, Terminal WPL 310100 Contact Us For Availability
33
Retainer, Glass WPL 309843 Contact Us For Availability
34
Screw WPL 342043 Contact Us For Availability
34
WPL 255912 WPL 255912 Contact Us For Availability
34
WPL 309549 WPL 309549 Contact Us For Availability
35
Nut WPL 309768 Contact Us For Availability
35
Nut, Mounting (Nut, 5mm-0.8 Flange (2) (Use W WPL 310300 Contact Us For Availability
35
WPL 309550 WPL 309550 Contact Us For Availability
36
Screw, 8-32 x 3/16 (8) WPL 308119 Contact Us For Availability
36
Switch, Surface Unit (4) WPL 308475 Contact Us For Availability
36
WPL 309452 WPL 309452 Contact Us For Availability
37
Magnetron Kit, Panasonic WPL 832806 Contact Us For Availability
37
WPL 309500 WPL 309500 Contact Us For Availability
38
Ballast WPL 346772 Contact Us For Availability
38
Washer WPL 309769 Contact Us For Availability
38
Thermostat WPL 307564 Contact Us For Availability
38
WPL 309499 WPL 309499 Contact Us For Availability
39
Leveler, Enamel WPL 206925 Contact Us For Availability
39
Wire, 18 Ga. (Red) (25 Ft.) WPL 253879 Contact Us For Availability
39
Wire, 14 Ga. (White) (25 Ft.) WPL 253881 Contact Us For Availability
39
Wire, 14 Ga. (Black) (25 Ft.) WPL 253882 Contact Us For Availability
39
Wire, 14 Ga. (Red) (25 Ft.) WPL 253883 Contact Us For Availability
39
Wire, 14 Ga. (Blue) (25 Ft.) WPL 253893 Contact Us For Availability
39
Wire, 14 Ga. (Orange) (25 Ft.) WPL 253894 Contact Us For Availability
39
Wire, 18 Ga. (Black) (25 Ft.) WPL 253895 Contact Us For Availability
39
Wire, 18 Ga. (White) (25 Ft.) WPL 253896 Contact Us For Availability
39
Wire, 16 Ga. (Black) (25 Ft.) WPL 253897 Contact Us For Availability
39
Wire, 16 Ga. (Red) (25 Ft.) WPL 253900 Contact Us For Availability
39
Wire, WPL 253901 Contact Us For Availability
39
WPL 254323 WPL 254323 Contact Us For Availability
39
WPL 261582 WPL 261582 Contact Us For Availability
39
WPL 308500 WPL 308500 Contact Us For Availability
39
WPL 309304 WPL 309304 Contact Us For Availability
39
WPL 309600 WPL 309600 Contact Us For Availability
39
WPL 310053 WPL 310053 Contact Us For Availability
39
WPL 310220 WPL 310220 Contact Us For Availability
39
WPL 310847 WPL 310847 Contact Us For Availability
39
WPL 591014 WPL 591014 Contact Us For Availability
39
WPL 799351 WPL 799351 Contact Us For Availability
39
WPL 799832 WPL 799832 Contact Us For Availability
39
WPL 980511 WPL 980511 Contact Us For Availability
39
Dial, Surface Units (4) WPL 309489 Contact Us For Availability
39
Jack, Probe WPL 309637 Contact Us For Availability
40
Knob, Timer (3) WPL 309553 Contact Us For Availability
40
Switch Kit, Door (Kit Contains 2 Switches, Bo WPL 261877 Contact Us For Availability
40
Bracket, Lamp WPL 308417 Contact Us For Availability
40
Wire, High Voltage Magnetron (2) (Use W/Litto WPL 261945 Contact Us For Availability
40
Wire, High Voltage Magnetron (2) (Use W/Panas WPL 311144 Contact Us For Availability
40
WPL 308784 WPL 308784 Contact Us For Availability
41
Bezel, Knob (4) WPL 309556 Contact Us For Availability
41
Insulator, Switch (Top) WPL 307611 Contact Us For Availability
41
Meat Probe & Plug Assembly WPL 309333 Contact Us For Availability
41
Blade, Fan WPL 307535 Contact Us For Availability
41
WPL 309453 WPL 309453 Contact Us For Availability
42
Spring, Bezel WPL 308348 Contact Us For Availability
42
Plate, Top Switch Mounting WPL 307586 Contact Us For Availability
42
Harness, Wiring WPL 309801 Contact Us For Availability
42
Nut WPL 309486 Contact Us For Availability
43
Knob, Surface Units (4) WPL 308346 Contact Us For Availability
43
Mount, Fan Motor WPL 307534 Contact Us For Availability
44
Bracket, Switch WPL 310148 Contact Us For Availability
45
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
45
Motor, Fan WPL 309849 Contact Us For Availability
47
Timer, Digital (Microwave) WPL 307531 Contact Us For Availability
47
Screw, 8-32 x 1/2 WPL 310629 Contact Us For Availability
48
Light, Indicator 125V (2) WPL 309561 Contact Us For Availability
49
Timer, Digital (Oven) WPL 310325 Contact Us For Availability
49
End Cap, Door WPL 307584 Contact Us For Availability
50
Indicator, Information Control WPL 309541 Contact Us For Availability
50
Ring, Retaining (2) WPL 307605 Contact Us For Availability
51
Clip, Push-On (3) WPL 309983 Contact Us For Availability
52
Indicator, Temperature WPL 309548 Contact Us For Availability
53
Shield Assembly WPL 328431 Contact Us For Availability
54
Shaft, Potentiometer WPL 310279 Contact Us For Availability
54
Latch, Concealed WPL 307596 Contact Us For Availability
55
Control, Variable Power WPL 60757 Contact Us For Availability
55
Handle, Cam WPL 307556 Contact Us For Availability
56
Switch, Push-Start (Includes Illus. 11) WPL 307649 Contact Us For Availability
56
Ring, ``E`` (2) WPL 308187 Contact Us For Availability
58
Shield, Light WPL 309963 Contact Us For Availability
59
Harness, Variable Po WPL 310320 Contact Us For Availability
60
WPL 307640 WPL 307640 Contact Us For Availability
61
WPL 309642 WPL 309642 Contact Us For Availability
62
WPL 328023 WPL 328023 Contact Us For Availability
63
WPL 308243 WPL 308243 Contact Us For Availability
64
WPL 308308 WPL 308308 Contact Us For Availability
65
WPL 310351 WPL 310351 Contact Us For Availability
66
WPL 254225 WPL 254225 Contact Us For Availability
× ![]()
