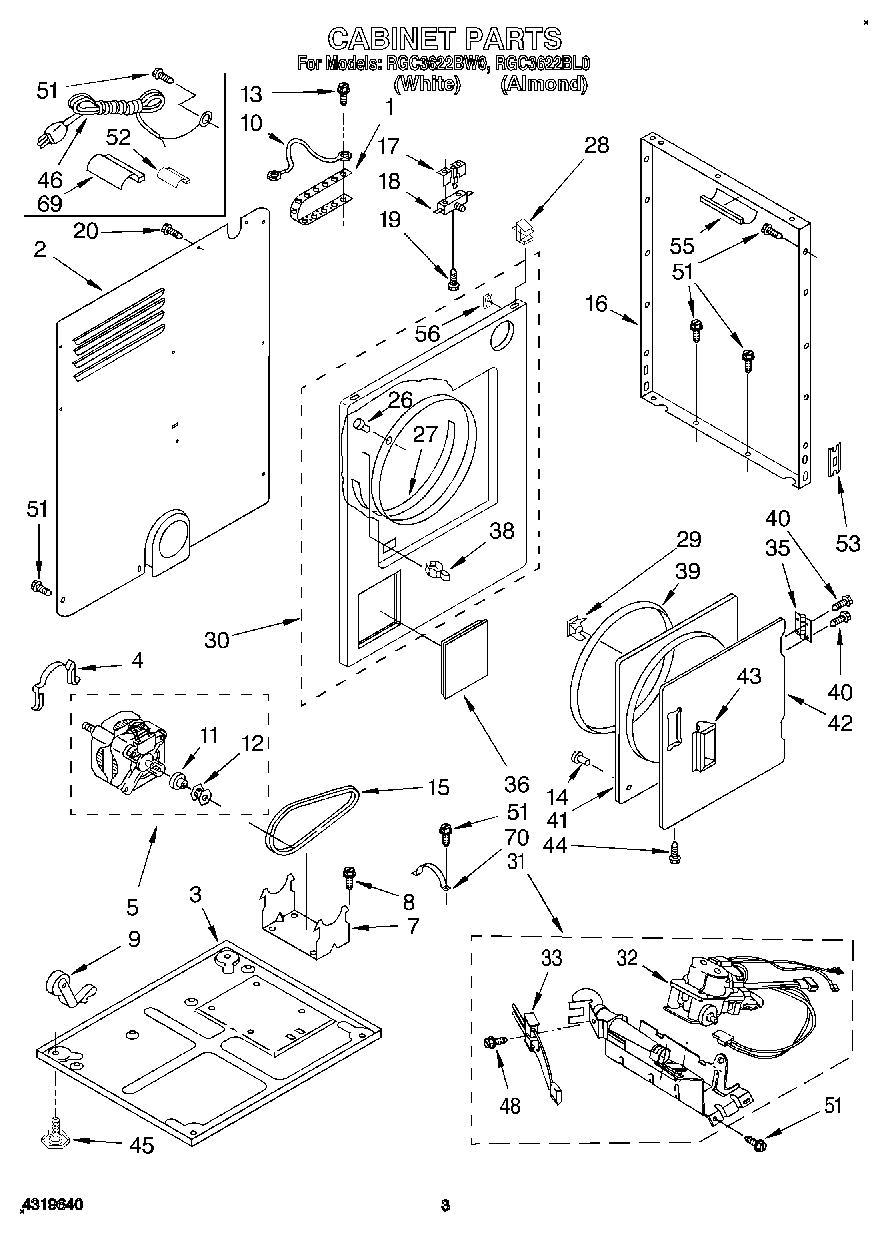

Model Whirlpool RGC3622BL0 – Common Parts &amp; Diagrams

1

Top (Almond) WPL 4319405 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT9830417 Contact Us For Availability

1

Literature Parts (Label, Operating Instructio WPL LIT9830513 Contact Us For Availability

1

Literature Parts (Guide, Use & Care) WPL LIT9830930 Contact Us For Availability

1

Literature Parts (Label, Wiring Diagram) WPL LIT9831096 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

2

Rivet, Pop WPL 307563 Contact Us For Availability

2

Air Duct Assembly WPL 9830484 Contact Us For Availability

3

Nut, Hex WPL 9831122 Contact Us For Availability

4

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

4

Lockwasher WPL 688193 Contact Us For Availability

5

Ring, Trim WPL 688825 Contact Us For Availability

6

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

6

Nut, Knurled WPL 688041 Contact Us For Availability

7

696541 Whirlpool Base Backorder WPL 696541 $30.89

7

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.34

8

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

9

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

10

696419 Whirlpool Housing Backorder WPL 696419 $53.02

11

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

11

Bulkhead WPL 4319404 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

13

Box, Heater WPL 346952 Contact Us For Availability

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

14

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

14

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

15

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $27.45

15

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Panel, Side (2) (White) WPL 4319382 Contact Us For Availability

16

Panel, Side (2) (Almond) WPL 4319406 Contact Us For Availability

17

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.31

18

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

19

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

20

345335 Whirlpool Cover In Stock WPL 345335 $59.75

20

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

20

WP8563882 Whirlpool Timer Assembly Backorder WPL WP8563882 $175.19

21

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

21

(Timer Motor Not Serviceable) WPL ARI123247A Contact Us For Availability

22

348171 Whirlpool Bracket Backorder WPL 348171 $27.52

23

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

23

Heater, Thermostat WPL 61894 Contact Us For Availability

24

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

24

Nut, Compression WPL 233076 Contact Us For Availability

25

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

26

279220 Whirlpool Clip In Stock WPL 279220 $11.93

26

345325 Whirlpool Gusset Backorder WPL 345325 $27.52

27

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

27

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

28

3391834 Whirlpool Drum Backorder WPL 3391834 $170.42

28

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.88

29

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $51.71

29

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

30

Front Panel (White) WPL 4319403 Contact Us For Availability

30

Front Panel (Almond (When Ordering Any Of The WPL 4319409 Contact Us For Availability

30

Screw, 11-16 x 7/8 (6) WPL 690372 Contact Us For Availability

31

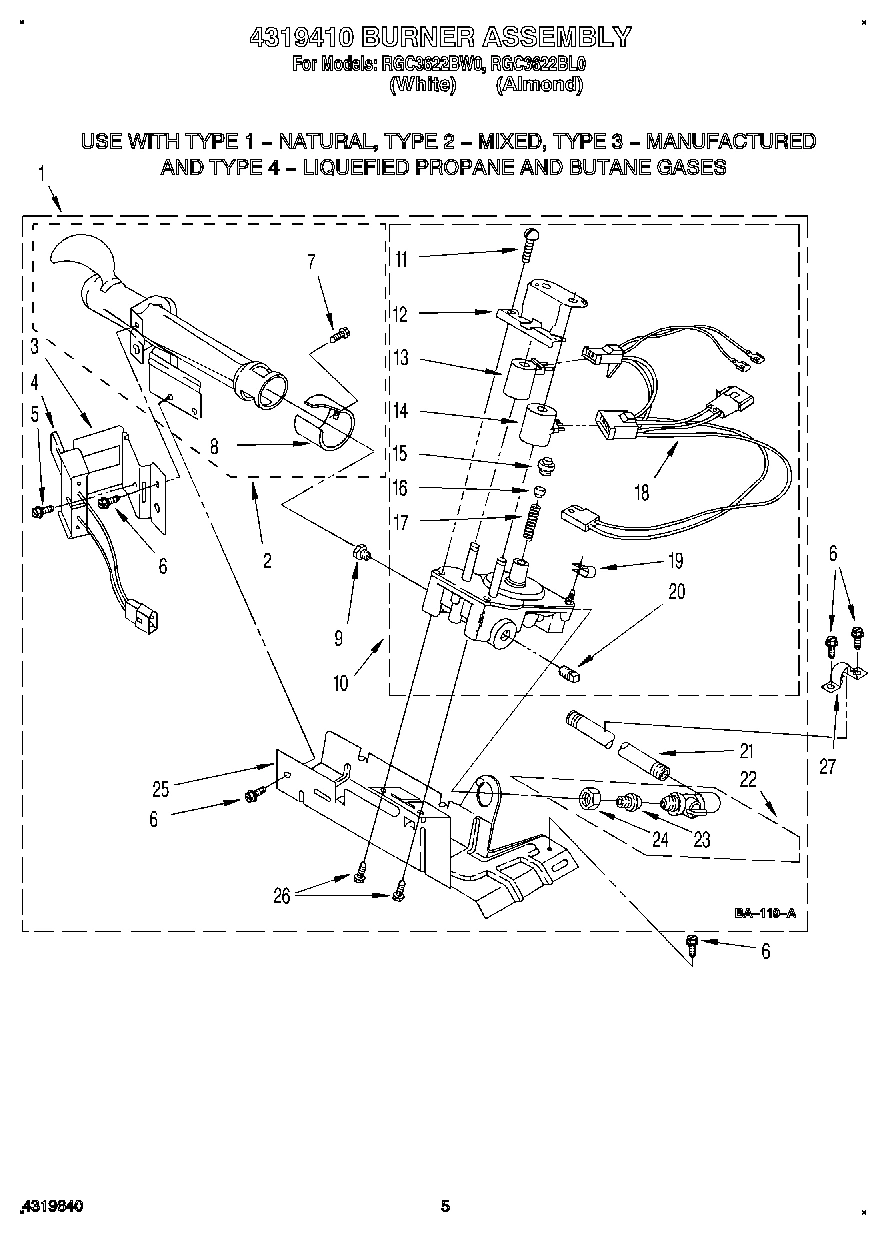

Burner, Complete (Refer to Burner Assembly Pa WPL 4319410 Contact Us For Availability

31

Panel, Control WPL 9831132 Contact Us For Availability

32

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $42.93

32

Timer Knob & Dial WPL 9830902 Contact Us For Availability

33

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

33

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

34

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

35

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

35

Hinge & Pin Assembly (2) WPL 9830792 Contact Us For Availability

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

Door, Access (White) WPL 693039 Contact Us For Availability

Door, Access (Almond) WPL 693040 Contact Us For Availability

Switch, Push-To-Start WPL 689038 Contact Us For Availability

37

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

38

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

38

345396 Whirlpool Clip Backorder WPL 345396 $27.52

39

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $20.70

41

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $33.01

41

Door, Rear WPL 4319397 Contact Us For Availability

42

Door, Front (White) WPL 4319327 Contact Us For Availability

42

Door, Front (Almond) WPL 4319333 Contact Us For Availability

42

Washer, Support WPL 4319307 Contact Us For Availability

43

WP3405184 Whirlpool White Door Handle In Stock WPL WP3405184 $39.86

43

Handle, Door (Almond) WPL 4319334 Contact Us For Availability

44

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

44

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

45

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $3.70

46

Cord, Power WPL 4319443 Contact Us For Availability

46

Seal, Duct To Scroll WPL 9830394 Contact Us For Availability

48

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

48

Harness, Wiring WPL 9831047 Contact Us For Availability

50

Washer, Support (4) WPL 339492 Contact Us For Availability

52

Protector, Support (7``) WPL 686768 Contact Us For Availability

53

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

55

Protector, Support WPL 9830279 Contact Us For Availability

56

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

56

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 799344 WPL 799344 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

70

341029 Whirlpool Clamp Backorder WPL 341029 $7.58
