Model Hotpoint RGB532BEW2AD Gas Range Or Dual Fuel – Common Parts & Diagrams

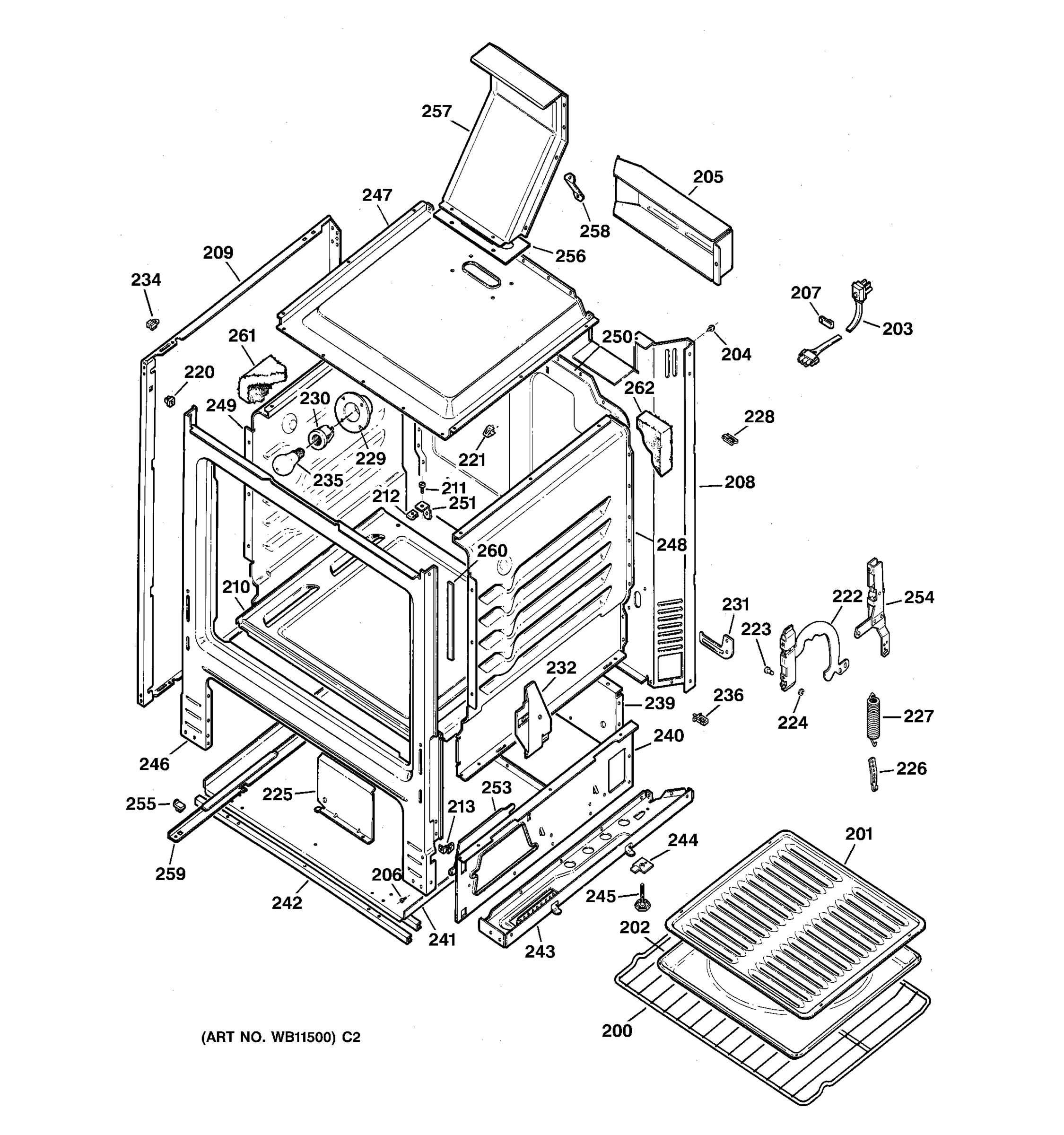

BODY PARTS

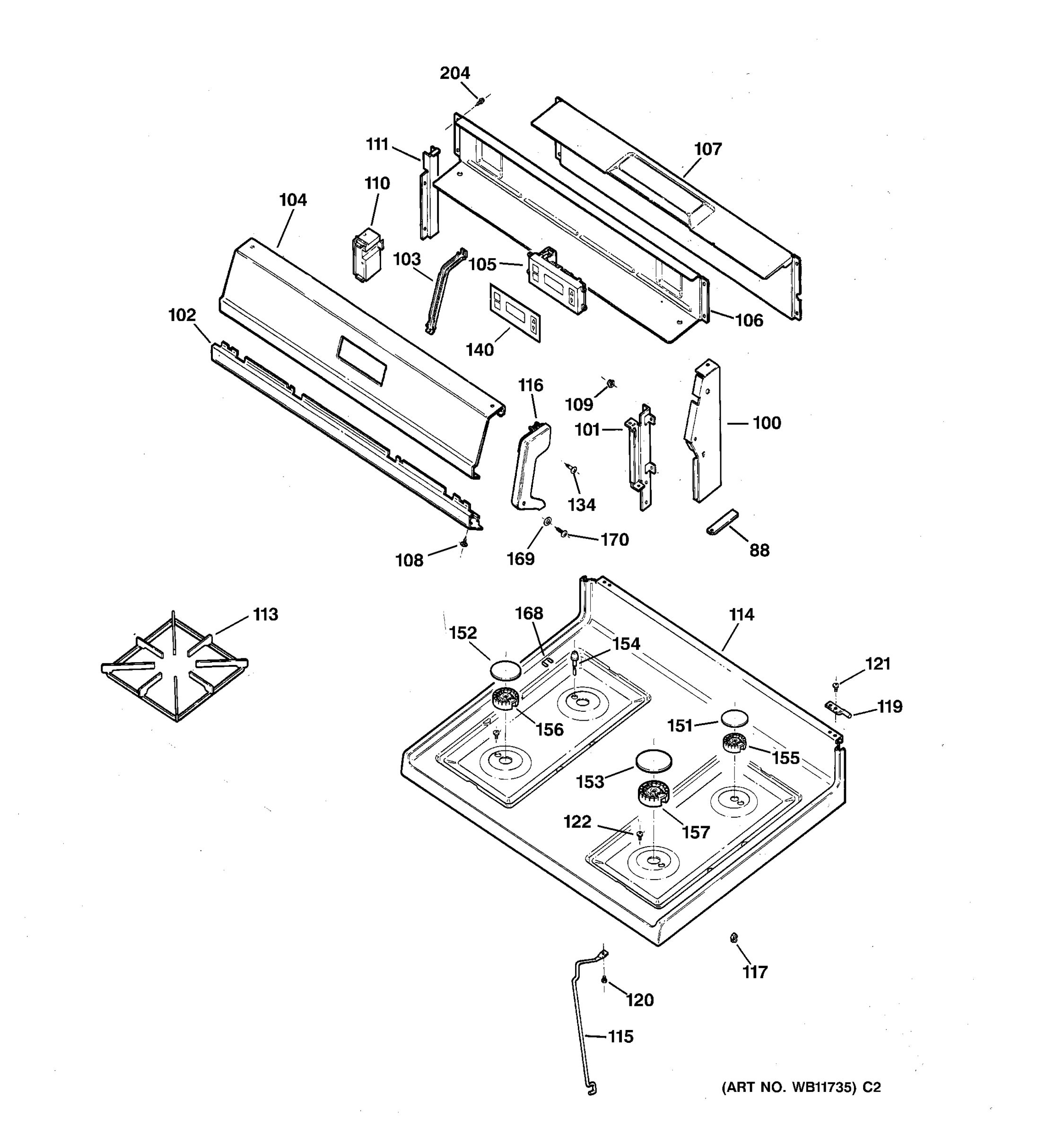

COOKTOP

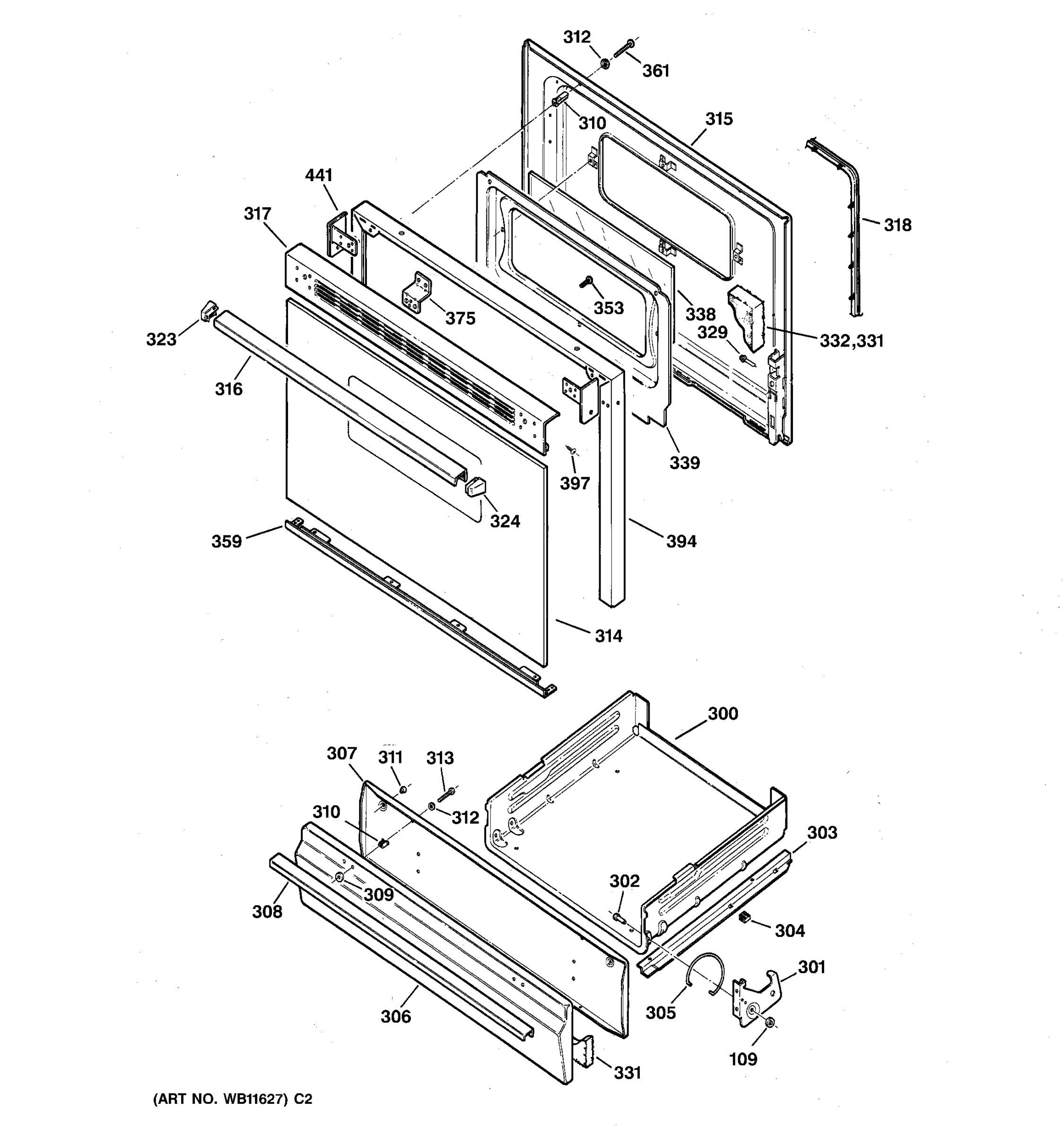

DOOR & DRAWER PARTS

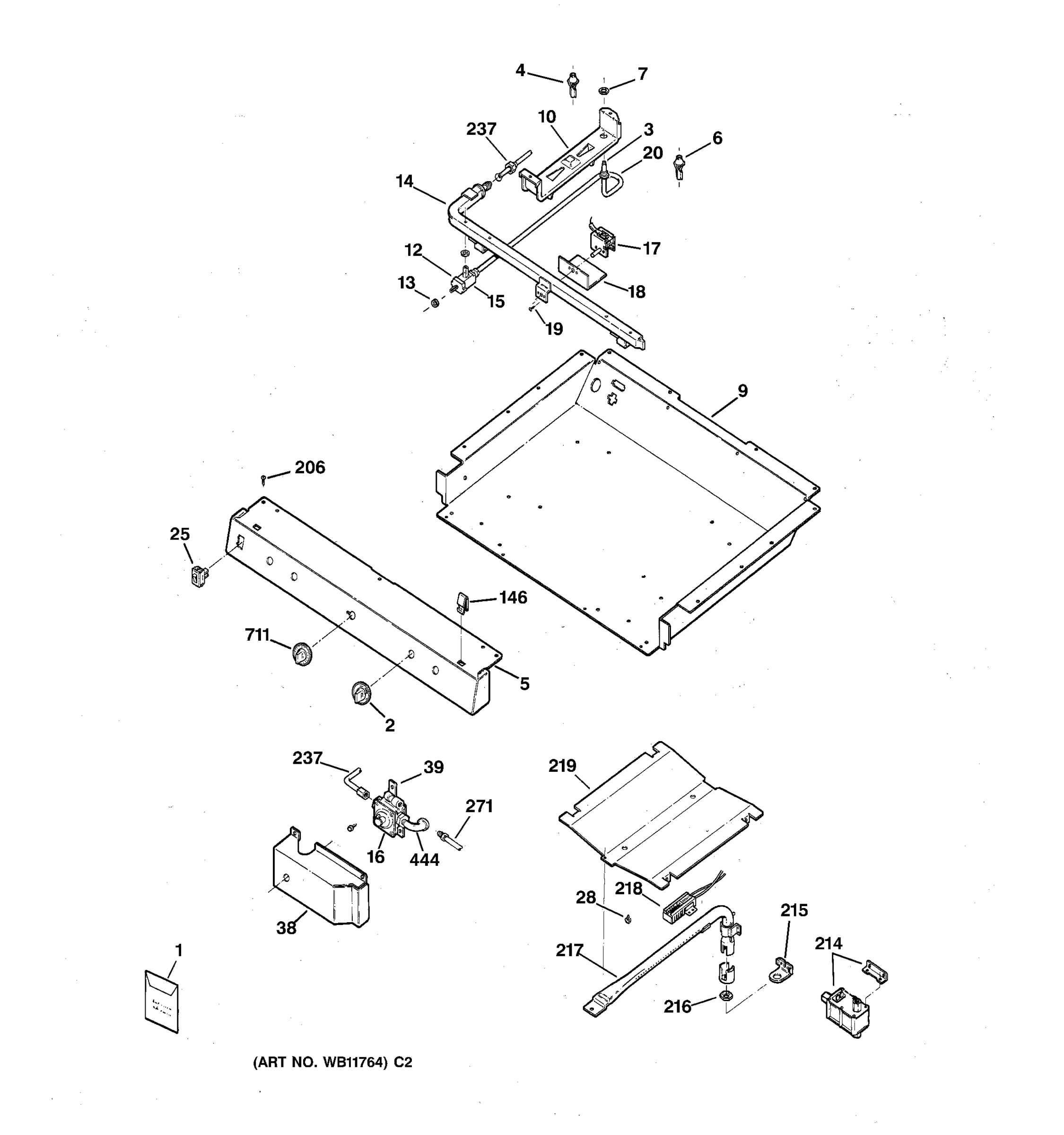

GAS & BURNER PARTS
Common parts from model Hotpoint RGB532BEW2AD Gas Range Or Dual Fuel
1
GEN 31-20615 GEN 31-20615 Contact Us For Availability
1
USE & CARE MANUAL GEN 39-4759 Contact Us For Availability
1
GEN WB02K0020 GEN WB02K0020 Contact Us For Availability
2
GEN WB03K0191 GEN WB03K0191 Contact Us For Availability
3
GEN WB28K0144 GEN WB28K0144 Contact Us For Availability
3
ORIF. SPUD (LP) .78LMM GEN WB28K0145 Contact Us For Availability
3
ORIF. SPUD (LP) .90LMM GEN WB28K0146 Contact Us For Availability
3
GEN WB28K0154 GEN WB28K0154 Contact Us For Availability
4
GEN WB16K0013 GEN WB16K0013 Contact Us For Availability
5
PANEL MANIFOLD (BK) GEN WB07K0129 Contact Us For Availability
6
GEN WB16K0014 GEN WB16K0014 Contact Us For Availability
7
GEN WB01K0004 GEN WB01K0004 Contact Us For Availability
9
BOX BURNER GEN WB63K0024 Contact Us For Availability
10
GEN WB02K0098 GEN WB02K0098 Contact Us For Availability
10
GEN WB02K0099 GEN WB02K0099 Contact Us For Availability
12
GEN WB24K0014 GEN WB24K0014 Contact Us For Availability
14
GEN WB28K0066 GEN WB28K0066 Contact Us For Availability
15
VALVE LT FRONT,LT REAR GEN WB21K0020 Contact Us For Availability
15
VALVE BURNER RT RR GEN WB21K0021 Contact Us For Availability
16
GEN WB19K0028 GEN WB19K0028 Contact Us For Availability
18
GEN WB02K0006 GEN WB02K0006 Contact Us For Availability
20
GEN WB28K0186 GEN WB28K0186 Contact Us For Availability
20
GEN WB28K0187 GEN WB28K0187 Contact Us For Availability
20
GEN WB28K0188 GEN WB28K0188 Contact Us For Availability
20
GEN WB28K0189 GEN WB28K0189 Contact Us For Availability
25
GEN WB24K0003 GEN WB24K0003 Contact Us For Availability
38
GEN WB34K0029 GEN WB34K0029 Contact Us For Availability
39
GEN WB02K0088 GEN WB02K0088 Contact Us For Availability
88
GEN WB02K0085 GEN WB02K0085 Contact Us For Availability
100
GEN WB07K0242 GEN WB07K0242 Contact Us For Availability
100
GEN WB07K0243 GEN WB07K0243 Contact Us For Availability
101
GEN WB37K0017 GEN WB37K0017 Contact Us For Availability
101
GEN WB37K0018 GEN WB37K0018 Contact Us For Availability
102
GEN WB07K0005 GEN WB07K0005 Contact Us For Availability
103
GEN WB02K0063 GEN WB02K0063 Contact Us For Availability
104
GEN WB36K0191 GEN WB36K0191 Contact Us For Availability
106
GEN WB36K0017 GEN WB36K0017 Contact Us For Availability
107
GEN WB36K0002 GEN WB36K0002 Contact Us For Availability
109
GEN WB01X5743 GEN WB01X5743 Contact Us For Availability
110
SPARK MODULE GEN WB13K0025 Contact Us For Availability
110
GEN WB18K0006 GEN WB18K0006 Contact Us For Availability
111
GEN WB34K0005 GEN WB34K0005 Contact Us For Availability
113
GEN WB31K0046 GEN WB31K0046 Contact Us For Availability
114
GEN WB62K0065 GEN WB62K0065 Contact Us For Availability
115
GEN WB02K0091 GEN WB02K0091 Contact Us For Availability
116
GEN WB07K0340 GEN WB07K0340 Contact Us For Availability
116
GEN WB07K0341 GEN WB07K0341 Contact Us For Availability
117
GEN WB02K0017 GEN WB02K0017 Contact Us For Availability
134
GEN WB01K0075 GEN WB01K0075 Contact Us For Availability
140
GEN WB11K0055 GEN WB11K0055 Contact Us For Availability
146
GEN WB02K0052 GEN WB02K0052 Contact Us For Availability
151
CAP BURNER SMALL (BK) GEN WB29K0041 Contact Us For Availability
152
CAP BURNER MED (BK) GEN WB29K0044 Contact Us For Availability
153
CAP BURNER LG (BK) GEN WB29K0047 Contact Us For Availability
155
BURNER HEAD-SM GEN WB16K0012 Contact Us For Availability
156
BURNER HEAD-MED GEN WB16K0011 Contact Us For Availability
157
HEAD BURNER LG GEN WB16K0010 Contact Us For Availability
168
GEN WB01K0056 GEN WB01K0056 Contact Us For Availability
169
GEN WB01K0057 GEN WB01K0057 Contact Us For Availability
170
GEN WB01X5716 GEN WB01X5716 Contact Us For Availability
201
GEN WB48K0002 GEN WB48K0002 Contact Us For Availability
202
GEN WB49K0002 GEN WB49K0002 Contact Us For Availability
205
GEN WB34K0021 GEN WB34K0021 Contact Us For Availability
209
GEN WB63K0051 GEN WB63K0051 Contact Us For Availability
210
GEN WB53K0035 GEN WB53K0035 Contact Us For Availability
216
GEN WB01K0006 GEN WB01K0006 Contact Us For Availability
219
GEN WB49K0044 GEN WB49K0044 Contact Us For Availability
220
GEN WB02K0008 GEN WB02K0008 Contact Us For Availability
223
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
224
RING RETAINING GEN WB02X1082 Contact Us For Availability
225
GEN WB34K0002 GEN WB34K0002 Contact Us For Availability
226
GEN WB02K0011 GEN WB02K0011 Contact Us For Availability
227
GEN WB09K0004 GEN WB09K0004 Contact Us For Availability
228
GEN WB02X7066 GEN WB02X7066 Contact Us For Availability
229
GEN WB08K0001 GEN WB08K0001 Contact Us For Availability
230
GEN WB08K0002 GEN WB08K0002 Contact Us For Availability
231
GEN WB02K0012 GEN WB02K0012 Contact Us For Availability
232
GEN WB34K0003 GEN WB34K0003 Contact Us For Availability
232
GEN WB34K0004 GEN WB34K0004 Contact Us For Availability
234
GEN WB02K0066 GEN WB02K0066 Contact Us For Availability
236
GEN WB02K0022 GEN WB02K0022 Contact Us For Availability
237
GEN WB28K0148 GEN WB28K0148 Contact Us For Availability
239
GEN WB63K0025 GEN WB63K0025 Contact Us For Availability
240
GEN WB63K0002 GEN WB63K0002 Contact Us For Availability
241
RANGE BOTTOM GEN WB63K0004 Contact Us For Availability
242
GEN WB63K0005 GEN WB63K0005 Contact Us For Availability
243
GEN WB63K0006 GEN WB63K0006 Contact Us For Availability
243
GEN WB63K0007 GEN WB63K0007 Contact Us For Availability
244
GEN WB02K0001 GEN WB02K0001 Contact Us For Availability
245
GEN WB02X7701 GEN WB02X7701 Contact Us For Availability
246
GEN WB63K0031 GEN WB63K0031 Contact Us For Availability
247
GEN WB53K0001 GEN WB53K0001 Contact Us For Availability
248
GEN WB53K0002 GEN WB53K0002 Contact Us For Availability
249
GEN WB53K0003 GEN WB53K0003 Contact Us For Availability
250
GEN WB53K0004 GEN WB53K0004 Contact Us For Availability
254
SCREW HINGE (TORX) GEN WB01K0053 Contact Us For Availability
254
GEN WB10K0013 GEN WB10K0013 Contact Us For Availability
254
GEN WB10K0014 GEN WB10K0014 Contact Us For Availability
256
GEN WB32K0001 GEN WB32K0001 Contact Us For Availability
257
GEN WB38K0001 GEN WB38K0001 Contact Us For Availability
259
GEN WB39K0001 GEN WB39K0001 Contact Us For Availability
259
GEN WB39K0002 GEN WB39K0002 Contact Us For Availability
261
GEN WB35K0001 GEN WB35K0001 Contact Us For Availability
271
GEN WB28K0149 GEN WB28K0149 Contact Us For Availability
302
GEN WB01K0007 GEN WB01K0007 Contact Us For Availability
303
GEN WB39K0007 GEN WB39K0007 Contact Us For Availability
303
GEN WB39K0008 GEN WB39K0008 Contact Us For Availability
304
GEN WB39K0009 GEN WB39K0009 Contact Us For Availability
305
GEN WB09K0002 GEN WB09K0002 Contact Us For Availability
306
GEN WB39K0015 GEN WB39K0015 Contact Us For Availability
307
GEN WB39K0005 GEN WB39K0005 Contact Us For Availability
308
GEN WB15K0015 GEN WB15K0015 Contact Us For Availability
309
WASHER GEN WB01X0560 Contact Us For Availability
314
GEN WB02X1222 GEN WB02X1222 Contact Us For Availability
314
GEN WB57K0002 GEN WB57K0002 Contact Us For Availability
315
GEN WB55K0006 GEN WB55K0006 Contact Us For Availability
316
GEN WB15K0023 GEN WB15K0023 Contact Us For Availability
317
GEN WB07K0239 GEN WB07K0239 Contact Us For Availability
323
CAP HANDLE LEFT GEN WB07K0087 Contact Us For Availability
324
CAP HANDLE RIGHT GEN WB07K0088 Contact Us For Availability
331
GEN WB35K0003 GEN WB35K0003 Contact Us For Availability
332
GEN WB35K0005 GEN WB35K0005 Contact Us For Availability
375
GEN WB02K0067 GEN WB02K0067 Contact Us For Availability
394
GEN WB07K0265 GEN WB07K0265 Contact Us For Availability
444
GEN WB28K0061 GEN WB28K0061 Contact Us For Availability
711
GEN WB03K0060 GEN WB03K0060 Contact Us For Availability
× ![]()
