Model Hotpoint RGB508PEF2WH Gas Range Or Dual Fuel – Common Parts & Diagrams

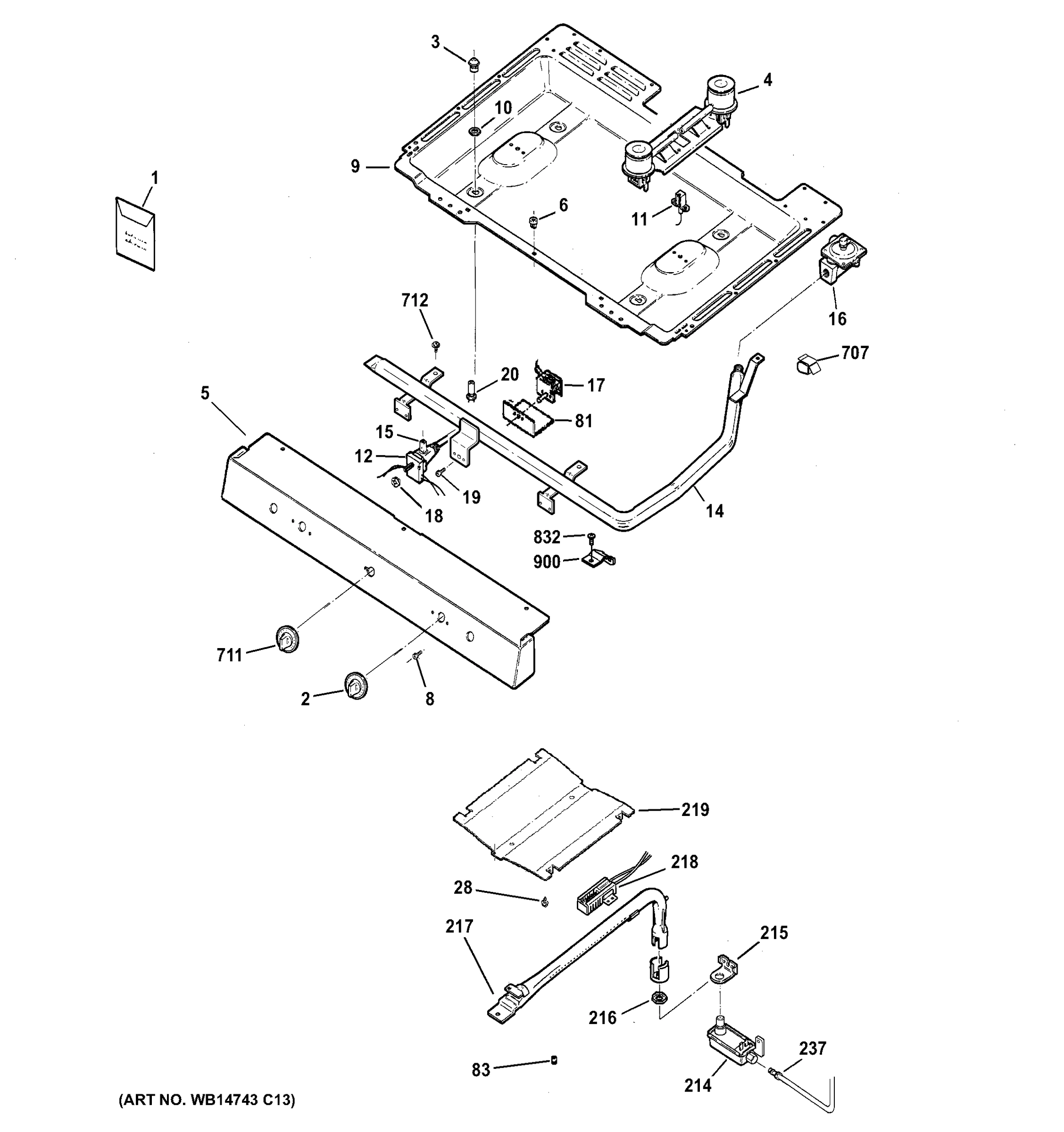

GAS & BURNER PARTS
CONTROL PANEL & COOKTOP

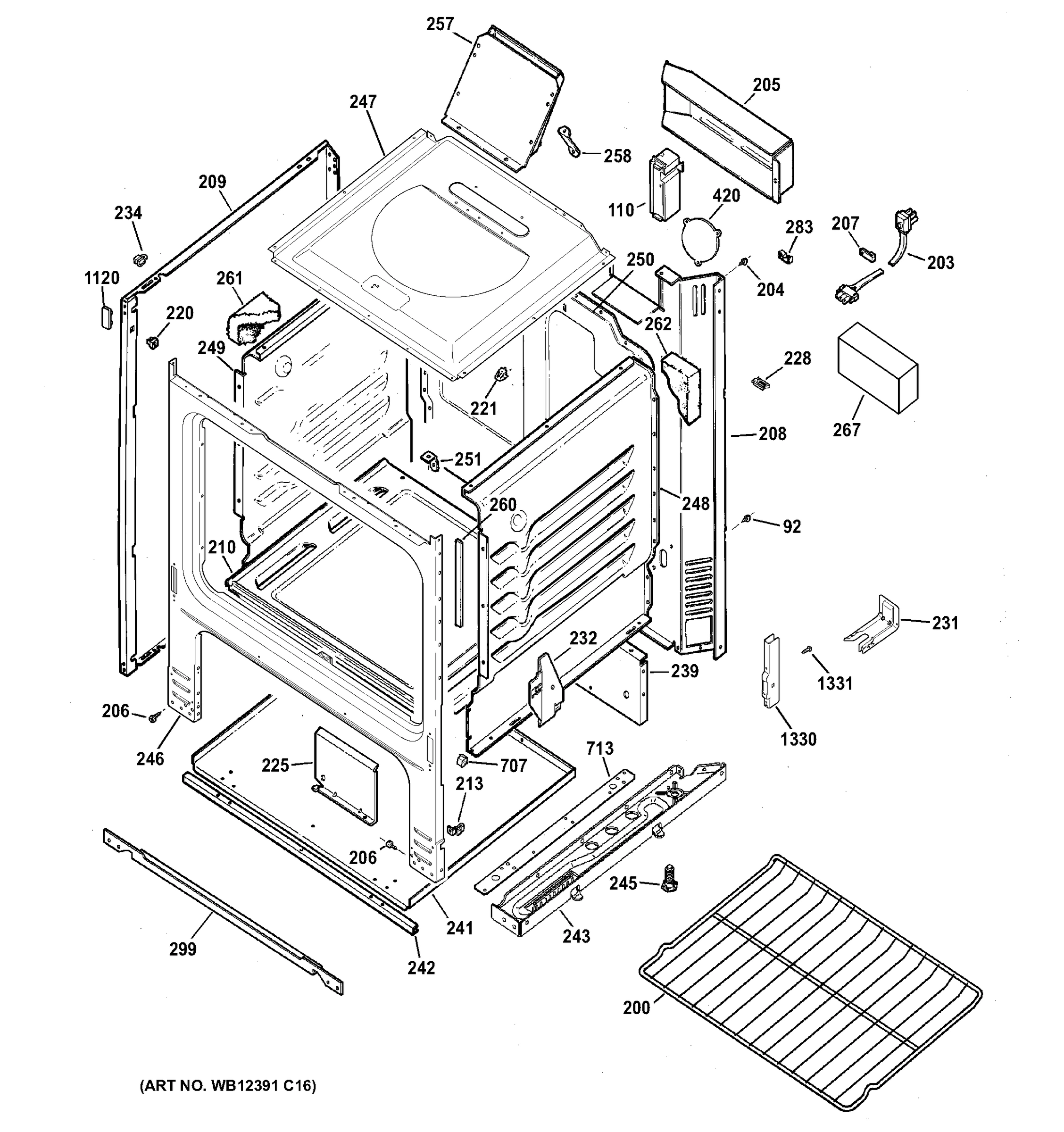

BODY PARTS
DOOR & DRAWER PARTS
Common parts from model Hotpoint RGB508PEF2WH Gas Range Or Dual Fuel
1
CONVERTION KIT ASM GEN WB28K10564 Contact Us For Availability
1
HINGE SERVICE KIT GEN WB49X21392 Contact Us For Availability
2
KNOB MINIVALVE GEN WB03K10216 Contact Us For Availability
3
ORIFICE NAT GAS GEN WB28K10033 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
15
ROUND VALVE BURNER 140 GEN WB28K10578 Contact Us For Availability
16
PRESSURE REGULATOR GEN WB19K10055 Contact Us For Availability
17
ELECTRIC THERMOSTAT DRL GEN WB24X24270 Contact Us For Availability
20
FRONT TUBE ASSY RIGHT GEN WB28K10010 Contact Us For Availability
20
TUBE-BURNER RT REAR GEN WB28K10012 Contact Us For Availability
20
TUBE-BURNER LT REAR GEN WB28K10011 Contact Us For Availability
20
FRONT TUBE ASSY LEFT GEN WB28K10009 Contact Us For Availability
83
OVEN ORIFICE SPUD GEN WB28X21079 Contact Us For Availability
110
IGNITION MODULE GEN WB13X24321 Contact Us For Availability
113
GRATE (BLK) GEN WB31K10015 Contact Us For Availability
114
COOKTOP (WH) GEN WB62K10001 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
203
LINE CORD GEN WB18K10036 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
PANEL SIDE GEN WB56X22009 Contact Us For Availability
214
SAFETY VALVE SINGLE GEN WB21X21212 Contact Us For Availability
217
BURNER OVEN ASSY GEN WB16X20253 Contact Us For Availability
222
HINGE DOOR GEN WB10X21955 Contact Us For Availability
241
BOTTOM RANGE GEN WB63K10029 Contact Us For Availability
243
SUPPORT BASE RT GEN WB63X20215 Contact Us For Availability
243
SUPPORT BASE LT GEN WB63X20216 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
250
OVEN BACK GEN WB53K10016 Contact Us For Availability
261
INSULATION OVEN WRAP GEN WB35K10155 Contact Us For Availability
307
LINER DRAWER GEN WB39K10042 Contact Us For Availability
308
HANDLE-BROILER (WHITE) GEN WB15K10008 Contact Us For Availability
315
LINER ASM WELD DOOR GEN WB56X21428 Contact Us For Availability
316
HANDLE DOOR (WH) GEN WB15K0017 Contact Us For Availability
329
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
331
INSULATION DRAWER GEN WB35K0003 Contact Us For Availability
332
INSULATION DOOR GEN WB35K10152 Contact Us For Availability
333
SPACER-HANDLE GEN WB01K10020 Contact Us For Availability
335
SPACER GEN WB02K10156 Contact Us For Availability
336
SCR 10-16 X 2 3/4 GEN WB01K10078 Contact Us For Availability
337
PANEL DOOR GEN WB56K10045 Contact Us For Availability
346
WASHER GEN WB01K0038 Contact Us For Availability
359
BARRIER DOOR GEN WB07X20288 Contact Us For Availability
367
RETAINER WIRE INSULATION GEN WB34X22860 Contact Us For Availability
711
KNOB THERMOSTAT ASM. GEN WB03X22701 Contact Us For Availability
832
SCREW THERMOSTAT GEN WB01K10080 Contact Us For Availability
900
ROUND VALVE BRACKET GEN WB02K10263 Contact Us For Availability
1120
BUMPER GEN WB02K10179 Contact Us For Availability
1330
RECEIVER HINGE GEN WB10X20220 Contact Us For Availability
× ![]()
