Model Whirlpool RF4700XWN1 – Common Parts & Diagrams

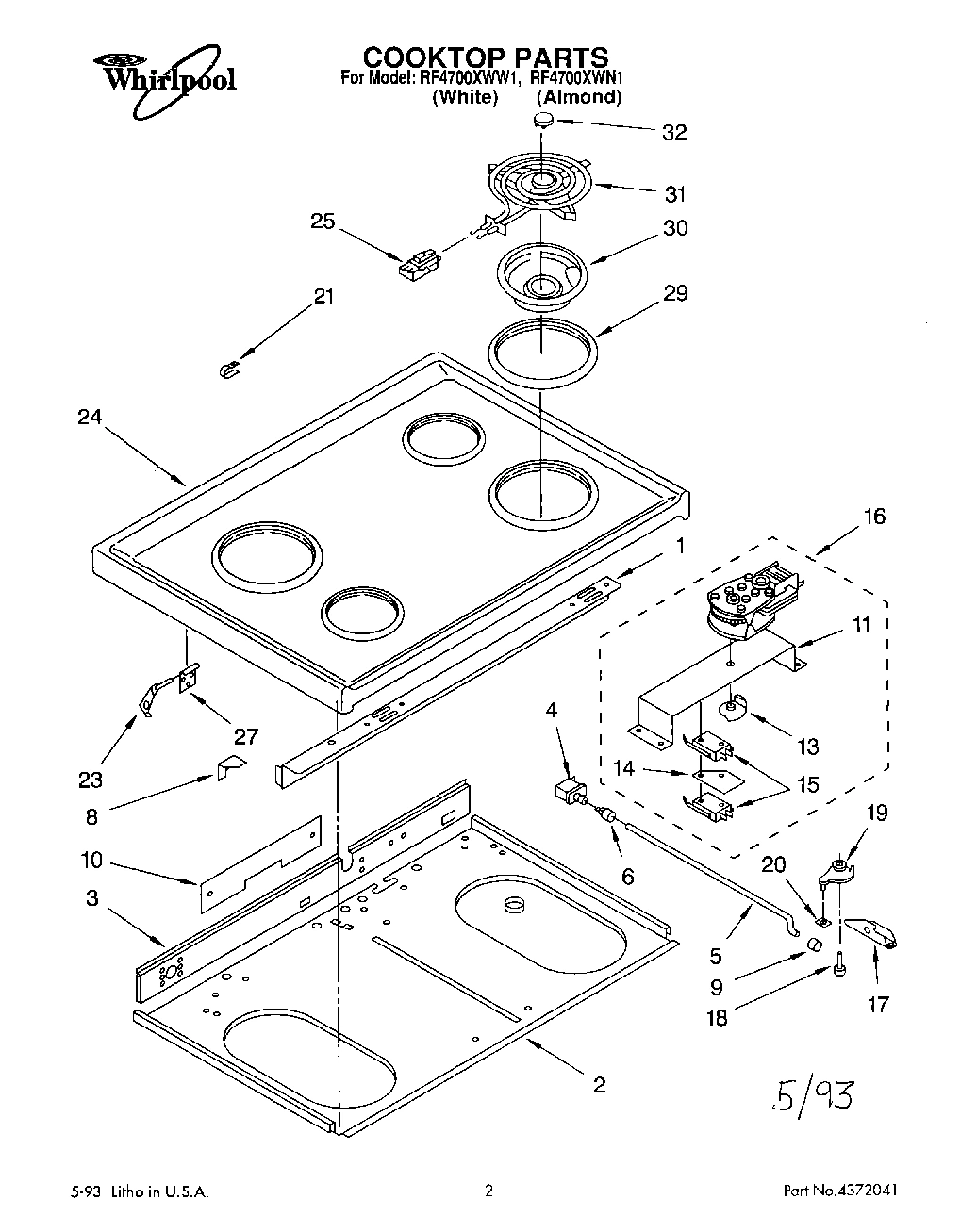

01 - COOKTOP

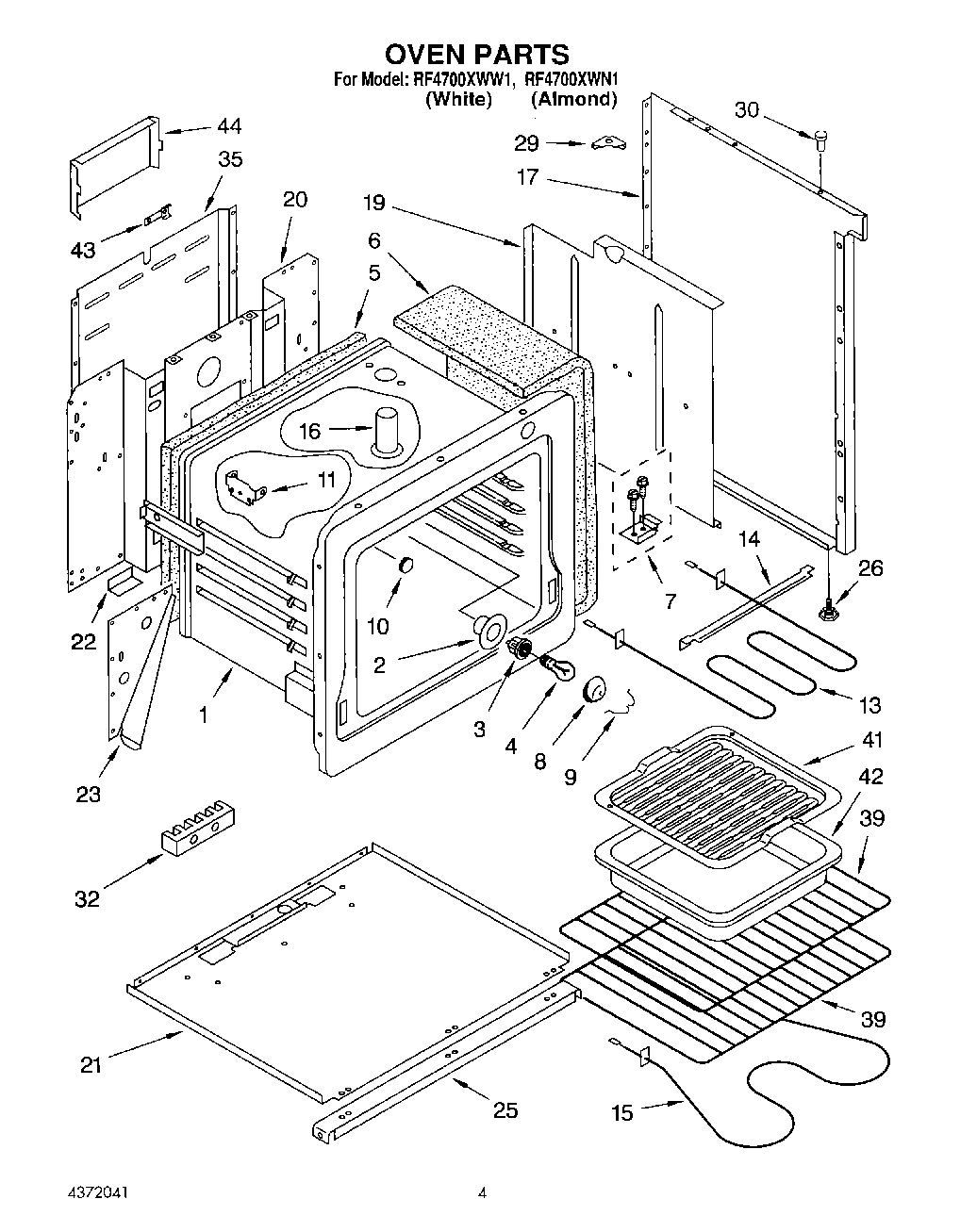

02 - OVEN

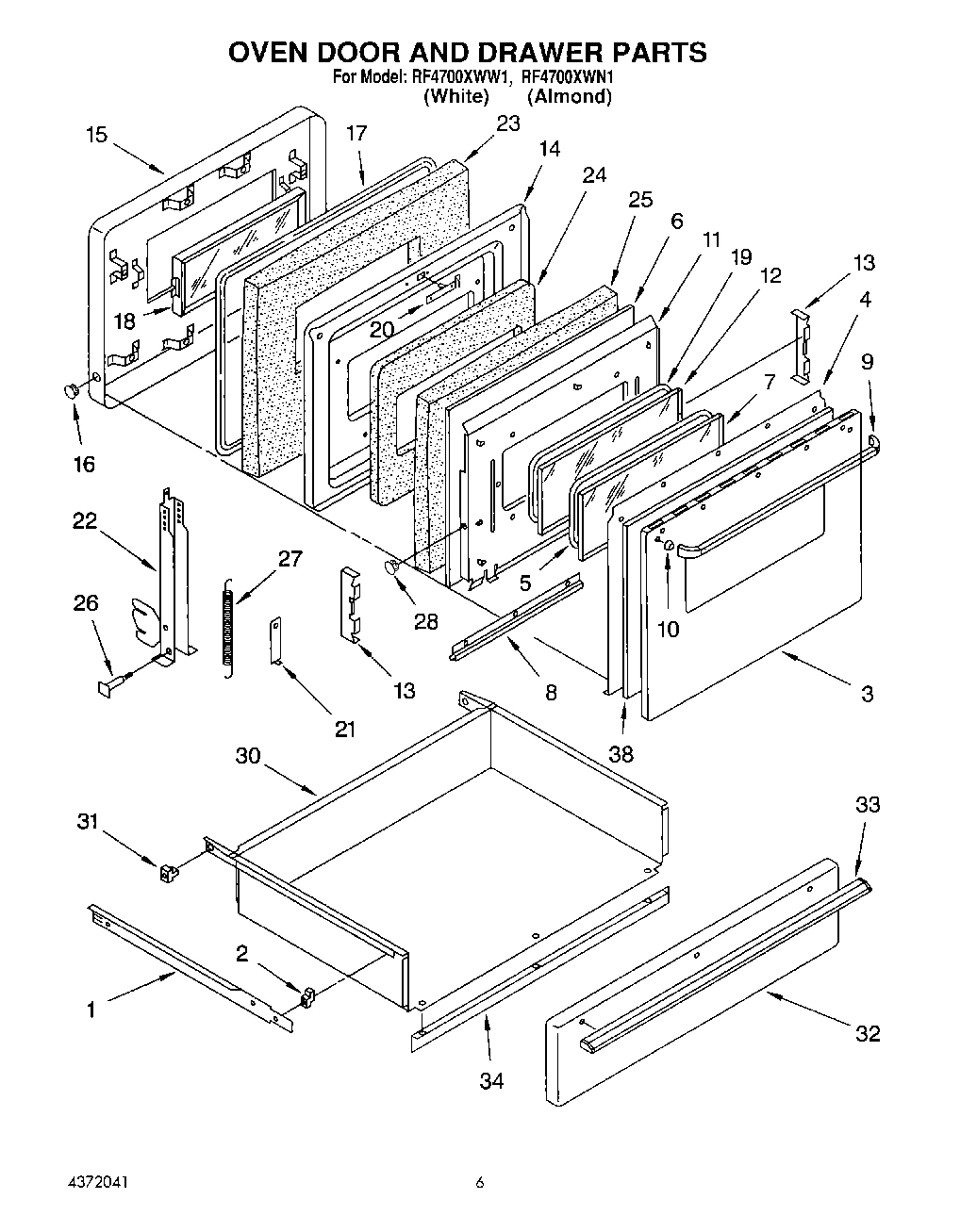

03 - OVEN DOOR AND DRAWER

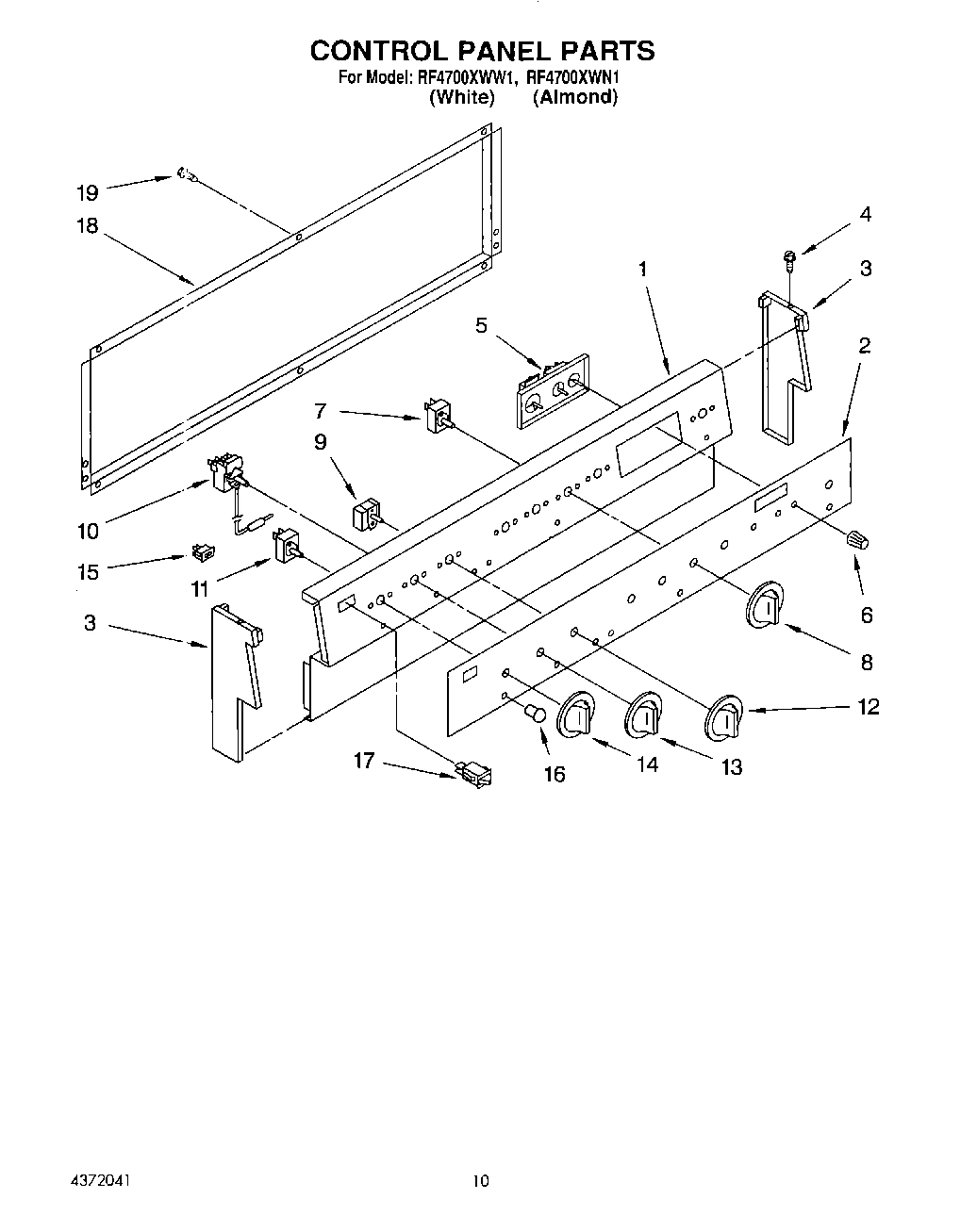

05 - CONTROL PANEL, LIT/OPTIONAL

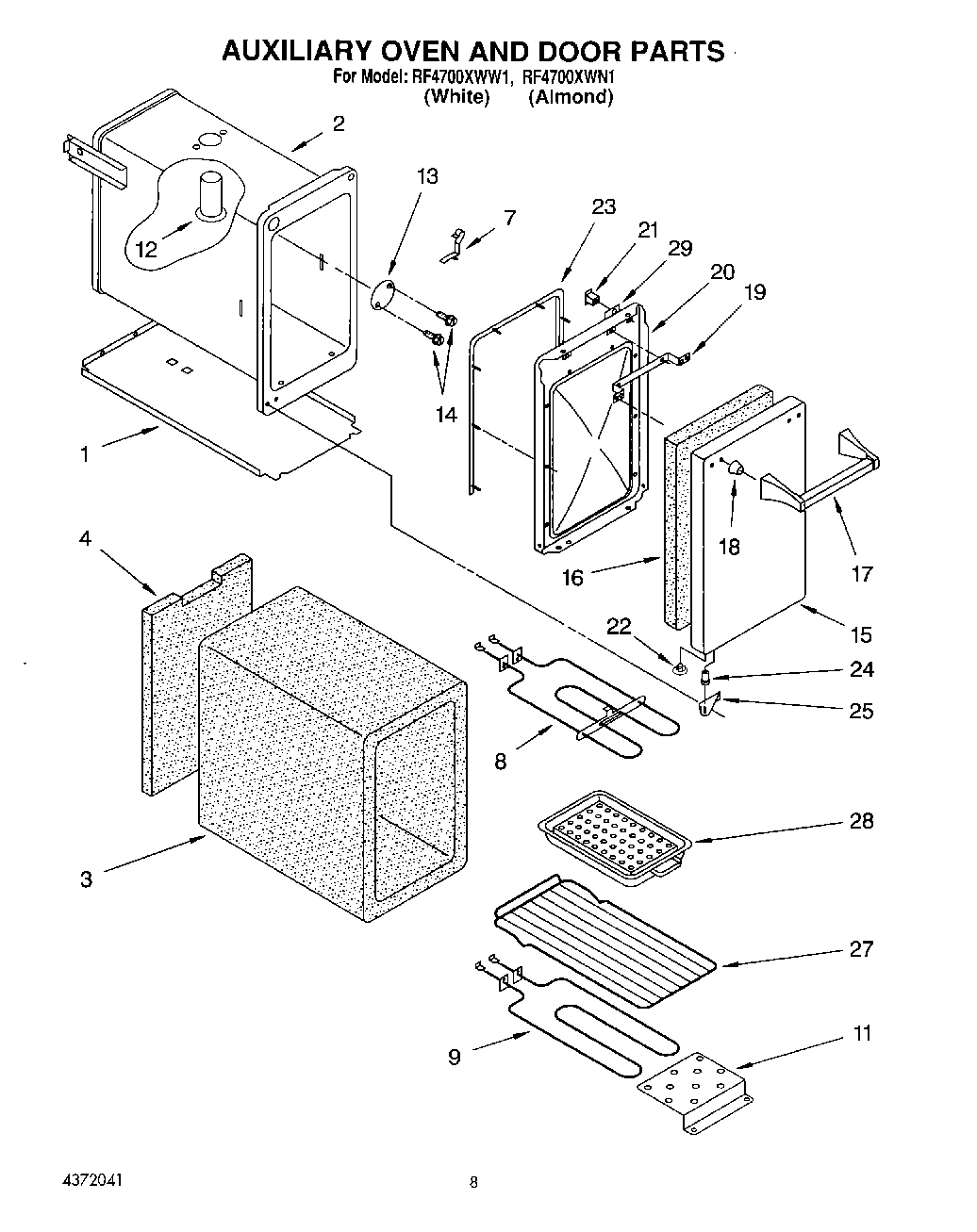

04 - AUXILIARY OVEN AND DOOR
Common parts from model Whirlpool RF4700XWN1
WPL LIT3149507 WPL LIT3149507 Contact Us For Availability
WPL LIT4372041 WPL LIT4372041 Contact Us For Availability
WPL LIT816125 WPL LIT816125 Contact Us For Availability
WPL LIT816451 WPL LIT816451 Contact Us For Availability
WPL LIT816452 WPL LIT816452 Contact Us For Availability
1
Oven WPL 816501 Contact Us For Availability
1
screw, 10-24 x 7/8 WPL 834649 Contact Us For Availability
1
Rail, Drawer (R.H.) WPL 4371355 Contact Us For Availability
1
Rail, Drawer (L.H.) WPL 4371356 Contact Us For Availability
1
Panel, Backguard (White) WPL 816484 Contact Us For Availability
1
Panel, Backguard (Almond) WPL 816485 Contact Us For Availability
1
Panel, Bottom WPL 816472 Contact Us For Availability
2
Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability
2
Housing, Oven Light WPL 4371293 Contact Us For Availability
2
Guide, Front (2) WPL 4371429 Contact Us For Availability
2
Panel, Overlay WPL 816476 Contact Us For Availability
2
Liner, Auxiliary Oven WPL 816176 Contact Us For Availability
3
panel, oven door (main) (white) WPL 877620 Contact Us For Availability
3
Panel, Oven Door (Main) (Almond) WPL 877624 Contact Us For Availability
3
End Cap (R.H.) WPL 868261 Contact Us For Availability
3
End Cap (L.H.) WPL 868262 Contact Us For Availability
3
Insulation, Oven Wrap WPL 4372034 Contact Us For Availability
4
Panel, Insulator WPL 868317 Contact Us For Availability
4
Screw, 8-18 x 1/2 (4) WPL 4159449 Contact Us For Availability
4
Insulation, Oven Back WPL 4372035 Contact Us For Availability
5
Insulation, Oven Back WPL 4371362 Contact Us For Availability
5
``J`` Molding Outer Glass WPL 868045 Contact Us For Availability
5
Clock, Timer WPL 816475 Contact Us For Availability
6
Knob, Clock (3) WPL 816480 Contact Us For Availability
6
Insulation, Oven Wrap WPL 4372016 Contact Us For Availability
6
Foil, Aluminum WPL 4372029 Contact Us For Availability
7
Kit, Anti-Tip WPL 814121 Contact Us For Availability
7
Glass, Outer WPL 816491 Contact Us For Availability
8
Lens, Light WPL 816609 Contact Us For Availability
8
Retainer, Glass (2) WPL 868013 Contact Us For Availability
8
Knob, Control (4) WPL 816481 Contact Us For Availability
8
Element, Broil WPL 877570 Contact Us For Availability
9
Retainer, Lens WPL 4371394 Contact Us For Availability
9
Handle, Door (Main) WPL 4371469 Contact Us For Availability
9
Switch, Selector (Main Oven) WPL 877901 Contact Us For Availability
9
Element, Bake WPL 877571 Contact Us For Availability
10
Button, Plug 1/2 WPL 142017 Contact Us For Availability
10
Button, Plug 3/4`` (2) WPL 251379 Contact Us For Availability
10
Thermostat, Oven (Main Oven) WPL 816487 Contact Us For Availability
11
Bracket, Thermobulb WPL 4371423 Contact Us For Availability
11
Panel, Air Wash WPL 816493 Contact Us For Availability
11
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
11
Thermostat, Oven (Auxiliary Oven) WPL 816488 Contact Us For Availability
11
Shield, Bake Unit WPL 866302 Contact Us For Availability
12
Glass, Inner WPL 816794 Contact Us For Availability
12
Knob, Selector WPL 816482 Contact Us For Availability
12
Vent Tube WPL 241978 Contact Us For Availability
13
Element, Broil WPL 4371351 Contact Us For Availability
13
Retainer, Glass Inner (2) WPL 868503 Contact Us For Availability
13
Knob, Control Main Oven WPL 816494 Contact Us For Availability
13
Plate, Cover WPL 816495 Contact Us For Availability
14
Support, Broiler Element WPL 866429 Contact Us For Availability
14
Liner, Oven Door WPL 877625 Contact Us For Availability
14
Knob, Control Auxiliary Oven WPL 816483 Contact Us For Availability
14
Screw, 10 - 24 x 1/2 (2) WPL 241428 Contact Us For Availability
15
Baffle Weldment WPL 816492 Contact Us For Availability
15
Light, Indicator (Indicator, Oven (2)) WPL 816477 Contact Us For Availability
15
Light, Indicator (Indicator, Lock) WPL 816478 Contact Us For Availability
15
Light, Indicator (Indicator, Surface) WPL 816479 Contact Us For Availability
15
panel, oven door (auxiliary) (white) WPL 868614 Contact Us For Availability
15
panel, oven door (auxiliary) (almond) WPL 868617 Contact Us For Availability
16
Screw, 10-24 x1/2 (2) WPL 486146 Contact Us For Availability
16
Motor, Door Latch (Complete) WPL 816159 Contact Us For Availability
16
Screw, 4-40 x 1-1/4 (2) WPL 834903 Contact Us For Availability
16
Vent Tube WPL 877880 Contact Us For Availability
16
Plug Button 3/16`` (2) WPL 142001 Contact Us For Availability
16
Lens, Indicator (4) WPL 4372028 Contact Us For Availability
16
Insulation, Aux. Oven Door WPL 4372033 Contact Us For Availability
17
Housing, Latch WPL 816857 Contact Us For Availability
17
Panel, Body-Side (White R.H.) WPL 816147 Contact Us For Availability
17
Panel, Body-Side (Almond R.H.) WPL 816148 Contact Us For Availability
17
Panel, Body-Side (White L.H.) WPL 816149 Contact Us For Availability
17
Panel, Body-Side (Almond L.H.) WPL 816150 Contact Us For Availability
17
Seal, Oven Door WPL 877590 Contact Us For Availability
17
Switch, Oven Light WPL 816486 Contact Us For Availability
17
Handle, Door WPL 816734 Contact Us For Availability
18
Spacer, Handle (2) WPL 4371405 Contact Us For Availability
18
Screw, 10-24 x 5/8 (2) WPL 487392 Contact Us For Availability
18
Window Assembly WPL 816490 Contact Us For Availability
18
Cover, Backguard WPL 816470 Contact Us For Availability
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
WPL 799344 WPL 799344 Contact Us For Availability
19
Latch, Door WPL 4371167 Contact Us For Availability
19
Retainer, Insulation WPL 4372036 Contact Us For Availability
19
Seal, Window WPL 877506 Contact Us For Availability
19
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. WPL 242828 Contact Us For Availability
19
WPL 242829 WPL 242829 Contact Us For Availability
19
WPL 242830 WPL 242830 Contact Us For Availability
19
WPL 242832 WPL 242832 Contact Us For Availability
19
WPL 261582 WPL 261582 Contact Us For Availability
19
WPL 261810 WPL 261810 Contact Us For Availability
19
WPL 261832 WPL 261832 Contact Us For Availability
19
WPL 261886 WPL 261886 Contact Us For Availability
19
WPL 261887 WPL 261887 Contact Us For Availability
19
WPL 261888 WPL 261888 Contact Us For Availability
19
WPL 261889 WPL 261889 Contact Us For Availability
19
WPL 261890 WPL 261890 Contact Us For Availability
19
WPL 261891 WPL 261891 Contact Us For Availability
19
WPL 72108 WPL 72108 Contact Us For Availability
19
WPL 799351 WPL 799351 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
19
Spacer, Door WPL 868629 Contact Us For Availability
20
washer WPL 241422 Contact Us For Availability
20
Pushnut, 1/4 WPL 256158 Contact Us For Availability
20
Back, Range WPL 816151 Contact Us For Availability
20
Strike Assembly WPL 816026 Contact Us For Availability
20
Washer (2) WPL 816058 Contact Us For Availability
20
Liner, Door WPL 4372037 Contact Us For Availability
20
washer, rubber WPL 486847 Contact Us For Availability
21
Relief, Strain WPL 868136 Contact Us For Availability
21
Panel, Bottom WPL 816473 Contact Us For Availability
21
Retainer, Door WPL 816474 Contact Us For Availability
21
Latch, Door Magnetic WPL 816461 Contact Us For Availability
22
Support, Gusset WPL 877568 Contact Us For Availability
22
Assy, Door Hinge (Screw, 10-24 x 1/2 (2)) WPL 247326 Contact Us For Availability
22
Assy, Door Hinge (R.H.) WPL 816496 Contact Us For Availability
22
Assy, Door Hinge (L.H.) WPL 816497 Contact Us For Availability
22
Button, Plug WPL 868254 Contact Us For Availability
23
Pin, Hinge (R.H.) WPL 868129 Contact Us For Availability
23
Pin, Hinge (L.H.) WPL 868130 Contact Us For Availability
23
Gusset, Rear (R.H.) WPL 877826 Contact Us For Availability
23
Gusset, Rear (L.H.) WPL 877827 Contact Us For Availability
23
Insulation, Baffle WPL 4372014 Contact Us For Availability
23
Gasket, Door WPL 868310 Contact Us For Availability
24
Cooktop (White) WPL 868230 Contact Us For Availability
24
Cooktop (Almond) WPL 868233 Contact Us For Availability
24
Insulation, Liner WPL 4372030 Contact Us For Availability
24
Spacer, Hinge (2) Pin WPL 834549 Contact Us For Availability
25
hinge, oven door (auxiliary) (screw, 10-24 x WPL 868430 Contact Us For Availability
25
Channel, Support WPL 868226 Contact Us For Availability
25
Insulation, Airwash WPL 4372031 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3 WPL 868382 Contact Us For Availability
25
hinge, oven door (auxiliary) (bottom) WPL 877921 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Top) WPL 877922 Contact Us For Availability
26
Pin, Hinge (2) WPL 877884 Contact Us For Availability
26
Screw, Leveling (4) WPL 4371398 Contact Us For Availability
27
Retainer, Hinge Pin (2) WPL 868137 Contact Us For Availability
27
Spring, Door (2) WPL 241312 Contact Us For Availability
27
Rack, Oven Regular WPL 868329 Contact Us For Availability
28
Plug Button (4) WPL 834558 Contact Us For Availability
28
Kit, Broiler Pan And Grid WPL 834616 Contact Us For Availability
29
Ring, Trim (8`` (2)) WPL 834729 Contact Us For Availability
29
Ring, Trim (6`` (2)) WPL 834730 Contact Us For Availability
29
Gusset, Backguard (2) WPL 868128 Contact Us For Availability
29
Plate, Catch WPL 816463 Contact Us For Availability
30
Pan, Surface (6`` (2)) WPL 866340 Contact Us For Availability
30
Pan, Surface (8`` (2)) WPL 866341 Contact Us For Availability
30
Bumper, Cooktop (5) WPL 877947 Contact Us For Availability
30
Drawer WPL 868242 Contact Us For Availability
31
Guide, Rear (2) WPL 868152 Contact Us For Availability
32
Medallion WPL 261990 Contact Us For Availability
32
Nut, 10-32 (6) WPL 487836 Contact Us For Availability
32
Panel, Drawer (White) WPL 865865 Contact Us For Availability
32
Panel, Drawer (Almond) WPL 868249 Contact Us For Availability
33
Handle, Dr WPL 816489 Contact Us For Availability
33
WPL 877903 WPL 877903 Contact Us For Availability
34
WPL 866136 WPL 866136 Contact Us For Availability
35
Cover, Back WPL 816471 Contact Us For Availability
38
WPL 4372032 WPL 4372032 Contact Us For Availability
39
Rack, Oven (Regular) WPL 4371483 Contact Us For Availability
39
Rack, Oven (Offset) WPL 4371579 Contact Us For Availability
42
WPL 816792 WPL 816792 Contact Us For Availability
43
WPL 680363 WPL 680363 Contact Us For Availability
43
WPL 816169 WPL 816169 Contact Us For Availability
44
WPL 4371333 WPL 4371333 Contact Us For Availability
× ![]()
