Model Whirlpool RF4700XBN3 – Common Parts & Diagrams

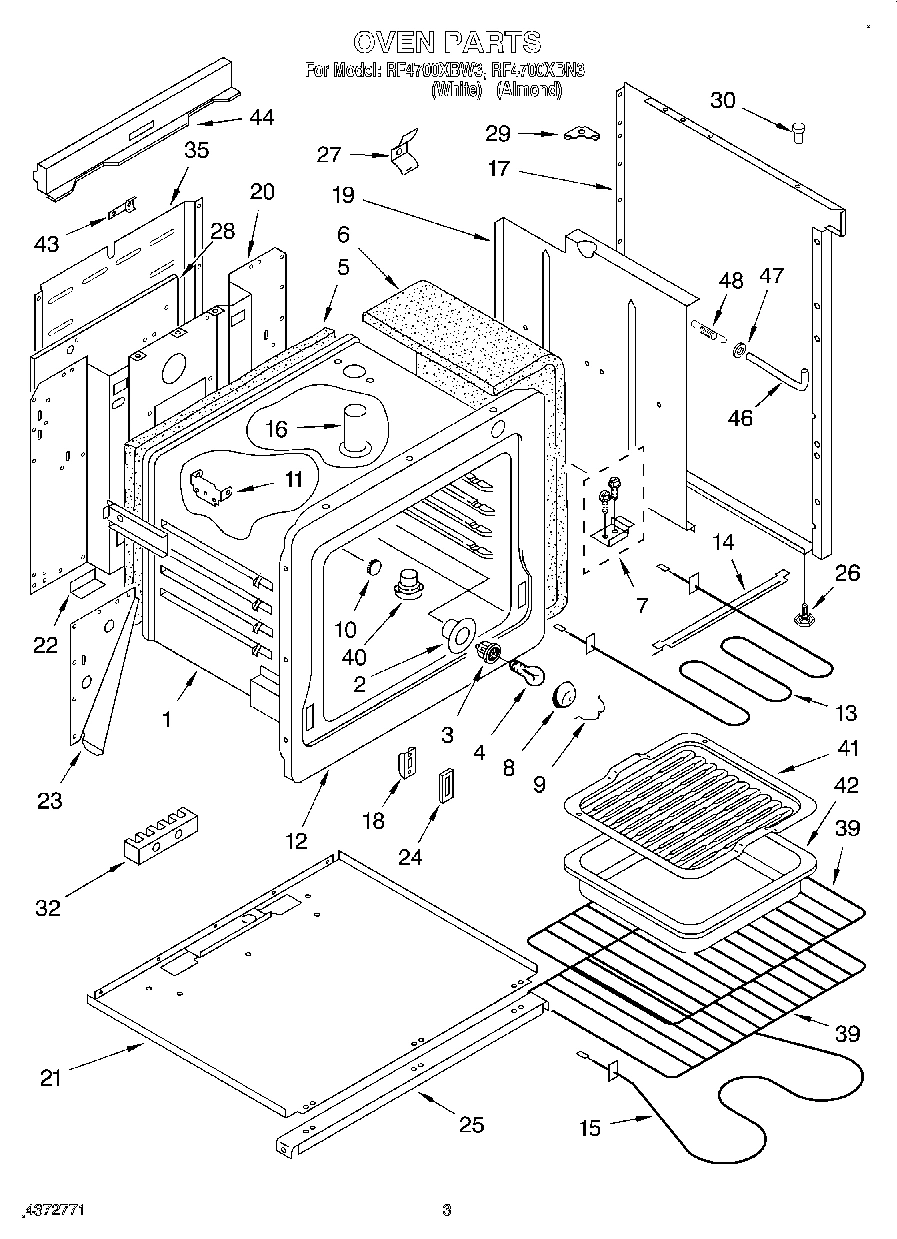

02 - OVEN

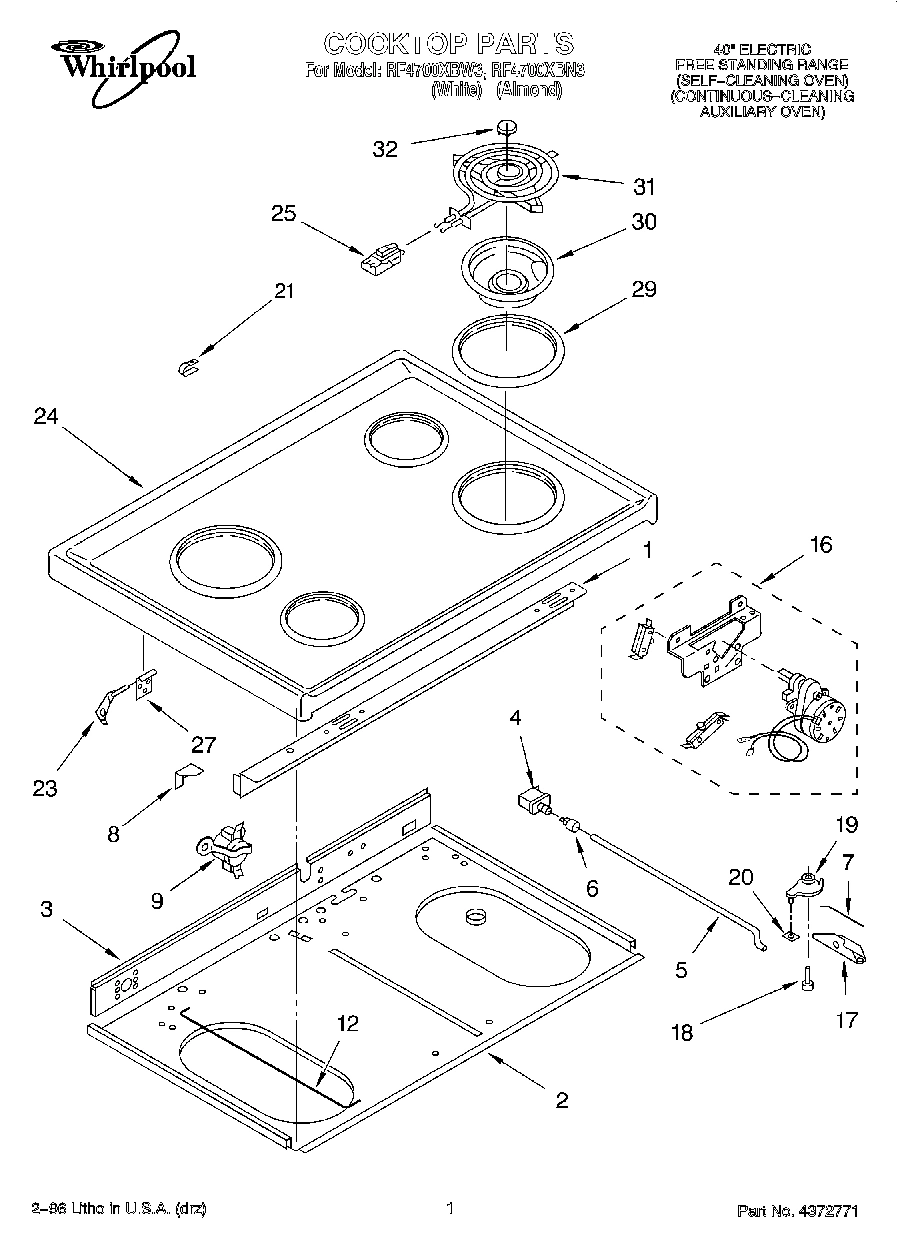

01 - COOKTOP

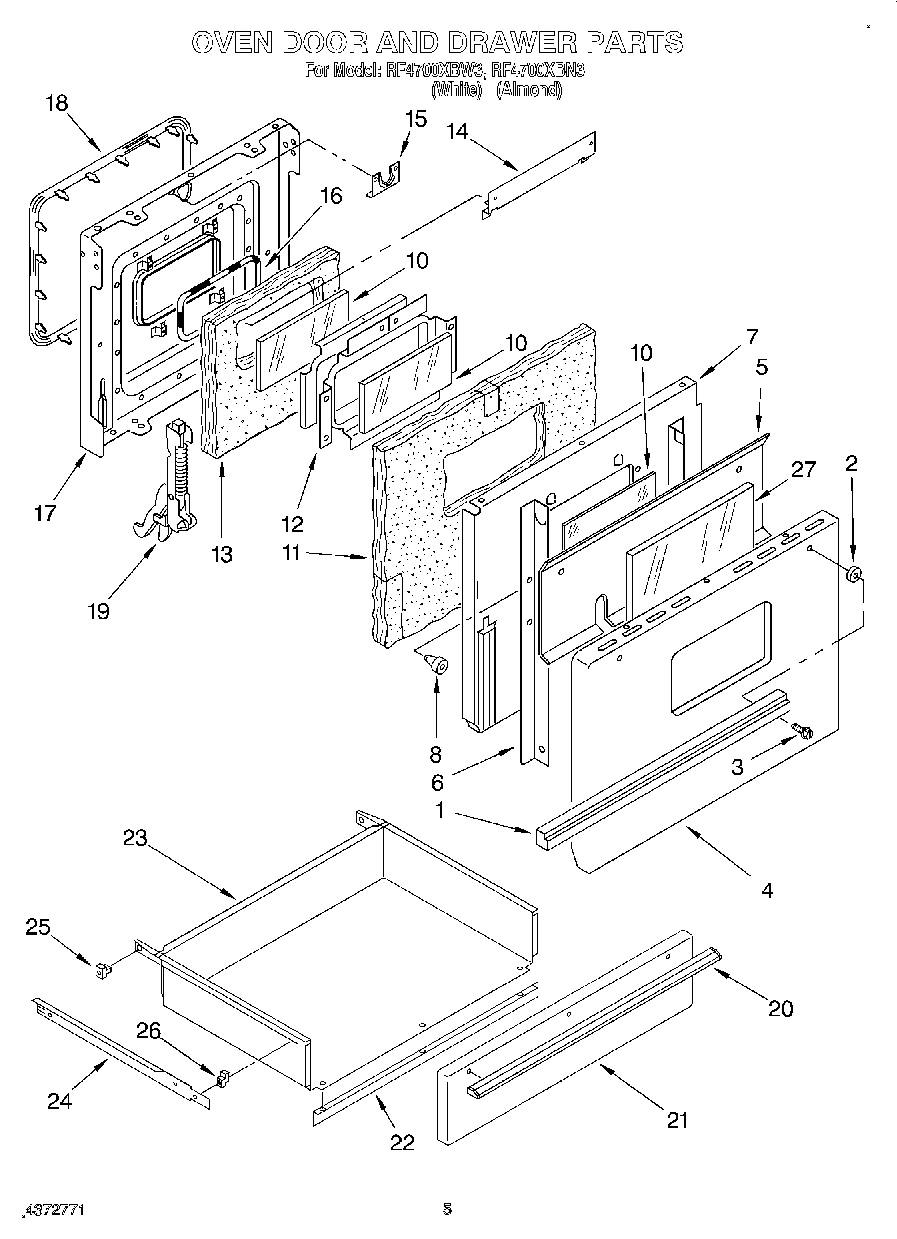

03 - OVEN DOOR AND DRAWER

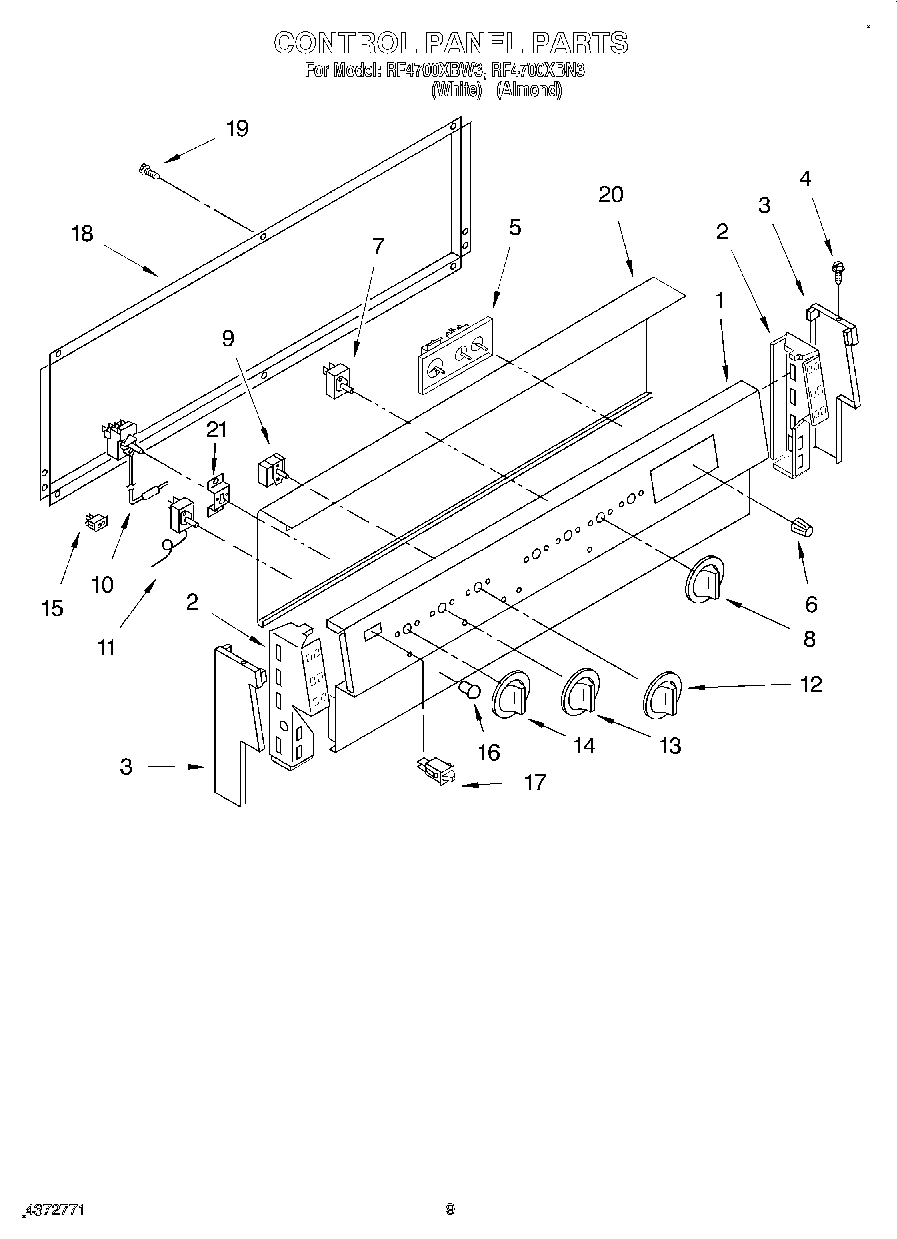

05 - CONTROL PANEL, LIT/OPTIONAL
04 - AUXILIARY OVEN AND DOOR
Common parts from model Whirlpool RF4700XBN3
WPL LIT3149507 WPL LIT3149507 Contact Us For Availability
WPL LIT4372274 WPL LIT4372274 Contact Us For Availability
WPL LIT4372280 WPL LIT4372280 Contact Us For Availability
WPL LIT4372281 WPL LIT4372281 Contact Us For Availability
1
screw, 10-24 x 7/8 WPL 834649 Contact Us For Availability
1
Bracket, Cooktop WPL 4372801 Contact Us For Availability
1
Handle, Oven Door WPL 4372370 Contact Us For Availability
1
Panel, Backguard (White) WPL 4372347 Contact Us For Availability
1
Panel, Backguard (Almond) WPL 4372348 Contact Us For Availability
1
Panel, Bottom WPL 4372626 Contact Us For Availability
2
Screw, 10-24 x 1/2 (2) WPL 681151 Contact Us For Availability
2
Panel, Sub Top WPL 4372802 Contact Us For Availability
2
Spacer, Handle (2) WPL 4372598 Contact Us For Availability
2
Bracket, Endcap (R.H.) WPL 4372349 Contact Us For Availability
2
Bracket, Endcap (L.H.) WPL 4372350 Contact Us For Availability
2
Liner, Auxiliary Oven WPL 4372803 Contact Us For Availability
3
Shield, Wiring WPL 4372621 Contact Us For Availability
3
Screw, Handle (2) WPL 4372593 Contact Us For Availability
3
End Cap (R.H. White) WPL 4372351 Contact Us For Availability
3
End Cap (L.H. White) WPL 4372352 Contact Us For Availability
3
End Cap (R.H. Almond) WPL 4372353 Contact Us For Availability
3
End Cap (L.H. Almond) WPL 4372354 Contact Us For Availability
3
Insulation, Oven Wrap WPL 4372034 Contact Us For Availability
4
Panel, Door (White) WPL 4372595 Contact Us For Availability
4
Panel, Door (Almond) WPL 4372596 Contact Us For Availability
4
Screw, Endcap 8-18 x 1/2 (4) WPL 4372223 Contact Us For Availability
4
Insulation, Oven Back WPL 4372035 Contact Us For Availability
5
Rod, Push WPL 4372620 Contact Us For Availability
5
Deflector, Heat WPL 4372606 Contact Us For Availability
5
Clock, Timer WPL 4372577 Contact Us For Availability
6
Knob, Clock (3) WPL 816480 Contact Us For Availability
6
Cap, Push Rod WPL 4371574 Contact Us For Availability
6
Bracket, Door (R.H.) WPL 4372601 Contact Us For Availability
6
Bracket, Door (L.H.) WPL 4372602 Contact Us For Availability
6
Screw, 10 x 3/8 (2) WPL 4372044 Contact Us For Availability
7
Bar, Tie WPL 4371396 Contact Us For Availability
7
Baffle, Door WPL 4372588 Contact Us For Availability
8
Bracket, Filler WPL 4372616 Contact Us For Availability
8
Spacer, Rubber (4) WPL 4372600 Contact Us For Availability
8
Knob, Control (4) WPL 816481 Contact Us For Availability
8
Element, Broil WPL 877570 Contact Us For Availability
9
Thermostat, Safety WPL 4372638 Contact Us For Availability
9
Switch, Selector (Main Oven) WPL 4372361 Contact Us For Availability
9
Element, Bake WPL 877571 Contact Us For Availability
10
Glass, Door (3) WPL 4372591 Contact Us For Availability
10
Thermostat, Oven (Main Oven) WPL 4372792 Contact Us For Availability
11
Insulation, Door WPL 4372590 Contact Us For Availability
11
Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability
11
Thermostat, Oven (Auxiliary Oven) WPL 816488 Contact Us For Availability
11
Shield, Bake Unit WPL 4372805 Contact Us For Availability
12
Rod, Support WPL 4371397 Contact Us For Availability
12
Frame, Glass WPL 4372597 Contact Us For Availability
12
Knob, Selector WPL 816482 Contact Us For Availability
12
Vent Tube WPL 241978 Contact Us For Availability
13
Insulation, Window WPL 4372589 Contact Us For Availability
13
Knob, Control Main Oven WPL 816494 Contact Us For Availability
13
Plate, Cover WPL 816495 Contact Us For Availability
14
Support, Broiler Element WPL 4372611 Contact Us For Availability
14
Retainer, Glass WPL 4372604 Contact Us For Availability
14
Knob, Control Auxiliary Oven WPL 816483 Contact Us For Availability
14
Screw, 10 - 24 x 1/2 (2) WPL 241428 Contact Us For Availability
15
Element, Bake WPL 4372609 Contact Us For Availability
15
Latch, Door WPL 4372605 Contact Us For Availability
15
Light, Indicator (Indicator, Surface) WPL 4371380 Contact Us For Availability
15
Light, Indicator (Indicator, Oven (2)) WPL 4371439 Contact Us For Availability
15
Light, Indicator (Indicator, Lock) WPL 4372359 Contact Us For Availability
15
panel, oven door (auxiliary) (white) WPL 868614 Contact Us For Availability
15
panel, oven door (auxiliary) (almond) WPL 868617 Contact Us For Availability
16
Screw, 10-24 x1/2 (2) WPL 486146 Contact Us For Availability
16
Vent Tube WPL 4372614 Contact Us For Availability
16
Motor, Door Latch (Complete) WPL 4372635 Contact Us For Availability
16
Screw, 4-40 x 1-1/4 (2) WPL 834903 Contact Us For Availability
16
Gasket, Window WPL 4372603 Contact Us For Availability
16
Lens, Indicator (4) WPL 4372578 Contact Us For Availability
16
Insulation, Aux. Oven Door WPL 4372033 Contact Us For Availability
17
Panel, Body-Side (Almond R.H.) WPL 4372382 Contact Us For Availability
17
Panel, Body-Side (Almond L.H.) WPL 4372383 Contact Us For Availability
17
Panel, Body-Side (White R.H.) WPL 816147 Contact Us For Availability
17
Panel, Body-Side (White L.H.) WPL 816149 Contact Us For Availability
17
Bracket, Latch WPL 816857 Contact Us For Availability
17
Liner, Door WPL 4372795 Contact Us For Availability
17
Switch, Oven Light WPL 4372576 Contact Us For Availability
17
Handle, Door WPL 4372367 Contact Us For Availability
17
Screw WPL 4372793 Contact Us For Availability
18
Receptacle, Hinge WPL 4372634 Contact Us For Availability
18
Axle, Latch WPL 4371168 Contact Us For Availability
18
Gasket, Door WPL 4372796 Contact Us For Availability
18
Cover, Backguard WPL 4372356 Contact Us For Availability
18
Spacer, Handle (2) WPL 4372580 Contact Us For Availability
18
Screw, 10-24 x 5/8 (2) WPL 487392 Contact Us For Availability
19
Retainer, Insulation WPL 4372619 Contact Us For Availability
19
Latch, Door WPL 4371167 Contact Us For Availability
19
Hinge Assembly (2) WPL 4372599 Contact Us For Availability
19
Spacer, Door WPL 4372583 Contact Us For Availability
20
Back, Range WPL 4372640 Contact Us For Availability
20
washer WPL 241422 Contact Us For Availability
20
Pushnut, 1/4 WPL 256158 Contact Us For Availability
20
Handle, Drawer WPL 4372366 Contact Us For Availability
20
Trim, Backguard (White) WPL 4372357 Contact Us For Availability
20
Trim, Backguard (Almond) WPL 4372358 Contact Us For Availability
20
Liner, Door WPL 4372794 Contact Us For Availability
20
washer, rubber WPL 486847 Contact Us For Availability
21
WPL 799344 WPL 799344 Contact Us For Availability
21
Panel, Bottom WPL 4372804 Contact Us For Availability
21
Relief, Strain WPL 868136 Contact Us For Availability
21
Panel, Drawer (White) WPL 865865 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 868249 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 G WPL 242824 Contact Us For Availability
21
WPL 242825 WPL 242825 Contact Us For Availability
21
WPL 242826 WPL 242826 Contact Us For Availability
21
WPL 242827 WPL 242827 Contact Us For Availability
21
WPL 242828 WPL 242828 Contact Us For Availability
21
WPL 242829 WPL 242829 Contact Us For Availability
21
WPL 242830 WPL 242830 Contact Us For Availability
21
WPL 242832 WPL 242832 Contact Us For Availability
21
WPL 261582 WPL 261582 Contact Us For Availability
21
WPL 261886 WPL 261886 Contact Us For Availability
21
WPL 261888 WPL 261888 Contact Us For Availability
21
WPL 261890 WPL 261890 Contact Us For Availability
21
WPL 261891 WPL 261891 Contact Us For Availability
21
WPL 4372365 WPL 4372365 Contact Us For Availability
21
WPL 72108 WPL 72108 Contact Us For Availability
21
WPL 799351 WPL 799351 Contact Us For Availability
21
WPL 799832 WPL 799832 Contact Us For Availability
21
WPL 978883 WPL 978883 Contact Us For Availability
21
Latch, Door Magnetic WPL 816461 Contact Us For Availability
22
Support, Gusset WPL 877568 Contact Us For Availability
22
Cover, Toespace WPL 4372579 Contact Us For Availability
22
Button, Plug WPL 868254 Contact Us For Availability
23
Gusset, Rear (R.H.) WPL 877826 Contact Us For Availability
23
Gusset, Rear (L.H.) WPL 877827 Contact Us For Availability
23
Pin, Hinge (R.H.) WPL 868129 Contact Us For Availability
23
Pin, Hinge (L.H.) WPL 868130 Contact Us For Availability
23
Drawer WPL 868242 Contact Us For Availability
23
Gasket, Door WPL 4372584 Contact Us For Availability
24
Plate, Hinge WPL 4372639 Contact Us For Availability
24
Cooktop (White) WPL 868230 Contact Us For Availability
24
Cooktop (Almond) WPL 868233 Contact Us For Availability
24
Rail, Drawer (R.H.) WPL 4372617 Contact Us For Availability
24
Rail, Drawer (L.H.) WPL 4372618 Contact Us For Availability
24
Spacer, Hinge (2) Pin WPL 834549 Contact Us For Availability
25
Channel, Support WPL 868226 Contact Us For Availability
25
hinge, oven door (auxiliary) (screw, 10-24 x WPL 868430 Contact Us For Availability
25
Guide, Rear (2) WPL 868152 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Top) WPL 4372581 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Bottom) WPL 4372582 Contact Us For Availability
25
Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3 WPL 868382 Contact Us For Availability
26
Screw, Leveling (4) WPL 4371398 Contact Us For Availability
26
Guide, Front (2) WPL 4371429 Contact Us For Availability
27
Spacer, Oven WPL 4372501 Contact Us For Availability
27
Retainer, Hinge Pin (2) WPL 4372379 Contact Us For Availability
27
Glass, Door WPL 4372797 Contact Us For Availability
27
Rack, Oven Regular WPL 868329 Contact Us For Availability
28
Panel, Back WPL 4372624 Contact Us For Availability
28
Kit, Broiler Pan And Grid WPL 834616 Contact Us For Availability
29
Gusset, Backguard (2) WPL 4372395 Contact Us For Availability
29
Ring, Trim (8`` (2)) WPL 834729 Contact Us For Availability
29
Ring, Trim (6`` (2)) WPL 834730 Contact Us For Availability
29
Plate, Catch WPL 816463 Contact Us For Availability
30
Bumper, Cooktop (5) WPL 877947 Contact Us For Availability
30
Pan, Surface (8`` (2)) WPL 4372798 Contact Us For Availability
30
Pan, Surface (6`` (2)) WPL 4372799 Contact Us For Availability
30
Washer, Rubber WPL 4372047 Contact Us For Availability
31
Rivet (2) WPL 4372048 Contact Us For Availability
32
Nut, 10-32 (6) WPL 487836 Contact Us For Availability
32
Medallion WPL 4372378 Contact Us For Availability
35
Cover, Back WPL 4372623 Contact Us For Availability
39
WPL 4372632 WPL 4372632 Contact Us For Availability
40
WPL 4372400 WPL 4372400 Contact Us For Availability
40
WPL 4372637 WPL 4372637 Contact Us For Availability
41
WPL 4372787 WPL 4372787 Contact Us For Availability
42
WPL 4372786 WPL 4372786 Contact Us For Availability
43
WPL 680363 WPL 680363 Contact Us For Availability
43
WPL 816169 WPL 816169 Contact Us For Availability
44
WPL 4372636 WPL 4372636 Contact Us For Availability
46
WPL 4372809 WPL 4372809 Contact Us For Availability
47
WPL 4372807 WPL 4372807 Contact Us For Availability
48
WPL 4372808 WPL 4372808 Contact Us For Availability
× ![]()
