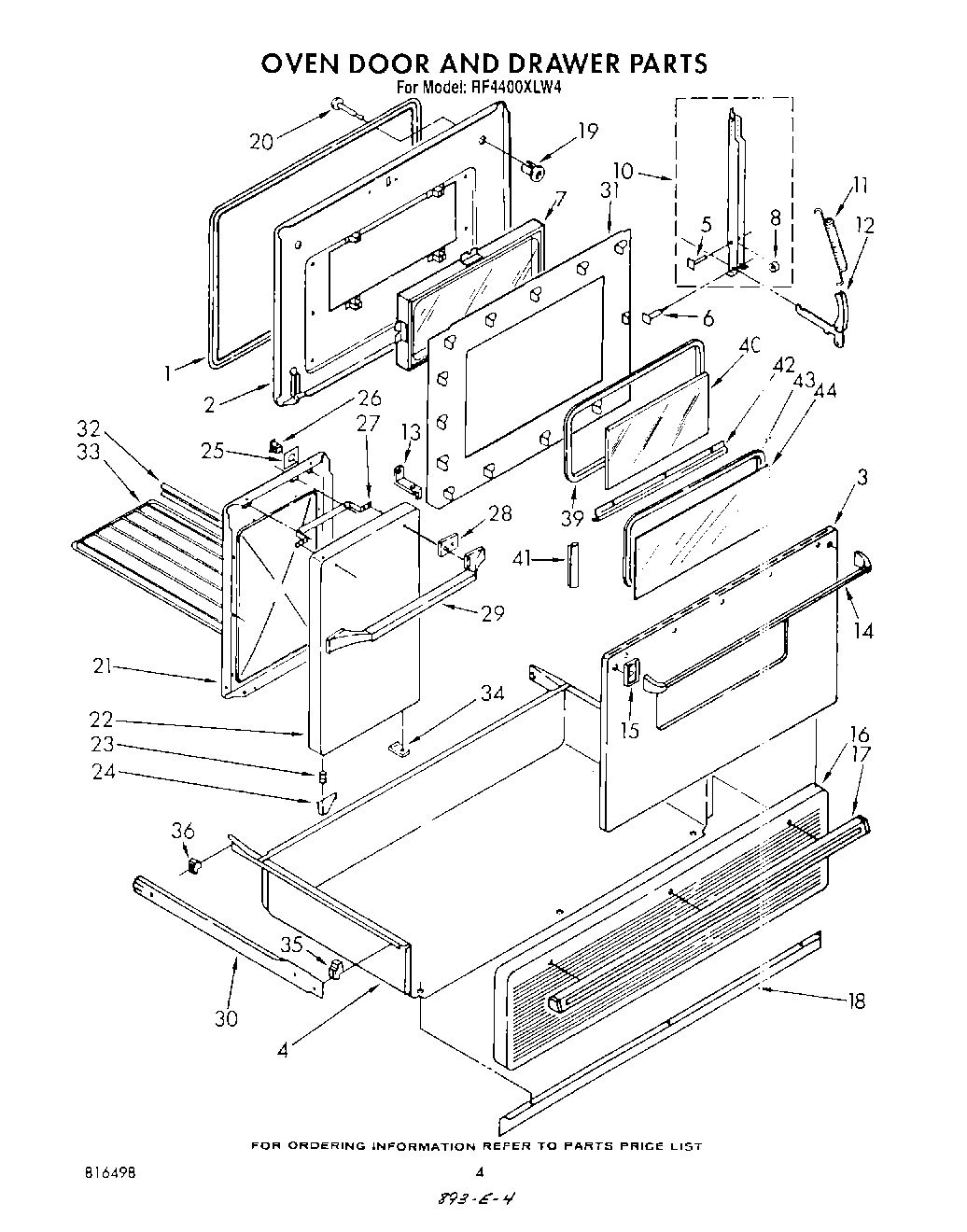

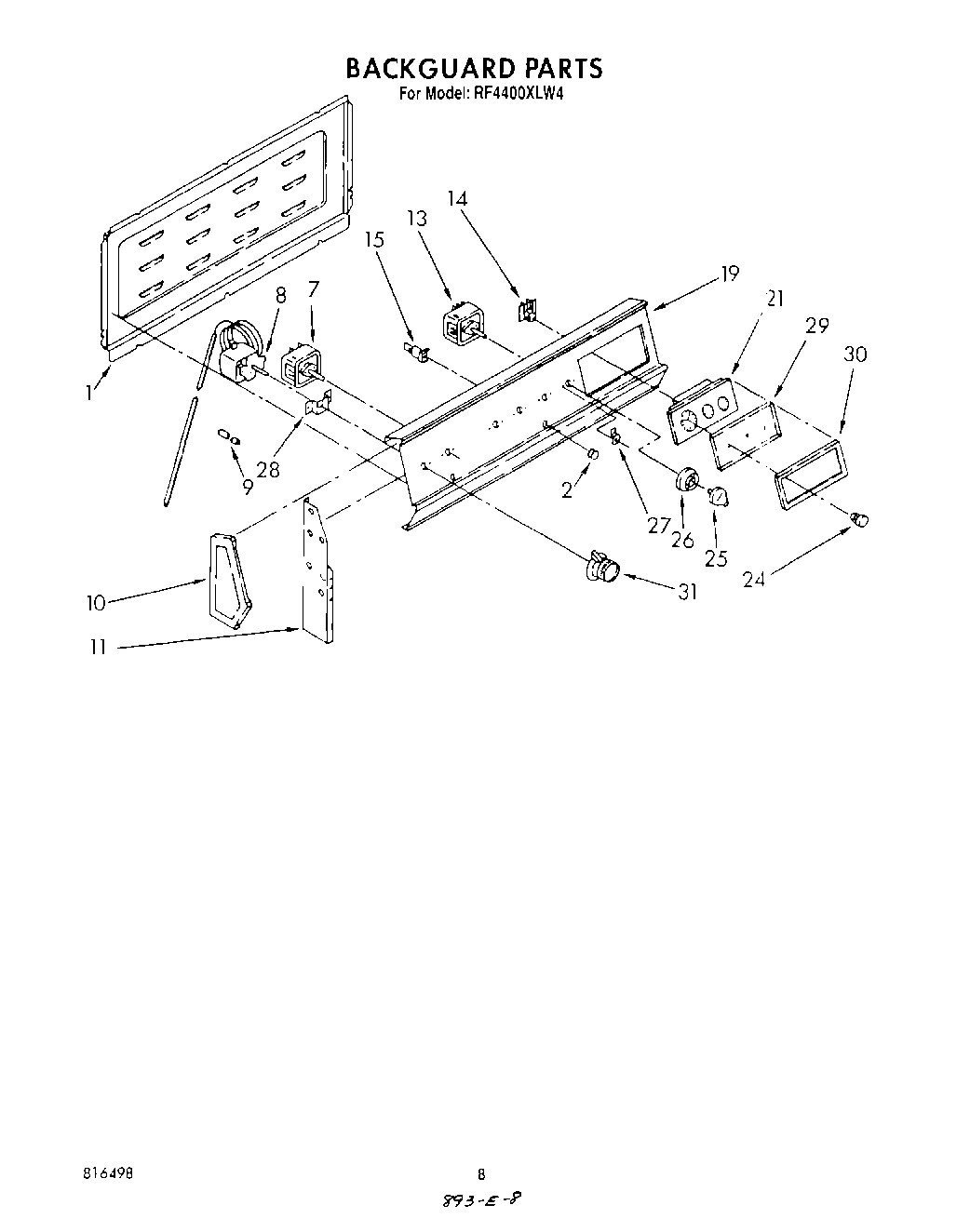

Model Whirlpool RF4400XLW4 – Common Parts &amp; Diagrams

WPL LIT816498 WPL LIT816498 Contact Us For Availability

WPL LIT865621 WPL LIT865621 Contact Us For Availability

WPL LIT877791 WPL LIT877791 Contact Us For Availability

WPL LIT877952 WPL LIT877952 Contact Us For Availability

WPL ARI123153A WPL ARI123153A Contact Us For Availability

1

Washer Flat (3) WPL 486608 Contact Us For Availability

1

Cover, Wiring WPL 816470 Contact Us For Availability

1

Cover, Wiring WPL 816471 Contact Us For Availability

1

Cooktop (White) WPL 868230 Contact Us For Availability

1

Cooktop (Almond) WPL 868233 Contact Us For Availability

2

Lens, Pilot Light (2) WPL 868934 Contact Us For Availability

2

Back, Range WPL 816151 Contact Us For Availability

3

Gusset, Rear (R.H.) WPL 877826 Contact Us For Availability

3

Gusset, Rear (L.H.) WPL 877827 Contact Us For Availability

4

Retainer, Hinge (2) WPL 868137 Contact Us For Availability

5

Support, Gusset WPL 877568 Contact Us For Availability

5

Pin, Hinge (R.H.) WPL 868129 Contact Us For Availability

5

Pin, Hinge (L.H.) WPL 868130 Contact Us For Availability

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

6

Nut, Hex (10-32) (3) WPL 487836 Contact Us For Availability

6

Washer, Grounding (3) WPL 866213 Contact Us For Availability

7

Switch, Oven Selector WPL 877677 Contact Us For Availability

7

Gusset, Backguard (2) WPL 868128 Contact Us For Availability

8

Thermostat, Oven (Alternate) WPL 816178 Contact Us For Availability

8

Thermostat, Oven (Alternate) WPL 816179 Contact Us For Availability

8

Thermostat, Oven (Screw, 6-32 x 3/16 (2)) WPL 877839 Contact Us For Availability

9

Sleeving, Insulating WPL 865908 Contact Us For Availability

9

Panel, Oven Bottom WPL 816473 Contact Us For Availability

9

Bottom, Compartment WPL 868253 Contact Us For Availability

Channel, L.H. WPL 865973 Contact Us For Availability

Screw, 10-24 x 7/8 (5) WPL 834649 Contact Us For Availability

Cap, End (R.H.) WPL 865910 Contact Us For Availability

Cap, End (L.H.) WPL 865911 Contact Us For Availability

Channel, Support WPL 868226 Contact Us For Availability

Spring, Door (2) WPL 241314 Contact Us For Availability

Nut, 3/16 (4) WPL 98788 Contact Us For Availability

Screw, 8-32 x 3/16 (8) WPL 486525 Contact Us For Availability

Support, Backguard (R.H.) WPL 868858 Contact Us For Availability

Support, Backguard (L.H.) WPL 868859 Contact Us For Availability

Bracket, Cooktop WPL 868273 Contact Us For Availability

12

Arm Assembly (2) WPL 865640 Contact Us For Availability

12

Oven WPL 816176 Contact Us For Availability

12

Shield, Wiring WPL 816175 Contact Us For Availability

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $30.23

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Bracket, Strike WPL 816115 Contact Us For Availability

Screw, 10-24 x 3/8 WPL 877903 Contact Us For Availability

Washer (6) WPL 816058 Contact Us For Availability

Screw, 10-24 x 3/8 (2) WPL 241428 Contact Us For Availability

Tube, Oven Vent WPL 865918 Contact Us For Availability

Nut, 10-24 Hex (2) WPL 441256 Contact Us For Availability

Panel, Subtop WPL 877663 Contact Us For Availability

Handle, Door WPL 877651 Contact Us For Availability

Motor, Timer WPL 866220 Contact Us For Availability

Screw, 8-32 x 3/16 (2) WPL 877919 Contact Us For Availability

Panel, End R.H. (White) WPL 816147 Contact Us For Availability

Panel, End R.H. (Almond Panel, End L.H.) WPL 816148 Contact Us For Availability

Panel, End R.H. (White) WPL 816149 Contact Us For Availability

Panel, End R.H. (Almond) WPL 816150 Contact Us For Availability

Switch, Cycling WPL 241679 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $9.81

Light, Pilot (125 V) (Surface Unit) WPL 868933 Contact Us For Availability

Light, Pilot (250 V) (Oven) WPL 868936 Contact Us For Availability

Partition, Center WPL 816177 Contact Us For Availability

Screw, 6-20 x 5/16 (4) WPL 877978 Contact Us For Availability

16

Panel, Drawer (White) WPL 865865 Contact Us For Availability

16

Panel, Drawer (Almond) WPL 868249 Contact Us For Availability

16

Bumper, Cooktop (4) WPL 877947 Contact Us For Availability

17

Handle, Drawer WPL 877657 Contact Us For Availability

17

Leveler (4) WPL 868880 Contact Us For Availability

17

Button, Rotisserie Plug WPL 251379 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Cover, Toespace WPL 866136 Contact Us For Availability

Unit, Broil WPL 865934 Contact Us For Availability

Medallion WPL 868522 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $31.21

Collar, Light Switch Actuator WPL 865653 Contact Us For Availability

Panel, Backguard WPL 877664 Contact Us For Availability

Hanger, Broil Unit WPL 866429 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.23

Plunger, Light Switch Actuator WPL 868638 Contact Us For Availability

21

Liner, Compartment Door WPL 816464 Contact Us For Availability

21

Timer, Complete (Includes Illus. 14, 24, 29 a WPL 877668 Contact Us For Availability

21

Pan, Broiler WPL 866218 Contact Us For Availability

Panel, Compartment Door (White) WPL 868614 Contact Us For Availability

Panel, Compartment Door (Almond) WPL 868617 Contact Us For Availability

Rack, Oven (Plain) WPL 865983 Contact Us For Availability

Rack, Oven (Offset) WPL 877951 Contact Us For Availability

23

WP865940 Whirlpool Bake Element Backorder WPL WP865940 $62.19

23

Unit, Bake (Screw, 10-32 x 1/2 (2)) WPL 486146 Contact Us For Availability

23

Spacer, Hinge Pin (2) WPL 834549 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Hinge, Compartment Door (Bottom) WPL 877921 Contact Us For Availability

Hin WPL 877922 Contact Us For Availability

Knob, Timer (3) WPL 241383 Contact Us For Availability

Screw,10-24 x 1/2 WPL 680363 Contact Us For Availability

Strap, Ground WPL 816169 Contact Us For Availability

Switch, Oven Light WPL 816092 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WPL 816463 WPL 816463 Contact Us For Availability

Knob, Surface Unit (4) WPL 866098 Contact Us For Availability

Bracket, Anti-Tip (Left Side) WPL 816457 Contact Us For Availability

Bracket, Anti-Tip (Right Side) WPL 816458 Contact Us For Availability

26

WPL 816461 WPL 816461 Contact Us For Availability

26

Screw, (2) No.12 - 12 X 1 1/4 WPL 816459 Contact Us For Availability

26

Bracket, Thermostat Bulb WPL 865959 Contact Us For Availability

WPL 868629 WPL 868629 Contact Us For Availability

Screw, 10-24 WPL 868430 Contact Us For Availability

Screw, 8-32 x 3/8 (2) WPL 487454 Contact Us For Availability

Retainer, Bezel (4) WPL 866102 Contact Us For Availability

28

WPL 868619 WPL 868619 Contact Us For Availability

28

WPL 866059 WPL 866059 Contact Us For Availability

29

WPL 487392 WPL 487392 Contact Us For Availability

29

WPL 877650 WPL 877650 Contact Us For Availability

29

WPL 834763 WPL 834763 Contact Us For Availability

30

WPL 816031 WPL 816031 Contact Us For Availability

30

WPL 816032 WPL 816032 Contact Us For Availability

30

WPL 834764 WPL 834764 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

WPL 241430 WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL 877841 WPL 877841 Contact Us For Availability

WPL 206925 WPL 206925 Contact Us For Availability

WPL 242820 WPL 242820 Contact Us For Availability

WPL 242821 WPL 242821 Contact Us For Availability

WPL 242822 WPL 242822 Contact Us For Availability

WPL 242823 WPL 242823 Contact Us For Availability

WPL 242824 WPL 242824 Contact Us For Availability

WPL 242825 WPL 242825 Contact Us For Availability

WPL 242826 WPL 242826 Contact Us For Availability

WPL 242827 WPL 242827 Contact Us For Availability

WPL 242828 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261748 WPL 261748 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 834469 WPL 834469 Contact Us For Availability

WPL 834470 WPL 834470 Contact Us For Availability

WPL 868997 WPL 868997 Contact Us For Availability

WPL 868998 WPL 868998 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

WPL 868227 WPL 868227 Contact Us For Availability

33

WPL 865931 WPL 865931 Contact Us For Availability

34

WPL 866300 WPL 866300 Contact Us For Availability

35

WPL 868127 WPL 868127 Contact Us For Availability

35

Cup, Light WPL 877802 Contact Us For Availability

36

W10856866 Whirlpool Light Socket In Stock WPL W10856866 $3.70

36

WPL 868152 WPL 868152 Contact Us For Availability

37

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

38

Lens, Light WPL 877804 Contact Us For Availability

39

WPL 877892 WPL 877892 Contact Us For Availability

39

Retainer, Lens WPL 877805 Contact Us For Availability

40

WPL 877893 WPL 877893 Contact Us For Availability

40

Rod, Cooktop Support WPL 868123 Contact Us For Availability

41

WPL 877894 WPL 877894 Contact Us For Availability

42

WPL 816183 WPL 816183 Contact Us For Availability

42

Bracket, Control Panel (2) WPL 834957 Contact Us For Availability

43

WPL 868045 WPL 868045 Contact Us For Availability

43

Bracke WPL 868136 Contact Us For Availability

44

WPL 816184 WPL 816184 Contact Us For Availability

45

WPL 681151 WPL 681151 Contact Us For Availability

45

WPL 866303 WPL 866303 Contact Us For Availability

46

WPL 241263 WPL 241263 Contact Us For Availability
