Model Whirlpool RF395PCXN2 – Common Parts & Diagrams

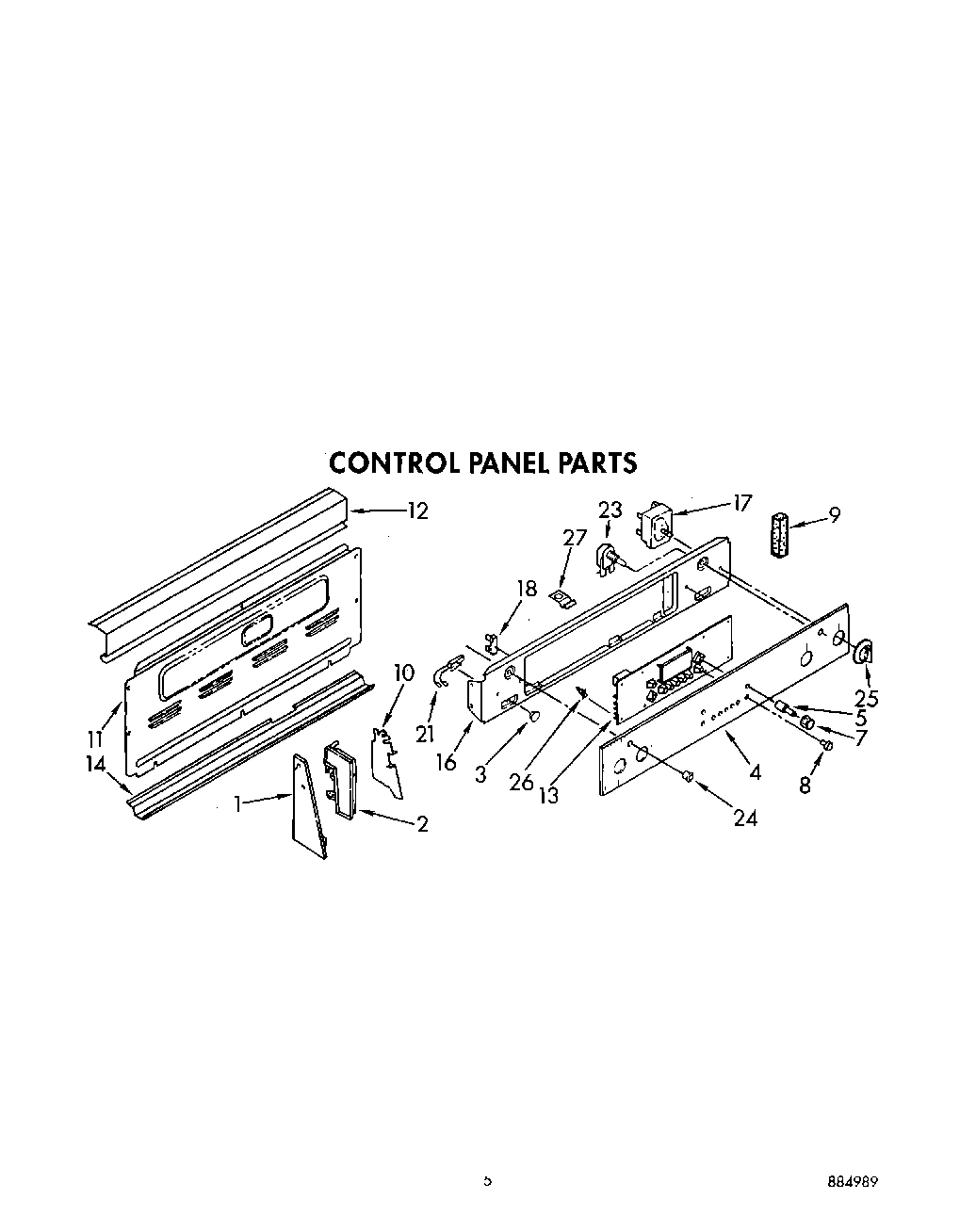

05 - CONTROL PANEL

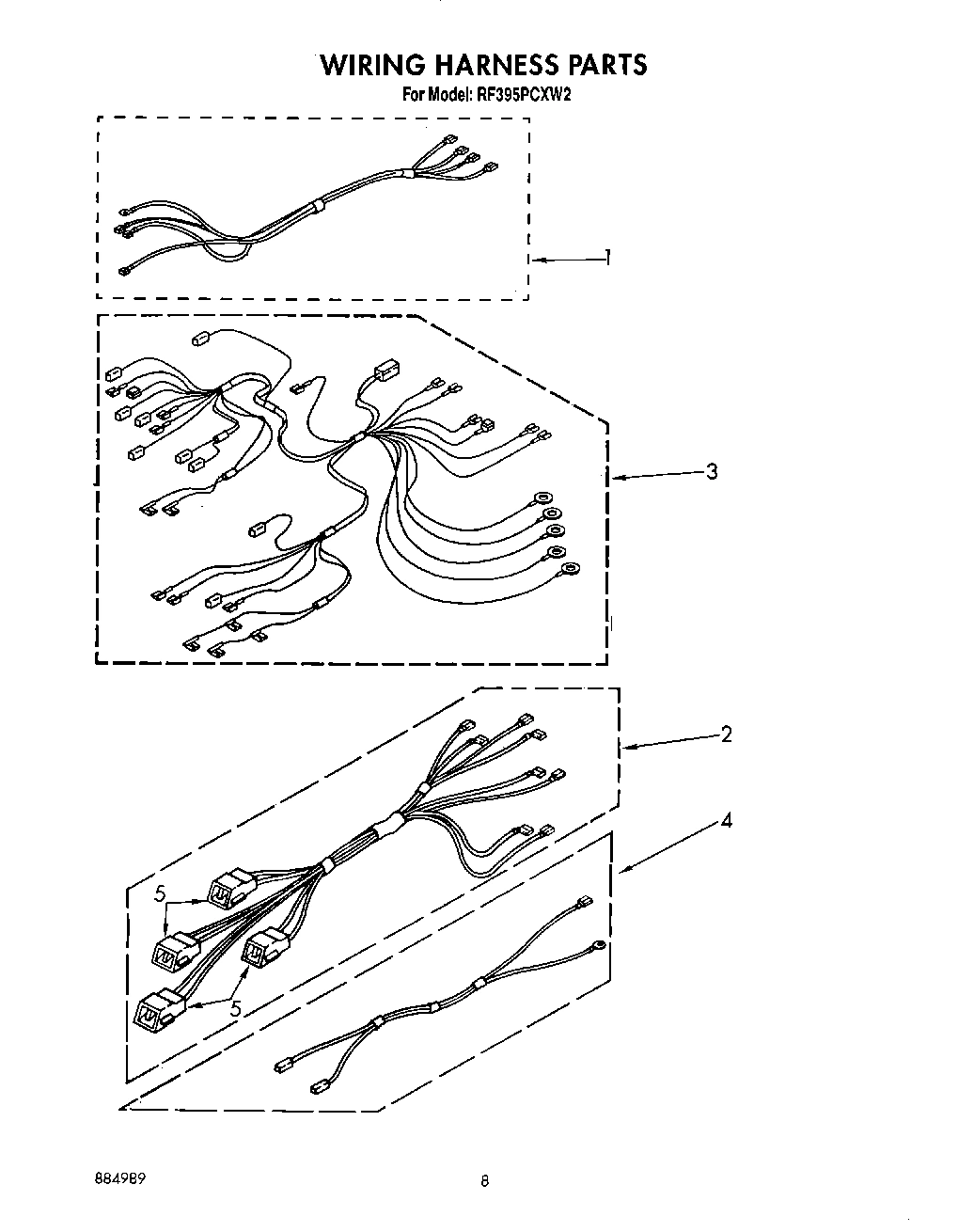

07 - WIRING HARNESS

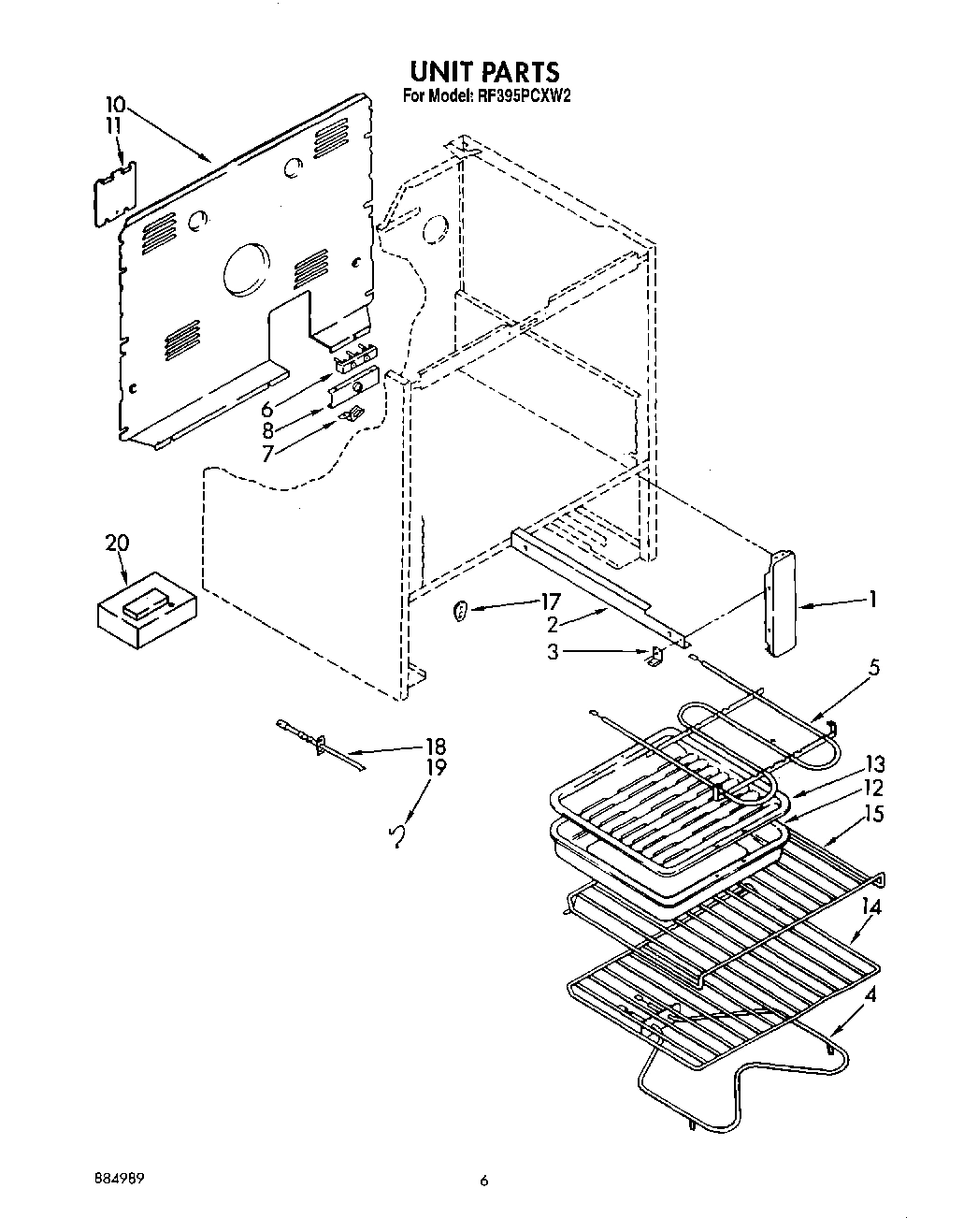

06 - UNIT, LIT/OPTIONAL

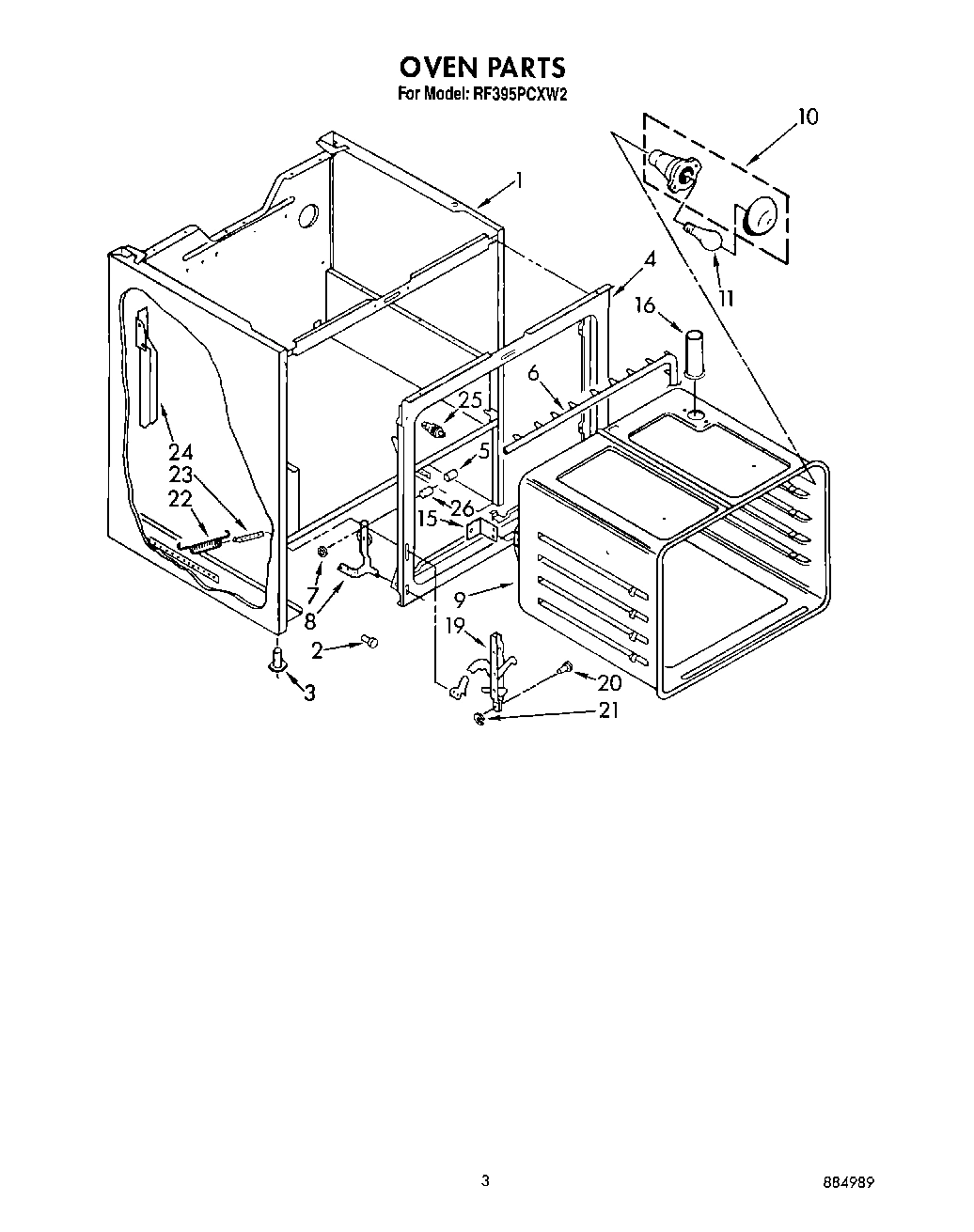

03 - OVEN

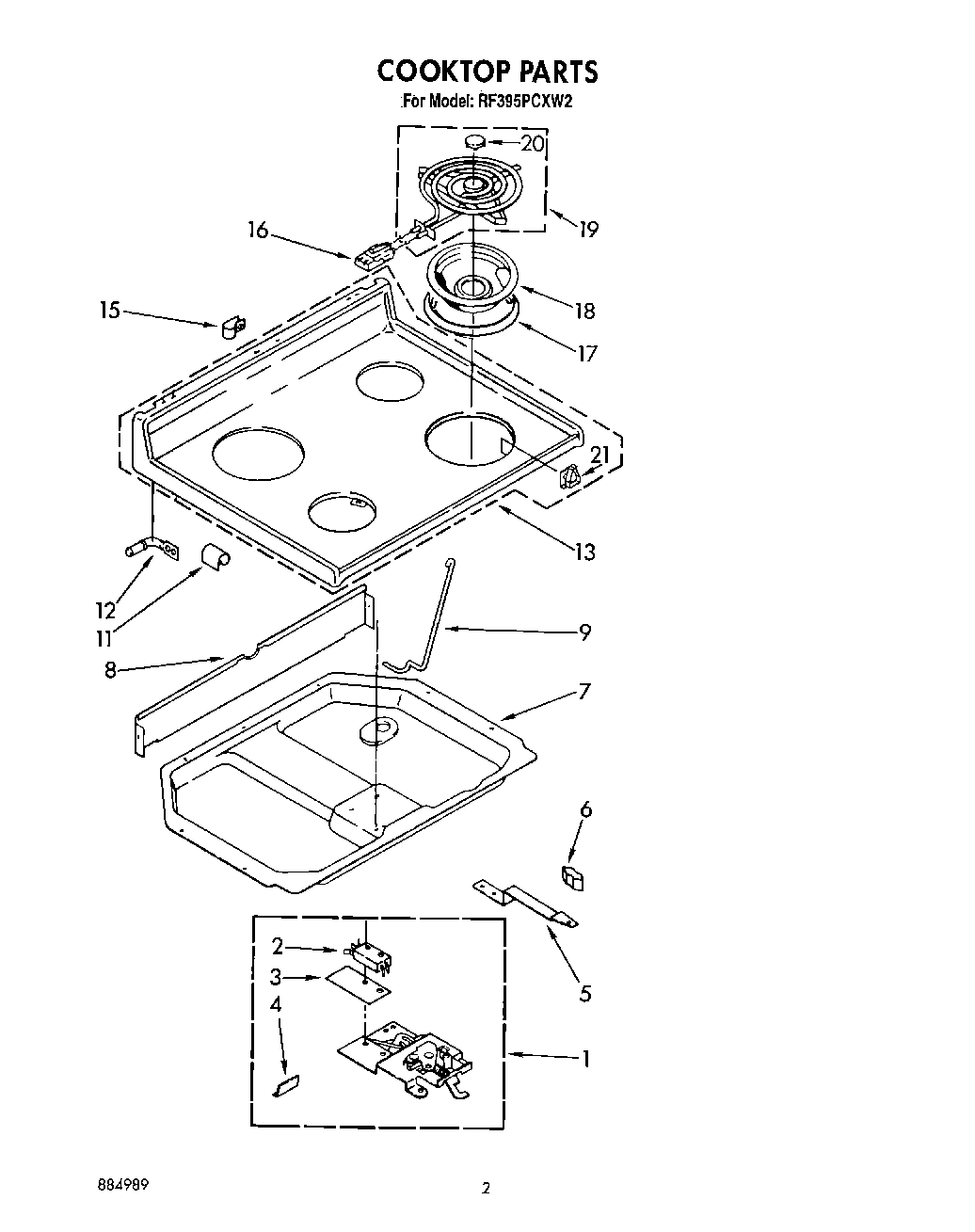

02 - COOKTOP

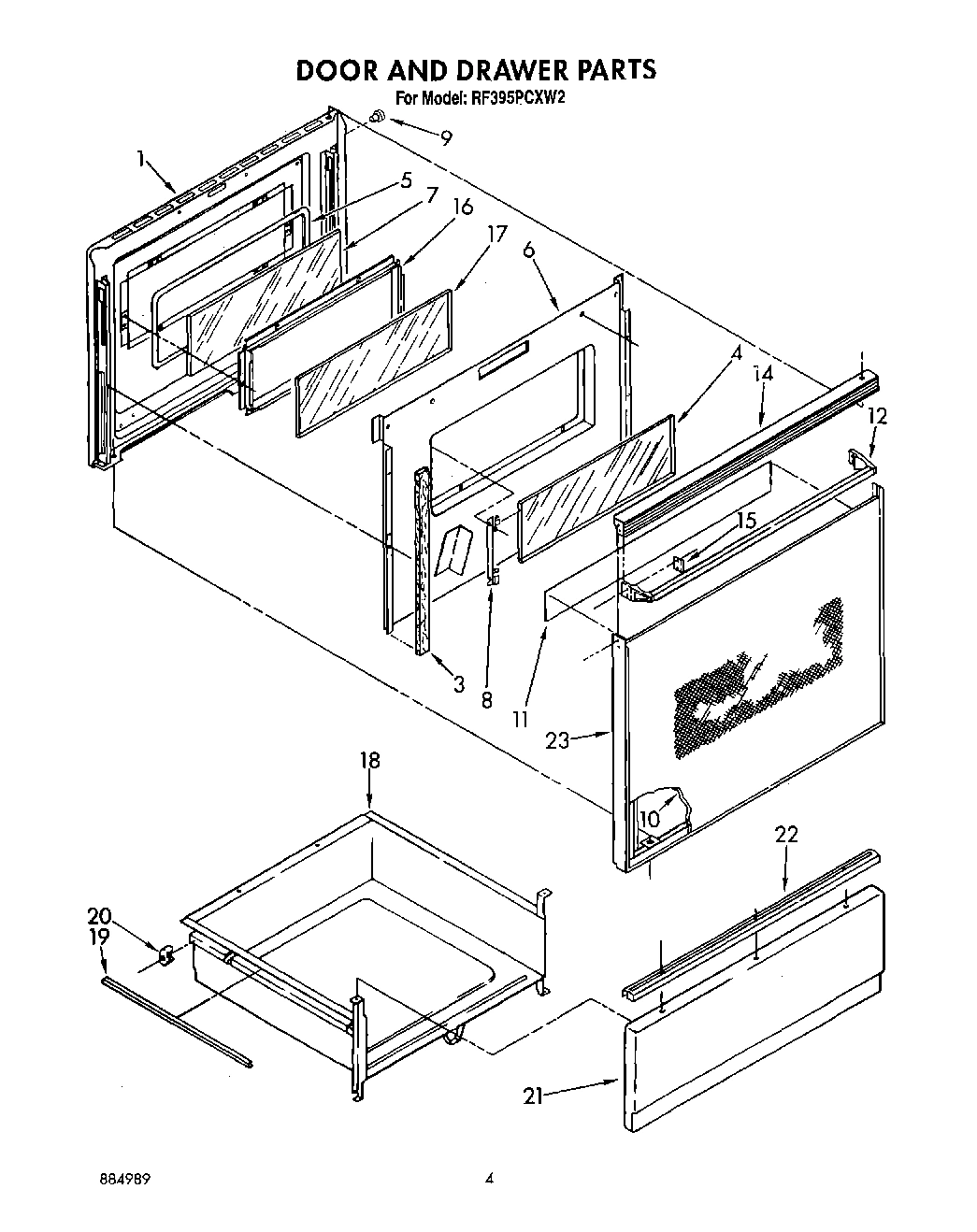

04 - DOOR AND DRAWER
Common parts from model Whirlpool RF395PCXN2
WPL LIT3147395 WPL LIT3147395 Contact Us For Availability
WPL LIT3149507 WPL LIT3149507 Contact Us For Availability
WPL LIT3150301 WPL LIT3150301 Contact Us For Availability
WPL LIT3181497 WPL LIT3181497 Contact Us For Availability
WPL LIT884989 WPL LIT884989 Contact Us For Availability
1
Harness, Wire (Lock Switch) WPL 3181499 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Latch Assembly WPL 3181596 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Harness, Surface Unit WPL 3149881 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Safety Switch WPL 3148725 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
3
Harness Oven Electric WPL 3148722 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Screw (Top) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172194 Contact Us For Availability
4
Screw (2) WPL 309258 Contact Us For Availability
4
Shield, Terminal WPL 313035 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw (2) WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Knob, Bit Generator WPL 313523 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glass, Panel (White) WPL 3149049 Contact Us For Availability
10
Glass, Panel (Almond) WPL 3149050 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
17
Screw, (4) No.10-32 x 7/16 WPL 3150532 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
18
Sensor, Temperature WPL 3148440 Contact Us For Availability
18
Screw (2) WPL 98520 Contact Us For Availability
18
Reflector Pan (6``) WPL 3150198 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
20
WPL 799344 WPL 799344 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
Grease WPL 261582 Contact Us For Availability
20
Coffee WPL 261886 Contact Us For Availability
20
New Avocado WPL 261888 Contact Us For Availability
20
Harvest Gold WPL 261890 Contact Us For Availability
20
WPL 261891 WPL 261891 Contact Us For Availability
20
WPL 285365 WPL 285365 Contact Us For Availability
20
WPL 285366 WPL 285366 Contact Us For Availability
20
WPL 285367 WPL 285367 Contact Us For Availability
20
WPL 285368 WPL 285368 Contact Us For Availability
20
WPL 312804 WPL 312804 Contact Us For Availability
20
WPL 3169093 WPL 3169093 Contact Us For Availability
20
WPL 3169094 WPL 3169094 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Nut (4) WPL 814102 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
22
Handle, Drawer WPL 3169105 Contact Us For Availability
23
Screw (3) WPL 3182345 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
26
Snubber, Door (2) WPL 309111 Contact Us For Availability
× ![]()
