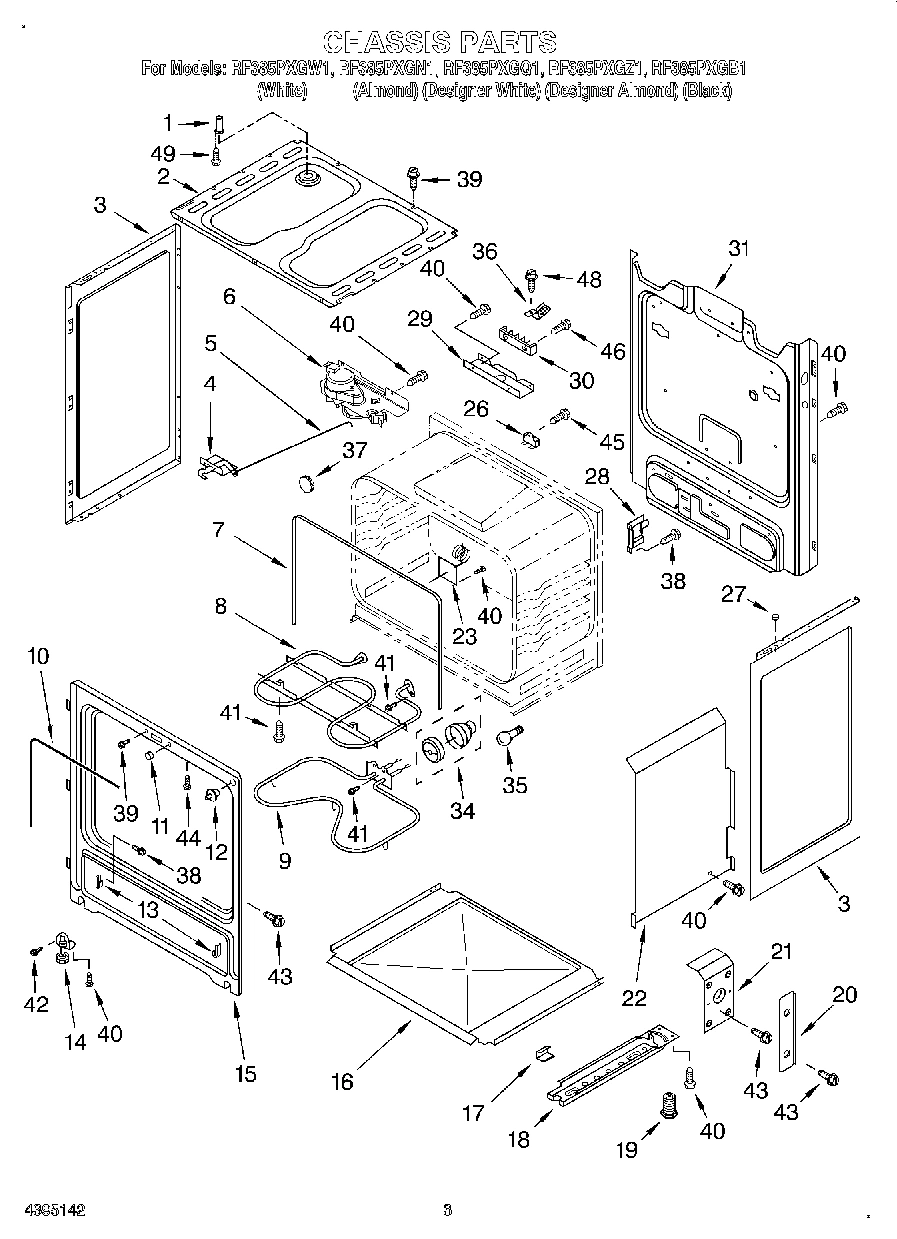

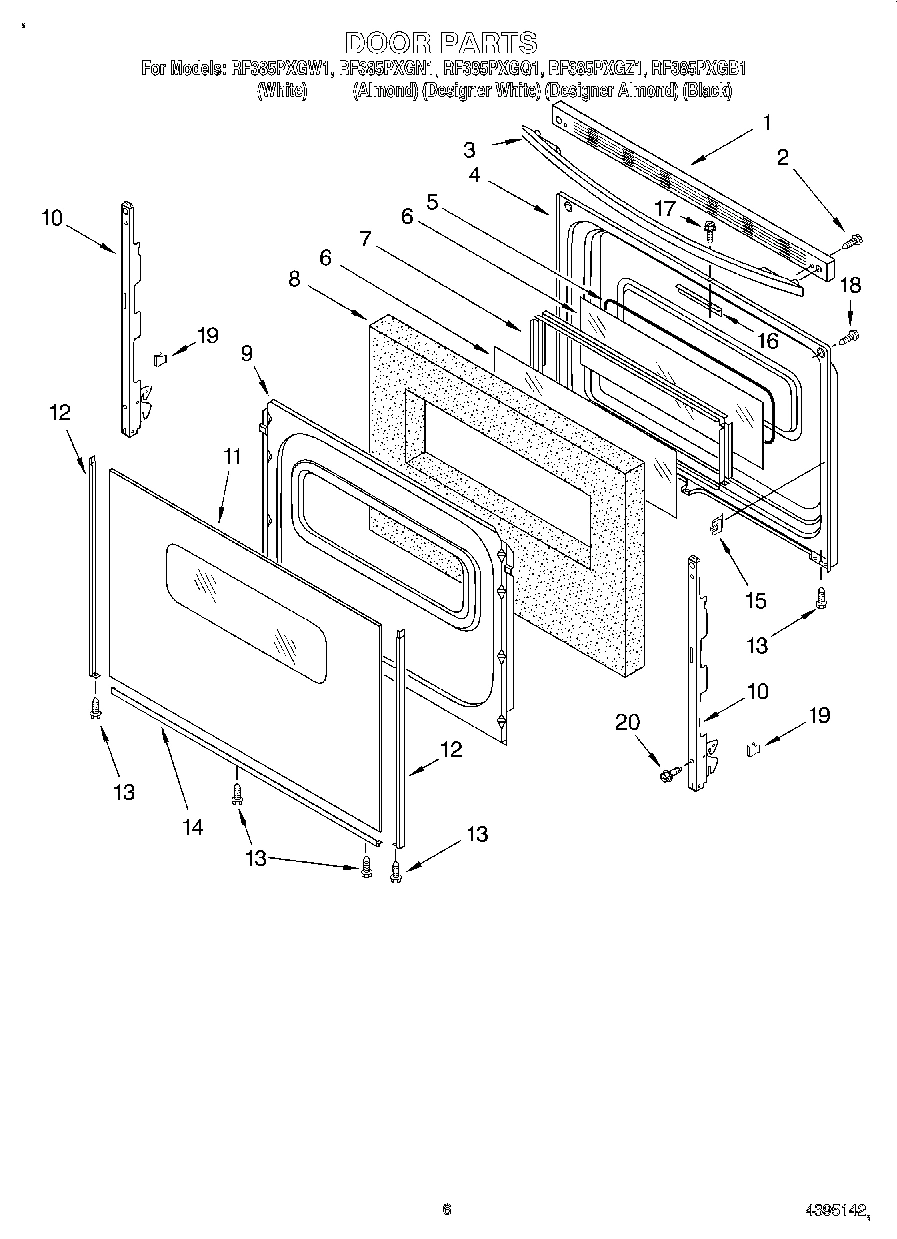

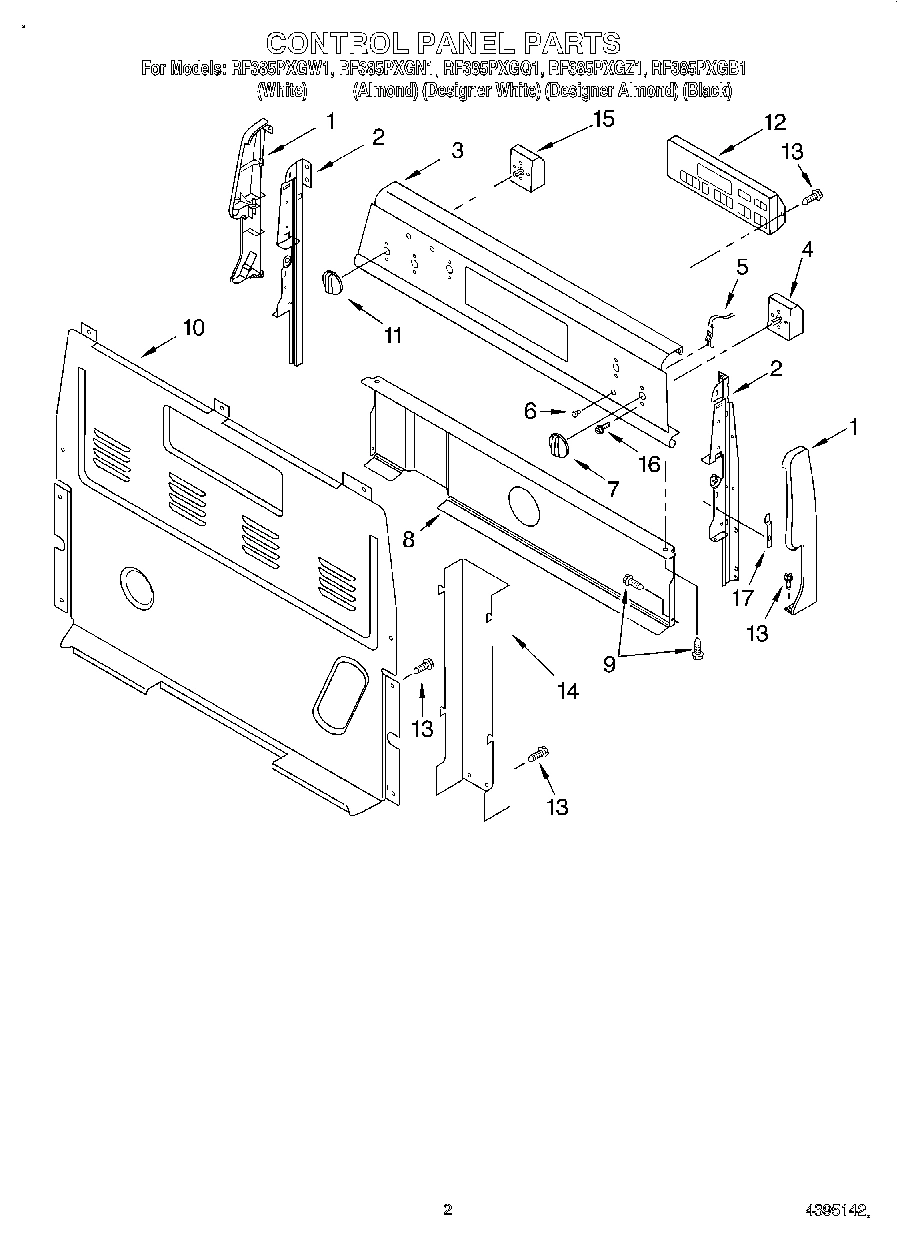

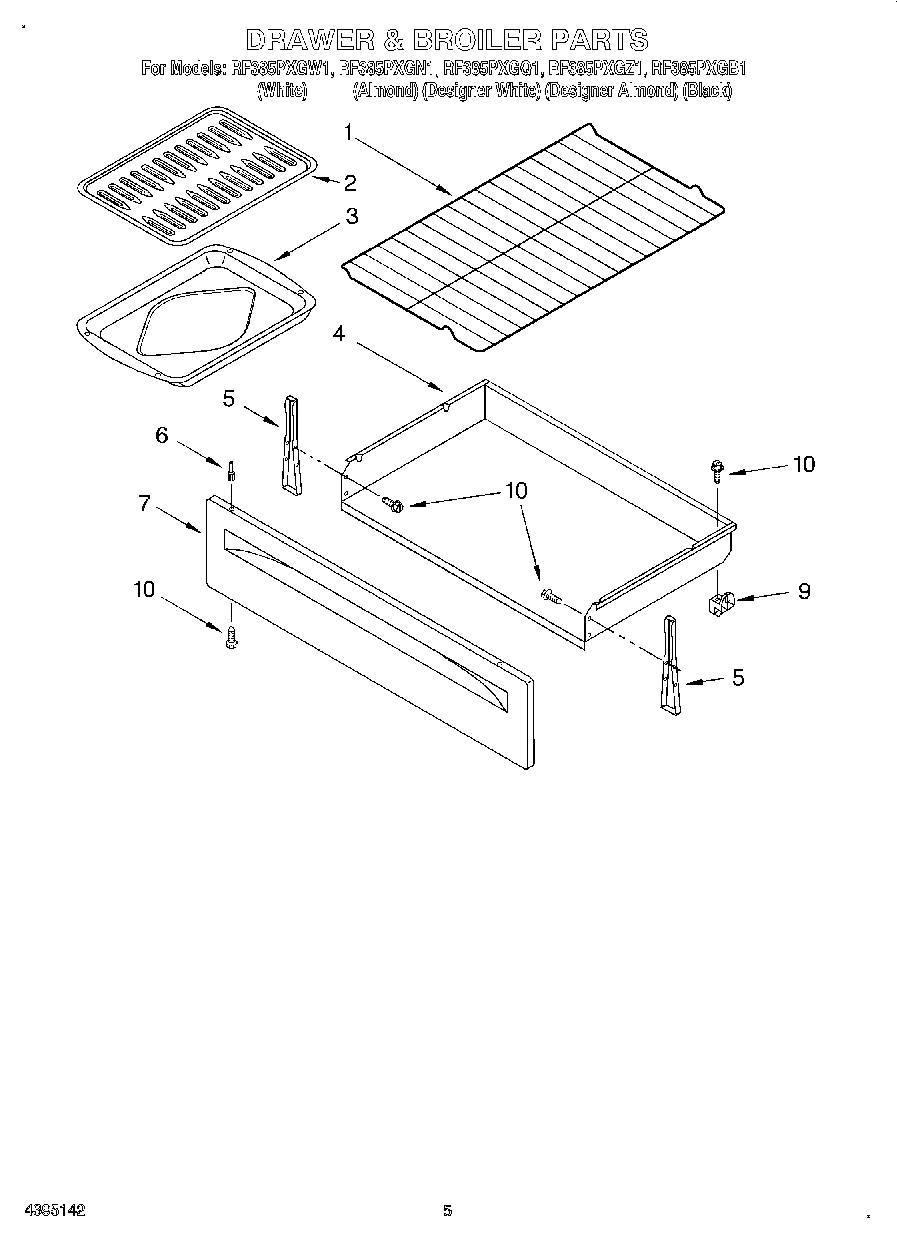

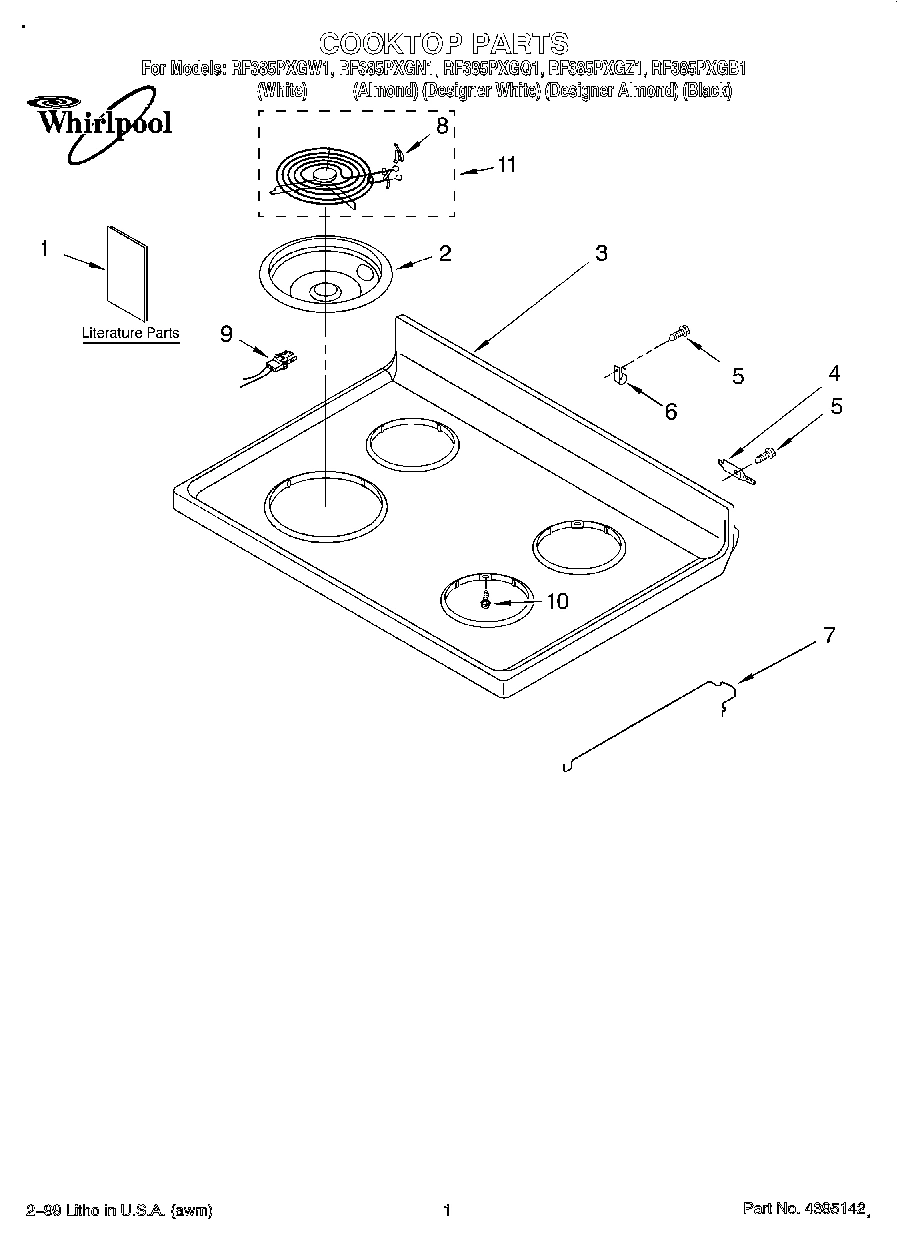

Model Whirlpool RF385PXGN1 – Common Parts &amp; Diagrams

1

Endcap, Left Hand (Black) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (Left Hand White) WPL 3186190 Contact Us For Availability

1

Endcap (Right Hand White) WPL 3186191 Contact Us For Availability

1

Endcap, Left Hand (Almond) WPL 3186192 Contact Us For Availability

1

Endcap (Right Hand Almond) WPL 3186193 Contact Us For Availability

2

W11699791 Whirlpool Burner Box In Stock WPL W11699791 $107.87

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

3

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

3

Panel, Backguard (Black) WPL 8053499 Contact Us For Availability

3

Panel, Backguard (White) WPL 8053500 Contact Us For Availability

3

Panel, Backguard (Almond) WPL 8053501 Contact Us For Availability

4

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

5

Light, Indicator (Surface Unit (2)) WPL 313102 Contact Us For Availability

5

Rod, Latch WPL 3196961 Contact Us For Availability

5

Light, Indicator (Accusimmer) WPL 8053632 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $11.02

7

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $87.56

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

Shield, Heat WPL 8053912 Contact Us For Availability

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $36.86

9

Screw WPL 4449746 Contact Us For Availability

10

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

10

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

Knob, Accusimmer (Black) WPL 8053475 Contact Us For Availability

Knob, Accusimmer (White) WPL 8053476 Contact Us For Availability

Knob, Accusimmer (Almond) WPL 8053477 Contact Us For Availability

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

Control, Range (Black) WPL 6610179 Contact Us For Availability

Control, Range (White) WPL 6610180 Contact Us For Availability

Control, Range (Almond) WPL 6610181 Contact Us For Availability

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

14

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

14

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

15

Frame, Front WPL 3186156 Contact Us For Availability

15

Switch, Accusimmer WPL 8053511 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11396691 Whirlpool Element Receptacle and Wi In Stock WPL W11396691 $66.70

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 3196108 WPL 3196108 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8053513 WPL 8053513 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

Sensor, Oven WPL 3196966 Contact Us For Availability

26

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

27

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

31

Back, Main WPL 8053508 Contact Us For Availability

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

36

Strap, Ground WPL 3169573 Contact Us For Availability

37

Button, Plug (2) WPL 3196439 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

39

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

49

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51

49

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67
