Model Whirlpool RF379LXKQ0 COOKTOP – Common Parts &amp; Diagrams

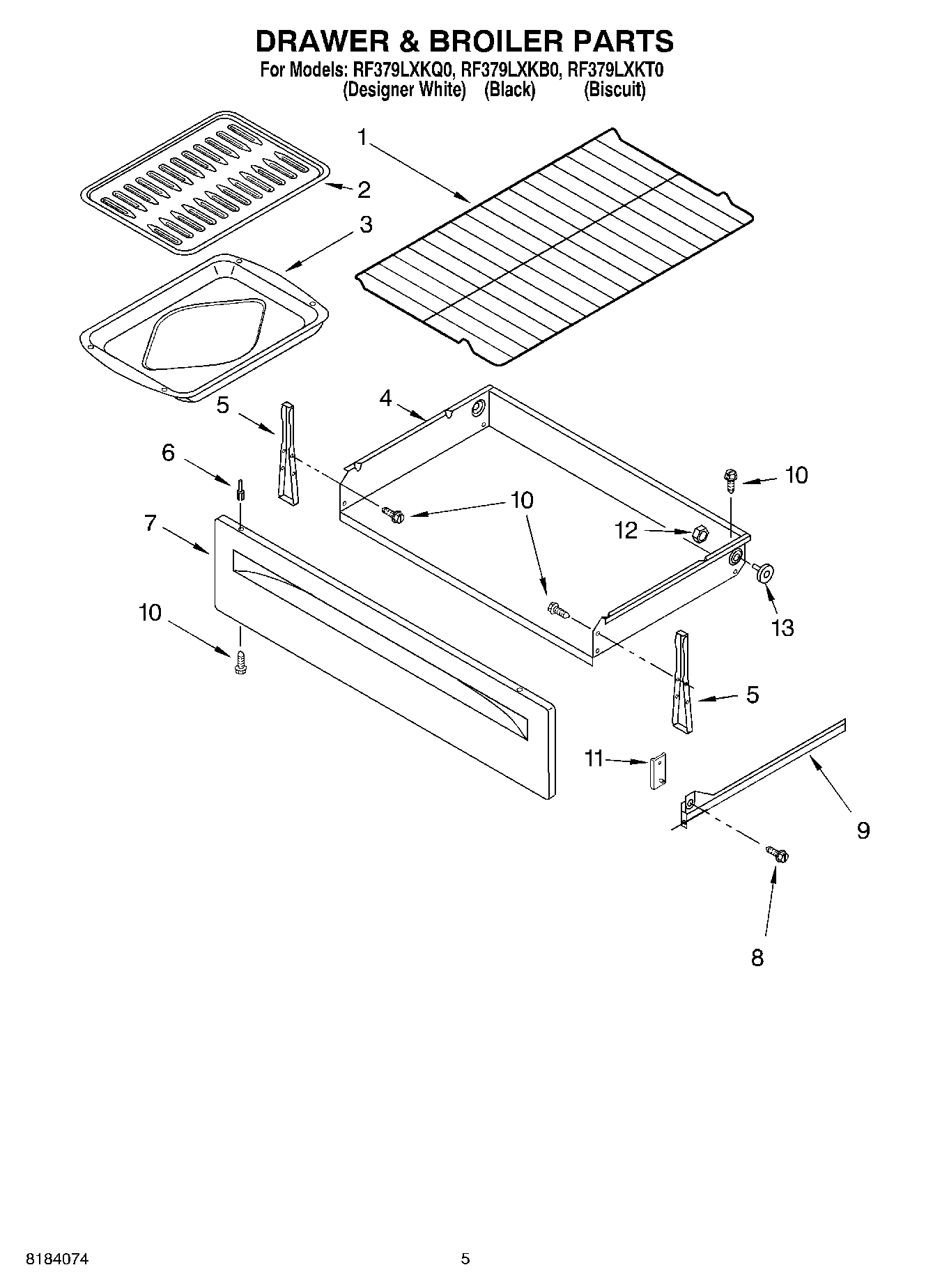

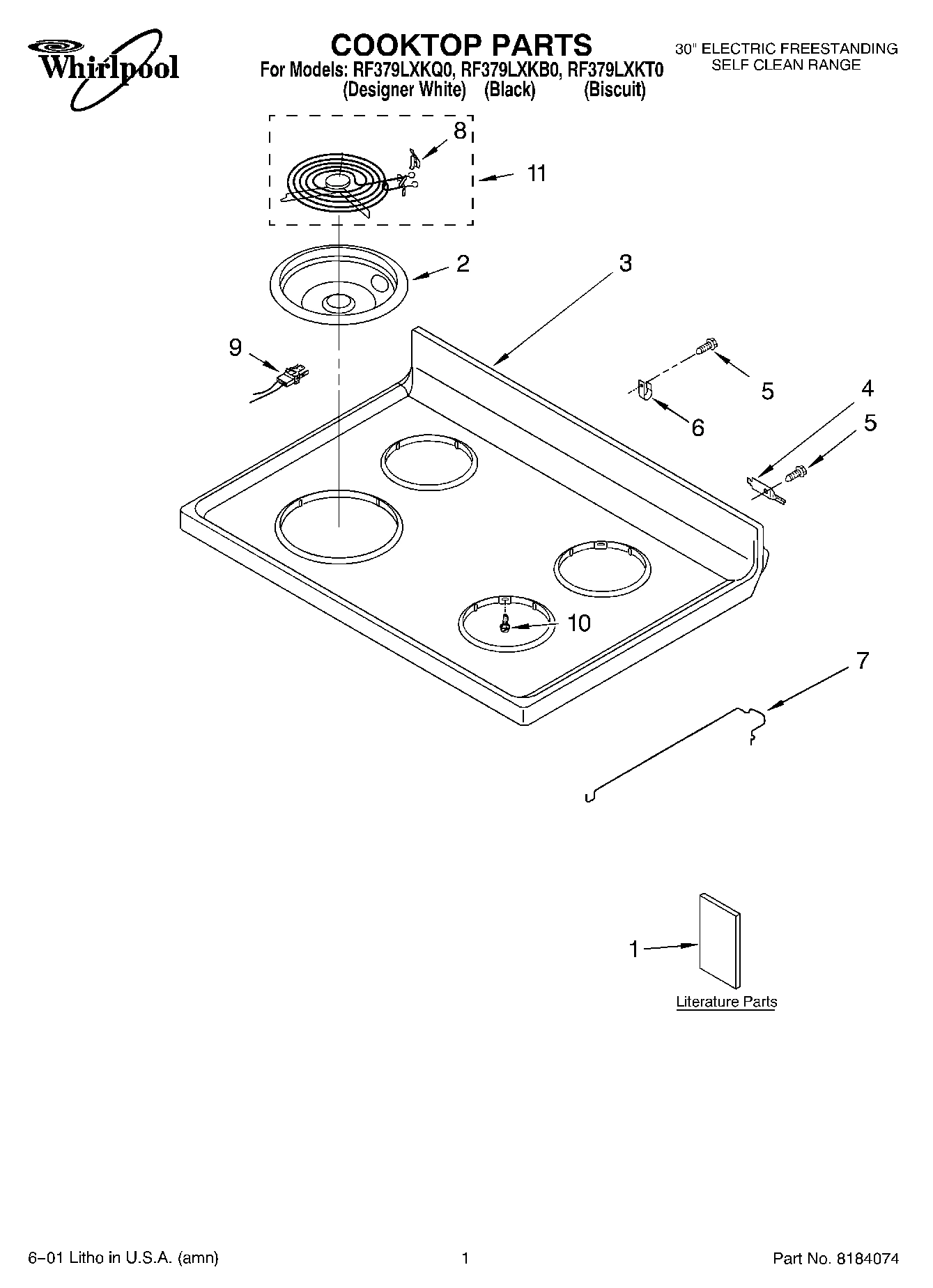

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Instruct, Install (Template WPL LIT3195945 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8053714 Contact Us For Availability

1

Guide, Use & Care WPL LIT8522772 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8522787 Contact Us For Availability

1

Endcap, Left Hand (Black) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (Left Hand White) WPL 3186190 Contact Us For Availability

1

Endcap (Right Hand White) WPL 3186191 Contact Us For Availability

1

Endcap (Left Hand-Biscuit) WPL 8272507 Contact Us For Availability

1

Endcap (Right Hand-Biscuit) WPL 8272508 Contact Us For Availability

2

8522881 Whirlpool Oven 8" Drip Pan Backorder WPL 8522881 $19.56

2

8522882 Whirlpool Oven 6" Drip Pan Backorder WPL 8522882 $19.56

2

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $30.20

2

W11699791 Whirlpool Burner Box In Stock WPL W11699791 $107.87

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $4.59

2

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $3.71

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

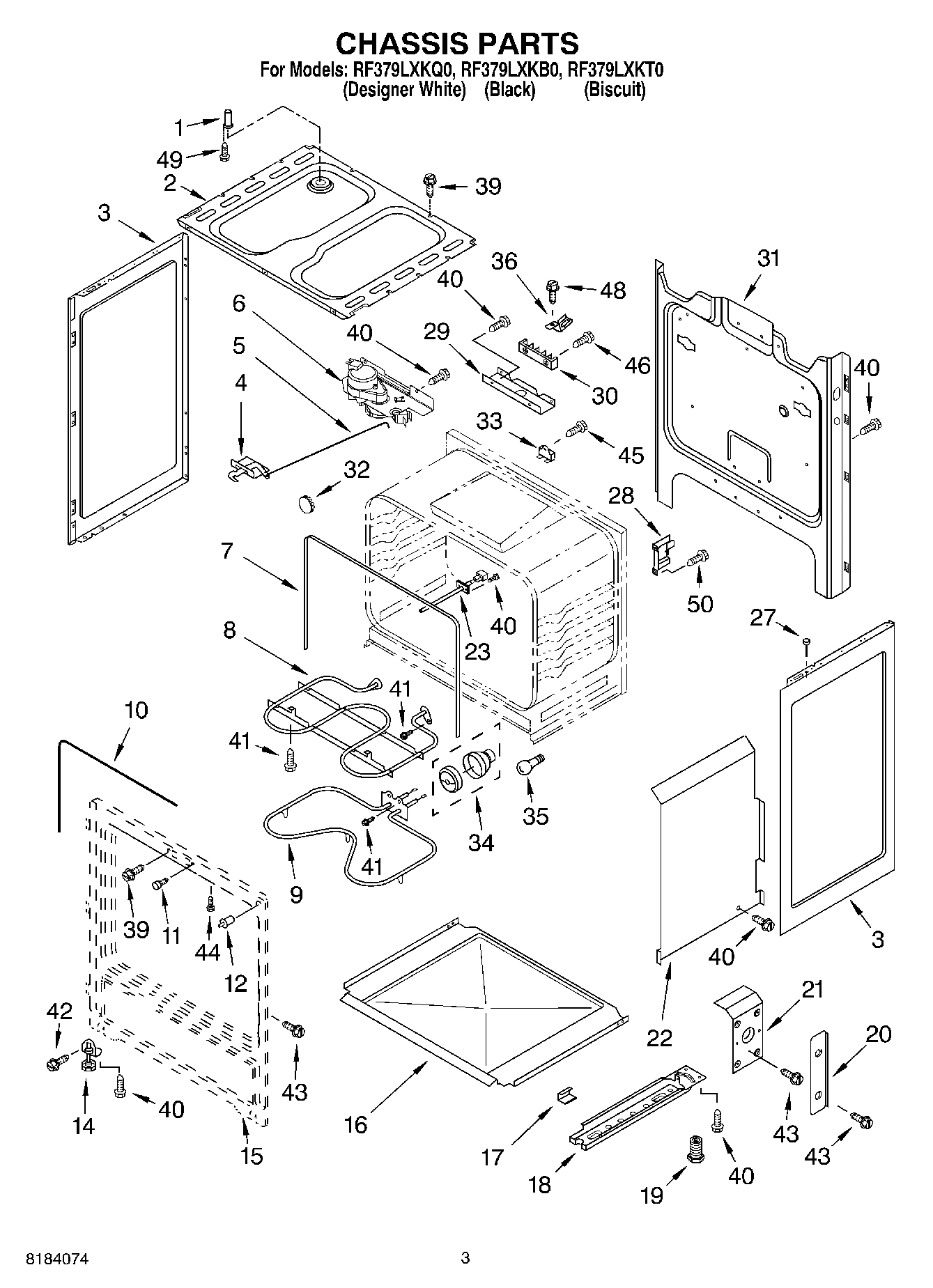

3

8195532 Whirlpool Cooktop Power Switch Backorder WPL 8195532 $207.59

3

8195534 Whirlpool Cooktop In Stock WPL 8195534 $260.48

3

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

3

Cooktop (Biscuit) WPL 8272527 Contact Us For Availability

3

Panel, Backguard (Black) WPL 3186176 Contact Us For Availability

3

Panel, Backguard (White) WPL 3186177 Contact Us For Availability

3

Panel, Backguard (Biscuit) WPL 8522817 Contact Us For Availability

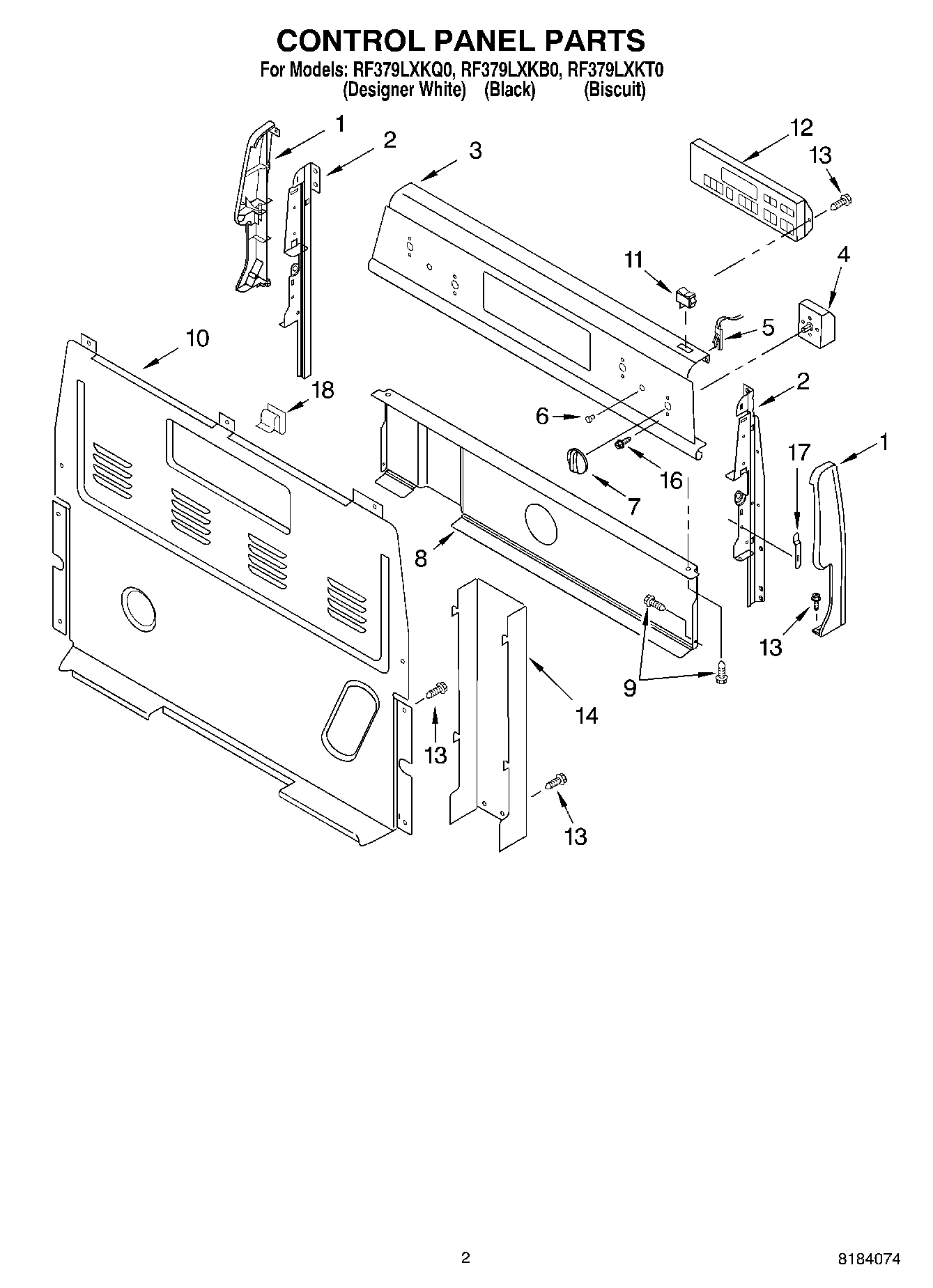

4

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

4

Drawer, Storage WPL 8272605 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

Seal, Window WPL 8522414 Contact Us For Availability

5

Rod, Latch WPL 3196961 Contact Us For Availability

5

Light, Indicator WPL 8273301 Contact Us For Availability

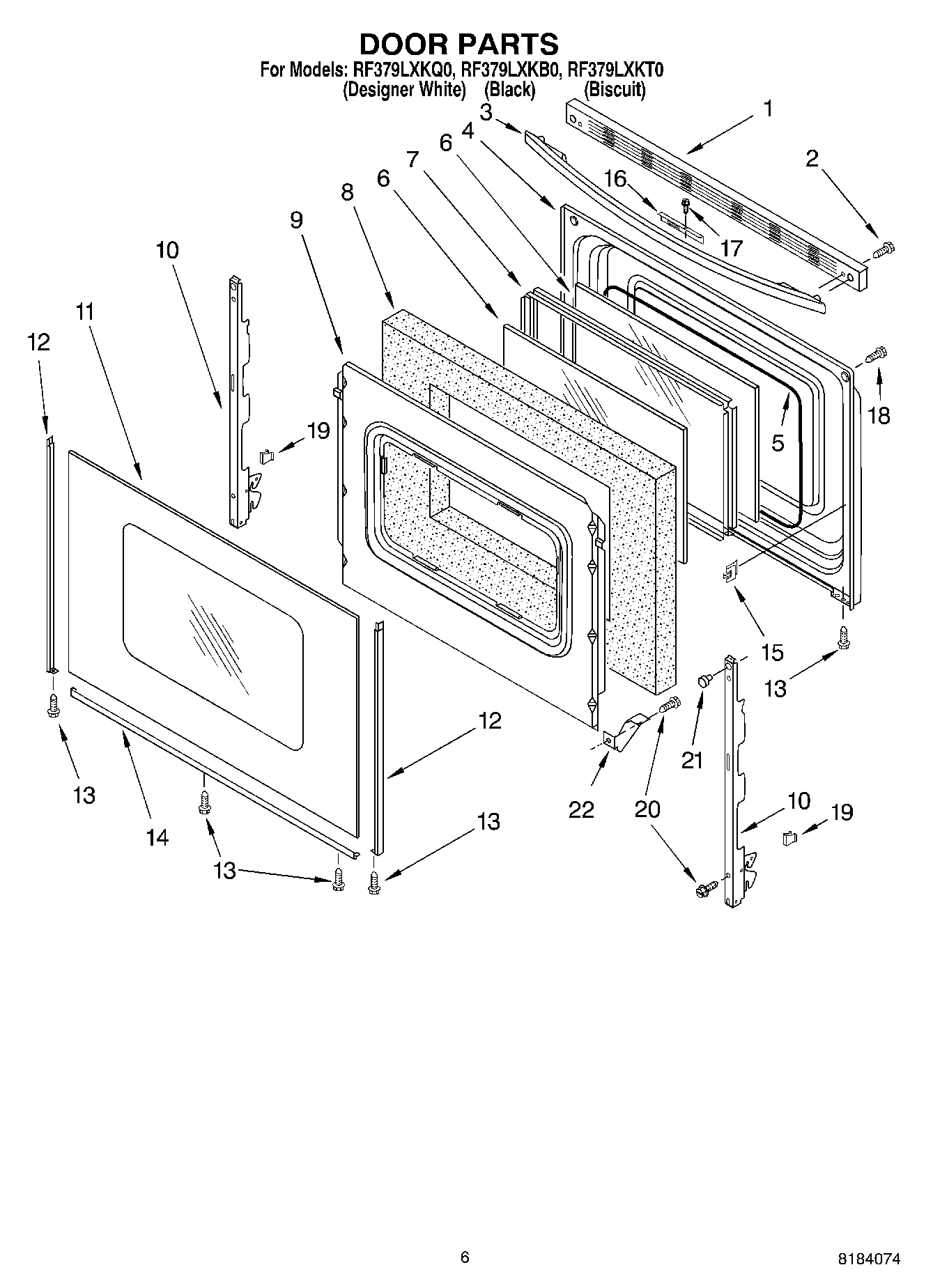

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $70.99

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP8522565 Whirlpool Knob In Stock WPL WP8522565 $11.75

7

WP8522566 Whirlpool Knob Backorder WPL WP8522566 $11.14

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

7

Knob, Infinite (4) (Biscuit) WPL 8522567 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $87.56

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

Shield, Heat WPL 8053912 Contact Us For Availability

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $36.86

9

Screw WPL 4449746 Contact Us For Availability

9

Rail, Drawer (2) WPL 8274191 Contact Us For Availability

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WPW10259865 Whirlpool Range 8" Surface Elemen In Stock WPL WPW10259865 $81.34

Switch, Rocker (Almond) WPL 3169466 Contact Us For Availability

Switch, Rocker (Biscuit) WPL 8273501 Contact Us For Availability

Spacer, Drawer WPL 8522669 Contact Us For Availability

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

Control, Range (Black) WPL 6610316 Contact Us For Availability

Control, Range (White) WPL 6610315 Contact Us For Availability

Control, Range (Biscuit) WPL 6610317 Contact Us For Availability

13

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

14

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

14

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

15

Frame, Front (Not Serviceable) WPL ARI123082A Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

18

WP8273564 Whirlpool Clip Backorder WPL WP8273564 $5.22

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8273266 WPL 8273266 Contact Us For Availability

WPL 8274000 WPL 8274000 Contact Us For Availability

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $50.55

27

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

31

Back, Main WPL 8274034 Contact Us For Availability

32

Button, Plug WPL 3196439 Contact Us For Availability

33

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

36

Strap, Ground WPL 3169573 Contact Us For Availability

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

49

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51

50

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

50

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67
