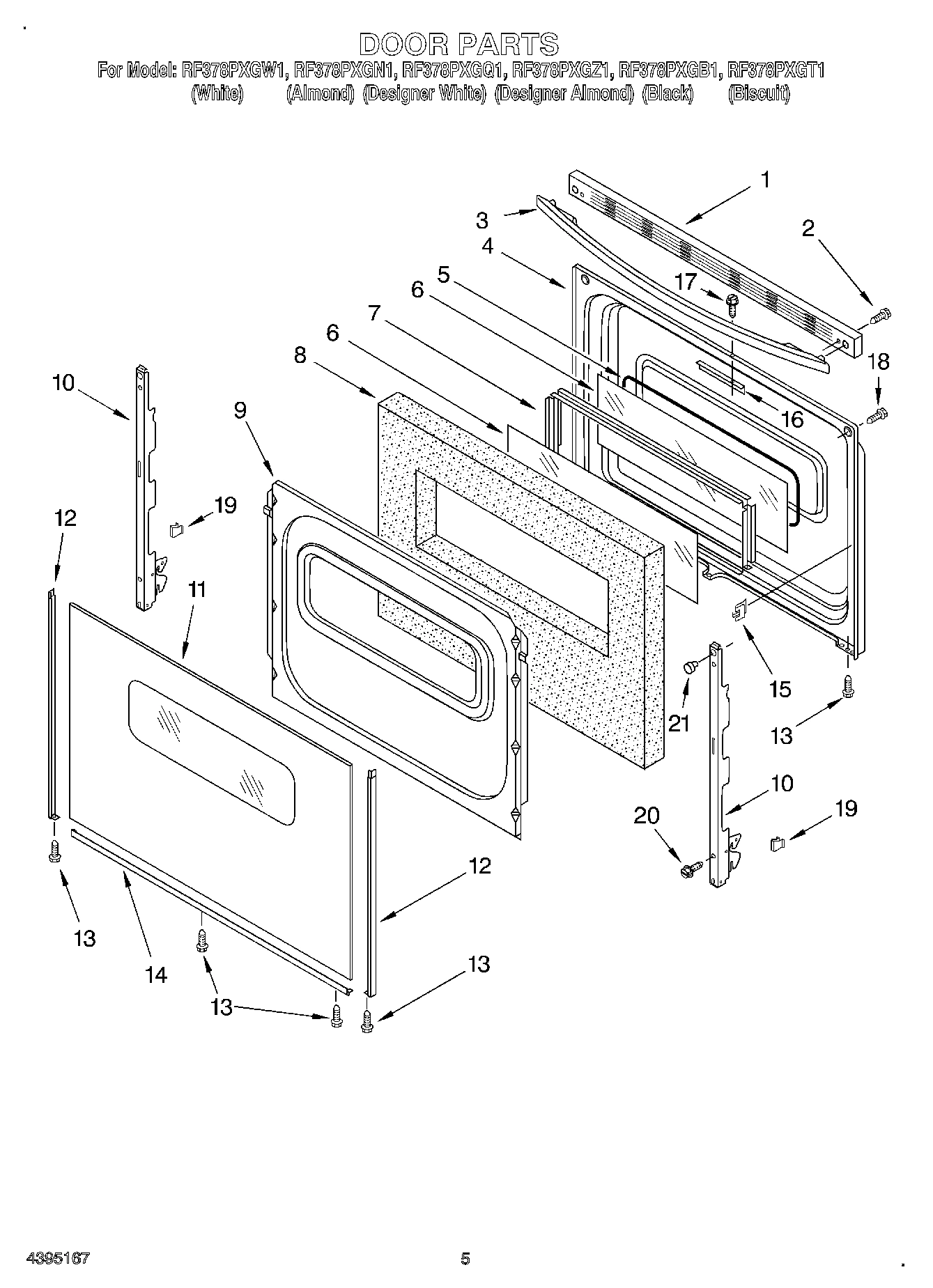

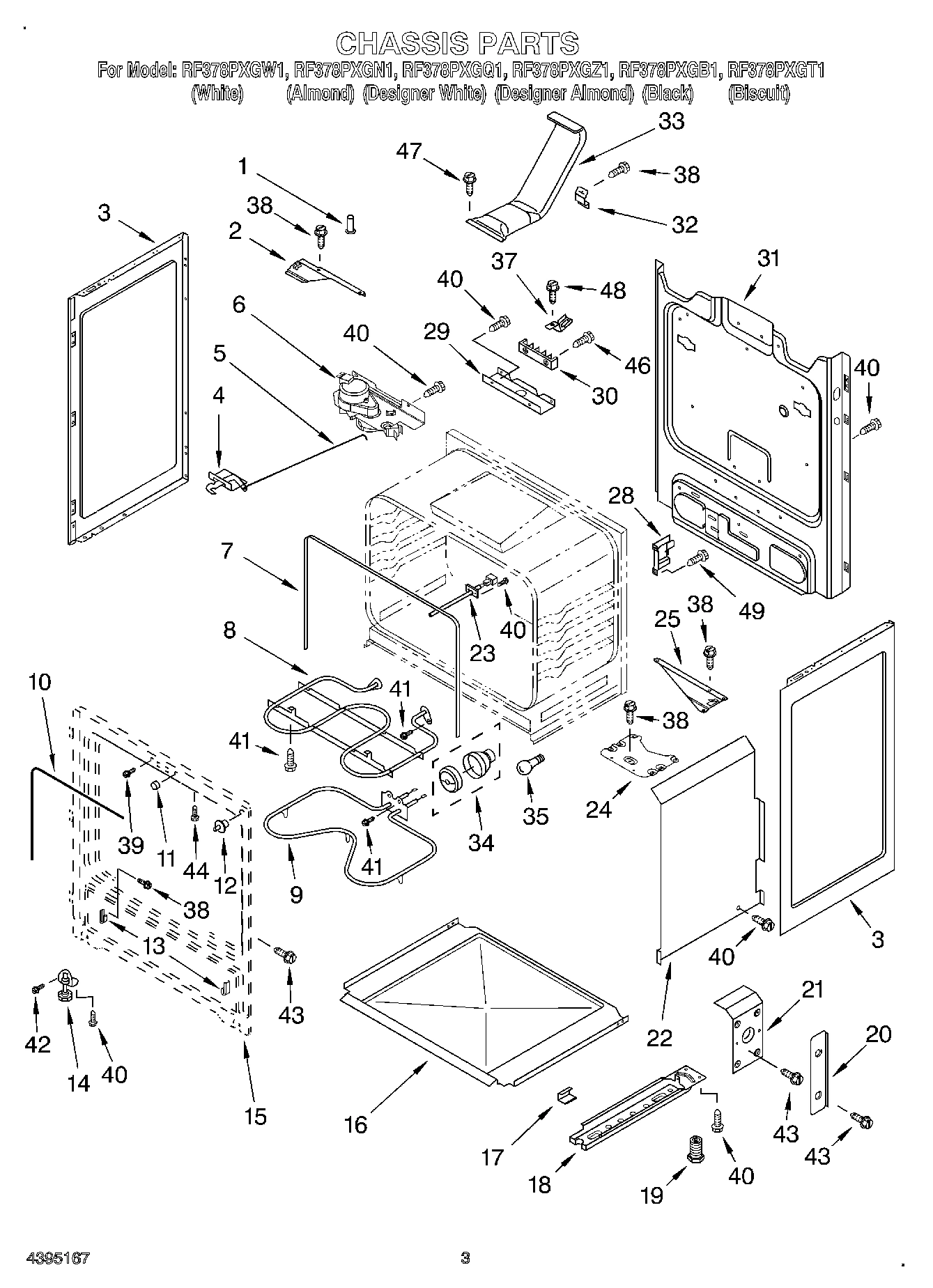

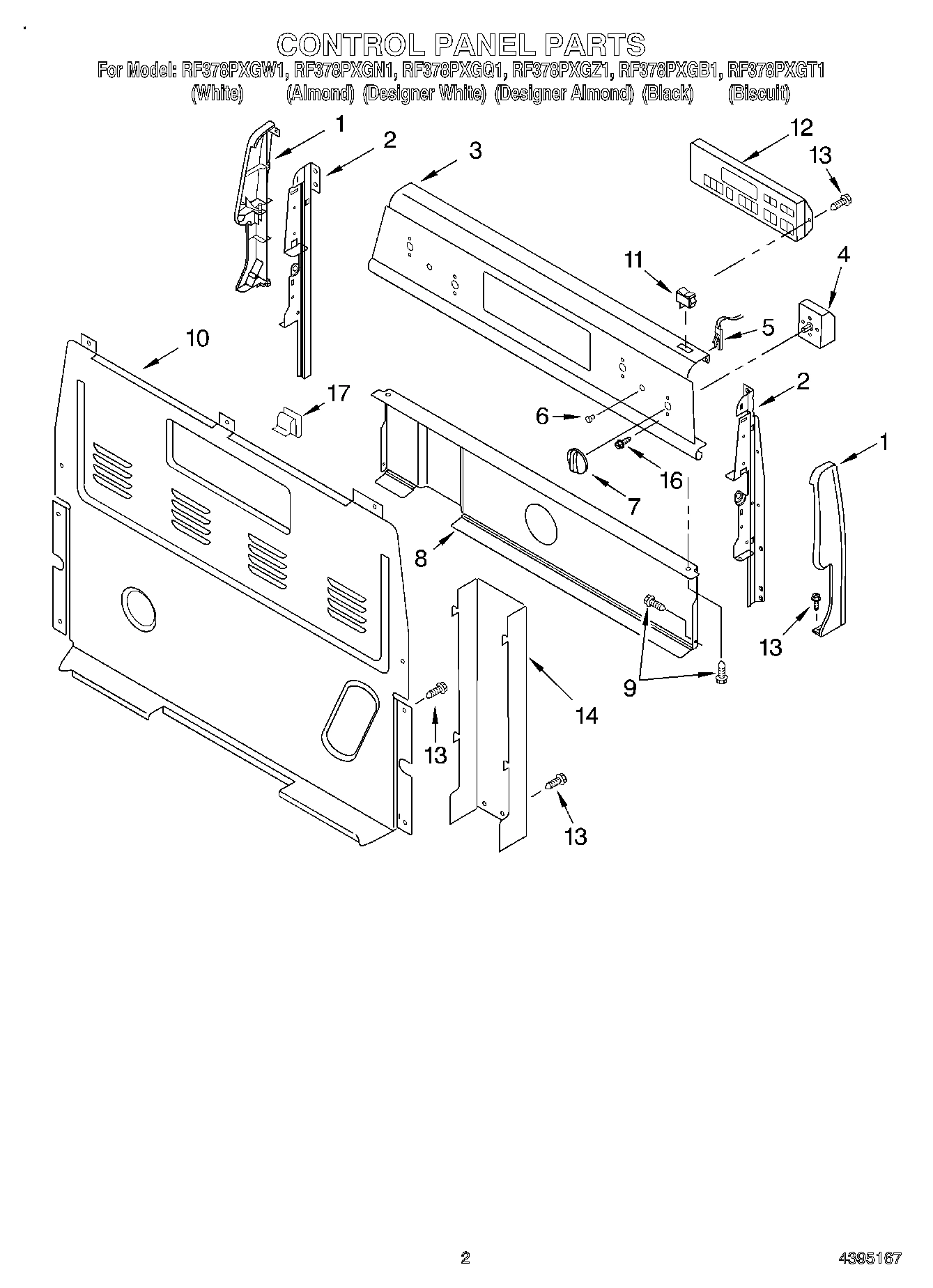

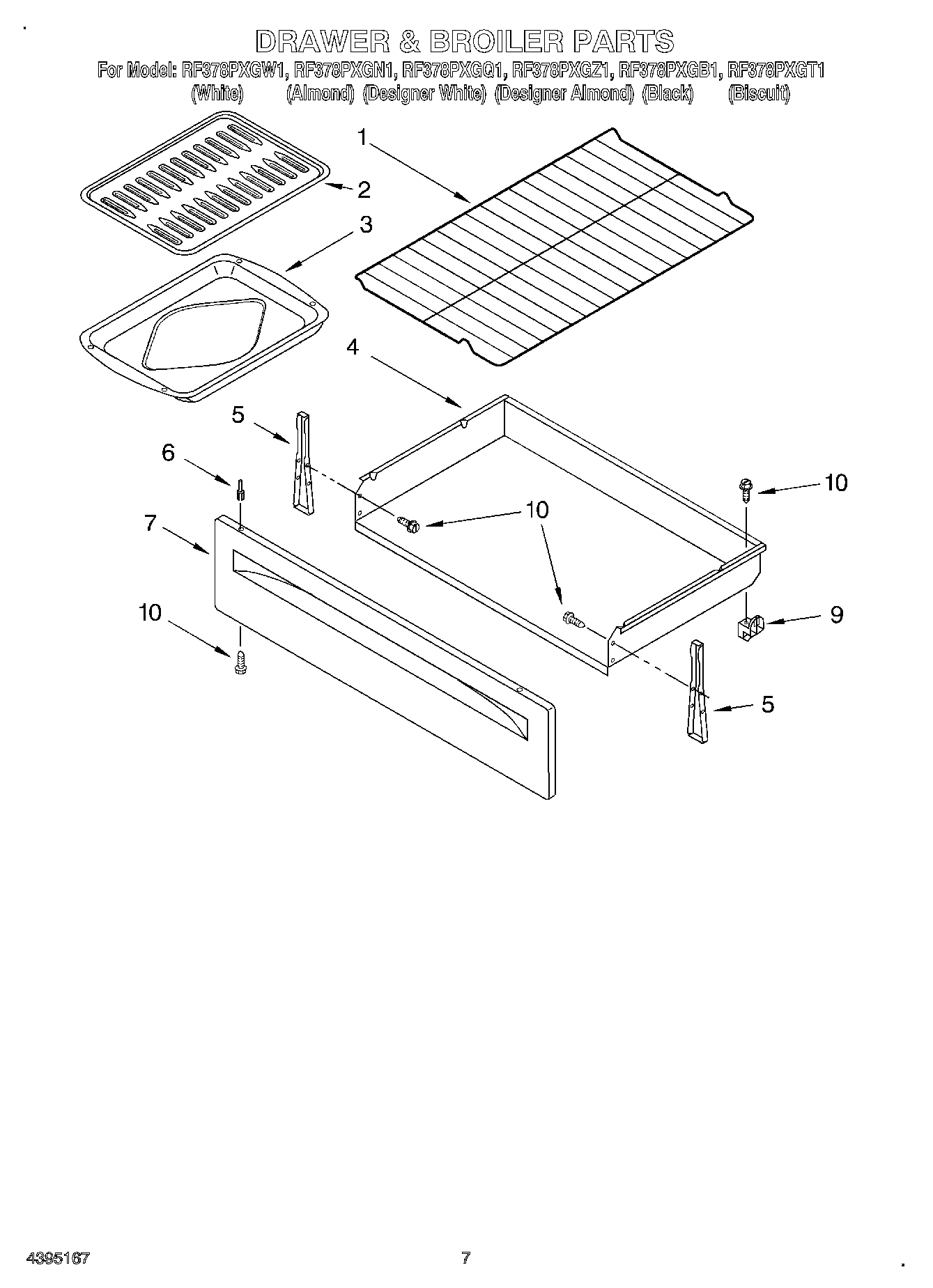

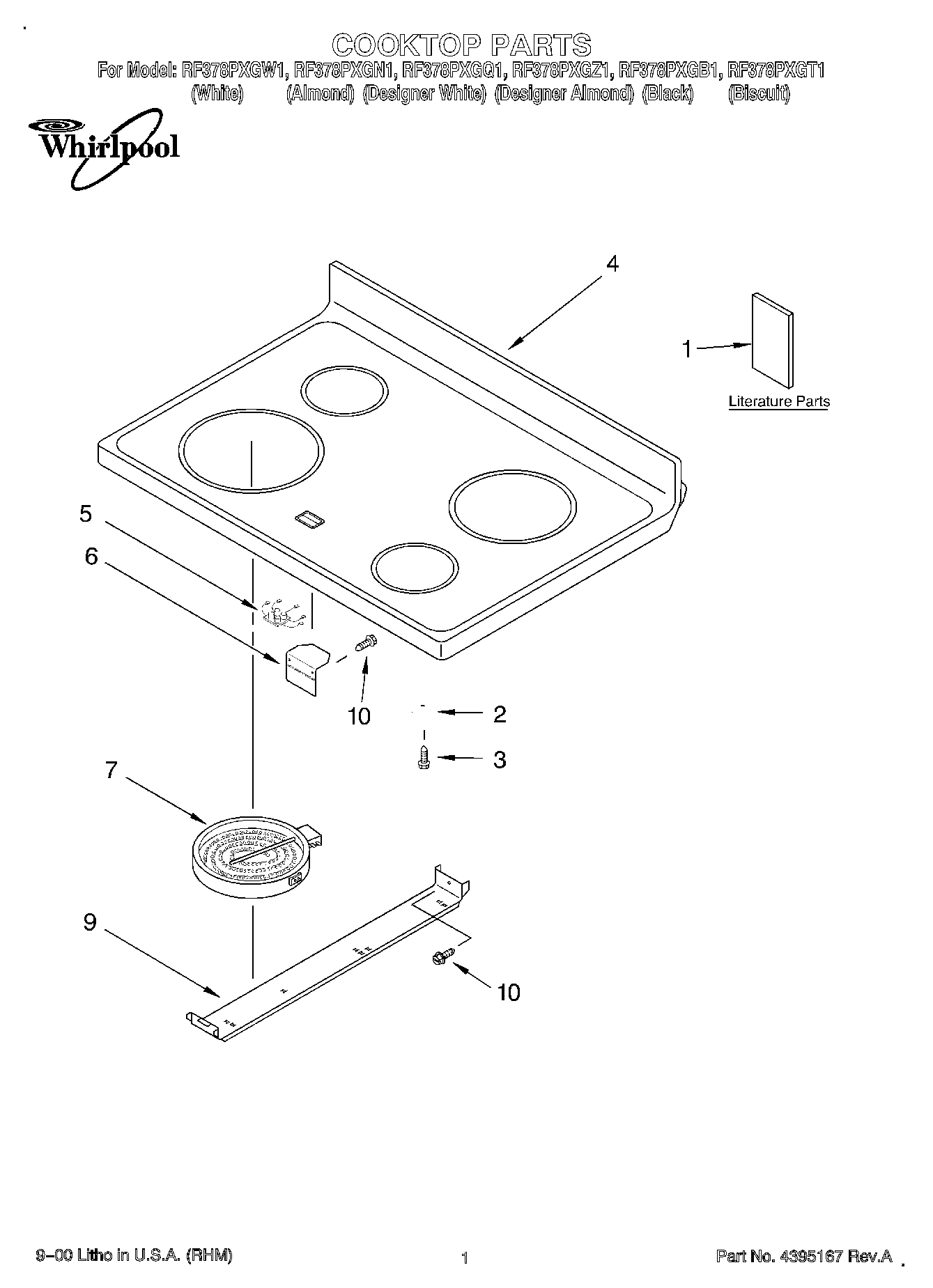

Model Whirlpool RF378PXGB1 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

Tube, Oven Vent WPL 3169110 Contact Us For Availability

1

Trim, Door Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Door Top (Almond) WPL 3196820 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 8272494 Contact Us For Availability

1

Endcap (Black Left Hand) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (White Left Hand) WPL 3186190 Contact Us For Availability

1

Endcap (White Right Hand) WPL 3186191 Contact Us For Availability

1

Endcap (Almond Left Hand) WPL 3186192 Contact Us For Availability

1

Endcap (Almond Right Hand) WPL 3186193 Contact Us For Availability

1

Endcap (Biscuit Left Hand) WPL 8272507 Contact Us For Availability

1

Endcap (Biscuit Right Hand) WPL 8272508 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

Spring, Locator WPL 3149191 Contact Us For Availability

2

Support, Corner LR WPL 3196156 Contact Us For Availability

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

3

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $101.23

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

3

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

3

Handle, Door (Almond) WPL 3195921 Contact Us For Availability

3

Handle, Door (Biscuit) WPL 8272495 Contact Us For Availability

3

Panel, Backguard (Black) WPL 3186171 Contact Us For Availability

3

Panel, Backguard (White) WPL 3186173 Contact Us For Availability

3

Panel, Backguard (Almond) WPL 3186174 Contact Us For Availability

3

Panel, Backguard (Biscuit) WPL 8273510 Contact Us For Availability

4

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

4

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

4

Cooktop (Almond/Alm Glass) WPL 8053544 Contact Us For Availability

4

Cooktop (Black/Black Glass) WPL 8053545 Contact Us For Availability

4

Cooktop (Biscuit) WPL 8272513 Contact Us For Availability

4

Liner, Door WPL 3186296 Contact Us For Availability

5

8522415 Whirlpool Oven Wind Gasket Backorder WPL 8522415 $28.80

5

Light, Indicator (Hot Surface) WPL 8273334 Contact Us For Availability

5

Rod, Latch WPL 3196961 Contact Us For Availability

5

Light, Indicator (Surface Unit (2)) WPL 8273301 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP9758164 Whirlpool Door Glass Backorder WPL WP9758164 $57.94

6

WPW10107830 Whirlpool Stove Door Lock Latch A Backorder WPL WPW10107830 $121.04

6

Bracket, Ind Light WPL 3195810 Contact Us For Availability

7

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 $94.12

7

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 $117.46

7

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $70.99

7

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $11.02

7

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

7

Frame, Glass WPL 3186290 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $87.56

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

Shield, Heat WPL 8053911 Contact Us For Availability

9

9761499 Whirlpool Oven Retainer Backorder WPL 9761499 $117.64

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $36.86

9

Screw WPL 4449746 Contact Us For Availability

9

Bracket, Element WPL 3196455 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

WP9762476 Whirlpool Door Glass Backorder WPL WP9762476 $119.54

WP9762477 Whirlpool Glass Door Backorder WPL WP9762477 $124.10

Glass, Outer Door (Almond) WPL 8053483 Contact Us For Availability

Glass, Outer Door (Biscuit) WPL 8273525 Contact Us For Availability

Switch, Rocker (Almond) WPL 3169466 Contact Us For Availability

Switch, Rocker (Biscuit) WPL 8273501 Contact Us For Availability

WP3195993 Whirlpool Light Switch In Stock WPL WP3195993 $56.02

Control, Range (Black) WPL 6610156 Contact Us For Availability

Control, Range (White) WPL 6610157 Contact Us For Availability

Control, Range (Almond) WPL 6610158 Contact Us For Availability

Control, Range (Biscuit) WPL 6610286 Contact Us For Availability

13

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

8184858 Whirlpool Door Trim Backorder WPL 8184858 $61.47

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $48.50

8184860 Whirlpool Oven Door Trim Backorder WPL 8184860 $55.24

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

15

Frame, Front (Not Serviceable) WPL ARI161810A Contact Us For Availability

15

Clip, Glass (4) WPL 3196025 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

16

Bracket, Latch WPL 3195914 Contact Us For Availability

17

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

17

WP8273564 Whirlpool Clip Backorder WPL WP8273564 $5.22

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

18

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

WP8273340 Whirlpool Sensor Backorder WPL WP8273340 $105.02

24

Support, Front (2) WPL 3195736 Contact Us For Availability

25

Support, Corner RR WPL 3195987 Contact Us For Availability

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

31

Back, Main WPL 8272922 Contact Us For Availability

32

Bracket, Flue WPL 3196437 Contact Us For Availability

33

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $169.15

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

37

Strap, Ground WPL 3169573 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

47

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

49

8053915 Whirlpool Oven Insulation Backorder WPL 8053915 $7.59

49

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

49

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67
