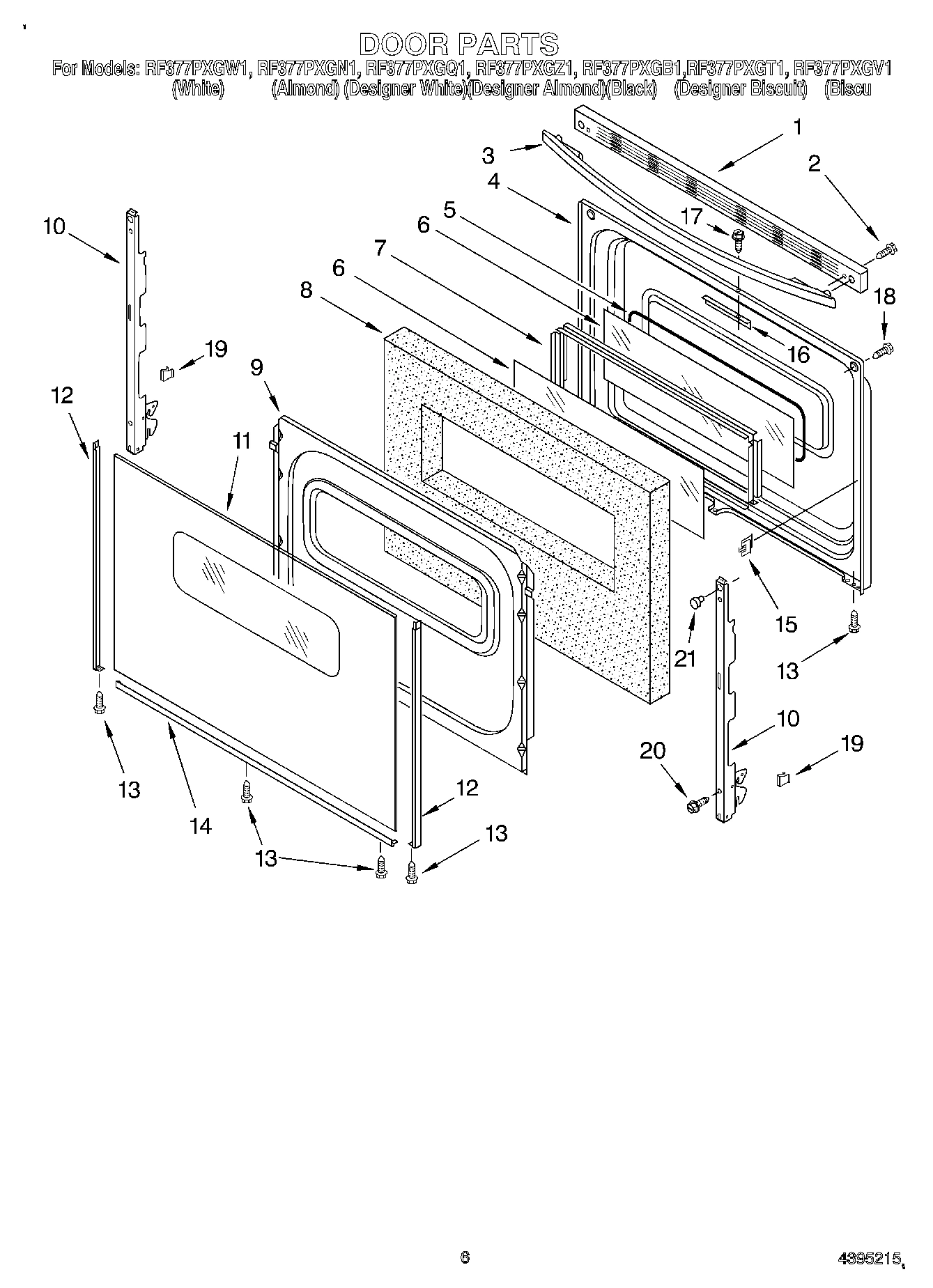

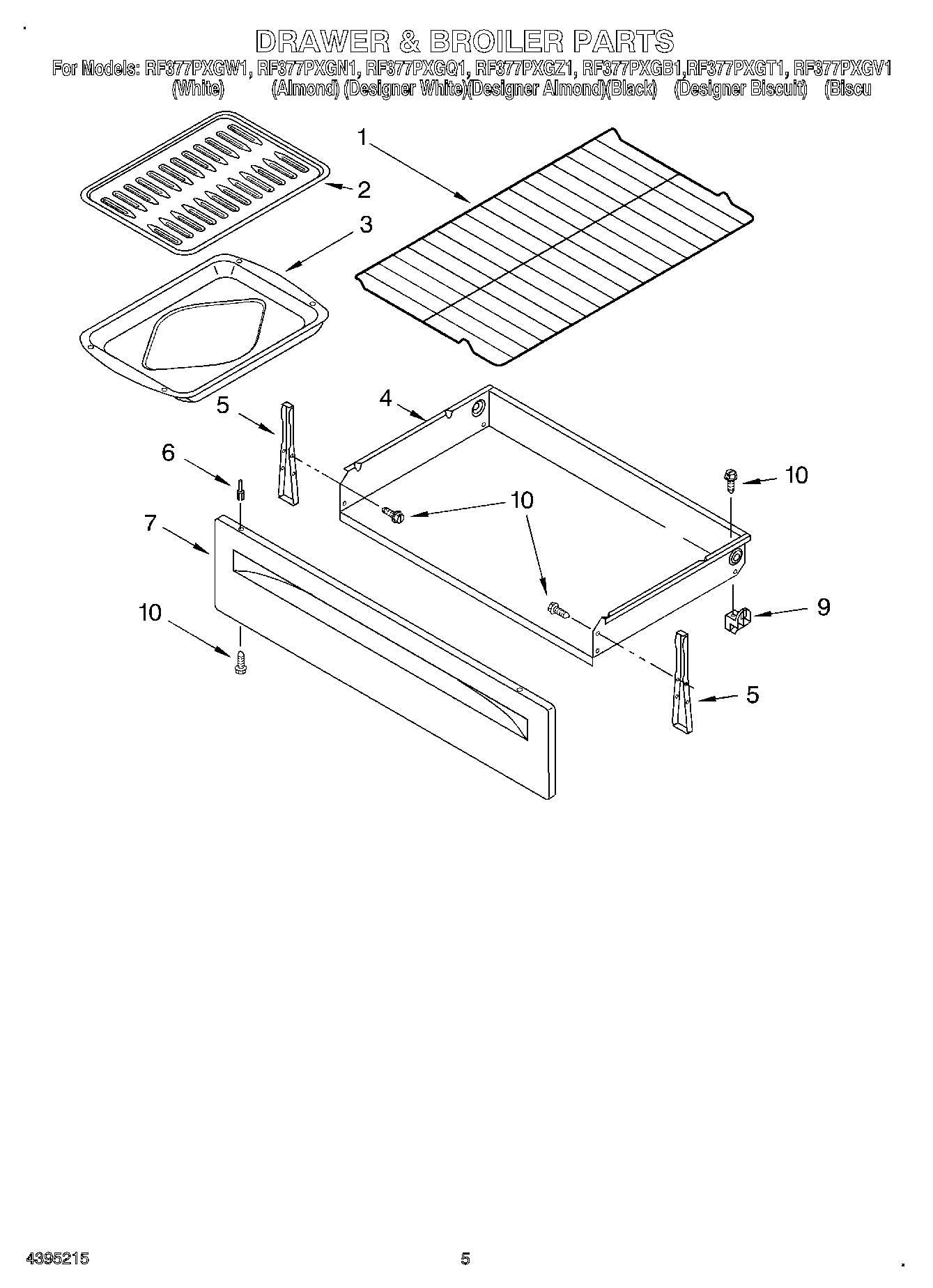

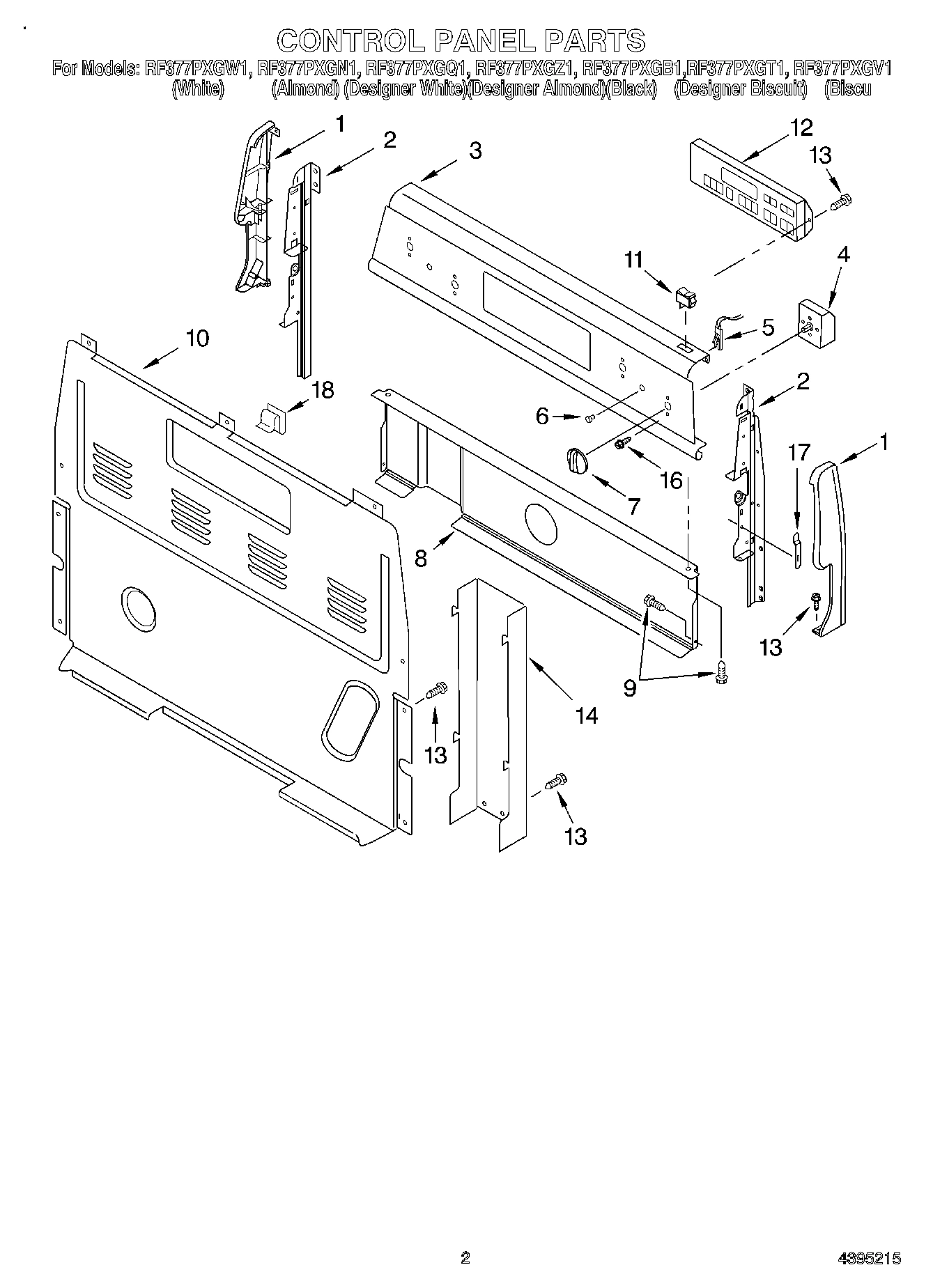

Model Whirlpool RF377PXGZ1 COOKTOP – Common Parts &amp; Diagrams

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Trim, Door Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Door Top (Almond) WPL 3196820 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 8272494 Contact Us For Availability

1

Endcap, Left Hand (Black) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (Left Hand White) WPL 3186190 Contact Us For Availability

1

Endcap (Right Hand White) WPL 3186191 Contact Us For Availability

1

Endcap, Left Hand (Almond) WPL 3186192 Contact Us For Availability

1

Endcap (Right Hand Almond) WPL 3186193 Contact Us For Availability

1

Endcap (Left Hand-Biscuit) WPL 8272507 Contact Us For Availability

1

Endcap (Right Hand-Biscuit) WPL 8272508 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $101.23

3

Handle, Door (Almond) WPL 3195921 Contact Us For Availability

3

Handle, Door (Biscuit) WPL 8272495 Contact Us For Availability

3

Panel, Backguard (Black) WPL 3186171 Contact Us For Availability

3

Panel, Backguard (White) WPL 3186173 Contact Us For Availability

3

Panel, Backguard (Almond) WPL 3186174 Contact Us For Availability

3

Panel, Backguard (Biscuit) WPL 8273510 Contact Us For Availability

4

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

Liner, Door WPL 3186296 Contact Us For Availability

4

Drawer, Storage WPL 8272605 Contact Us For Availability

5

8522415 Whirlpool Oven Wind Gasket Backorder WPL 8522415 $28.80

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

Light, Indicator WPL 8273301 Contact Us For Availability

6

3196815 Whirlpool Oven Rivet Backorder WPL 3196815 $9.59

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP9758164 Whirlpool Door Glass Backorder WPL WP9758164 $57.94

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $70.99

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $70.99

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $2.51

7

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $11.02

7

WP3196232 Whirlpool Knob In Stock WPL WP3196232 $10.76

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Frame, Glass WPL 3186290 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $3.70

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

Shield, Heat WPL 8053912 Contact Us For Availability

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $15.52

9

9761499 Whirlpool Oven Retainer Backorder WPL 9761499 $117.64

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

Screw WPL 4449746 Contact Us For Availability

10

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

10

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $112.03

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

WP9762476 Whirlpool Door Glass Backorder WPL WP9762476 $119.54

WP9762477 Whirlpool Glass Door Backorder WPL WP9762477 $124.10

Glass, Outer Door (Almond) WPL 8053483 Contact Us For Availability

Glass, Outer Door (Biscuit) WPL 8273525 Contact Us For Availability

Switch, Rocker (Almond) WPL 3169466 Contact Us For Availability

Switch, Rocker (Biscuit) WPL 8273501 Contact Us For Availability

WP3195993 Whirlpool Light Switch In Stock WPL WP3195993 $56.02

Control, Range (Black) WPL 6610156 Contact Us For Availability

Control, Range (White) WPL 6610157 Contact Us For Availability

Control, Range (Almond) WPL 6610158 Contact Us For Availability

Control, Range (Biscuit) WPL 6610286 Contact Us For Availability

13

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

8184858 Whirlpool Door Trim Backorder WPL 8184858 $61.47

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $48.50

8184860 Whirlpool Oven Door Trim Backorder WPL 8184860 $55.24

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $46.85

15

Clip, Glass (6) WPL 3196025 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

Bracket, Latch WPL 3195914 Contact Us For Availability

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

18

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

18

WP8273564 Whirlpool Clip Backorder WPL WP8273564 $5.22

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

3196696 Whirlpool Clip Backorder WPL 3196696 $6.61

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11396691 Whirlpool Element Receptacle and Wi In Stock WPL W11396691 $66.70

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 WPL 242822 Contact Us For Availability

WPL 242823 WPL 242823 Contact Us For Availability

WPL 242824 WPL 242824 Contact Us For Availability

WPL 242825 WPL 242825 Contact Us For Availability

WPL 242826 WPL 242826 Contact Us For Availability

WPL 242827 WPL 242827 Contact Us For Availability

WPL 242828 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8273266 WPL 8273266 Contact Us For Availability

WPL 8273273 WPL 8273273 Contact Us For Availability

WPL 8273335 WPL 8273335 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

23

WP8273340 Whirlpool Sensor Backorder WPL WP8273340 $105.02

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

49

WP3196567 Whirlpool Screw Backorder WPL WP3196567 $2.51

50

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

50

WP8272612 Whirlpool Insulation Backorder WPL WP8272612 $77.67
