Model Whirlpool RF367LXSB4 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams

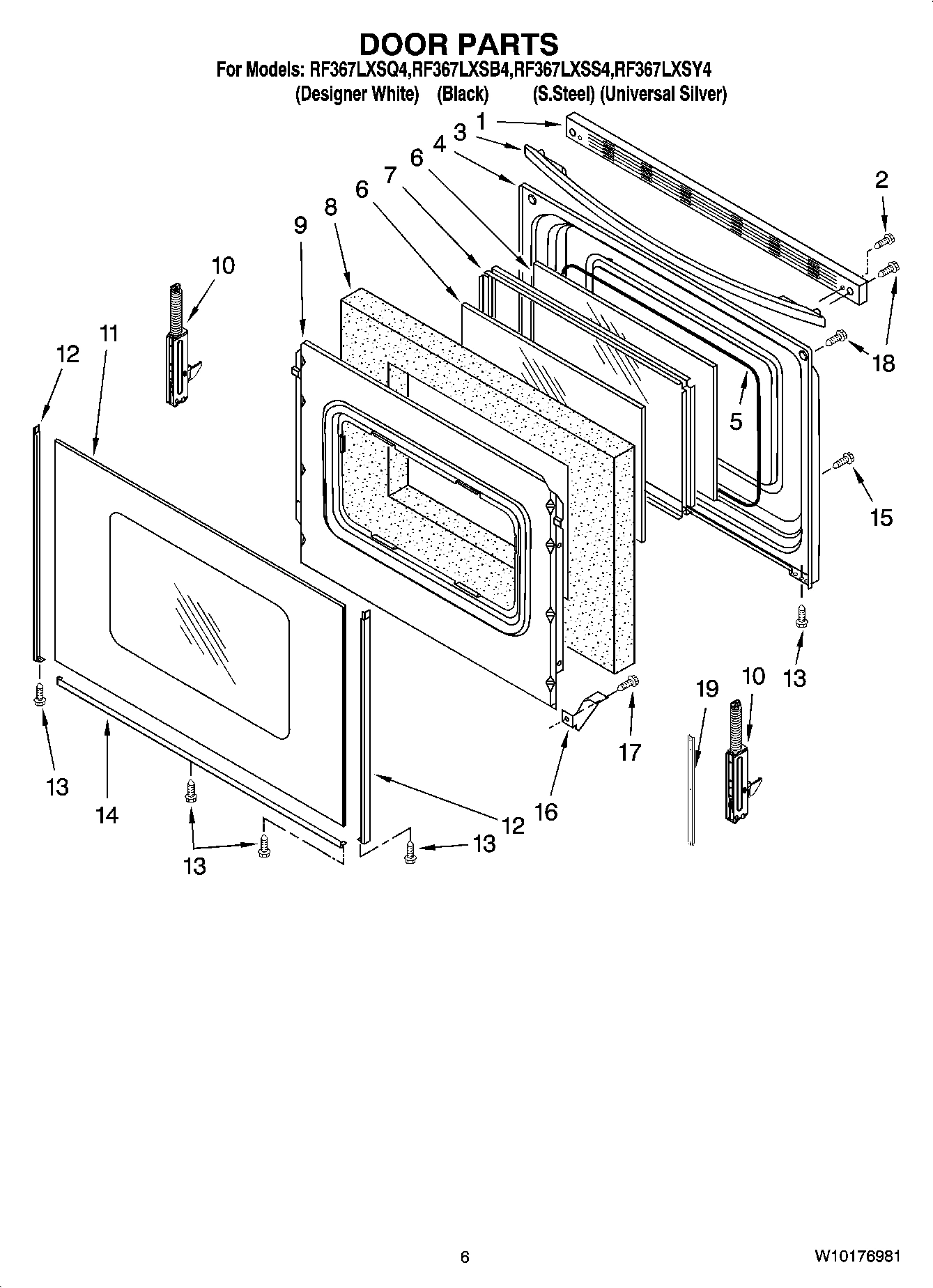

05 - DOOR PARTS, OPTIONAL PARTS

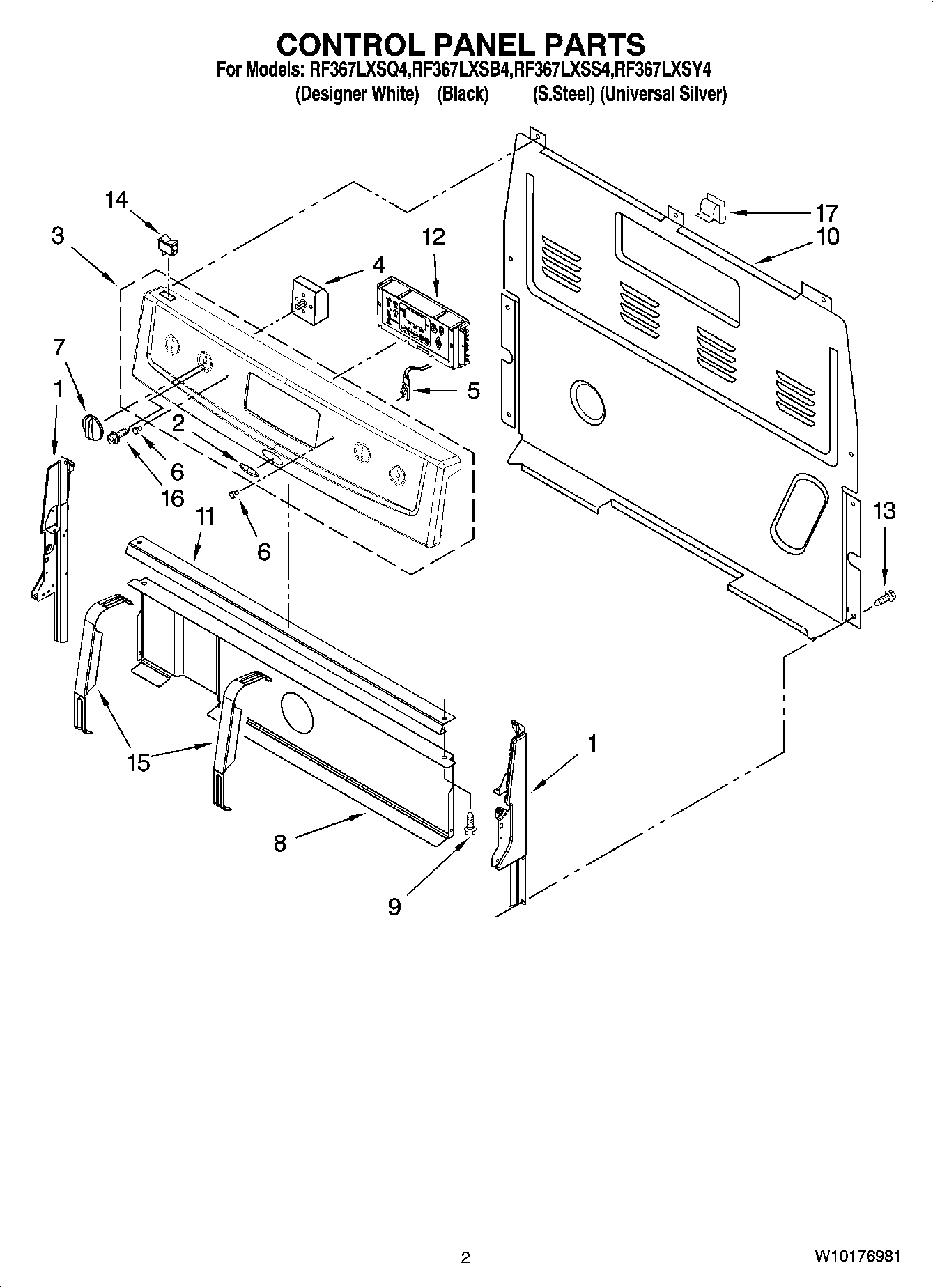

02 - CONTROL PANEL PARTS
04 - DRAWER & BROILER PARTS
01 - COOKTOP PARTS
03 - CHASSIS PARTS
Common parts from model Whirlpool RF367LXSB4 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
WPL 285006 WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
WPL W10111767 WPL W10111767 Contact Us For Availability
WPL W10111777 WPL W10111777 Contact Us For Availability
WPL W10111791 WPL W10111791 Contact Us For Availability
1
Trim, Top (White) WPL 9761975 Contact Us For Availability
1
Trim, Top (Universal Silver) WPL W10067560 Contact Us For Availability
1
Anti-Tip Template (English/Spanish) WPL 9757142 Contact Us For Availability
1
TEMPLATE, ANTI-TIP (ENGLISH/FRENCH) WPL 9757143 Contact Us For Availability
1
Safer Cooking Tips WPL 9762761 Contact Us For Availability
1
Tech Sheet WPL W10133896 Contact Us For Availability
1
Instructions, Installation WPL W10141166 Contact Us For Availability
1
Owners Manual WPL W10162204 Contact Us For Availability
2
Nameplate WPL 9757609 Contact Us For Availability
2
Drawer, Storage WPL 9761031 Contact Us For Availability
2
Spring, Locator WPL W10035930 Contact Us For Availability
2
Support, Corner LR WPL 8273905 Contact Us For Availability
3
Handle, Door (Universal Silver) WPL 9761985 Contact Us For Availability
3
Handle, Door (Black) WPL 9761983 Contact Us For Availability
3
Handle, Door (White) WPL 9761982 Contact Us For Availability
3
Panel, Control (White) WPL W10117604 Contact Us For Availability
3
Panel, Control (Black) WPL W10118052 Contact Us For Availability
3
Panel, Control (Stnls./Unv.Slv.Mdl) WPL W10118053 Contact Us For Availability
4
Cooktop (Blk/Stls/Unv Slv) WPL W10134936 Contact Us For Availability
4
Cooktop (White) WPL W10134937 Contact Us For Availability
5
Rod, Latch WPL W10078380 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
6
Bracket, Element WPL 8272791 Contact Us For Availability
8
Shield, Heat WPL W10134247 Contact Us For Availability
8
Panel, Stls/Unv Svl WPL W10133363 Contact Us For Availability
9
Handle (Unv. Silver Mdl.) WPL 9762251 Contact Us For Availability
9
Screw (White) WPL 3196166 Contact Us For Availability
9
Handle (Stainless Steel) WPL 9757219 Contact Us For Availability
11
Brkt-Mntg, Console WPL 9762095 Contact Us For Availability
12
Control, Range (Black) WPL W10108140 Contact Us For Availability
12
Control, Range (White) WPL W10108130 Contact Us For Availability
14
Switch, Rocker (White) WPL 3149360 Contact Us For Availability
14
Trim, Bottom (Universal Silver) WPL W10067550 Contact Us For Availability
15
BRKT-MNTG, EOC WPL 9762078 Contact Us For Availability
15
CLIP, DOOR MNTG(2) WPL 9761517 Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
20
Insulation WPL 9761490 Contact Us For Availability
21
Clip, Mounting WPL 9761512 Contact Us For Availability
24
Support, Front (2) WPL 3195736 Contact Us For Availability
25
Support, Corner RR WPL 3195987 Contact Us For Availability
27
Screw WPL 3196172 Contact Us For Availability
31
Back, Main WPL 9757029 Contact Us For Availability
41
Screw WPL 3196179 Contact Us For Availability
46
ROD - DOOR SWITCH, REAR MOUNT WPL 9757239 Contact Us For Availability
47
SCREEN, CATALYST WPL 9761301 Contact Us For Availability
50
Nut WPL 4452227 Contact Us For Availability
51
Bracket, Fan WPL 9755776 Contact Us For Availability
53
Insulation, Back WPL 9755772 Contact Us For Availability
53
Insulation WPL ARI161145A Contact Us For Availability
× ![]()
