Model Whirlpool RF365PXYW1 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
06 - WIRING HARNESS

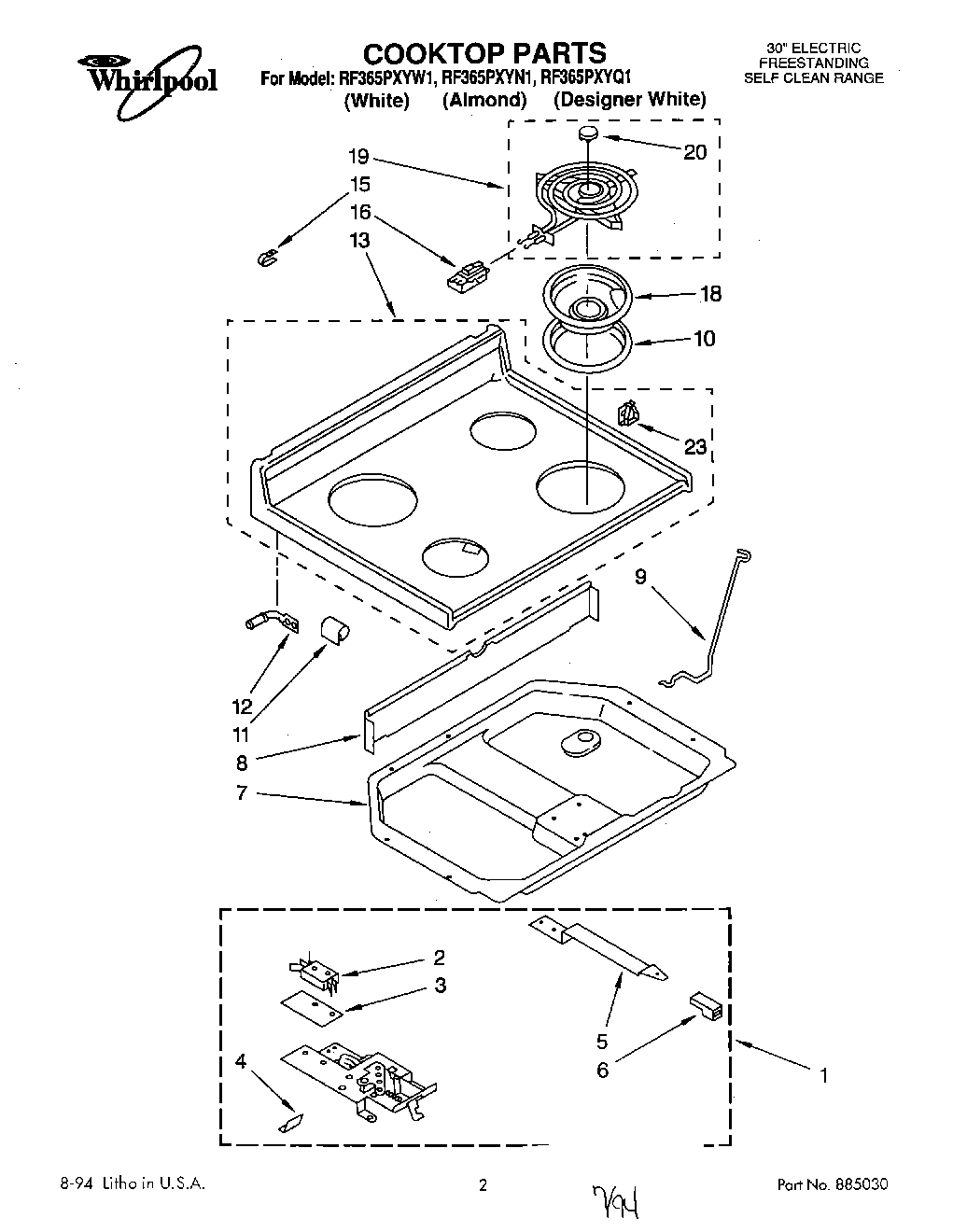

01 - COOKTOP, LITERATURE

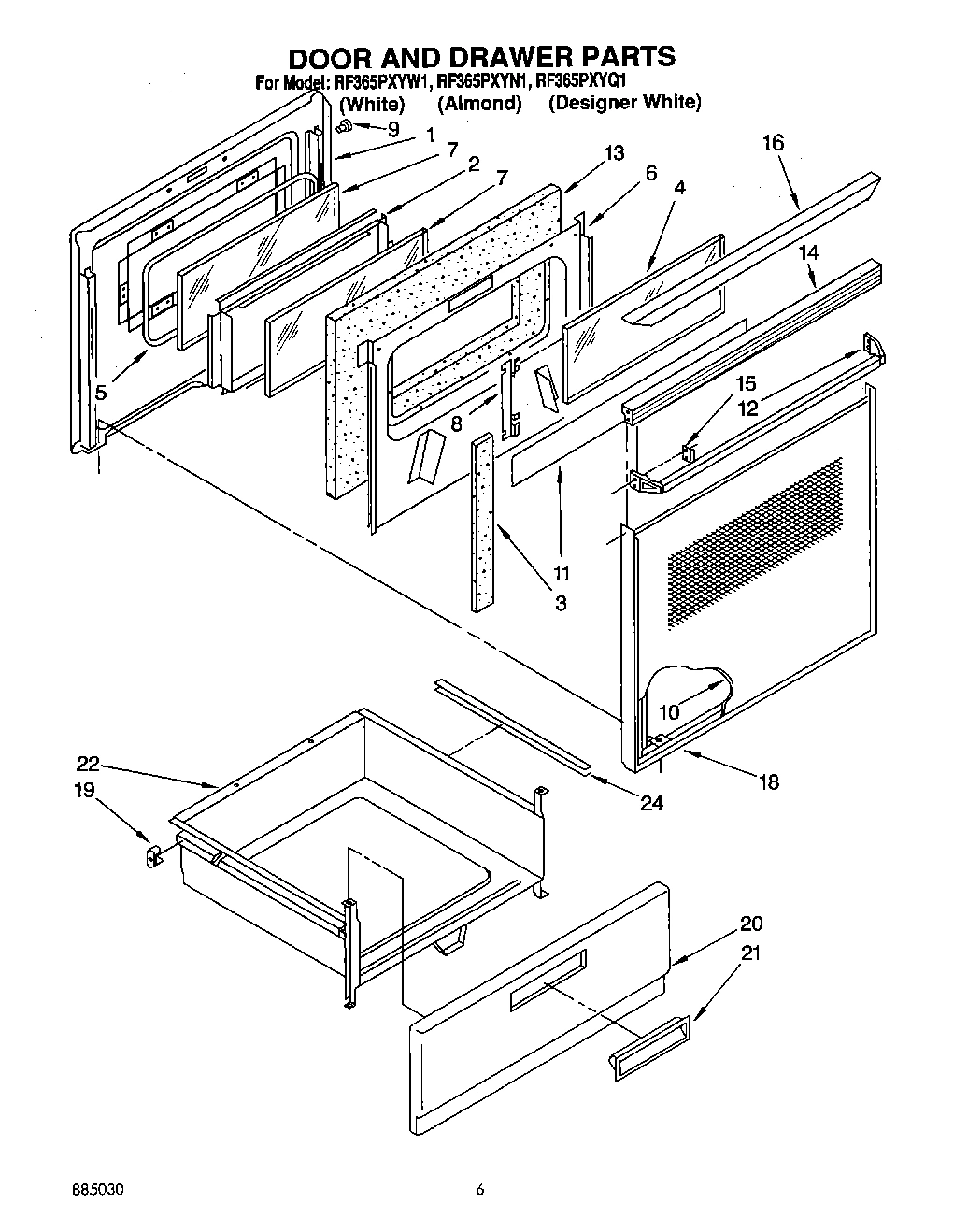

04 - DOOR AND DRAWER

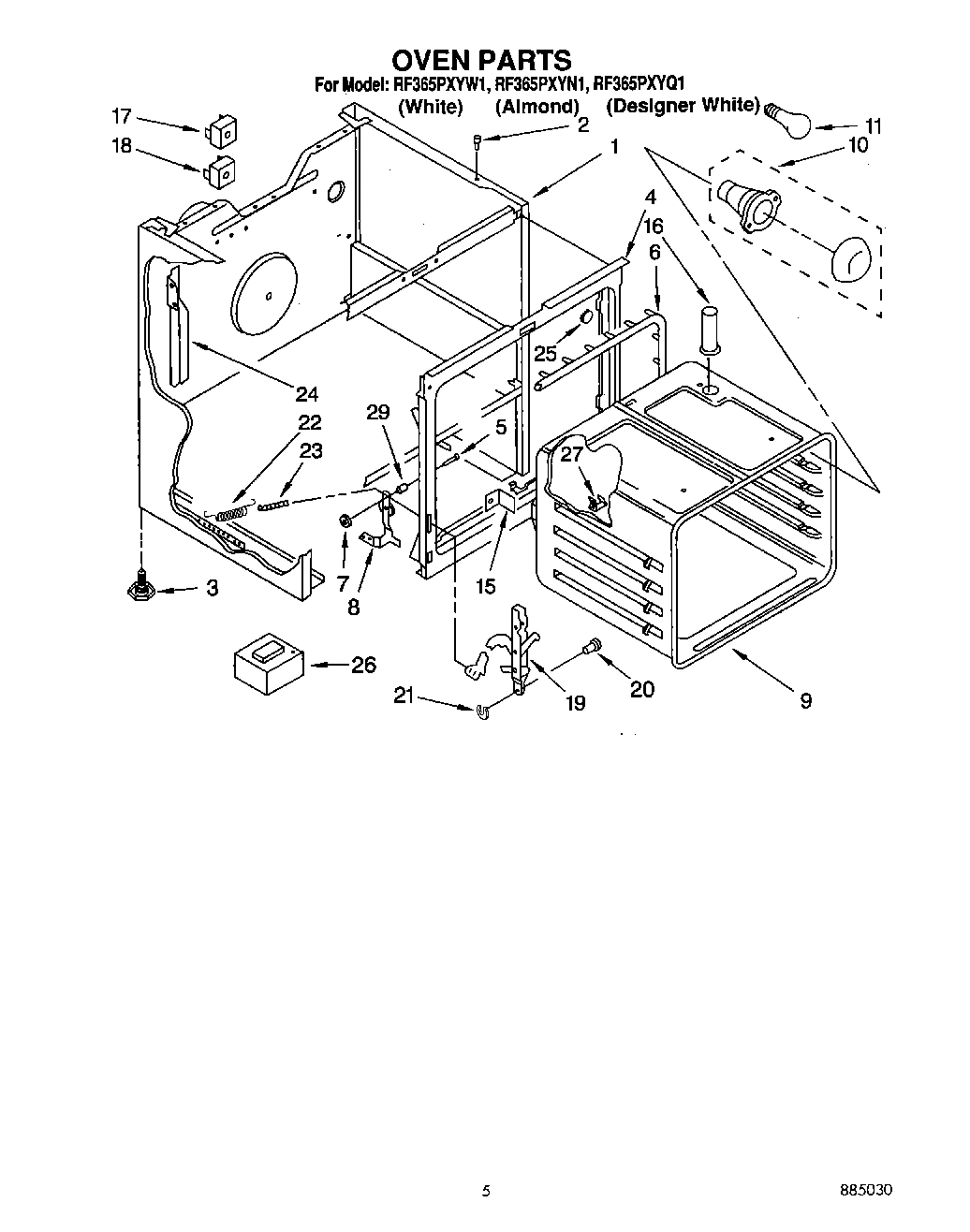

03 - OVEN

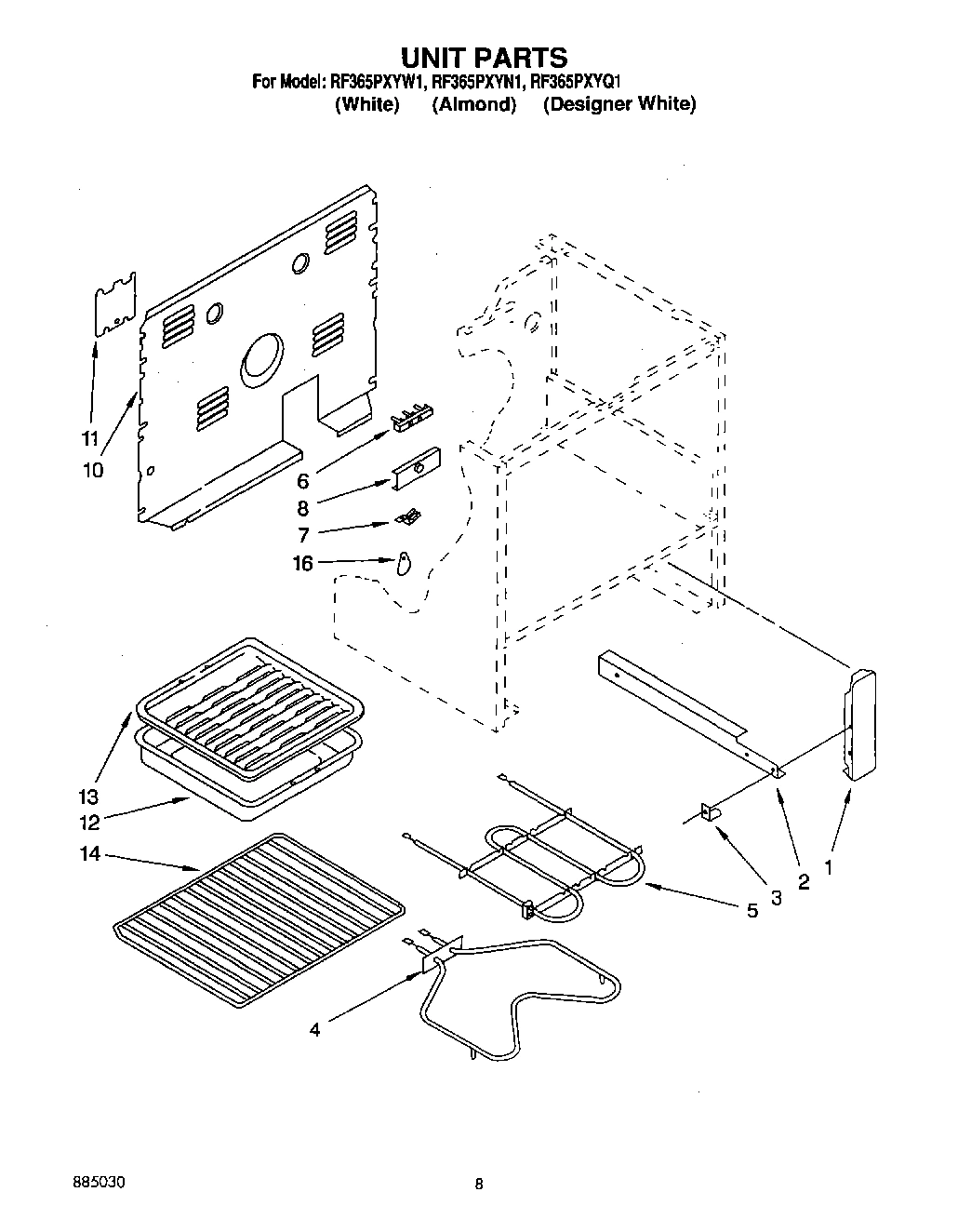

05 - UNIT, OPTIONAL
Common parts from model Whirlpool RF365PXYW1 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE
WPL LIT3183707 WPL LIT3183707 Contact Us For Availability
WPL LIT885030 WPL LIT885030 Contact Us For Availability
1
Latch Asm Complete W/Wiring Harness (White/Al WPL 3183959 Contact Us For Availability
1
Latch Asm Complete W/Wiring Harness (Designer WPL 3183960 Contact Us For Availability
1
Liner, Oven Door WPL 3172218 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Frame, Glass WPL 3148234 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Screw (2) WPL 308422 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Frame, Front WPL 3176698 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Handle, Latch (Designer White Mdl) WPL 3150175 Contact Us For Availability
5
Handle, Latch (Almond/White) WPL 3169081 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
6
Knob, Latch (White/Almond) WPL 3148684 Contact Us For Availability
6
Knob, Latch (Designer White Mdl.) WPL 3150174 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Screw (4) WPL 3148443 Contact Us For Availability
8
Retainer, Glass WPL 3148187 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Glass, Door (White/Almond) WPL 3148185 Contact Us For Availability
10
Glass, Door (Designer White Mdl) WPL 3149049 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Foil WPL 3169191 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Handle, Door (White/Almond) WPL 3148228 Contact Us For Availability
12
Handle, Door (Designer White Mdl) WPL 3149354 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
14
Top, Door (White-Almond) WPL 3148223 Contact Us For Availability
14
Top, Door (Designer White Mdl) WPL 3149355 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
Cap, Door Top Designer Mdl. Only WPL 3181363 Contact Us For Availability
16
WPL 3150532 WPL 3150532 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Harvest Gold WPL 261890 Contact Us For Availability
16
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
16
To WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 311982 WPL 311982 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
17
Switch, Broil WPL 314209 Contact Us For Availability
18
Pan, Reflector Designer Model (6`` (2)) WPL 3150198 Contact Us For Availability
18
Frame, Glass WPL 3148235 Contact Us For Availability
18
Switch, Bake WPL 314210 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Light, Indicator (Oven Unit) (Includes Illus. WPL 314031 Contact Us For Availability
20
WPL 309195 WPL 309195 Contact Us For Availability
20
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Knob, Infinite (4) (White/Almond) WPL 3183118 Contact Us For Availability
22
Knob, Infinite (4) (Designer White Mdl) WPL 3183117 Contact Us For Availability
22
Drawer, Utility WPL 327887 Contact Us For Availability
23
Knob (Temp) (Designer White Mdl) WPL 3183104 Contact Us For Availability
23
Knob (Temp) (White/Almond) WPL 3183103 Contact Us For Availability
23
WPL 814102 WPL 814102 Contact Us For Availability
24
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Button, Plug WPL 308535 Contact Us For Availability
26
Block, Balance WPL 3149258 Contact Us For Availability
29
WPL 3183115 WPL 3183115 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
29
Insulation, Wrap WPL 3169093 Contact Us For Availability
29
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
