Model Whirlpool RF365PXXW1 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE – Common Parts & Diagrams

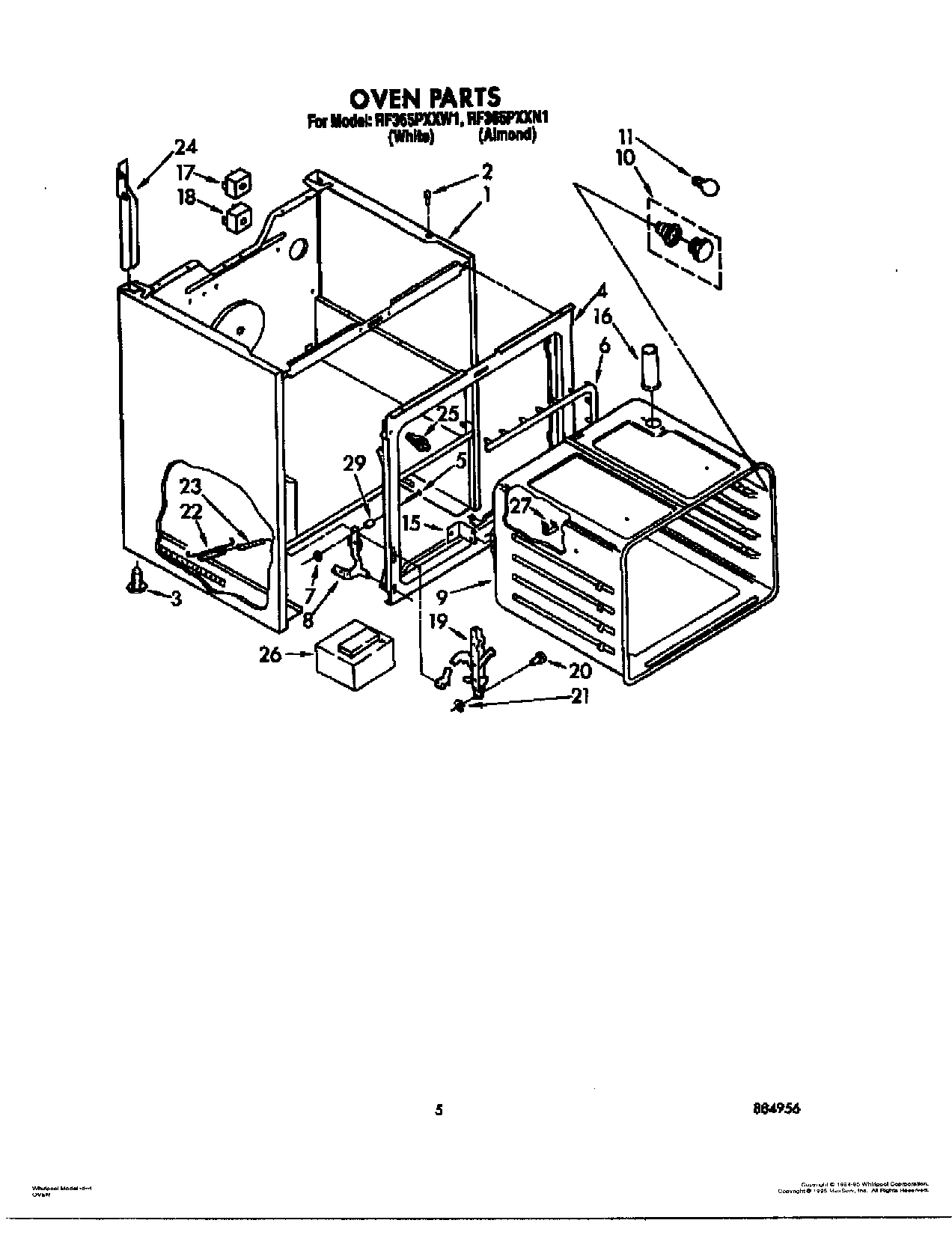

04 - OVEN

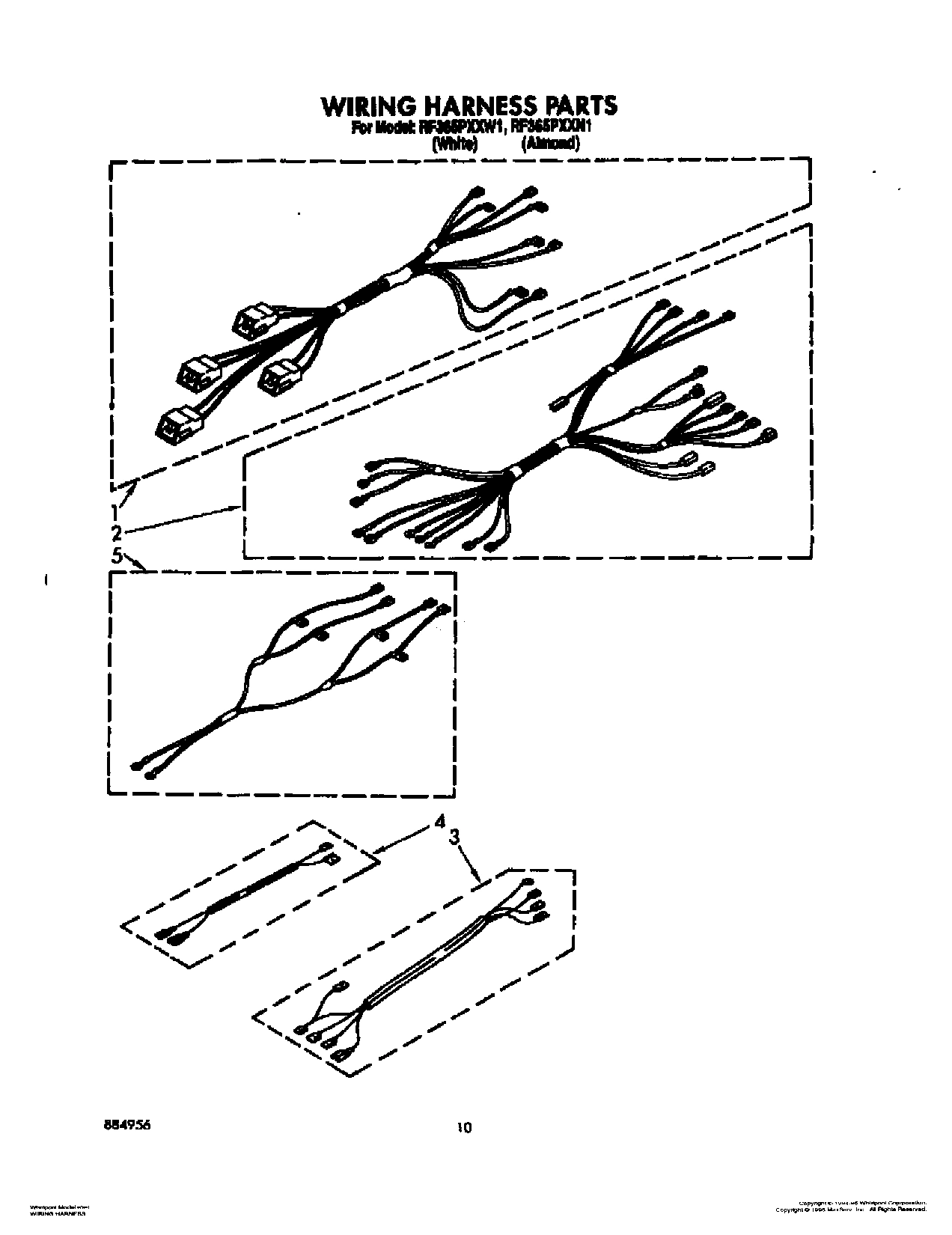

07 - WIRING HARNESS

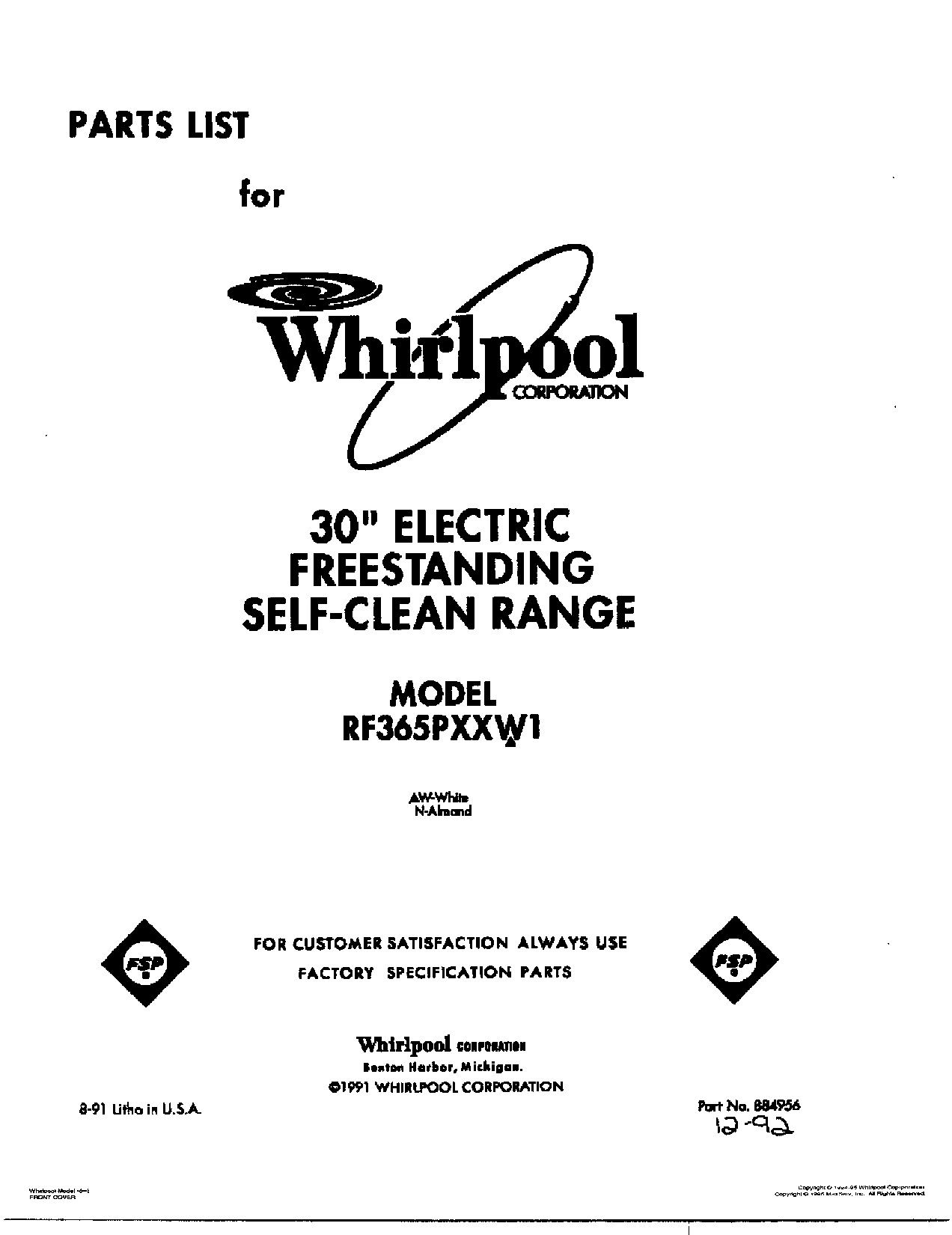

01 - COVER

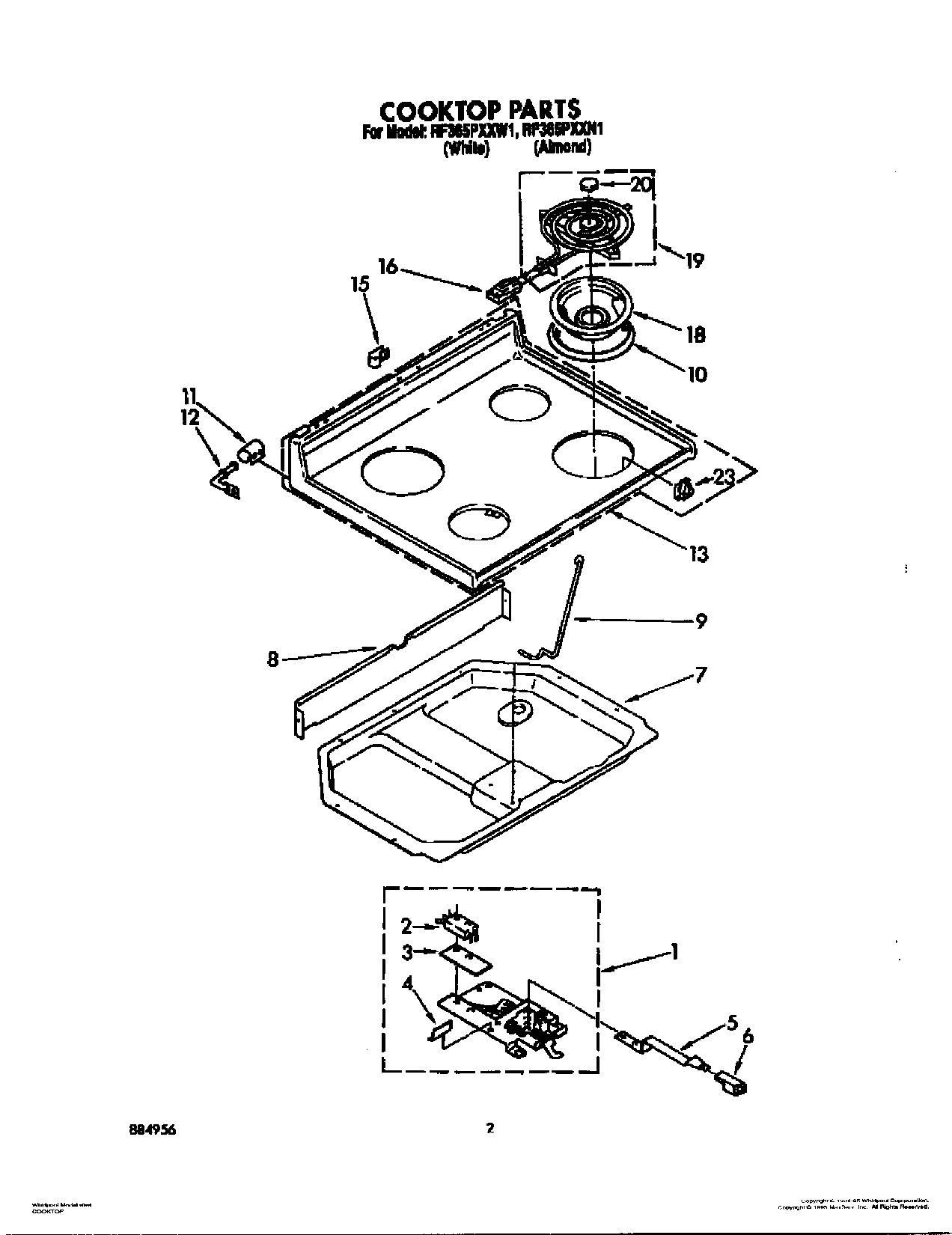

02 - COOKTOP

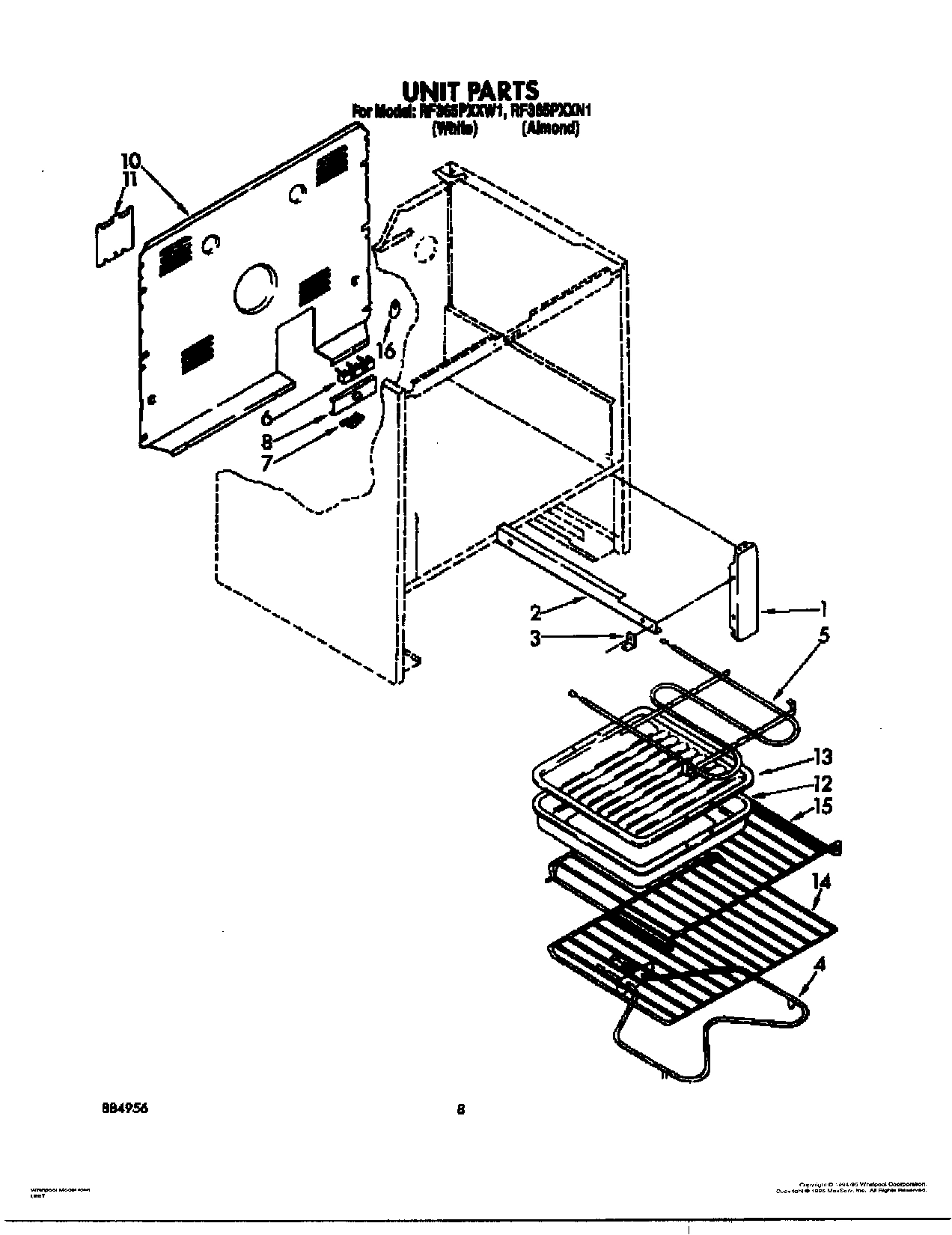

06 - UNIT

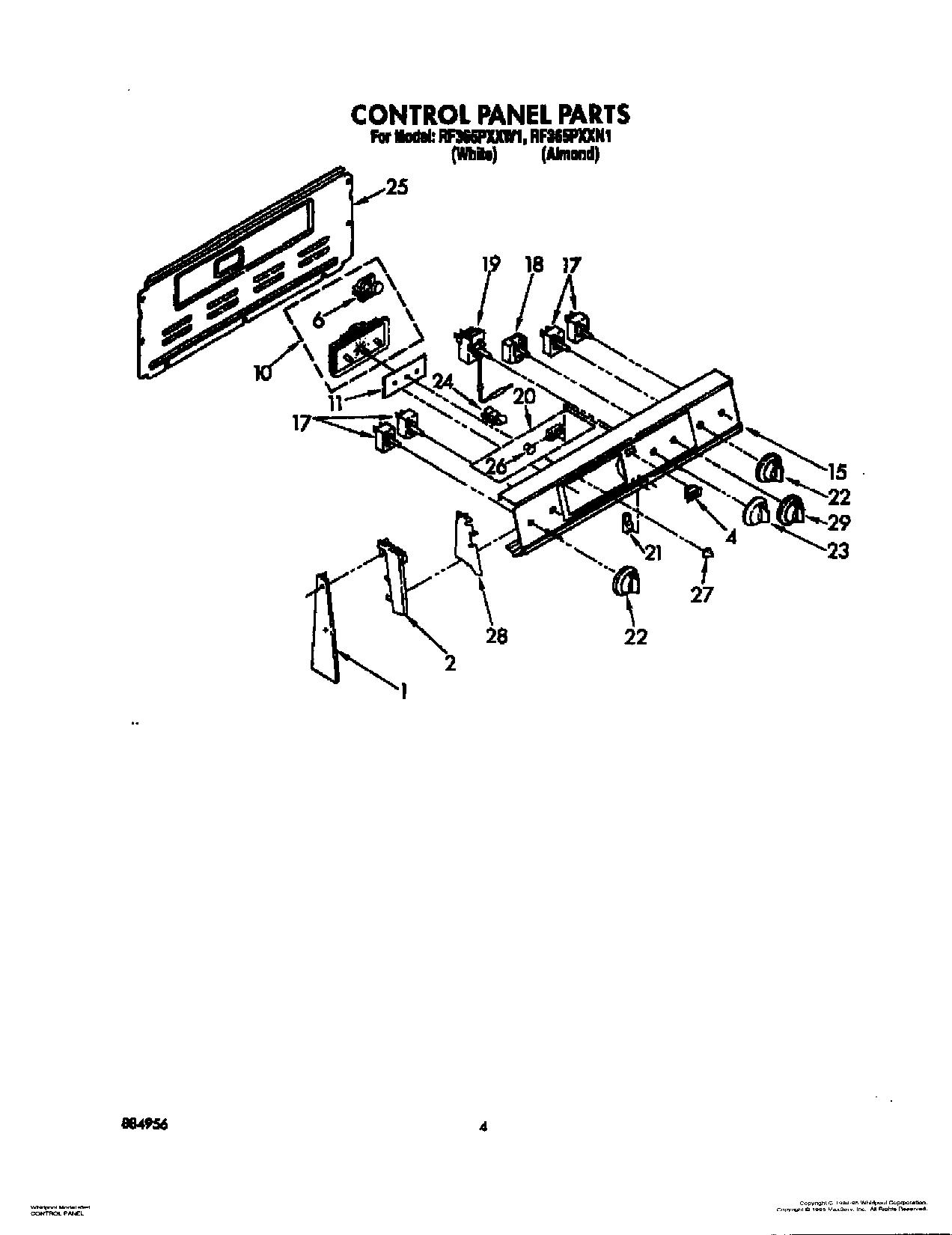

03 - CONTROL PANEL

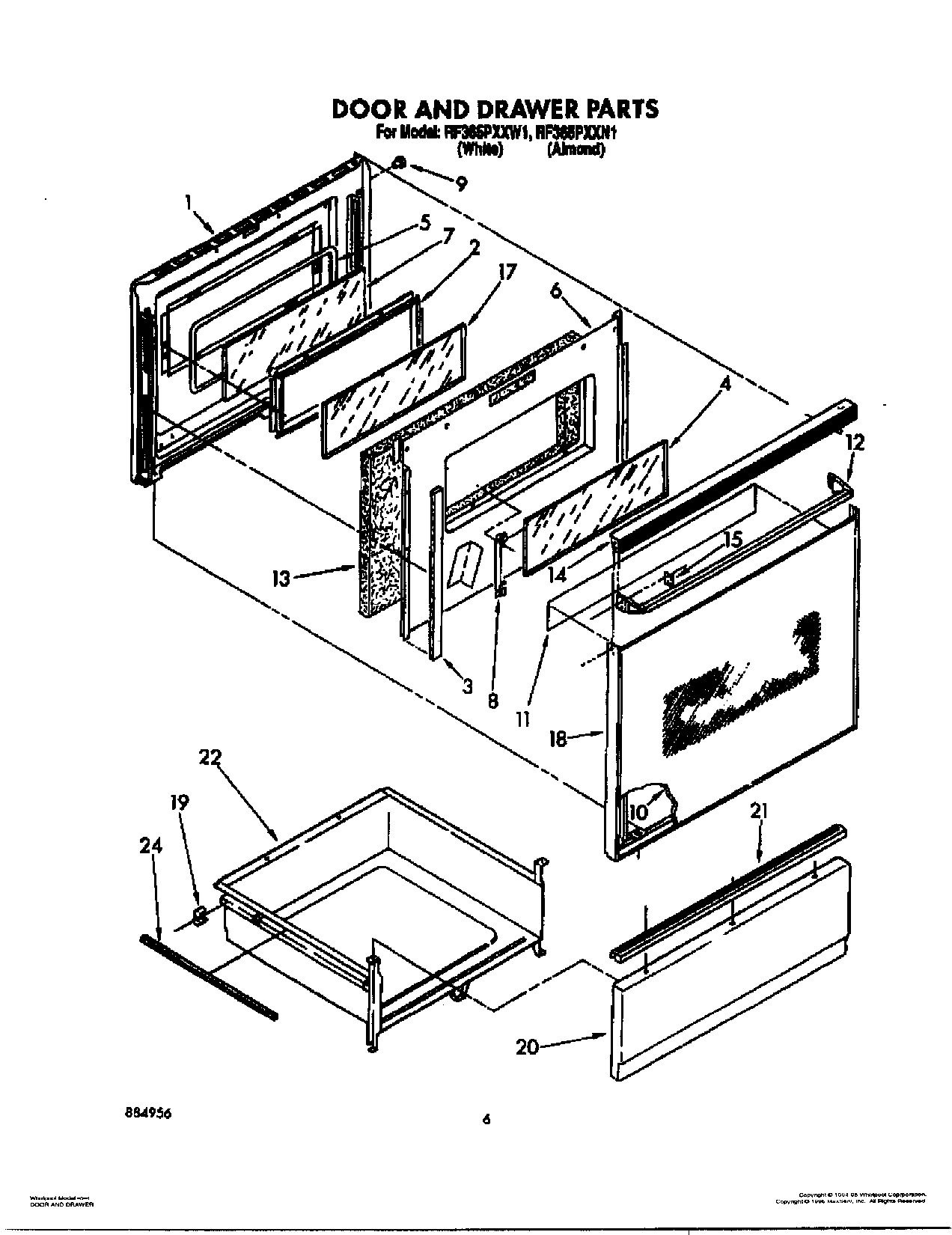

05 - DOOR AND DRAWER
Common parts from model Whirlpool RF365PXXW1 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE
Instructions, Installation WPL LIT3147395 Contact Us For Availability
Cooking Guide WPL LIT3149507 Contact Us For Availability
Guide, Use & Care WPL LIT3150298 Contact Us For Availability
Wiring Diagram WPL LIT3169007 Contact Us For Availability
Repair Parts List WPL LIT884956 Contact Us For Availability
1
Latch & Switch Assembly WPL 3171153 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Liner, Oven Door WPL 3172218 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
2
Frame, Glass WPL 3148234 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
4
Screw (2) WPL 308422 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Harness, Supply WPL 313147 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Box, Burner WPL 3150186 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Screw (4) WPL 3148443 Contact Us For Availability
8
Retainer, Glass WPL 3148187 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Timer, Clock (Includes No.6) WPL 3149505 Contact Us For Availability
10
Glass, Door WPL 3148185 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Glass, Timer WPL 313513 Contact Us For Availability
11
Foil WPL 3148184 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3150628 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
WPL 799344 WPL 799344 Contact Us For Availability
16
WPL 3150532 WPL 3150532 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
14 Ga. 200`C (Wire, White) WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
14 Ga. 150`C (Wire, Red) WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
14 Ga. 150`C (Wire, Yellow) WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
Coffee (Uncut) WPL 261887 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Harvest Gold WPL 261890 Contact Us For Availability
16
Harvest WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 311982 WPL 311982 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
18
Pan, Reflector (6`` Element (2)) WPL 3150198 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
18
Frame, Glass WPL 3148235 Contact Us For Availability
18
Screw (3) WPL 3182345 Contact Us For Availability
19
Thermostat, 0ven Pyro WPL 3148933 Contact Us For Availability
19
Screw (2) WPL 307748 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
20
Light, Indicator (Oven Unit On) (Includes Ill WPL 314031 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Panel Drawer (White) WPL 307935 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Light, Indicator (Surface Unit On) (Includes WPL 3150647 Contact Us For Availability
21
Handle, Drawer WPL 313337 Contact Us For Availability
22
Drawer, Utility WPL 327887 Contact Us For Availability
23
Nut (4) WPL 814102 Contact Us For Availability
23
Knob, Thermostat WPL 3149988 Contact Us For Availability
24
Tube Clip WPL 313570 Contact Us For Availability
24
Protector, Drawer (2) WPL 309329 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Rear Cover Control Panel WPL 313195 Contact Us For Availability
26
Lens, Amber (2) WPL 313101 Contact Us For Availability
27
Spring, Knob WPL 313311 Contact Us For Availability
28
Shield, Glass (2) WPL 313608 Contact Us For Availability
29
Knob, Selector WPL 3149986 Contact Us For Availability
× ![]()
