Model Whirlpool RF363PXPT0 – Common Parts &amp; Diagrams

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WPL 312308 WPL 312308 Contact Us For Availability

WPL LIT313284 WPL LIT313284 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT313473 WPL LIT313473 Contact Us For Availability

WPL LIT884132 WPL LIT884132 Contact Us For Availability

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

1

Liner, Door WPL 329694 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 328585 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330092 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Channel, Latch WPL 308033 Contact Us For Availability

2

Screw (2) WPL 311054 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability

2

rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Seal, Fiberglass WPL 311904 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Glide, Front (2) WPL 307979 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

4

Panel, Inner WPL 327898 Contact Us For Availability

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Frame, Front WPL 330166 Contact Us For Availability

5

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Window Package WPL 330038 Contact Us For Availability

5

Handle, Latch WPL 307976 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Retainer, Insulation WPL 308021 Contact Us For Availability

6

Knob, Latch WPL 307977 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability

7

Burner Box WPL 307929 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

Retainer, Glass WPL 309843 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Frame, Door WPL 310427 Contact Us For Availability

9

Rod, Cooktop WPL 307968 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329002 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Glass, Outer WPL 309069 Contact Us For Availability

Retainer, Cooktop WPL 307967 Contact Us For Availability

Cover, Rear WPL 307971 Contact Us For Availability

Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability

Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability

Socket, Lamp WPL 660556 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Top, Door Frame WPL 310428 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

12

clip, glass (10) WPL 310706 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

12

Cover, Light WPL 308039 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Clip (2) WPL 311506 Contact Us For Availability

Cooktop (Chrome) WPL 309922 Contact Us For Availability

Retainer, Light WPL 308038 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Baffle, Heat WPL 309056 Contact Us For Availability

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

15

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

15

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Handle, Oven Door WPL 312722 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Plate, Cover (2) WPL 311982 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

17

16515 Whirlpool Clip Backorder WPL 16515 $11.62

17

Switch, Broil WPL 310643 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Drawer, Utility WPL 327887 Contact Us For Availability

Block, Concrete (Balance) WPL 312804 Contact Us For Availability

Switch, Bake WPL 310644 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

340184 Whirlpool Screw Backorder WPL 340184 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Protector, Drawer Side (2) WPL 309329 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

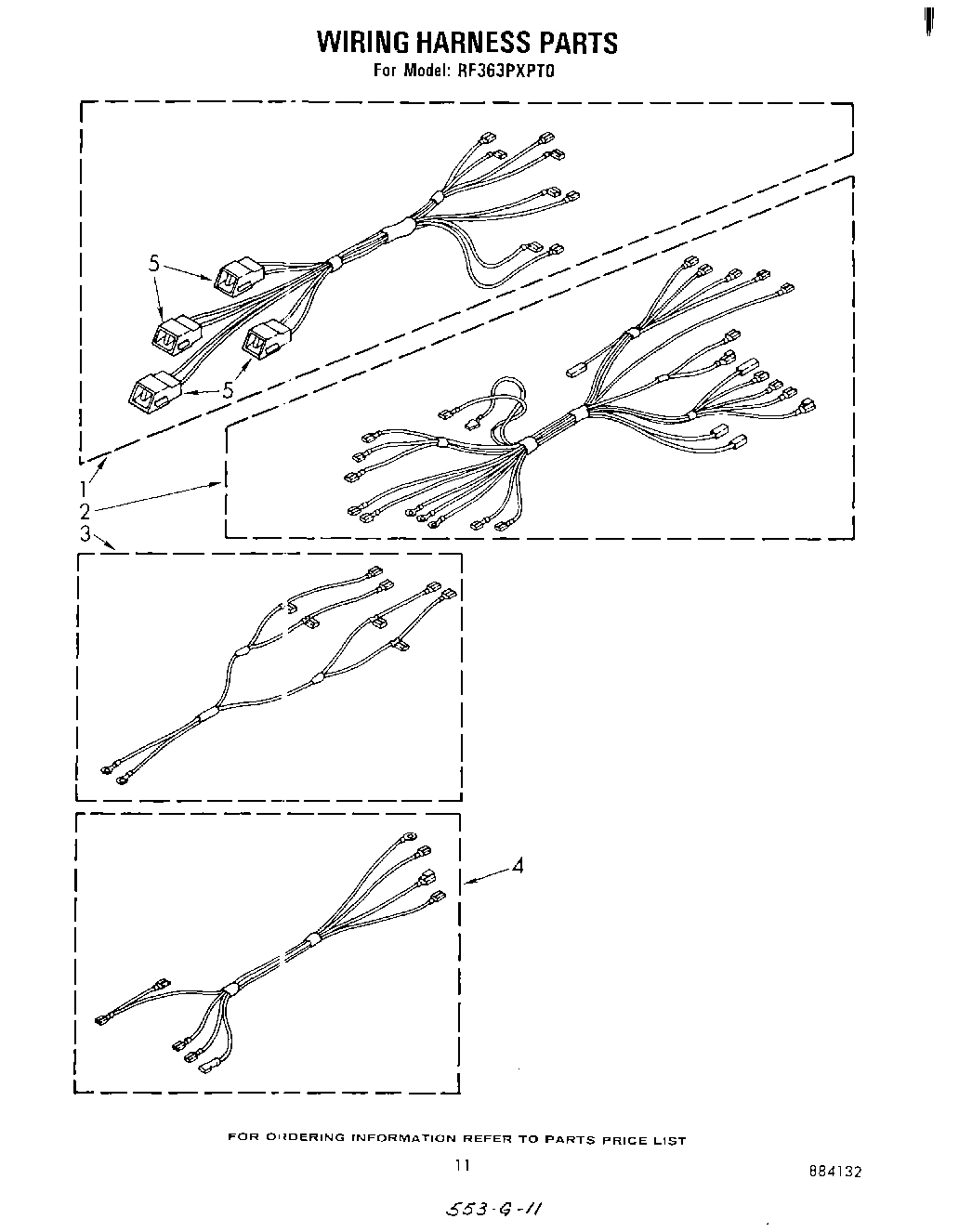

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brow WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 242985 WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Glide, Rear (2) WPL 307980 Contact Us For Availability

20

Medallion (4) WPL 309195 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability

Panel Drawer (Black) WPL 309923 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

Handle, Drawer WPL 313337 Contact Us For Availability

22

Shield, Insulation WPL 312320 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Rack, Literature WPL 357645 Contact Us For Availability

Support, L.H. Channel WPL 313196 Contact Us For Availability

Support, R.H. Channel WPL 313197 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

28

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Plug, Bottom WPL 308535 Contact Us For Availability

39

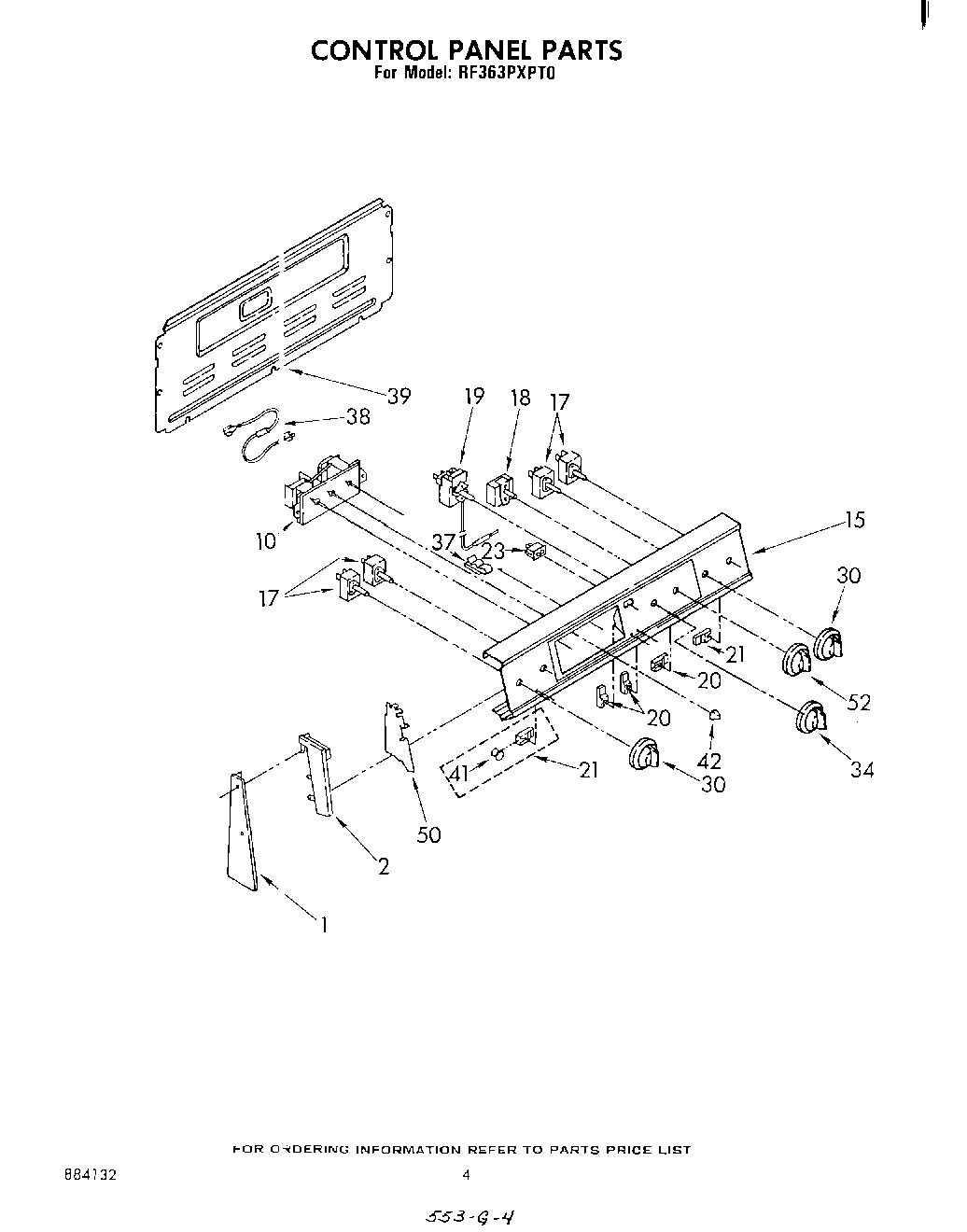

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (5) WPL 313101 Contact Us For Availability

42

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

42

Spring (3) WPL 313311 Contact Us For Availability

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

50

Shield, Glass (2) WPL 313608 Contact Us For Availability

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

52

Knob, Control WPL 330178 Contact Us For Availability
