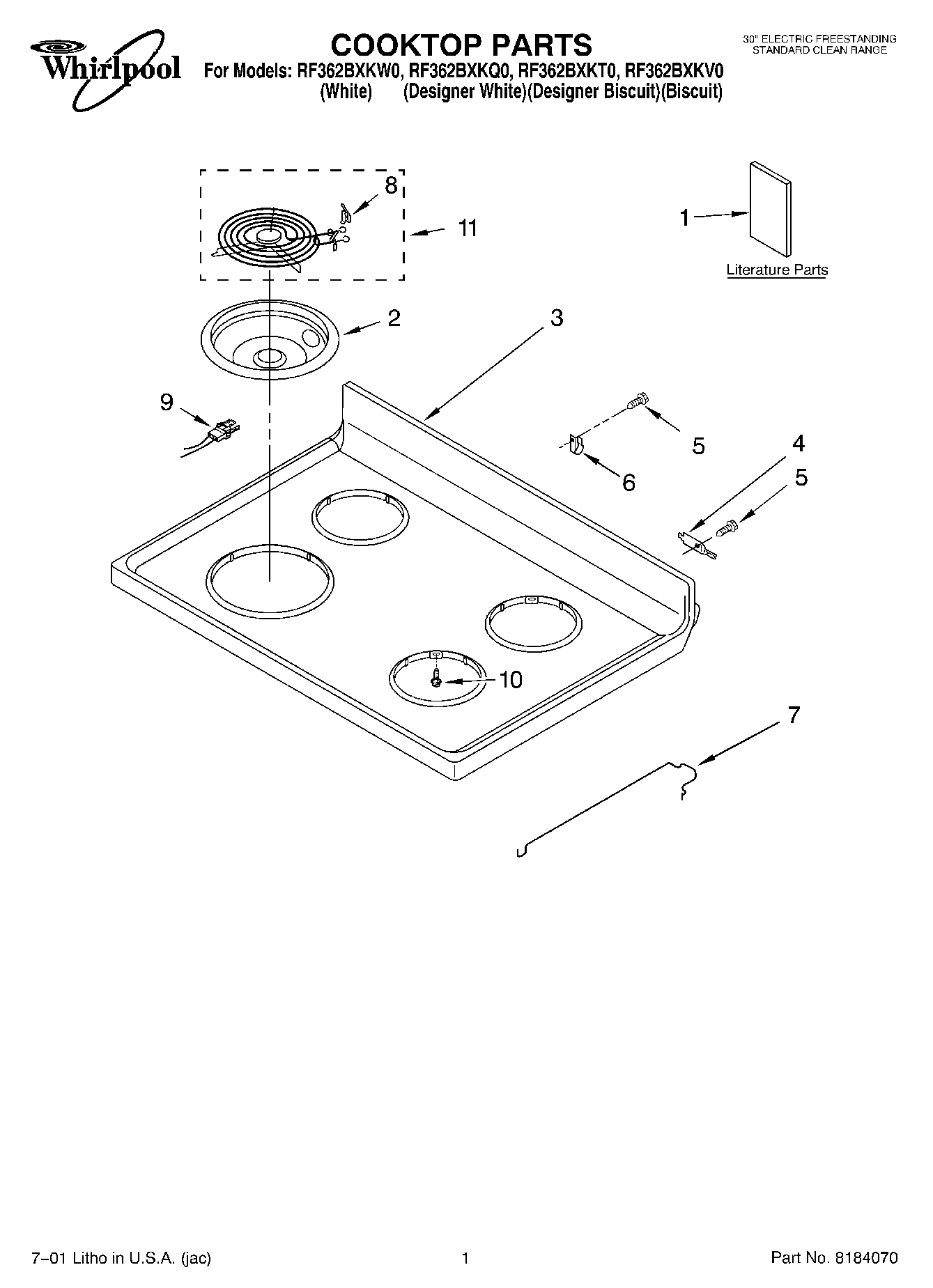

Model Whirlpool RF362BXKV0 COOKTOP – Common Parts &amp; Diagrams

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Instruct, Install (Template WPL LIT3195945 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8053291 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8053714 Contact Us For Availability

1

Guide, Use & Care WPL LIT8522771 Contact Us For Availability

1

Endcap (Black Left Hand) WPL 3186188 Contact Us For Availability

1

Endcap, Right Hand (Black) WPL 3186189 Contact Us For Availability

1

Endcap (White Left Hand) WPL 3186190 Contact Us For Availability

1

Endcap (White Right Hand) WPL 3186191 Contact Us For Availability

1

Endcap (Biscuit Left Hand) WPL 8272507 Contact Us For Availability

1

Endcap (Biscuit Right Hand) WPL 8272508 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $3.46

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.01

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.06

2

Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability

2

Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability

3

8195532 Whirlpool Cooktop Power Switch Backorder WPL 8195532 $208.38

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

3

Cooktop (Biscuit) WPL 8272527 Contact Us For Availability

3

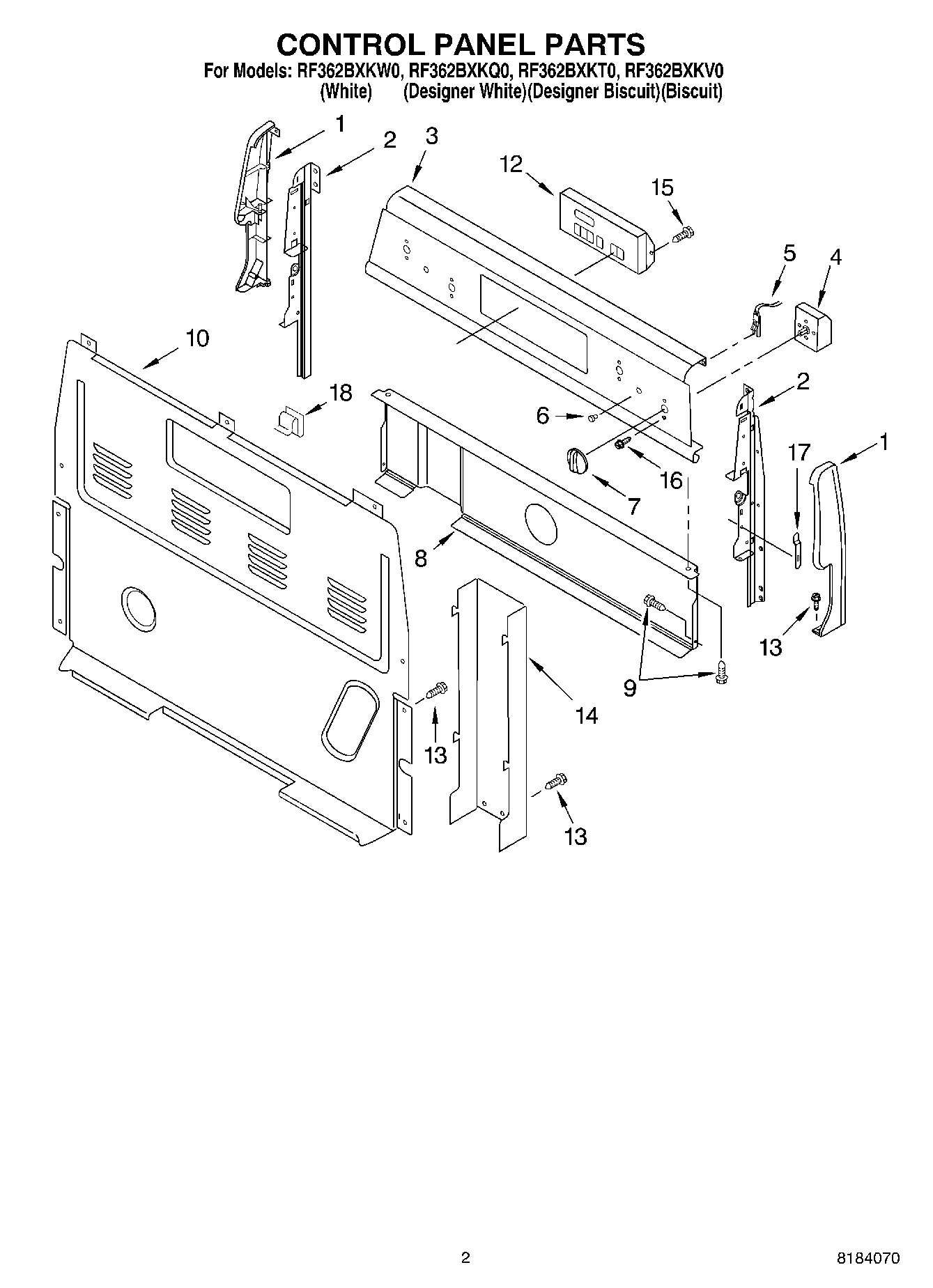

Panel, Backguard (White) WPL 3186165 Contact Us For Availability

3

Panel, Backguard (Black) WPL 3186175 Contact Us For Availability

3

Panel, Backguard (Biscuit) WPL 8522816 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $34.35

4

WP3149400 Whirlpool Range Infinite Switch In Stock WPL WP3149400 $36.63

4

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

4

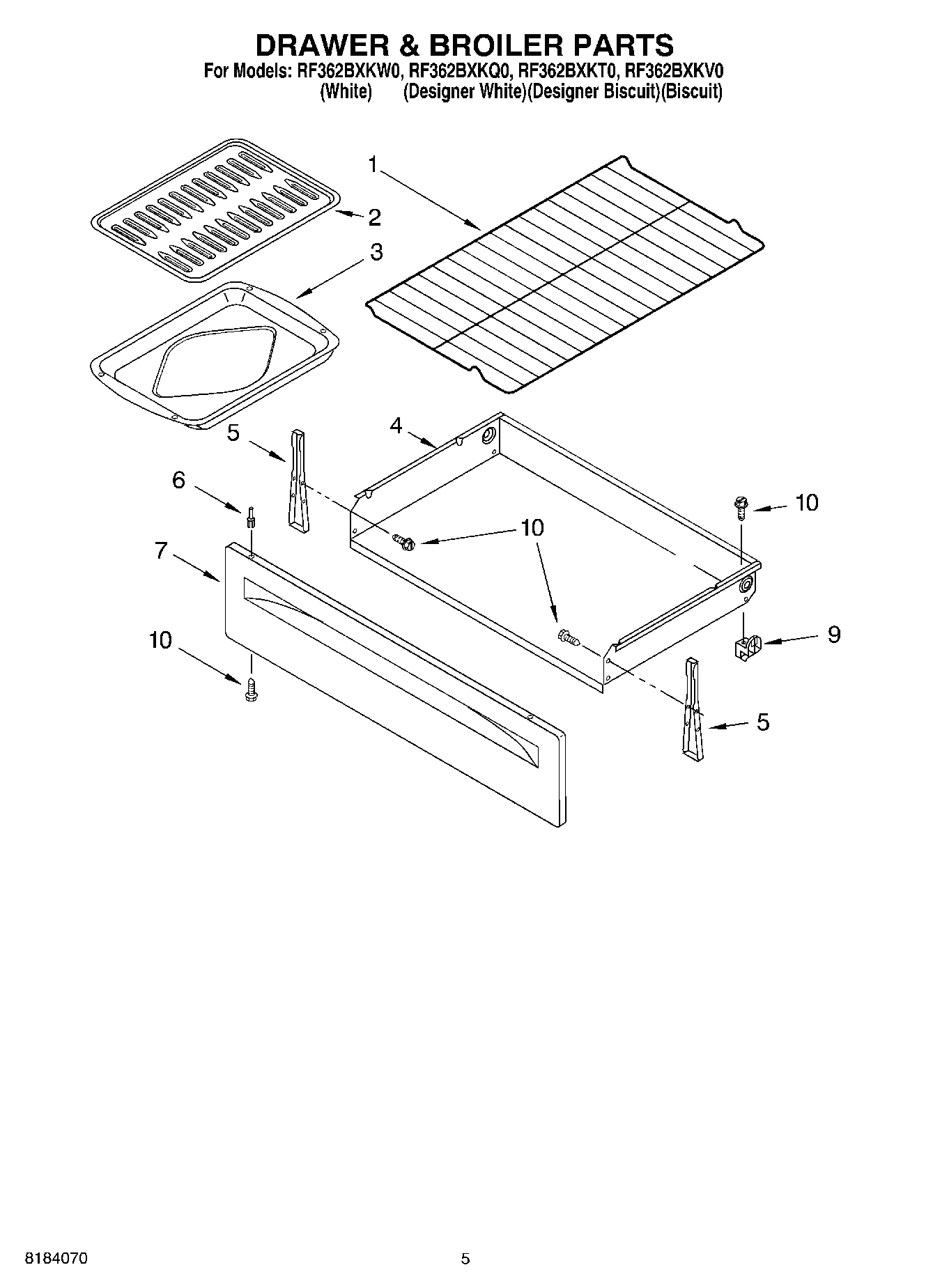

Drawer, Storage WPL 8272605 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket Backorder WPL W10838990 $33.25

5

Light, Indicator WPL 8273301 Contact Us For Availability

6

3196815 Whirlpool Range Rivet Backorder WPL 3196815 $9.59

6

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.82

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $74.54

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $74.54

7

WP3195812 Whirlpool Cooktop Rod In Stock WPL WP3195812 $3.33

7

WP8522565 Whirlpool Knob In Stock WPL WP8522565 $12.57

7

WP8522566 Whirlpool Knob Backorder WPL WP8522566 $11.14

7

Knob, Infinite (4) (Biscuit) WPL 8522567 Contact Us For Availability

8

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 $4.52

8

Hinge, Door (2) WPL 8053808 Contact Us For Availability

8

Shield, Heat WPL 8053912 Contact Us For Availability

9

814399 Whirlpool Receptacle Kit In Stock WPL 814399 $16.34

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $4.70

9

Screw WPL 4449746 Contact Us For Availability

9

Glass, Outer (White) WPL 3196810 Contact Us For Availability

9

Glass, Outer (Black) WPL 3195610 Contact Us For Availability

9

Glass, Outer (Biscuit) WPL 8273523 Contact Us For Availability

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $4.52

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $117.64

W10491985 Whirlpool Screw Backorder WPL W10491985 $3.33

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $28.64

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

WPW10259865 Whirlpool Range 8" Surface Elemen In Stock WPL WPW10259865 $86.23

8184858 Whirlpool Door Trim Backorder WPL 8184858 $64.54

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $51.75

8184860 Whirlpool Range Door Trim Backorder WPL 8184860 $58.01

WP6610456-includeCORE Whirlpool WP6610456 Ran Backorder WPL WP6610456-includeCORE $300.99

WP6610457-includeCORE Whirlpool WP6610457 Ran Backorder WPL WP6610457-includeCORE $307.73

Control, Range (Biscuit) WPL 6610311 Contact Us For Availability

13

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

14

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $49.19

15

WP179051 Whirlpool Screw Backorder WPL WP179051 $3.46

15

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $3.46

17

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

17

Clip, Glass (6) WPL 3196025 Contact Us For Availability

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

18

WP8273564 Whirlpool Clip Backorder WPL WP8273564 $5.22

20

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $30.10

20

Bracket, Latch WPL 3195914 Contact Us For Availability

21

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

21

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $29.65

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

3196696 Whirlpool Clip In Stock WPL 3196696 $6.61

3400964 Whirlpool Range Clip Backorder WPL 3400964 $34.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $12.52

WPL W10355051 No Longer Available

W11396691 Whirlpool Element Receptacle and Wi In Stock WPL W11396691 $70.84

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $61.59

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yello WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 313660 WPL 313660 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8273266 WPL 8273266 Contact Us For Availability

WPL 8273322 WPL 8273322 Contact Us For Availability

WPL 8273335 WPL 8273335 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

28

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.33

31

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

33

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

37

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51
