Model Whirlpool RF3615XWG1 – Common Parts & Diagrams

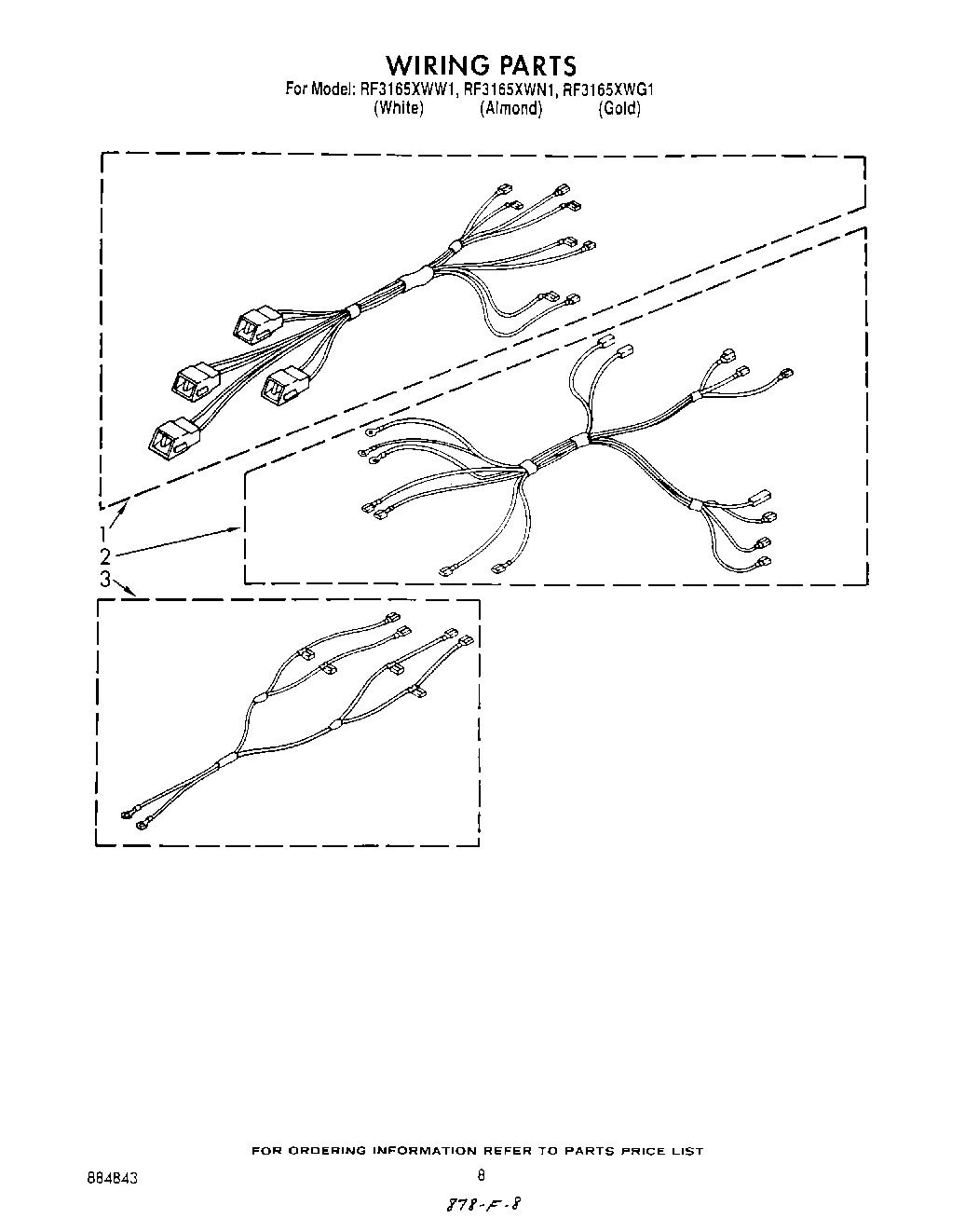

07 - WIRING

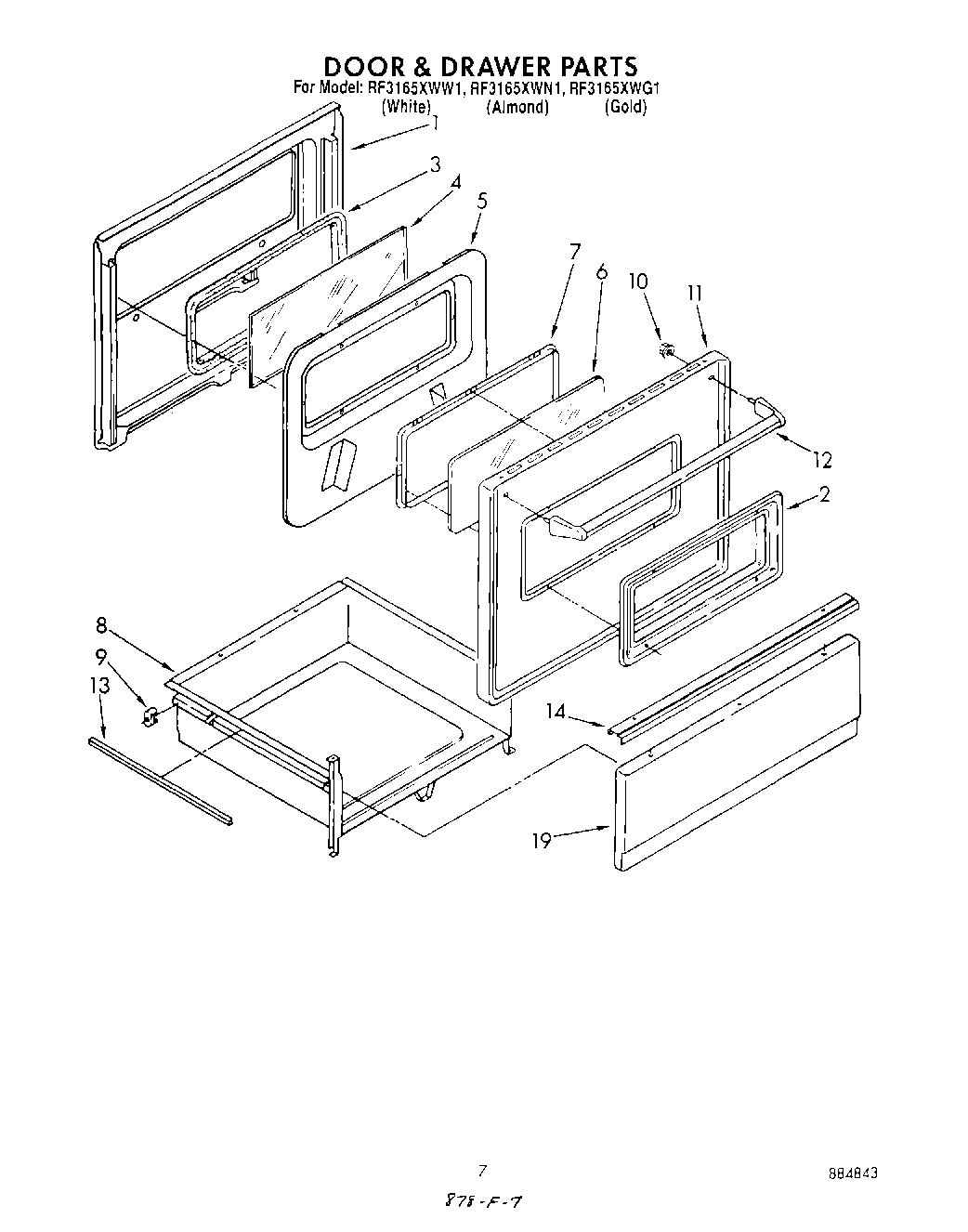

06 - DOOR AND DRAWER

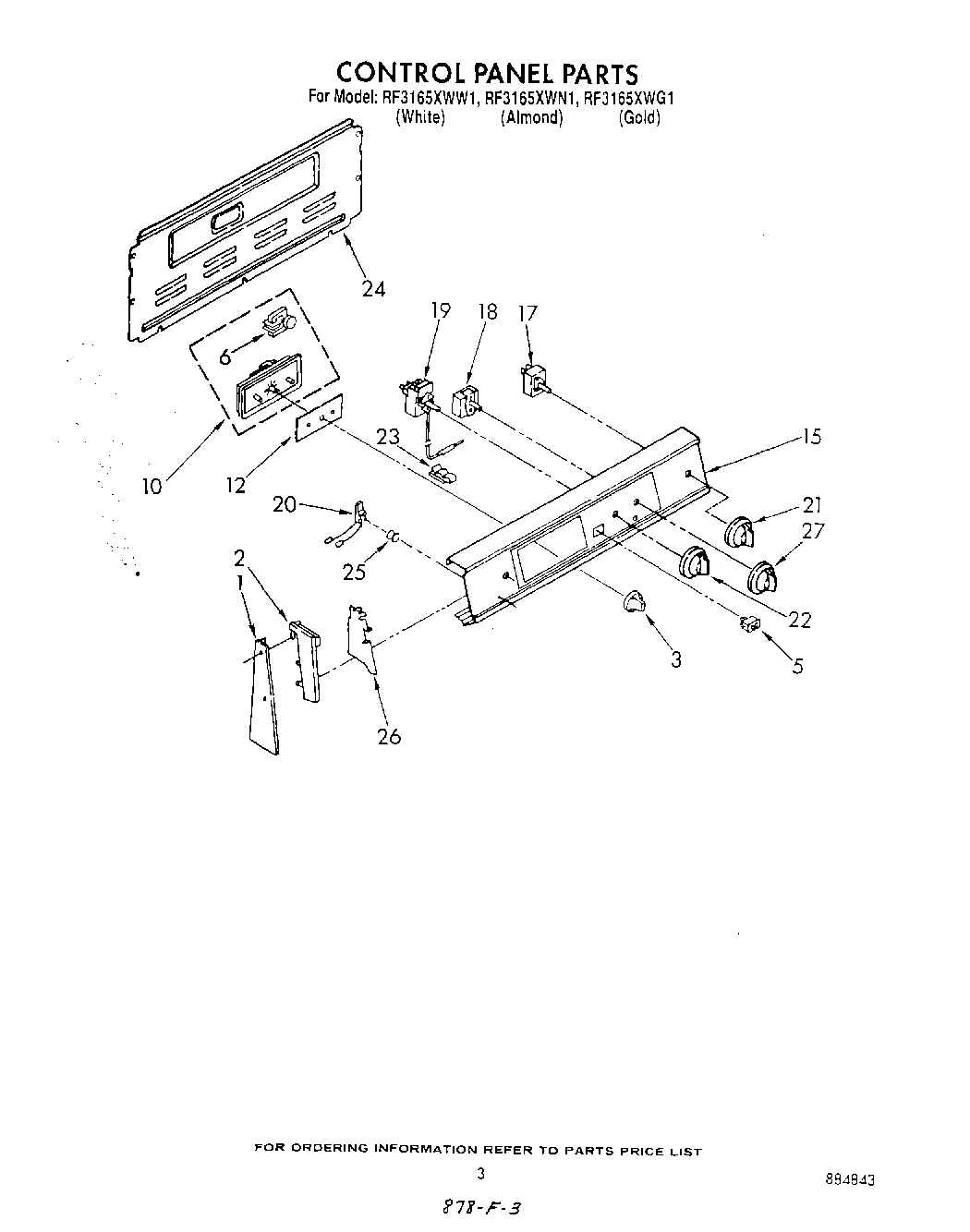

03 - CONTROL PANEL

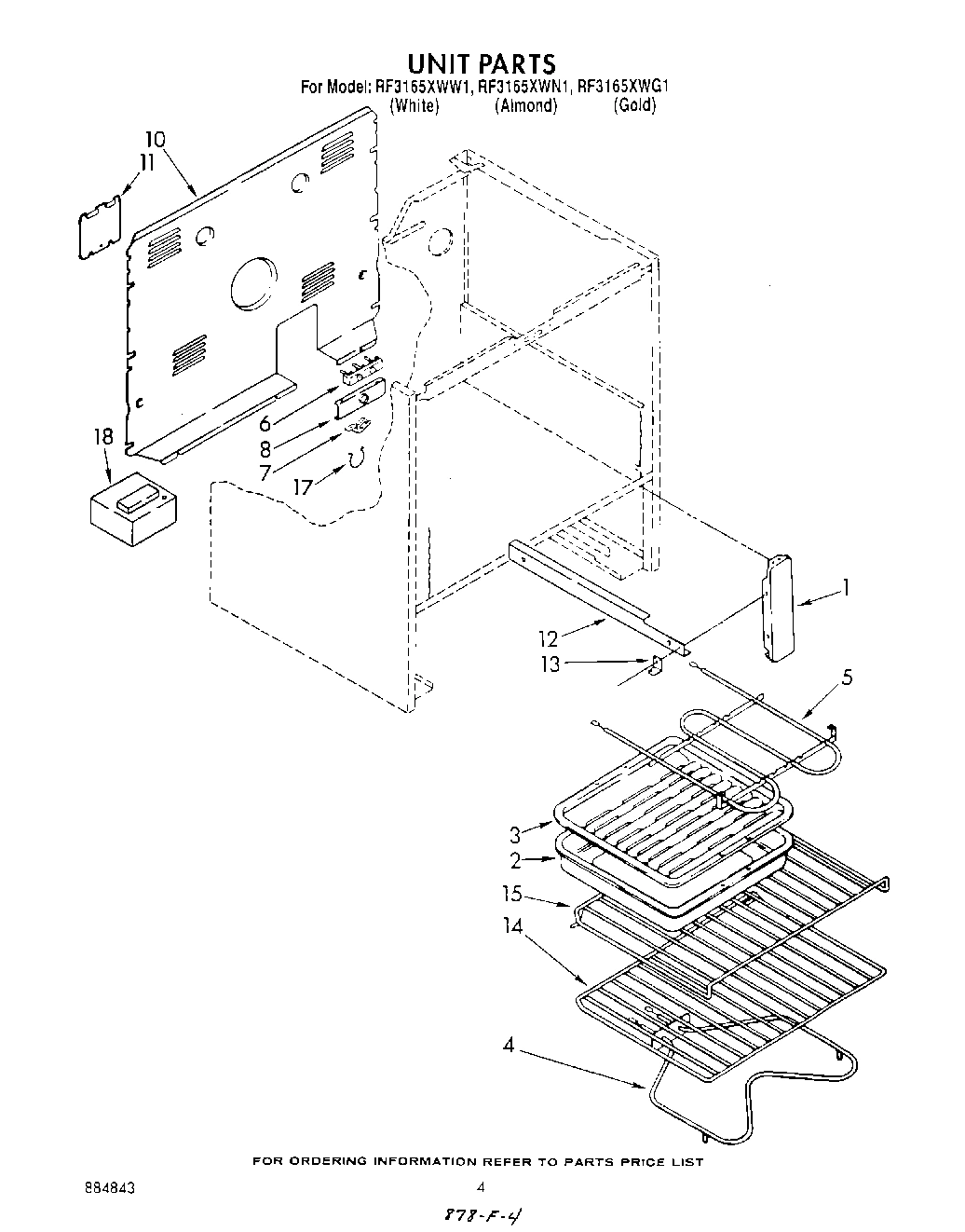

04 - UNIT , LITERATURE AND OPTIONAL
02 - COOK TOP
05 - OVEN
Common parts from model Whirlpool RF3615XWG1
WPL 312318 WPL 312318 Contact Us For Availability
WPL LIT313053 WPL LIT313053 Contact Us For Availability
WPL LIT3148614 WPL LIT3148614 Contact Us For Availability
WPL LIT3149507 WPL LIT3149507 Contact Us For Availability
WPL LIT3149923 WPL LIT3149923 Contact Us For Availability
WPL LIT884843 WPL LIT884843 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Nut WPL 814102 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Gold) WPL 330089 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Frame, Window WPL 3149277 Contact Us For Availability
3
Seal, Door WPL 3148183 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Retainer, Frame WPL 307792 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Box, Burner WPL 3150186 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conv) WPL 3172455 Contact Us For Availability
10
Timer, Clock (Includes No.6) WPL 3149505 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Screw (2) WPL 308043 Contact Us For Availability
10
Socket, Oven Light WPL 660556 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Screw WPL 3148604 Contact Us For Availability
12
Handle, Oven Door WPL 311563 Contact Us For Availability
12
Glass, Timer WPL 313513 Contact Us For Availability
12
Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability
12
Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Anchor, Plastic WPL 3148605 Contact Us For Availability
13
Glide, Drawer (2) WPL 3149257 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Cooktop (Gold) WPL 3170985 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3149839 Contact Us For Availability
15
Rack, Offset WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 307960 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Switch, Selector (3 Position) WPL 313062 Contact Us For Availability
18
Leveler (Thinner) (2 Oz.) Paint, Bulk 1 Qt. WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability
18
C WPL 261886 Contact Us For Availability
18
WPL 261887 WPL 261887 Contact Us For Availability
18
WPL 261888 WPL 261888 Contact Us For Availability
18
WPL 261889 WPL 261889 Contact Us For Availability
18
WPL 261890 WPL 261890 Contact Us For Availability
18
WPL 261891 WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 312804 WPL 312804 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability
19
Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability
19
Thermostat, Oven WPL 661150 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
Light, Indicator (Oven Light) WPL 314031 Contact Us For Availability
20
Light, Indicator (Surface Elements (2)) WPL 313102 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
23
Tube Clip WPL 313570 Contact Us For Availability
24
Rear Cover Control Panel WPL 313195 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Lens, Amber (3) WPL 313101 Contact Us For Availability
26
Shield, Glass (2) WPL 313608 Contact Us For Availability
27
Knob, Control (Selector) WPL 3149985 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
31
Seal, Rubber WPL 309107 Contact Us For Availability
× ![]()
