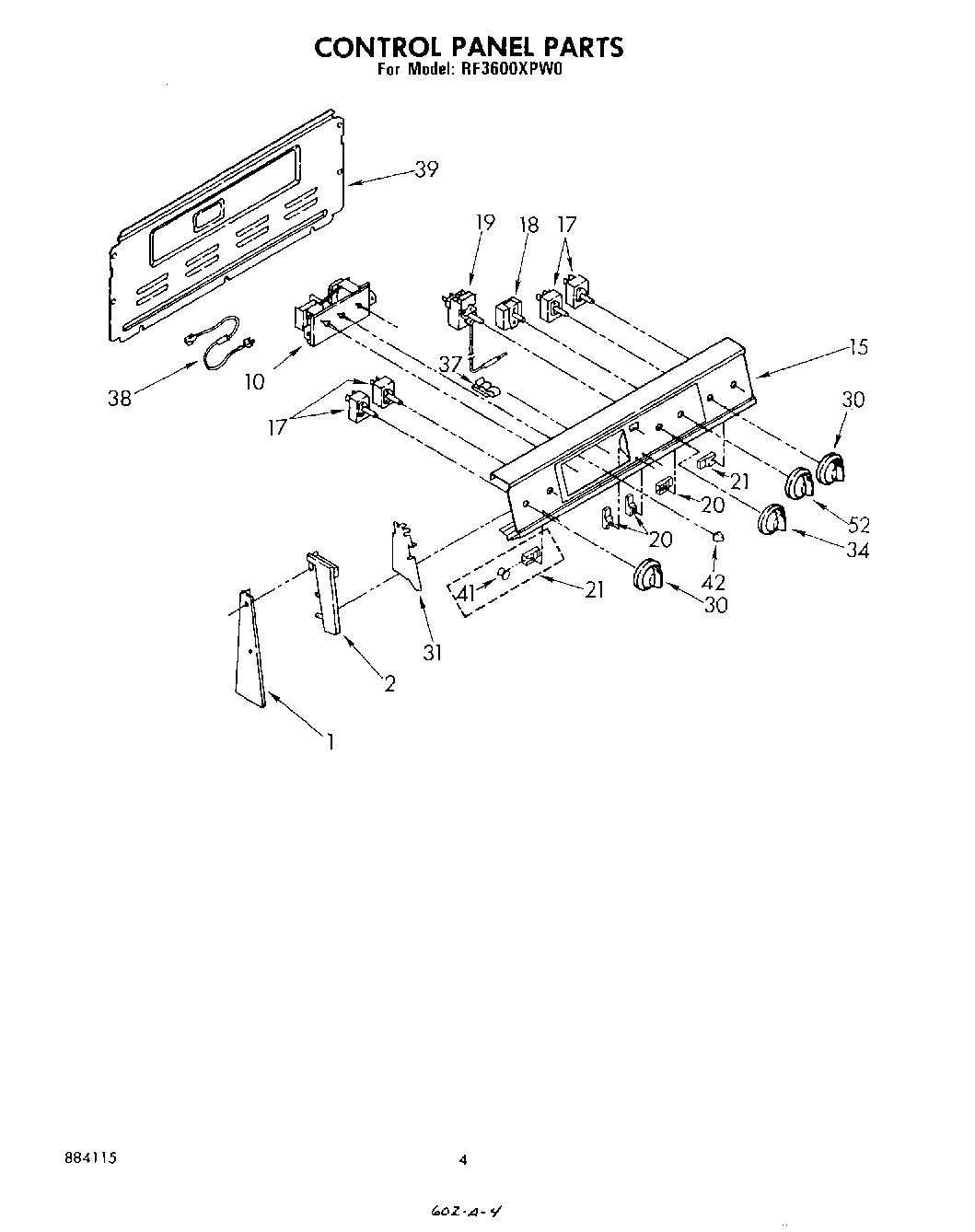

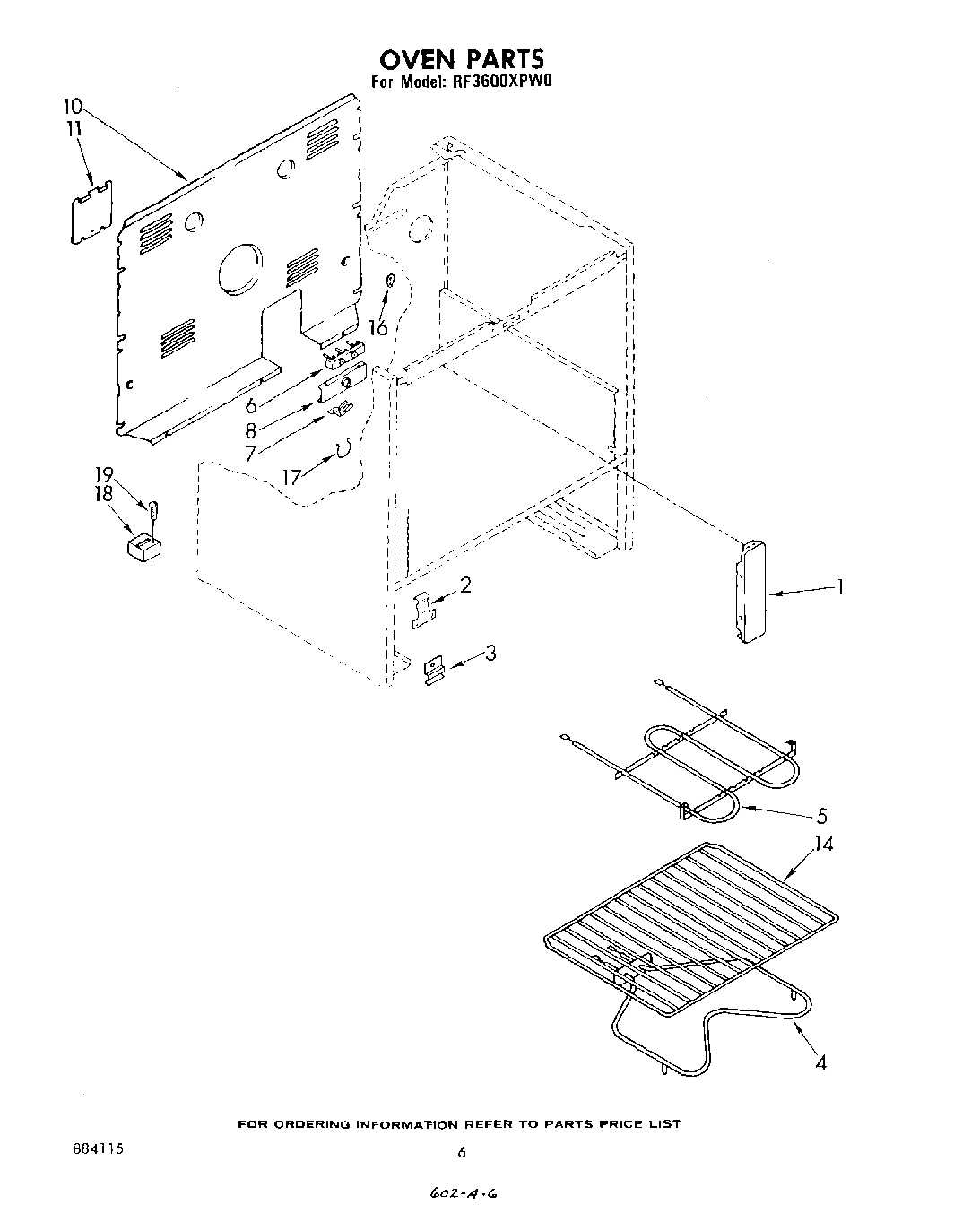

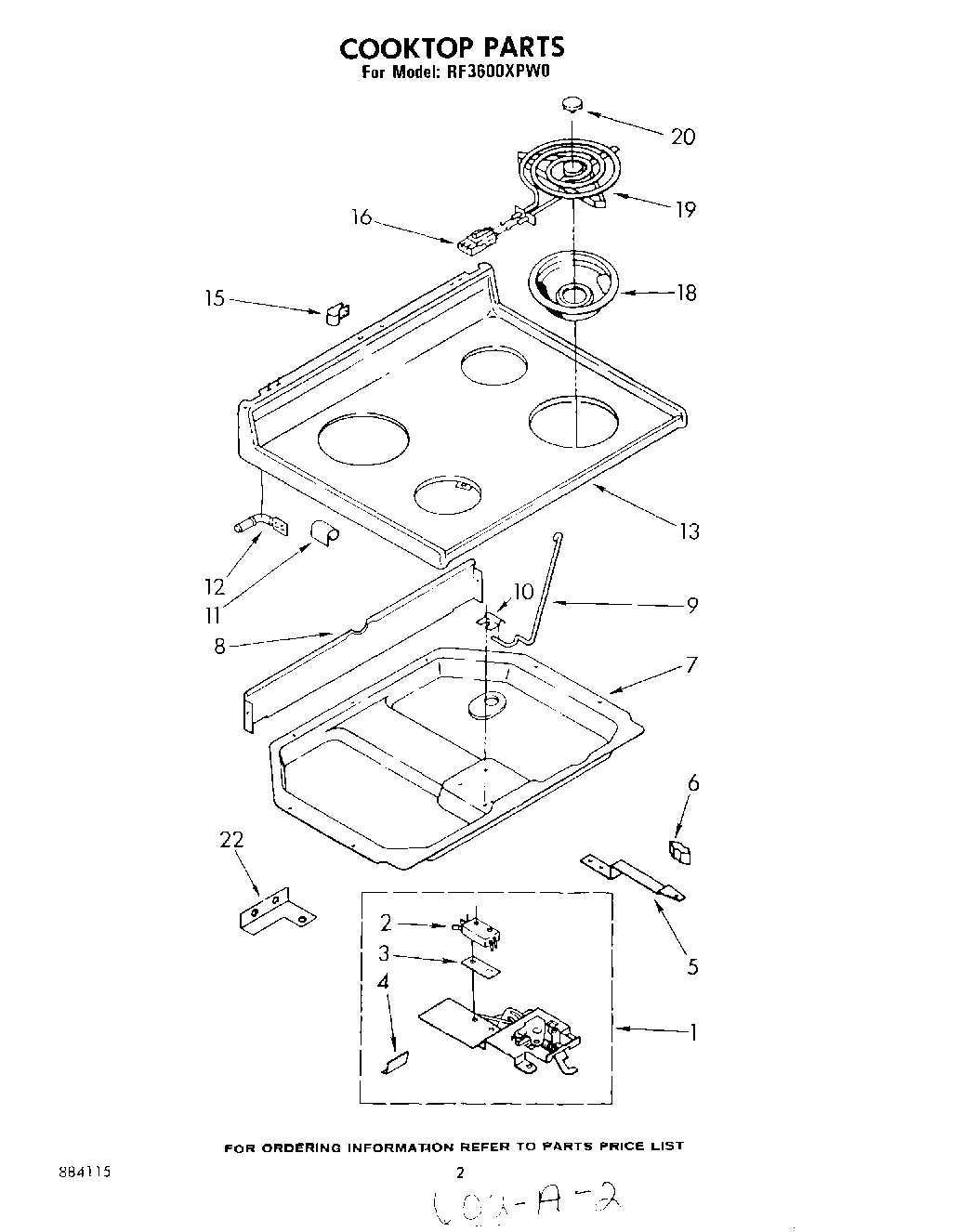

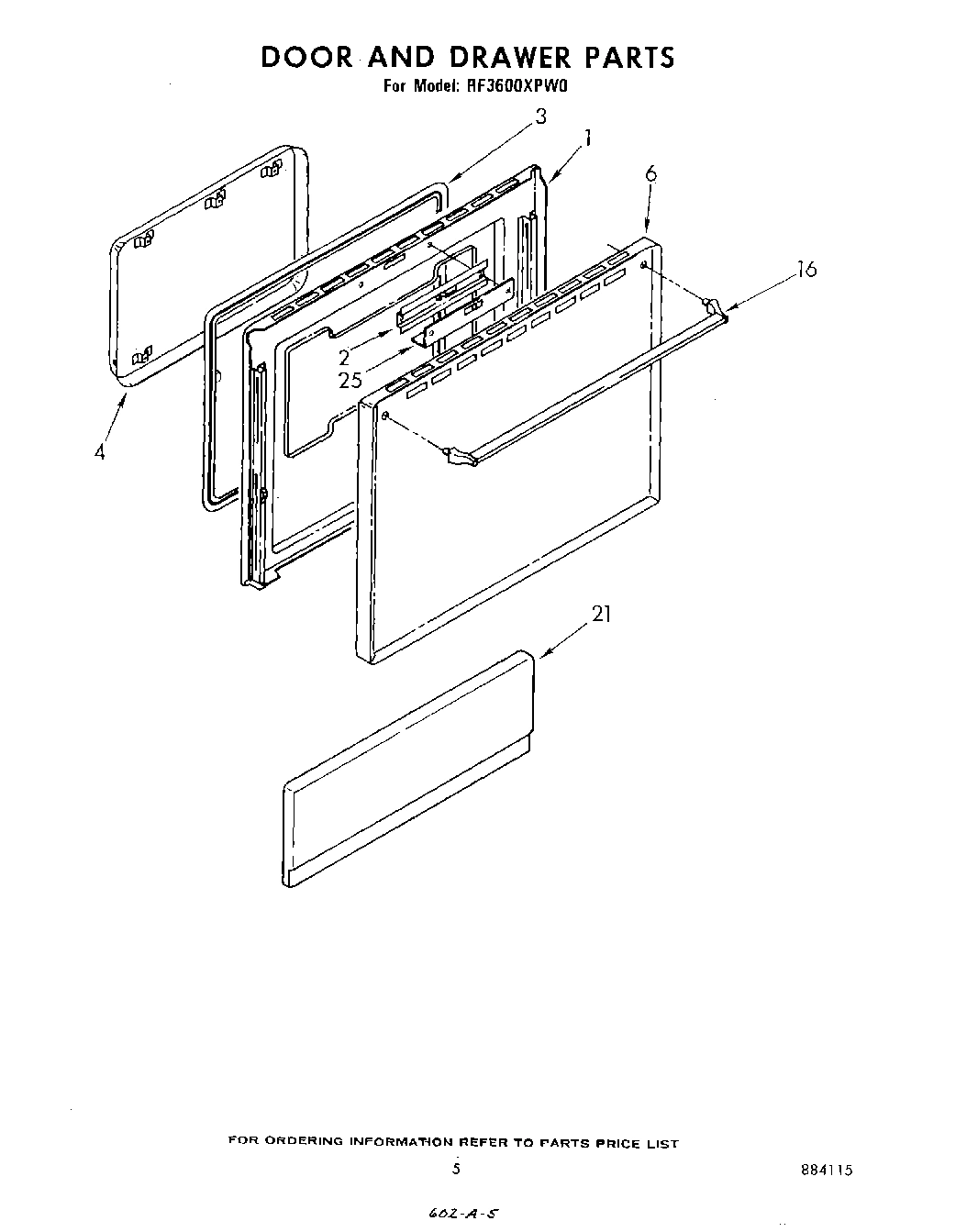

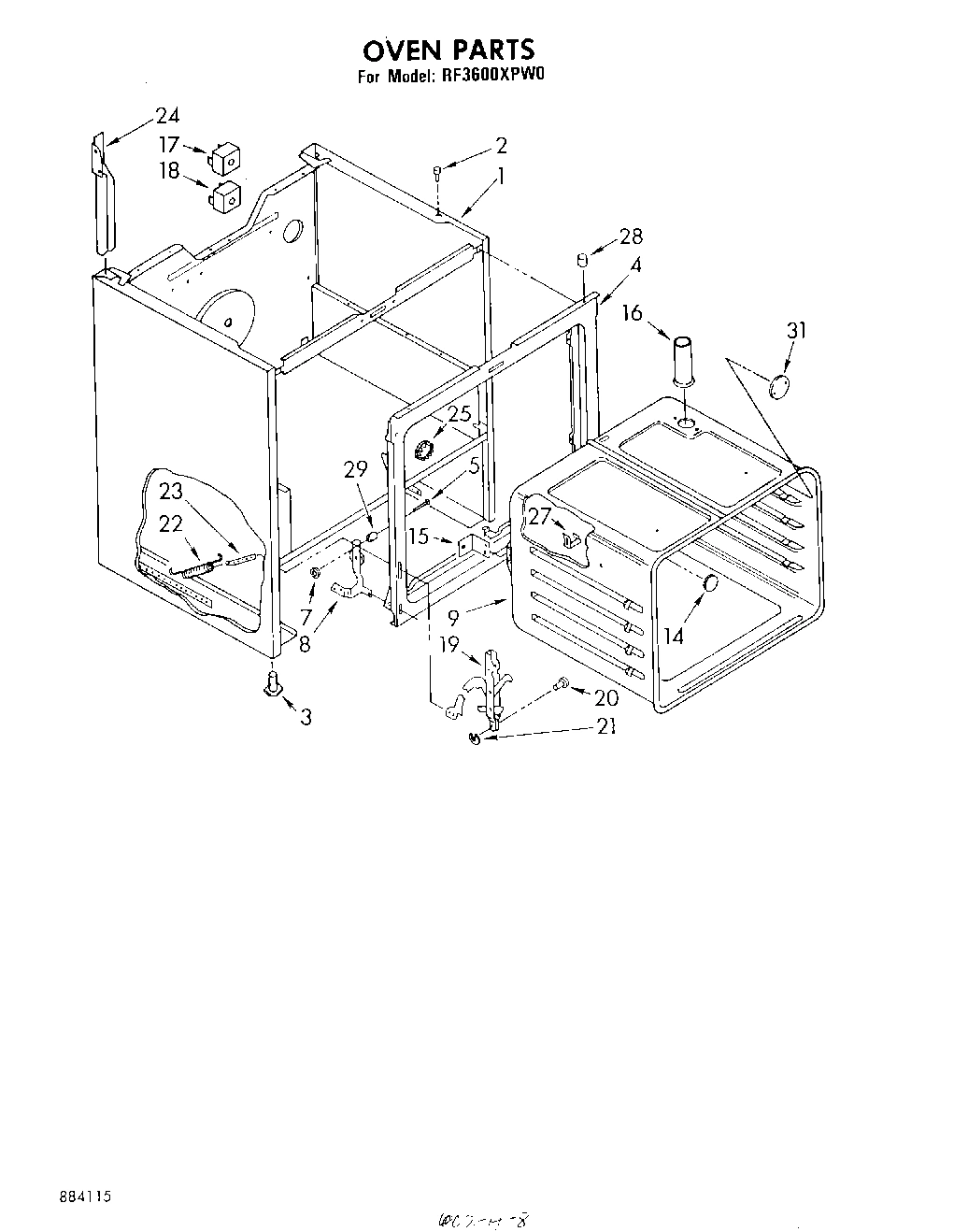

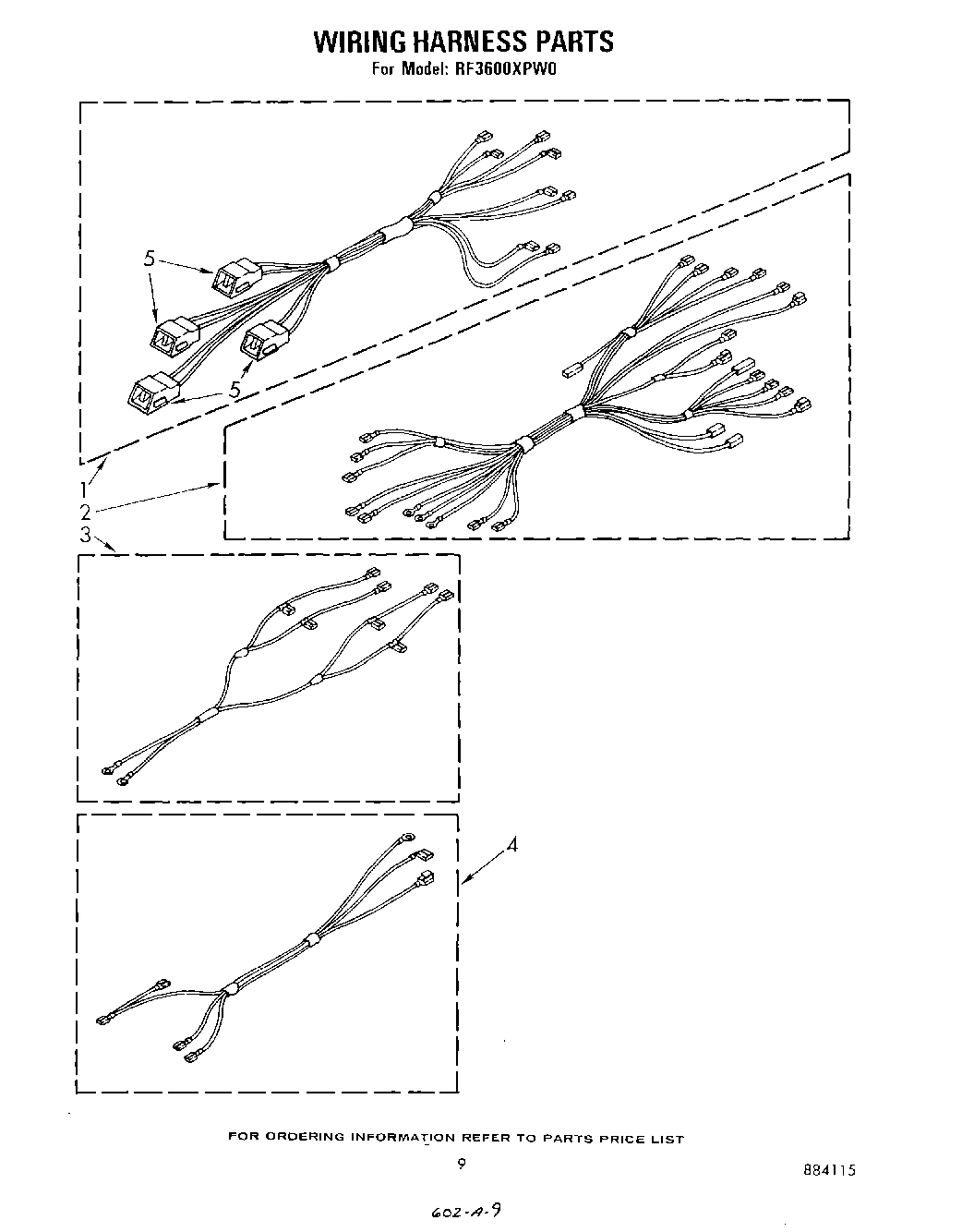

Model Whirlpool RF3600XPW0 – Common Parts &amp; Diagrams

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WPL 312308 WPL 312308 Contact Us For Availability

WPL LIT313283 WPL LIT313283 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT313473 WPL LIT313473 Contact Us For Availability

WPL LIT884115 WPL LIT884115 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 328585 Contact Us For Availability

1

Liner, Door WPL 329694 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Harvest Gold) WPL 330089 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Main Chassis (Toast) WPL 330091 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330092 Contact Us For Availability

1

Harness, Wire (Suface Units) WPL 313148 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Panel, Spring (2) WPL 307958 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Channel, Latch WPL 308033 Contact Us For Availability

2

Harness, Wire (Oven) WPL 313153 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Bracket, Mounting (2) WPL 307957 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Seal, Fiberglass WPL 311904 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Panel, Inner WPL 328546 Contact Us For Availability

4

Frame, Front WPL 330166 Contact Us For Availability

4

Harness, Wire (Lock Switch) WPL 313550 Contact Us For Availability

5

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

5

Handle, Latch WPL 307976 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Knob, Latch WPL 307977 Contact Us For Availability

6

Panel, Oven Door (White) WPL 307889 Contact Us For Availability

6

Panel, Oven Door (Harvest Gold) WPL 307895 Contact Us For Availability

6

Panel, Oven Door (Almond) WPL 307897 Contact Us For Availability

6

Panel, Oven Door (Toast) WPL 313177 Contact Us For Availability

6

Panel, Oven Door (Platinum) WPL 313178 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Burner Box WPL 307929 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Rod, Cooktop WPL 307968 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329002 Contact Us For Availability

10

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

10

Cover, Rear WPL 307971 Contact Us For Availability

10

Retainer, Cooktop WPL 307967 Contact Us For Availability

11

Cover, Service WPL 307972 Contact Us For Availability

11

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Cooktop (Harvest Gold) WPL 307867 Contact Us For Availability

Cooktop (White) WPL 307870 Contact Us For Availability

Cooktop (Almond) WPL 307872 Contact Us For Availability

Cooktop (Toast) WPL 313167 Contact Us For Availability

Cooktop (Platinum) WPL 313168 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

15

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Handle, Oven Door WPL 311563 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Plate, Cover (2) WPL 311982 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

17

16515 Whirlpool Clip Backorder WPL 16515 $11.62

17

Switch, Broil WPL 310643 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Block, Concrete (Balance) WPL 312804 Contact Us For Availability

Switch, Bake WPL 310644 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

340184 Whirlpool Screw Backorder WPL 340184 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Medallion (4) WPL 309195 Contact Us For Availability

Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Shield, Insulation WPL 312320 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Screws (2) WPL 311054 Contact Us For Availability

25

Shield, Insulation WPL 310056 Contact Us For Availability

25

Button, Plug WPL 308535 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

28

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

31

Screw (2) WPL 311056 Contact Us For Availability

31

Cover, Plate WPL 308543 Contact Us For Availability

38

Resistor & Terminal Assembly WPL 328923 Contact Us For Availability

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (5) WPL 313101 Contact Us For Availability

42

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

52

Knob, Control WPL 330178 Contact Us For Availability
