Model Whirlpool RF330PXYN0 – Common Parts &amp; Diagrams

1

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

1

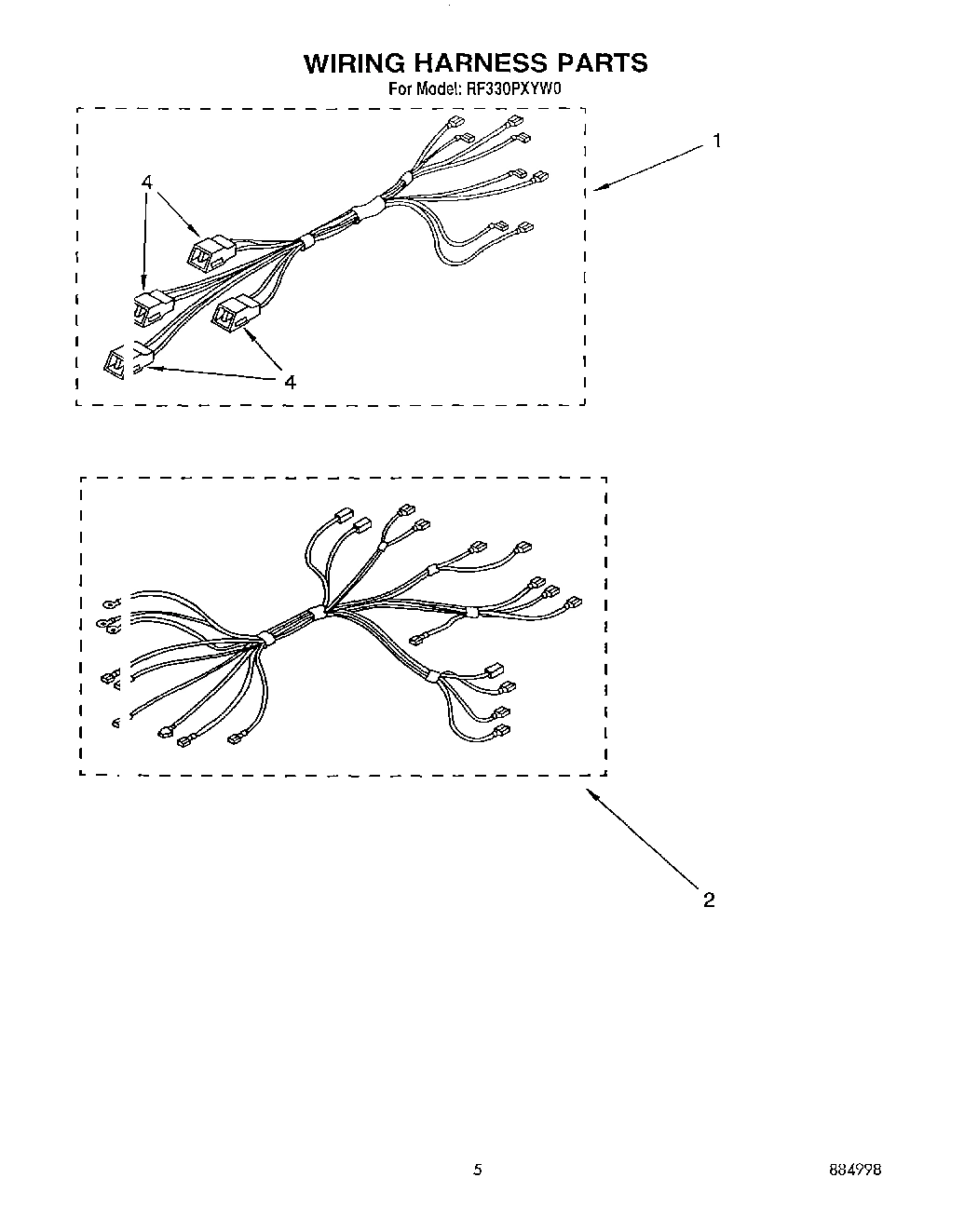

Harness, Wire (Surface Units) WPL 3149881 Contact Us For Availability

1

Nut (4) WPL 814102 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

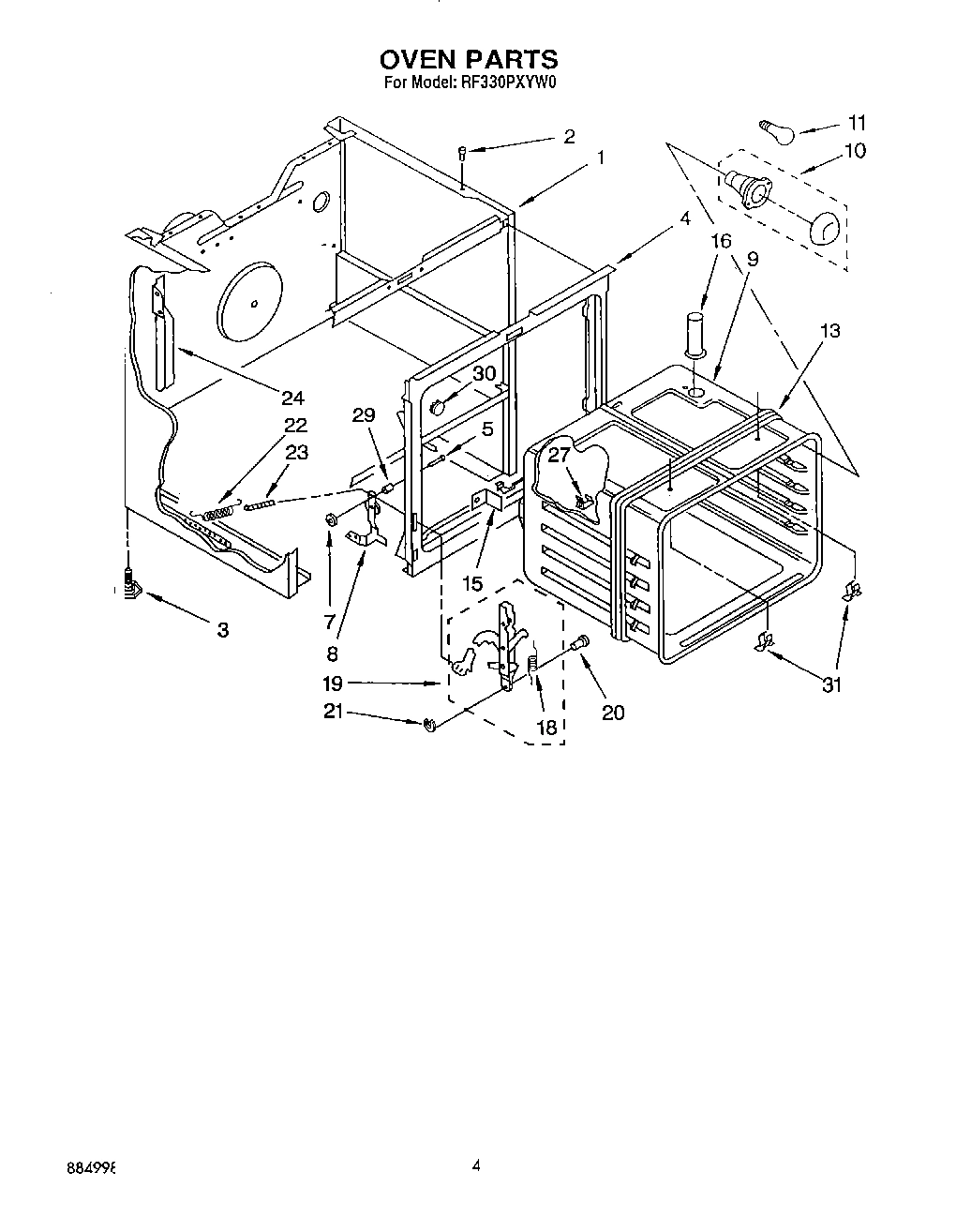

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

2

Harness, Wire (Oven) WPL 3169148 Contact Us For Availability

2

Box, Burner WPL 3169186 Contact Us For Availability

2

Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Light, Indicator (Oven) WPL 314031 Contact Us For Availability

3

Seal, Glass WPL 3148183 Contact Us For Availability

3

Shield, Wiring WPL 307973 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

4

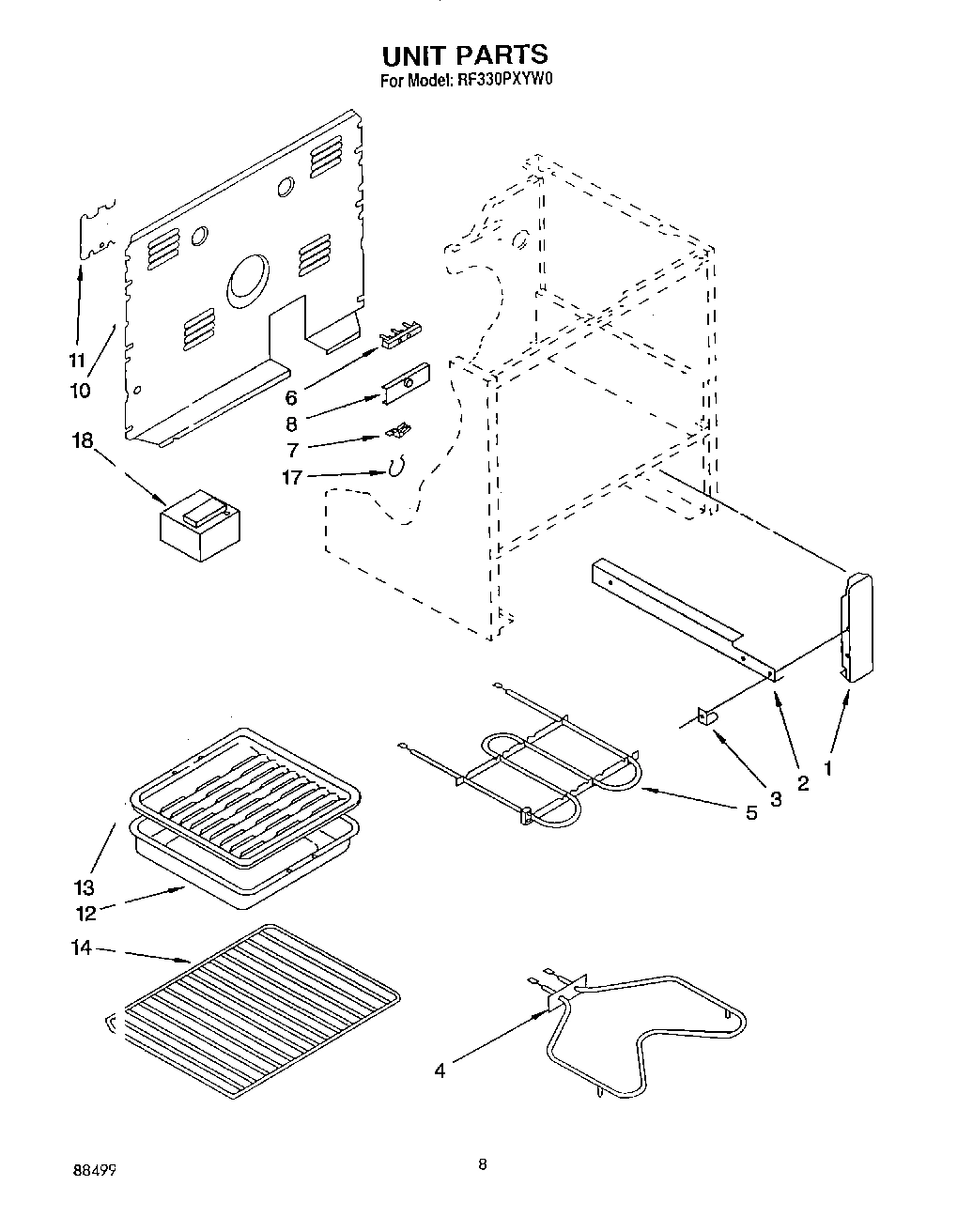

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $9.81

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Timer, Clock WPL 3183059 Contact Us For Availability

4

Rod, Cooktop WPL 3148659 Contact Us For Availability

4

Frame, Front WPL 3172204 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

5

Motor, Timer WPL 309822 Contact Us For Availability

5

Bracket (2) WPL 307965 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

6

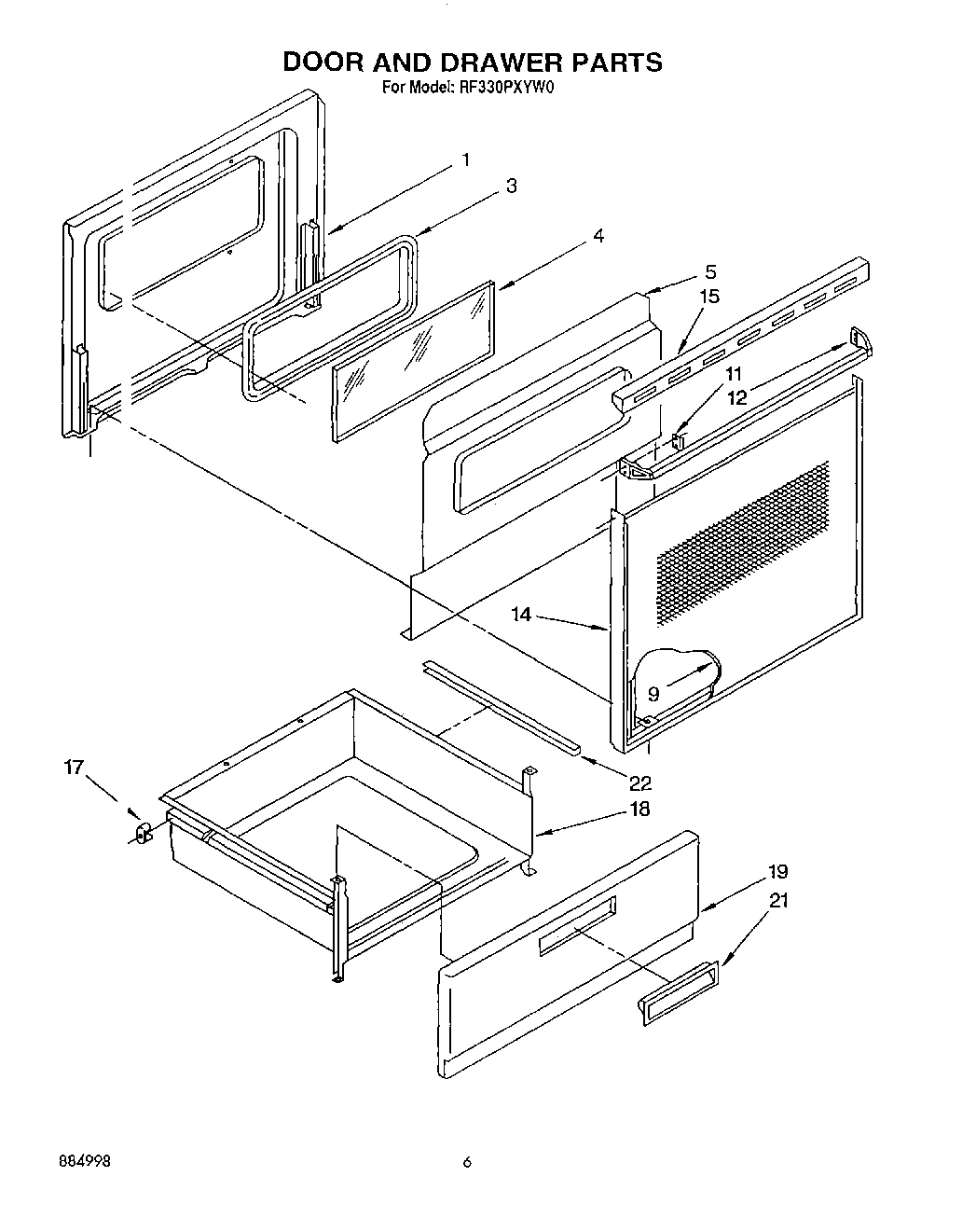

Glass, Timer WPL 3148852 Contact Us For Availability

6

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

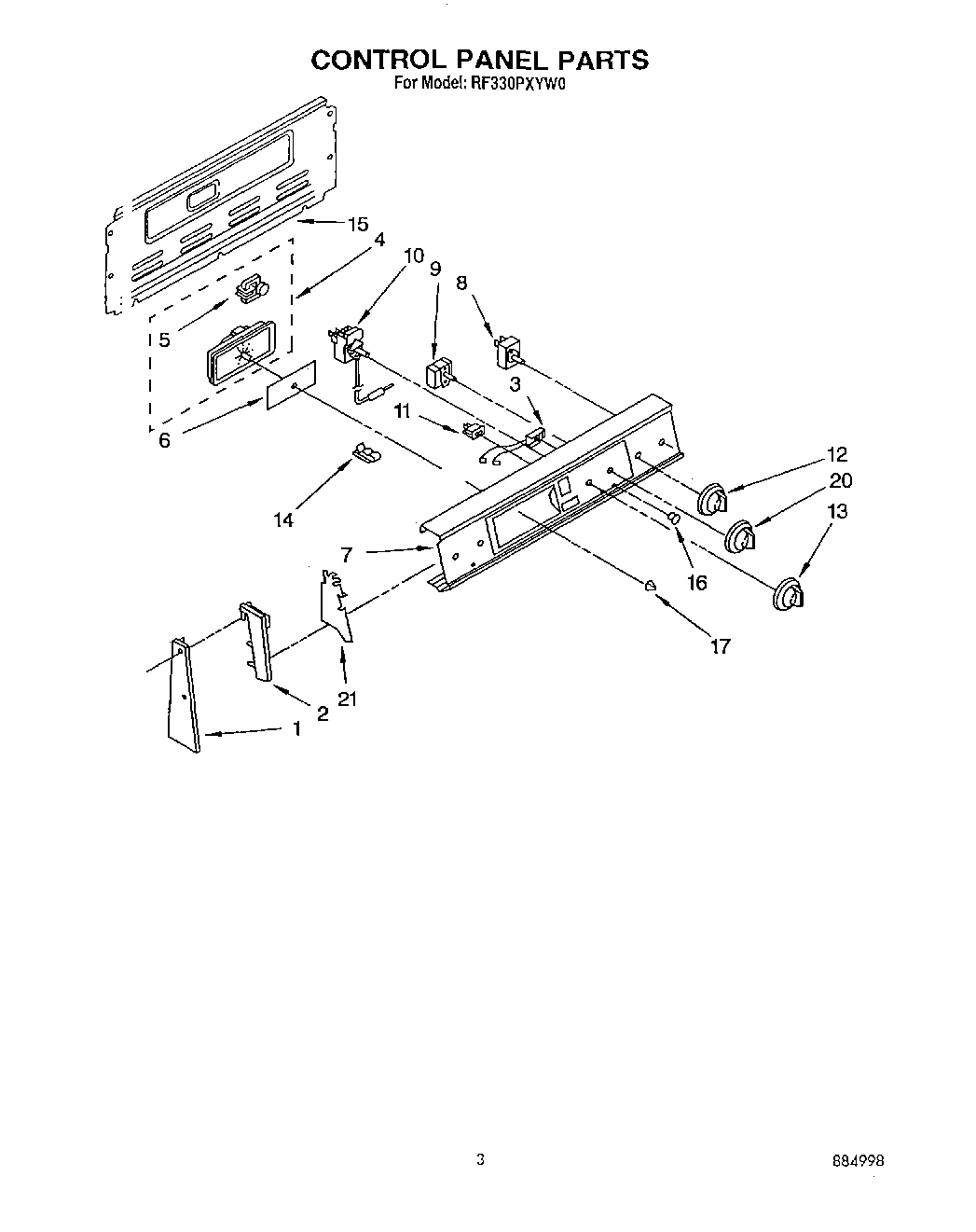

Control Panel WPL 3183813 Contact Us For Availability

7

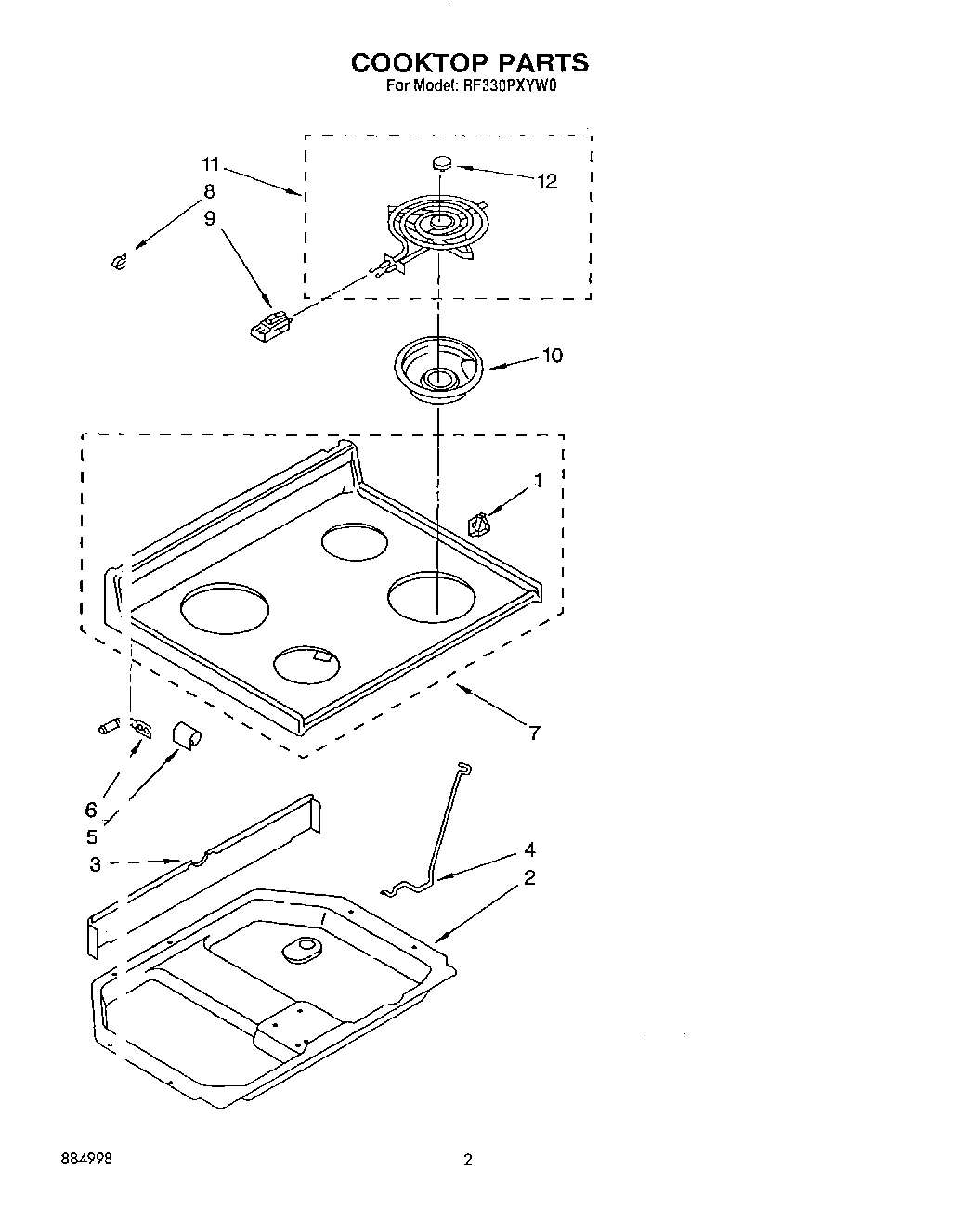

Cooktop (White) WPL 3170981 Contact Us For Availability

7

Cooktop (Almond) WPL 3170982 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

8

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $49.10

8

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $35.50

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

9

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

9

Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability

9

Screw (2) WPL 311056 Contact Us For Availability

9

Oven 30`` (Continuous Clean) WPL 3176609 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.23

(Alt.) WPL 310864 Contact Us For Availability

(Alt.) WPL 311498 Contact Us For Availability

Thermostat, Oven WPL 661150 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $31.90

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $31.21

Clip (2) WPL 3148282 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

12

Knob, Infinite (4) (Surface Unit) WPL 3183118 Contact Us For Availability

12

Medallion (4) WPL 309195 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

13

Seal, Heat WPL 309107 Contact Us For Availability

13

Knob, Temp Control WPL 3183106 Contact Us For Availability

14

Tube Clip WPL 313570 Contact Us For Availability

14

Rack, Oven (2) WPL 308173 Contact Us For Availability

15

Screw (2) WPL 3149333 Contact Us For Availability

15

Rear Cover Control Panel WPL 313195 Contact Us For Availability

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

9755804 Whirlpool Range Vent Tube Backorder WPL 9755804 $50.56

16

Lens, Amber (2) WPL 313101 Contact Us For Availability

16

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

17

16515 Whirlpool Clip Backorder WPL 16515 $11.62

17

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

340184 Whirlpool Screw Backorder WPL 340184 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

WPL W10355051 No Longer Available

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harv WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 309961 WPL 309961 Contact Us For Availability

WPL 312804 WPL 312804 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Spring, Door Stop WPL 308207 Contact Us For Availability

19

Channel, Arm (2) WPL 329712 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Knob, Selector WPL 3183109 Contact Us For Availability

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

21

Shield (2) WPL 313608 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Plug Button WPL 308535 Contact Us For Availability

31

Plug, Button (2) WPL 3169107 Contact Us For Availability
