Model Whirlpool RF330PXDN0 – Common Parts & Diagrams
01 - COOKTOP
04 - WIRING HARNESS

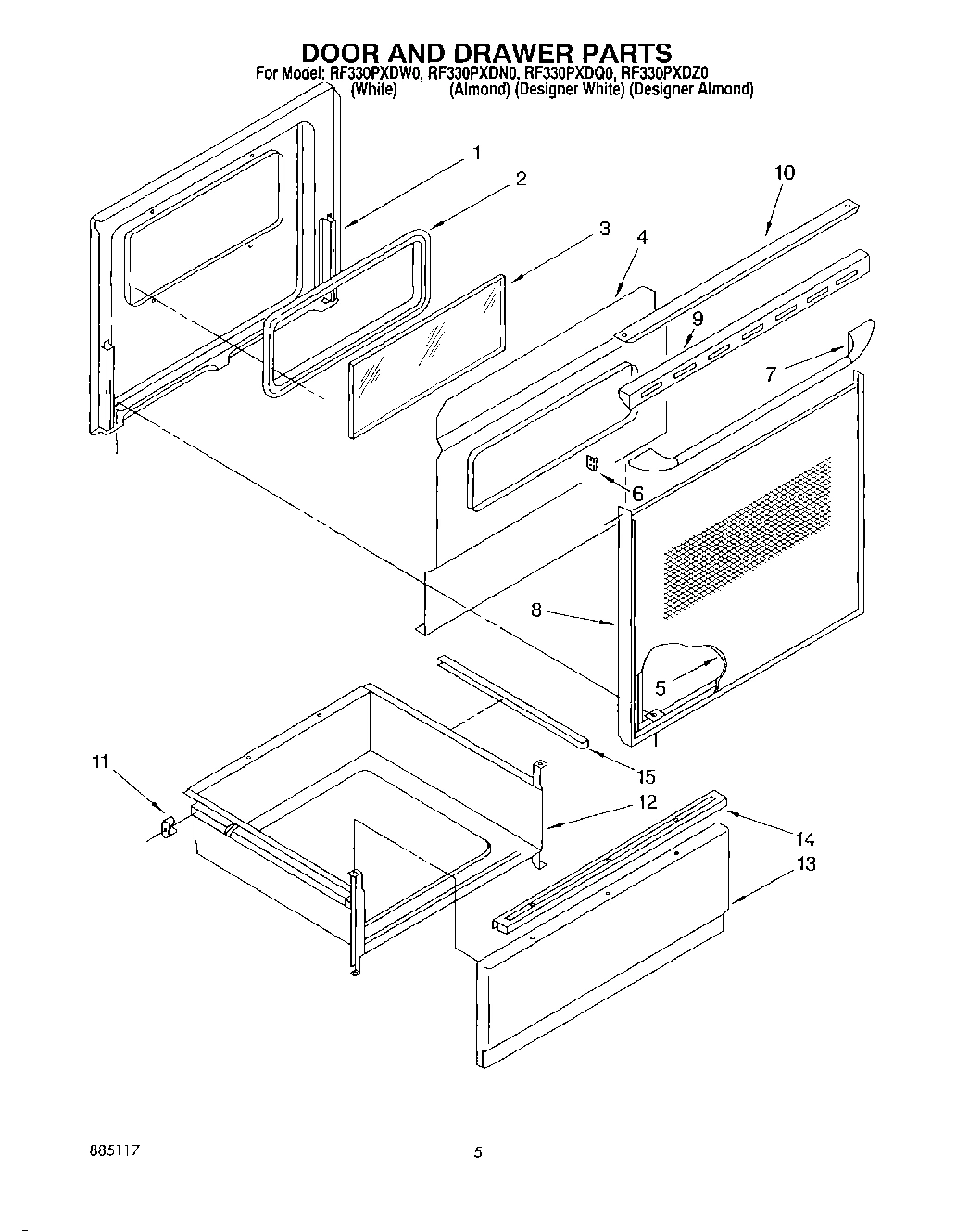

05 - DOOR AND DRAWER, LITERATURE

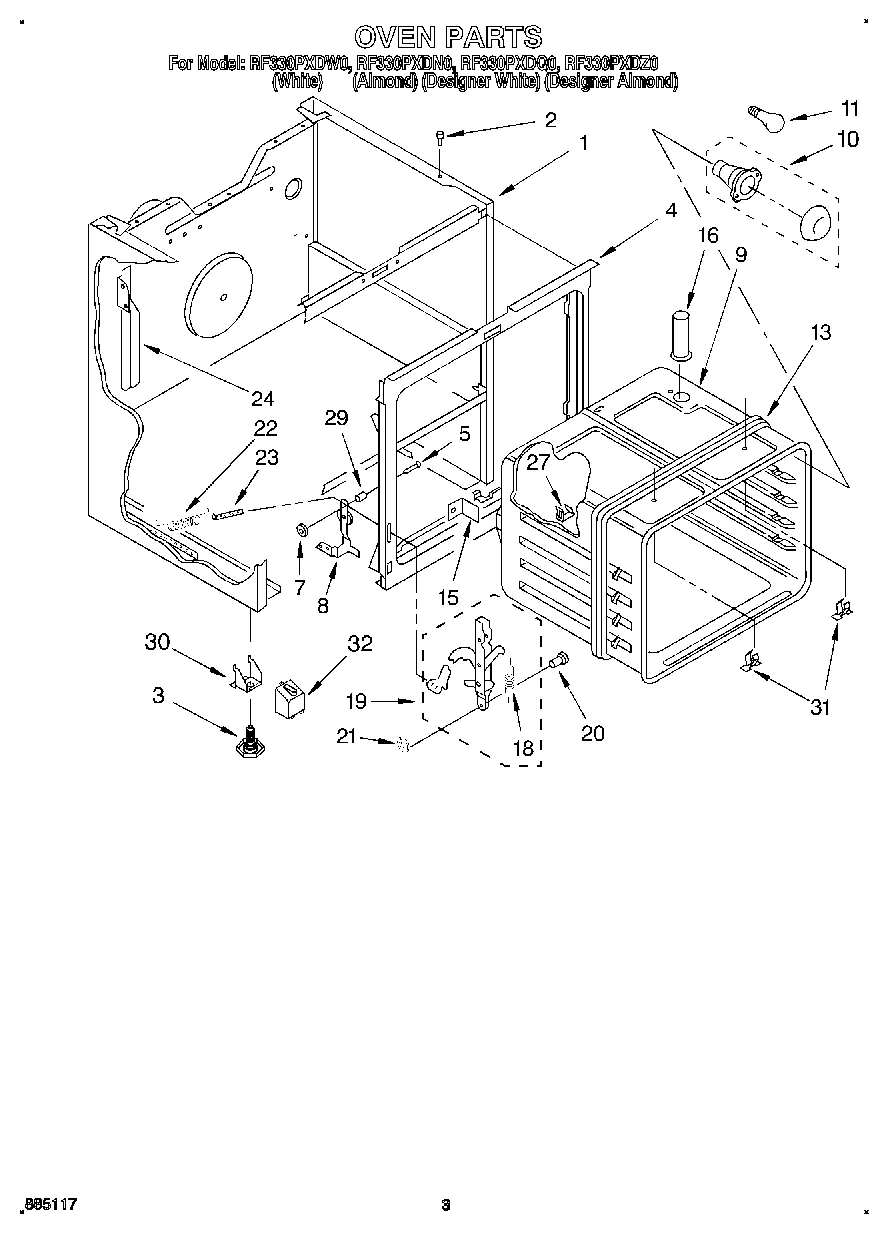

03 - OVEN

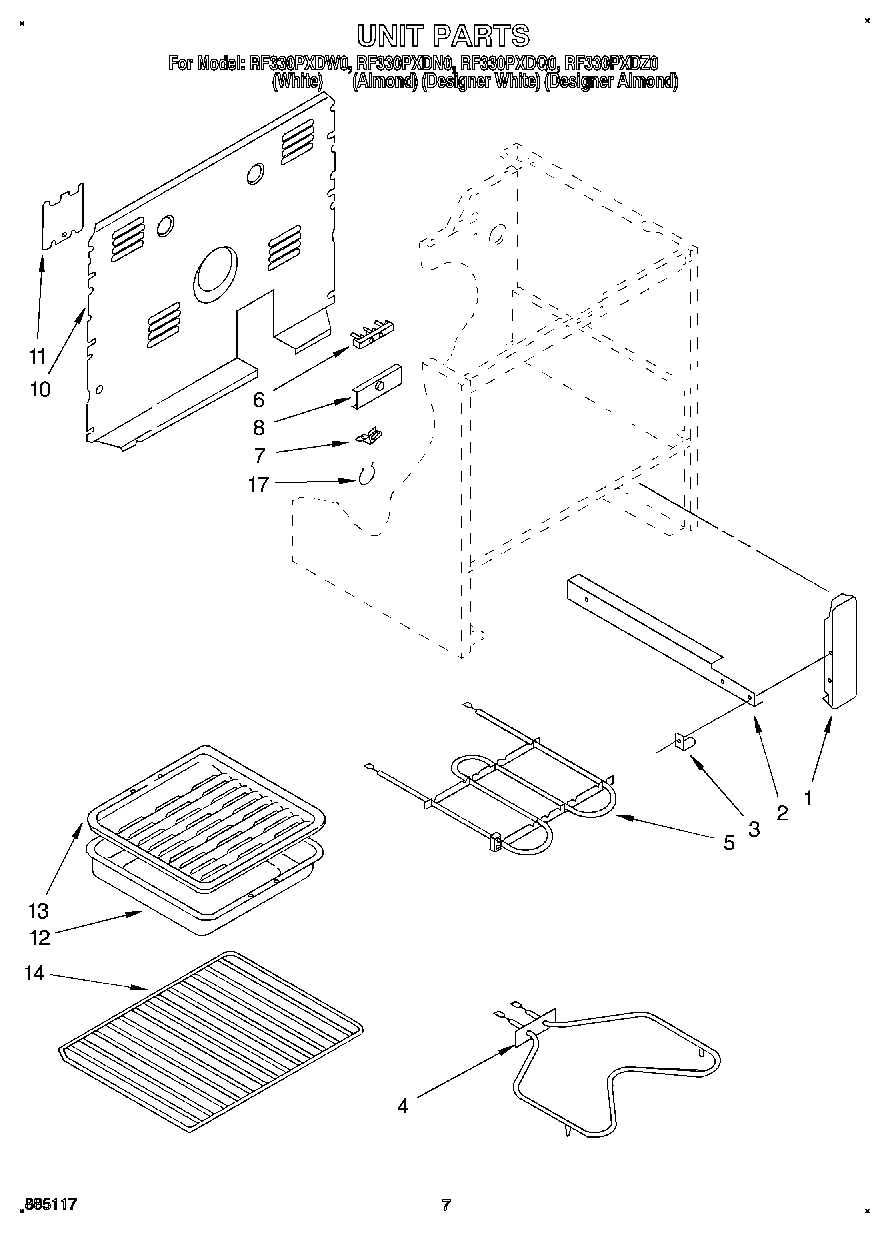

06 - UNIT, OPTIONAL

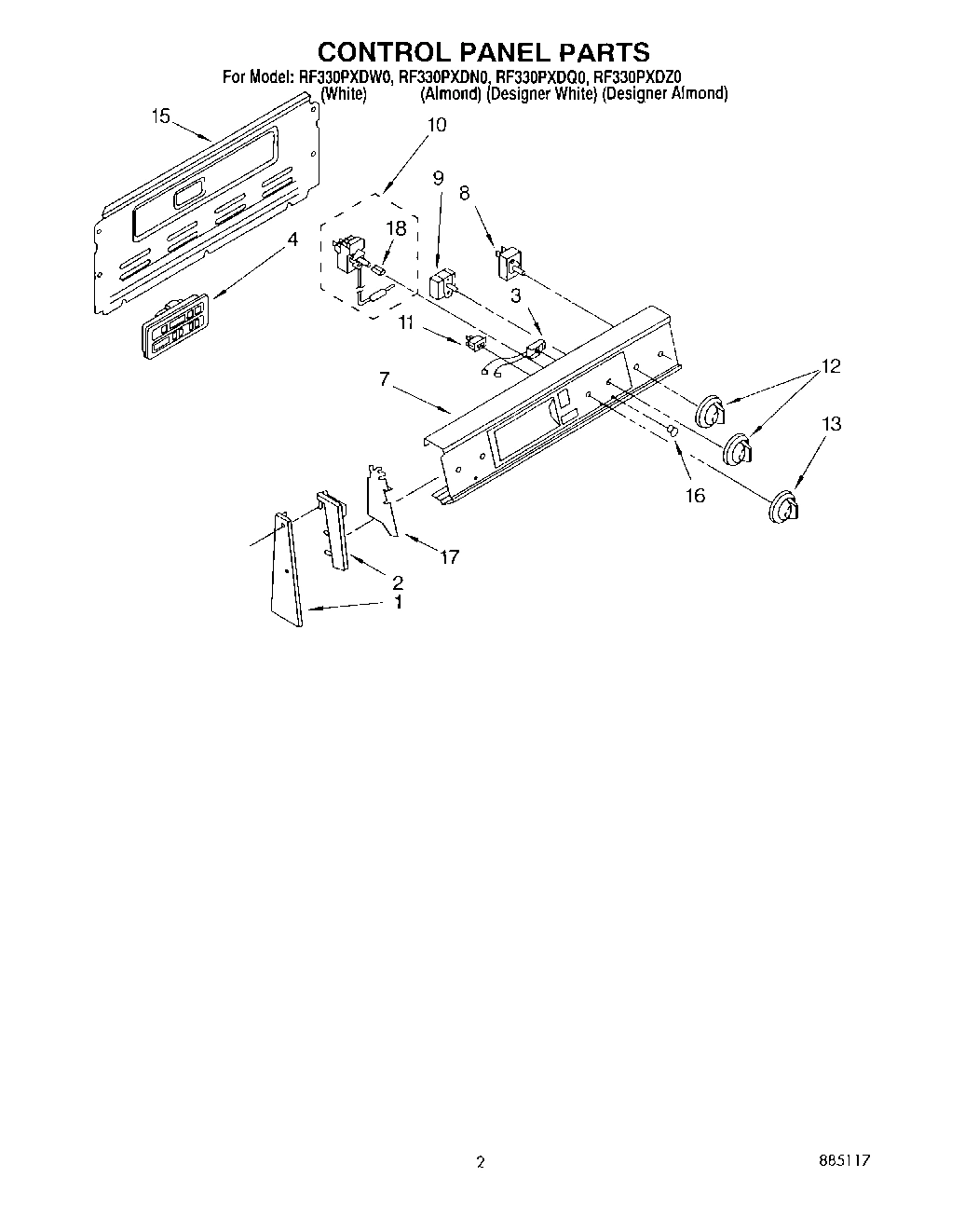

02 - CONTROL PANEL
Common parts from model Whirlpool RF330PXDN0
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
End Trim (Designer Alm Mdl) (Right) WPL 3169468 Contact Us For Availability
1
End Trim (Designer Alm Mdl) (Left) WPL 3169469 Contact Us For Availability
1
End Trim (White & Alm. Mdls.) (Right (Black)) WPL 3187671 Contact Us For Availability
1
End Trim (White & Alm. Mdls.) (Left (Black)) WPL 3187672 Contact Us For Availability
1
End Trim (Designer White Mdl) (Right) WPL 3188992 Contact Us For Availability
1
End Trim (Designer White Mdl) (Left) WPL 3188993 Contact Us For Availability
1
End Trim WPL ARI122581A Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
End Cap (White & Alm Mdls.) (Right (Black)) WPL 3187791 Contact Us For Availability
2
End Cap (White & Alm Mdls.) (Left (Black)) WPL 3187792 Contact Us For Availability
2
End Cap (Designer White Mdl) (Right) WPL 3187793 Contact Us For Availability
2
End Cap (Designer White Mdl) (Left) WPL 3187794 Contact Us For Availability
2
End Cap (Designer Alm Mdl) (Right) WPL 3187795 Contact Us For Availability
2
End Cap (Designer Alm Mdl) (Left) WPL 3187796 Contact Us For Availability
2
End Caps WPL ARI122582A Contact Us For Availability
3
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
3
Glass, Inner WPL 3169202 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Light, Indicator (Surface Unit) WPL 3169457 Contact Us For Availability
4
Retainer, WPL 3148287 Contact Us For Availability
4
Screw (6) WPL 3185647 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
4
Timer, Clock (Black) WPL 3189298 Contact Us For Availability
4
Timer, Clock (Designer White) WPL 3189299 Contact Us For Availability
4
Timer, Clock (Designer Almond) WPL 3189300 Contact Us For Availability
5
Glass Panel, Outer (Designer White) WPL 3188738 Contact Us For Availability
5
Glass Panel, Outer (Black) WPL 3188739 Contact Us For Availability
5
Glass Panel, Outer (Designer Almond) WPL 3189263 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Clip (2) WPL 3148282 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Handle, Oven Door (Black) WPL 3188695 Contact Us For Availability
7
Handle, Oven Door (Designer White) WPL 3188696 Contact Us For Availability
7
Handle, Oven Door (Designer Almond) WPL 3188697 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Control Panel (Screw, (4) 8-18 x 5/8) (Black) WPL 3169366 Contact Us For Availability
7
Control Panel (Screw, (4) 8-18 x 5/8) (Almond WPL 3169471 Contact Us For Availability
7
Control Panel (Designer White) WPL 3188960 Contact Us For Availability
7
Control Panel (Designer Almond) WPL 3188961 Contact Us For Availability
7
Control Panel (Screw, (4) 8-18 x 5/8) (White) WPL 3188996 Contact Us For Availability
7
Control Panel (Black) WPL 3189232 Contact Us For Availability
8
Frame, Door (Screw (3)) WPL 3149333 Contact Us For Availability
8
Frame, Door (Screw (4)) WPL 3149253 Contact Us For Availability
8
Frame, Door (Screw (3)) WPL 3185918 Contact Us For Availability
8
Frame, Door (Screw (4)) WPL 3188403 Contact Us For Availability
8
Frame, Door (Screw (4)) WPL 3188404 Contact Us For Availability
8
Frame, Door (Screw (3)) WPL 31885918 Contact Us For Availability
8
Frame, Door (Black) WPL 3188997 Contact Us For Availability
8
Frame, Door (Designer White) WPL 3188998 Contact Us For Availability
8
Frame, Door (Designer Almond) WPL 3188999 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Top, Door Vent (Black) WPL 3188692 Contact Us For Availability
9
Top, Door Vent (Designer White) WPL 3188693 Contact Us For Availability
9
Top, Door Vent (Designer Almond) WPL 3188694 Contact Us For Availability
9
Oven 30`` (Continuous Clean) WPL 3176609 Contact Us For Availability
9
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
10
WPL 3169302 WPL 3169302 Contact Us For Availability
10
Cap, Door Top (Des. Mdls. only) (Screw (2)) ( WPL 3188399 Contact Us For Availability
10
Cap, Door Top (Des. Mdls. only) (Screw (2)) ( WPL 3188400 Contact Us For Availability
10
Cap, Door Top (Des. Mdls. only) (Designer Whi WPL 3189001 Contact Us For Availability
10
Cap, Door Top (Des. Mdls. only) (Designer Alm WPL 3189002 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Glide, Rear WPL 307980 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
WPL 3182717 WPL 3182717 Contact Us For Availability
11
WPL 3182718 WPL 3182718 Contact Us For Availability
11
WPL 3182719 WPL 3182719 Contact Us For Availability
12
Drawer, Utility WPL 327887 Contact Us For Availability
12
WPL 3188723 WPL 3188723 Contact Us For Availability
13
Panel Drawer (White) WPL 3169422 Contact Us For Availability
13
Panel Drawer (Almond) WPL 3169423 Contact Us For Availability
13
Seal, Heat WPL 3169283 Contact Us For Availability
13
WPL 3188724 WPL 3188724 Contact Us For Availability
13
WPL 3188725 WPL 3188725 Contact Us For Availability
13
WPL 3188726 WPL 3188726 Contact Us For Availability
14
Handle, Drawer (Almond) WPL 3169472 Contact Us For Availability
14
Handle, Drawer (White) WPL 3169473 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Protector, D WPL 309329 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
WPL 3187332 WPL 3187332 Contact Us For Availability
16
WPL 313101 WPL 313101 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
White 14 Ga 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Red WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harvest Gold WPL 261890 Contact Us For Availability
17
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
17
Toast WPL 285365 Contact Us For Availability
17
Paint, Spray WPL 285366 Contact Us For Availability
17
WPL 285367 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 309961 WPL 309961 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
17
WPL 313608 WPL 313608 Contact Us For Availability
18
Spring, Door Stop WPL 308207 Contact Us For Availability
18
WPL 3169525 WPL 3169525 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Support, Foot (2) WPL 3169418 Contact Us For Availability
31
Plug, Button (2) WPL 3169107 Contact Us For Availability
32
Cover, Foot (2) WPL 3169448 Contact Us For Availability
× ![]()
