Model Whirlpool RF3305XXW2 – Common Parts & Diagrams

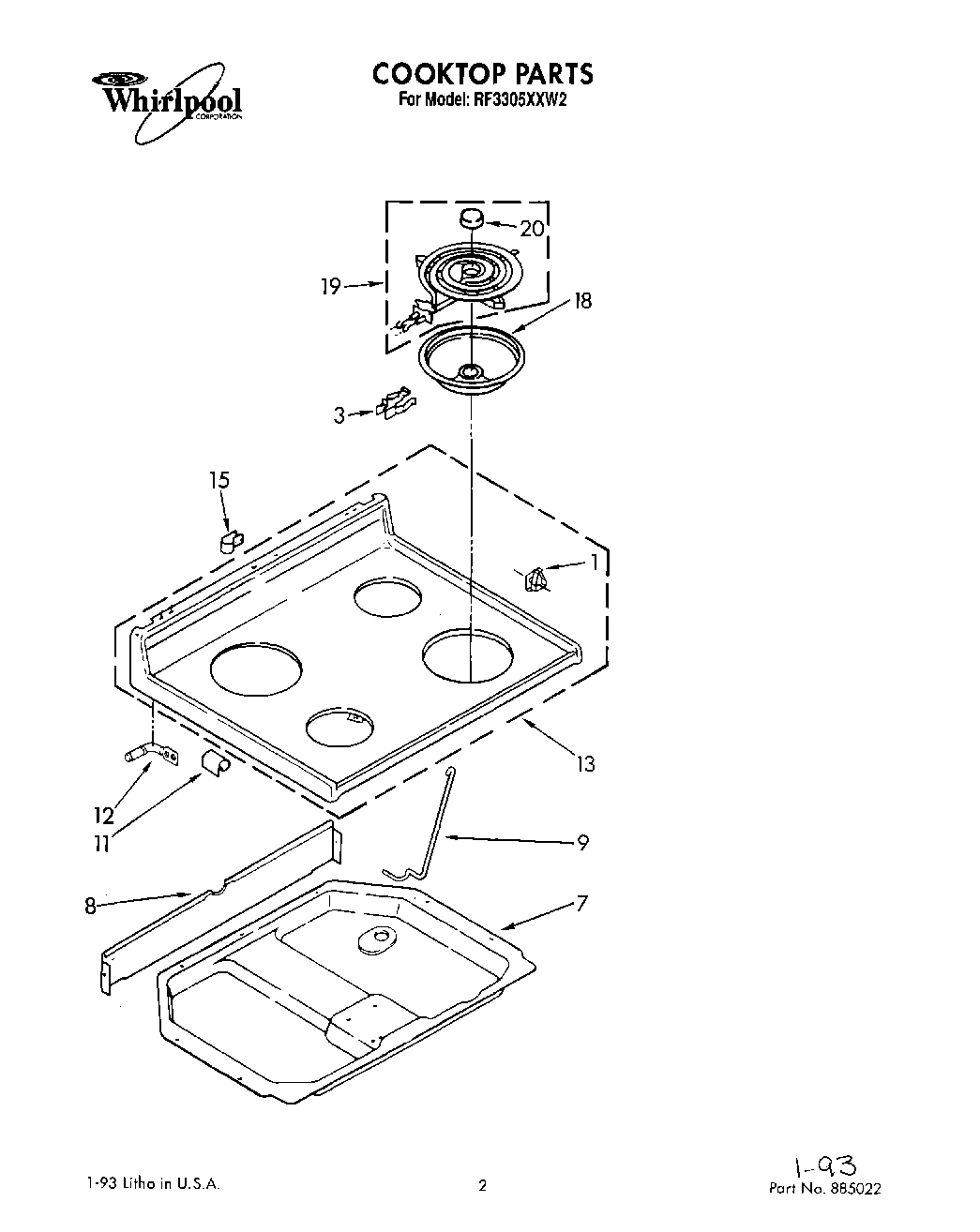

01 - COOKTOP, LIT/OPTIONAL

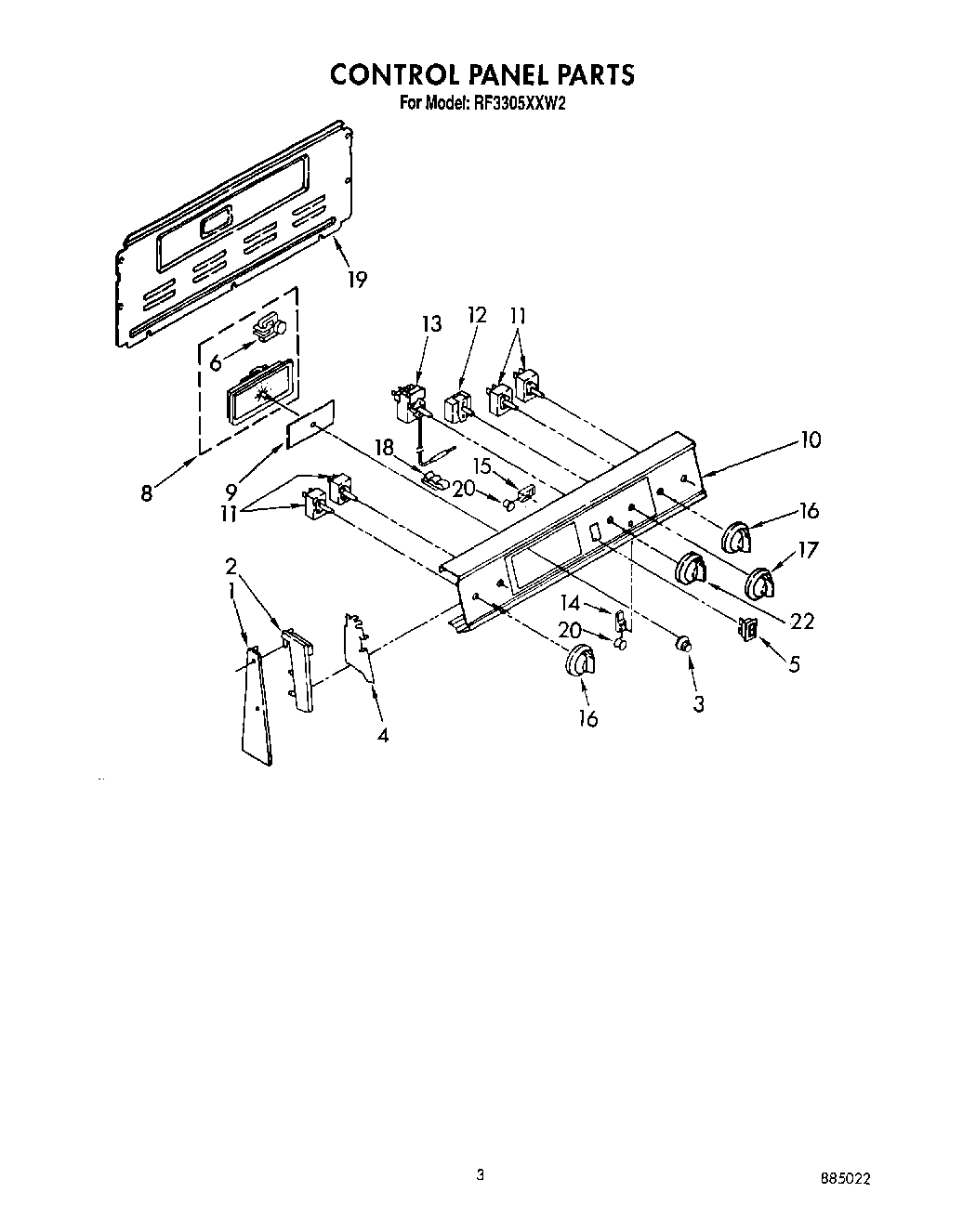

02 - CONTROL PANEL

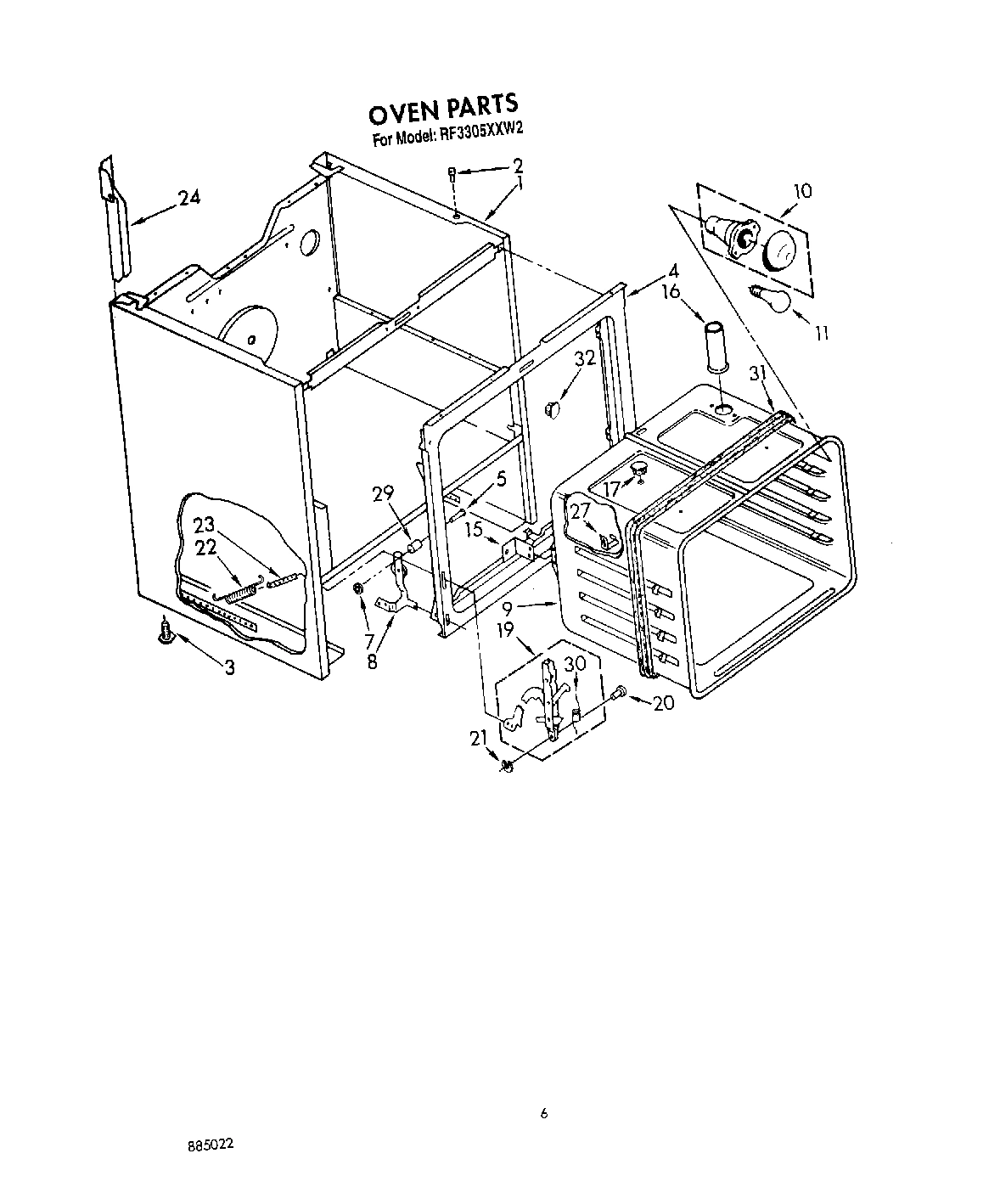

04 - OVEN CONT.

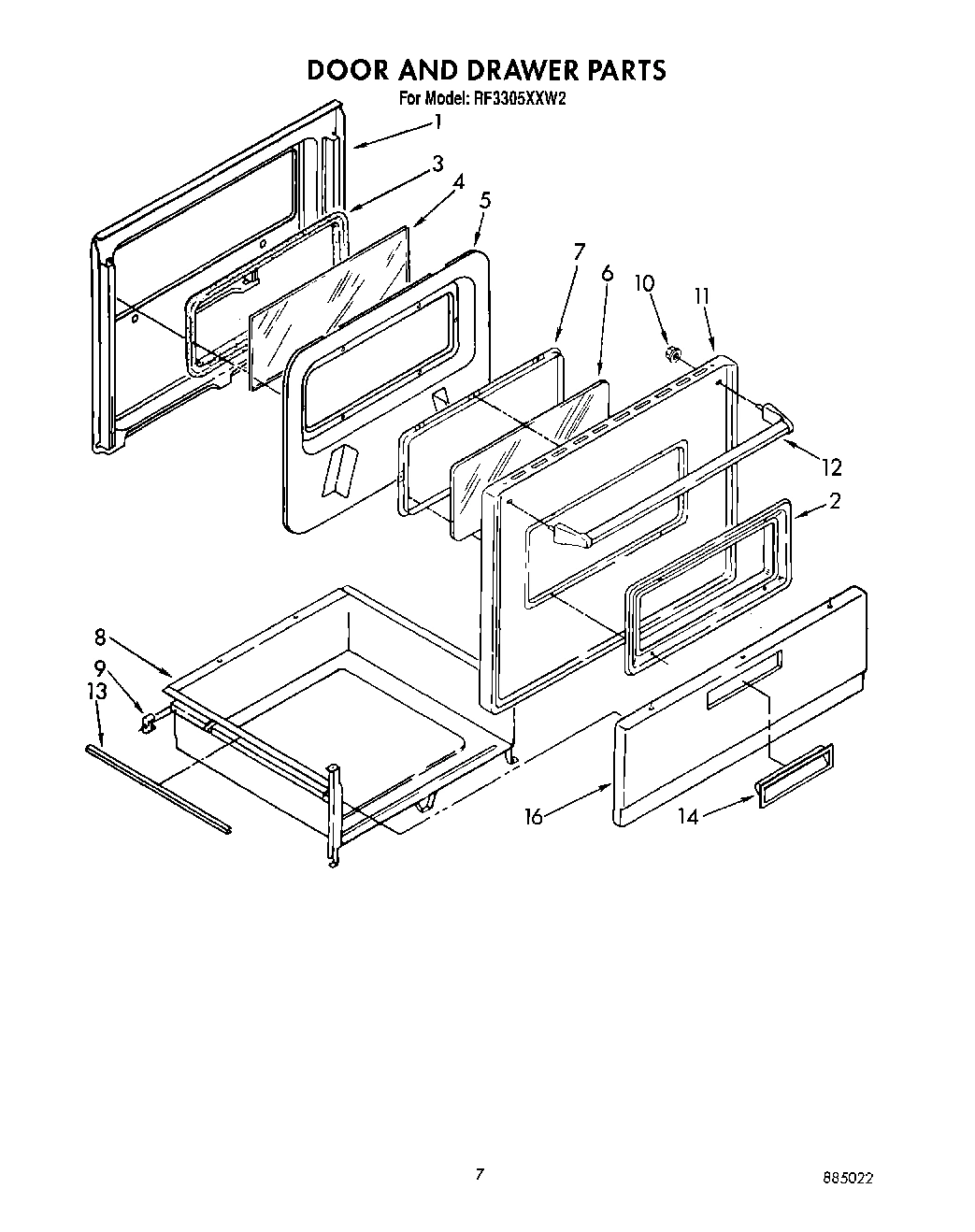

05 - DOOR AND DRAWER

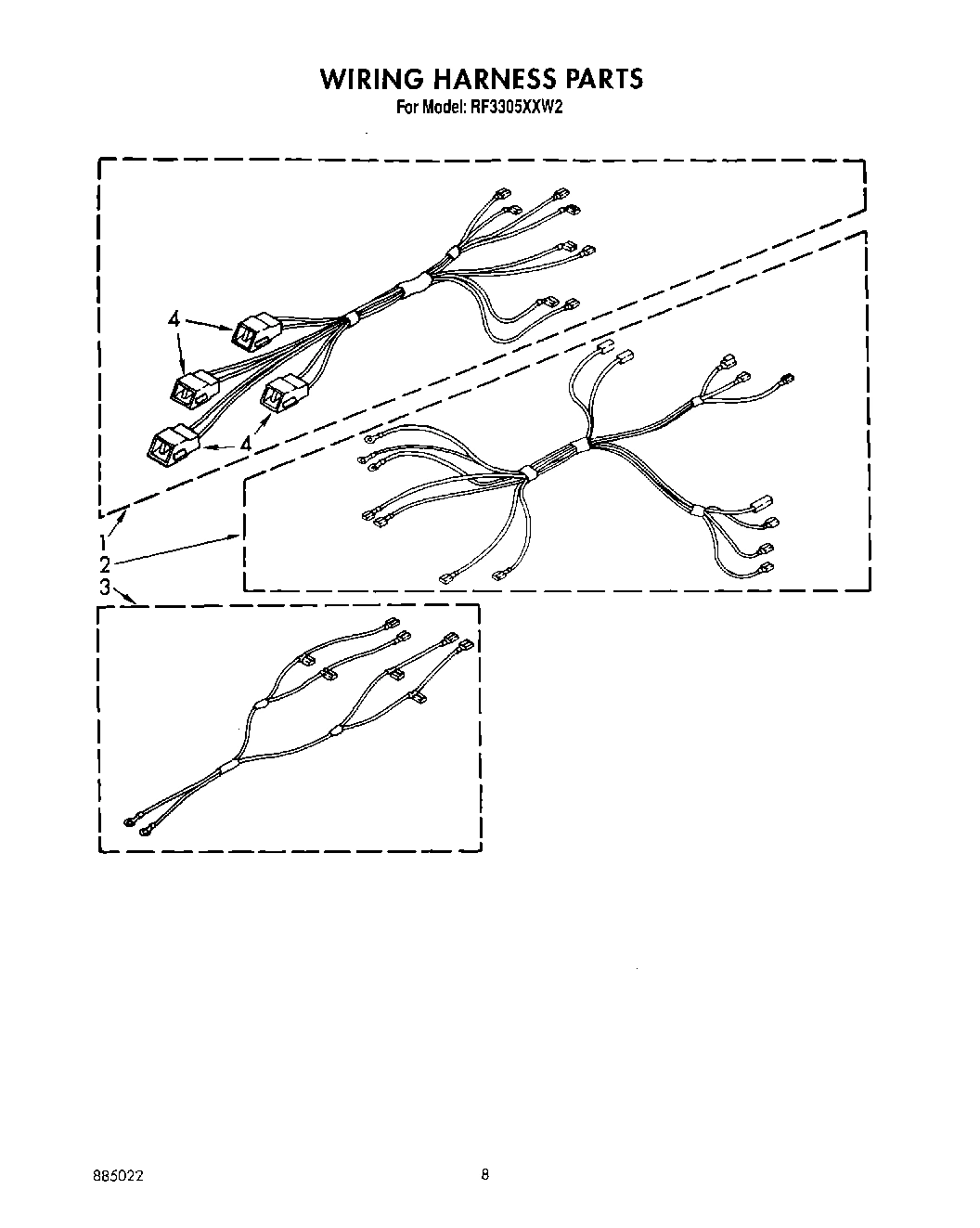

06 - WIRING HARNESS

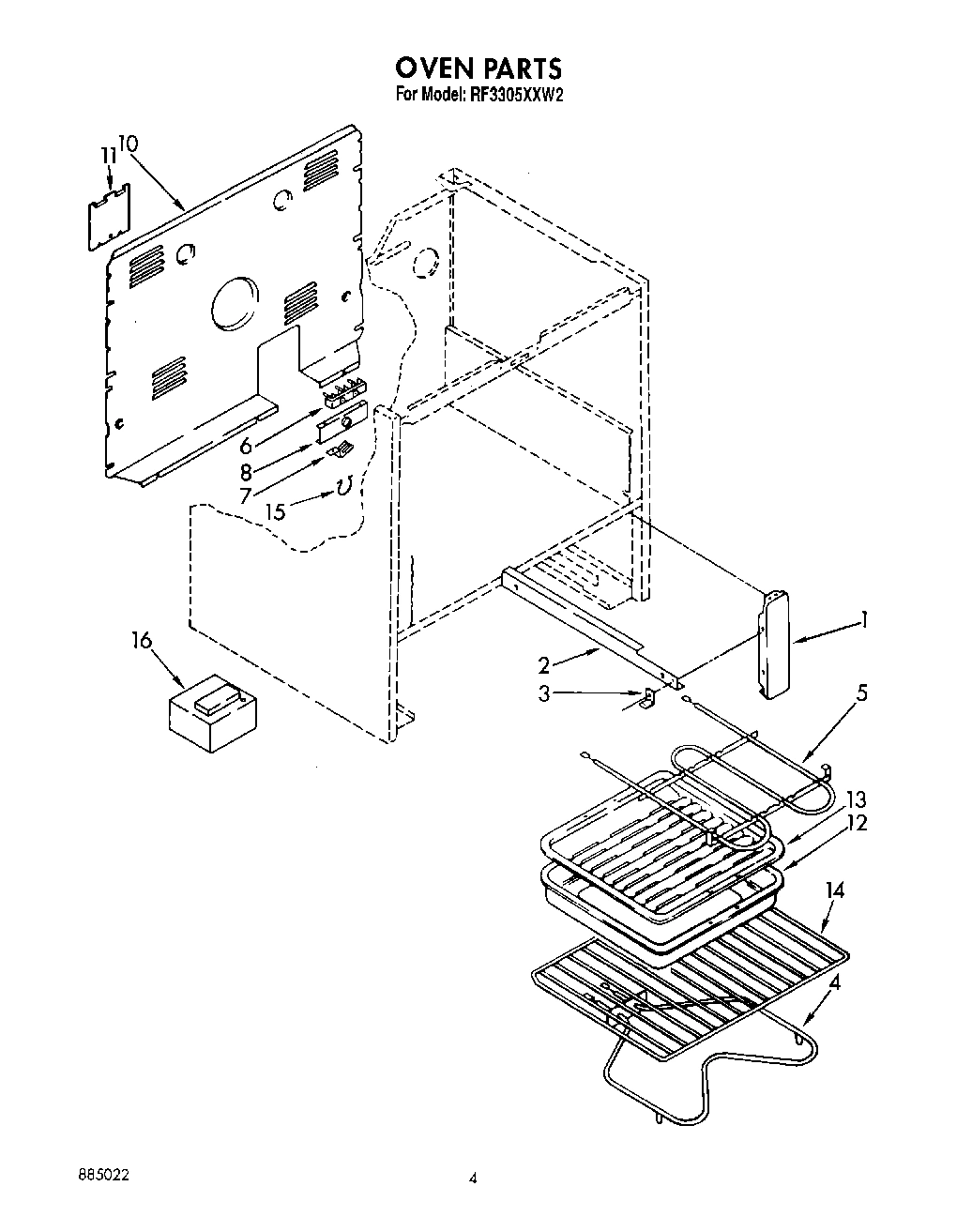

03 - OVEN, OPTIONAL
Common parts from model Whirlpool RF3305XXW2
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Frame, Window WPL 3149277 Contact Us For Availability
2
Screw (2) No.8 x 5/8 WPL 309133 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3150694 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
3
Seal, Door WPL 3148183 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Harness, Wire (Supply) WPL 313147 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
4
Glass, Inner WPL 3148179 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Clip, Frame (2) WPL 307731 Contact Us For Availability
5
Retainer, Insulation WPL 3148287 Contact Us For Availability
5
screw (6) WPL 3148443 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
Motor, Timer WPL 313512 Contact Us For Availability
6
Glass, Outer WPL 307732 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Retainer, Frame WPL 307792 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Screw No.7-19x3/8 WPL 313045 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Timer, Clock WPL 3149835 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Drawer, Utility WPL 327887 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Glass, Timer WPL 308441 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven Liner (Includes 16 & 17) WPL 3176609 Contact Us For Availability
9
Glide, Rear (2) WPL 307980 Contact Us For Availability
10
Panel, Control (White) WPL 3150467 Contact Us For Availability
10
Panel, Control (Almond) WPL 3150468 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Panel, Door (White) WPL 307888 Contact Us For Availability
11
Panel, Door (Almond) WPL 307896 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Handle, Oven Door WPL 311563 Contact Us For Availability
12
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
13
(Alt.) WPL 310864 Contact Us For Availability
13
(Alt.) WPL 311498 Contact Us For Availability
13
Thermostat, Oven WPL 661150 Contact Us For Availability
13
Protector (2) WPL 309329 Contact Us For Availability
14
Indicator Light (Oven) (Includes Illus. 20) WPL 314031 Contact Us For Availability
14
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
14
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Indicator Light (Surface Unit) (Includes Illu WPL 3150662 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
Panel, Lower (White) WPL 3150676 Contact Us For Availability
16
Panel, Lower (Almond) WPL 3150677 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
Coffee (Uncut) WPL 261887 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Harvest Gold WPL 261890 Contact Us For Availability
16
H WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 309961 WPL 309961 Contact Us For Availability
16
WPL 312804 WPL 312804 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
17
Knob, Selector WPL 3149984 Contact Us For Availability
17
Button, Plug WPL 3169107 Contact Us For Availability
18
Tube Clip WPL 313570 Contact Us For Availability
19
Rear Cover Control Panel WPL 313195 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
Lens, Amber (2) WPL 313101 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob, Thermostat WPL 3149987 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
31
Seal, Rubber WPL 309107 Contact Us For Availability
32
Plug Button WPL 308535 Contact Us For Availability
× ![]()
