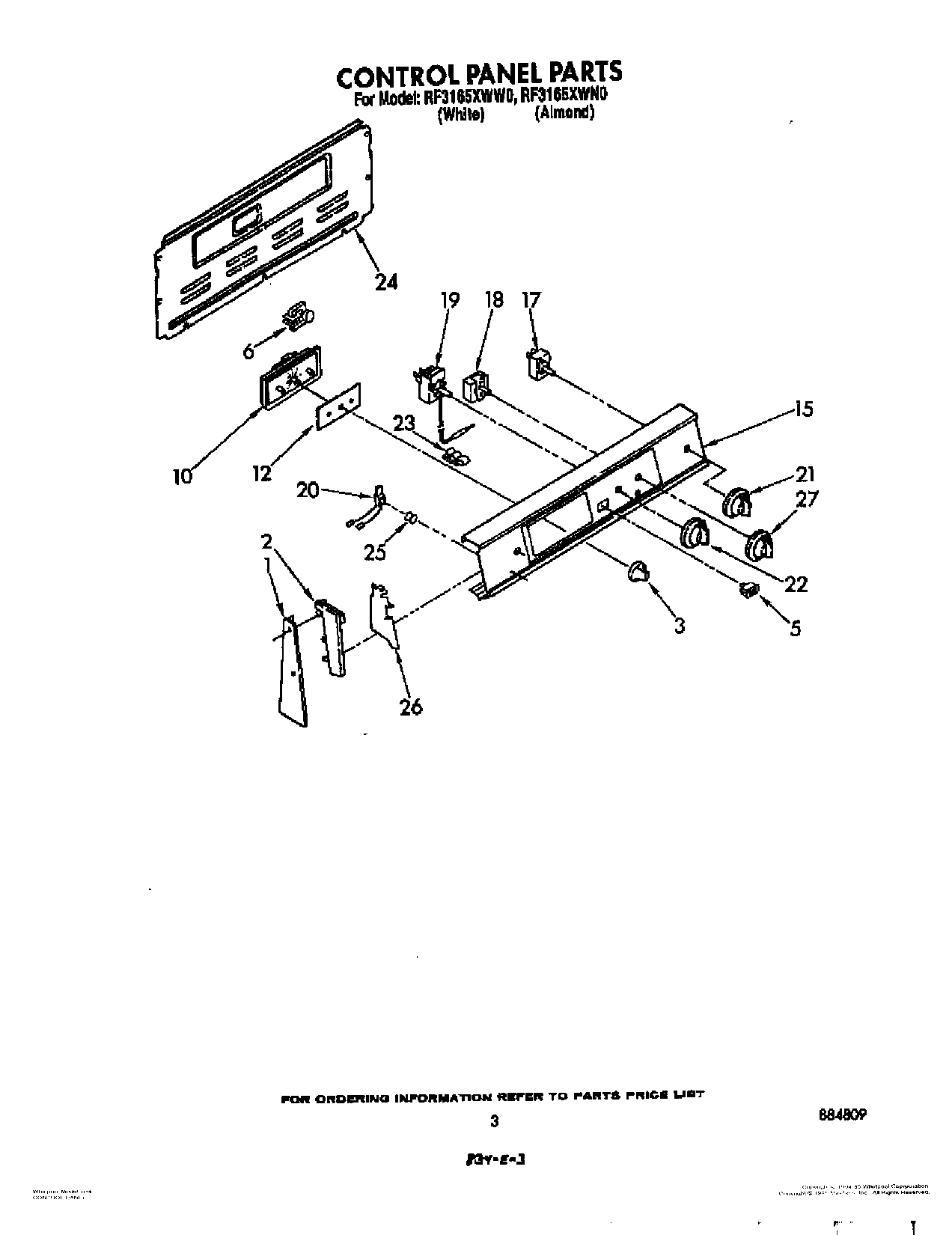

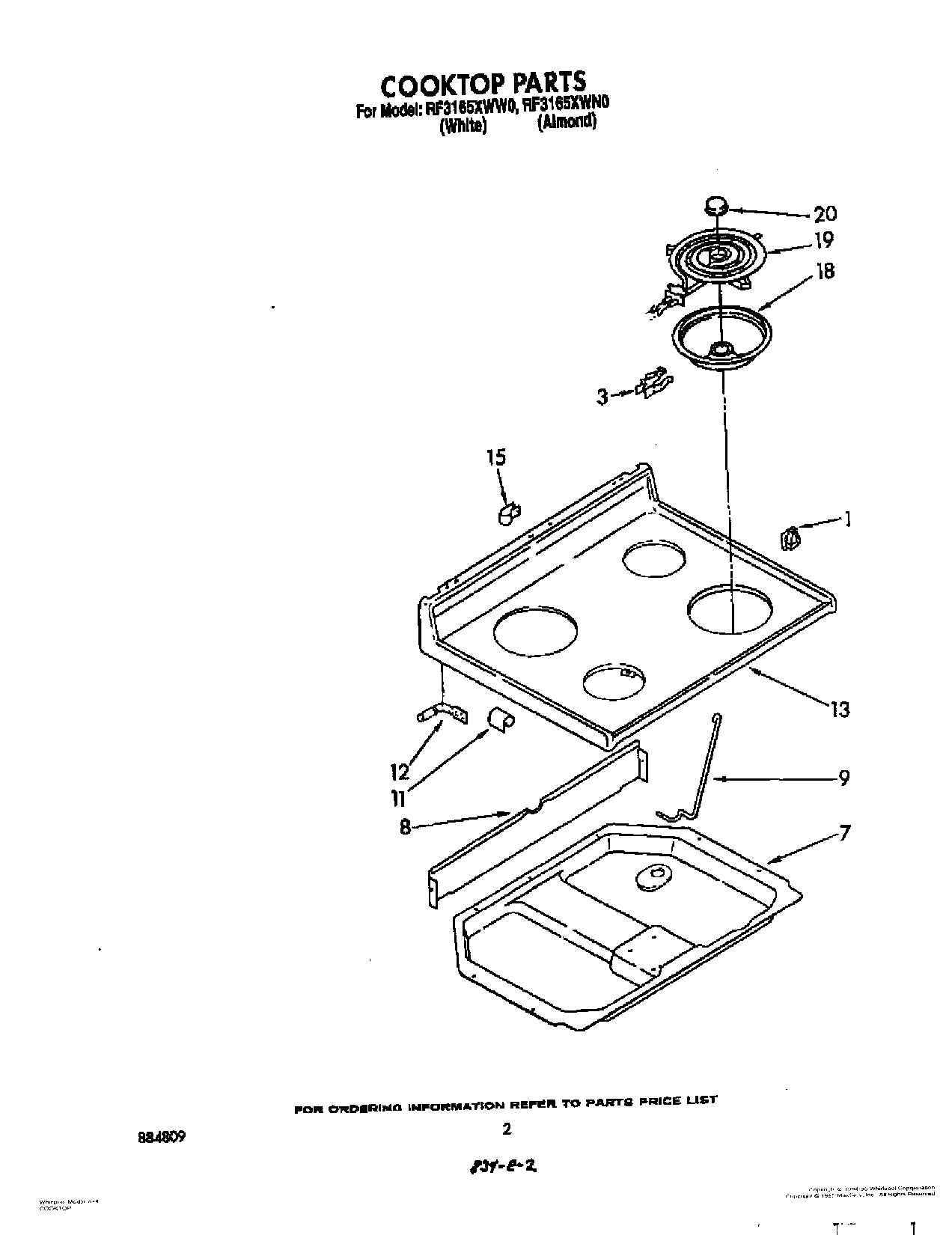

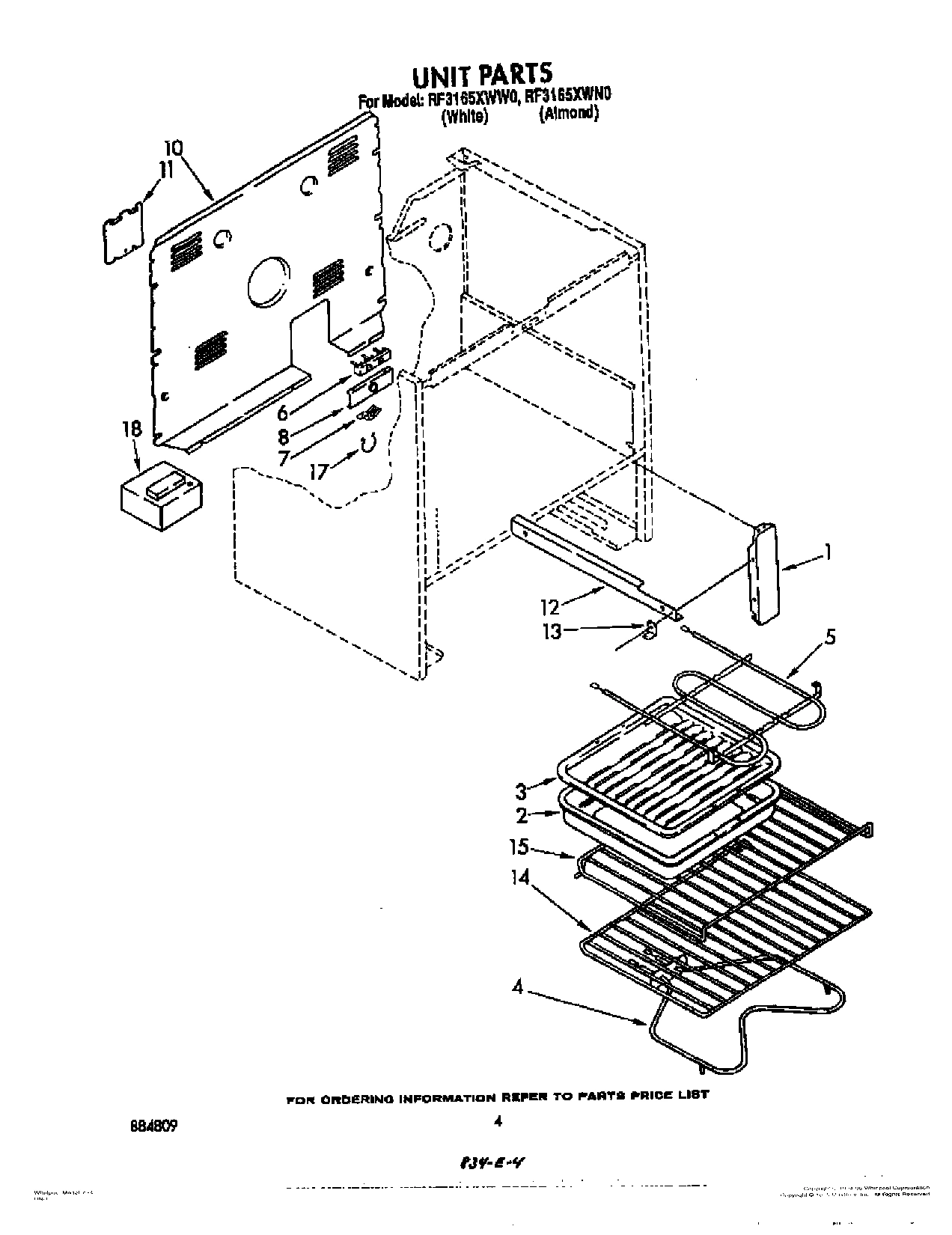

Model Whirlpool RF3165XWN0 – Common Parts &amp; Diagrams

WP313808 Whirlpool Screw Backorder WPL WP313808 $2.51

WPL 312318 WPL 312318 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT3148614 WPL LIT3148614 Contact Us For Availability

WPL LIT3149923 WPL LIT3149923 Contact Us For Availability

WPL LIT884809 WPL LIT884809 Contact Us For Availability

1

814103 Whirlpool Clip In Stock WPL 814103 $3.95

1

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

1

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

1

Nut WPL 814102 Contact Us For Availability

1

End Trim L.H. WPL 313188 Contact Us For Availability

1

End Trim R.H. WPL 313189 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

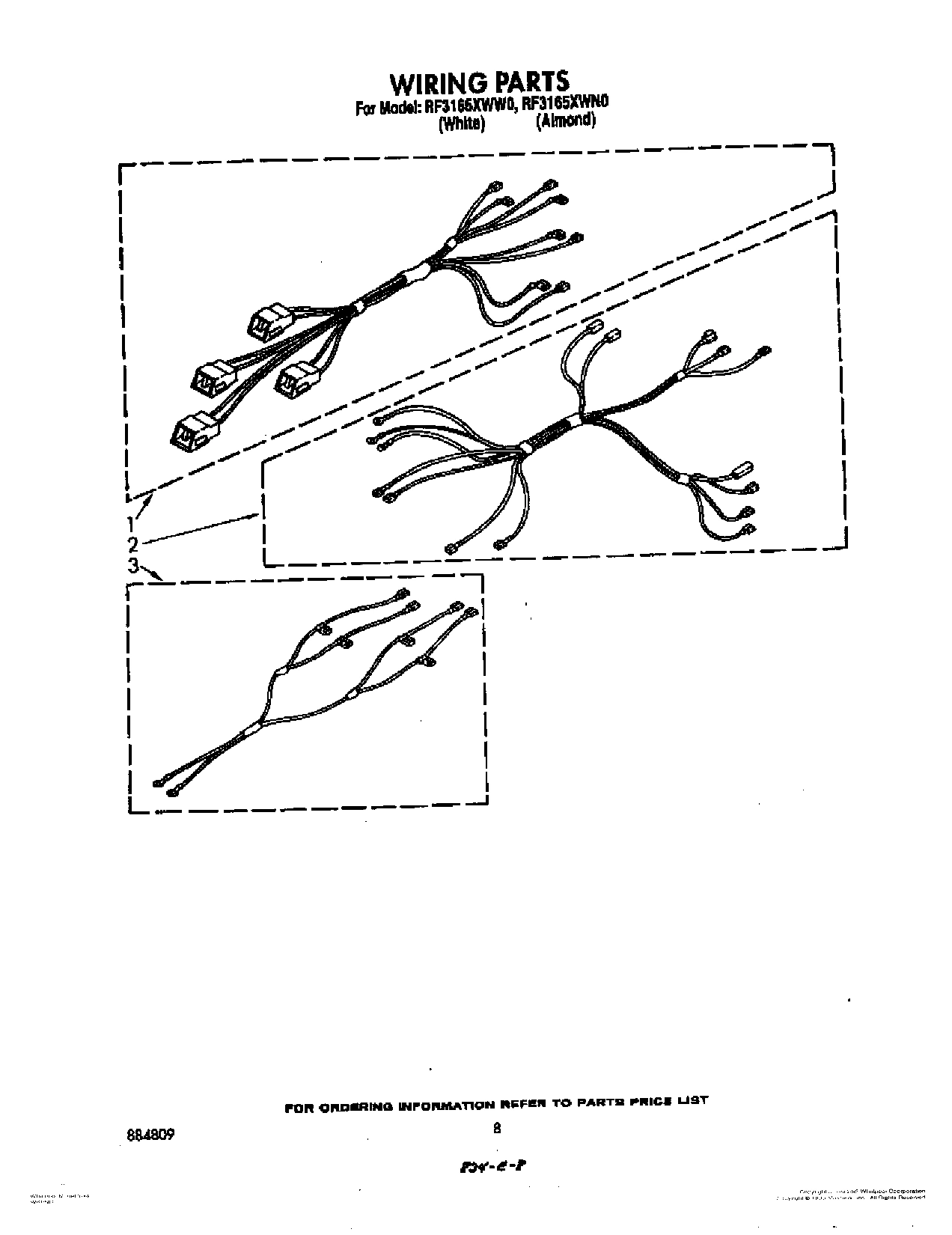

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

2

Frame, Window WPL 3149277 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Harness, Wiring (Oven) WPL 313151 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $9.28

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

3

Seal, Door WPL 3148183 Contact Us For Availability

3

Spring, Knob (3) WPL 313311 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

5

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $31.90

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $66.17

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

6

Motor, Timer WPL 309822 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Retainer, Frame WPL 307792 Contact Us For Availability

7

Screw (8) WPL 313045 Contact Us For Availability

7

Box, Burner WPL 3149194 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

Drawer, Utility WPL 327887 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

9

Glide, Rear (2) WPL 307980 Contact Us For Availability

9

Rod, Cooktop (2) WPL 3148659 Contact Us For Availability

10

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

10

Timer, Clock (Includes No.6) WPL 3149505 Contact Us For Availability

10

Cover, Rear WPL 3148975 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Panel, Door (Screw, 10A x 1/2 (3)) WPL 307748 Contact Us For Availability

Panel, Door (White) WPL 307888 Contact Us For Availability

Panel, Door (Almond) WPL 307896 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Handle, Oven Door WPL 311563 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Glass, Timer WPL 313513 Contact Us For Availability

Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability

Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability

Protector (2) WPL 309329 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

Glide, Drawer (2) WPL 3149257 Contact Us For Availability

14

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

14

Handle, Drawer WPL 313337 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 3149839 Contact Us For Availability

Rack, Offset WPL 308172 Contact Us For Availability

17

16515 Whirlpool Clip Backorder WPL 16515 $11.62

17

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $33.53

17

WP3149400 Whirlpool Range Infinite Switch In Stock WPL WP3149400 $36.63

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

340184 Whirlpool Screw Backorder WPL 340184 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.23

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Switch, Selector (3 Position) WPL 313062 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 312804 WPL 312804 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $25.31

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $31.21

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

Thermostat, Oven WPL 661150 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Light, Indicator (Oven Light) WPL 314031 Contact Us For Availability

Light, Indicator (Surface Elements (2)) WPL 313102 Contact Us For Availability

Sound, Pad WPL 302340 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

21

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability

22

Screw (2) WPL 310410 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Tube Clip WPL 313570 Contact Us For Availability

24

Rear Cover Control Panel WPL 313195 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

25

Lens, Amber (3) WPL 313101 Contact Us For Availability

26

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

26

Shield, Glass (2) WPL 313608 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

27

Knob, Control (Selector) WPL 3149985 Contact Us For Availability

31

Seal, Rubber WPL 309107 Contact Us For Availability
