Model Whirlpool RF315PXYN0 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE – Common Parts & Diagrams
07 - WIRING HARNESS
03 - CONTROL PANEL

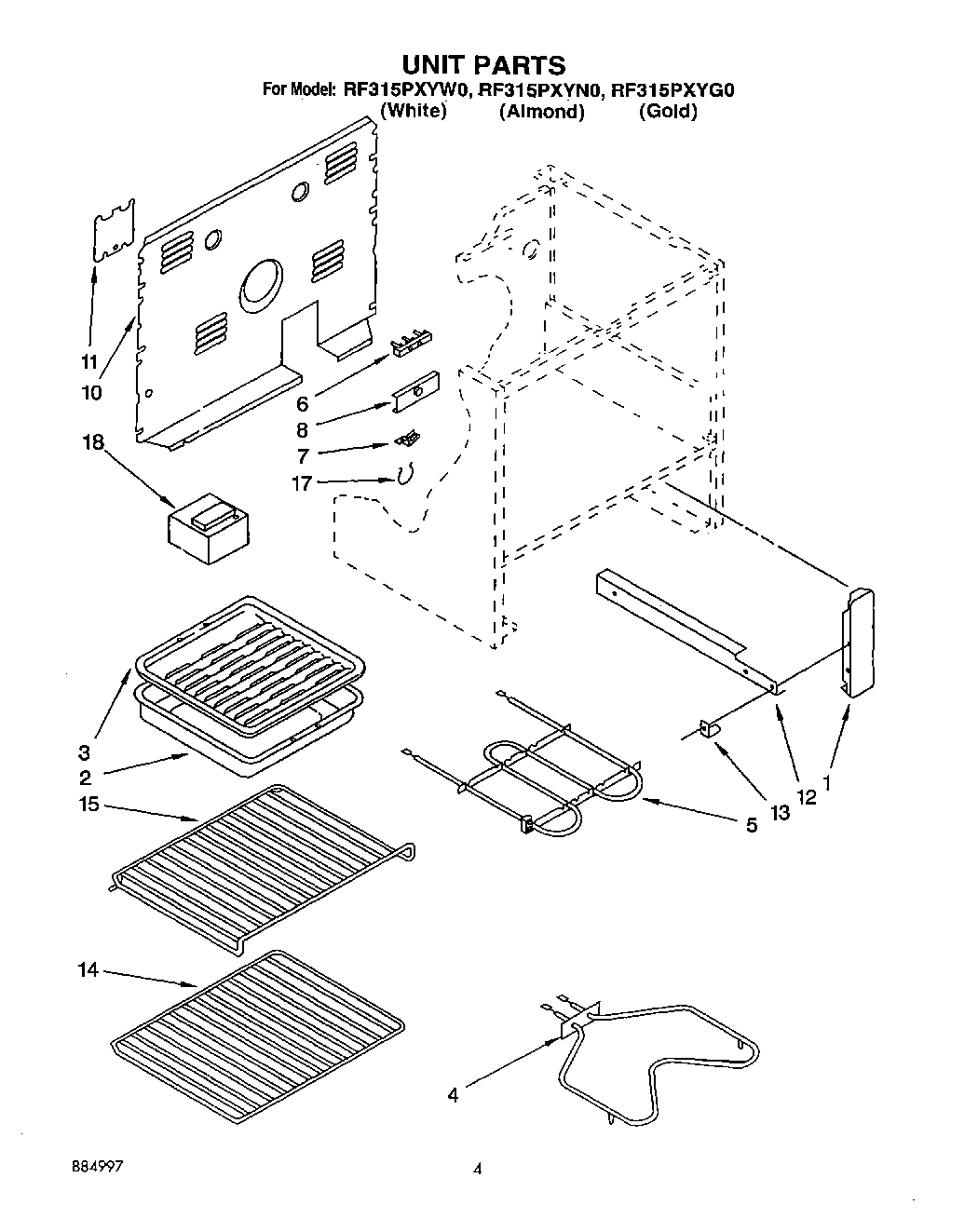

04 - UNIT, OPTIONAL

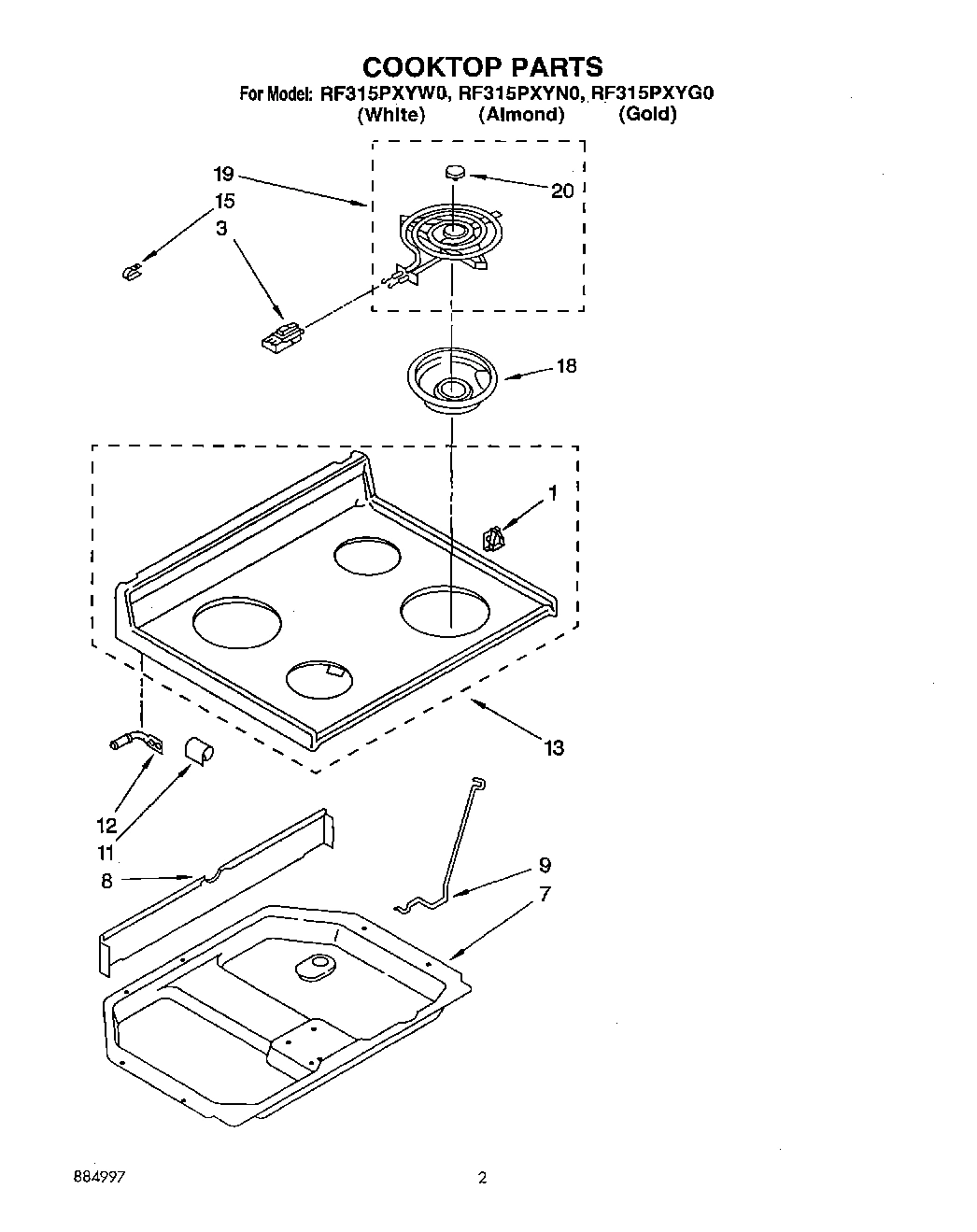

02 - COOKTOP, LIT/OPTIONAL

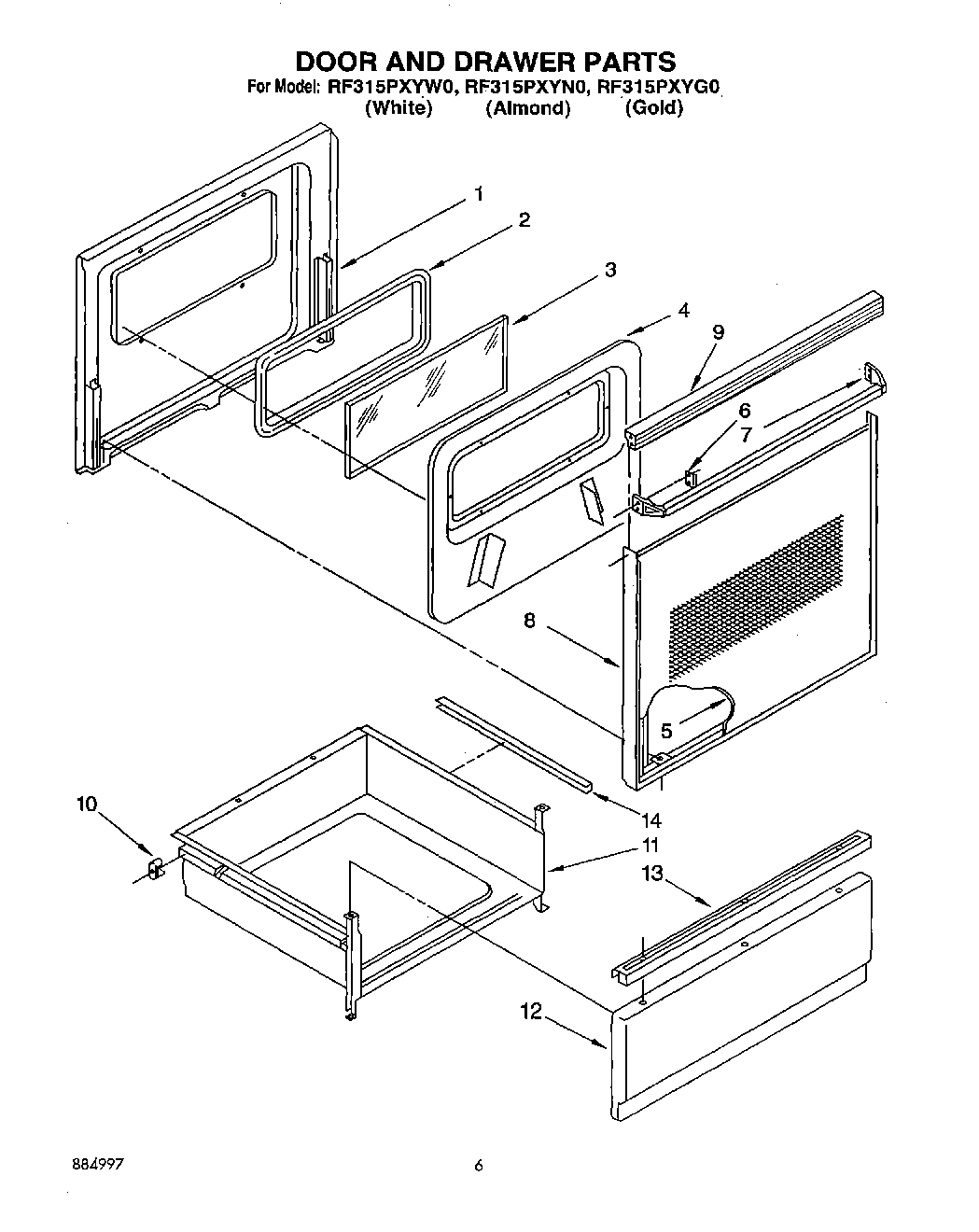

05 - DOOR AND DRAWER

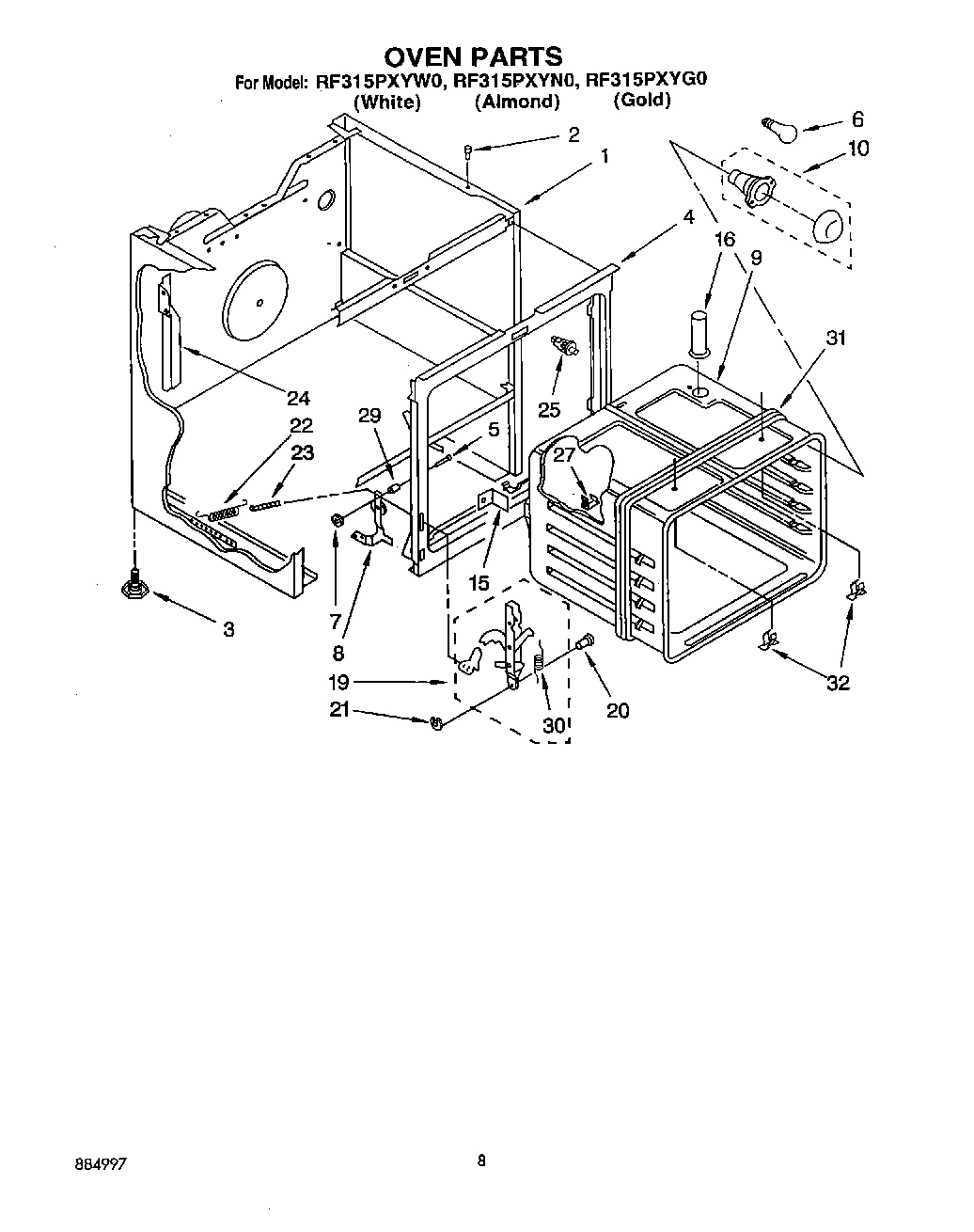

06 - OVEN
Common parts from model Whirlpool RF315PXYN0 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE
Instructions, Installation WPL LIT3147395 Contact Us For Availability
Use & Care Guide WPL LIT3150275 Contact Us For Availability
Wiring Diagram WPL LIT3182487 Contact Us For Availability
Repair Parts List WPL LIT884997 Contact Us For Availability
1
Nut WPL 814102 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Gold) WPL 330089 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
3
Glass, Inner WPL 3148179 Contact Us For Availability
4
screw (6) WPL 3148443 Contact Us For Availability
4
Retainer, WPL 3148287 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Glass Panel, Outer WPL 3148185 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Clip (2) WPL 3148282 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Handle, Door WPL 3148228 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Screw (2) WPL 3149333 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
9
Top, Door Frame WPL 3148223 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176611 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glide, Rear WPL 307980 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
12
Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability
12
Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Panel Drawer (White) WPL 307935 Contact Us For Availability
12
Panel, Drawer (Gold) WPL 307938 Contact Us For Availability
12
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
13
Indicator Light (Oven Unit On) WPL 314031 Contact Us For Availability
13
Handle, Drawer WPL 3169105 Contact Us For Availability
13
Glide, Drawer (2) WPL 3149257 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Cooktop (Gold) WPL 3170985 Contact Us For Availability
14
Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Protector, Drawer (2) WPL 309329 Contact Us For Availability
15
Rack, Offset WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Leveler (Thinner) (2 Oz.) Paint, Bulk 1 Qt. WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harve WPL 261890 Contact Us For Availability
18
WPL 261891 WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 309961 WPL 309961 Contact Us For Availability
18
WPL 312804 WPL 312804 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
Knob, Control (Selector) WPL 3183112 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
31
Seal, Rubber WPL 309107 Contact Us For Availability
32
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
