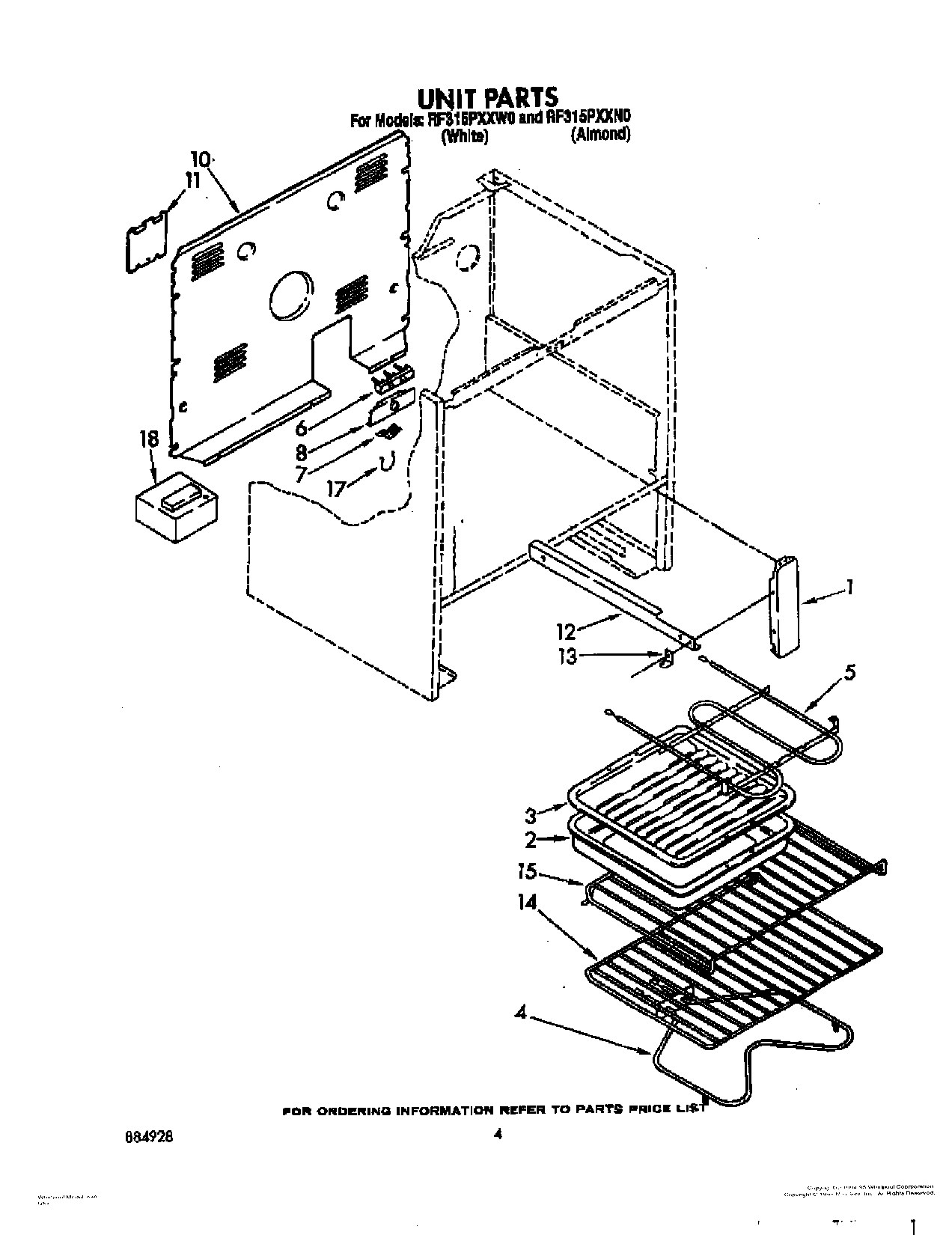

Model Whirlpool RF315PXXN0 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE – Common Parts &amp; Diagrams

Instructions, Installation WPL LIT3147389 Contact Us For Availability

Cooking Guide WPL LIT3149507 Contact Us For Availability

Use & Care Guide WPL LIT3150264 Contact Us For Availability

Wiring Diagram WPL LIT3181470 Contact Us For Availability

Repair Parts List WPL LIT884928 Contact Us For Availability

1

814103 Whirlpool Clip In Stock WPL 814103 $3.95

1

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

1

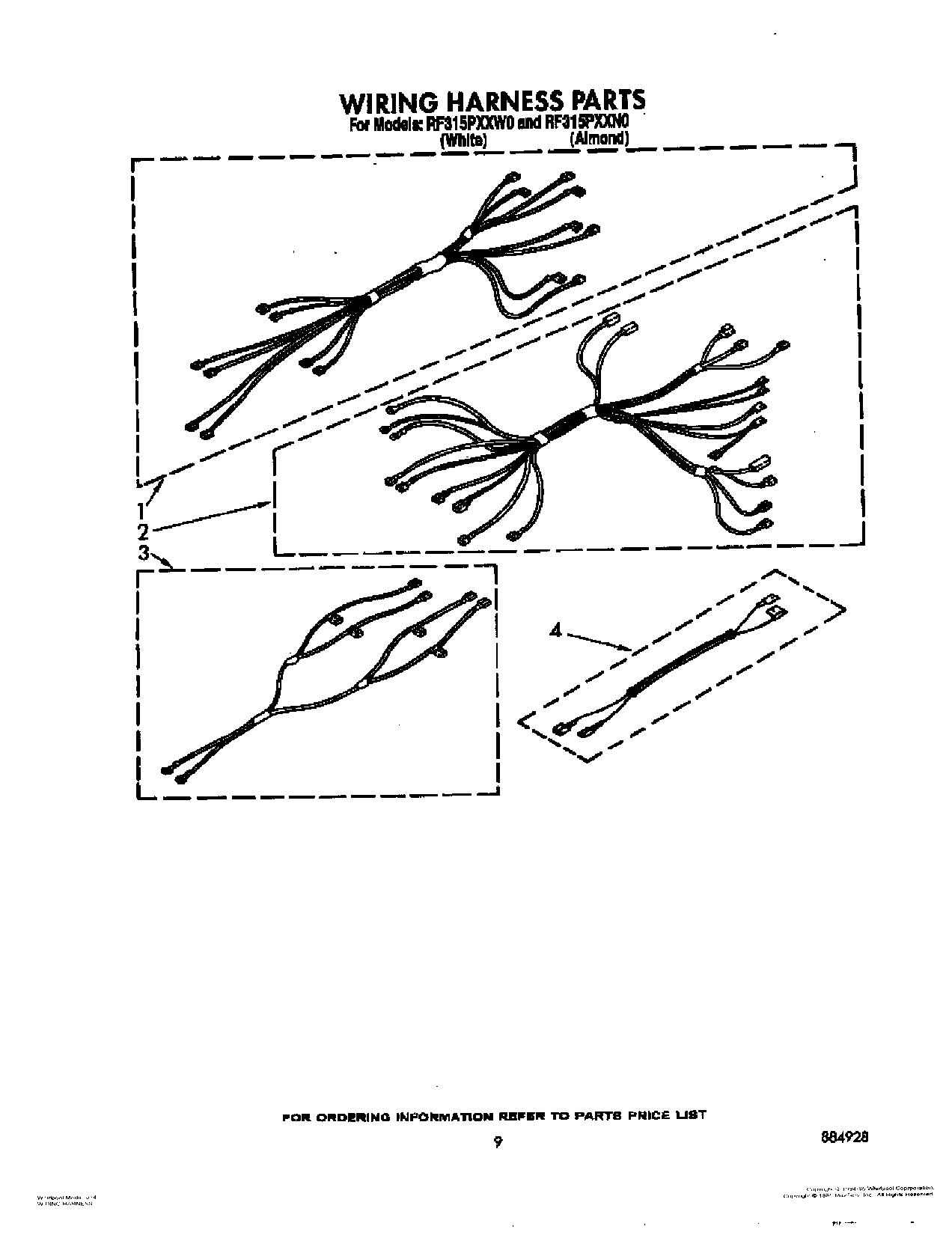

Wiring Harness (Suface Unit) WPL 3149881 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Liner, Door WPL 3172220 Contact Us For Availability

1

Nut WPL 814102 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Seal, Glass WPL 3148183 Contact Us For Availability

2

Wiring Harness (Oven) WPL 3181473 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

3

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Wiring Harness (Supply) WPL 313147 Contact Us For Availability

3

Spring, Knob (3) WPL 313311 Contact Us For Availability

3

Glass, Inner WPL 3148179 Contact Us For Availability

4

Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability

4

screw (6) WPL 3148443 Contact Us For Availability

4

Retainer, WPL 3148287 Contact Us For Availability

4

Frame, Front WPL 3172204 Contact Us For Availability

5

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

5

Glass Panel, Outer WPL 3148185 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

Clip (2) WPL 3148282 Contact Us For Availability

6

Motor, Timer WPL 309822 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

Handle, Door WPL 3148228 Contact Us For Availability

7

Box, Burner WPL 3150186 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

8

Frame, Door WPL 3148235 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Screw (2) WPL 3149333 Contact Us For Availability

9

Top, Door Frame WPL 3148223 Contact Us For Availability

9

Rod, Cooktop (2) WPL 3148659 Contact Us For Availability

9

Screw (2) WPL 311056 Contact Us For Availability

9

Screw WPL 3150537 Contact Us For Availability

9

Oven (30`` Conv) WPL 3172546 Contact Us For Availability

10

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

10

Timer, Clock (Includes No.6) WPL 3149505 Contact Us For Availability

10

Glide, Rear WPL 307980 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

Drawer, Utility WPL 327887 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Screw WPL 3148604 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Glass, Timer WPL 313513 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Anchor, Plastic WPL 3148605 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Handle, Drawer WPL 313337 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

14

Protector, Drawer (2) WPL 309329 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 3150629 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

16

Vent, Oven WPL 307960 Contact Us For Availability

17

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

17

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

17

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

285006 Whirlpool Spray In Stock WPL 285006 $27.45

340184 Whirlpool Screw Backorder WPL 340184 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Rotisserie Kit WPL 261881 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Co WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 312804 WPL 312804 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Thermostat, 0ven (Alt.) WPL 310864 Contact Us For Availability

Thermostat, 0ven (Alt.) WPL 311498 Contact Us For Availability

Thermostat, 0ven WPL 661150 Contact Us For Availability

Channel, Arm (2) WPL 329712 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Indicator Light (Oven Unit On) WPL 314031 Contact Us For Availability

Indicator Light (Surface Unit On) WPL 3150647 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

21

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Tube Clip WPL 313570 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Rear Cover Control Panel WPL 313195 Contact Us For Availability

Support, Channel (L.H.) WPL 313196 Contact Us For Availability

Support, Channel (R.H.) WPL 313197 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

25

Lens, Amber (2) WPL 313101 Contact Us For Availability

26

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

26

Shield, Glass (2) WPL 313608 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

27

Knob, Control (Selector) WPL 3149985 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Spring, Door Stop WPL 308207 Contact Us For Availability

31

Seal, Rubber WPL 309107 Contact Us For Availability
