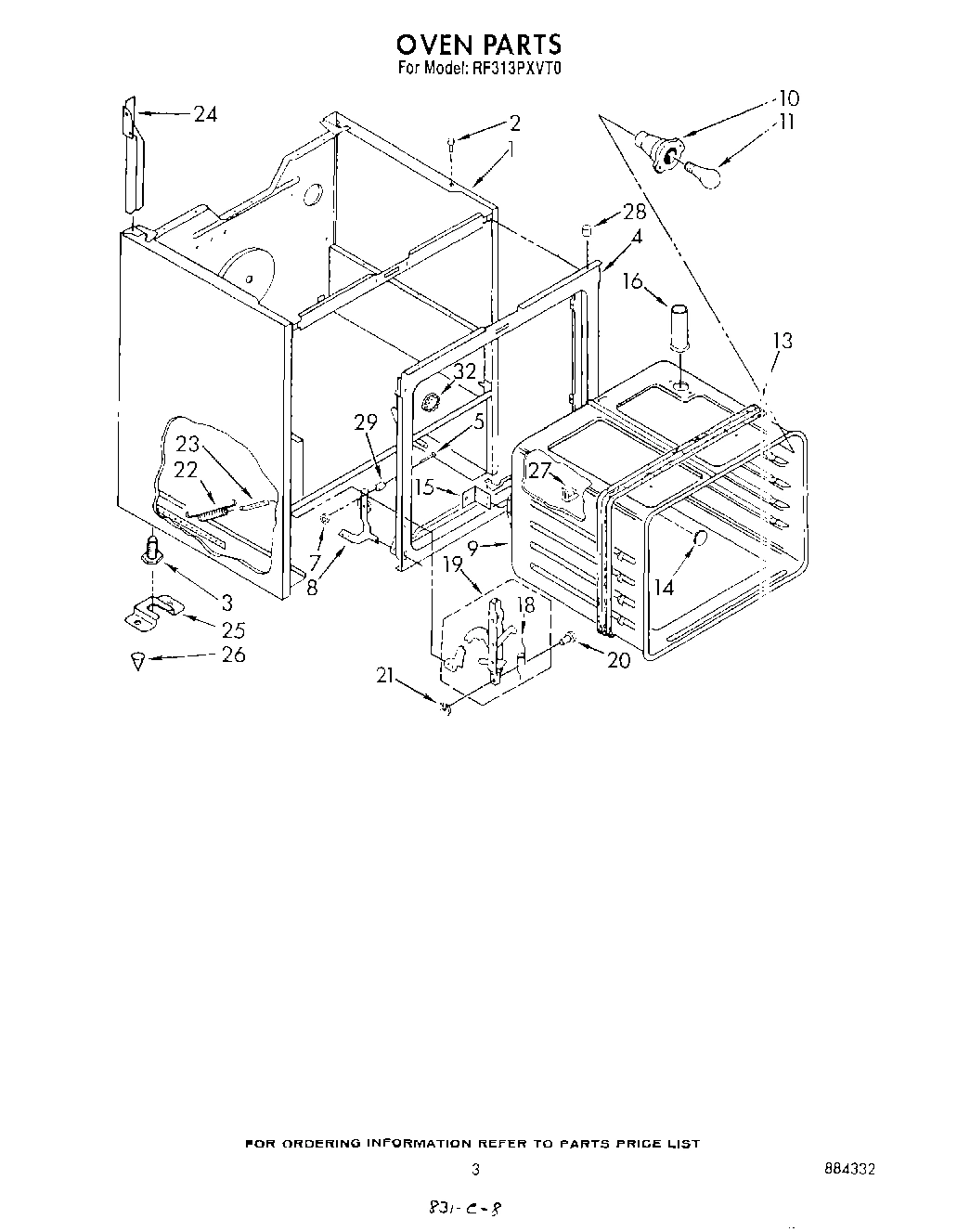

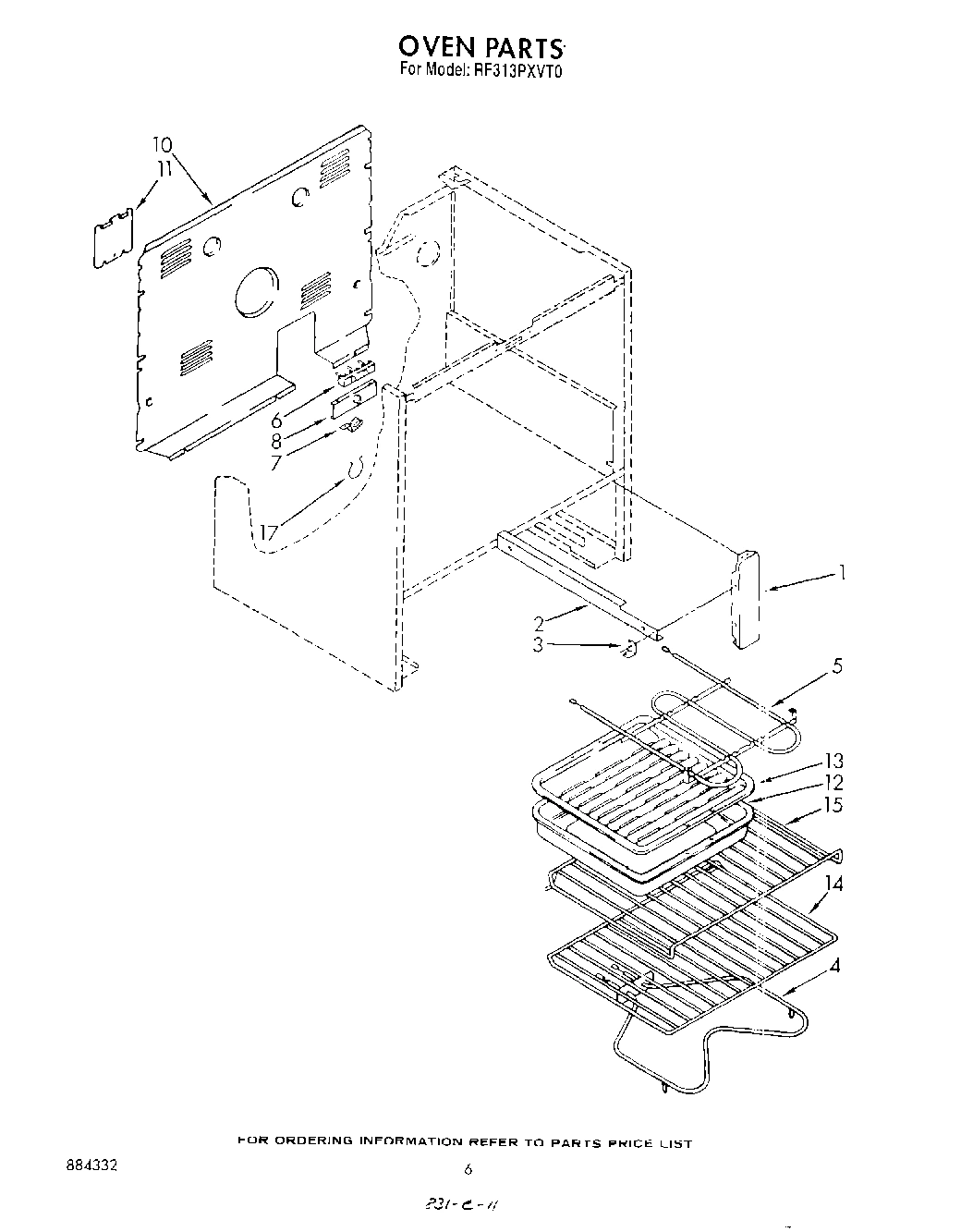

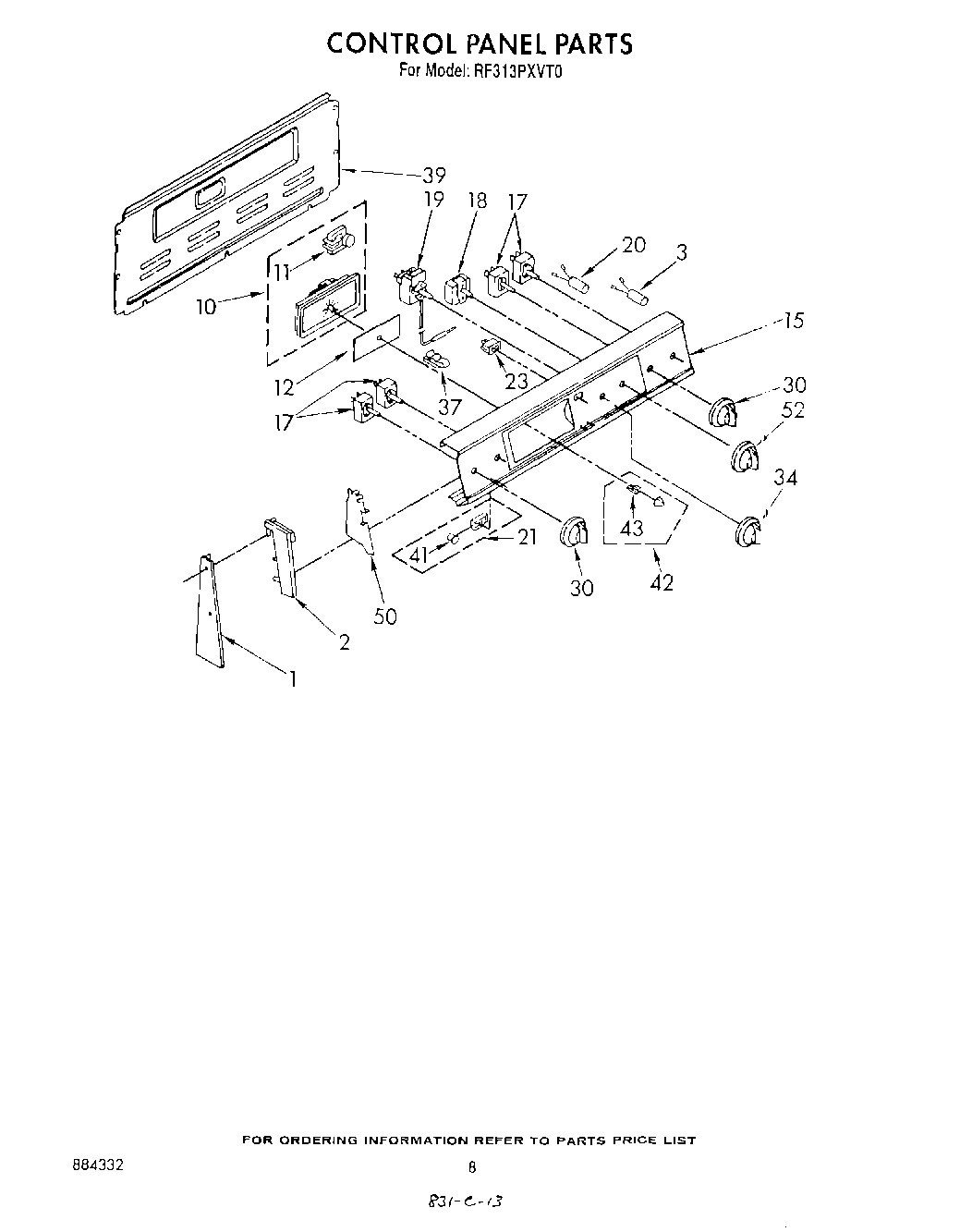

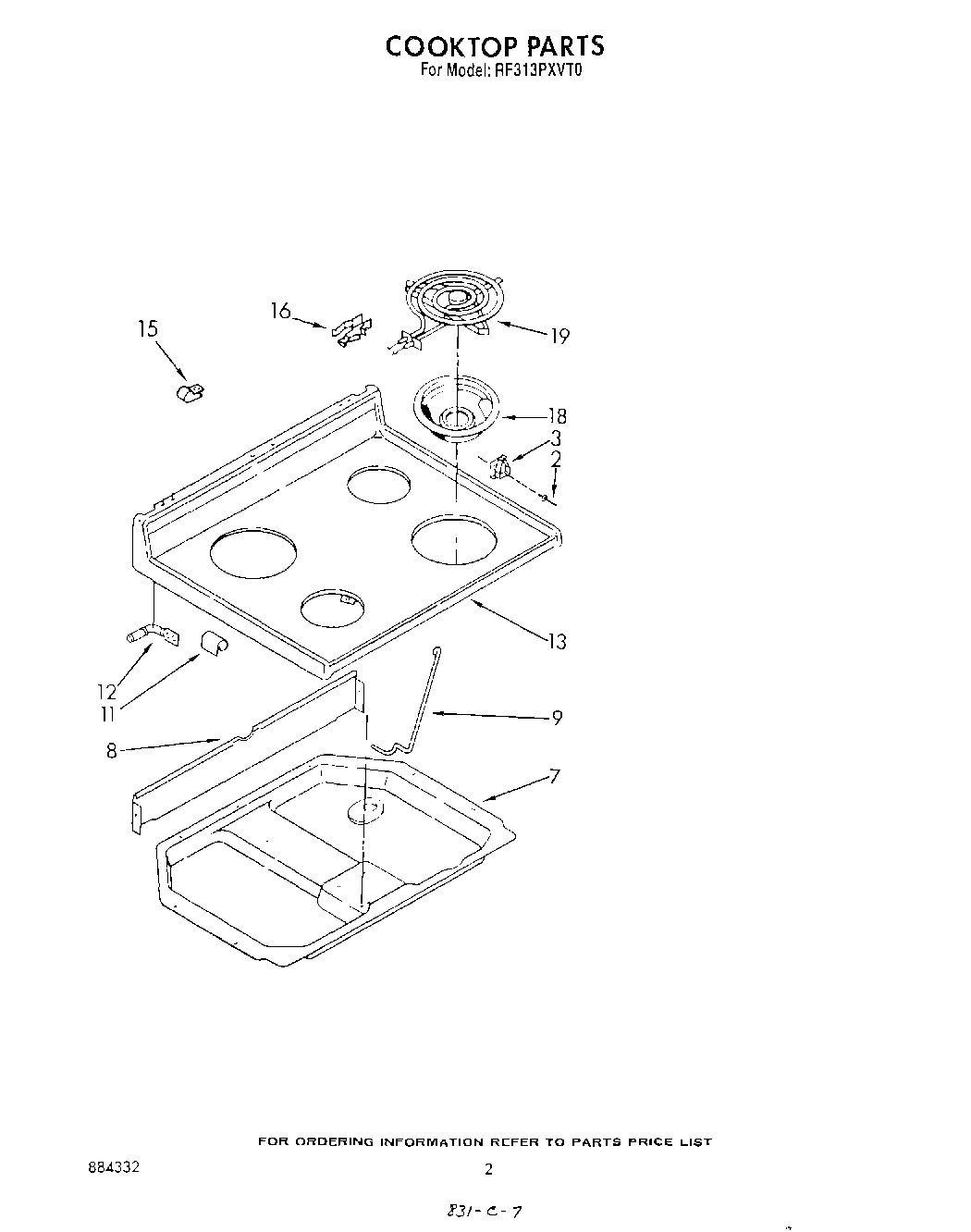

Model Whirlpool RF313PXVT0 – Common Parts &amp; Diagrams

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WPL 246127 WPL 246127 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT3148534 WPL LIT3148534 Contact Us For Availability

WPL LIT3148614 WPL LIT3148614 Contact Us For Availability

WPL LIT884332 WPL LIT884332 Contact Us For Availability

1

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

1

Screw, 10A x 1/2 (4) WPL 311056 Contact Us For Availability

1

Liner, Door WPL 3170708 Contact Us For Availability

1

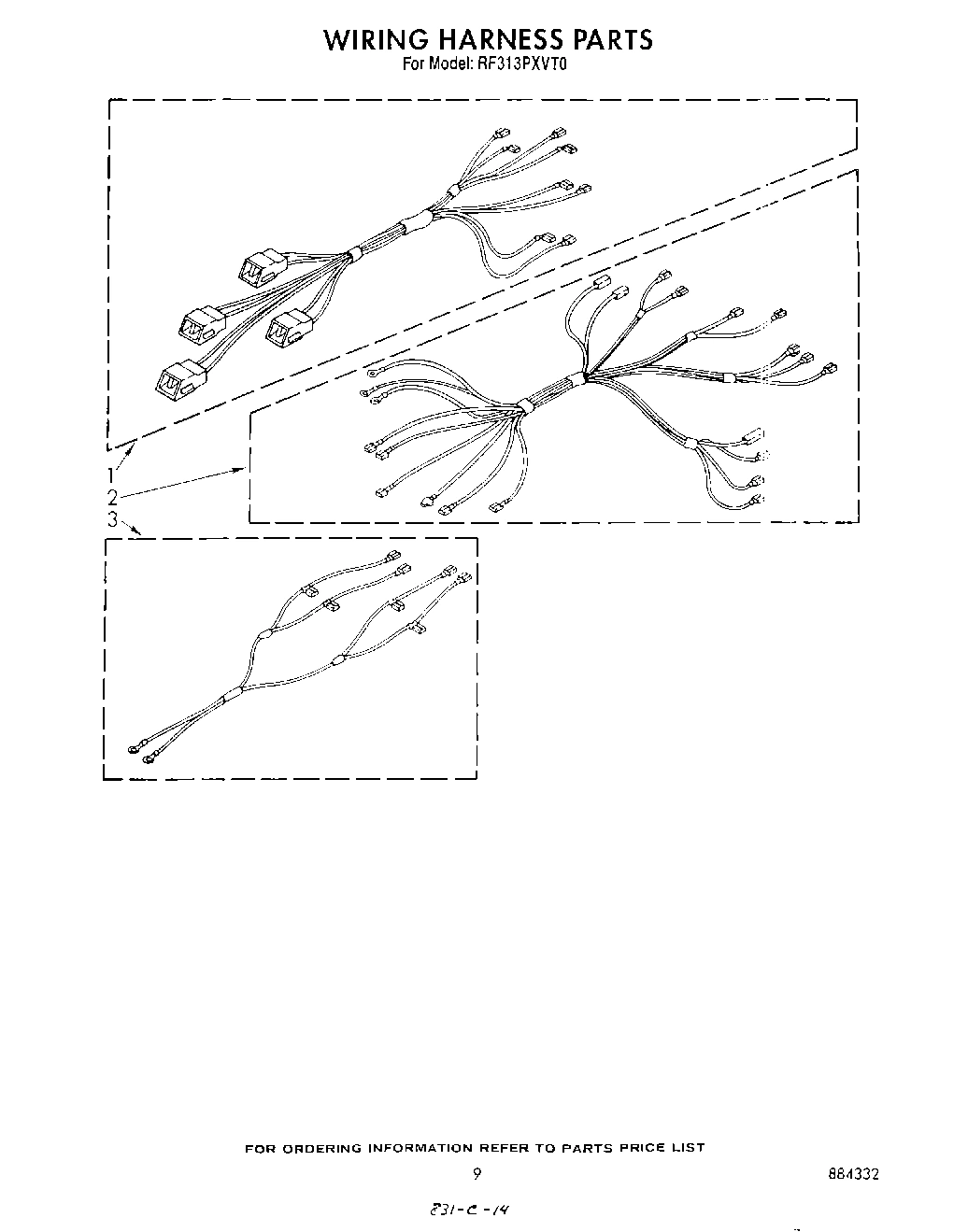

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

814103 Whirlpool Clip In Stock WPL 814103 $3.95

2

Harness, Wire (Oven) WPL 313150 Contact Us For Availability

2

Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

3

Seal, Glass WPL 3148183 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Glass, Inner WPL 3148179 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Retainer, WPL 3148287 Contact Us For Availability

5

Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Sound, Pad WPL 302340 Contact Us For Availability

7

Box Burner WPL 3148990 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

9

Panel, Outer (Black Glass) WPL 3148185 Contact Us For Availability

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

10

Cover, Rear WPL 3148975 Contact Us For Availability

10

Timer, Clock WPL 3148850 Contact Us For Availability

Clip (2) WPL 3148282 Contact Us For Availability

Bracket (2) WPL 307965 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Motor, Timer WPL 309822 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Handle, Oven Door WPL 3148228 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Glass, Timer WPL 3148852 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

13

Seal, Heat WPL 309107 Contact Us For Availability

13

Cooktop (Platinum) WPL 3148433 Contact Us For Availability

14

Frame, Door WPL 3148235 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Top, Door Frame WPL 3148223 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 3148833 Contact Us For Availability

16

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Glide, Rear WPL 307980 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Drawer, Utility WPL 327887 Contact Us For Availability

Switch, Selector (3 Position) WPL 313061 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

Panel Drawer (Black) WPL 309923 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

Thermostat, Oven WPL 661150 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Light, Indicator WPL 314031 Contact Us For Availability

21

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

21

Light, Indiactor (Includes Illus. No.41) WPL 313102 Contact Us For Availability

21

Handle, Drawer WPL 313337 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Protector, Drawer WPL 309329 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

25

Rack, Literature WPL 357645 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

locator, cooktop WPL 311909 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Knob, Control (4) WPL 330177 Contact Us For Availability

32

Plug Button WPL 308535 Contact Us For Availability

34

Screw (2) WPL 310410 Contact Us For Availability

34

Knob, Control WPL 330176 Contact Us For Availability

37

Tube Clip WPL 313570 Contact Us For Availability

39

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (3) WPL 313101 Contact Us For Availability

42

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

43

Spring, Knob WPL 313311 Contact Us For Availability

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

50

Shield, Glass (2) WPL 313608 Contact Us For Availability

52

Knob, Control WPL 330180 Contact Us For Availability

53

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70
