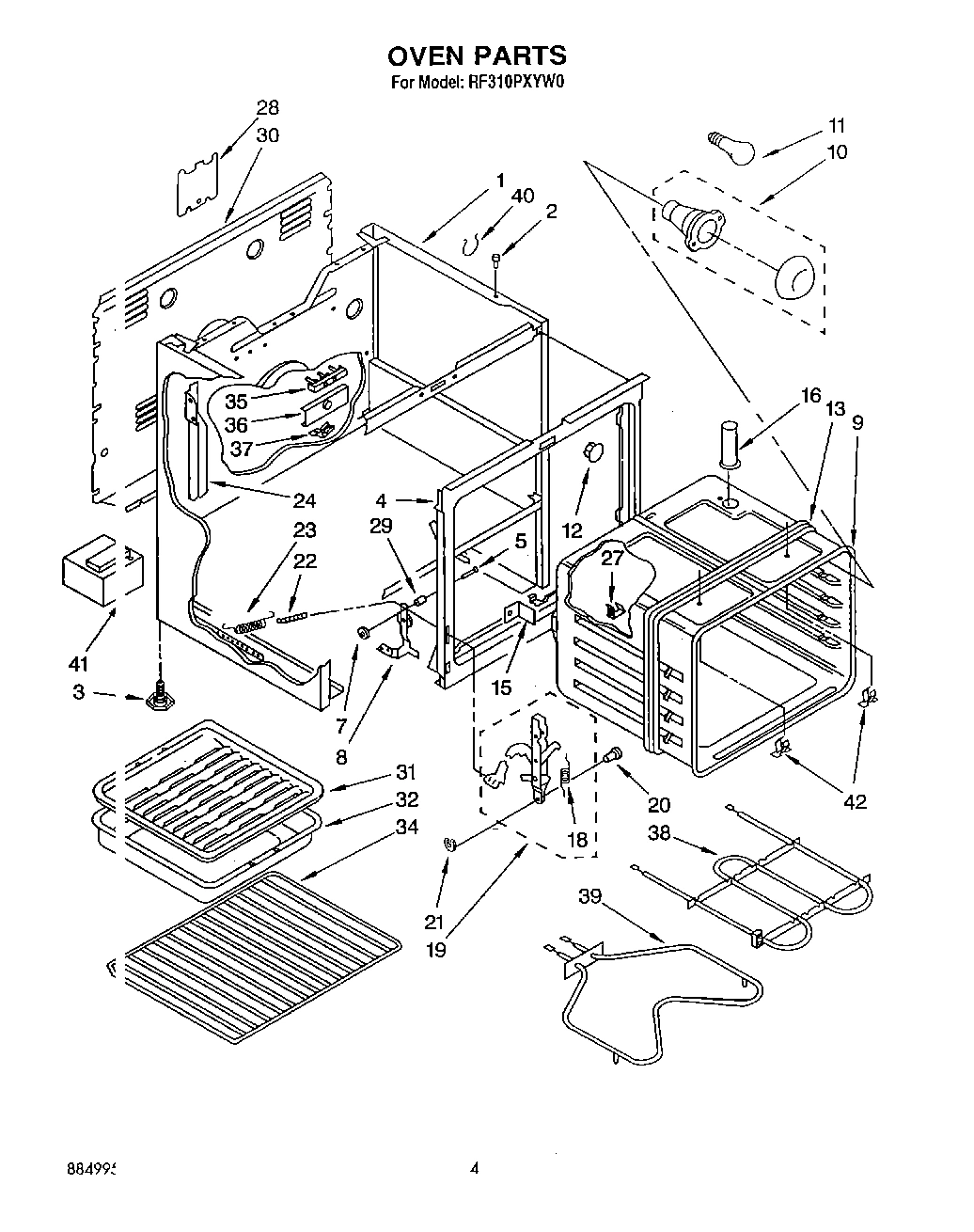

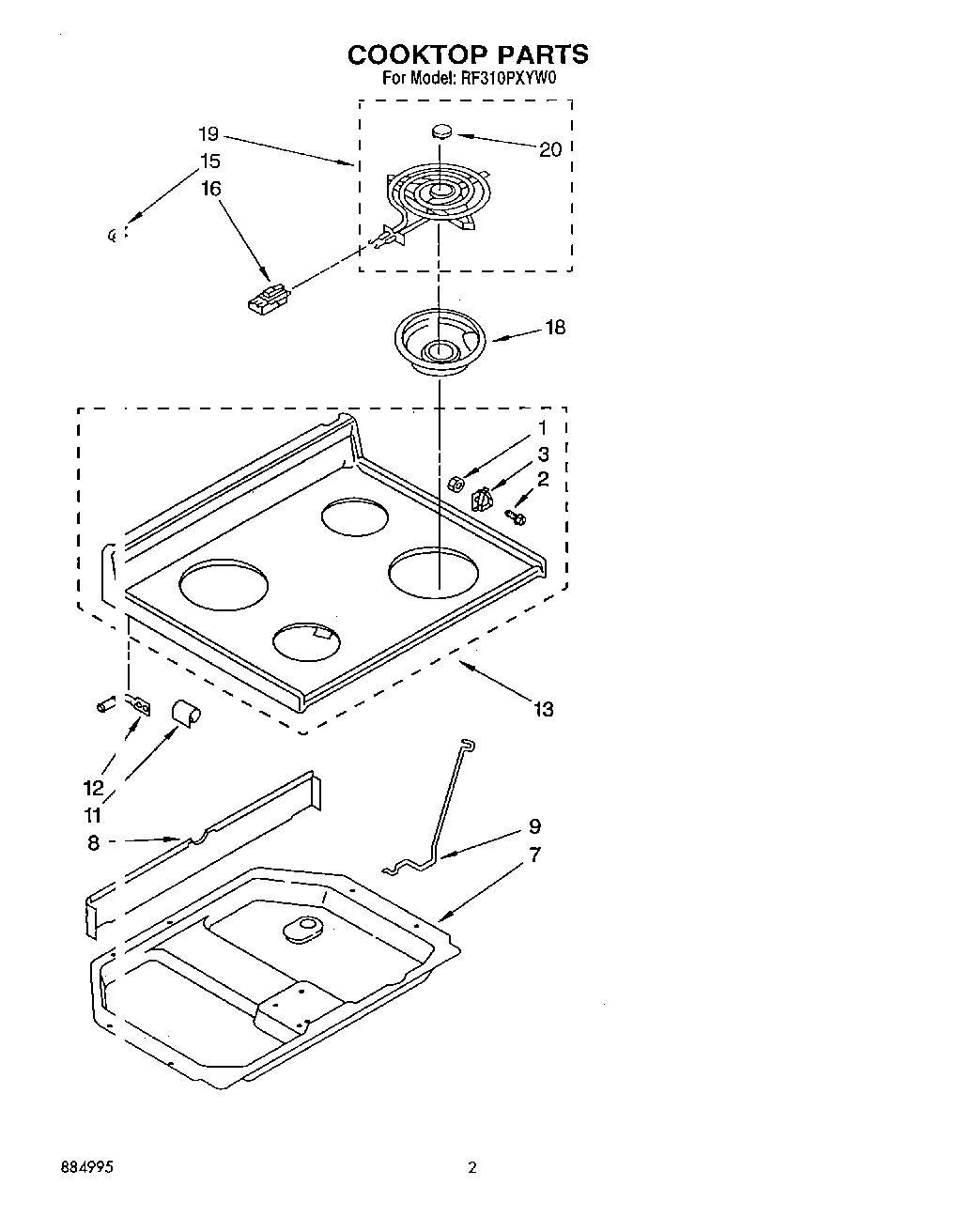

Model Whirlpool RF310PXYQ0 – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

12 Ga. 150~c (Wire, White 14 Ga. 150~c) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

12 Ga. 150~c (Wire, Red 12 Ga. 150~c) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

12 Ga. 150~c (Wire, Yellow 14 Ga. 200~c) WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3147395 WPL LIT3147395 Contact Us For Availability

WPL LIT3150285 WPL LIT3150285 Contact Us For Availability

WPL LIT3150656 WPL LIT3150656 Contact Us For Availability

WPL LIT884995 WPL LIT884995 Contact Us For Availability

1

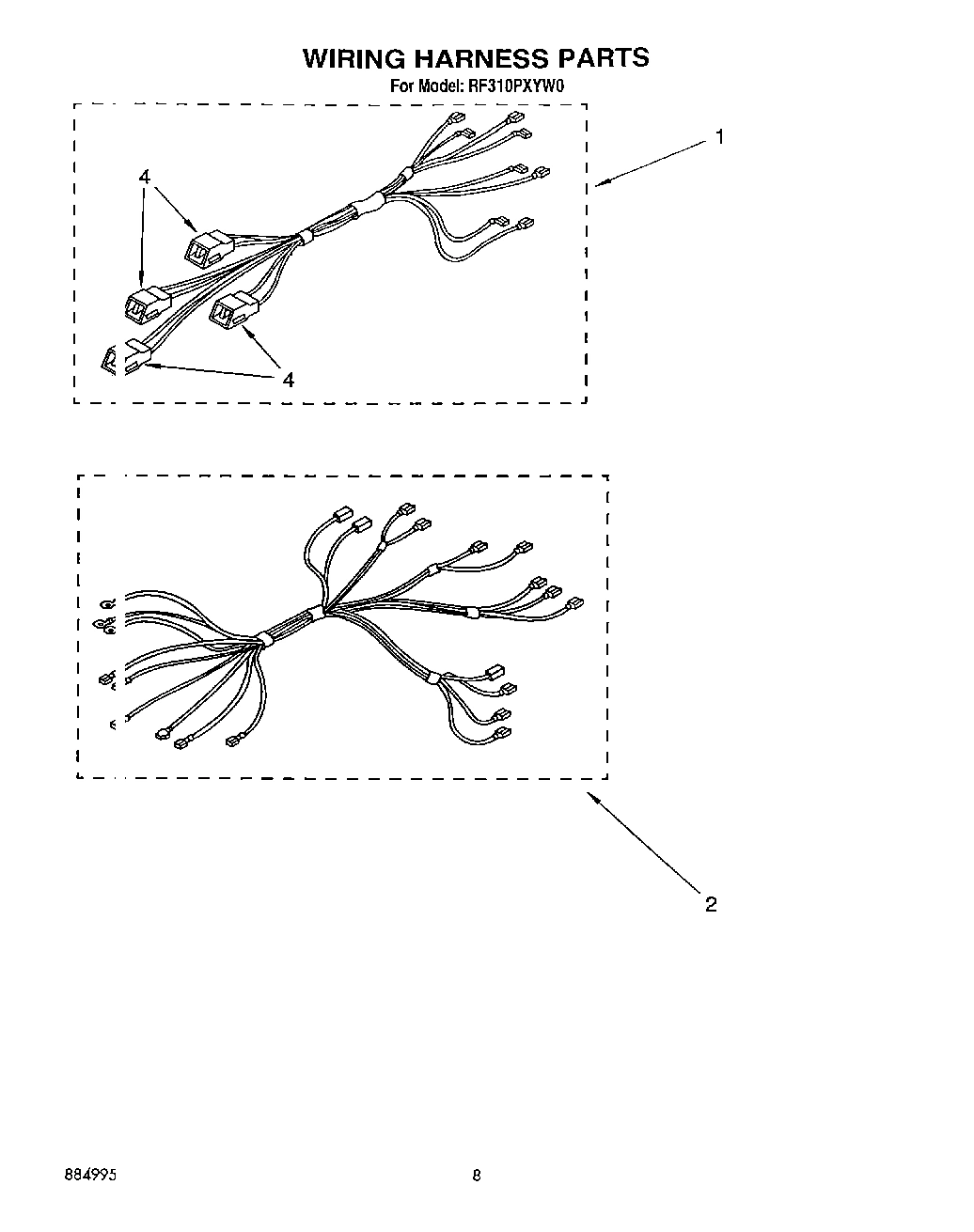

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

2

Harness, Wire (Oven) WPL 3169148 Contact Us For Availability

3

814103 Whirlpool Clip In Stock WPL 814103 $3.95

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Seal, Glass WPL 3148183 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3172204 Contact Us For Availability

5

Pin, Hinge (2) WPL 307985 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

Cap, Top (Designer Model Only) WPL 3181363 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

Box, Burner WPL 3169186 Contact Us For Availability

7

Pushnut (2) WPL 308306 Contact Us For Availability

8

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Switch, Selector WPL 3150430 Contact Us For Availability

9

Outer Glass (White/Almond) WPL 3148185 Contact Us For Availability

9

Outer Glass (Designer White) WPL 3149049 Contact Us For Availability

9

Rod, Cooktop (2) WPL 3148659 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Conv.) WPL 3176611 Contact Us For Availability

10

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Light, Indicator (Oven) WPL 314031 Contact Us For Availability

Clip (2) WPL 3148282 Contact Us For Availability

Bracket (2) WPL 307965 Contact Us For Availability

Handle, Door (White/Almond) WPL 3148228 Contact Us For Availability

Handle, Door (Designer White) WPL 3149354 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Plug Button WPL 308535 Contact Us For Availability

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

Seal, Heat WPL 309107 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Knob, (4) (Infinite Switch) (White/Almond) WPL 3183118 Contact Us For Availability

Knob, (4) (Infinite Switch) (Designer White) WPL 3183117 Contact Us For Availability

Frame, Door WPL 3148235 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Top, Door Frame (Screw (2)) WPL 3149333 Contact Us For Availability

Top, Door Frame (White/Almond) WPL 3148223 Contact Us For Availability

Top, Door Frame (Designer White) WPL 3149355 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

9755804 Whirlpool Oven Vent Tube Backorder WPL 9755804 $48.15

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

17

Glide, Rear WPL 307980 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Drawer, Utility WPL 327887 Contact Us For Availability

Spring, Stop WPL 308207 Contact Us For Availability

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Panel, Drawer (White) WPL 3150676 Contact Us For Availability

Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability

Channel, Arm (2) WPL 329712 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

WPL 3183109 WPL 3183109 Contact Us For Availability

Glide, Front (2) WPL 3149257 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

21

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

21

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Door (2) WPL 308127 Contact Us For Availability

22

Protector, Drawer (2) WPL 309329 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Support, Channel (L.H.) WPL 313196 Contact Us For Availability

24

Support, Channel (R.H.) WPL 313197 Contact Us For Availability

26

Bracket, Rail (2) WPL 307981 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability

28

Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability

28

Plate, Service WPL 307972 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Cover, Rear WPL 3148975 Contact Us For Availability

31

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

34

Oven Rack (2) WPL 308173 Contact Us For Availability

35

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

35

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

35

Screw (2) WPL 98884 Contact Us For Availability

36

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

36

Bracket, Service WPL 3150190 Contact Us For Availability

37

Ground Strap WPL 308498 Contact Us For Availability

37

Clip WPL 313660 Contact Us For Availability

38

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

39

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

39

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

40

16515 Whirlpool Clip Backorder WPL 16515 $11.62

41

340184 Whirlpool Screw Backorder WPL 340184 $9.59

41

Block, Balance WPL 312804 Contact Us For Availability

42

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

42

Insulation, Oven Wrap WPL 309961 Contact Us For Availability

42

Plug, Button (2) WPL 3169107 Contact Us For Availability
