Model Whirlpool RF306BXVW0 – Common Parts & Diagrams

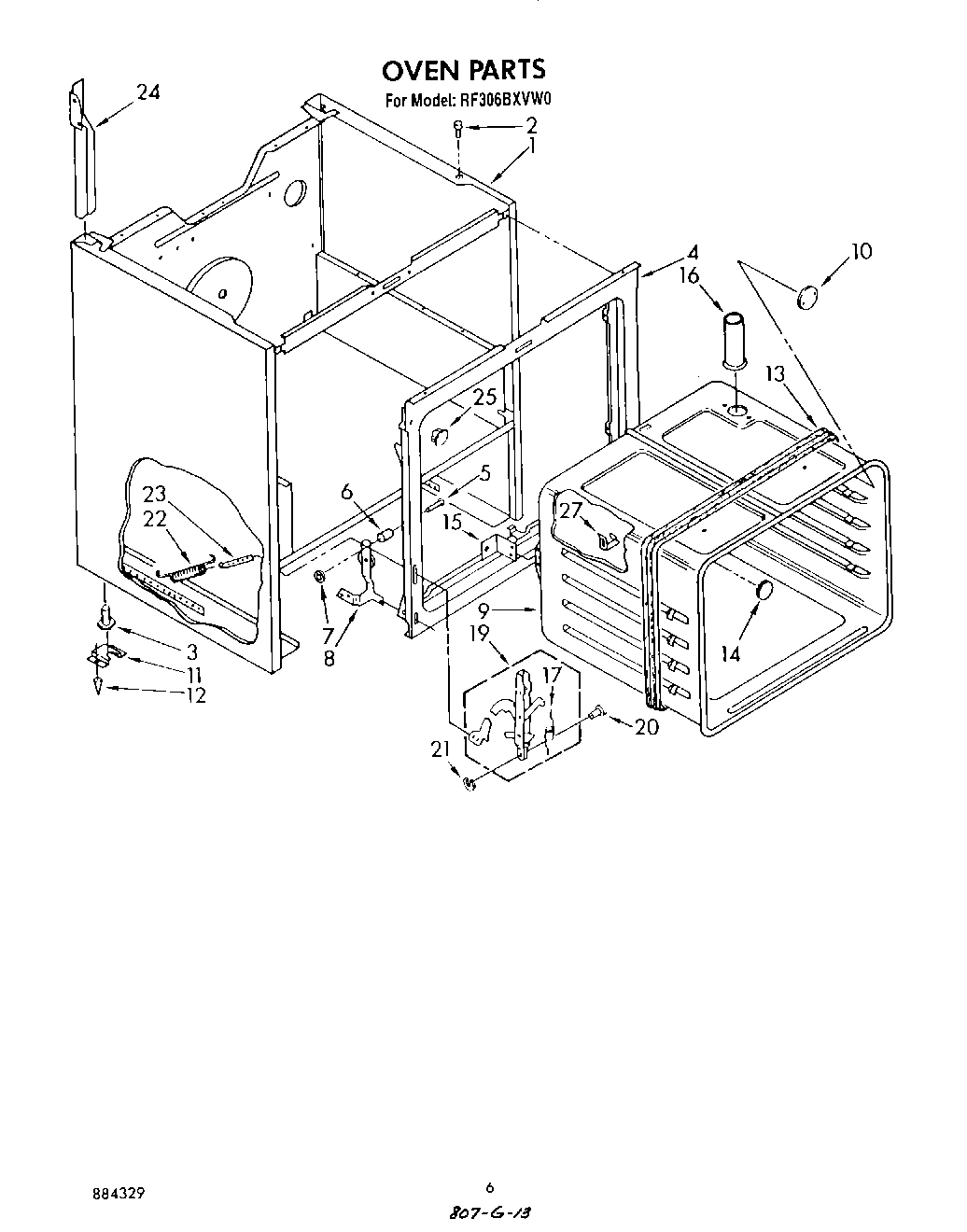

05 - OVEN

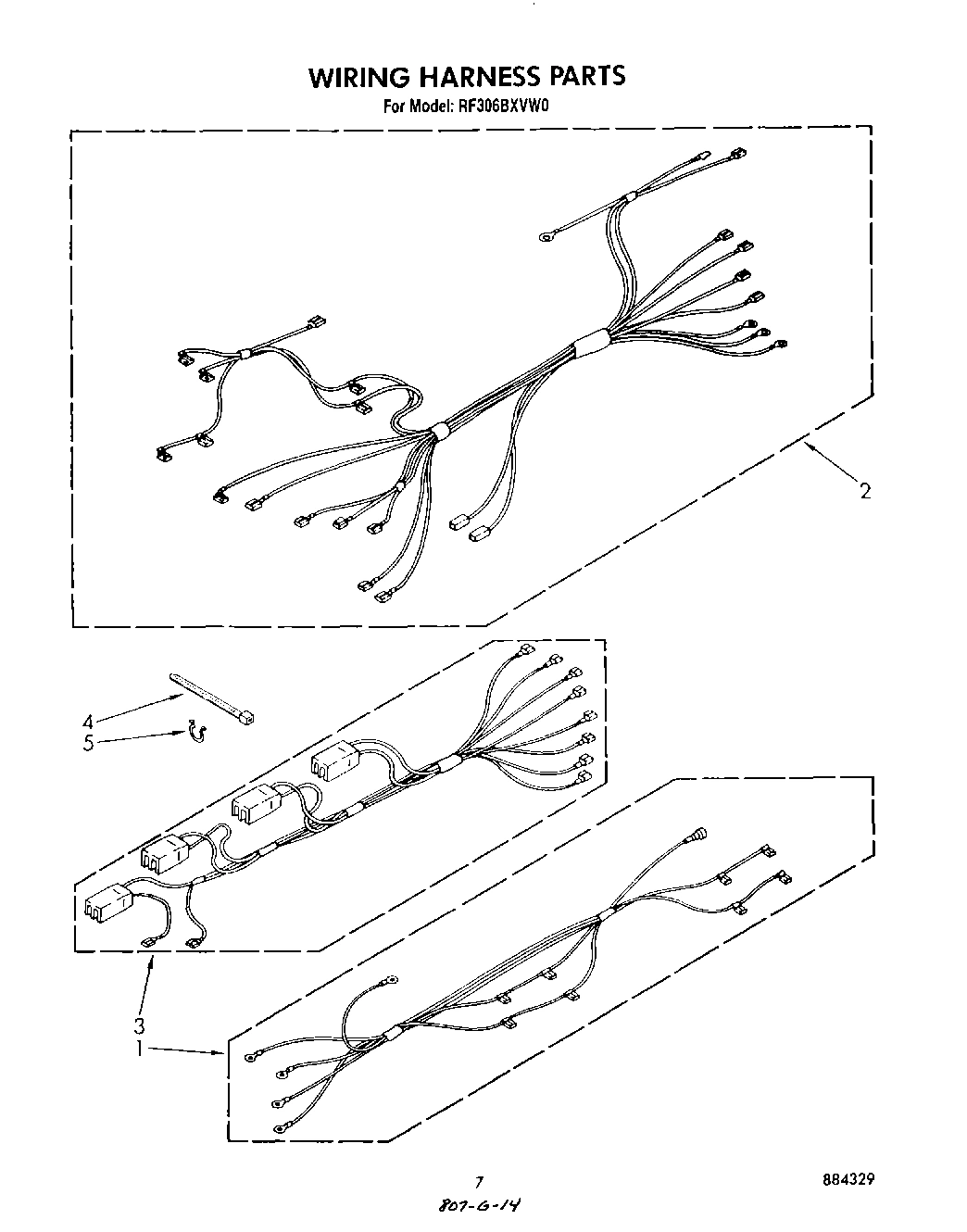

06 - WIRING HARNESS
01 - COOKTOP
03 - CONTROL PANEL
02 - DOOR
04 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool RF306BXVW0
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148533 WPL LIT3148533 Contact Us For Availability
WPL LIT3148614 WPL LIT3148614 Contact Us For Availability
WPL LIT3150445 WPL LIT3150445 Contact Us For Availability
WPL LIT884329 WPL LIT884329 Contact Us For Availability
1
Screw, 10A x 1/2 (5) WPL 3149333 Contact Us For Availability
1
Cover, Rear WPL 313195 Contact Us For Availability
1
Liner, Door WPL 3170709 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Cooktop (White) WPL 3170981 Contact Us For Availability
2
Cooktop (Almond) WPL 3170982 Contact Us For Availability
2
Thermostat, Oven WPL 661150 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
3
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
3
Bracket, Cooktop WPL 307965 Contact Us For Availability
3
Clamp, Tube WPL 313570 Contact Us For Availability
3
Panel, Door (Black Glass) WPL 3148186 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Switch, Selector WPL 3150430 Contact Us For Availability
4
Hinge Pin, Cooktop WPL 307966 Contact Us For Availability
4
Frame, Panel WPL 3148235 Contact Us For Availability
5
Shield, Wiring WPL 307973 Contact Us For Availability
5
Top, Door WPL 3148223 Contact Us For Availability
5
Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability
6
Box, Burner WPL 3149194 Contact Us For Availability
6
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
6
End Cap R.H. WPL 313230 Contact Us For Availability
6
End Cap L.H. WPL 313231 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Medallion (4) WPL 309926 Contact Us For Availability
7
End Trim L.H. WPL 313190 Contact Us For Availability
7
End Trim R.H. WPL 313191 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Timer, Clock WPL 313063 Contact Us For Availability
8
Handle, Door WPL 3148228 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
9
Spring WPL 313311 Contact Us For Availability
9
Protector, Drawer Side WPL 309329 Contact Us For Availability
10
Knob, Control WPL 330176 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Drawer, Utility Slide (2) WPL 327887 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Light, Indicator (2) (Includes No. 22) WPL 313102 Contact Us For Availability
12
Rod, Cooktop WPL 3148659 Contact Us For Availability
13
Seal WPL 309107 Contact Us For Availability
13
Nut (4) WPL 814102 Contact Us For Availability
13
Glide, Rear (2) WPL 307980 Contact Us For Availability
14
Light, Indicator WPL 314031 Contact Us For Availability
14
Panel Drawer (White) WPL 307935 Contact Us For Availability
14
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Handle, Drawer WPL 313337 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
WPL 261582 WPL 261582 Contact Us For Availability
16
WPL 261886 WPL 261886 Contact Us For Availability
16
WPL 261887 WPL 261887 Contact Us For Availability
16
WPL 261888 WPL 261888 Contact Us For Availability
16
WPL 261889 WPL 261889 Contact Us For Availability
16
WPL 261890 WPL 261890 Contact Us For Availability
16
WPL 261891 WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 312804 WPL 312804 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
17
Rack, Literature WPL 357645 Contact Us For Availability
19
Control Panel (Screw, 8-18 x 5/8 (4)) WPL 312604 Contact Us For Availability
19
Control Panel (White) WPL 3147373 Contact Us For Availability
19
Control Panel (Almond) WPL 3147374 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Lens, Amber (3) WPL 313101 Contact Us For Availability
23
Knob, Thermostat (4) WPL 330177 Contact Us For Availability
24
Screw WPL 310410 Contact Us For Availability
24
Knob, Selector WPL 330180 Contact Us For Availability
25
Shield (2) WPL 313608 Contact Us For Availability
× ![]()
